Master-Bilt DMS-96 Service Manual

Installation & Operations Manual

Master-Bilt Products

908 Highway 15 North

New Albany, MS 38652

Phone: (800) 684-8988

Rev:10-18-05

PN 282-90000

TABLE OF CONTENTS

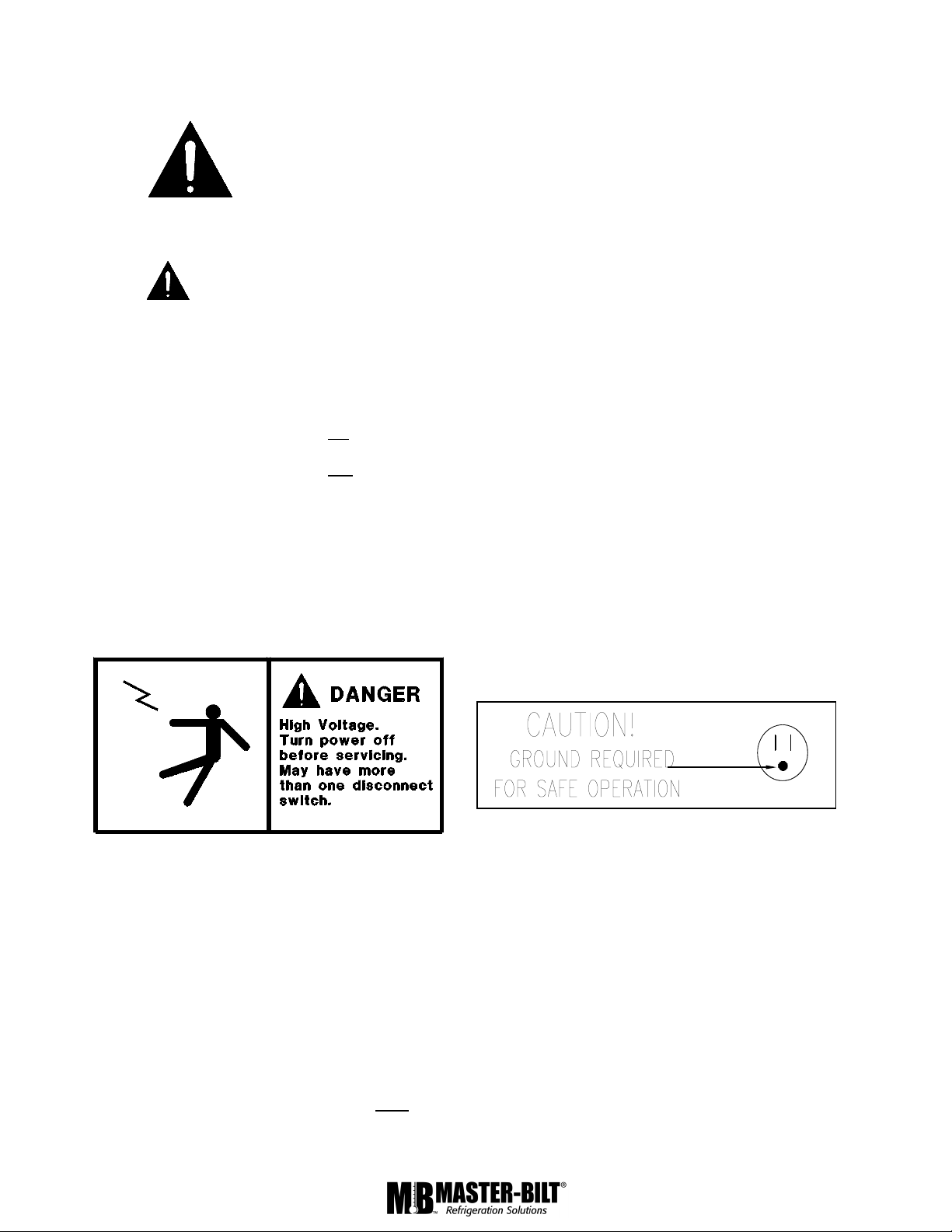

INTRODUCTION………………………………….…………………………………………………………………... 4 STORE CONDITIONS…………………………….……………….…..…………………………………………….. 4 WARNING LABELS AND SAFETY INSTRUCTIONS………..…..……………………………………………… 5 PRE-INSTALLATION INSTRUCTIONS………………………..…..………………………………….…………… 6 INSPECTION FOR SHIPING DAMAGE…………………………………………………….…………… 6

INSTALLATION INSTRUCTIONS………………………………………………………………………………….. 6

GENERAL INSTRUCTIONS………………………………………………………………………………. 6

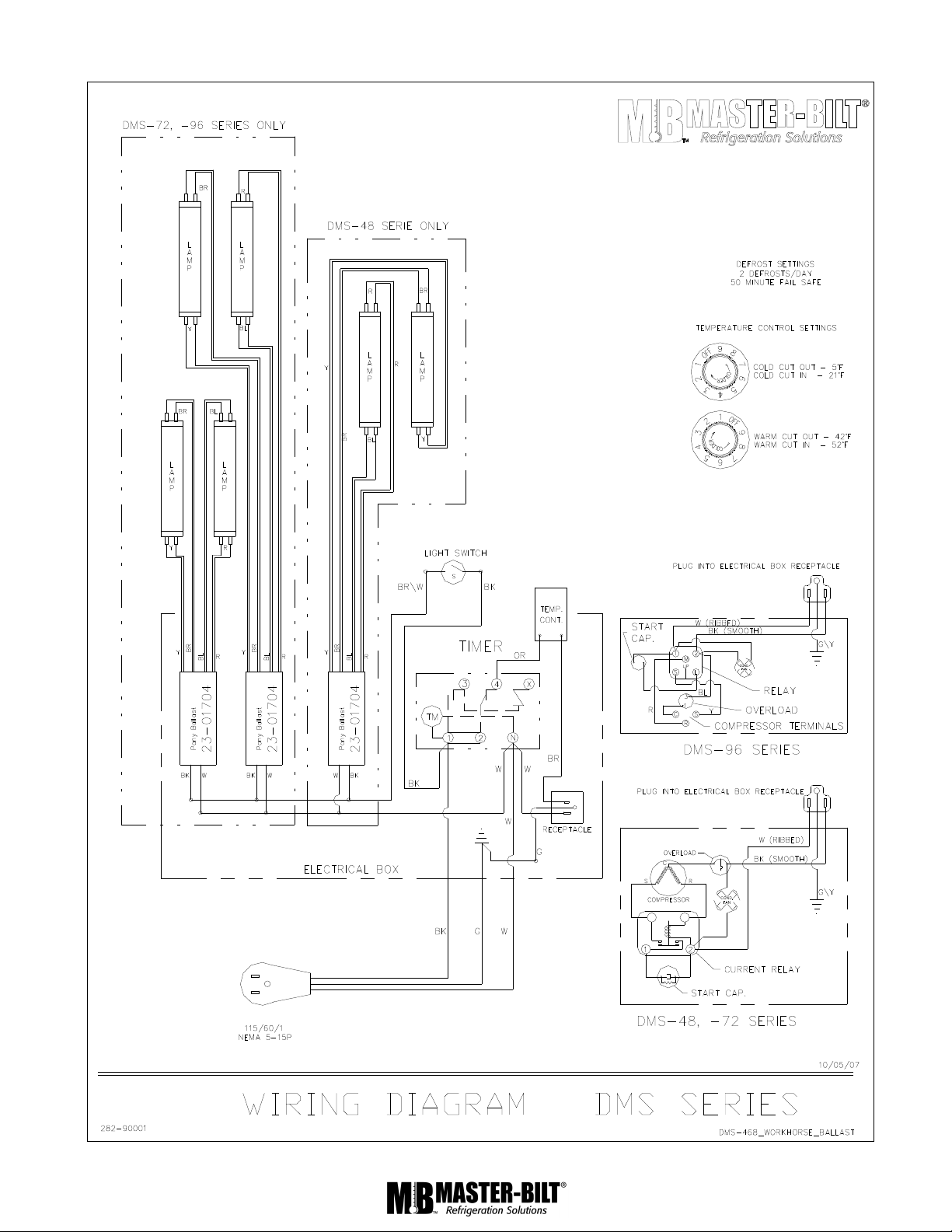

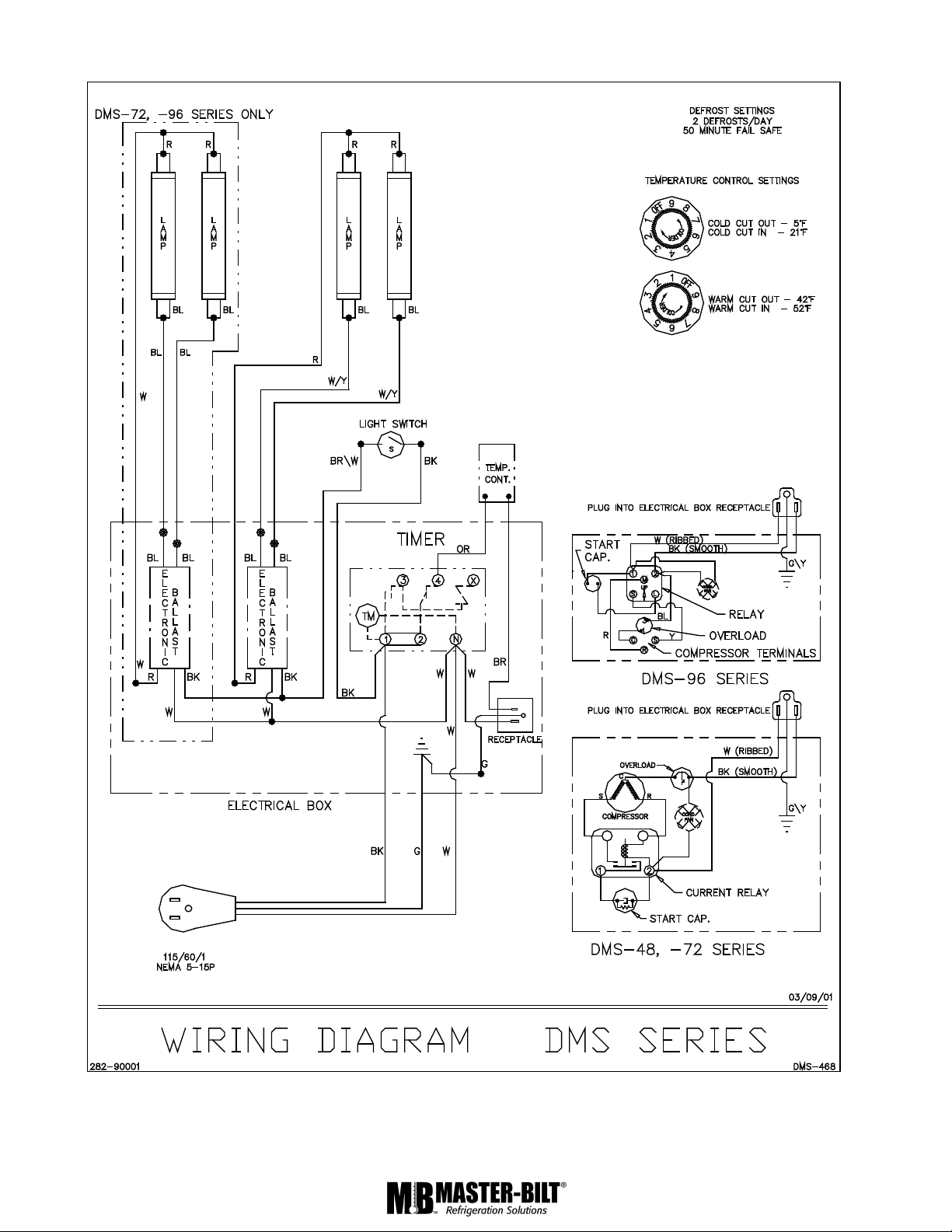

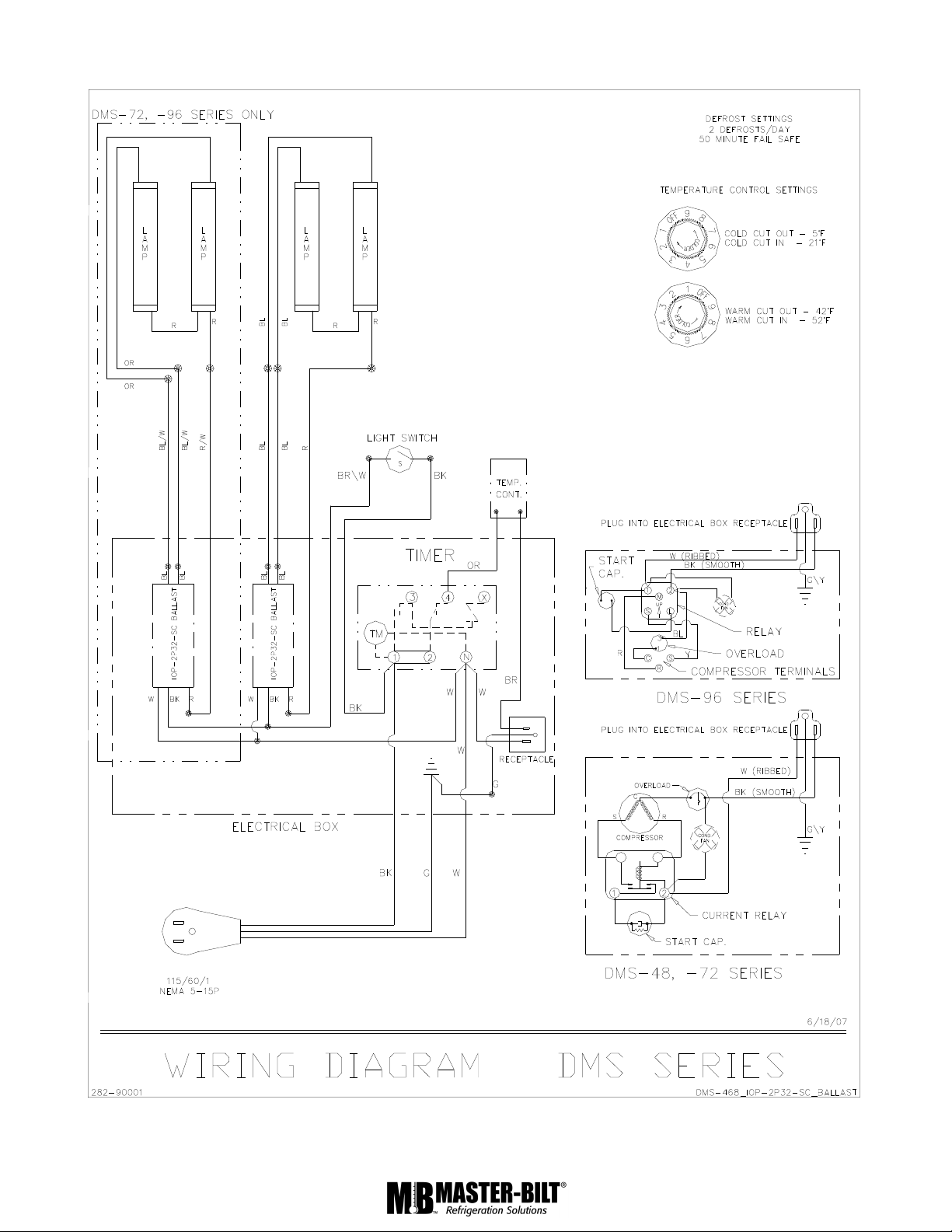

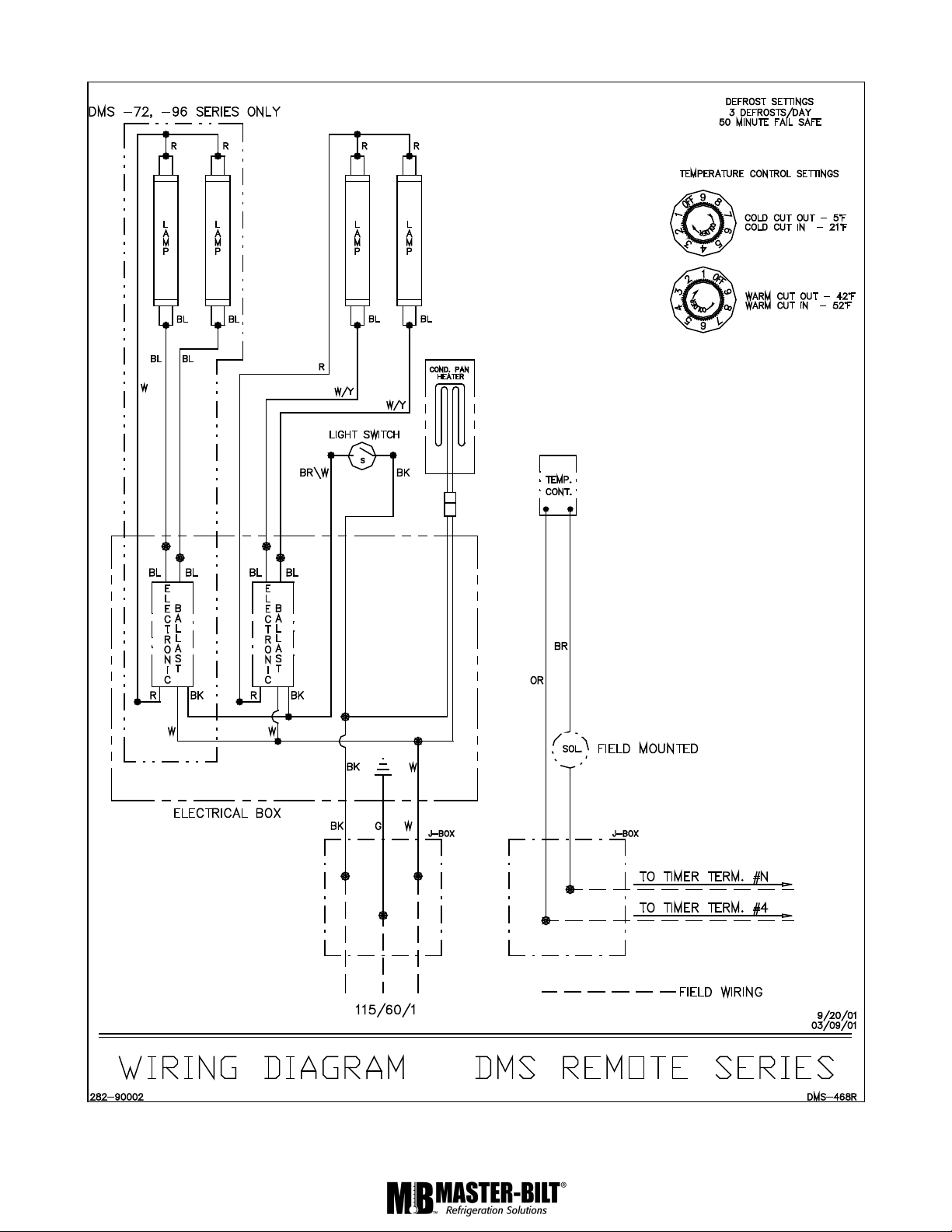

NOTICE TO STORE OWNERS/ MANERGERS…………………………………………………………………... 7 LOCATION…………………………………………………………………………………………………………….. 7 ELECTRICAL………………………………………………………………………………………………………….. 7 SERVICE INSTRUCTIONS (Trouble Shooting Guide)…………………………………………………………..8 FINAL CHECK LIST….………………………………………………………………………………………………. 9 SALE AND DISPOSAL………………………………………………………………………………………………..9 MASTER-BILT PART NUMBES…………………………………………………………………………………….10 WIRING DIAGRAMS………………………………………………………………………………………………11-13

INTRODUCTION

Thank you for purchasing a Master-Bilt cabinet. This manual contains important instructions for installing, using and servicing a Master-Bilt DMS Series case. A parts list is included in with this manual. Read all these documents carefully before installing or servicing your equipment.

STORE CONDITIONS

The Master-Bilt DMS cases are designed to operate in the controlled environment of an air conditioned store. The store temperature should be at or below 80°F and a relative humidity of 55% or less. At higher temperature or humidity conditions, the performance of these cases may be affected and the capacity diminished. It is not uncommon in a newly constructed store for the temperature and humidity to be above design conditions. These excessive conditions may produce sweating in the case until the store is operational and the ambient environment is more desirable.

The Master-Bilt DMS cabinets should not be positioned where it is directly exposed to rays of sun or near a direct source of radiant heat or air flow. This will adversely affect the case and will result in poor performance.

These cases are designed for 0” clearance at each end and open on the front, back and top.

NOTICE

Read this manual before installing your cabinet. Keep the manual and refer to it before doing any service on the equipment. Failure to do so could result in personal injury or damage to the cabinet.

DANGER

Improper or faulty hook-up of electrical components of the refrigeration units can result in severe injury or death.

All electrical wiring hook-ups must be done in accordance with all applicable local, regional or national standards.

NOTICE

Installation and service of the refrigeration and electrical components of the cabinet must be performed by a refrigeration mechanic and/or a licensed electrician.

The portions of this manual covering refrigeration and electrical components contain technical instructions intended only for persons qualified to perform refrigeration and electrical work. This manual cannot cover every installation, use or service situation. If you need additional information, call or write us:

Customer Service Department Master-Bilt Products Highway 15 North New Albany, MS 38652 Phone (800) 684-8988 Fax (800) 684-8988
