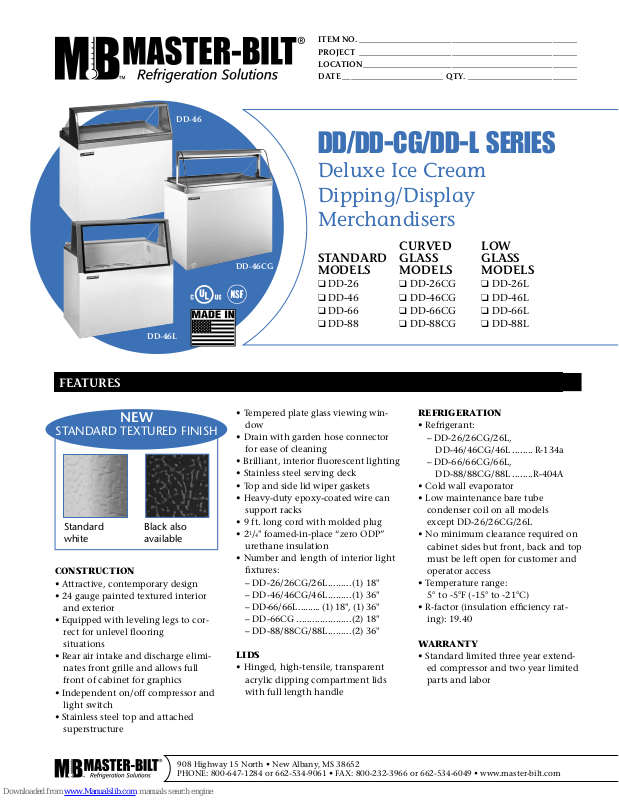

DD-46L
DD-46
DD-46CG
ITEM NO. ______________________________________________________
PROJECT ______________________________________________________
LOCATION _____________________________________________________
DATE _________________________ QTY. ___________________________
DD/DD-CG/DD-L SERIES
Deluxe Ice Cream
Dipping/Display
Merchandisers
CURVED LOW
STANDARD GLASS GLASS
MODELS MODELS MODELS
❑ DD-26 ❑ DD-26CG ❑ DD-26L
❑ DD-46 ❑ DD-46CG ❑ DD-46L
❑ DD-66 ❑ DD-66CG ❑ DD-66L
❑ DD-88 ❑ DD-88CG ❑ DD-88L
FEATURESFEATURES
NEW
STANDARD TEXTURED FINISH
Standard
white
CONSTRUCTION
• Attractive, contemporary design
• 24 gauge painted textured interior
and exterior
• Equipped with leveling legs to correct for unlevel ooring
situations
• Rear air intake and discharge eliminates front grille and allows full
front of cabinet for graphics
• Independent on/off compressor and
light switch
• Stainless steel top and attached
superstructure
Black also
available
• Tempered plate glass viewing window
• Drain with garden hose connector
for ease of cleaning
• Brilliant, interior uorescent lighting
• Stainless steel serving deck
• Top and side lid wiper gaskets
• Heavy-duty epoxy-coated wire can
support racks
• 9 ft. long cord with molded plug
1
• 2
/4" foamed-in-place “zero ODP”
urethane insulation
• Number and length of interior light
xtures:
– DD-26/26CG/26L .........(1) 18"
– DD-46/46CG/46L .........(1) 36"
– DD-66/66L ......... (1) 18", (1) 36"
– DD-66CG .....................(2) 18"
– DD-88/88CG/88L .........(2) 36"
LIDS
• Hinged, high-tensile, transparent
acrylic dipping compartment lids
with full length handle
REFRIGERATION
• Refrigerant:
– DD-26/26CG/26L,
DD-46/46CG/46L ........ R-134a
– DD-66/66CG/66L,
DD-88/88CG/88L ........R-404A
• Cold wall evaporator
• Low maintenance bare tube
condenser coil on all models
except DD-26/26CG/26L
• No minimum clearance required on
cabinet sides but front, back and top
must be left open for customer and
operator access
• Temperature range:
5° to -5°F (-15° to -21°C)
• R-factor (insulation efciency rating): 19.40
WARRANTY
• Standard limited three year extended compressor and two year limited
parts and labor
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
DD/DD-CG/DD-L SERIES
DELUXE ICE CREAM DIPPING/DISPLAY MERCHANDISERS
OPTIONS
❑ Rear service doors for DD-46, DD-66 and DD-88 models (factory installed)
❑ Custom colors
❑ Removable can holders with white overnight can covers
❑ Dipper well
❑ Removable frost shields
❑ Leg kit
❑ Casters
❑ Lid locking kit (less locks)
❑ Flavor identication tabs (for DD and DD-CG models only)
❑ Ice cream pan rack assembly (pans not included)
REAR SERVICE DOOR FOR DD-46, DD-66 AND DD-88
FROST SHIELDS LID LOCKING KIT
FLAVOR IDENTIFICATION TAB
CAN HOLDERS
LISTINGS
HOOKUP
TECHNICAL SPECIFICATIONS
DIMENSIONS
(in.)
MODEL
DD-26/26CG/26L 261/2273/4* 673 705 * 115 7.4 1/3 4/0 3.5 38.0 240/109
DD-46/46CG/46L 47
DD-66/66CG/66L 69
DD-88/88CG/88L 90
*Height of standard and low glass models: 50" (1270mm), curved glass models: 52" (1321mm). **Capacities in 9
†
Measured to the load line level.
3
/4273/4* 1213 705 * 115 7.5 1/2 8/4 9.6 54.0 370/168
1
/4273/4* 1759 705 * 115 9.7 1/2 12/8 16.0 76.0 495/225
3
/4273/4* 2305 705 * 115 11.5 3/4 16/12 22.5 97.0 600/273
DIMENSIONS
(mm)
VOLTS AMPS
UNIT
H.P.
CAN CAP.**
DISPLAY/
STORAGE
CAP.
CU. FT.
SHIP
SHIP
†
CU. FT.
1
/2" diameter, 3 gallon cans.
WT.
LB/KGL D H L D H
PLAN VIEW
STANDARD
SIDE VIEW
STANDARD & CURVED
GLASS ELEVATION VIEW
CURVED GLASS
SIDE VIEW
Via plug in, 9 foot long, exible 3 wire
14/3 cord with molded plug. Drain hookup
has standard garden hose connection.
LOW GLASS
ELEVATION VIEW
LOW GLASS
SIDE VIEW
NEMA 5-15P
DD/DD-CG/DD-L SERIES
BID SPECIFICATIONS
DELUXE ICE CREAM DIPPING/DISPLAY MERCHANDISERS
Item no. DD-_______________
Provide_______________( )
Deluxe Ice Cream Dipping/Display Merchandiser(s), Master-Bilt
model no. DD-__________.
Cabinet will feature textured
nish on interior and exterior.
Cabinet to be provided with independent on/off compressor and
light switch, drain connection,
stainless steel top and superstructure, tempered plated glass
viewing window and interior
uorescent lighting. Cabinet is to
have rear air intake and discharge.
Standard leveling legs provided to
correct for unlevel ooring situations. Hanging frost shields with
mounting screws offered as an option (consult your Master-Bilt representative for additional options).
Cabinet will be provided with 9
foot cord and molded plug.
DD-26/26CG/26L and DD46/46CG/46L will use R-134a refrigerant while DD66/66CG/66L
and DD-88/88CG/88L will use
R-404A refrigerant. The temperature range will be 5° to -5°F (-15°
to -21°C). All models except DD26/26CG/26L to be supplied with
a refrigeration system containing
low maintenance bare tube condenser coil.
Cabinet to have standard limited
three year extended compressor
warranty and two year limited
parts and labor warranty. Cabinet
to be UL, C-UL and NSF listed.
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
©Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
274-3/11-web
