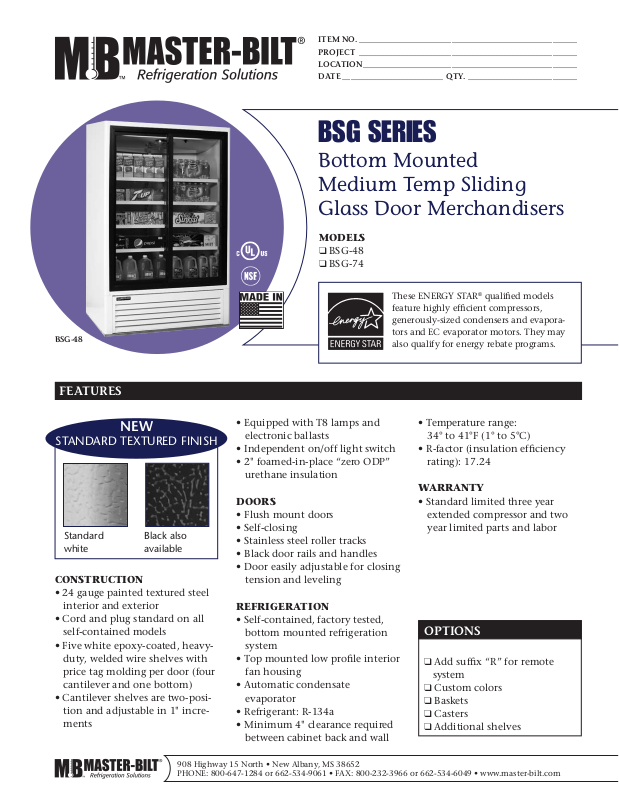

Master-Bilt BSG-74 User Manual

BSG-48

ITEM NO. ______________________________________________________

PROJECT ______________________________________________________

LOCATION _____________________________________________________

DATE _________________________ QTY. ___________________________

BSG SERIES

Bottom Mounted Medium Temp Sliding Glass Door Merchandisers

MODELS

❑ BSG-48 ❑ BSG-74

These ENERGY STAR® qualied models feature highly efcient compressors, generously-sized condensers and evaporators and EC evaporator motors. They may also qualify for energy rebate programs.

FEATURES

NEW

STANDARD TEXTURED FINISH

Standard white

CONSTRUCTION

• 24 gauge painted textured steel interior and exterior

• Cord and plug standard on all self-contained models

• Five white epoxy-coated, heavyduty, welded wire shelves with price tag molding per door (four cantilever and one bottom)

• Cantilever shelves are two-position and adjustable in 1" increments

Black also available

• Equipped with T8 lamps and electronic ballasts

• Independent on/off light switch

• 2" foamed-in-place “zero ODP” urethane insulation

DOORS

• Flush mount doors

• Self-closing

• Stainless steel roller tracks

• Black door rails and handles

• Door easily adjustable for closing tension and leveling

REFRIGERATION

• Self-contained, factory tested, bottom mounted refrigeration system

• Top mounted low prole interior fan housing

• Automatic condensate evaporator

• Refrigerant: R-134a

• Minimum 4" clearance required between cabinet back and wall

• Temperature range: 34° to 41°F (1° to 5°C)

• R-factor (insulation efciency rating): 17.24

WARRANTY

• Standard limited three year extended compressor and two year limited parts and labor

OPTIONS

❑ Add sufx “R” for remote

system

❑ Custom colors ❑ Baskets ❑ Casters ❑ Additional shelves

908 Highway 15 North • New Albany, MS 38652 PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com

BSG SERIES

LISTINGS

HOOKUP

BID SPECIFICATIONS

DRAIN CENTER BACK

33-7/8"

BSG-48: 48" BSG-74: 74"

15"

79"

60"

33-7/8"

OVER HARDWARE

22"

52"

BSG-48: 52" BSG-74: 78"

BOTTOM MOUNTED MEDIUM TEMP SLIDING GLASS DOOR MERCHANDISERS

TECHNICAL SPECIFICATIONS

DIMENSIONS

(in.)

MODEL

BSG-48 52 337/879 1321 860 2007 115 7.5 1/3 2 49.0 117.0 755/343 BSG-74 78 337/879 1981 860 2007 115 11.3 1/2 3 75.5 168.0 1025/466

DIMENSIONS

(mm)

VOLTS

AMPS UNIT H.P.

NO. OF

DOORS

CAP.

CU. FT.

SHIP

CU. FT.

SHIP WT.

(LB/KG)L D H L D H

PLAN VIEW SIDE VIEW ELEVATION VIEW

Item no. BSG- _____________________ . Provide _________( ) Bottom Mounted Medium Temp Sliding Glass Door Merchandiser(s), Master-Bilt model no. BSG- ____ .

Merchandiser will feature textured nish on interior and exterior and will be provided with top mounted low prole interior fan housing, automatic conden-

NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity. All specications subject to change without notice.

Via plug in, 9 foot long, exible three wire 14/3 cord with molded plug.

sate evaporator, T8 bulbs, independent on/ off light switch and black door rails and handles. Merchandiser also to be equipped with ve white epoxy-coated shelves (four cantilever and one bottom) with price tag molding per door.

mounted, self-contained and use R-134a refrigerant. The temperature range will be

The refrigeration system is to be bottom

34° to 41°F (1° to 5°C).

Merchandiser to have standard limited three year extended compressor warranty and two year limited parts and labor warranty.

Merchandiser to be UL, C-UL and NSF listed as well as ENERGY STAR qualied.

NEMA 5-15P

908 Highway 15 North • New Albany, MS 38652 PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com

1366-11/11-web
