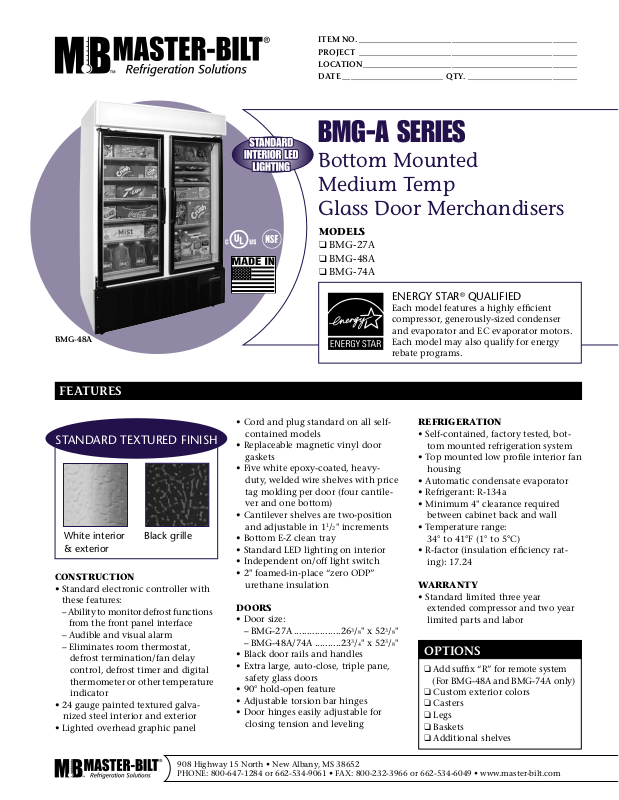

Master-Bilt BMG-27A User Manual
BMG-48A
ITEM NO. ______________________________________________________
PROJECT ______________________________________________________
LOCATION _____________________________________________________
DATE _________________________ QTY. ___________________________
BMG-A SERIES
Bottom Mounted
Medium Temp
Glass Door Merchandisers
MODELS
❑ BMG-27A
❑ BMG-48A
❑ BMG-74A
ENERGY STAR® QUALIFIED
Each model features a highly efcient
compressor, generously-sized condenser
and evaporator and EC evaporator motors.
Each model may also qualify for energy
rebate programs.
FEATURES
STANDARD TEXTURED FINISH
White interior
& exterior
CONSTRUCTION
• Standard electronic controller with
these features:
– Ability to monitor defrost functions
from the front panel interface
– Audible and visual alarm
– Eliminates room thermostat,
defrost termination/fan delay
control, defrost timer and digital
thermometer or other temperature
indicator
• 24 gauge painted textured galva-
nized steel interior and exterior
• Lighted overhead graphic panel
Black grille
• Cord and plug standard on all selfcontained models
• Replaceable magnetic vinyl door
gaskets
• Five white epoxy-coated, heavyduty, welded wire shelves with price
tag molding per door (four cantilever and one bottom)
• Cantilever shelves are two-position
and adjustable in 1
• Bottom E-Z clean tray
• Standard LED lighting on interior
• Independent on/off light switch
• 2" foamed-in-place “zero ODP”
urethane insulation
DOORS
• Door size:
– BMG-27A ..................26
– BMG-48A/74A ..........23
• Black door rails and handles
• Extra large, auto-close, triple pane,
safety glass doors
• 90° hold-open feature
• Adjustable torsion bar hinges
• Door hinges easily adjustable for
closing tension and leveling
1
/2" increments
3
/8" x 523/8"
3
/4" x 523/8"
REFRIGERATION
• Self-contained, factory tested, bottom mounted refrigeration system
• Top mounted low prole interior fan
housing
• Automatic condensate evaporator
• Refrigerant: R-134a
• Minimum 4" clearance required
between cabinet back and wall
• Temperature range:
34° to 41°F (1° to 5°C)
• R-factor (insulation efciency rating): 17.24
WARRANTY
• Standard limited three year
extended compressor and two year
limited parts and labor
OPTIONS
❑
Add sufx “R” for remote system
(For BMG-48A and BMG-74A only)
❑ Custom exterior colors
❑ Casters
❑ Legs
❑ Baskets
❑ Additional shelves
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
BMG-A SERIES
LISTINGS
HOOKUP
BID SPECIFICATIONS
32" 30"
79"
79"
60"
BOTTOM MOUNTED MEDIUM TEMP
GLASS DOOR MERCHANDISERS
TECHNICAL SPECIFICATIONS
DIMENSIONS
(in.)
MODEL
BMG-27A 31 341/479 787 870 2007 115 6.5 1/5 1 27.5 79.0 520/236
1
BMG-48A 52 34
BMG-74A 78 341/479 1981 870 2007 115 11.3 1/2 3 75.5 168.0 1025/466
*Depth includes door handle and rear drainline.
/479 1321 870 2007 115 7.5 1/3 2 49.0 117.0 755/343
DIMENSIONS
(mm)
VOLTS AMPS
UNIT
H.P.
NO. OF
DOORS
CAP.
CU. FT.
SHIP
CU. FT.
SHIP WT.
(LB/KG)L D* H L D* H
PLAN VIEW ELEVATION VIEW SIDE VIEW
Item no. BMG-____ ___A.
Provide ( ) Bottom Mounted Medium Temp Glass Door Merchandiser(s),
Master-Bilt model no. BMG-______A.
Merchandiser will feature textured nish on interior and exterior and will be
equipped with an electronically controlled
monitoring system. Merchandiser will
also be provided with a lighted overhead
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specications subject to change without notice.
Via plug in, 10 foot long, exible three
wire 14/3 cord with molded plug.
graphic panel, standard LED lighting on
interior, adjustable torsion bar hinges, top
mounted low prole interior fan housing, automatic condensate evaporator,
independent on/off light switch and black
door rails and handles. Merchandiser also
equipped with ve white epoxy-coated
shelves (four cantilever and one bottom)
with price tag molding per door.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
©Master-Bilt Products division of Standex International, Inc. All rights reserved. Printed in U.S.A.
The refrigeration system is to be bottom
mounted, self-contained and use R-134a refrigerant. The temperature range will be 34°
to 41°F (1° to 5°C).
Merchandiser to have standard limited
three year extended compressor warranty and
two year limited parts and labor warranty.
Merchandiser to be UL, C-UL and NSF
listed as well as ENERGY STAR qualied.
NEMA 5-15P
