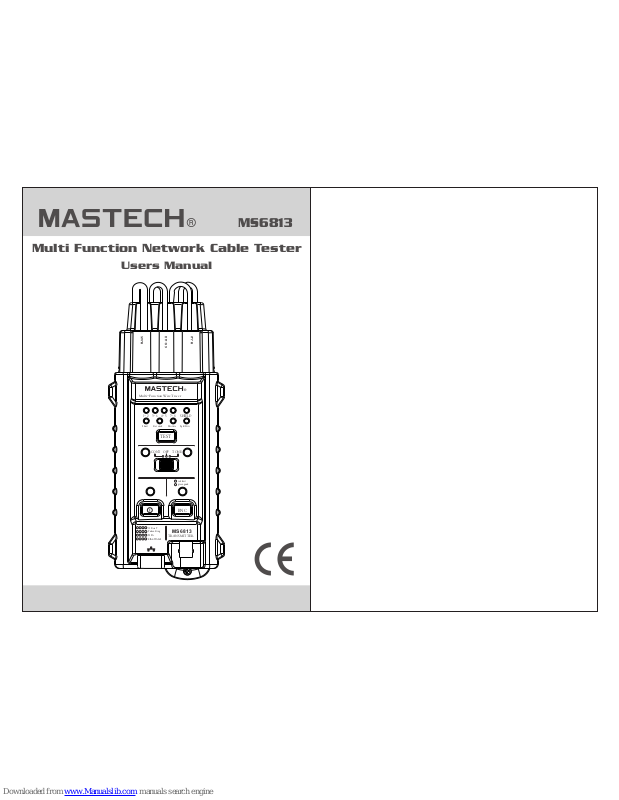

Page 1
MS6813
Multi Function Network Cable Tester
Users Manual
CO-A X
RJJJ
RJ45
Multi-Function Wire Tracer
SHIELD
7-8
4-53-61-2
TEST
BNC
Short
Reversed
Split Pairs
Miswire
OFF
CONT
TONE
red fauit
green good
MS6 813
TRAN SMITT ER
10 Base T
Token Ring
258A
EIA&TIA568
Page 2
Page 3
01 02
To Avoid Possible Electric Shock Or
Personal Injury:
Out of Box
• Use the Tester only a s specifi ed in this ma nual
or the pr otectio n provide d by the Teste r might
be impa ired.
• Do not pl ace the Test er near exp losive ga s or vapor.
• Read th e Users Man ual befor e use and fol low all
safet y instruc tions.
Check t he Tester an d accesso ries thor oughly be fore
using t he Tester. Co ntact you r local dis tributo r if the
Tester or a ny compon ents are da maged or ma lfuncti on.
Limited Warranty And Limitation
Of Liability
This MS 6813 prod uct from Ma stech wil l be free fro m
defec ts in mater ial and wor kmanshi p for one yea r
from th e date of pur chase. This warra nty does no t
cover f uses, dis posable b atterie s, or damag e from
accid ent, negl ect, misu se, alter ation, co ntamina tion,
or abno rmal cond itions of o peratio n or handli ng.
Resel lers are no t authori zed to exte nd any othe r
warra nty on Mast ech's beh alf. To obta in servic e during
the war ranty per iod, cont act your ne arest Mas tech
autho rized ser vice cent er to obtai n return au thoriza tion
infor mation, t hen send th e product t o that Serv ice
Cente r with a desc ription o f the probl em.
Accessories
• One Use rs Manual
• 1 9V 6F22 B attery
Safety Information
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, PRODUCT DAMAGE OR PERSONAL
INJURY, PLEASE FOLLOW THE SAFETY
INSTRUCTIONS DESCRIBED IN THE USER
MANUAL. READ THE USER MANUALS BEFORE
USING THE TESTER.
WARNIN G
DO NOT PLACE THE TESTER IN ANY
ENVIRONMENT OF HIGH PRESSURE, HIGH
TEMPERATURE, DUST, EXPLOSIVE GAS OR
VAPOR. TO ENSURE SAFE OPERATION AND
LIFE OF THE TESTER, FOLLOW THESE
INSTRUCTIONS.
WARNIN G
Safety Symbols
Important safety message
Conforms to relevant European Union directives
Page 4
Page 5
05 06
1.2 Components and Buttons
A. Transm itter (ma in)
B. Rece iver
C. matc hing box (r emote)
CO-AX
RJJJ
RJ45
Multi-Function Wire Tracer
SHIELD
7-8
4-53-61-2
TEST
BNC
Short
Reversed
Split Pairs
Miswire
OFF
CONT
TONE
red fauit
green good
MS68 13
TRANS MITTE R
10 Base T
Token Ring
258A
EIA&TIA568
20
19
18
22
21
13
3
4
7
10
11
12
1
2
5
9
6
13
14
15
16
17
Page 6
08
2. Using the Tester
2.1 Network Cable Testing
TO AVOID ELECTRICAL SHOCK AND INJURY,
UNPOWER THE CIRCUIT WHILE PERFORMING
TESTS.
WARNIN G
2.1.1 E rror Indi cator
A wire pai r indicat or flashe s (indica tor #13,1 4,15,16 )
indic ates an err or in the con nection . Error ind icator
flash es specif y an error. If m ore than on e wire pair
indic ator flas hes, trou bleshoo t on each cas e until all
the ind icators g o back to GRE EN(Norm al).
Fig.4 SPLIT PAIRS
Fig.3 REVERSED
Fig.2 MISWIRE
Fig.1 SHORT
Page 7
9 10
The Test er only sho ws one type o f error per t est.
Fix one e rror firs t then make s ure to perf orm the tes t
again t o check oth er possib le errors .
Open Ci rcuit: Op en Circui t is not comm only seen
and the refore no i ndicati on is inclu ded in the Tester.
Typica lly there a re 2 to 4 coaxi al cables p airs in the
netwo rk. Corre spondin g indicat ors are off if RJ45
socke ts are not co nnected w ith coaxi al cable pa irs.
User de bugs the ne twork wit h the wire pa ir
indic ators acc ordingl y.
Short C ircuit: s hown in Fig .1.
Miswi red: show n in Fig. 2: tw o pairs of wi res are
conne cted to wro ng termin als.
Rever sed: show n in Fig.3: Tw o wires wit hin the pai r
are rev ersely co nnected t o the pins in t he remote .
Split P airs: sho wn in Fig.4 : Split pai rs occurs w hen
the tip ( positiv e conduct or) and rin g (negati ve
condu ctor) of tw o pairs are t wisted an d interch anged.
Note:
2.1.2 Test Mode
Follo w the steps :
a) Conn ect one of th e wires to RJ 45 transm itter soc ket.
b) Conn ect the oth er end to RJ4 5 receive r socket.
c) Turn th e Tester pow er on.
d) Pres s “TEST” bu tton once t o start tes ting.
e) Duri ng the test p ress “TES T” button a gain to sto p
testi ng.
Examp le: wires p air 1-2 and p air 3-6 are s hort circ uit.
In test m ode, the er ror indic ators wil l show as fol lowing:
• 1-2 and 3 -6 indica tors flas h green lig hts, shor t circuit
indic ator flas h red light .
• 4-5 ind icator sh ows green l ights (no e rror)
• 7-8 ind icator sh ows green l ights (no e rror)
2.1.3 D ebug Mode
In Debu g Mode, det ail of the co nnectio n error is
displ ayed. Con dition of e very pair o f wires is sh own
twice i n order. Wit h the wire pa ir indica tors and er ror
indic ators, th e network c able can be i ndentif ied and
debug ged. Foll ow the step s:
a) Conn ect one end o f wire to RJ4 5 transmi tter sock et.
b) Conn ect the oth er end of wir e to receiv er socket .
c) Powe r on the Teste r, power ind icator is o n.
d) Pres s and hold “T EST” butt on until al l the wire pa irs
and err or indica tors are al l on, relea se the butt on
after ward.
e) Dete rmine the e rror from t he indica tors.
f) If a wir e pair indi cator tur ns green tw ice (one sh ort,
one lon g), and oth er error in dicator s are off, t hen
the wir e pair is in go od condit ion.
g) If the w ire pair ma lfuncti ons, the co rrespon ding
indic ator will f lash once a nd then tur n on (long)
again w ith the err or indica tor on.
h) In deb ugging mo de, press a nd releas e the “TEST ”
butto n to end the de bug.
Page 8
Page 9
13 14
2.4.1 S ending Audio Fre quency Si gnal:
Conne ct both lea ds(“RJ4 5” Adaptor 、 “ BNC”Ada ptor、
“RJ11” Adaptor、 the red l ead and bac k lead) on th e
trans mitter to t he networ k cable (or c onnect th e red lead
to targ et cable an d black lea d to ground d epends on t he
circu it). Turn th e transmi tter swit ch to “TON E” mode and
the ind icator wi ll lights u p. Press an d hold rece iver powe r
butto n, move the r eceiver c lose to the t arget net work to
recei ve signal . Adjust rec eiver vol ume throu gh sensit ivity
switc h.
Use “TONE” mode o n transmi tter alon g with the
recei ver to trac k cable. Co nnect the w ire adapt or to
the tar get netwo rk (or conn ect the red l ead to targ et
cable a nd black le ad to groun d depends o n the circu it).
Switc h to “TONE ” mode on the t ransmit ter, “TONE”
indic ator turn s on. Press a nd hold the p ower butt on
on the re ceiver. Mo ve the rece iver near t he target
netwo rk to recei ve audio fr equency s ignal. The tester
detec ts the dire ction and c ontinui ty of the net work cabl e.
Adjus t receive r volume th rough sen sitivit y switch.
2.4.2 Tr acking Ne twork Cab le
2.5 Telephone Line Modes Test ing
Turn the sw itch on the t ransmit ter to “OFF ” mode.
When th e target te lephone l ine is at wor k, connec t the
red lea d to RING lin e and the bla ck lead to TIP li ne, If,
a) “CON T” indica tor turns g reen, the t elephon e line
is idle .
b) “CON T” indica tor stays o ff, the te lephone l ine is
off- hook.
c) “CON T” indica tor turns g reen alon g with peri odic
red fla sh, the tel ephone li ne is in vibr ate mode.
d) When c onnect re ceiver an tenna to an e xplored
telep hone wire , press and h old the rec eiver pow er
butto n to receiv e the audio s ignal.
2.5.1 D ifferen tiate TIP or RING wir e:
Turn the sw itch on the t ransmit ter to “OFF ”, co nnec t
the cor respond ing wire ad aptor to th e open tele phone
lines i n the netwo rk. If,
a) “CON T” indica tor turns g reen, the r ed lead on th e
trans mitter co nnects to R ING of the te lephone l ine.
b) “CON T” indica tor turns r ed, the red l ead on the
trans mitter co nnects to TIP of the telep hone line .
2.5.2 D etermin e Idle, Vi brate or in u se (off-h ook):
2.4 Network Cable Tracking
TO AVOID ELECTRICAL SHOCK AND INJURY, DO
NOT CONNECT RECEIVER TO ANY AC SIGNAL
LARGER THEN 24V.
WARNIN G
