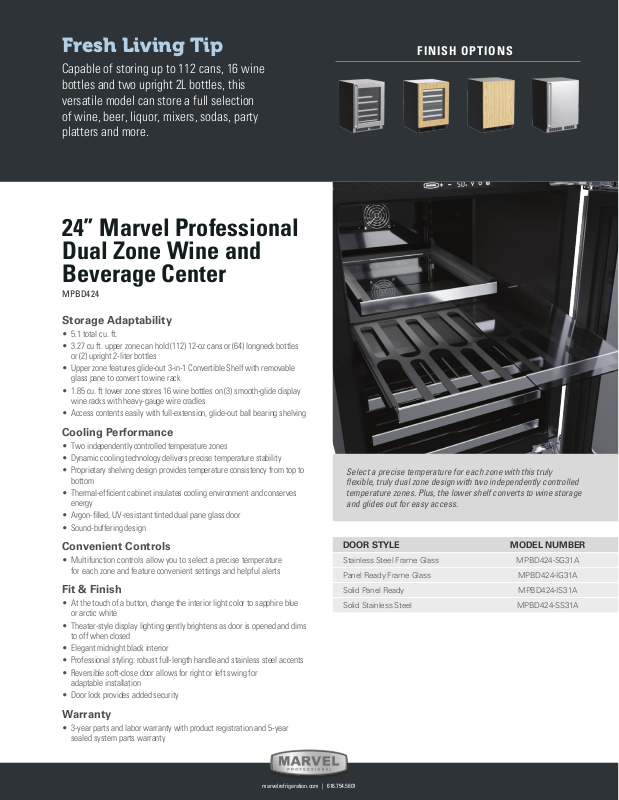

Page 1
Fresh Living Tip
Capable of storing up to 112 cans, 16 wine
bottles and two upright 2L bottles, this
versatile model can store a full selection
of wine, beer, liquor, mixers, sodas, party
platters and more.
24” Marvel Professional
Dual Zone Wine and
Beverage Center
MPBD424
Storage Adaptability
.1 total cu. ft.
• 5
• 3.27 cu ft. upper zone can hold (112) 12-oz cans or (64) longneck bottles
or (2) upright 2-liter bottles
• Upper zone features glide-out 3-in-1 Convertible Shelf with removable
glass pane to convert to wine rack
• 1.85 cu. ft lower zone stores 16 wine bottles on (3) smooth-glide display
wine racks with heavy-gauge wire cradles
• Access contents easily with full-extension, glide-out ball bearing shelving
FINISH OPTIONS
Cooling Performance
• Two independently controlled temperature zones
• Dynamic cooling technology delivers precise temperature stability
• Proprietary shelving design provides temperature consistency from top to
bottom
• Thermal-efcient cabinet insulates cooling environment and conserves
energy
• Argon-lled, UV-resistant tinted dual pane glass door
• Sound-buffering design
Convenient Controls
• Multifunction controls allow you to select a precise temperature
for each zone and feature convenient settings and helpful alerts
Fit & Finish
• At the touch of a button, change the interior light color to sapphire blue
or arctic white
• Theater-style display lighting gently brightens as door is opened and dims
to off when closed
• Elegant midnight black interior
• Professional styling: robust full-length handle and stainless steel accents
• Reversible soft-close door allows for right or left swing for
adaptable installation
• Door lock provides added security
Warranty
• 3-year parts and labor warranty with product registration and 5-year
sealed system parts warranty
Select a precise temperature for each zone with this truly
exible, truly dual zone design with two independently controlled
temperature zones. Plus, the lower shelf converts to wine storage
and glides out for easy access.
DOOR STYLE MODEL NUMBER
Stainless Steel Frame Glass MPBD424-SG31A
Panel Ready Frame Glass MPBD424-IG31A
Solid Panel Ready MPBD424-IS31A
Solid Stainless Steel MPBD424-SS31A
marvelrefrigeration.com | 616.754.5601
Page 2
Thermal-efcient
nished cabinet design
Precise temp
control with alerts
Theater-style dual
color lighting
Full extension
glide-out wine racks
H: 33 3/4" W: 23 7/8” D: 26 7/32” (with handle)
Reversible
soft-close door
Adjustable cantilever
shelving system
Glide-out 3-in-1
convertible shelf
Rough In Dimensions*
“A” “B” “C”
24” 34-1/4” to 35-1/4” 24”
(61 CM) (87 CM to 89.5 CM) (61 CM)
*Stainless steel model dimensions only. For panel-ready models, see the owner’s guide online at marvelrefrigeration.com.
Capacity
Control Type
Sabbath Mode
Temperature Range
Handle Style
Hinge Type
Interior Lighting
Shelving System
Toe Grille Finish
5.1 CU. FT.
Electronic
Yes
Upper Zone: 33° F to 45° F, Lower Zone: 38° F to 65° F
Professional (handle not included on panel-ready models)
Reversible Soft-Close
White + Blue LED
Cantilevered, Smooth Ball-Bearing Glides
Stainless Steel
(Black on Panel-Ready Models)
Cabinet Dimensions*
"D" "E" "F" "G" "H" "J"
23-7/8" 33-5/8" TO 34-5/8" 23-5/8"* 26-1/8"* 47-3/4"* 26-1/2"*
(60.7 CM) (85.4 CM TO 87.9 CM) (60 CM) (66.3 CM) (146.6 CM) (67.3 CM)
Lock
Electrical Requirements
Cord Length
Shipping Dimensions
Shipping Weight
Agency Approval
Refrigerant Type
For comprehensive installation instructions, including panel overlay
details, please visit marvelrefrigeration.com to access the owner’s guide.
marvelrefrigeration.com | 616.754.56 01
Yes
115V / 60 Hz / 15A
6 FT.
28” W x 31” D x 37” H
160 LBS
UL
R600a
