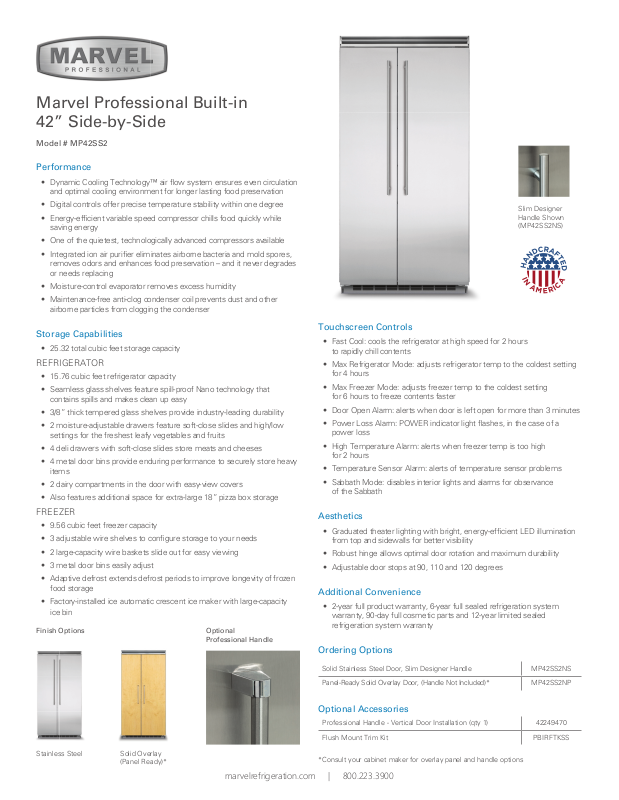

Marvel MP42SS2NP Specifications
Marvel Professional Built-in
42” Side-by-Side
Model # MP42SS2
Performance
• Dynamic Cooling Technology™ air fl ow system ensures even circulation
and optimal cooling environment for longer lasting food preservation
• Digital controls offer precise temperature stability within one degree
• Energy-effi cient variable speed compressor chills food quickly while
saving energy
• One of the quietest, technologically advanced compressors available
• Integrated ion air purifi er eliminates airborne bacteria and mold spores,
removes odors and enhances food preservation – and it never degrades
or needs replacing
• Moisture-control evaporator removes excess humidity
• Maintenance-free anti-clog condenser coil prevents dust and other
airborne particles from clogging the condenser
Slim Designer
Handle Shown
(MP42SS2NS)
Storage Capabilities
• 25.32 total cubic feet storage capacity
REFRIGERATOR
• 15.76 cubic feet refrigerator capacity
• Seamless glass shelves feature spill-proof Nano technology that
contains spills and makes clean up easy
• 3/8” thick tempered glass shelves provide industry-leading durability
• 2 moisture-adjustable drawers feature soft-close slides and high/low
settings for the freshest leafy vegetables and fruits
• 4 deli drawers with soft-close slides store meats and cheeses
• 4 metal door bins provide enduring performance to securely store heavy
items
• 2 dairy compartments in the door with easy-view covers
• Also features additional space for extra-large 18” pizza box storage
FREEZER
• 9.56 cubic feet freezer capacity
• 3 adjustable wire shelves to confi gure storage to your needs
• 2 large-capacity wire baskets slide out for easy viewing
• 3 metal door bins easily adjust
• Adaptive defrost extends defrost periods to improve longevity of frozen
food storage
• Factory-installed ice automatic crescent ice maker with large-capacity
ice bin
Finish Options Optional
Professional Handle
Touchscreen Controls
• Fast Cool: cools the refrigerator at high speed for 2 hours
to rapidly chill contents
• Max Refrigerator Mode: adjusts refrigerator temp to the coldest setting
for 4 hours
• Max Freezer Mode: adjusts freezer temp to the coldest setting
for 6 hours to freeze contents faster
• Door Open Alarm: alerts when door is left open for more than 3 minutes
• Power Loss Alarm: POWER indicator light fl ashes, in the case of a
power loss
• High Temperature Alarm: alerts when freezer temp is too high
for 2 hours
• Temperature Sensor Alarm: alerts of temperature sensor problems
• Sabbath Mode: disables interior lights and alarms for observance
of the Sabbath
Aesthetics
• Graduated theater lighting with bright, energy-effi cient LED illumination
from top and sidewalls for better visibility
• Robust hinge allows optimal door rotation and maximum durability
• Adjustable door stops at 90, 110 and 120 degrees
Additional Convenience
• 2-year full product warranty, 6-year full sealed refrigeration system
warranty, 90-day full cosmetic parts and 12-year limited sealed
refrigeration system warranty
Ordering Options
Stainless Steel
Solid Overlay
(Panel Ready)*
Solid Stainless Steel Door, Slim Designer Handle MP42SS2NS
Panel-Ready Solid Overlay Door, (Handle Not Included)* MP42SS2NP
Optional Accessories
Professional Handle - Vertical Door Installation (qty 1) 42249470
Flush Mount Trim Kit PBIRFTKSS
*Consult your cabinet maker for overlay panel and handle options
marvelrefrigeration.com | 800.223.3900
25-1/2” (64.8 cm)
26-1/4” (66.7 cm)
29-3/16” (74.1 cm)
15.76 cu. ft. (446 liters)
9.56 cu. ft. (271 liters)
25.32 cu. ft. (717 liters)
9”
(22.9 cm)
73-3/8”
(186.4 cm)
82–7/8”
(210.5 cm) min.
anti-tip board &
opening height
84–1/16”
(213.5 cm) max.
anti-tip board &
opening height
41–5/8”
(105.7 cm) min.
to
41–3/4”
(106.0 cm) max.
42”
(106.7 cm)
Flush Mount only
Standar
d Mount
24”
(61.0 cm)
Flush Mount
26-1/2”
(67.3 cm)
Electric Outlet Location
Water Line Entry Area
6–3/4”
(17.1 cm)
7–5/8”
(19.4 cm)
3”
(7.6 cm)
5/8”
(1.6 cm)
5/8”
(1.6 cm)
10–1/2”
(26.7 cm)
5/8”
(1.6 cm)
10–3/4”
(27.3 cm)
1”
(2.5 cm)
3–5/8”
(9.2 cm)
Optional floor
water line entry
42”
(106.7 cm)
Flush Mount only
41–5/8”
(105.7 cm)
See Anti-Tip board installation
6”
(15.2 cm)
9”
(22.9 cm)
Marvel Professional Built-in
42” Side-by-Side
Model # MP42SS2
Width 42” (106.7 cm)
Overall Height
(from bottom)
Depth to front edge
82-3/4” (210.2 cm) min to
84-1/16” (213.5 cm) max
23-3/4” (60.3 cm)
of side trim
Depth to front of
26-1/4” (66.7 cm)
top grille
Depth to front of
handle endcap
Cutout Width 41-5/8” (105.7 cm) min to
29-3/16” (74.1 cm)
41-3/4” (106 cm) max
Cutout Height 82-7/8” (210.5 cm) min to
84-1/16” (213.5 cm) max
Cutout Depth 24” (61.0 cm) min
Electrical
Requirements
115 volt, 60 Hz, 15 amp
dedicated circuit; 3-wire
cord with grounded
3-prong plug attached to
product
Maximum Amp Usage 9.9 amps
Water Requirements 1/4” copper tubing inlet
Length of Power Cord 4 1/2 ft. (137 cm)
Total Capacity 25.32 cu. ft. (717 liters)
Refrigerator Capacity 15.76 cu. ft. (446 liters)
Freezer Capacity 9.56 cu. ft. (271 liters)
Approximate Shipping
Weight
Interior Finish Arctic White
Shelving System Spill-proof sealed 3/8”
Shelf Fronts Arctic White
Other Storage Bottom Storage for Extra-
Interior Lighting White LED Lighting
Toe Grille Finish Stainless Steel
Hinge Zero Clearance
waterline; minimum 20
psi; maximum 120 psi
525 lb. (238 kg)
thick glass shelves
Large Pizza Box
Handle Designer
(Handle not included on
Overlay Models)
Control Type Digital Controls
Temperature Range REFRIGERATOR:
33°F to 43°F
(0.6°C to 6°C)
FREEZER: -5°F to 5°F
(-20.6 °C to -15°C)
Lock No
Finishes Stainless Steel, Overlay
Agency Approvals UL
*Specifi cations subject to change without notice.
This spec sheet is intended only for quick reference.
(Top, Sidewalls)
For complete installation details, consult the owner’s
guide on marvelrefrigeration.com.
marvelrefrigeration.com | 800.223.3900
