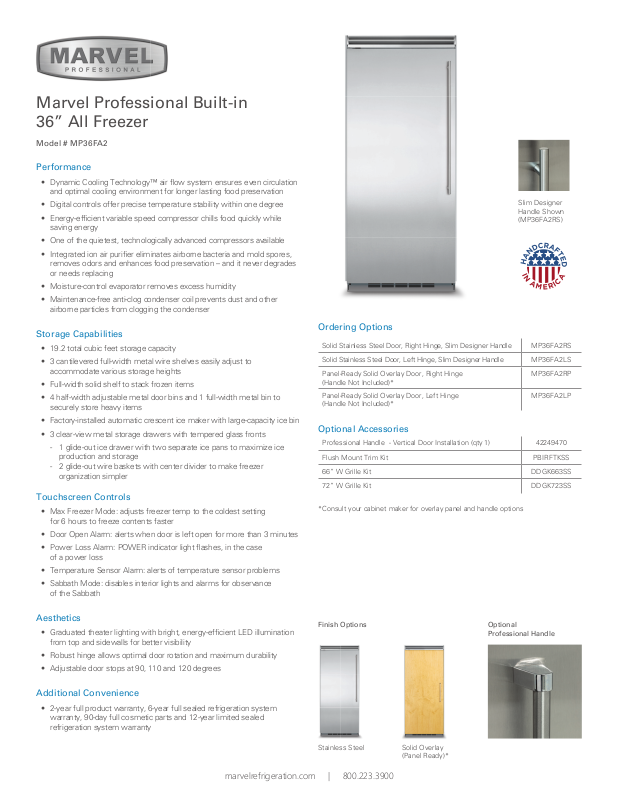

Marvel MP36FA2LP Specifications
Marvel Professional Built-in
36” All Freezer
Model # MP36FA2
Performance
• Dynamic Cooling Technology™ air fl ow system ensures even circulation
and optimal cooling environment for longer lasting food preservation
• Digital controls offer precise temperature stability within one degree
• Energy-ef cient variable speed compressor chills food quickly while
saving energy
• One of the quietest, technologically advanced compressors available
• Integrated ion air puri er eliminates airborne bacteria and mold spores,
removes odors and enhances food preservation – and it never degrades
or needs replacing
• Moisture-control evaporator removes excess humidity
• Maintenance-free anti-clog condenser coil prevents dust and other
airborne particles from clogging the condenser
Slim Designer
Handle Shown
(MP36FA2RS)
Storage Capabilities
• 19.2 total cubic feet storage capacity
• 3 cantilevered full-width metal wire shelves easily adjust to
accommodate various storage heights
• Full-width solid shelf to stack frozen items
• 4 half-width adjustable metal door bins and 1 full-width metal bin to
securely store heavy items
• Factory-installed automatic crescent ice maker with large-capacity ice bin
• 3 clear-view metal storage drawers with tempered glass fronts
- 1 glide-out ice drawer with two separate ice pans to maximize ice
production and storage
- 2 glide-out wire baskets with center divider to make freezer
organization simpler
Touchscreen Controls
• Max Freezer Mode: adjusts freezer temp to the coldest setting
for 6 hours to freeze contents faster
• Door Open Alarm: alerts when door is left open for more than 3 minutes
• Power Loss Alarm: POWER indicator light fl ashes, in the case
of a power loss
• Temperature Sensor Alarm: alerts of temperature sensor problems
• Sabbath Mode: disables interior lights and alarms for observance
of the Sabbath
Aesthetics
• Graduated theater lighting with bright, energy-ef cient LED illumination
from top and sidewalls for better visibility
• Robust hinge allows optimal door rotation and maximum durability
• Adjustable door stops at 90, 110 and 120 degrees
Ordering Options
Solid Stainless Steel Door, Right Hinge, Slim Designer Handle MP36FA2RS
Solid Stainless Steel Door, Left Hinge, Slim Designer Handle MP36FA2LS
Panel-Ready Solid Overlay Door, Right Hinge
(Handle Not Included)*
Panel-Ready Solid Overlay Door, Left Hinge
(Handle Not Included)*
MP36FA2RP
MP36FA2LP
Optional Accessories
Professional Handle - Vertical Door Installation (qty 1) 42249470
Flush Mount Trim Kit PBIRFTKSS
66” W Grille Kit DDGK663SS
72” W Grille Kit DDGK723SS
*Consult your cabinet maker for overlay panel and handle options
Finish Options Optional
Professional Handle
Additional Convenience
• 2-year full product warranty, 6-year full sealed refrigeration system
warranty, 90-day full cosmetic parts and 12-year limited sealed
refrigeration system warranty
marvelrefrigeration.com | 800.223.3900
Stainless Steel
Solid Overlay
(Panel Ready)*
Marvel Professional Built-in
36” All Refrigerator/All Freezer
Cutout Dimensions
36” All Freezer
Model # MP36FA2
24”
(61.0 cm)
82–7/8”
(210.5 cm) min.
anti-tip board &
opening height
84–1/16”
(213.5 cm) max.
anti-tip board &
opening height
See Anti-Tip board installation
35–5/8”
(90.5 cm) min.
to
35-3/4”
(90.8 cm) max.
36”
Flush Mount only
(91.4 cm)
Electric Outlet Location
9”
(22.9 cm)
73–3/8”
(186.4 cm)
Water Line Entry Area
Note: Shown for All Freezer Only
7–5/8”
(19.4 cm)
5/8”
3–5/8”
(9.2 cm)
(27.3 cm)
(1.5 cm)
10–3/4”
3”
(7.6 cm)
6”
(15.2 cm)
(22.9 cm)
36”
(91.4 cm)
Flush Mount only
35–5/8”
(90.5 cm)
6–3/4”
(17.1 cm)
10–1/2”
(26.7 cm)
9”
5/8”
(1.5 cm)
(1.5 cm)
1”
(2.5 cm)
5/8”
Width 36” (91.5 cm)
Overall Height
(from bottom)
Depth to front edge
of side trim
Depth to front of
top grille
Depth to front of
handle endcap
Cutout Width 35-5/8” (90.5 cm) min to
Cutout Height 82-7/8” (210.5 cm) min to
Cutout Depth 24” (61.0 cm) min
82-3/4” (210.2 cm) min to
84-1/16” (213.5 cm) max
22-3/16” (56.4 cm)
24” (61.0 cm)
26-1/2” (67.3 cm)
35-3/4” (90.8 cm) max
84-1/16” (213.5 cm) max
Optional floor
water line entry
Electrical
Requirements
Water Requirements 1/4” copper tubing inlet
Maximum Amp Usage 9.5 amps
Length of Power Cord 4 1/2 ft. (137 cm)
Total Capacity 19.2 cu. ft. (544 liters)
Approximate Shipping
Weight
Interior Finish Arctic White
Shelving System Cantilevered
Shelf Fronts Arctic White
Other Storage Drawers
115 volt, 60 Hz, 15 amp
dedicated circuit; 3-wire
cord with grounded
3-prong plug attached to
product
waterline; minimum 20
psi; maximum 120 psi
605 lb. (274.4 kg)
marvelrefrigeration.com | 800.223.3900
Interior Lighting White LED Lighting
(Top, Sidewalls)
Toe Grill Finish Stainless Steel
Hinge Zero Clearance
Handle Designer
(Handle not included on
Overlay Models)
Control Type Digital Controls
Temperature Range -5°F to 5°F
(-20.6°C to -15°C)
Lock No
Finishes Stainless Steel, Overlay
Agency Approvals UL
*Specications subject to change without notice.
This spec sheet is intended only for quick reference.
For complete installation details, consult the owner’s
guide on marvelrefrigeration.com.
