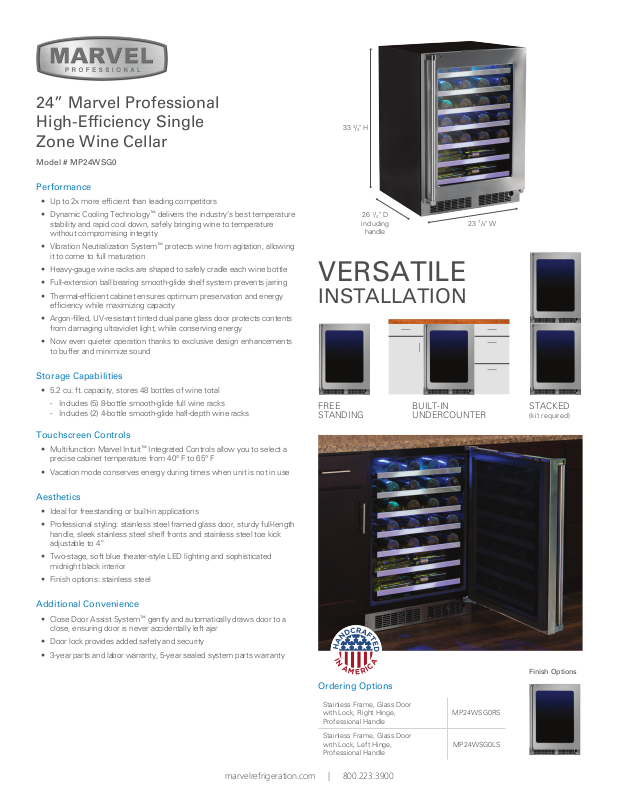

Marvel MP24WSG0LS Specification Sheet
24” Marvel Professional
High-Efciency Single
Zone Wine Cellar
Model # MP24WSG0
Performance
• Up to 2x more efcient than leading competitors
• Dynamic Cooling Technology
stability and rapid cool down, safely bringing wine to temperature
without compromising integrity
• Vibration Neutralization System
it to come to full maturation
• Heavy-gauge wine racks are shaped to safely cradle each wine bottle
• Full-extension ball bearing smooth-glide shelf system prevents jarring
• Thermal-efcient cabinet ensures optimum preservation and energy
efciency while maximizing capacity
• Argon-lled, UV-resistant tinted dual pane glass door protects contents
from damaging ultraviolet light, while conserving energy
• Now even quieter operation thanks to exclusive design enhancements
to buffer and minimize sound
Storage Capabilities
• 5.2 cu. ft. capacity, stores 48 bottles of wine total
- Includes (5) 8-bottle smooth-glide full wine racks
- Includes (2) 4-bottle smooth-glide half-depth wine racks
™
delivers the industry’s best temperature
™
protects wine from agitation, allowing
33 3/4" H
26 1/4" D
including
handle
VERSATILE
INSTALLATION
FREE
STANDING
BUILT-IN
UNDERCOUNTER
23 7/8" W
STACKED
(kit required)
Touchscreen Controls
• Multifunction Marvel Intuit™ Integrated Controls allow you to select a
precise cabinet temperature from 40° F to 65° F
• Vacation mode conserves energy during times when unit is not in use
Aesthetics
• Ideal for freestanding or built-in applications
• Professional styling: stainless steel framed glass door, sturdy full-length
handle, sleek stainless steel shelf fronts and stainless steel toe kick
adjustable to 4”
• Two-stage, soft blue theater-style LED lighting and sophisticated
midnight black interior
• Finish options: stainless steel
Additional Convenience
• Close Door Assist System™ gently and automatically draws door to a
close, ensuring door is never accidentally left ajar
• Door lock provides added safety and security
• 3-year parts and labor warranty, 5-year sealed system parts warranty
Ordering Options
Stainless Frame, Glass Door
with Lock, Right Hinge,
Professional Handle
Stainless Frame, Glass Door
with Lock, Left Hinge,
Professional Handle
Finish Options
Stainless Steel
MP24WSG0RS
MP24WSG0LS
marvelrefrigeration.com | 800.223.3900
ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J"
ML15**(G) or (S)
15"
(38.1 cm)
**34" to 35"
(86.4 to 88.9 cm)
24"
(61 cm)
14
7
⁄8"
(37.8 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
2323⁄32"
(60.2 cm)
2521⁄32"
(65.2 cm)
3713⁄32"
(95 cm)
1611⁄16"
(42.4 cm)
ML15**(P) or (F)
15"
(38.1 cm)
**34
1
⁄4" to 351⁄4"
(87 to 89.5 cm)
* 24"
(61 cm)
147⁄8"
(37.8 cm)
34" to 35"
(86.4 to 88.9 cm)
227⁄8"
(58.1 cm)
-
371⁄2"
(95.2 cm)
141⁄8"
35.9 cm)
PRODUCT DIMENSIONS
PRODUCT DIMENSIONS
"B"
PRODUCT DIMENSIONS
ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
15"
**34" to 35"
(86.4 to 88.9 cm)
24"
(61 cm)
14
7
⁄8"
(37.8 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
2323⁄32"
(60.2 cm)
267⁄32"
(66.6 cm)
3713⁄32"
(95 cm)
177⁄16"
(44.3 cm)
15"
**34
1
⁄4" to 351⁄4"
(87 to 89.5 cm)
* 24"
(61 cm)
14
7
⁄8"
(37.8 cm)
34" to 35"
(86.4 to 88.9 cm)
227⁄8"
(58.1 cm)
-
71⁄2"
(95.2 cm)
141⁄8"
(35.9 cm)
24"
**34" to 35"
(86.4 to 88.9 cm)
24"
(61 cm)
23
7
⁄8"
(60.7 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
2323⁄32"
(60.2 cm)
267⁄32"
(66.6 cm)
4613⁄32"
(117.9 cm)
267⁄16"
(67.2 cm)
24"
**34" to 35"
(86.4 to 88.9 cm)
24"
(61 cm)
23
7
⁄8"
(60.7 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
2323⁄32"
(60.2 cm)
267⁄32"
(66.6 cm)
4613⁄32"
(117.9 cm)
267⁄16"
(67.2 cm)
24"
**34
1
⁄4" to 351⁄4"
(87 to 89.5 cm)
* 24"
(61 cm)
23
7
⁄8"
(60.7 cm)
34" to 35"
(86.4 to 88.9 cm)
227⁄8"
(58.1 cm)
-
461⁄2"
(118.1 cm)
231⁄8"
(58.7 cm)
this application, (see Figure 8).
"D"
"E"
"F"
"G"
"H"
"J"
PRODUCT DIMENSIONS
PRODUCT
WEIGHT
105 lbs
(47.6 kg)
105 lbs
(47.6 kg)
140 lbs
(63.6 kg)
140 lbs
(63.6 kg)
140 lbs
(63.6 kg)
31⁄2" (8.9 cm)
Minimum
Figure 9
(S) solid door
211⁄2"
(54.6 cm)
"A"
"E"
"C"
"D"
Figure 7a
If necessary to gain clearance inside the rough-in
opening a hole can be cut through the adjacent cabinet and the power cord routed through this hole to a
power outlet. Another way to increase the available
opening depth is to recess the power outlet into the
rear wall to gain the thickness of the power cord plug.
Figure 8
Not all recessed outlet boxes will work for this application as they are too narrow, but a recessed outlet box
equivalent to Arlington #DVFR1W is recommended for
MP24WSG0
ML24**(G) or (S)
MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J"
ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS
24"
(61 cm)
(86.4 to 88.9 cm)
**34" to 35"
Figure 7
(S) solid door
shown
24"
(61 cm)
237⁄8"
(60.7 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
23 5/8"
2323⁄32"
(60.7 cm)
(60.2 cm)
26 1/4"
2521⁄32"
(66.68 cm)
(65.2 cm)
46 1/4"
4613⁄32"
(116.84cm)
(117.9 cm)
26 7/16"
2511⁄16"
(67.2 cm)
(65.2 cm)
Width 23 ⅞"
Interior Finish Black
Capacity Up to 48 wine bottles
Shelving System Side Mount - Bottle Shape Wire
Shelf Fronts Stainless Steel
Interior Lighting 2 Blue LED Pods
Toe Grill Finish Stainless Steel
Hinge Classic Hinge
Handle Professional
Control Type Intui t™
Temperature Range 40° - 65° F
Lock Yes
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 6'
Product Dimensions 23 ⅞" W x 33 ¾" H x 21 ½" D
Depth to Front of Door 23
Depth to Handle 26
Depth with door at 90° 46
Shipping Weight 160 lbs
Finishes Stainle ss Steel
marvelrefrigeration.com | 800.223.3900
5
/8"
1
/4"
1
/4"
Vacation /
Sabbath Mode
Agency Approvals CSA
Energ y Star Certie d NA
Yes
