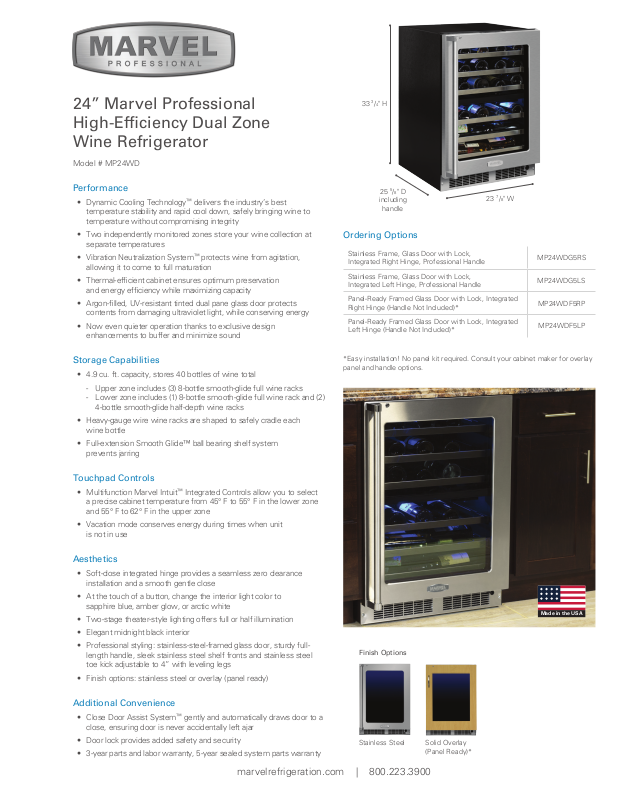

Marvel MP24WDG5LS Specs
24” Marvel Professional
High-Efciency Dual Zone
Wine Refrigerator
Model # MP24WD
33 3/4" H
Performance
• Dynamic Cooling Technology™ delivers the industry’s best
temperature stability and rapid cool down, safely bringing wine to
temperature without compromising integrity
• Two independently monitored zones store your wine collection at
separate temperatures
• Vibration Neutralization System
allowing it to come to full maturation
• Thermal-efcient cabinet ensures optimum preservation
and energy efciency while maximizing capacity
• Argon-lled, UV-resistant tinted dual pane glass door protects
contents from damaging ultraviolet light, while conserving energy
• Now even quieter operation thanks to exclusive design
enhancements to buffer and minimize sound
™
protects wine from agitation,
Storage Capabilities
• 4.9 cu. ft. capacity, stores 40 bottles of wine total
- Upper zone includes (3) 8-bottle smooth-glide full wine racks
- Lower zone includes (1) 8-bottle smooth-glide full wine rack and (2)
4-bottle smooth-glide half-depth wine racks
• Heavy-gauge wire wine racks are shaped to safely cradle each
wine bottle
• Full-extension Smooth Glide™ ball bearing shelf system
prevents jarring
Touchpad Controls
• Multifunction Marvel Intuit™ Integrated Controls allow you to select
a precise cabinet temperature from 45° F to 55° F in the lower zone
and 55° F to 62° F in the upper zone
• Vacation mode conserves energy during times when unit
is not in use
25 5/8" D
including
handle
23 7/8" W
Ordering Options
Stainless Frame, Glass Door with Lock,
Integrated Right Hinge, Professional Handle
Stainless Frame, Glass Door with Lock,
Integrated Left Hinge, Professional Handle
Panel-Ready Framed Glass Door with Lock, Integrated
Right Hinge (Handle Not Included)*
Panel-Ready Framed Glass Door with Lock, Integrated
Left Hinge (Handle Not Included)*
*Easy installation! No panel kit required. Consult your cabinet maker for overlay
panel and handle options.
MP24WDG5RS
MP24WDG5LS
MP24WDF5RP
MP24WDF5LP
Aesthetics
• Soft-close integrated hinge provides a seamless zero clearance
installation and a smooth gentle close
• At the touch of a button, change the interior light color to
sapphire blue, amber glow, or arctic white
• Two-stage theater-style lighting offers full or half illumination
• Elegant midnight black interior
• Professional styling: stainless-steel-framed glass door, sturdy fulllength handle, sleek stainless steel shelf fronts and stainless steel
toe kick adjustable to 4” with leveling legs
• Finish options: stainless steel or overlay (panel ready)
Additional Convenience
• Close Door Assist System™ gently and automatically draws door to a
close, ensuring door is never accidentally left ajar
• Door lock provides added safety and security
• 3-year parts and labor warranty, 5-year sealed system parts warranty
marvelrefrigeration.com | 800.223.3900
Finish Options
Stainless Steel
Made in the USA
Solid Overlay
(Panel Ready)*
"A"
"B"
"C"
"D"
"E"
"I"
"G"
"H"
"I"
"G"
"H"
"F"
"I"
"G"
"H"
Clearance
Clearance for
cm)
24" (61 cm) wide appliance
Clearance for
Product Dimensions
Rough-In Dimensions
A. Rough-In Width 24”
B. Rough-In Height 34 1/4” to 35 1/25”
C. Rough-In Depth 24”
"H"
"G"
Panel Overlay Dimensions
screw head,
4 places
Top of door
Left Hand Hinged Door
24" (61 cm) wide appliance
233⁄4"
(60.3 cm)
14"
(35.6 cm)
3
⁄16"
1
(3 cm)
327⁄32"
(9.8 cm)
1
⁄4" (6 mm)
radius is
permissible
This side
to door
1
4
⁄8"
(10.5 cm)
1" (2.5 cm) diameter
1
x
⁄4" (6 mm) deep
4 places
Left Hand Hinged Door
31⁄8"
(7.9 cm)
3
(7.9 cm)
15⁄32"
(2.9 cm)
11
1
⁄16"
(4.3 cm)
1
(3.8 cm)
typical
47⁄8"
(12.4 cm)
1
⁄8"
1
⁄2"
"B"
Clearance
for hinge
at top and
bottom
Hinge side of door
1
⁄4"
(6 mm)
Deep
3
1
⁄4"
(4.4 cm)
1
3
⁄8"
(7.9 cm)
11
30
⁄32"
(77.1 cm)
2"
(5.1 cm)
11
⁄16"
3
(9.4 cm)
"A"
"C"
for hinge
at top and
bottom
Right Hand Hinged Door
24" (61 cm) wide appliance
1
⁄4"
(6 mm)
Deep
13⁄4"
(4.4 cm)
(7.9 cm)
3011⁄32"
(77.1 cm)
(5.1 cm)
(7.9 cm)
31⁄8"
2"
(9.4 cm)
"E"
"F"
"I"
Top of door
Hinge side of door
233⁄4"
(60.3 cm)
14"
(35.6 cm)
3
1
31⁄8"
11
3
⁄16"
(3 cm)
1
⁄4" (6 mm)
radius is
permissible
This side
to door
1" (2.5 cm) diameter
⁄16"
1
x
⁄4" (6 mm) deep
4 places
Right Hand Hinged Door
24" (61 cm) wide appliance
"D"
327⁄32"
(9.8 cm)
1
4
⁄8"
(10.5 cm)
screw head,
4 places
7
4
⁄8"
(12.4 cm)
(3.8 cm)
3
(7.9 cm)
(2.9 cm)
1
1
typical
15⁄32"
⁄2"
Product Dimensions
D. Width 23 7/8”
E. Height 34” to 35”
F. Depth 21 1/2”
Solid Door 23 23/32”
G. Depth to Front of Door
Overlay Door
22 7/8”
Without
Handle
H. Depth to Handle 26 7/32” (Stainless Steel)
I. Depth with door at 90˚
Solid Door 46 13/32”
Overlay Door 46 1/2”
Product Features
Interior Cabinet Finish Black
Capacity
Shelving System Smooth Glide System
Up to 40 wine bottles:
24 Upper Zone / 16 Lower Zone
™
Shelf Fronts Stainless Steel
Other Storage NA
Interior Lighting
Tri-Color LED
Toe Grill Finish Stainless Steel
Hinge Soft Close Integrated Hinge
Professional
Handle
(Panel Overlay Does Not
Include Handle)
Control Type Intuit
Temperature Range
Top: 55° to 62° F
Bottom: 45° to 55° F
™
Lock Yes
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 6”
Shipping Weight 160 lbs
Finishes Stainless Steel, Overlay
Vacation Mode Yes
Agency Approvals CSA
1
⁄8"
11
1
⁄16"
(4.3
For comprehensive installation instructions, please visit
www.marvelrefrigeration.com to access the owner’s guide.
marvelrefrigeration.com | 800.223.3900
