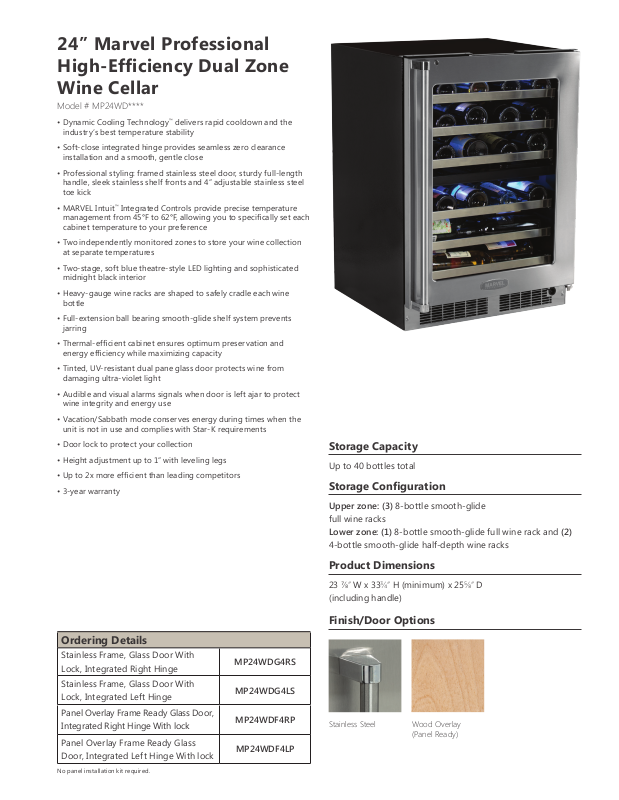

24” Marvel Professional
High-Efciency Dual Zone
Wine Cellar
Model # MP24WD****
• Dynamic Cooling Technology™ delivers rapid cooldown and the
industry’s best temperature stability
• Soft-close integrated hinge provides seamless zero clearance
installation and a smooth, gentle close
• Professional styling: framed stainless steel door, sturdy full-length
handle, sleek stainless shelf fronts and 4” adjustable stainless steel
toe kick
• MARVEL Intuit™ Integrated Controls provide precise temperature
management from 45°F to 62°F, allowing you to specically set each
cabinet temperature to your preference
• Two independently monitored zones to store your wine collection
at separate temperatures
• Two-stage, soft blue theatre-style LED lighting and sophisticated
midnight black interior
• Heavy-gauge wine racks are shaped to safely cradle each wine
bottle
• Full-extension ball bearing smooth-glide shelf system prevents
jarring
• Thermal-efcient cabinet ensures optimum preservation and
energy efciency while maximizing capacity
• Tinted, UV-resistant dual pane glass door protects wine from
damaging ultra-violet light
• Audible and visual alarms signals when door is left ajar to protect
wine integrity and energy use
• Vacation/Sabbath mode conserves energy during times when the
unit is not in use and complies with Star-K requirements
• Door lock to protect your collection
• Height adjustment up to 1” with leveling legs
• Up to 2x more efcient than leading competitors
• 3-year warranty
Storage Capacity
Up to 40 bottles total
Storage Conguration
Upper zone: (3) 8-bottle smooth-glide
full wine racks
Lower zone: (1) 8-bottle smooth-glide full wine rack and (2)
4-bottle smooth-glide half-depth wine racks
Ordering Details
Stainless Frame, Glass Door With
Lock, Integrated Right Hinge
Stainless Frame, Glass Door With
Lock, Integrated Left Hinge
Panel Overlay Frame Ready Glass Door,
Integrated Right Hinge With lock
Panel Overlay Frame Ready Glass
Door, Integrated Left Hinge With lock
No panel installation kit required.
MP24WDG4RS
MP24WDG4LS
MP24WDF4RP
MP24WDF4LP
Product Dimensions
23 ⅞” W x 33¾” H (minimum) x 25⅝” D
(including handle)
Finish/Door Options
Stainless Steel
Wood Overlay
(Panel Ready)
Page 2
Side
Front
Side
Forced
Air Fan
Evaporator
Plate
Return
Air Intake
"F"
"D"
"E"
"H"
"J"
"G"
PRODUCT DIMENSIONS
211⁄2"
(54.6 cm)
1"
(2.5 cm)
Figure 6
PRODUCT
WEIGHT
105 lbs
(47.6 kg)
105 lbs
(47.6 kg)
140 lbs
(63.6 kg)
140 lbs
(63.6 kg)
"B"
"A"
"C"
Cabinet Dimensions
"D" "E" "F"
23 7⁄8”
(60.7 cm)
“G” “H” “J”
26 7⁄32”
(66.6 cm)
33 3⁄4” to 34 3⁄4”
(85.7 to 88.3 cm)
46 13⁄32”
(117.9 cm)
23 23⁄ 32”
(60. 2 cm)
26 7⁄16”
(6 7.2 c m)
24" Rough-In Dimensions
"A" "B" "C"
24”
(61 cm)
**34" to 35"
(86.4 to 88.9 cm)
24”
(61 cm)
Dynamic Cooling Technology™
delivers rapid cool down
and the industry’s best
temperature stability
The distinctive Marvel design features a
thermal-efcient cabinet and door combined
with Dynamic Cooling Technology™ for
superior temperature stability, faster cooling
times and speedy temperature recovery even
with high frequency.
Width 23 ⅞"
Interior Finish Black
Capacity
Shelving System
Shelf Fronts Stainless Steel
Other Storage
Interior Lighting 2 LED Pods
Toe Grill Finish Stainless Steel
Hinge Soft Cl ose Int egrated Hinge
Handle Professional
Up to 20 wine bottles
Up to 162 12-oz cans
Bottle shape wire
Side Mount
Contr ol Type Intuit™
Temperature Range 34° - 42° F
Lock Yes
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 5'
Product Dimensions 23⅞" W x 33¾" H x 21½" D
Depth to Front of Door 23
Depth to Handle 26
Depth with door at 90° 46
Shipping Weight 160 lbs
Finishes SS, O
Vacation /
Sabba th Mode
Agency Approvals CSA
Energ y Star Ce rtied NA
23
/32"
7
/32"
13
/32"
Finishes Key
SS = Stainless Steel
Yes
O = Overlay
Page 3
Overlay Panels
Figure 10a
Overlay panel
ush with top
of door.
Holes in
gasket
retainer.
Overlay panel to
be centered on
width of door.
Counter bore
lock hole
on back side.
Figure 19a
#10 x
1
⁄2"
screw
1
⁄2" (13 mm) diameter
drill through door panel,
from other side (see
detail above) 13⁄16"
17
⁄32"
(13.7 mm)
3
1
⁄2"
(89 mm)
OVERLAY DOOR PANEL INSTALLATION
Step 4: Assemble the panel to the door
The preferred method of attaching the panel to the door
is to clamp the panel to the door so it cannot move while
drilling the screw pilot holes. Use bar clamps or "C" clamps
with pads on the clamping surfaces that will not mar the
panel or the door. The custom overlay panel should be
ush with the top of the door and centered along the width
of the door. See Figure 10a. Drill holes through the gasket
extrusion using the 10 holes as pilot holes. Use the drill
size from the chart in Table "C", being careful not to drill
through the front surface of the panel, drill no deeper than
1
⁄2" (12.7 mm) deep. If the overlay panel is thinner than
5
⁄8" (16 mm) thick shorter screws will have to be obtained.
Fasten the panel to the door with the 10 screws provided in
the literature pack. (See Figure 19a). Remove the clamps
and replace the gasket in the gasket extrusion channels of
the door. Some force may be required to seat the gasket
into the channels. Be sure the gasket corners are seated
properly.
Material Type #10 Wood Screw
Hardwood
1
⁄8" (3.2 mm) Diameter. Pilot Hole
Softwood
7
⁄64 (2.8 mm) Diameter. Pilot Hole
Table C
Counter bore
lock hole
OVERLAY DOOR PANEL INSTALLATION
Material Type #10 Wood Screw
Hardwood
1
⁄8" (3.2 mm) Diameter. Pilot Hole
Softwood
7
⁄64 (2.8 mm) Diameter. Pilot Hole
Table C
Counter bore
lock hole
on back side.
Figure 19a
#10 x
1
⁄2"
screw
Figure 19
Hinge side of door
1
⁄2" (13 mm) diameter
drill through door panel,
from other side (see
detail above) 13⁄16"
(20.5 mm) counter bore,
7
⁄16" (11 mm) deep.
17
⁄32"
(13.7 mm)
3
1
⁄2"
(89 mm)
!
CAUTION
13⁄16"
(3 cm)
15⁄32"
(2.9 cm)
Figure 15
Left Hand Hinged Door
24" (61 cm) wide appliance
Weight of overlay door panel
must not exceed 10 pounds
(4.5 kg) for a glass door model.
Figure 17
Right Hand Hinged Door
24" (61 cm) wide appliance
Clearance
for hinge
at top and
bottom
Clearance for
screw head,
4 places
Figure 16
Left Hand Hinged Door
24" (61 cm) wide appliance
Figure 18
Right Hand Hinged Door
24" (61 cm) wide appliance
Clearance for hinge
at top and bottom
Clearance for
screw head,
4 places
Hinge side of door
Top of door
Top of door
Hinge side of door
OVERLAY DOOR PANEL INSTALLATION
This side
facing interior
This side
facing interior
233⁄4"
(60.3 cm)
1
⁄4"
(6 mm)
Deep
23
3
⁄4"
(60.3 cm)
1
⁄4"
(6 mm)
Deep
1" (2.5 cm) diameter
x
1
⁄4" (6 mm) deep
4 places
1
1
⁄2"
(3.8 cm)
typical
1
11
⁄16"
(4.3 cm)
1" (2.5 cm) diameter
x
1
⁄4" (6 mm) deep
4 places
4
7
⁄8"
(12.4 cm)
3
1
⁄8"
(7.9 cm)
2"
(5.1 cm)
3
11
⁄16"
(9.4 cm)
3
11
⁄16"
(9.4 cm)
1
1
⁄2"
(3.8 cm)
typical
1
11
⁄16"
(4.3 cm)
3
27
⁄32"
(9.8 cm)
1
⁄4" (6 mm)
radius is
permissible
14"
(35.6 cm)
1
3
⁄16"
(3 cm)
3
1
⁄8"
(7.9 cm)
3011⁄32"
(77.1 cm)
30
11
⁄32"
(77.1 cm)
3
1
⁄8"
(7.9 cm)
41⁄8"
(10.5 cm)
3
1
⁄8"
(7.9 cm)
13⁄4"
(4.4 cm)
3
1
⁄8"
(7.9 cm)
2"
(5.1 cm)
4
1
⁄8"
(10.5 cm)
1
⁄4" (6 mm)
radius is
permissible
14"
(35.6 cm)
4
7
⁄8"
(12.4 cm)
3
27
⁄32"
(9.8 cm)
3
1
⁄8"
(7.9 cm)
13⁄4"
(4.4 cm)
15⁄32"
(2.9 cm)
13⁄16"
(3 cm)
Figure 17
Right Hand Hinged Door
24" (61 cm) wide appliance
Clearance
for hinge
at top and
bottom
Figure 18
Right Hand Hinged Door
24" (61 cm) wide appliance
Clearance for
screw head,
4 places
Top of door
Hinge side of door
This side
facing interior
233⁄4"
(60.3 cm)
1
⁄4"
(6 mm)
Deep
1" (2.5 cm) diameter
x
1
⁄4" (6 mm) deep
4 places
1
1
⁄2"
(3.8 cm)
typical
1
11
⁄16"
(4.3 cm)
311⁄16"
(9.4 cm)
31⁄8"
(7.9 cm)
3011⁄32"
(77.1 cm)
3
1
⁄8"
(7.9 cm)
2"
(5.1 cm)
4
1
⁄8"
(10.5 cm)
1
⁄4" (6 mm)
radius is
permissible
14"
(35.6 cm)
4
7
⁄8"
(12.4 cm)
3
27
⁄32"
(9.8 cm)
3
1
⁄8"
(7.9 cm)
13⁄4"
(4.4 cm)
15⁄32"
(2.9 cm)
For comprehensive installation instructions,
please visit www.marvelrefrigeration.com
