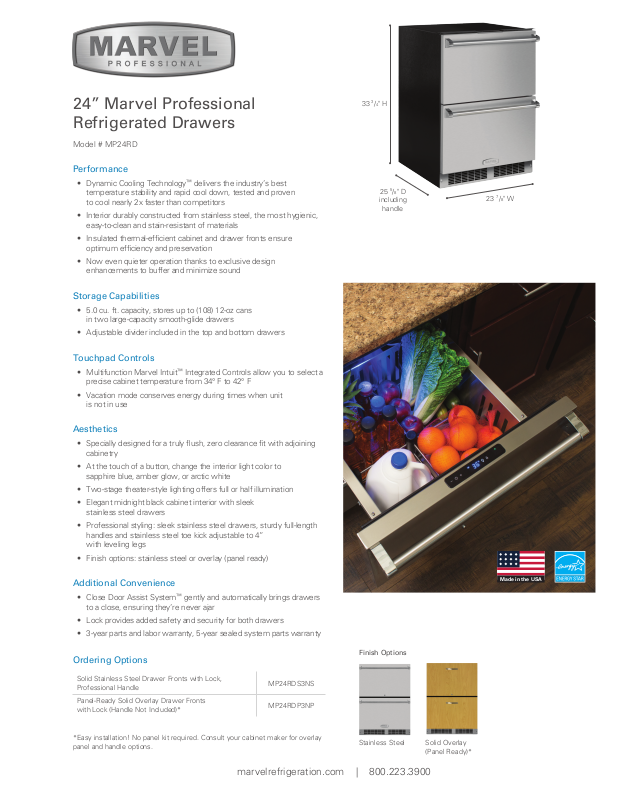

Marvel MP24RD PRODUCT SPECIFICATIONS
24” Marvel Professional
Made in the USA
Refrigerated Drawers
Model # MP24RD
Performance
• Dynamic Cooling Technology™ delivers the industry’s best
temperature stability and rapid cool down, tested and proven
to cool nearly 2x faster than competitors
• Interior durably constructed from stainless steel, the most hygienic,
easy-to-clean and stain-resistant of materials
• Insulated thermal-efcient cabinet and drawer fronts ensure
optimum efciency and preservation
• Now even quieter operation thanks to exclusive design
enhancements to buffer and minimize sound
Storage Capabilities
• 5.0 cu. ft. capacity, stores up to (108) 12-oz cans
in two large-capacity smooth-glide drawers
• Adjustable divider included in the top and bottom drawers
Touchpad Controls
• Multifunction Marvel Intuit™ Integrated Controls allow you to select a
precise cabinet temperature from 34° F to 42° F
• Vacation mode conserves energy during times when unit
is not in use
33 3/4" H
including
25 5/8" D
handle
23 7/8" W
Aesthetics
• Specially designed for a truly ush, zero clearance t with adjoining
cabinetry
• At the touch of a button, change the interior light color to
sapphire blue, amber glow, or arctic white
• Two-stage theater-style lighting offers full or half illumination
• Elegant midnight black cabinet interior with sleek
stainless steel drawers
• Professional styling: sleek stainless steel drawers, sturdy full-length
handles and stainless steel toe kick adjustable to 4”
with leveling legs
• Finish options: stainless steel or overlay (panel ready)
Additional Convenience
• Close Door Assist System™ gently and automatically brings drawers
to a close, ensuring they’re never ajar
• Lock provides added safety and security for both drawers
• 3-year parts and labor warranty, 5-year sealed system parts warranty
Ordering Options
Solid Stainless Steel Drawer Fronts with Lock,
Professional Handle
Panel-Ready Solid Overlay Drawer Fronts
with Lock (Handle Not Included)*
MP24RDS3NS
MP24RDP3NP
Finish Options
*Easy installation! No panel kit required. Consult your cabinet maker for overlay
panel and handle options.
marvelrefrigeration.com | 800.223.3900
Stainless Steel
Solid Overlay
(Panel Ready)*
"I"
"H"
"G"
"A"
"B"
"C"
"D"
"E"
"I"
"H"
"G"
"F"
"I"
"H"
"G"
Product Dimensions
1"(25 mm) diameter counter
" (21 mm)
"I"
Panel Overlay Dimensions
11
⁄32"
1
⁄2" (12.7 mm)
diameter, top
drawer only
Panel
thickness
(379 mm)
117⁄8"
(302 mm)
233⁄4"
(603 mm)
(8.8 mm)
1429⁄32"
"H"
"G"
"B"
2 places, top drawer only.
"A"
"C"
bore 1⁄4" (6 mm) deep
23⁄8"
(60 mm)
"E"
"F"
This side
facing interior
"D"
19"
(483 mm)
3
1
⁄16"
(30 mm)
13
⁄16
counterbore
7
⁄16" (12 mm)
deep, top
drawer only
Rough-In Dimensions
A. Rough-In Width 24”
B. Rough-In Height 34” to 35”
C. Rough-In Depth 24”
Product Dimensions
D. Width 23 7/8”
E. Height 33 3/4”
F. Depth 21 1/2”
Solid Door 23 23/32”
G. Depth to Front
of Drawer
Overlay Door
H. Depth to Handle 26 7/32” (Stainless Steel)
I. Depth with drawer open
Solid Door 46 13/32”
Overlay Door 46 1/2”
Product Features
Interior Cabinet Finish Black
Capacity Up to 108 12-oz cans
Shelving System NA
Shelf Fronts NA
Other Storage Double Drawer Storage
Interior Lighting Tri-Color LED
Toe Grill Finish Stainless Steel
Hinge NA
Professional
Handle
(Panel Overlay Does Not
Include Handle)
Control Type Intuit
Temperature Range 34° to 42° F
Lock Yes
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 6”
Shipping Weight 160 lbs
Finishes Stainless Steel, Overlay
Vacation Mode Yes
Agency Approvals CSA, Energy Star
22 7/8”
Without
Handle
™
For comprehensive installation instructions, please visit
marvelrefrigeration.com | 800.223.3900
www.marvelrefrigeration.com to access the owner’s guide.
