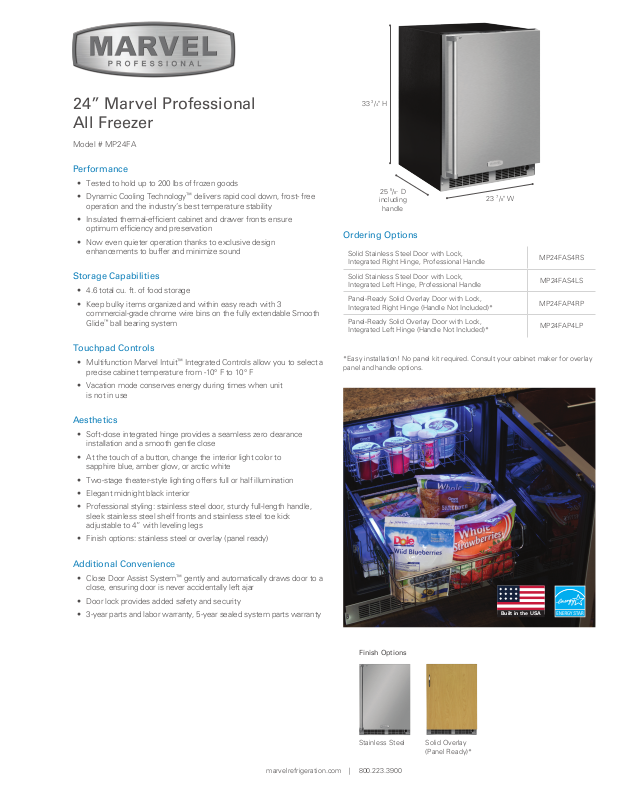

Marvel MP24FAS4RS Specs
24” Marvel Professional
All Freezer
Model # MP24FA
Performance
• Tested to hold up to 200 lbs of frozen goods
• Dynamic Cooling Technology
operation and the industry’s best temperature stability
• Insulated thermal-efcient cabinet and drawer fronts ensure
optimum efciency and preservation
• Now even quieter operation thanks to exclusive design
enhancements to buffer and minimize sound
Storage Capabilities
• 4.6 total cu. ft. of food storage
• Keep bulky items organized and within easy reach with 3
commercial-grade chrome wire bins on the fully extendable Smooth
™
Glide
ball bearing system
Touchpad Controls
• Multifunction Marvel Intuit™ Integrated Controls allow you to select a
precise cabinet temperature from -10° F to 10° F
• Vacation mode conserves energy during times when unit
is not in use
™
delivers rapid cool down, frost- free
33 3/4" H
25 5/8” D
including
handle
23 7/8" W
Ordering Options
Solid Stainless Steel Door with Lock,
Integrated Right Hinge, Professional Handle
Solid Stainless Steel Door with Lock,
Integrated Left Hinge, Professional Handle
Panel-Ready Solid Overlay Door with Lock,
Integrated Right Hinge (Handle Not Included)*
Panel-Ready Solid Overlay Door with Lock,
Integrated Left Hinge (Handle Not Included)*
*Easy installation! No panel kit required. Consult your cabinet maker for overlay
panel and handle options.
MP24FAS4RS
MP24FAS4LS
MP24FAP4RP
MP24FAP4LP
Aesthetics
• Soft-close integrated hinge provides a seamless zero clearance
installation and a smooth gentle close
• At the touch of a button, change the interior light color to
sapphire blue, amber glow, or arctic white
• Two-stage theater-style lighting offers full or half illumination
• Elegant midnight black interior
• Professional styling: stainless steel door, sturdy full-length handle,
sleek stainless steel shelf fronts and stainless steel toe kick
adjustable to 4” with leveling legs
• Finish options: stainless steel or overlay (panel ready)
Additional Convenience
• Close Door Assist System™ gently and automatically draws door to a
close, ensuring door is never accidentally left ajar
• Door lock provides added safety and security
• 3-year parts and labor warranty, 5-year sealed system parts warranty
Built in the USA
Finish Options
Stainless Steel
marvelrefrigeration.com | 800.223.3900
Solid Overlay
(Panel Ready)*
"A"
"B"
"C"
"D"
"E"
"I"
"G"
"H"
"I"
"G"
"H"
"F"
"I"
"G"
"H"
24" (61 cm) wide appliance
Clearance for
Product Dimensions
Rough-In Dimensions
A. Rough-In Width 24”
B. Rough-In Height 34 1/4” to 35 1/25”
C. Rough-In Depth 24”
Panel Overlay Dimensions
screw head,
4 places
Top of door
7
⁄8"
4
(12.4 cm)
"H"
"G"
Hinge side of door
Left Hand Hinged Door
24" (61 cm) wide appliance
Clearance for hinge
at top and bottom
233⁄4"
(60.3 cm)
14"
(35.6 cm)
(3 cm)
3
1
⁄16"
31⁄8"
(7.9 cm)
(4.4 cm)
13⁄4"
(6 mm)
Deep
"B"
1
⁄4"
"A"
"C"
Right Hand Hinged Door
24" (61 cm) wide appliance
Clearance for hinge
1
(6 mm)
Deep
(4.4 cm)
⁄4"
13⁄4"
(7.9 cm)
at top and bottom
31⁄8"
Product Dimensions
D. Width 23 7/8”
E. Height 34” to 35”
F. Depth 21 1/2”
"E"
G. Depth to Front of Door
Solid Door 23 23/32”
22 7/8”
Overlay Door
Without
Handle
H. Depth to Handle 26 7/32” (Stainless Steel)
Solid Door 46 13/32”
Overlay Door 46 1/2”
"F"
"D"
I. Depth with door at 90˚
Product Features
Interior Cabinet Finish Black
Capacity Up to 200 lbs of frozen goods
Shelving System Smooth Glide System
"I"
Shelf Fronts NA
Other Storage 3 Wire Bins
Interior Lighting Tri-Color LED
Toe Grill Finish Stainless Steel
Hinge Soft Close Integrated Hinge
Clearance for
screw head,
4 places
Top of door
Handle
Professional
(Panel Overlay Does Not
Include Handle)
Control Type Intuit
Temperature Range -10° F to 10° F
Hinge side of door
Lock Yes
Electrical Requirements 120V / 60Hz / 15A
Length of Power Cord 6’
Shipping Weight 160 lbs
Finishes Stainless Steel, Overlay
Vacation Mode Yes
Agency Approvals CSA, ENERGY STAR
233⁄4"
(60.3 cm)
(35.6 cm)
3
1
⁄16"
(3 cm)
14"
7
⁄8"
4
(12.4 cm)
™
™
15⁄32"
(2.9 cm)
111⁄16"
(4.3 cm)
(3.8 cm)
typical
1
1
⁄2"
1
⁄4" (6 mm)
radius is
permissible
This side
facing interior
1" (2.5 cm) diameter
1
x
⁄4" (6 mm) deep
4 places
Left Hand Hinged Door
11
3
(9.4 cm)
1
⁄4" (6 mm)
radius is
permissible
3011⁄32"
3011⁄32"
(77.1 cm)
(77.1 cm)
This side
facing interior
2"
(5.1 cm)
⁄16"
2"
(5.1 cm)
11
⁄16"
3
(9.4 cm)
Right Hand Hinged Door
24" (61 cm) wide appliance
1" (2.5 cm) diameter
1
x
⁄4" (6 mm) deep
4 places
(2.9 cm)
11⁄2"
(3.8 cm)
typical
5
⁄32"
1
111⁄16"
(4.3 cm)
For comprehensive installation instructions, please visit
www.marvelrefrigeration.com to access the owner’s guide.
