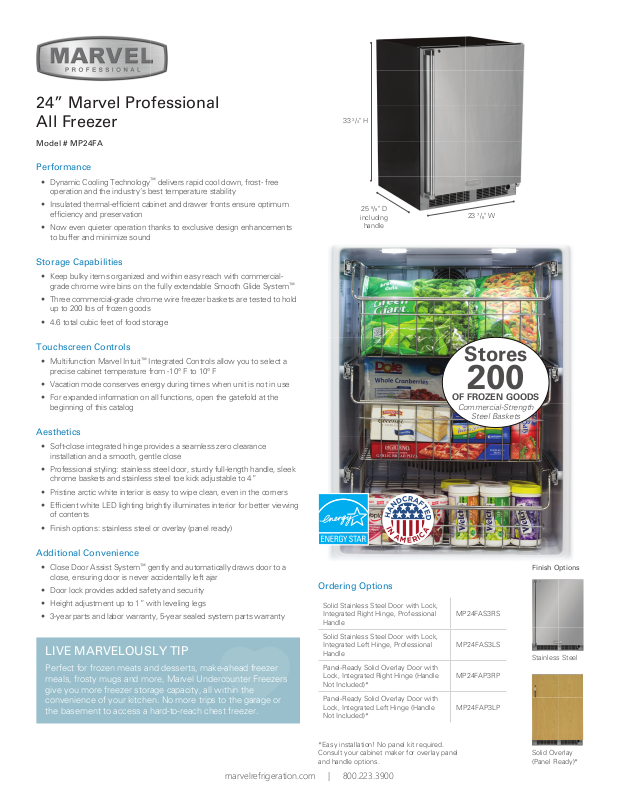

Marvel MP24FAP3RP, MP24FAP3LP Specification Sheet

24” Marvel Professional
All Freezer

Model # MP24FA

Performance

• Dynamic Cooling Technology™ delivers rapid cool down, frost- free
operation and the industry’s best temperature stability

• Insulated thermal-effi cient cabinet and drawer fronts ensure optimum

effi ciency and preservation

• Now even quieter operation thanks to exclusive design enhancements
to buffer and minimize sound

Storage Capabilities

• Keep bulky items organized and within easy reach with commercial­grade chrome wire bins on the fully extendable Smooth Glide System

• Three commercial-grade chrome wire freezer baskets are tested to hold
up to 200 lbs of frozen goods

• 4.6 total cubic feet of food storage

Touchscreen Controls

• Multifunction Marvel Intuit™ Integrated Controls allow you to select a
precise cabinet temperature from -10° F to 10° F

• Vacation mode conserves energy during times when unit is not in use

• For expanded information on all functions, open the gatefold at the
beginning of this catalog

Aesthetics

• Soft-close integrated hinge provides a seamless zero clearance
installation and a smooth, gentle close

• Professional styling: stainless steel door, sturdy full-length handle, sleek
chrome baskets and stainless steel toe kick adjustable to 4”

• Pristine arctic white interior is easy to wipe clean, even in the corners

• Effi cient white LED lighting brightly illuminates interior for better viewing
of contents

• Finish options: stainless steel or overlay (panel ready)

33 3/4" H

25 5/8" D

including

handle

™

23 7/8" W

Stores

200

OF FROZEN GOODS

Commercial-Strength

Steel Baskets

Additional Convenience

• Close Door Assist System™ gently and automatically draws door to a
close, ensuring door is never accidentally left ajar

• Door lock provides added safety and security

• Height adjustment up to 1” with leveling legs

• 3-year parts and labor warranty, 5-year sealed system parts warranty

LIVE MARVELOUSLY TIP

Perfect for frozen meats and desserts, make-ahead freezer
meals, frosty mugs and more, Marvel Undercounter Freezers
give you more freezer storage capacity, all within the
convenience of your kitchen. No more trips to the garage or
the basement to access a hard-to-reach chest freezer.

marvelrefrigeration.com | 800.223.3900

Ordering Options

Solid Stainless Steel Door with Lock,

Integrated Right Hinge, Professional
Handle

Solid Stainless Steel Door with Lock,
Integrated Left Hinge, Professional

Handle

Panel-Ready Solid Overlay Door with

Lock, Integrated Right Hinge (Handle

Not Included)*

Panel-Ready Solid Overlay Door with

Lock, Integrated Left Hinge (Handle

Not Included)*

*Easy installation! No panel kit required.
Consult your cabinet maker for overlay panel
and handle options.

Finish Options

MP24FAS3RS

MP24FAS3LS

Stainless Steel

MP24FAP3RP

MP24FAP3LP

Solid Overlay
(Panel Ready)*

PRODUCT DIMENSIONS

**34" to 35"

(86.4 to 88.9 cm)

*

237⁄8"

(60.7 cm)

333⁄4" to 343⁄4"

(85.7 to 88.3 cm)

2323⁄32"

(60.2 cm)

267⁄32"

(66.6 cm)

4613⁄32"

(117.9 cm)

267⁄16"

(67.2 cm)

**34

1

⁄4" to 351⁄4"

(87 to 89.5 cm)

*

237⁄8"

(60.7 cm)

34" to 35"

(86.4 to 88.9 cm)

227⁄8"

(58.1 cm)

-

461⁄2"

(118.1 cm)

231⁄8"

(58.7 cm)

"B"

PRODUCT DIMENSIONS

"F"

211⁄2"

(54.6 cm)

PRODUCT DATA

PRODUCT

WEIGHT

140 lbs

(63.6 kg)

140 lbs

(63.6 kg)

"D"

"E"

"H"

"J"

"G"

PRODUCT DIMENSIONS

Figure 9

"A"

"C"

Figure 7a

Figure 8

"E"

Figure 7

"D"

If necessary to gain clearance inside the rough-in
opening a hole can be cut through the adjacent cabi­net and the power cord routed through this hole to a
power outlet. Another way to increase the available
opening depth is to recess the power outlet into the
rear wall to gain the thickness of the power cord plug.
Not all recessed outlet boxes will work for this applica­tion as they are too narrow, but a recessed outlet box
equivalent to Arlington #DVFR1W is recommended for

this application, (see Figure 8).

ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS

MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J"

MP24FA(S)

MP24FA(P)

Width 23 7/8”

Interior Finish Arctic White

Capacity

Storage

Interior Lighting White LED Lighting

Toe Grill Finish Stainless Steel

Hinge Integrated Hinge

Handle Sturdy Professional Style Handle

24"

(61 cm)

24"

(61 cm)

4.6 total cubic feet of food
storage capacity

(3) smooth-glide full extension

chrome wire baskets

(86.4 to 88.9 cm)

**34

(87 to 89.5 cm)

**34" to 35"

1

⁄4" to 351⁄4"

*

*

237⁄8"

(60.7 cm)

237⁄8"

(60.7 cm)

Control Type

Temperature Range

Lock Yes

Electrical
Requirements

Length of Power
Cord

Product Dimensions

Depth to Front of
Door

Marvel Intuit™ Integrated

-10 to 10° F

(-23.3 to -12.2°C)

120V / 60Hz / 15A

23⅞” W x 33¾” minimum H x

7

26

/32” D (including handle)

333⁄4" to 343⁄4"

(85.7 to 88.3 cm)

34" to 35"

(86.4 to 88.9 cm)

Controls

6 ft.

23

23

/32”

2323⁄32"

(60.2 cm)

227⁄8"

(58.1 cm)

Depth to Handle 26 7/32”

Depth with door
at 90°

Shipping Weight 160 lbs

Finishes SS, O

Vacation /
Sabbath Mode

Agency Approvals CSA

Energ y Star

Certied

267⁄32"

(66.6 cm)

-

4613⁄32"

(117.9 cm)

461⁄2"

(118.1 cm)

46

Finishes Key

SS = Stainless Steel
O = Overlay

Yes

13

/32”

267⁄16"

(67.2 cm)

231⁄8"

(58.7 cm)
