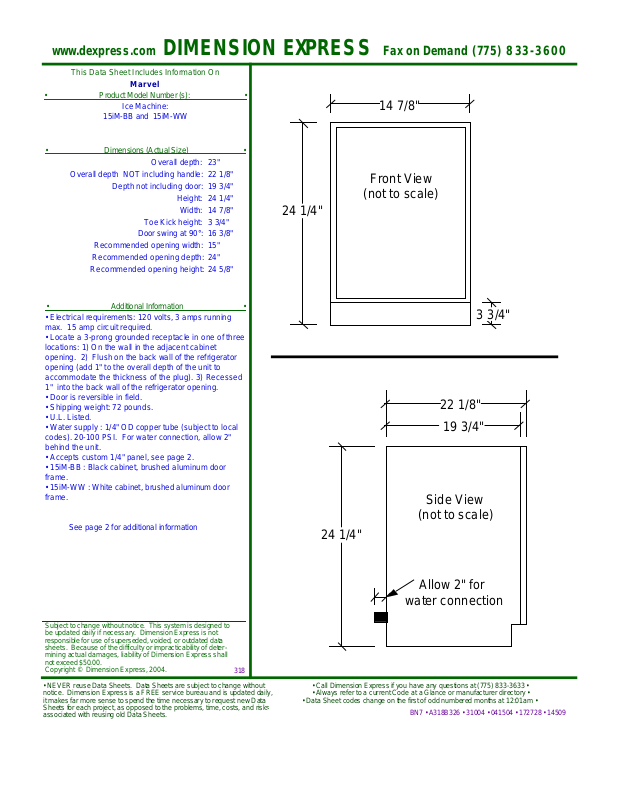

Marvel 15IMWWFR, 15IMBBFR Specification Sheet
www.dexpress.com DIMENSION EXPRESS Fax on Demand (775) 833-3600
This Data Sheet Includes Information On
Marvel
• Product Model Number (s): •
Ice Machine:
15iM-BB and 15iM-WW
• Dimensions (Actual Size) •
Overall depth:
Overall depth NOT including handle:
Depth not including door:
Height:
Toe Kick height:
Door swing at 90°:
Recommended opening width:
Recommended opening depth:
Recommended opening height:
Width:
23"
22 1/8"
19 3/4"
24 1/4"
14 7/8"
3 3/4"
16 3/8"
15"
24"
24 5/8"
14 7/8"
Front View
(not to scale)
24 1/4"
• Additional Information •
• Electrical requirements: 120 volts, 3 amps running
max. 15 amp circuit required.
• Locate a 3-prong grounded receptacle in one of three
locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.
• Door is reversible in field.
• Shipping weight: 72 pounds.
• U.L. Listed.
• Water supply : 1/4" OD copper tube (subject to local
codes). 20-100 PSI. For water connection, allow 2"
behind the unit.
• Accepts custom 1/4" panel, see page 2.
• 15iM-BB : Black cabinet, brushed aluminum door
frame.
• 15iM-WW : White cabinet, brushed aluminum door
frame.
See page 2 for additional information
3 3/4"
22 1/8"
19 3/4"
Side View
(not to scale)
24 1/4"
Allow 2" for
water connection
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2004.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (775) 833-3633 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of odd numbered months at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
318
BN7 • A318B326 • 31004 • 041504 • 172728 • 14509
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand (775) 833-3600
Additional Information:
Custom Framed Door Panel Dimensions
• Product Model Number (s): •
Page 2
(not to scale)
This Data Sheet Includes Information On
Marvel
Ice Machine:
15iM-BB and 15iM-WW
3/16"
Remove all
four corners
3/16"
14 1/4"
1/2"
1/2"
Custom Panel Size
(not to scale)
Max. thickness: 1/4"
Max . weight: 20 lbs
1/2"
1/2"
3/16"
19 11/16"
3/16"
For panels thicker than 1/4",
reveal is 5/8" on all sides if
owner-supplied handle is used;
2" in the area of Marvels clip on
handle if it is used.
