Page 1
®
REFRIGERATION
AT ITS FINEST
Page 2
Page 3
WHAT THERE IS TO KNOW ABOUT MARVEL 1
MARVEL’S EXCLUSIVE TECHNOLOGY 3
MARVEL’S INNOVATIVE FEATURES 4
MARVEL’S DESIGN INTEGRATION FEATURES 5
WINE CELLARS 6
CHATEAU SERIES 7
6SDZE 7
3SWCE, 6SWCE, 8SWCE 8
3SWCCE 8
LUXURY SERIES 9
30WCM, 61WCM 9
BEVERAGE CENTERS 10
CHATEAU SERIES 11
3SBARE, 6SBARE, 8SBARE 12
LUXURY SERIES 13
3BARM, 6BARM 13
REFRIGERATION 14
REFRIGERATED DRAWERS: 60RDE, 80RDE 15
REFRIGERATORS: 30ARM, 61ARM, 6ADAM 18
REFRIGERATOR/FREEZERS: 61RF, 80RF 19
GLASS DOOR REFRIGERATOR/BEVERAGE CENTER
6GARM
16
FULL SIZE COMBINATION UNITS 20
CHATEAU SERIES 21
LUXURY SERIES 23
66SWCE, 66SWBE, 66SBWE, 66SWDE 22
66WCM, 66WBM, 66BWM 24
ICE MACHINES 26
THE DIFFERENCE IS CRYSTAL CLEAR 27
FEATURES 28
30iMT, 3OiMT, 30iMAT 29
15iM, 25iM, 25OiM 30
DRAFT BEER DISPENSERS 31
61HK, 6OHK 33
OUTDOOR SERIES 34
6OSWCE 35
6OBARM 35
6ORDE 35
3OARM, 6OARM 36
6ORGDM 36
3OiMT 37
25OiM 37
6OHK 37
ADA SERIES 38
30iMAT 39
6ADAM 39
CUSTOMIZING YOUR MARVEL 40
STYLE & DESIGN DOOR OPTIONS 40
OPTIONAL ACCESSORIES 41
SPECIFICATIONS 42
MARVEL PRODUCT SPECIFICATIONS
WINE CELLARS 42
BEVERAGE CENTERS 42
REFRIGERATED DRAWERS 42
REFRIGERATORS 42
REFRIGERATOR/FREEZERS 42
FULL SIZE COMBINATION UNITS 42
ICE MACHINES 43
DRAFT BEER DISPENSERS 43
OUTDOOR SERIES 43
ADA SERIES 43
INSTALLATION & OVERLAY PANEL SPECIFICATIONS 44
CONTENTS
Page 4
WHAT THERE IS TO KNOW
ABOUT MARVEL
For over 70 years, Marvel has
been committed to enhancing
the lifestyle of its customers.
Today, with its unparalleled line
of ne undercounter refrigeration
products, Marvel is an industry leader in style, design and sheer
range of choices for the discerning homeowner. As part of the
world-renowned AGA Rangemaster Ltd., Marvel’s commitment
to its customers is assured by a global leader in ne living.
Marvel was founded in 1932, when the company began creating
undercounter ice boxes. Electric refrigeration soon followed
and with that, a new product category was born. Marvel’s
and beverage refrigerators feature forced-air ventilation and
quiet, powerful compressors with microprocessor controlled
thermostats. With the ability to complement any décor,
Marvel products are available in stunning designs, including
sleek stainless steel, color choices and the ability to apply
your overlay door panels that precisely match surrounding
cabinetry.
In addition to providing premium refrigeration for the home,
Marvel also supplies refrigerators for military, life science and
sporting arenas. In fact, Marvel’s premium consumer models
are built and tested to the same high standards required by
these stringent applications. That is why each model is backed
growth throughout the years has always been lifestyle-driven,
and the company has pioneered many important rsts on its
path to becoming a major industry leader in the premium
refrigeration market. Marvel was the rst to introduce a high-
end undercounter wine storage model, and the rst to re-dene
premium refrigeration with its breakthrough introduction of
the all-black interior - offering homeowners the opportunity
to design refrigeration into any room in the home.

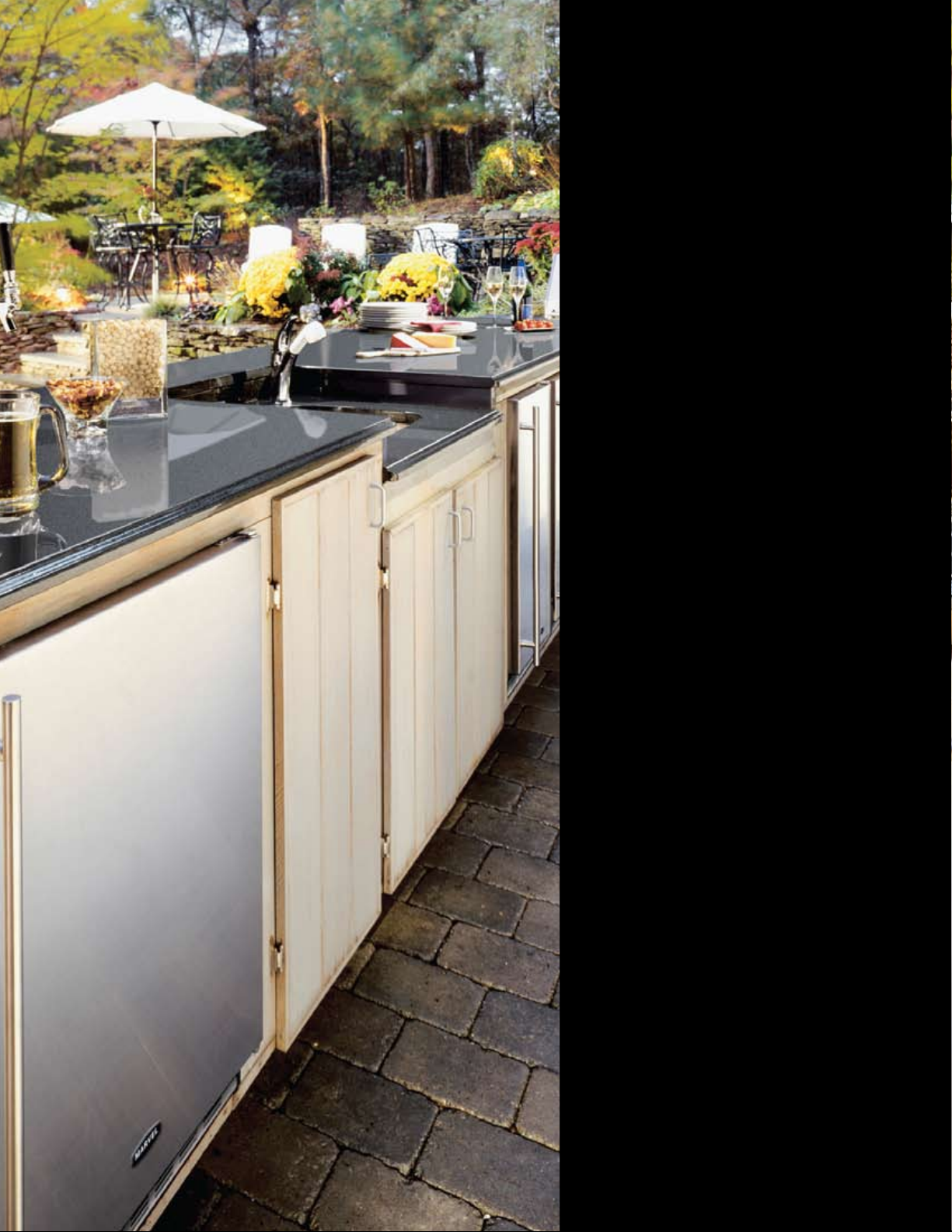

With the widespread growth of both “satellite kitchens” and
outdoor entertaining, Marvel products provide the stylish
accent and dependable performance that these premium
applications demand. Marvel undercounter wine storage
by one of the industry’s best warranty coverages.
Today, Marvel’s history of quality and innovative American
made product is backed by Quality Management System
ISO 9001:2008; Environmental Management System
ISO 14001:2004 and Occupational Health and Safety
Management System ISO 18001:2007 certications. Known
for uncompromising quality, breathtaking array of design
choices, and sheer premium performance, Marvel and Marvel
products – remain at the forefront of the industry, a legacy
that started with a simple ice box.
1
Page 5
6SWCE-BS-G-R
Page 6
MARVEL’S EXCLUSIVE TECHNOLOGY
BEHIND THE SERIES
CHATEAU SERIES
Featuring the Sentry System
All Chateau Series models feature Marvel’s exclusive Sentry SystemTM
refrigeration monitor with a cool blue LED display which operates
in real time to maintain your desired storage temperature while
monitoring status of critical refrigeration system components.
Unlike many competitors products which only display the desired
temperature you have set, the Sentry SystemTM electronic control
continuously monitors the storage compartment temperature,
displaying a temperature representative of the average content
temperature. In the event the door has been left open, there has
been a power interruption or a component failure, an audible alarm
alerts you and the display will show the specic problem. The intuitive
user keypad makes it easy to set temperatures with dedicated keys
for selection of temperature display mode and selection of interior
display lighting options (glass door models only). The Marvel Sentry
SystemTM gives you peace of mind that your contents are stored at
your desired temperature.
TM
LUXURY SERIES
Featuring the MicroSentryTM System
All Luxury Series models feature Marvel’s exclusive MicroSentryTM
refrigeration monitor which controls the refrigeration system’s
performance to maintain a constant precise temperature. Visual
and audible alarms indicate temperature excursion that may affect
the quality of the stored contents and indicate if the door has
been left open. As with the Sentry SystemTM, the MicroSentryTM
electronic control continuously monitors the storage compartment
temperature, displaying a temperature representative of the average
contents. The dedicated touch keys provide an easy interface to
select the desired storage compartment temperature. Display
lighting option is available on glass door models via a separate
dedicated on/off switch.
3
Page 7
MARVEL
INNOVATIVE FEATURES
Marvel products boast innovative features to accommodate the needs of the discerning homeowner. Giving peace of mind for short or
long-term refrigeration storage. The features found below on this page are common across Marvel Chateau Series and Luxury Series.
DUAL-PANE UV-RESISTANT
Wine requires constant care and storing wine in the right
conditions is imperative. Ultraviolet Rays can cause wine to
age prematurely and cause damage to the quality and avour.
Marvel’s wine cellar doors are constructed of argon-lled, dual-
pane, tinted UV-resistant glass to display its contents while
protecting them from damaging UV rays.
GLASS DOORS
EASILY ACCESSIBLE
Marvel’s doors open and close within the width of the
refrigerator body and allows a ush t with adjoining cabinetry.
This specially designed door closer hinge incorporates a
physical “stop”, preventing the door from swinging back to a
parallel position.
VIBRATION NEUTRALIZATION
The Marvel Vibration Neutralization SystemTM (VNS) is a unique
design that protects wine from damaging vibration without
sacricing cabinet capacity. The compressor is isolated from
the wine storage cavity. Vibration isolating mounts on the
compressor offer a second layer of protection from vibration
transfer. Exclusive to our Chateau Series, a vibration dampening
mat inserted onto each shelf absorbs any stray vibrations
(pictured above).
SYSTEM
TM
(VNS)
CLOSE DOOR ASSIST
Marvel’s ‘Close Door Assist’ is designed into hinge system to
draw the door closed when it is accidentally left ajar.
For detailed specications on each model, see charts on page 42-43
4
Page 8
MARVEL
DESIGN INTEGRATION FEATURES
Marvel products are designed to integrate seamlessly with your design.
ULTIMATE STORAGE
Marvel’s wine cellars have plenty of storage space to make the
best of your wine storage investment. Wines that you plan to
use for everyday drinking and entertaining can be placed on the
front half of the racks where labels are completely visible. Wines
you would like to age or store longer term - they can be placed
in the rear half of the racks.
ELEGANT SHOWCASE
Marvel’s wine cellars feature an elegant interior lighting which
showcases the contents. For glass door models you may have
continuous display lighting which will add a nice warm elegance
to any room.
MAPLE RACK FACINGS
Marvel wine cellars are easily recognizable by their distinctive
select maple facings located on the front of the glide-out racks.
Adding a touch of elegance, the facings can be stained to match
any type of wood cabinetry you desire. The Chateau Series
models feature a 2” maple face front while the Luxury Series
models feature a 1” maple face front.
For detailed specications on each model, see charts on page 42-43
5
INTEGRATING WITH YOUR CABINETS
Marvel offers many options when it comes to integrating with
your cabinets. Most of our products can be ordered with doors
that will accept an overlay door panel. Add your cabinet door
panel and handle to complete the integrated look.
Page 9
WINE
CELLARS
6SWCE-BS-G-R
6
Page 10
WINE CELLARS
CHATEAU SERIES
FEATURES
Exclusive Sentry System•
Cool blue LED display and controls are discreetly located•
Marvel’s specially designed ‘Close Door Assist’ door•
Sabbath mode and programmable Fahrenheit or Celsius •
temperature display are easily chosen with the intuitive
touch controls
Vibration Neutralization System•
Full extension, glide-out racks with natural maple wood fronts•
2” Maple rack facings are easy to stain or paint to •
match cabinetry
Dual-pane, tinted, UV-resistant glass door•
Door has matching full-length door handle•
Glass door models showcase contents with elegant •
interior lighting
Audible alarm signals if the temperature goes above or below •
the temperature setting for a period of time or if door is
left ajar
Black cabinets have signature black interiors; white cabinets •
have high gloss white interiors
Right or left hinge preference must be specied at time •
of order
Overlay frame glass door accepts customer supplied wood •
frame overlay rails, stiles and handle
Optional door lock available•
Optional pre-nished Marvel Shelf Front Kits available in •
black, high gloss white* and stainless steel
* Gloss white not available on 6SDZE and 8SWCE
™
refrigeration monitor
™
DUAL ZONE
WINE CELLAR
6SDZE - DUAL ZONE
TWO ZONES ARE INDEPENDENTLY
CONTROLLED AND MONITORED FOR
PERFECT WINE STORAGE
24” Wide•
Stores 44 bottles•
Upper zone: 24 bottles
Lower zone: 20 bottles
5.45 cu. ft. •
6 glide-out wine racks•
33 3/4” min. H •
23 7/8” W•
23 7/8” D•
Height adjustment up to •
1” with leveling legs
DUAL ZONE WINE REFRIGERATION
Whether Red or White, storing, chilling or serving –
Marvel’s Dual Zone Wine Cellar is designed for the job. Two
distinctly separated zones are independently controlled
and monitored. Forced air cooling helps to maintain the
desired temperature settings.
7
Door Options:
Black Cabinet, Stainless Steel •
Framed Glass Door
Black Cabinet, Black Framed Glass Door•
Black Cabinet, Overlay Framed Glass Door•
Page 11
CHAMPAGNE
CELLAR
3SWCE
ULTIMATE WINE
STORAGE FOR
SMALL SPACES
15” Wide•
Stores 24 bottles•
3.0 cu. ft.•
6 glide-out wine racks•
Filler kit available to •
install into 18” wide
opening
33 3/4” min. H •
14 3/4” W•
23 3/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet, Stainless •
Steel Framed Glass Door
Black Cabinet, Black Framed •
Glass Door
Black Cabinet, Overlay •
Framed Glass Door
Black Cabinet, Overlay •
Solid Door
White Cabinet, White •
Framed Glass Door
6SWCE
WINE STORAGE
AT THE PINNACLE
OF LUXURY
24” Wide•
Stores 54 bottles•
6.1 cu. ft.•
6 glide-out wine racks•
1 stationary wine cradle•
33 3/4” min. H •
23 7/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Framed Glass Door
Black Cabinet, Black Framed •
Glass Door
Black Cabinet, Overlay •
Framed Glass Door
Black Cabinet, Overlay •
Solid Door
White Cabinet, White Framed •
Glass Door
8SWCE
EXPANSIVE DESIGN
STATEMENT WITH A GENEROUS
STORAGE CAPACITY
30” Wide•
Stores 68 bottles•
7.6 cu. ft.•
6 glide-out wine racks•
1 stationary wine cradle•
33 3/4” min. H •
29 7/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet, Stainless Steel Framed •
Glass Door
Black Cabinet, Black Framed •
Glass Door
Black Cabinet, Overlay Framed •
Glass Door
White Cabinet, White Framed •
Glass Door
3SWCCE-BS-GX
SPECIALLY DESIGNED
TO HOLD
CHAMPAGNE BOTTLES
15” Wide •
Stores 15 champagne bottles•
3.0 cu. ft.•
5 glide-out champagne racks •
with stainless steel shelf fronts
Filler kit available to install •
into 18” wide opening
33 3/4” min. H•
14 3/4” W•
23 3/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Framed Glass Door
Marvel Wine Cellar and Beverage Center units are not designed to achieve refrigeration product temperatures under any conditions, and therefore are not
sold with the intent of storing fresh foods.
8
Page 12
WINE CELLARS
LUXURY SERIES
FEATURES
Exclusive MicroSentry•
Discreetly located touch controls have amber LED display •
showing real time temperature of contents
Marvel’s specially designed ‘Close Door Assist’ door•
Dual-pane, tinted, UV-resistant glass door•
Door has matching full-length door handle•
Glass door models showcase contents with elegant •
interior lighting
Wine racks extend smoothly with built-in safety stops•
1” Maple rack facings are easy to stain or paint to •
match cabinetry
Black cabinets have signature black interiors; white cabinets •
have high gloss white interiors
Right or left hinge preference must be specied at time •
of order
Overlay frame glass door accepts customer supplied wood •
frame overlay rails, stiles and handle
Optional door lock available•
Optional HUMIDRAWER•
61WCM model (See page 41)
Optional pre-nished Marvel Shelf Front Kit available in •
stainless steel for the 61WCM
DISPLAY YOUR FAVORITE BOTTLES
The 61WCM features an inclined display rack which
nicely showcases those extra special bottles.
™
refrigeration monitor
TM
Cigar Compartment for the
30WCM
A WONDERFUL
ADDITION
TO ANY ROOM
15” Wide•
Stores 23 bottles •
including magnums
3.0 cu. ft.•
5 pull-out wine racks with •
safety stops
1 stationary wine cradle•
Filler kit available to install •
into 18” wide opening
33 3/4” min. H•
14 3/4” W•
23 3/4” D•
Height adjustment up •
to 1” with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Framed Glass Door
Black Cabinet, Black Framed •
Glass Door
Black Cabinet, Overlay Framed •
Glass Door
Black Cabinet, Overlay •
Solid Door
White Cabinet, White Framed •
Glass Door
FEATURES
WINE DISPLAY
RACK
61WCM
UNDERCOUNTER
ELEGANCE
WITH LARGE CAPACITY
24” Wide•
Stores 45 bottles •
including magnums
6.1 cu. ft.•
4 pull-out wine racks with •
safety stops
1 inclined display rack •
1 stationary wine cradle•
33 3/4” min. H •
23 7/8” W•
24 1/4” D•
Height adjustment up •
to 1” with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Framed Glass Door
Black Cabinet, Black Framed •
Glass Door
Black Cabinet, Overlay Framed •
Glass Door
Black Cabinet, Overlay •
Solid Door
White Cabinet, White Framed •
Glass Door
Marvel Wine Cellar and Beverage Center units are not designed to achieve refrigeration product temperatures under any conditions, and therefore are not
sold with the intent of storing fresh foods.
9
Page 13
BEVERAGE
CENTERS
6BARM-BS-G-L
10
Page 14
BEVERAGE CENTERS
CHATEAU SERIES
FEATURES
Exclusive Sentry System•
Cool blue LED display and controls are discreetly located•
Marvel’s specially designed ‘Close Door Assist’ door•
Sabbath mode and programmable Fahrenheit or Celsius•
temperature display are easily chosen with the intuitive
touch controls
Vibration Neutralization System•
Split top shelf design allows easy access to canned •
beverages on the left side and large bottle storage on
the right side. Perfect for storing open bottles.
(Models 6SBARE and 8SBARE only)
Removable shelves allow you to change the storage •
conguration to suit your needs
Glide-out racks with elegant maple wood fronts •
2” Maple rack facings are easy to stain or paint to •
match cabinetry
Dual-pane, tinted, UV-resistant glass door•
Door has matching full-length door handle•
Glass door models showcase contents with elegant •
interior lighting
Black cabinets have signature black interiors; white cabinets•
have high gloss white interiors
Right or left hinge preference must be specied at time •
of order
Overlay frame glass door accepts customer supplied wood•
frame overlay rails, stiles and handle
Optional pre-nished Marvel Shelf Front Kits available in •
black, high gloss white and stainless steel
™
refrigeration monitor
™
FLEXIBLE STORAGE AND
LARGE CAPACITY
*Luxury Series unit shown
11
Page 15
3SBARE
CONVENIENCE IN
A SMALL AND
EXQUISITE MODEL
6SBARE
AN EXTENSIVE
CAPACITY FOR A
24” WIDE UNIT
8SBARE
ELEGANCE MEETS
SPACIOUSNESS IN THIS
MAGNIFICENT MODEL
15” Wide•
Stores 4 wine bottles, 36 cans•
3.0 cu. ft.•
1 glide-out wine rack•
3 glide-out glass shelves•
Filler kit available to install into •
18” wide opening
33 3/4” min. H•
14 3/4” W•
23 3/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Framed Glass Door
Black Cabinet, Black Framed •
Glass Door
Black Cabinet, Overlay Framed •
Glass Door
Black Cabinet, Overlay Solid Door•
White Cabinet, White Framed •
Glass Door
24” Wide•
Stores 14 wine bottles, 84 cans•
(max. 114 stacked)
6.1 cu. ft.•
1 stationary half shelf •
1 glide-out wine rack•
2 glide-out glass shelves •
1 stationary wine cradle•
33 3/4” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet, Stainless Steel Framed •
Glass Door
Black Cabinet, Black Framed •
Glass Door
Black Cabinet, Overlay Framed •
Glass Door
Black Cabinet, Overlay Solid Door•
White Cabinet, White Framed •
Glass Door
30” Wide•
Stores 18 wine bottles, 144 cans •
(max. 162 stacked)
7.6 cu. ft.•
1 glide-out wine rack•
2 glide-out glass shelves •
1 stationary wine cradle •
33 3/4” min. H•
29 7/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Framed Glass Door
Black Cabinet, Black Framed •
Glass Door
Black Cabinet, Overlay Framed •
Glass Door
Marvel Wine Cellar and Beverage Center units are not designed to achieve refrigeration product temperatures under any conditions, and therefore are not
sold with the intent of storing fresh foods.
12
Page 16
BEVERAGE CENTERS
LUXURY SERIES
FEATURES
Exclusive MicroSentry•
Discreetly located touch controls have amber •
LED display showing real time temperature
of contents
Marvel’s specially designed ‘Close Door •
Assist’ door
Dual-pane, tinted, UV-resistant glass door•
Door has matching full-length door handle•
Glass door models showcase contents with •
elegant interior lighting
Split top shelf design allows easy access to •
canned beverages on the left side and large
bottle storage on the right side. Perfect for
storing open bottles. (Model 6BARM only)
Wine racks extend smoothly with built-in •
safety stops
1” Maple rack facings are easy to stain or •
paint to match cabinetry
Black cabinets have signature black interiors; •
white cabinets have high gloss white interiors
Right or left hinge preference must be •
specied at time of order
Overlay frame glass door accepts customer •
supplied wood frame overlay rails, stiles
and handle
™
refrigeration monitor
3BARM
QUIET AND ELEGANT
15” Wide•
Stores 4 wine bottles, •
60 x 12-oz cans
3.0 cu. ft. •
1 slide-out wine rack•
2 perforated powder paint •
coated metal shelves
Filler kit available to install into •
18” wide opening
33 3/4” min. H•
14 3/4” W•
23 3/4” D•
Height adjustment up to 1” •
with leveling legs
6BARM
ONE OF MARVEL’S MOST POPULAR
AND VERSATILE PERFORMERS
24” Wide•
Stores 14 wine bottles, 103 x 12-oz •
cans (max.133 stacked)
6.1 cu. ft.•
1 perforated powder paint coated •
metal shelf
1 removable tempered glass shelf•
1 slide-out wine rack•
1 stationary wine cradle•
33 3/4” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to 1” •
with leveling legs
13
ELEGANT SHOWCASE
For an enhanced display, Marvel’s glass door
models feature elegant interior lighting which
showcase the contents inside.
Door Options:
Black Cabinet, Stainless Steel •
Framed Glass Door
Black Cabinet, Black Framed •
Glass Door
Black Cabinet, Overlay Framed •
Glass Door
Black Cabinet, Overlay Solid Door•
White Cabinet, White Framed •
Glass Door
Marvel Wine Cellar and Beverage Center units are not designed to achieve
refrigeration product temperatures under any conditions, and therefore are not
sold with the intent of storing fresh foods.
Door Options:
Black Cabinet, Stainless Steel Framed •
Glass Door
Black Cabinet, Black Framed Glass Door•
Black Cabinet, Overlay Framed •
Glass Door
Black Cabinet, Overlay Solid Door•
White Cabinet, White Framed •
Glass Door
Page 17
REFRIGERATION
60RDE-BS-F-WI
14
Page 18
REFRIGERATION
REFRIGERATED DRAWERS
FEATURES
Exclusive Sentry System•
refrigeration monitor
White drawer interiors are ideal •
for fresh food storage
Extra-deep lower drawer stores •
2-liter and wine bottles
standing up
Full extension drawer slides •
provide easy access
LED light system provides clean, •
bright interior lighting
Drawer fronts available in •
stainless steel, black, gloss
white, or overlay panel
Includes user-activated •
Sabbath mode
Enhanced microprocessor •
technology provides
superior temperature control
Ultra-efcient refrigeration•
system delivers fast cool-down,
superior temperature control
and longevity
Auto defrost•
Optional E-Z Stor Storage •
System and adjustable
Drawer Dividers for added
organization (See page 41)
™
60RDE
PLENTY OF REFRIGERATED STORAGE
SPACE WITH THIS 5.8 CU. FT. BEAUTY
24” Wide•
5.8 cu. ft •
33 3/4” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to 1” with •
leveling legs
Door Options:
Black Cabinet, Stainless Steel Solid Door•
Black Cabinet, Black Solid Door•
Black Cabinet, Overlay Solid Door•
White Cabinet, White Solid Door•
White Cabinet, Overlay Solid Door•
80RDE
UNPARALLELED 7.6 CU. FT. STORAGE
CAPACITY
30” Wide•
7.6 cu. ft. •
33 3/4” min. H•
29 7/8” W•
24 1/4” D•
Height adjustment up to 1” with •
leveling legs
Door Options:
Black Cabinet, Stainless Steel Solid Door•
Black Cabinet, Black Solid Door•
Black Cabinet, Overlay Solid Door•
White Cabinet, White Solid Door•
White Cabinet, Overlay Solid Door•
15
CONVENIENCE REDEFINED
Marvel’s refrigerated drawers are designed for copious
storage of fresh foods or beverages. The bottom
drawer is deep enough to hold most tall bottles.
Page 19
REFRIGERATION
GLASS DOOR REFRIGERATOR/BEVERAGE CENTER
FEATURES
Electronic temperature control with exclusive MicroSentry•
refrigeration monitor
Temperature ranges from 35 °F to 43 °F•
Stores beverages and perishable fresh foods •
Cantilever style shelving system with 2 full-width and •
1 half-width shelves
Half-width shelf allows for tall and/or open bottle storage •
Full-width shelves can be converted to 6-bottle wine shelf by •
removing glass insert
Fixed position 6-bottle wine cradle located at bottom •
of compartment
Forced-air compartment cooling to minimize temperature gradients •
and reduce “pull-down” and “recovery” times
Discreetly located control panel with Amber LED •
temperature display
“Close Door Assist” hinging system•
Tinted, dual-pane, UV resistant glass door•
Overlay panel door available on both glass and solid door models •
to accommodate custom panels
Natural nish Maple shelf fronts may be painted or stained•
Toe-grille adjustable to accommodate cabinet height adjustment•
Right or left hinge preference must be specied at time of order•
™
6GARM
GLASS DOOR REFRIGERATOR/BEVERAGE
CENTER
24” Wide•
5.6 cu. ft.•
33 7/8” min H.•
23 7/8” W•
23 1/2” D•
Height can be increased 1” with factory •
installed leveling legs
Door Options:
Black Cabinet, Stainless Steel Framed Glass Door•
Black Cabinet, Black Framed Glass Door•
Black Cabinet, Overlay Framed Glass Door•
Black Cabinet, Overlay Solid Door•
Half-width shelf allows vertical storage of tall items. Convertible shelf accommodates 6 additional
wine bottles.
16
Page 20
REFRIGERATION
REFRIGERATORS
FEATURES
Exclusive MicroSentry•
Energy Star Compliant •
(61ARM and 6ADAM only)
ADA-compliant (Americans With Disabilities Act) •
(6ADAM only)
Discreetly located touch controls have amber LED •
temperature display
Marvel’s specially designed ‘Close Door •
Assist’ door
Available in 15” and 24” widths•
Automatic interior light•
Auto defrost•
Convenient door shelves•
Available in black, white, stainless steel or overlay •
solid doors
Door has matching bar handle•
Right or left hinge preference must be specied at •
time of order
Optional door lock available•
™
refrigeration monitor
ULTRA-EFFICIENT COOLING
Marvel’s Refrigerators and Refrigerator/Freezers feature ultra-efcient
refrigeration systems delivering fast cool-down, superior temperature
control and longevity.
17
PLENTY OF SPACE
Although Marvel’s ADA units are smaller in height compared to other models
- they are still specially designed for ultimate capacity.
Page 21
ADA
HEIGHT
30ARM
REFRIGERATOR
15” Wide•
3.0 cu. ft. •
3 adjustable, chrome-plated •
wire shelves
3 storage shelves in door•
Filler kit available to install •
into 18” wide opening
33 3/4” min. H•
14 3/4” W•
23 3/4” D•
Height adjustment up to 1” •
with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Solid Door
Black Cabinet, Black Solid Door•
Black Cabinet, Overlay •
Solid Door
White Cabinet, Stainless Steel •
Solid Door
White Cabinet, White •
Solid Door
White Cabinet, Overlay •
Solid Door
61ARM
REFRIGERATOR
24” Wide•
6.1 cu. ft. •
2 adjustable white •
wire shelves
3 storage shelves in door•
33 3/4” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to 1” •
with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Solid Door
Black Cabinet, Black Solid Door•
Black Cabinet, Overlay •
Solid Door
White Cabinet, Stainless Steel •
Solid Door
White Cabinet, White Solid Door•
White Cabinet, Overlay •
Solid Door
6ADAM
ADA HEIGHT REFRIGERATOR
24” Wide•
5.4 cu. ft. •
Holds 120 x 12-oz cans •
(max. 150 stacked)
2 white wire shelves with •
safety stops
2 storage bins on inner •
door panel
31 1/8” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to 1” •
with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Solid Door
Black Cabinet, Black Solid Door•
Black Cabinet, Overlay Solid Door•
White Cabinet, White Solid Door•
White Cabinet, Overlay Solid Door•
18
Page 22
REFRIGERATION
REFRIGERATOR/FREEZERS
FEATURES
Available in 24” and 30” widths•
Marvel’s specially designed ‘Close •
Door Assist’ door
Top mounted freezer compartment •
with self-closing door
Three door shelves•
Two ice cube trays•
Automatic interior light•
Manual defrost • freezer
61RF
REFRIGERATOR/FREEZER
24” Wide•
Refrigerator: 5.3 cu. ft.•
Freezer: 0.73 cu. ft.•
2 removable tempered glass shelves •
33 3/4” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to 1” •
with leveling legs
Door Options:
Black Cabinet, Stainless Steel Solid Door•
Black Cabinet, Black Solid Door•
Black Cabinet, Overlay Solid Door•
White Cabinet, Stainless Steel •
Solid Door
White Cabinet, White Solid Door•
White Cabinet, Overlay Solid Door•
80RF
REFRIGERATOR/FREEZER
30” Wide•
Refrigerator: 7.2 cu. ft.•
Freezer: 0.73 cu. ft. •
2 wide chrome-plated wire shelves•
33 3/4” min. H•
29 7/8” W•
24 1/4” D•
Height adjustment up to 1” •
with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Solid Door
Black Cabinet, Black Solid Door•
White Cabinet, White Solid Door•
19
MAXIMUM STORAGE CAPACITY
Marvel Refrigerators and Refrigerator/Freezers
feature storage bins on the doors that can easily
store larger and taller items.
Page 23
FULL SIZE
COMBINATION
UNITS
66SWDE-BS-G-WI with Stainless Steel Shelf Fronts
20
Page 24
FULL SIZE COMBINATION UNITS
CHATEAU SERIES
FEATURES
Combine wine cellars, refrigerators and refrigerated drawers
to suit your needs. Exclusive Sentry System™ refrigeration
monitor (See page 3) is found on all these units.
WINE CELLARS AND BEVERAGE CENTERS
Cool blue LED display and controls are discreetly located•
Marvel’s specially designed ‘Close Door Assist’ door•
Sabbath mode and programmable Fahrenheit or Celsius •
temperature display are easily chosen with the intuitive
touch controls
Vibration Neutralization System•
2” Maple rack facings are easy to stain or paint to •
match cabinetry
Dual-pane, tinted, UV-resistant glass door•
Door has matching full-length door handle•
Glass door models showcase contents with elegant •
interior lighting
Black cabinets have signature black interiors•
Right or left hinge preference must be specied at time •
of order
Overlay frame glass door accepts customer supplied wood •
frame overlay rails, stiles and handle
Optional pre-nished Marvel Shelf Front Kits available in •
black, high gloss white and stainless steel
WINE CELLARS
Two independently controlled temperature zones•
Full extension, glide-out racks with natural maple •
wood fronts
Optional door lock available•
™
BEVERAGE CENTERS
Split top shelf design allows easy access to canned •
beverages on the left side and large bottle storage on the
right side. Perfect for storing open bottles
Glide-out racks with elegant maple wood fronts •
REFRIGERATED DRAWERS
White drawer interiors are ideal for fresh food storage •
Extra-deep lower drawer vertically stores 2-liter and •
wine bottles
Full extension drawer slides provide easy access•
LED light system provides clean, bright interior lighting•
Includes user-activated Sabbath mode •
Enhanced microprocessor technology provides superior •
temperature control
Ultra-efcient refrigeration system delivers fast cool-down, •
superior temperature control and longevity
Powder coat painted steel cabinets and doors provide an •
attractive, low maintenance exterior
Auto defrost•
Optional E-Z Stor Storage System and adjustable Drawer •
Dividers for added organization (See page 41)
Marvel Wine Cellar and Beverage Center units are not designed to achieve refrigeration product temperatures under any conditions, and therefore are not
sold with the intent of storing fresh foods.
21
Page 25
66SWCE
WINE CELLAR
66SWBE
WINE CELLAR AND
BEVERAGE CENTER
66SBWE
BEVERAGE CENTER AND
WINE CELLAR
66SWDE
WINE CELLAR AND
REFRIGERATED DRAWERS
24” Wide •
Stores 108 bottles (2 x 54)•
12.2 cu. ft.•
12 glide-out wine racks•
2 stationary wine cradles•
67 1/2” min. H•
24 1/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet Only
Stainless Steel Framed •
Glass Door
Black Framed Glass Door•
Overlay Framed Glass Door•
24” Wide •
Stores 68 bottles, 84 cans•
(max. 114 cans stacked)
12.2 cu. ft. •
Wine storage in upper section•
Beverage storage in•
lower section
67 1/2” min. H•
24 1/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet Only
Stainless Steel Framed Glass Door•
Overlay Framed Glass Door •
24” Wide•
Stores 68 bottles, 84 cans•
(max. 114 cans stacked)
12.2 cu. ft. •
Beverage storage in upper section•
Wine storage in lower section•
67 1/2” min. H•
24 1/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet Only
Stainless Steel Framed Glass Door•
Black Framed Glass Door•
24” Wide•
Upper: Stores 54 bottles/ •
5.9 cu. ft.
Lower: 5.8 cu. ft.•
Wine storage on upper section•
Full extension deep drawers on •
lower section
67 1/2” min. H•
24 1/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet Only
Stainless Steel Framed Glass Door •
Black Framed Glass Door•
Overlay Framed Glass Door•
Overlay Solid Door•
Drawer Fronts:
Black Cabinet Only
Stainless Steel Solid Door•
Black Solid Door•
Overlay Solid Door•
22
Page 26
FULL SIZE COMBINATION UNITS
LUXURY SERIES
FEATURES
Exclusive MicroSentry•
Discreetly located touch controls have amber •
LED temperature display
Marvel’s specially designed ‘Close Door •
Assist’ door
Dual-pane, tinted, UV-resistant glass door•
Door has matching full-length door handle•
Glass door models showcase contents with •
elegant interior lighting
Optional HUMIDRAWER•
Compartment on all Luxury Series full size
wine beverage centers (See page 41)
™
refrigeration monitor
TM
Cigar
WINE CELLAR
Wine racks extend smoothly with built-in safety stops•
1” Maple rack facings are easy to stain or paint to •
match cabinetry
Black cabinets have signature black interiors; white •
cabinets have high gloss white interiors
Right or left hinge preference must be specied at •
time of order
Overlay frame glass door accepts customer supplied •
wood frame overlay rails, stiles and handle
BEVERAGE CENTER
Split top shelf design allows easy access to canned •
beverages on the left side and large bottle storage on
the right side. Perfect for storing open bottles.
Wine racks extend smoothly with built-in safety stops•
1” Maple rack facings are easy to stain or paint to •
match cabinetry
Black cabinets have signature black interiors; white •
cabinets have high gloss white interiors
Right or left hinge preference must be specied at •
time of order
Overlay frame glass door accepts customer supplied •
wood frame overlay rails, stiles and handle
Marvel Wine Cellar and Beverage Center units are not designed to achieve refrigeration product temperatures under any conditions, and therefore are not
sold with the intent of storing fresh foods.
23
Page 27
66WCM
WINE CELLAR
66WBM
WINE CELLAR AND
BEVERAGE CENTER
66BWM
BEVERAGE CENTER AND
WINE CELLAR
24” Wide •
Stores 90 bottles including•
magnums/12.2 cu. ft.
8 pull-out wine racks with •
safety stops
2 stationary display racks•
2 stationary wine cradles•
67 1/2” min. H•
24 1/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet Only
Stainless Steel Framed Glass Door•
Black Framed Glass Door•
Overlay Framed Glass Door•
24” Wide •
Stores 59 bottles including •
magnums /12.2 cu. ft.
103 x12 oz cans •
(max. 133 cans stacked)
Wine storage in •
upper section
Beverage storage in •
lower section
67 1/2” min. H•
24 1/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet Only
Stainless Steel Framed •
Glass Door
Overlay Framed Glass Door•
24” Wide •
Stores 59 bottles including •
magnums /12.2 cu. ft.
103 x12 oz cans •
(max. 133 cans stacked)
Beverage storage in upper section•
Wine storage in lower section•
67 1/2” min. H•
24 1/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet Only
Stainless Steel Framed Glass Door•
Overlay Framed Glass Door•
24
Page 28
25
Page 29
ICE
MACHINES
30iMT-BS-F-R
26
Page 30
THE DIFFERENCE IS CRYSTAL CLEAR
Simply freezing water also freezes any impurities that are in it, altering its taste—and any beverage it touches. That is why Marvel’s
clear ice machines utilize a specialized process that removes impurities during the freezing process. This results in crystal clear,
gourmet ice that perfectly chills beverages.
27
Regular Ice
Marvel Clear Ice
Page 31
ICE MACHINES
FEATURES
For ice when you need it, choose one of Marvel’s Clear or Crescent Ice Machines.
CLEAR ICE
Simply freezing water also freezes any impurities that are in it, altering its
taste—and any beverage it touches. That is why Marvel’s clear ice machines
utilize a specialized process, called progressive freezing that removes impurities
during the freezing process resulting in clear, pure ice. The size and shape of
Marvel’s clear ice cube is designed to cool your beverage quicker while taking
less room in your glass.
PLENTY OF ICE STORAGE
Marvel’s Clear ice machines store up to 30 lbs of clear ice. Over time,
stored ice will become less clear, so stored ice will melt and new ice will
continually be made to be ready for your use.
For detailed specications on each model, see charts on page 42-43
28
Page 32
ICE MACHINES
CRYSTAL CLEAR ICE
FEATURES
Produces crystal clear, gourmet •
ice cubes
Microprocessor technology provides •
precise ice production control
High-efciency, low-maintenance •
condenser design suitable for built-
in (zero clearance) installations
Stainless steel ice cutter•
Auto defrost•
Produces up to 30 lbs of ice•
cubes in 24-hrs
Storage capacity of up to 30 lbs•
Equipped with Cleaning Mode•
Large rigid ice scoop located •
on inner door panel for
improved accessibility
Filler kit available to install into •
18” wide opening
Order without drain pump for •
installations where drain is lower
than the ice machine
Order with the drain pump, factory •
installed
is higher than the ice machine
(See page 41)
3OiMT only
UL Listed suitable for outdoor use •
Enclosed in high-performance •
stainless steel
Stainless grille •
for installations where drain
30iMT
INDOOR
CLEAR ICE MACHINE
15” Wide •
Produces up to 30 lbs•
Stores up to 30 lbs•
33 3/4” min. H•
14 3/4” W•
23 3/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Solid Door
Black Cabinet, Black Solid Door•
Black Cabinet, Overlay •
Solid Door
White Cabinet, Stainless Steel •
Solid Door
White Cabinet, White •
Solid Door
White Cabinet, Overlay •
Solid Door
3OiMT
INDOOR/OUTDOOR
CLEAR ICE MACHINE
15” Wide •
Produces up to 30 lbs•
Stores up to 30 lbs•
33 3/4” min. H•
14 3/4” W•
23 3/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Stainless Steel Cabinet•
Stainless Steel Solid Door•
ADA
HEIGHT
30iMAT
INDOOR ADA HEIGHT
CLEAR ICE MACHINE
15” Wide •
Produces up to 30 lbs•
Stores up to 30 lbs•
31 1/8” min. H•
14 3/4” W•
23 3/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Solid Door
Black Cabinet, Black Solid Door•
Black Cabinet, Overlay •
Solid Door
White Cabinet, White •
Solid Door
White Cabinet, Overlay •
Solid Door
29
Page 33
ICE MACHINES
CRESCENT SHAPED ICE
FEATURES
Produces crescent shaped •
ice cubes
Produces up to 12 lbs of•
ice in 24 hours
Storage capacity of up •
to 15 lbs
Removable ice bucket•
Manual Defrost•
No drain required•
25OiM only
UL Listed suitable for •
outdoor use
Enclosed in high-•
performance stainless steel
Stainless grille•
15iM
INDOOR COUNTER TOP
ICE MACHINE
15” Wide•
24 1/4” H•
14 3/4” W•
22 1/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Solid Door
Black Cabinet, Black Solid Door•
White Cabinet, White Solid Door•
25iM
INDOOR UNDERCOUNTER
ICE MACHINE
15” Wide •
Filler kit available to install •
into 18” wide opening
33 3/4” min. H•
14 3/4” W•
22 1/4” D•
Adjustable toe grille adjusts •
from 3.25” to 4”
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Solid Door
Black Cabinet, Black •
Solid Door
Black Cabinet, Overlay •
Solid Door
White Cabinet, Stainless Steel •
Solid Door
White Cabinet, White •
Solid Door
White Cabinet, Overlay •
Solid Door
25OiM
INDOOR/OUTDOOR
UNDERCOUNTER ICE MACHINE
15” Wide •
Filler kit available to install •
into 18” wide opening
33 3/4” min. H•
14 3/4” W•
22 1/4” D•
Adjustable toe grille adjusts •
from 3.25” to 4”
Height adjustment up to •
1” with leveling legs
Door Options:
Stainless Steel Cabinet, Stainless •
Steel Solid Door
30
Page 34
DRAFT BEER
DISPENSERS
31
61HK-BS-F-R & 30iMT-BS-F-R
Page 35
EXCLUSIVE COOLING POWER
Marvel’s undercounter freestanding or built-in beer dispensers have the refrigeration capacity to keep a half keg of beer frosty cold,
from start to nish, right out of the tap.
32
Page 36
DRAFT BEER DISPENSERS
INDOOR/OUTDOOR
FEATURES
Accommodates half or quarter draft •
beer kegs or two 1/6 barrels
(double tower would be required)
May be built into 24” wide •
undercounter space, freestanding
or portable
Optional heavy duty casters with •
locking capabilities
Includes all necessary tapping •
equipment; draft tower, hoses, 5lbs
CO² tank and regulator, plus drip
tray and interior oor shield to
protect inside liner
Draft tower can be mounted on any •
countertop surface
Full auto defrost•
Optional accessory items include •
built-in drain system and tap
cleaning kit
Outdoor units:
UL Listed suitable for outdoor use•
Refrigerator cabinet and door •
encased in corrosion resistant
stainless steel
61HK
INDOOR
33 3/4” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
Height 37” with optional casters•
6OHK
INDOOR/OUTDOOR
33 3/4” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to 1” •
with leveling legs
Height 37” with optional casters•
33
OUT OF SIGHT
Marvel’s Draft Beer Dispensers hide kegs
from sight while keeping them cold and can
accommodate either a half or quarter draft
beer keg.
Door Options:
Black Cabinet, Stainless Steel •
Solid Door
Black Cabinet, Black Solid Door•
Black Cabinet, Overlay Solid Door•
Door Options:
Stainless Steel Cabinet Only•
Stainless Steel Solid Door Only•
Page 37
OUTDOOR
SERIES
6OHK-SS-F-R & 3OIMT-SS-F-R
34
Page 38
OUTDOOR SERIES
REFRIGERATION
UL
LISTED
FOR
OUTDOOR
USE
WINE
CELLAR
6OSWCE
24” WIDE/54 BOTTLES/6.1 CU. FT.
Exclusive Sentry System•
refrigeration monitor
Vibration Neutralization •
System™ (VNS)
Discreet, cool blue LED display •
shows real time temperature
of wine
Intuitive touch controls are •
discreetly located for
understated elegance
Full-extension glide-out racks •
Cabinet exterior, door and wine •
rack fronts encased in
stainless steel
Signature black interior•
Full auto defrost•
Optional accessories: Easy roll •
casters and protective vinyl cover
(See page 41)
33 3/4” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
™
BEVERAGE
CENTER
6OBARM
24” WIDE/6.1 CU. FT.
Exclusive MicroSentry•
refrigeration monitor
Split top shelf design allows easy •
access to canned beverages on the
left side and large bottle storage on
the right side. Perfect for storing
open bottles.
Stores 14 bottles of wine and 103 •
canned beverages (max. 133 cans if
double stacked on right)
Cabinet exterior and door encased in •
stainless steel
Full auto defrost•
Optional accessories: Easy roll casters •
and protective vinyl cover
(See page 41)
33 3/4” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
™
REFRIGERATED
DRAWERS
6ORDE
24” WIDE/5.8 CU. FT.
Exclusive Sentry System•
refrigeration monitor
Touch controls and electronic •
display are discreetly located
Extra-deep lower drawer vertically •
stores 2-liter and wine bottles
Cabinet exterior and drawer fronts •
encased in stainless steel
Full extension drawer slides provide •
easy access
33 3/4” min. H*•
23 7/8” W•
24 1/4” D•
Height adjustment up to•
1” with leveling legs
™
Marvel Wine Cellar and Beverage Center units are not designed to achieve refrigeration product temperatures under any conditions, and therefore are not
sold with the intent of storing fresh foods.
35
Page 39
ALL
ALL
ALL
REFRIGERATOR
3OARM
15” WIDE/3.0 CU. FT
Exclusive MicroSentry•
refrigeration monitor
3 adjustable chrome-plated •
wire shelves
3 door shelves•
Automatic interior light•
Auto Defrost•
Cabinet exterior and door encased in •
stainless steel
Filler kit available to install into 18” •
wide opening
Optional accessory: Easy roll casters •
(See page 41)
33 3/4” min. H•
14 3/4” W•
23 3/4” D•
Height adjustment up to •
1” with leveling legs
™
REFRIGERATOR
6OARM
24” WIDE/6.1 CU. FT
Exclusive MicroSentry•
refrigeration monitor
Energy Star Compliant •
2 removable wire shelves•
3 door shelves•
Automatic interior light •
Cabinet exterior and door encased in •
stainless steel
Auto Defrost•
Optional accessories: Easy roll •
casters and protective vinyl cover
(See page 41)
33 3/4” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
™
REFRIGERATOR
6ORGDM
24” WIDE/6.1 CU. FT
Exclusive MicroSentry•
refrigeration monitor
Energy Star Compliant •
Split top shelf design allows easy •
access to canned beverages
on the left side and large
bottle storage on the right
side. Perfect for storing
open bottles.
2 removable wire shelves•
Automatic interior light•
Cabinet exterior and door •
encased in stainless steel
Auto Defrost•
Optional accessories: Easy roll •
casters and protective vinyl cover
(See page 41)
33 3/4” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to •
1” with leveling legs
™
36
Page 40
OUTDOOR SERIES
ICE MACHINE & DRAFT BEER DISPENSER
UL
LISTED
FOR
OUTDOOR
USE
ICE MACHINE
3OiMT
15” WIDE/CLEAR ICE CUBES
Cabinet exterior and door encased in •
stainless steel
Produces up to 30 lbs of crystal clear •
ice in a 24 hour period
Stores up to 30 lbs •
Filler kit available to install into 18” •
wide opening
Order without drain pump for •
installations where drain is lower
than the ice machine
Order with the drain pump, factory •
installed
is higher than the ice machine
(See page 41)
Optional accessory: Easy roll casters •
(See page 41)
33 3/4” min. H•
14 3/4” W•
23 3/4” D•
Height adjustment up to 1” with •
leveling legs
for installations where drain
ICE MACHINE
25OiM
15” WIDE/CRESCENT SHAPED ICE
Cabinet exterior and door •
encased in stainless steel
Filler kit available to install •
into 18” wide opening
Produces up to 12 lbs of ice •
in 24 hours
Storage capacity of up to •
15 lbs
33 3/4” min. H•
14 3/4” W•
22 1/4” D•
Adjustable toe grille adjusts •
from 3.25” to 4”
Height adjustment up to •
1” with leveling legs
DRAFT BEER DISPENSER
6OHK
24” WIDE INDOOR/OUTDOOR
Refrigerator cabinet and door encased•
in stainless steel
Holds half or quarter kegs and can be •
built into 24” wide undercounter
space, freestanding or portable
with optional casters
Complete with draft tower, hoses, 5 lbs •
CO² tank and regulator, drip tray and
interior oor shield
Full auto defrost •
Optional accessories: Easy roll casters •
and protective vinyl cover (See page 41)
Optional stainless steel glass rail•
33 3/4” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to 1” with •
leveling legs
37
Page 41
ADA
SERIES
30iMAT-BB-F-L
38
Page 42
ADA SERIES
UNDERCOUNTER REFRIGERATION
30iMAT
ADA HEIGHT
CLEAR ICE MACHINE
15” Wide •
Produces crystal clear, •
gourmet ice cubes
Produces up to 30 lbs•
Stores up to 30 lbs •
Commercial quality•
Auto defrost•
Requires gravity drain or •
optional Marvel Drain Pump
(See page 41)
31 1/8” min. H•
14 3/4” W•
23 3/4” D•
Height adjustment up to •
1” with leveling legs
Door Options:
Black Cabinet, Stainless Steel •
Solid Door
Black Cabinet, Black Solid Door•
Black Cabinet, Overlay •
Solid Door
White Cabinet, White Solid Door•
White Cabinet, Overlay •
Solid Door
6ADAM
ADA HEIGHT
REFRIGERATOR
24” Wide•
5.4 cu. ft. •
Exclusive MicroSentry•
refrigeration monitor
Energy Star Compliant•
Split top shelf design allows easy •
access to canned beverages on the
left side and large bottle or opened
bottle storage on the right side
2 pull-out white wire shelves with •
safety stops
Holds 120 12-oz. canned beverages •
(max. 150 stacked)
Full auto defrost •
31 1/8” min. H•
23 7/8” W•
24 1/4” D•
Height adjustment up to 1” with •
leveling legs
Door Options:
Black Cabinet, Stainless Steel Solid Door•
Black Cabinet, Black Solid Door•
Black Cabinet, Overlay Solid Door•
White Cabinet, White Solid Door•
White Cabinet, Overlay Solid Door•
TM
Marvel ADA Series
is
designed to meet
Universal
Design
Congurations
UNIVERSAL DESIGN
CONFIGURATIONS
Finally, there is no need to compromise
with special design projects, because when
it comes to convenient undercounter
refrigeration, no one offers more choices
and more design possibilities than Marvel.
39
Page 43
CUSTOMIZING YOUR MARVEL
STYLE & DESIGN DOOR OPTIONS
FRAMED GLASS DOOR OPTIONS
Stainless Steel Black White Overlay
Framed glass doors are available in stainless, black, white or overlay ready•
Overlay framed glass doors can accept a custom frame and handle supplied by the customer•
Not all door options are available on all models* •
SOLID DOOR OPTIONS
Stainless Steel Black White Overlay
Solid doors are available in available in stainless, black, white or overlay ready•
Overlay solid doors accept a custom panel and handle supplied by the customer•
Not all door options are available on all models*•
NOTE: Marvel overlay solid door features a reduced depth to accept a custom overlay •
panel, allowing seamless integration with adjacent cabinets.
*Doors shown on wine cellars are for reference purposes only. Glass doors are not available
on refrigerator drawers, ice machines and outdoor models.
40
Page 44
CUSTOMIZING YOUR MARVEL
OPTIONAL ACCESSORIES
HUMIDRAWER
Marvel’s HumiDrawerTM is handcrafted of rich walnut and lined with
aromatic, untreated Spanish cedar, recommended for ne cigar
storage. Smooth Spanish cedar dividers are adjustable into four
compartments to accommodate cigars from ve to eight inches in
length. Humidication system is discreetly located. Built-in closure
solidly seals the chamber. Designed exclusively to t Marvel’s Luxury
Series wine cellars 61WCM, 66WCM, 66WBM and the 66BWM.
TM
CIGAR COMPARTMENT
*
DRAWER DIVIDER
Stainless steel drawer dividers neatly hold food and beverages in
place, including vertical 2-liter bottles, gallon containers and wine
bottles. Drawer dividers are fully adjustable for optimum storage
and organization. 80RDE lower divider has an additional sliding
cross-piece to maximize use of the supersized lower drawer.
Requires removal of factory installed divider.
60RDE, 80RDE and 6ORDE-SS-F.
Available for models
Note:
E-Z STOR STORAGE SYSTEM
Marvel’s E-Z Stor System is a European style organization system
keeping food fresh while separating odors and avors. The
containers and lids are fully dishwasher safe and the stainless steel
bins are easily removed to accompany the chef to prep, cooking
and serving areas. Clear plastic lids allow you to see contents easily.
Note: Requires removal of factory installed divider. Available for
models 60RDE, 80RDE and 6ORDE-SS-F.
MARVEL DRAIN PUMP
This rugged, compact drain pump installs easily in our clear ice
machines that do not have access to a gravity drain. The sealedreservoir drain pump is designed especially for applications where
a oor drain is not readily accessible. This is a Marvel exclusive that
is built to provide years of reliable service. Marvel Drain Pump that
can be factory installed or sold separately as a kit - available for
models 30iMT, 3OiMT-SS-F, 30iMAT.
CASTERS
Why limit your Marvel to just one location? With our optional
easy-to-install casters, you can move your Marvel product where
you want it, when you want, simultaneously increasing mobility,
exibility and accessibility.
NOTE: Casters will add 3 1/4” height to the overall height of
the unit.
PROTECTIVE VINYL COVER
Made of heavy-duty 23-ounce PVC vinyl, with a polyester non-woven
back. Available for models 6OSWCE, 6OBARM, 6OARM, 6ORGDM
and 6OHK.
NOTE: To learn more about other accessories available, please
contact your local dealer.
41
Page 45
MARVEL
PRODUCT SPECIFICATIONS
6SDZE
3SWCE
6SWCE
8SWCE
3SWCCE
30WCM
61WCM
BEVERAGE CENTERS
3SBARE
6SBARE
8SBARE
3BARM
6BARM
REFRIGERATED DRAWERS
60RDE
80RDE
GLASS DOOR REFRIGERATOR/BEVERAGE CENTER
6GARM
REFRIGERATORS
30ARM
61ARM
6ADAM
REFRIGERATOR/FREEZERS
61RF
80RF
FULL SIZE COMBINATION UNITS
66SWCE
66SWBE
66SBWE
66SWDE
66WCM
66WBM
66BWM
67½ 24
1
1
1
1
/8 24 ¼ - - - 40 -65 - 12.2 - - - - - 90 auto 270 STD - black - ST D STD
/8 24 ¼ - - 40 -65 40 -65 - 12.2 - - - - 103 59 auto 270 STD - black - STD STD
/8 24 ¼ - - 40 -65 40 -65 - 12.2 - - - - 84 68 auto 320 ST D - black - STD STD
/8 24 ¼ 33-45 - - 40 -65 - 5.8 - - - - 14 4 54 auto 356 STD -
33¾ 29
1
7
/8 24 ¼ - - - 40 -65 - 12.2 - - - - - 10 8 auto 356 STD - black - STD STD
/8 24¼ 33-45 10-29 - - - 5.7 1.4 2 trays - - 205 - manual 12 9 - - 3 - white STD STD
67½ 24
67½ 24
67½ 24
67½ 24
31
33¾ 23
7
/8 24 ¼ 33-45 10-29 - - - 4.4 1.4 2 trays - - 17 5 - manual 11 6 - 3 - white STD STD
33¾ 23
1
/8 23
7
7
/8 24 ¼ 33-45 - - - - 5.9 - - - - 19 0 - auto 12 0 - 3 white STD STD
/8 24 ¼ 33-45 - - - - 5.5 - - - - 12 0 - auto 11 5 - - ST D white STD STD
33
33¾ 14 ¾ 23 ¾ 33-45 - - - - 3.0 - - - - 10 0 - auto 95 - 3 white - STD STD
33¾ 29
7
/8 23
7
7
/8 23 ½ 35 -43 - - - - 5.8 - - - - N/A - auto 16 5 STD - - black - - STD STD
/8 24¼ 33-45 - - - - 7. 6 - - - - 19 8 - auto 18 0 - - STD white - - STD ST D
33¾ 23
33¾ 23
7
7
/8 24 ¼ - - 40 -65 40 -65 - 6.1 - - - - 103 14 auto 13 0 STD -
/8 24 ¼ 33-45 - - - - 5.8 - - - - 14 4 - auto 16 5 - - STD white - - STD ST D
33¾ 23
33¾ 29
33¾ 14 ¾ 23 ¾ - - 40 -65 40- 65 - 3.0 - - - - 60 4 auto 10 0 STD -
7
7
/8 24 ¼ - - 40 -65 40 -65 - 6.1 - - - - 84 14 auto 15 0 STD -
/8 24¼ - - 40- 65 40 -65 - 8.0 - - - - 14 4 18 auto 16 5 STD - black - STD STD
33¾ 23
33¾ 14 ¾ 23 ¾ - - 40 -65 40- 65 - 3.0 - - - - 36 4 auto 12 5 STD -
7
/8 24 ¼ - - - 40 -65 - 6.1 - - - - - 45 auto 13 0 STD -
33¾ 29
33¾ 14 ¾ 23 ¾ - - - 40 -65 - 3.0 - - - - - 15 auto 13 0 STD - - STD black STD STD
33¾ 14 ¾ 23 ¾ - - - 40 -65 - 3.0 - - - - - 23 auto 10 0 STD -
7
/8 24¼ - - - 40- 65 - 8.0 - - - - - 68 auto 17 2 STD - black - STD STD
33¾ 23
33¾ 14 ¾ 23 ¾ - - - 40 -65 - 3.0 - - - - - 24 auto 13 0 STD -
33¾ 23
7
/8 23
/8 24 ¼ - - - 40 -65 - 6.1 - - - - - 54 auto 16 6 STD -
/8 - - - 40-65 - 5.5 - - - - - 44 auto 149 STD - -
Note: Legend of symbols on page 43
WINE CELLARS
Cabinet Dimensions
Height
Width
7
Depth
7
Temperature Range °F
Refrigerator
Freezer
Beverage Section
Wine Section
Ice Compartment
Storage Capacity
Refrigerator (cu. ft.)
Freezer (cu. ft.)
Ice Storage
Ice Production/Day
Ice Type
Beverage Storage (12 oz.)
Wine Section (bottles)
Defrost System
Type
Shipping Weight
Pounds (approx.)
Door Features/Options
Glass
Accepts Overlay
Door Shelves/Bins
white
black/
- STD STD
black
STD STD
black
- STD STD
black
STD STD
black
STD STD
black
STD STD
black
STD STD
black
STD STD
black
STD STD
Flat Door Liner
Stainless Steel Door
Other Features/Options
black
Interior Color
Accepts Casters
Door Lock
STD STD
Levelling Legs
Interior Light
42
Page 46
MARVEL
PRODUCT SPECIFICATIONS
ADA SERIES
30iMAT
6ADAM
31
1
/8 23
31
1
/8 14 ¾ 23 ¾ - - - - 30-32 - - 30lbs 30lbs
25OiM
6OHK
33¾ 14 ¾ 22 ¼ - - - - 0-20 - - 15lbs 12lbs cres. - - manual 86 - - - STD STD white - - STD -
33¾ 23
6ORGDM
3OiMT
33¾ 14 ¾ 23 ¾ - - - - 30-32 - - 30lbs 30lbs
6ORDE
3OARM
6OARM
33¾ 23
33¾ 14 ¾ 23 ¾ 33-45 - - - - 3.0 - - - - 10 0 - auto 10 0 - - 3 - ST D white STD ST D
33¾ 23
33¾ 23
OUTDOOR SERIES
6OSWCE
6OBARM
33¾ 23
33¾ 23
6OHK
33¾ 23
61HK
33¾ 23
DRAFT BEER DISPENSERS
25OiM
25iM
15iM
30iMAT
3OiMT
30iMT
ICE MACHINES
Cabinet Dimensions
33¾ 14 ¾ 22 ¼ - - - - 0-20 - - 15lbs 12lbs cres. - - manual 86 - - - STD STD white - - STD -
1
/8 14 ¾ 23 ¾ - - - - 30-32 - - 30lbs 30lbs
31
24¼ 14 ¾ 22 ¼ - - - - 0-20 - - 15lbs 12lbs cres. - - manual 72 - - - ST D white - - STD -
33¾ 14 ¾ 22 ¼ - - - - 0-20 - - 15lbs 12lbs cres. - - manual 86 - - STD white - - STD -
33¾ 14 ¾ 23 ¾ - - - - 30-32 - - 30lbs 30lbs
33¾ 14 ¾ 23 ¾ - - - - 30-32 - - 30lbs 30lbs
Height
7
/8 24 ¼ 33-45 - - - - 5.5 - - - - 12 0 - auto 11 5 - 2 - white STD STD
7
/8 24 ¼ 33-52 - - - -
7
7
/8 24 ¼ 33-45 - - - - 6.1 - - - - 19 0 - auto 12 0 - - 3 - STD white STD STD
/8 24 ¼ 33-45 - - - - 6.1 - - - - 200 - auto 120 - - - ST D STD white STD STD
7
7
7
/8 24 ¼ - - - 40 -65 - 6.1 - - - - - 54 auto 16 6 - - - STD STD black ST D STD
/8 24 ¼ - - 40 -65 46-65 - - - - - - 10 3 14 auto 13 0 - - - STD STD white STD ST D
/8 24 ¼ 32-45 - - - - 5.8 - - - - 14 4 - auto 170 - - - ST D STD stainless - - STD STD
7
7
/8 24 ¼ 33-52 - - - -
/8 24 ¼ 33-52 - - - -
Width
Depth
Temperature Range °F
Refrigerator
Freezer
Beverage Section
Wine Section
Ice Compartment
Storage Capacity
¼ or ½
keg
- - - - - - auto 13 5 - - - STD STD white STD STD -
¼ or ½
¼ or ½
keg
keg
- - - - - - auto 12 5 - - ST D white STD -
- - - - - - auto 13 5 - - - STD STD white STD STD -
Refrigerator (cu.ft.)
Freezer (cu.ft.)
Ice Storage
Ice Production/Day
cube
clear
- - auto 10 0 - - STD white - - ST D -
cube
- - auto 10 0 - - - STD STD white - - STD -
clear
cube
cube
cube
clear
clear
clear
- - auto 10 0 - - - STD STD white - - STD -
- - auto 10 0 - - STD white - - ST D -
Ice Type
Beverage Storage (12 oz.)
- - auto 10 0 - - STD white - - ST D -
43
Wine Section (bottles)
Defrost System
Type
Shipping Weight
Pounds (approx.)
Door Features/Options
Glass
Accepts Overlay
Door Shelves/Bins
Flat Door Liner
Stainless Steel Door
Other Features/Options
Interior Color
Accepts Casters
Door Lock
Levelling Legs
Interior Light
STD Standard
- Not Available
Optional
Models with white
cabinets have white
interiors
Adjustable height up
to 1” with leveling legs
Depth to face of
door. Does not include
door handle. Add 2
1/8” for bar handle.
Depth does not apply
to overlay doors.
Page 47
C
US LISTED
INSTALLATION & OVERLAY PANEL
SPECIFICATIONS
6SDZE
3SWCE, 30WCM
6SWCE, 61WCM
8SWCE, 8SBARE
66SWCE, 66SBWE,
66SWBE
3SBARE, 3BARM
6SBARE, 6BARM
66WCM, 66BWM,
66WBM
60RDE
80RDE
6GARM
66SWDE
30ARM
6ADAM
61ARM
61RF
61HK
30iMT
30iMAT
25iM
Overlay Framed
Glass Door
Overlay Framed
Glass Door with Lock
Overlay Solid Door Overlay Solid Door
with Lock
A B C D E F G H
237/16 305/16
1415/16 305/16
237/16 305/16
297/16 305/16 - - - - - -
237/16 305/16
1415/16 305/16
237/16 305/16
237/16 305/16
- - - - 235/8 153/16 - -
- - - - 295/8 153/16 - -
235/8 30 3/8 - - 235/8 30 3/8 - -
For upper section (wine cellar) use specications for 6SWCE, for lower (drawer) use 60RDE
- - - - 14 ¾ 305/16
- - - - 23 ¾ 2711/16
- - - - 23 ¾ 305/16
- - - - 23 ¾ 305/16
- - - - 23 ¾ 305/16
- - - - 14 ¾ 305/16
- - - - 14 ¾ 2711/16
- - - - 14 ¾ 2711/16 - -
15
/32 37/16 - - - -
15
/32 37/16 14 ¾ 305/16
15
/32 37/16 23¾ 305/16
15
/32 37/16 23¾ 305/16
15
/32 37/16 14 ¾ 305/16
15
/32 37/16 23¾ 305/16
15
/32 37/16 23¾ 305/16
7
/16 37/16
7
/16 37/16
7
/16 37/16
7
/16 37/16
7
/16 37/16
7
/16 37/16
7
/16 37/16
7
/16 37/16
7
/16 37/16
7
/16 37/16
7
/16 37/16
7
/16 37/16
7
/16 37/16
OVERLAY PANEL SPECIFICATIONS
Minimum width of rails/stiles is 1 3/4”
Minimum thickness of rails/stiles is 5/8”
Maximum thickness of rails/ stiles is 3/4”
Dimensions C and D are for doors with locks installed. It will be necessary to drill a hole in
the overlay door frame, corresponding to the lock location, prior to assembly. See Owner’s
Guide for details.
Doors accept at or raised panels
Maximum weight is 20 lbs
Minimum thickness is 5/8”
Maximum thickness is 3/4”
Dimensions G and H are for doors with locks installed. It will be necessary to drill a hole in
the overlay panel, corresponding to the lock location, prior to assembly. See Owner’s Guide
for details.
Two panels required, one for each drawer
Drawers accept at or raised panels
Maximum weight is 20 lbs
Minimum thickness is 5/8”
Maximum thickness is 3/4”
Overlay Doors: Dimensions in the chart (left) are for 3” toe kick. For 4” toe kick, refer to installation instructions
shipped with each Marvel overlay door or visit Marvel’s web site at www.marvelrefrigeration.com
Note: Models that accept overlay panels can be found in the chart on pages 42-43
Fig 2. Top view of overlay solid door on a refrigerated drawer
Fig 1. Side view of overlay solid
door on a refrigerated drawer
Note: See Installation Guide for electrical requirements
44
Page 48
Where hot meets cold.
www.agamarvel.com
Tel. 800.223.3900 Fax. 616.754.9690
www.agamarvel.com
© AGA MARVEL 2011
Printed 06/11
41011608
LIT10-1201
The information presented herein is based on the best data available at time of printing
and is believed to be correct. However, nothing stated herein is to be taken as warranty,
expressed or implied, regarding the accuracy of the information or the use of our product
or products. Products might not appear exactly as shown in images. Specications and
product esthetics are subject to change without notice.
ISO 9001:2008
ISO 14001:2004
ISO 18001:2007
For more information on our family of brands, please visit their corresponding websites:
www.heartlandapp.com www.marvelscientic.com
www.aga-ranges.com
www.marvelrefrigeration.com
Loading...
