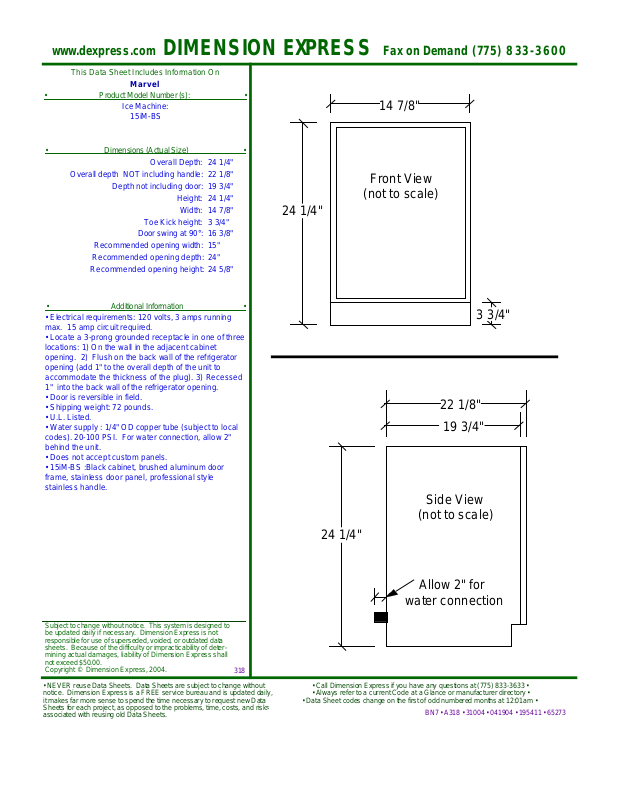

Marvel 15IMBSFL Specification Sheet

www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]

This Data Sheet Includes Information On

Marvel

• Product Model Number (s): •

Ice Machine:

15iM-BS

• Dimensions (Actual Size) •

Overall Depth:

Overall depth NOT including handle:

Depth not including door:

Height:

Toe Kick height:

Door swing at 90°:

Recommended opening width:

Recommended opening depth:

Recommended opening height:

Width:

24 1/4"
22 1/8"
19 3/4"
24 1/4"
14 7/8"
3 3/4"
16 3/8"
15"
24"
24 5/8"

14 7/8"

Front View

(not to scale)

24 1/4"

• Additional Information •

• Electrical requirements: 120 volts, 3 amps running

max. 15 amp circuit required.

• Locate a 3-prong grounded receptacle in one of three

locations: 1) On the wall in the adjacent cabinet
opening. 2) Flush on the back wall of the refrigerator
opening (add 1" to the overall depth of the unit to
accommodate the thickness of the plug). 3) Recessed
1" into the back wall of the refrigerator opening.

• Door is reversible in field.

• Shipping weight: 72 pounds.

• U.L. Listed.

• Water supply : 1/4" OD copper tube (subject to local

codes). 20-100 PSI. For water connection, allow 2"
behind the unit.

• Does not accept custom panels.

• 15iM-BS :Black cabinet, brushed aluminum door

frame, stainless door panel, professional style
stainless handle.

3 3/4"

22 1/8"

19 3/4"

Side View

(not to scale)

24 1/4"

Allow 2" for

water connection
