Martin Logan Summit vantage Brochure

The Loudspeaker Technology Company

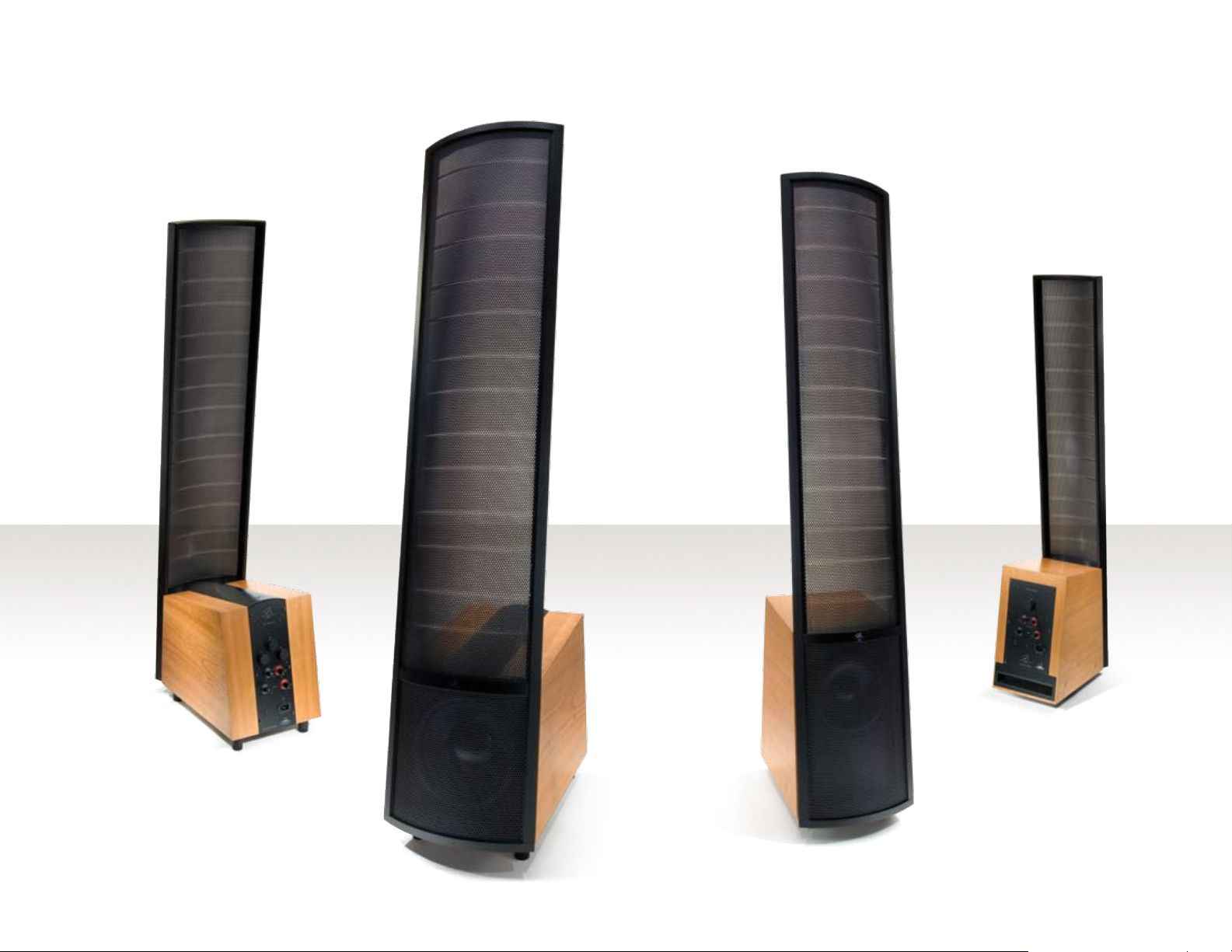

Summit

Stereo Main

Home Theater Front

Home Theater Surround

™

Key Features

XStat™ CLS™

(Curvilinear Line Source)

Ultra Rigid Electrostatic

PoweredForce™ Woofers

Transducer

Transducer AirFrame™

Aluminum Cone

25Hz & 50Hz Level

Controls

Ultimate Crossover

Engineering

With a host of ground breaking technological advances Summit
forever changes the landscape of high-performance audio.

Rendering large appliance size reference speakers a relic of
the past, MartinLogan has succeeded in reducing Summit’s
woofer enclosure size by 70 percent while increasing precision
and extension of bass performance. By concurrently designing
all elements of the bass reproduction chain MartinLogan engi­neers have specifically configured dual high-resolution 10-inch
aluminum cone woofers, independent 200-watt amplification
and a diminutive chamber, resulting in a bass performance
with precision, explosive dynamics, and usable extension
down to 24Hz—all from an enclosure not much larger than
a case of wine!

The Summit’s ultra-rigid AirFrame™ and revolutionary compact
XStat™ electrostatic transducer dramatically reduce the size of
the ESL support structure and stat panel, yet increase rigidity
and provide exceptional dynamics, magical sound staging
and superb off-axis performance.

Designed, engineered and handcrafted in the USA, Summit
features a hand built, state of the art crossover, extruded and
billet aluminum frame construction, the industries highest quality
cabinet substrate, meticulously chosen hand-applied real wood
veneers and multiple layers of hand-rubbed lacquer.

For full details please visit www.martinlogan.com.

Vantage

Stereo Main
Home Theater Front
Home Theater Surround

™

Living in the shadow of the impressive Summit speaker is no easy
task. Vantage rises to the challenge by compressing Summit’s
groundbreaking ultra high-resolution XStat™, AirFrame™ and
PoweredForce™ technologies into a surprisingly compact pack­age and price.

Revealing every subtle nuance of recorded sound with unflinching
accuracy Vantage’s ultra rigid AirFrame and curvilinear XStat
electrostatic transducer reveal a magical performance and set
new listening standards for precision, dynamics and three-dimen­sional sound staging—all from an extremely compact stat panel.

Shockingly powerful and accurate bass results from Vantage’s
concurrently designed PoweredForce 8-inch aluminum cone

woofer, 200-watt high-resolution amplifier, and precision
acoustic control cabinet design. Additionally, the simple turn
of a 35Hz equalization knob allows precision low-end calibra­tion to optimize speaker/room integration.

MartinLogan electronic specialists hand-build each Vantage
crossover utilizing only the finest components and construction
techniques to assure the cleanest, most precise signal path
possible. Vantage features real wood veneers, multiple layers of
hand-rubbed lacquer, and extruded aluminum frame elements.

For full details please visit www.martinlogan.com.

Key Features

XStat™ CLS™
(Curvilinear Line Source)
Transducer

Ultra Rigid Electrostatic
Transducer AirFrame™

Aluminum Cone
PoweredForce™ Woofer

35Hz Level
Control

Ultimate Crossover
Engineering

Summit

™

Vantage

™

Frequency Response: 24–23,000 Hz ± 3db

Horizontal Dispersion: 30 degrees

Vertical Dispersion: 44” (111cm) line source

Sensitivity: 92 db/2.83 volts/meter

Impedance: Nominal: 4 ohms

Minimum: 0.7 ohms @ 20 kHz

Crossover Frequency: 270 Hz

Components: Custom-wound audio transformer, air

core coils, polypropylene capacitors

Woofer type: Two × 10” (25.4 cm) (per channel)

cast basket, high excursion, aluminum
cone with extended throw driver
assembly, non-resonant chamber format

Woofer Amp Power: 2 × 200 watts/channel (4 ohms)

Bass Controls: ±10dB at 25Hz & 50Hz

Other: Light intensity dimmer control

Power Handling: 100–300 watts/channel

Signal Inputs: Custom bi-wire binding posts

Mains Power Draw: Idle: 20W each, Max: 350W each

Weight: 75 lbs. (34 kg) each

Overall Size: 59” h × 12.5” w × 20.5” d

(150 h 32 w × 52 d × cm)

Frequency Response: 34–23,000 Hz ± 3db

Horizontal Dispersion: 30 degrees

Vertical Dispersion: 40” (102cm) line source

Sensitivity: 92 dB/2.83 volts/meter

Impedance: Nominal: 4 ohms

Minimum: 1.0 ohm at 20kHz

Crossover Frequency: 400 Hz

Components: Custom-wound audio transformer, air

core coils polypropylene capacitors

Woofer type: 8” (20.3cm) cast basket, high

excursion, aluminum cone with
extended throw driver assembly,
bass reflex

Woofer Amp Power 200 watts/channel (4 ohms)

Bass Controls: ±10dB at 35Hz

Power Handling: 100–250 watts/channel

Signal Inputs: Custom bi-wire binding posts

Mains Power Draw: Idle: 8W each, Max: 140W each

Weight: 52 lbs. (23.6kg) each

Overall Size: 57” h × 10.7” w × 16.25” d

(144.7 h × 27.3 w × 41.3 d cm)
