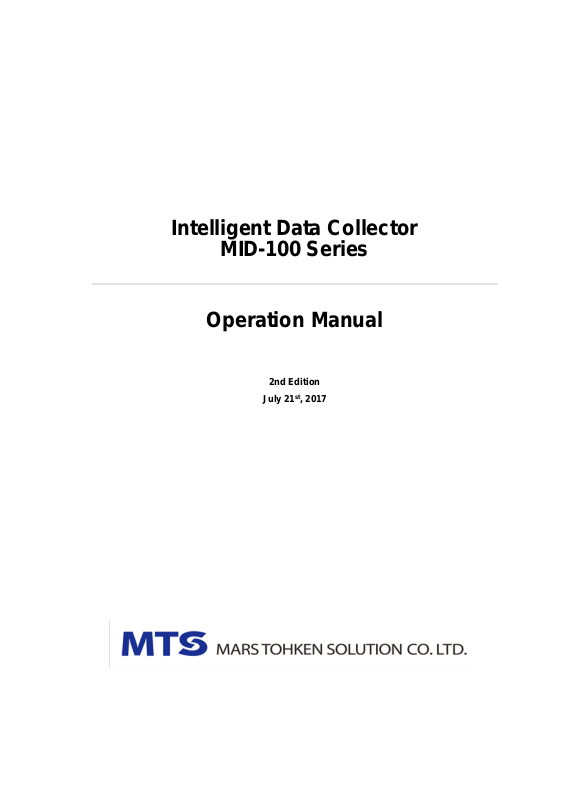

MARS TOHKEN SOLUTION MID100 Users Manual
Intelligent Data Collector
MID-100 Series
Operation Manual
2nd Edition
July 21st, 2017
i
Update Information
Date
Edition
Description of Change
May 26th, 2017
1
New Release
July 21st, 2017
2
Modify the contents of FCC statement.
ii
Introduction
Thank you for your Purchase
This manual explains the features, system configuration, specifications, and operation of
the of the MID-100 series. In order to use the product properly, please read this manual
carefully. The contents of this manual or catalogue may change without any notice for
product improvement or some reasons. Check our website for the latest version.
If any problems occurred during use, keep the record for a smooth support.
Registered Trademark
Bluetooth is a registered trademark of Bluetooth SIG.Inc., We use it under license.
Windows is a registered trademark of Microsoft Corporation. The other product names and
company names in this manual are the respective trademarks or registered trademarks of
Bluetooth SIG.Inc., or Microsoft Co. Ltd.
iii
Safety notice
DO NOT disassemble. Disassembly will void the warranty and could cause
damage or personal injury.
● This product is intended for use in general electronics equipment
(electronic computer, OA equipment, communications equipment, test
and measurement equipment, machine tools, industrial robots, AV
equipment, home appliances etc.).
Appropriate measures should be taken at use of unit/system related to
safety and operation of transportation equipment (aircraft, train,
automobile), traffic signal, gas leak detector and safety devices.
Also, please do not use it for requiring extremely high reliability such
as satellite equipment, nuclear equipment, submarine relay equipment,
medical equipment directly related to human life.
● Industrial, scientific and medical equipment such as microwave ovens,
private radio stations for mobile identification used in factory
manufacturing lines etc. (license stations which require licenses) and
specific low-power radio stations (radio stations which do not require
licenses) and amateur radio stations (radio stations which require
licenses) are used in the frequency band used by MID-100.
1. Before using MID-100, make sure that a local radio station for mobile
identification and amateur radio stations are not in operation nearby.
2. If a harmful radio wave interference is generated from MID-100 to a
local radio station for mobile identification, change the operating
frequency immediately or stop transmitting of the radio wave, and
contact us at the following number/address to consult about measures
to avoid a crosstalk (e.g. installing partition etc.).
3. If you encounter any harmful cases of radio interference from MID-100
to a specific low power radio station for mobile identification or an
amateur radio station, contact us at the following contact information.
Contact：MARS TOHKEN SOLUTION CO.LTD.
(Address and telephone number at the end of this manual.)
● MID-100 is a Class 1 laser product.
DO NOT look into the reading window or turn it towards the other people,
when irradiating the laser and flash is on.
iv
Handle with Care
● DATA BACKUP
This product has a memory backup function. This backup data
restoration cannot be guaranteed if repair, reconstruction, or
upgrades are performed on this product.
● To clean the reading window, follow the steps below:
- Wipe gently with cloth or cotton swab moistened with alcohol etc.
- Wipe gently again with a dry cloth.
● DO NOT expose this product to water, moisture, oil, etc.
● This product may be damaged in environments containing
corrosive gas.
● DO NOT use any chemicals when cleaning.
Wipe gently with a neutral detergent diluted, when the case is very
dirty.
● DO NOT use this product at temperature or humidity ranges
beyond that documented in the product specifications, or in direct
sunlight.
● This is a high-precision optical device, avoid exposing this product
to excessive force such as that sustained by a drop.
● DO NOT use highly volatile organic solvents, chemicals, chemical
wipes.
● Follow the warnings and cautions that are instructed by the
manufacturer of your computer or peripheral equipments when
using MID-100.
● Do not install electrical wiring or plugin/unplug of cable (except
LAN cable) when this product is powered on. These may result in
an electrical damage to this product.
● To minimize the risk of data loss, make sure to backup the hard
drive before install the software. Our company shall not be
responsible for any troubles such as data loss or damages.
v
Locations for operation and storage
● Avoid the following locations that could cause an accident or
damage to the product.
Exposed to ambient temperature outside the rating.
In the presence of the risk of condensation.
In the presence of the risk of water leak & electronic leak.
Exposed to direct sunlight.
In the presence of dust, salt, or iron particles
In the presence of static electricity.
In the presence of the fire & retain the heat.
In the presence of flammable or explosive gases.（No
Explosion-proof）
In the presence of corrosive gas.
Exposed to direct vibration or shock
Exposed to rapid temperature fluctuations
In the presence of the magnet.
vi
Proper Use
How to Prolong the Battery (Li-ion Rechargeable Battery Pack)
Battery life becomes shorter due to the battery characteristics.
If the battery life lasts only for a short time even after charging, it is
considered to be almost dead. Exchange it with a new battery.
Battery life varies depending on the ambient air temperature /
conditions of use of the device. Depending on the usage
environment, the number of years that can be used may be short,
or the number of usable charge/discharge cycles may decrease.
If the battery has been left for a long time, recharge it before use.
Make sure to lock the battery cover before turn on the device.
DO NOT wet battery or handle with wet hands.
DO NOT give a shock or drop the battery.
DO NOT use the other batteries except the dedicated
rechargeable Li-ion battery (FHTBA122Y).
DO NOT use the other charger except the dedicated charging
Cradle (MBC-100).
Li-ion battery may bulge as a result of being left for a long term,
use environment and aging-deterioration. Exchange the battery
with a new one if the battery bulges.
Make sure to turn off the power when exchanging the battery.
Prohibition
vii
Operation in Cold Climate
If the temperature is below 0 ° C, the performance of the
battery deteriorates. Therefore, operation time may be
shortened or the power may suddenly turns off due to rapid
voltage drop in cold climates. The following methods are
recommended for a better operation.
Place a spare battery in a pocket etc. and keep it warm until
just before replacing the battery.
Keep the battery warm in such as a pocket until just before
replacing the battery. When warming battery with a pocket
warmer etc., do not place the pocket warmer directly to the
battery.
The optimal room temperature for charging battery is 10～
30°C.
How to Handle Batteries
Handle the device with care not to adhere foreign substance
such as dust or sand to the terminal part. If foreign substance
adheres on the battery, please remove it completely with a
soft cotton swab, etc. After cleaning, repeat attach and detach
the battery pack on the charger several times.
Even if the battery is charged, it spontaneously discharges
little by little. Recharge the battery before use (within 1-2
days).
Store the battery in a cool place and charge it at a
temperature around10-30℃.These methods help to lengthen
battery life.
Long Storage
For the storage of MID-100, avoid vibration, dust, high
temperature, low temperature, high humidity, direct sunlight.
To prevent battery drain, remove the battery when not in use for a
long term (one month or more).
If the uncharged term is over three months, charge the battery
periodically for three months. The battery rapidly deteriorates if it
is left for more than one month with full discharge.
Regulations and Cautions Regarding Standard
CE Marking
:
Mars Tohken Solution has confirmed that this product meets the
requirements of the EC Directive based on the following requirements.
Note the following requirements when using MID-100 in EU countries.
EMC(2014/53/EU)
The requirement is not to guarantee of satisfied the essential
requirement of EMC into the whole machine device. Confirmation of
compatibility with the device is the responsibility of the machine
equipment manufacturer.
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly
approved by the part responsible for compliance could void the
user’s authority to operate the equipment.
15.105(b)This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
viii
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may
cause undesired operation of the device.
Radiation Exposure Statement: This equipment complies with FCC
radiation exposure limits set forth for an uncontrolled environment. End
users must follow the specific operating instructions for satisfying RF
exposure compliance.This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
ix
x
Included Items
Check that the box includes the items listed below. If any items are missing or damaged,
contact your sales representative.
MID-100
QuickGuide
Battery
MID-100(H)
This
QuickGuide
Rechargeable Lithium
Ion Battery Pack
FHTBA122Y
Optional Items
Item
Model
Description
Charging Cradle
MBC-100
Packed with AC adaptor
Rechargeable
Lithium ion
Battery pack
FHTBA122Y
Dedicated battery
※ Contact our sales representative for optional items.
Lineup
The lineup of MID-100 and product model are as follows:
Product Model MID-100 1
Character
Description 1 None
Regular type
-H
High-Resolution type (Reading Distance：Short)
Download Information
The operation manual and setting software can be downloaded from our company’s website.
https://www.mars-tohken.co.jp/DL/
Operation Manual MID-100(this manual)
xi
http://sdk.mars-tohken.co.jp/mid-100/
For the access to the above URL, Need the User ID, Password below;
User ID：mid100user Password：mtscustomer
Application software, Development environment, SDK
xii
Contents
Update Information .................................................................................................................. i
Introduction .............................................................................................................................. ii
Registered Trademark ............................................................................................................ ii
Safety notice ........................................................................................................................... iii
Handle with Care .................................................................................................................... iv
Locations for operation and storage .................................................................................... v
Proper Use .............................................................................................................................. vi
How to Prolong the Battery (Li-ion Rechargeable Battery Pack) ..................................... vi
Long Storage ......................................................................................................................... vii
Regulations and Cautions Regarding Standard ............................................................... viii
Included Items ......................................................................................................................... x
Optional Items .......................................................................................................................... x
Lineup ....................................................................................................................................... x
Download Information ............................................................................................................ x
1. SUMMERY ............................................................................................................................ 1
1.1. Description of Key Operation in This Manual ................................................................... 1
1.2. Parts Name ....................................................................................................................... 2
1.3. LCD Screen ....................................................................................................................... 2
1.4. Scanner Window ............................................................................................................... 3
1.5. Monitor LED、Buzzer、Vibrator ....................................................................................... 3
1.6. Keypad and Side Trigger Key ........................................................................................... 4
1.7. Battery ............................................................................................................................... 5
Battery Cover ............................................................................................................................ 5
xiii
Removing Battery ..................................................................................................................... 6
Insert the Battery ...................................................................................................................... 6
Battery Charge.......................................................................................................................... 7
Low Battery Level ..................................................................................................................... 8
2. How to Use ........................................................................................................................... 9
2.1. Preparation ........................................................................................................................ 9
2.2. Bluetooth ......................................................................................................................... 10
HID Profile .............................................................................................................................. 10
SPP Profile ............................................................................................................................. 10
Connection Example .............................................................................................................. 10
Manual Connection from Scanner（Refer to「5.6Bluetooth CFG」）.................................. 10
2.3. Storage Connection by USB ........................................................................................... 11
3. Scanner Menu Operation .................................................................................................. 12
3.1. Start Scanner .................................................................................................................. 12
3.2. Stop Scanner .................................................................................................................. 12
3.3. Suspend Scanner ........................................................................................................... 12
3.4. Start System Menu ......................................................................................................... 12
3.5. Turn Off Scanner Forcibly ............................................................................................... 12
3.6. Key Operation in Menu ................................................................................................... 13
Cursor ..................................................................................................................................... 13
Input Number .......................................................................................................................... 13
Check Boxes ........................................................................................................................... 13
Radio Button ........................................................................................................................... 13
Input Character ....................................................................................................................... 13
4. Device Settings .................................................................................................................. 14
4.1. Menu Settings ................................................................................................................. 14
5. System Menu ..................................................................................................................... 16
5.1. Information ...................................................................................................................... 16
5.2. General Setting ............................................................................................................... 18
xiv
5.3. Barcode Setting............................................................................................................... 22
5.4. Beep & Vibrator ............................................................................................................... 24
5.5. Data & Memory ............................................................................................................... 25
5.6. Bluetooth CFG ................................................................................................................ 27
5.7. Data Transfer .................................................................................................................. 30
5.8. Active APP ...................................................................................................................... 31
6. General Specification ........................................................................................................ 32
6.1. General Specification ...................................................................................................... 32
6.2. External Dimensions ....................................................................................................... 33
6.3. Reading Specifications ................................................................................................... 34
View ........................................................................................................................................ 34
Reading Range ....................................................................................................................... 34
7. Troubleshooting ................................................................................................................ 35
7.1. Even if [SCAN] is selected, the LED pointer or light does not light up. .......................... 35
7.2. Battery cannot be charged .............................................................................................. 35
7.3. Cannot read symbol. ....................................................................................................... 36
7.4. Data cannot be sent ........................................................................................................ 36
7.5. PIN is required at Bluetooth connection ......................................................................... 36
8. 【Optional Item】Charging Cradle MBC-100 ................................................................ 37
8.1. External Dimensions of Cradle ....................................................................................... 37
8.2. External Dimensions of AC Adaptor ............................................................................... 38
1
1. SUMMERY
MID-100 is an ultra-compact data collector with a liquid crystal display and numeric keypad
input in a compact code reader adopting state-of-the-art digital camera technology and
image recognition software.
MID-100 is a dust-proof and anti-immersion type protection structure (IP 54) and it can be
used in harsh environments.
MID-100 has a Bluetooth interface and can be used as a wireless type barcode reader.
There are two types (Standard / High resolution) appropriate for the reading resolution.
We pursued miniaturization of the device by adopting simple display and input.
High-speed processing ARM Core CPU and 1.8 GByte of large capacity memory are
mounted to support various applications
We provide development environment to develop dedicated programs for free of charge.
The sample program is preinstalled on the main unit.
A sample program for PC can be downloaded from our company’s website.
We adopted a simple but easy-to-use input key such as double-sided buttons and function
keys, a key arrangement that reminiscent of mobile phones.
1.1. Description of Key Operation in This Manual
Words with box brackets such as [MENU] are described as the key in this manual.
e.g. [Menu]: Press Menu key
2
1.2. Parts Name
1.3. LCD Screen
MID-100 is equipped with a 128 × 128 dot monochrome LCD that can display half-width
alphanumeric characters, symbols, Japanese (Chinese characters, katakana etc.). Various data
can be displayed depending on the program.
【Screen image】
① Data Display Area
② BT Connection Mode
S
:
SPP Connection
H
:
HID Connection
③ BT Connection Status
:
Disconnected
:
Connected
④ Battery Level
Full
High
Middle
Low
Empty
LCD Screen
Side Trigger
Keypad
Scanner Window
Buzzer Sound Hole
Battery Cover
Strap Hole
Strap Hole
Product Label
Monitor LED
Loading...
