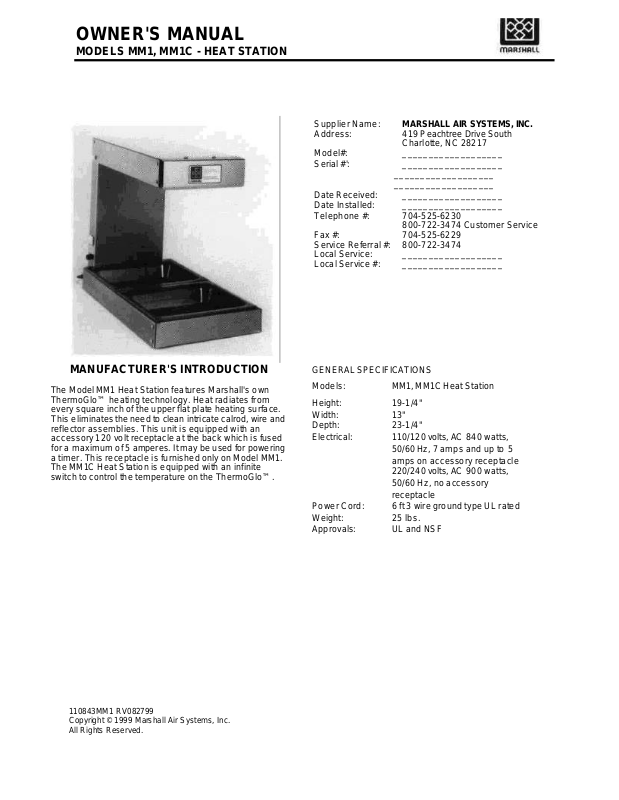

OWNER'S MANUAL

Width:

13"

MODELS MM1, MM1C - HEAT STATION

MANUFACTURER'S INTRODUCTION

The Model MM1 Heat Station features Marshall's own ThermoGlo™ heating technology. Heat radiates from every square inch of the upper flat plate heating surface. This eliminates the need to clean intricate calrod, wire and reflector assemblies. This unit is equipped with an accessory 120 volt receptacle at the back which is fused for a maximum of 5 amperes. It may be used for powering a timer. This receptacle is furnished only on Model MM1. The MM1C Heat Station is equipped with an infinite switch to control the temperature on the ThermoGlo™.

Supplier Name: MARSHALL AIR SYSTEMS, INC. Address: 419 Peachtree Drive South

Charlotte, NC 28217 Model#: ___________________ Serial #': ___________________ ___________________ ___________________ Date Received: ___________________ Date Installed: ___________________ Telephone #: 704-525-6230 800-722-3474 Customer Service Fax #: 704-525-6229 Service Referral #: 800-722-3474 Local Service: ___________________ Local Service #: ___________________

GENERAL SPECIFICATIONS Models: MM1, MM1C Heat Station Height: 19-1/4"

Depth: 23-1/4" Electrical: 110/120 volts, AC 840 watts,

amps on accessory receptacle 220/240 volts, AC 900 watts,

receptacle Power Cord: 6 ft 3 wire ground type UL rated Weight: 25 lbs. Approvals: UL and NSF

50/60 Hz, 7 amps and up to 5

50/60 Hz, no accessory

MODELS MM1, MM1C - HEAT STATION

TABLE OF CONTENTS

INSTALLATION.............................................................................................................. 1

DAILY CHECKLIST AND CLEANING GUIDE................................................................ 1

MONTHLY MAINTENANCE........................................................................................... 1

TROUBLESHOOTING CHART....................................................................................…2

REPLACEMENT PARTS LIST AND ILLUSTRATION.....................................................3

THERMOGLO™ & HEATED HOLDING CABINET LIMITED WARRANTY.....................4

THERMOGLO™ & HEATED HOLDING CABINET WARRANTY RETURN

PROCEDURES.............................................................................................................. 5

ILLUSTRATIONS

TIMER MOUNTING............................................................................FIGURE 1, PAGE 2

PARTS LIST ILLUSTRATION ............................................................FIGURE 2, PAGE 3

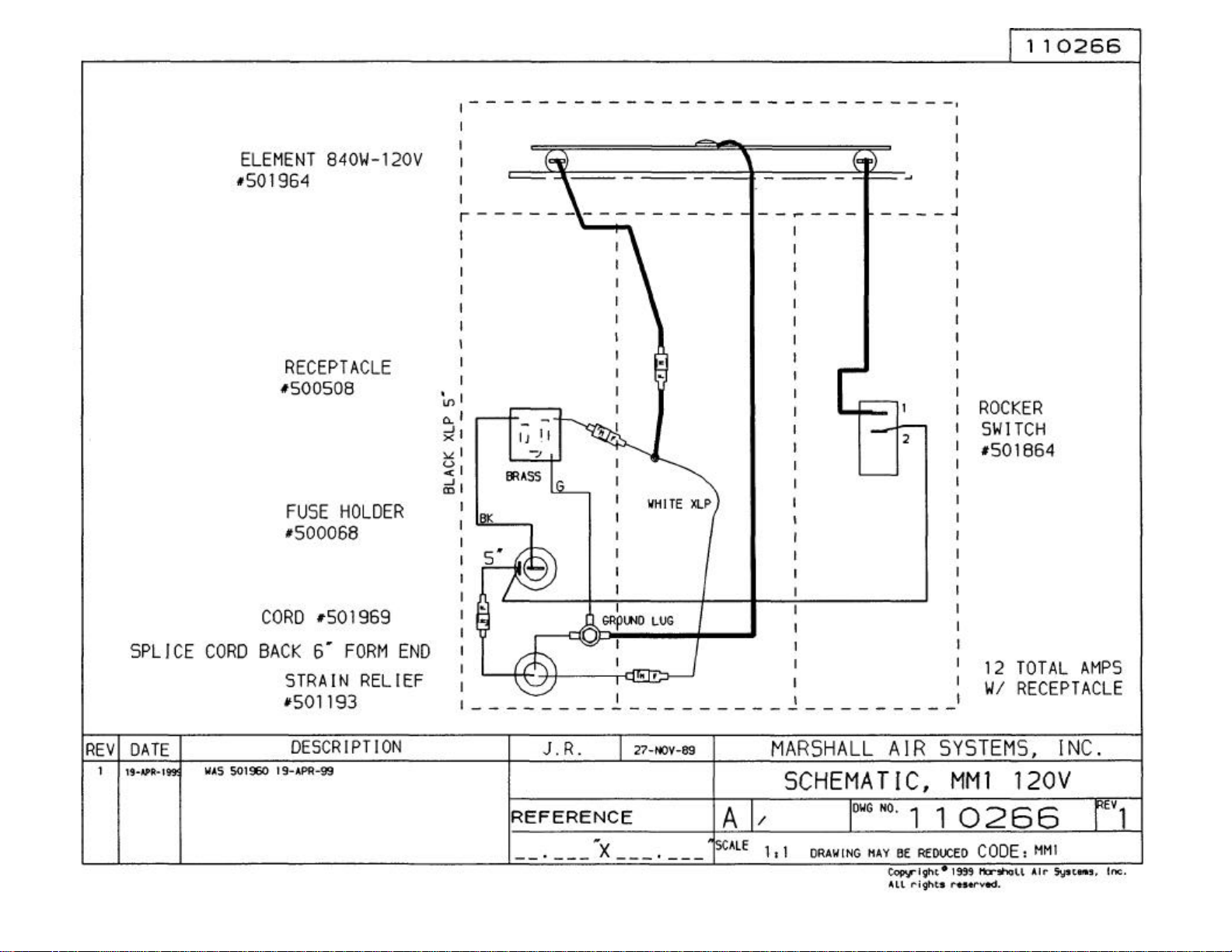

WIRING SCHEMATIC (MM1 120V)............................................................ DWG 110266

WIRING SCHEMATIC (MM1 240V)............................................................ DWG 118272

WIRING SCHEMATIC (MM1C 120V).......................................................... DWG 120378

(with infinite switch, without receptacle)

WIRING SCHEMATIC (MM1C 120V).......................................................... DWG 118710

(without receptacle and fuse )

MODELS MM1, MM1C - HEAT STATION

INSTALLATION

PRE-INSTALLATION

The Heat Station is packaged to minimize the risk of shipping damage. Immediately upon receipt, make certain to inspect the unit for damage. FILE ALL CLAIMS WITH THE FREIGHT CARRIER.

FINAL INSTALLATION

1. Unpack unit and remove all protective paper or plastic covering from metal parts.

2. Place heat station on stable base.

3. If unit includes optional timer brackets, see Timer Mounting Instructions (Figure 1, page 2).

4. Plug unit into an AC 120V receptacle for 120V unit or 240V receptacle for 240V unit.

DAILY CHECKLIST AND CLEANING GUIDE

TO USE THE HEAT STATION

1. Turn on the power switch.

2. Top of switch is red, in on position, indicating power is going to the heater.

3. The unit is ready to use after a 15 minute preheat period. CLEANING CHECKLIST

1. Turn off the unit and allow it to cool for 30 minutes.

2. Pans, lids and wire grates should be removed, washed in the dish machine, rinsed and sanitized.

3. Clean unit and base with a damp cloth and cleaner degreaser. DO NOT IMMERSE UNIT IN WATER! DO NOT USE CAUSTIC CLEANING SOLUTIONS!

4. Allow sufficient drying time before attempting to use.

MONTHLY MAINTENANCE

Follow the daily cleaning checklist; there are no periodic adjustments. The only user-replacement item is the 5 amp fuse located just below the accessory receptacle only on 120V unit. If this fuse blows do the following:

1. Unplug the unit.

2. Remove the fuse by unscrewing the fuse cover.

3. Replace the fuse with a manufacturer's approved replacement part.

MODELS MM1, MM1C - HEAT STATION

TROUBLESHOOTING CHART

** DISASSEMBLING HEATER VOIDS WARRANTY **

Identify problem in the left column and look for probable cause and solution in right hand column. Probable causes listed in the order they are most likely to happen. This sequence should be used to isolate the problem.

PROBLEM PROBABLE CAUSE SOLUTION

1. No Heat Unplugged Plug in

2. No power at accessory receptacle (only on Model MM1)

Circuit breaker is tripped

Cord/plug defective Replace cord/plug

Defective power switch Replace switch

Defective heating unit Assembly

Fuse blown Replace fuse Accessory appliance draws more

than 5 amps

Reset breaker; call electrician if tripped twice

Call Marshall Customer Service 800722-3474

Discontinue using large appliance
