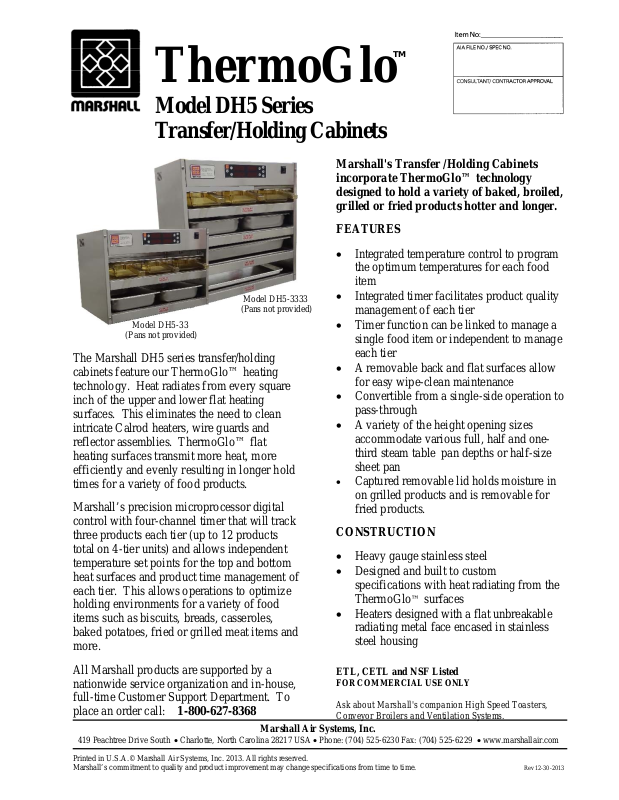

Marshall Air DH5-33 User Manual

ThermoGlo

Model DH5 Series

Transfer/Holding Cabinets

Model DH5-3333

(Pans not provided)

Model DH5-33

(Pans not provided)

The Marshall DH5 series transfer/holding cabinets feature our ThermoGlo™ heating technology. Heat radiates from every square inch of the upper and lower flat heating surfaces. This eliminates the need to clean intricate Calrod heaters, wire guards and reflector assemblies. ThermoGlo™ flat heating surfaces transmit more heat, more efficiently and evenly resulting in longer hold times for a variety of food products.

Marshall’s precision microprocessor digital control with four-channel timer that will track three products each tier (up to 12 products total on 4-tier units) and allows independent temperature set points for the top and bottom heat surfaces and product time management of each tier. This allows operations to optimize holding environments for a variety of food items such as biscuits, breads, casseroles, baked potatoes, fried or grilled meat items and more.

All Marshall products are supported by a nationwide service organization and in-house, full-time Customer Support Department. To place an order call: 1-800-627-8368

419 Peachtree Drive South • Charlotte, North Carolina 28217 USA • Phone: (704) 525-6230 Fax: (704) 525-6229 • www.marshallair.com

Marshall Air Systems, Inc.

Marshall's Transfer /Holding Cabinets incorporate ThermoGlo™ technology designed to hold a variety of baked, broiled, grilled or fried products hotter and longer.

FEATURES

• Integrated temperature control to program

the optimum temperatures for each food item

• Integrated timer facilitates product quality

management of each tier

• Timer function can be linked to manage a

single food item or independent to manage each tier

• A removable back and flat surfaces allow

for easy wipe-clean maintenance

• Convertible from a single-side operation to

pass-through

• A variety of the height opening sizes

accommodate various full, half and onethird steam table pan depths or half-size sheet pan

• Captured removable lid holds moisture in

on grilled products and is removable for fried products.

CONSTRUCTION

• Heavy gauge stainless steel

• Designed and built to custom

specifications with heat radiating from the ThermoGlo

™ surfaces

• Heaters designed with a flat unbreakable

radiating metal face encased in stainless steel housing

ETL, CETL and NSF Listed

FOR COMMERCIAL USE ONLY

Ask about Marshall's companion High Speed Toasters, Conveyor Broilers and Ventilation Systems.

Rev 12-30-2013

ThermoGlo

Model DH5 Series Transfer/Holding Cabinets

Overall Dimensions

Model DH5 Series

Dimensions: Height: “A” Width: “B” Depth: “C” Opening: “D” No. of Shelves DH5– 3 9.25” (235mm) 22.375” (568mm) 14.5” (368mm) (1) 3” (76mm) 1 DH5 – 33 15.0” (381mm) 22.375” (568mm) 14.5” (368mm) (2) 3” (76mm) 2 DH5 – 333 18.5” (470mm) 22.375” (568mm) 14.5” (368mm) (3) 3” (76mm) 3 DH5 – 3333 23.0” (584mm) 22.375” (568mm) 14.5” (368mm) (4) 3” (76mm) 4

Shipping Information: Weight: Ship Wt: Ship Cubes: DH5 – 3 42 lbs. (19 kg) 50 lbs. (23 kg) 8 cubic feet DH5 – 33 50 lbs. (23 kg) 58 lbs. (26 kg) 8 cubic feet DH5 – 333 58 lbs. (26 kg) 66 lbs. (30 kg) 11 cubic feet DH5 – 3333 66 lbs. (30 kg) 86 lbs. (39 kg) 12 cubic feet

Electrical: All Domestic Models 120volts. DH5 – 3 4.3A/0.5kW DH5 – 33 8.6A/1.0kW DH5 – 333 12.9A/1.5kW DH5– 3333 17.2A/2.1kW

Wiring: 4-tier units: 6-foot cord NEMA 5-20 plug 1, 2 & 3-tier units: 6-foot cord NEMA 5-15 plug

Gas Supply: None Options: International voltages, CE approval; consult factory for additional configurations and sizes.

Marshall Air Systems, Inc.

419 Peachtree Drive South • Charlotte, North Carolina 28217 USA • Phone: (704) 525-6230 Fax: (704) 525-6229 • www.marshallair.com

Rev 12-30-2013
