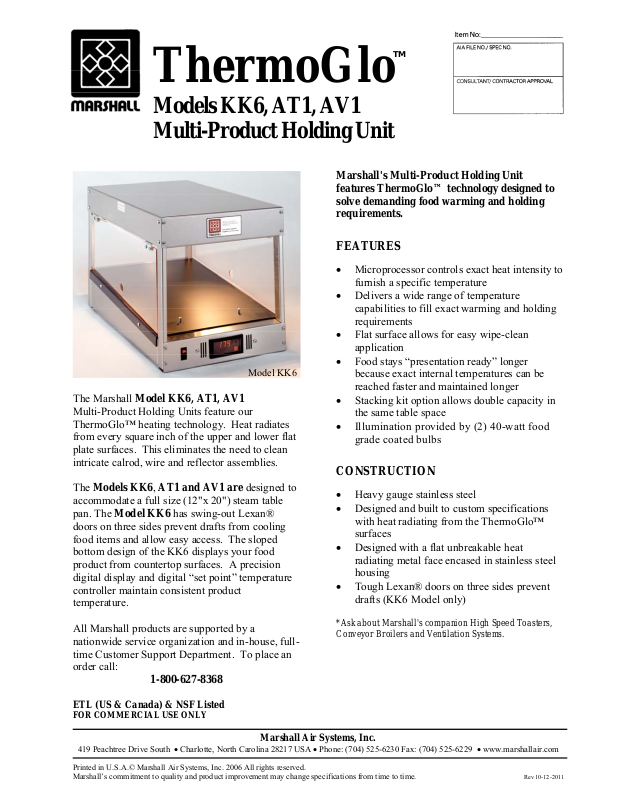

Marshall Air AT1 User Manual
ThermoGlo
Models KK6, AT1, AV1
Multi-Product Holding Unit
Model KK6
The Marshall Model KK6, AT1, AV1
Multi-Product Holding Units feature our
ThermoGlo™ heating technology. Heat radiates
from every square inch of the upper and lower flat
plate surfaces. This eliminates the need to clean
intricate calrod, wire and reflector assemblies.
The Models KK6, AT1 and AV1 are designed to
accommodate a full size (12"x 20") steam table
pan. The Model KK6 has swing-out Lexan®
doors on three sides prevent drafts from cooling
food items and allow easy access. The sloped
bottom design of the KK6 displays your food
product from countertop surfaces. A precision
digital display and digital “set point” temperature
controller maintain consistent product
temperature.
All Marshall products are supported by a
nationwide service organization and in-house, fulltime Customer Support Department. To place an
order call:
1-800-627-8368
ETL (US & Canada) & NSF Listed
FOR COMMERCIAL USE ONLY
Marshall's Multi-Product Holding Unit
features ThermoGlo™ technology designed to
solve demanding food warming and holding
requirements.
FEATURES
• Microprocessor controls exact heat intensity to
furnish a specific temperature
• Delivers a wide range of temperature
capabilities to fill exact warming and holding
requirements
• Flat surface allows for easy wipe-clean
application
• Food stays “presentation ready” longer
because exact internal temperatures can be
reached faster and maintained longer
• Stacking kit option allows double capacity in
the same table space
• Illumination provided by (2) 40-watt food
grade coated bulbs
CONSTRUCTION
• Heavy gauge stainless steel
• Designed and built to custom specifications
with heat radiating from the ThermoGlo™
surfaces
• Designed with a flat unbreakable heat
radiating metal face encased in stainless steel
housing
• Tough Lexan® doors on three sides prevent
drafts (KK6 Model only)
*Ask about Marshall's companion High Speed Toasters,
Conveyor Broilers and Ventilation Systems.
TM
Marshall Air Systems, Inc.
419 Peachtree Drive South • Charlotte, North Carolina 28217 USA • Phone: (704) 525-6230 Fax: (704) 525-6229 • www.marshallair.com
Printed in U.S.A.© Marshall Air Systems, Inc. 2006 All rights reserved.
Marshall’s commitment to quality and product improvement may change specifications from time to time.
Rev 10-12-2011
TM
ThermoGlo
Models KK6, AT1, AV1
Multi-Product Holding Unit
Overall Dimensions
Models KK6, AT1, AV1
Dimensions: Height: Width: Depth:
15.500″ (394mm) 14.375″ (365mm) 23.625″ (600mm)
Shipping Weight: Ship Wt: Freight (USA): Ship. Cubes:
Information: Net 48 lbs. (22 kilos) 53 lbs. (24 kilos) NMFC 3.8 cubic ft.
Class 100 11 cubic meters
Electrical 120V/60Hz/1ph 5.5 amps/ 0.66 kw or 220-240V/50Hz/1ph 3amps (Intl) / 0.66-0.72 kw
Wiring: NEMA 5-15 Plug L1, N, G
6 ft. cord 6 ft. cord without plug
Options: Stacking Kit
Marshall Air Systems, Inc.
419 Peachtree Drive South • Charlotte, North Carolina 28217 USA • Phone: (704) 525-6230 Fax: (704) 525-6229 • www.marshallair.com
Printed in U.S.A.© Marshall Air Systems, Inc. 2006 All rights reserved.
Marshall’s commitment to quality and product improvement may change specifications from time to time.
Rev 10-12-2011
