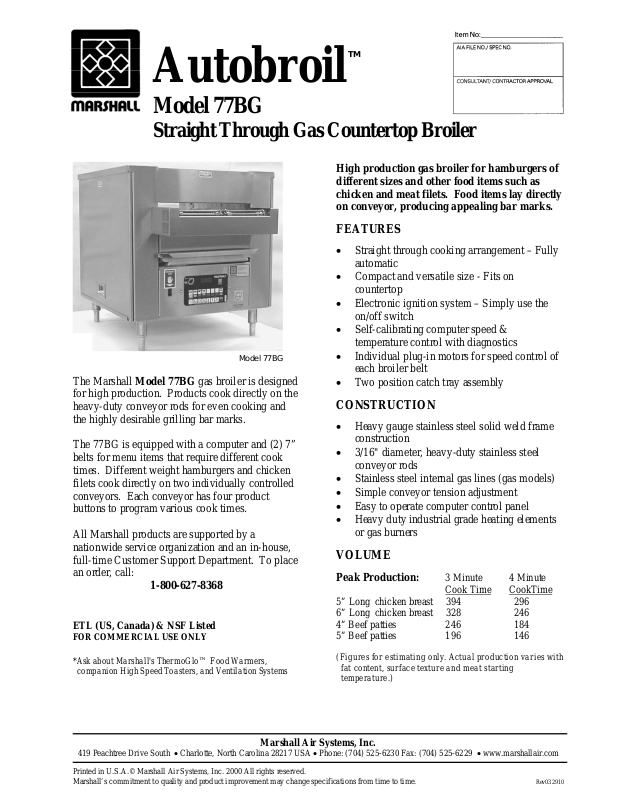

Marshall Air 77BG Specifications
TM
Autobroil
Model 77BG
Straight Through Gas Countertop Broiler
High production gas broiler for hamburgers of
different sizes and other food items such as
chicken and meat filets. Food items lay directly
on conveyor, producing appealing bar marks.
FEATURES
• Straight through cooking arrangement – Fully
automatic
• Compact and versatile size - Fits on
countertop
• Electronic ignition system – Simply use the
on/off switch
• Self-calibrating computer speed &
Model 77BG
The Marshall Model 77BG gas broiler is designed
for high production. Products cook directly on the
heavy-duty conveyor rods for even cooking and
the highly desirable grilling bar marks.
The 77BG is equipped with a computer and (2) 7”
belts for menu items that require different cook
times. Different weight hamburgers and chicken
filets cook directly on two individually controlled
conveyors. Each conveyor has four product
buttons to program various cook times.
All Marshall products are supported by a
nationwide service organization and an in-house,
full-time Customer Support Department. To place
an order, call:
1-800-627-8368
ETL (US, Canada) & NSF Listed
FOR COMMERCIAL USE ONLY
*Ask about Marshall's ThermoGlo™ Food Warmers,
companion High Speed Toasters, and Ventilation Systems
temperature control with diagnostics
• Individual plug-in motors for speed control of
each broiler belt
• Two position catch tray assembly
CONSTRUCTION
• Heavy gauge stainless steel solid weld frame
construction
• 3/16" diameter, heavy-duty stainless steel
conveyor rods
• Stainless steel internal gas lines (gas models)
• Simple conveyor tension adjustment
• Easy to operate computer control panel
• Heavy duty industrial grade heating elements
or gas burners
VOLUME
Peak Production: 3 Minute 4 Minute
5” Long chicken breast 394 296
6” Long chicken breast 328 246
4” Beef patties 246 184
5” Beef patties 196 146
(Figures for estimating only. Actual production varies with
fat content, surface texture and meat starting
temperature.)
Cook Time CookTime
Marshall Air Systems, Inc.
419 Peachtree Drive South • Charlotte, North Carolina 28217 USA • Phone: (704) 525-6230 Fax: (704) 525-6229 • www.marshallair.com
Printed in U.S.A.© Marshall Air Systems, Inc. 2000 All rights reserved.
Marshall’s commitment to quality and product improvement may change specifications from time to time.
Rev032910
TM
Autobroil
Model 77BG
Straight-Through Gas Countertop Broiler
Overall Dimensions
Dimensions: Height: Width: Depth:
27.500" 26.250" 39.313"
699mm 667mm 973mm
_________________________________________________________________________________________________
Shipping Weight: Ship Wt: NMFC Freight (USA) Ship. Cubes:
Information: Net 250 lbs. 295 lbs. Class 85 35.3 cubic ft.
114 kilos 134 kilos 1.0 cubic meters
_________________________________________________________________________________________________
Electrical: 120V/60HZ/1 ph 2 amps/ 0.24 kw
Wiring: 8 Ft long cord. Plug-in. Standard wall receptacle
_________________________________________________________________________________________________
Gas Supply: Liquid propane or Natural gas
63,000 BTUH 63,000 BTUH
_________________________________________________________________________________________________
Options: Companion Ventilation System
Heavy-duty stainless steel stand with casters
Complete spare parts supply kit
36” or 72” flexible gas line with quick disconnect and restraining device
Top extension
Marshall Air Systems, Inc.
419 Peachtree Drive South • Charlotte, North Carolina 28217 USA • Phone: (704) 525-6230 Fax: (704) 525-6229 • www.marshallair.com
Printed in U.S.A.© Marshall Air Systems, Inc. 2000 All rights reserved.
Marshall’s commitment to quality and product improvement may change specifications from time to time.
Rev032910
