Marshall CV610-U3 Users Guide

Marshall Electronics

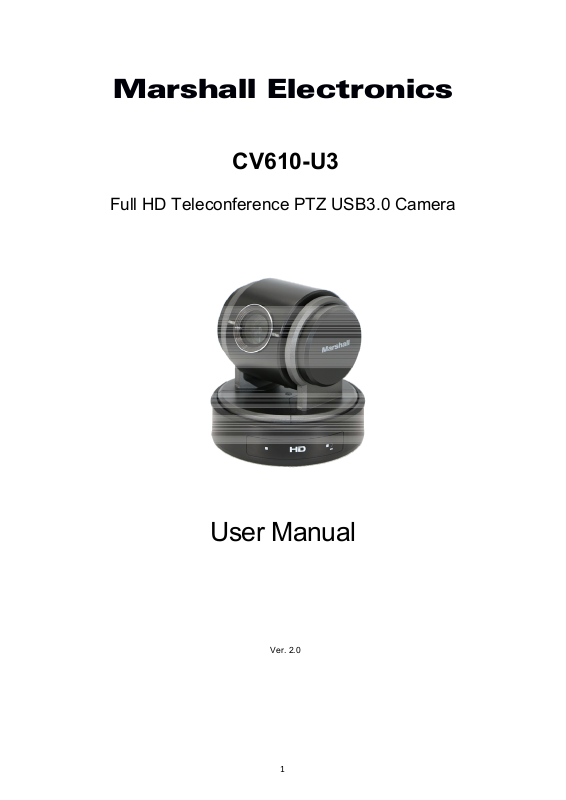

CV610-U3

Full HD Teleconference PTZ USB3.0 Camera

User Manual

Ver. 2.0

1



Operating Instructions

OPERATING INSTRUCTIONS ....................................................................................................................................... 3

WHAT’S IN THE BOX..................................................................................................................................................... 5

FEATURES ..................................................................................................................................................................... 6

CAMERA DIAGRAMS.................................................................................................................................................... 7

CAMERA........................................................................................................................................................................ 7

REMOTE CONTROLLER................................................................................................................................................... 8

EXTENSION MODULE...................................................................................................................................................... 8

SYSTEM CONFIGURATION .......................................................................................................................................... 9

CONNECTION................................................................................................................................................................. 9

OBTAIN VIDEO SIGNAL .................................................................................................................................................10

OBTAIN AUDIO SIGNAL ................................................................................................................................................. 10

CAMERA CONTROL METHODS AND SYSTEM CONFIGURATIONS....................................................................................... 11

BOTTOM DIP SWITCH SETTINGS..............................................................................................................................17

ADJUSTING AND SETTING WITH MENUS................................................................................................................ 19

EXPOSURE MENU..................................................................................................................................................... 20

WHITE BALANCE MENU ........................................................................................................................................... 20

PICTURE MENU ......................................................................................................................................................... 21

PAN / TILT / ZOOM MENU.......................................................................................................................................... 21

SYSTEM MENU .......................................................................................................................................................... 21

OPERATION USING THE INFRARED REMOTE CONTROLLER .............................................................................. 23

PAN/TILT AND ZOOM OPERATION.................................................................................................................................. 23

OPERATING MULTIPLE CAMERAS WITH THE INFRARED REMOTE CONTROLLER ................................................................ 24

ADJUSTING THE CAMERA.............................................................................................................................................. 24

STORING THE CAMERA SETTINGS IN MEMORY — THE PRESETTING FEATURE ................................................................. 25

MENU CONFIGURATION ............................................................................................................................................26

TROUBLESHOOTING.................................................................................................................................................. 27

DIMENSIONS................................................................................................................................................................ 28

2



Operating Instructions

Before operating the unit, please read this manual thoroughly and retain it for future reference.

Thank you for purchasing our product. If there are any questions, please contact the authorized dealer.

IMPORTANT INFORMATION

Legal Notice

Attention:
To ensure account security, please change the password after your first login. You are recommended to set a
strong password (no less than eight characters).

The contents of this document are subject to change without prior notice. Updates will be added to the new version
of this manual. We will readily improve or update the products or procedures described in the manual.
Best effort has been made to verify the integrity and correctness of the contents in this document, but no statement,
information, or recommendation in this manual shall constitute formal guarantee of any kind, expressed or implied.
We shall not be held responsible for any technical or typographical errors in this manual.
The product appearance shown in this manual is for reference only and may be different from the actual
appearance of your device.
This manual is a guide for multiple product models and so it is not intended for any specific product.
Due to uncertainties such as physical environment, discrepancy may exist between the actual values and reference
values provided in this manual.
Use of this document and the subsequent results shall be entirely on the user’s own responsibility.

Safety Information

WARNING!

Installation and removal of the unit and its accessories must be carried out by qualified personnel. You must read
all of the Safety Instructions supplied with your equipment before installation and operation.

Warnings:

 If the product does not work properly, please contact your dealer. Never attempt to disassemble the camera

yourself. (We will not assume any responsibility for problems caused by unauthorized repair or
maintenance.)

 This installation should be made by a qualified service person and should conform to all the local codes.
 When shipping, the camera should be packed in its original packaging.
 Make sure the power supply voltage is correct before using the camera.
 Do not drop the camera or subject it to physical shock.
 Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and

wipe it gently. If the camera will not be used for an extended period of time, put on the lens cap to protect
the sensor from dirt.

 Do not aim the camera lens at the strong light such as sun or incandescent lamp. The strong light can cause

fatal damage to the camera.

Maintenance Precautions:

 If there is dust on the front glass surface, remove the dust gently using an oil-free brush or a rubber dust

blowing ball.

 If there is grease or a dust stain on the front glass surface, clean the glass surface gently from the center

outward using anti-static gloves or an oil-free cloth. If the grease or the stain still cannot be removed, use
anti-static gloves or an oil-free cloth dipped with detergent and clean the glass surface gently until it is
removed.

 Do not use organic solvents, such as benzene or ethanol when cleaning the front glass surface.

3



Regulatory Compliance

FCC Part 15

This equipment has been tested and found to comply with the limits for digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.

LVD/EMC Directive

This product complies with the European Low Voltage Directive 2006/95/EC and EMC Directive
2004/108/EC.

WEEE Directive–2002/96/EC

The product this manual refers to is covered by the Waste Electrical & Electronic Equipment (WEEE)
Directive and must be disposed of in a responsible manner.

4



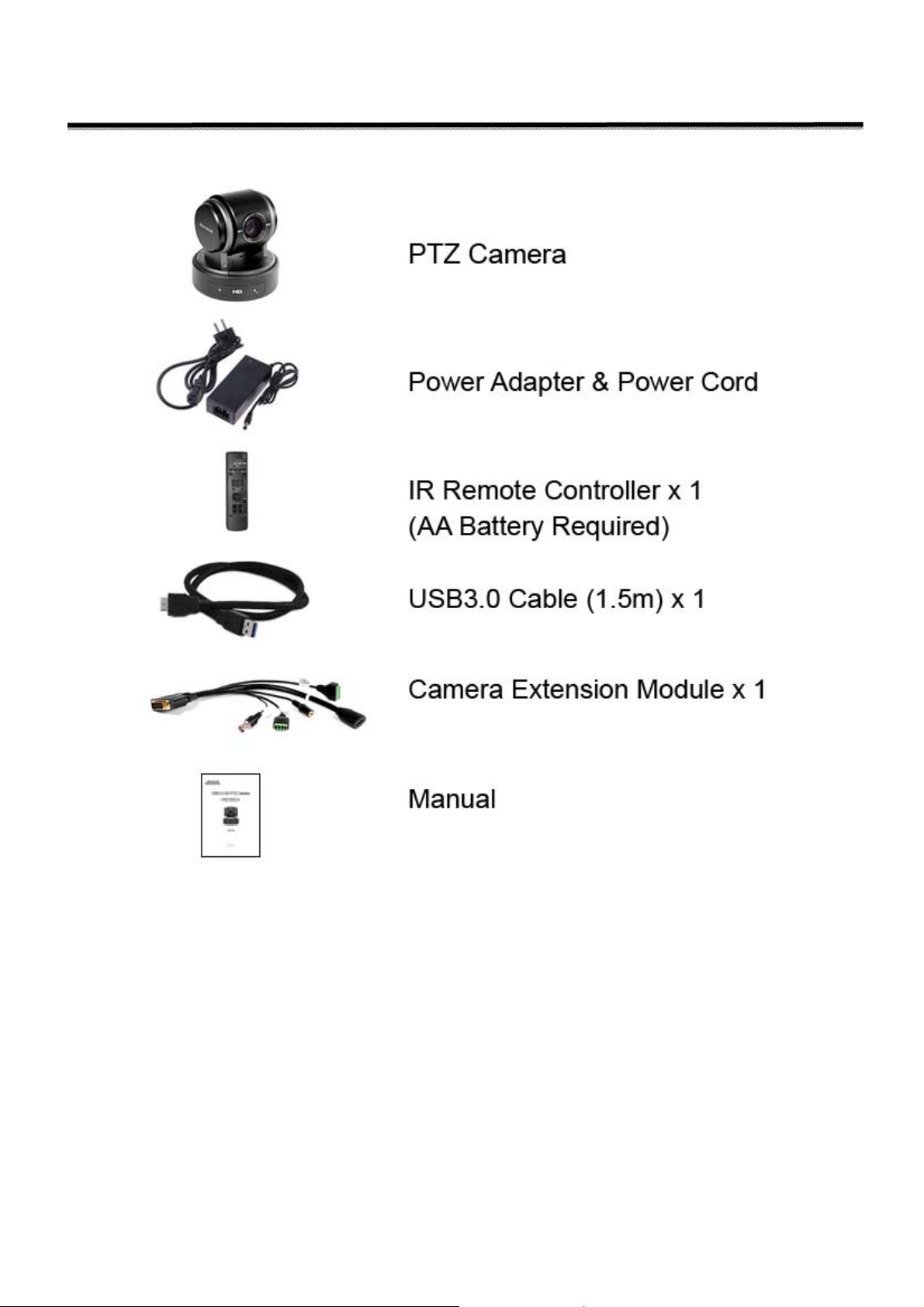

WHAT’S IN THE BOX

5



Features

 2 Megapixel 1/2.8-inch Sensor

 Full-HD Video: 1920x1080p, 1280x720p &1920x1080i

 High Speed: 60, 50, 30, 25 fps

 10x Optical Zoom 6.53~62.18mm (F1.8~2.8) - 12x Digital Zoom

 USB3.0 (only) plus HDMI & Composite (CVBS) simultaneous outputs

 Pan-Tilt Range: 350 degree Horizontal Pan - 120 degree Vertical Tilt

 Built-in Mic and external audio input

 Control via PC-UI Gui interface, IR Remote, RS232, RS422/485 (Visca)

 Integrate into a variety of familiar UC video programs and apps

 Extreme Quiet PTZ movements with 128 presets

 Shelf & ceiling mountable with 1/4"-20 including flippable image ability

6



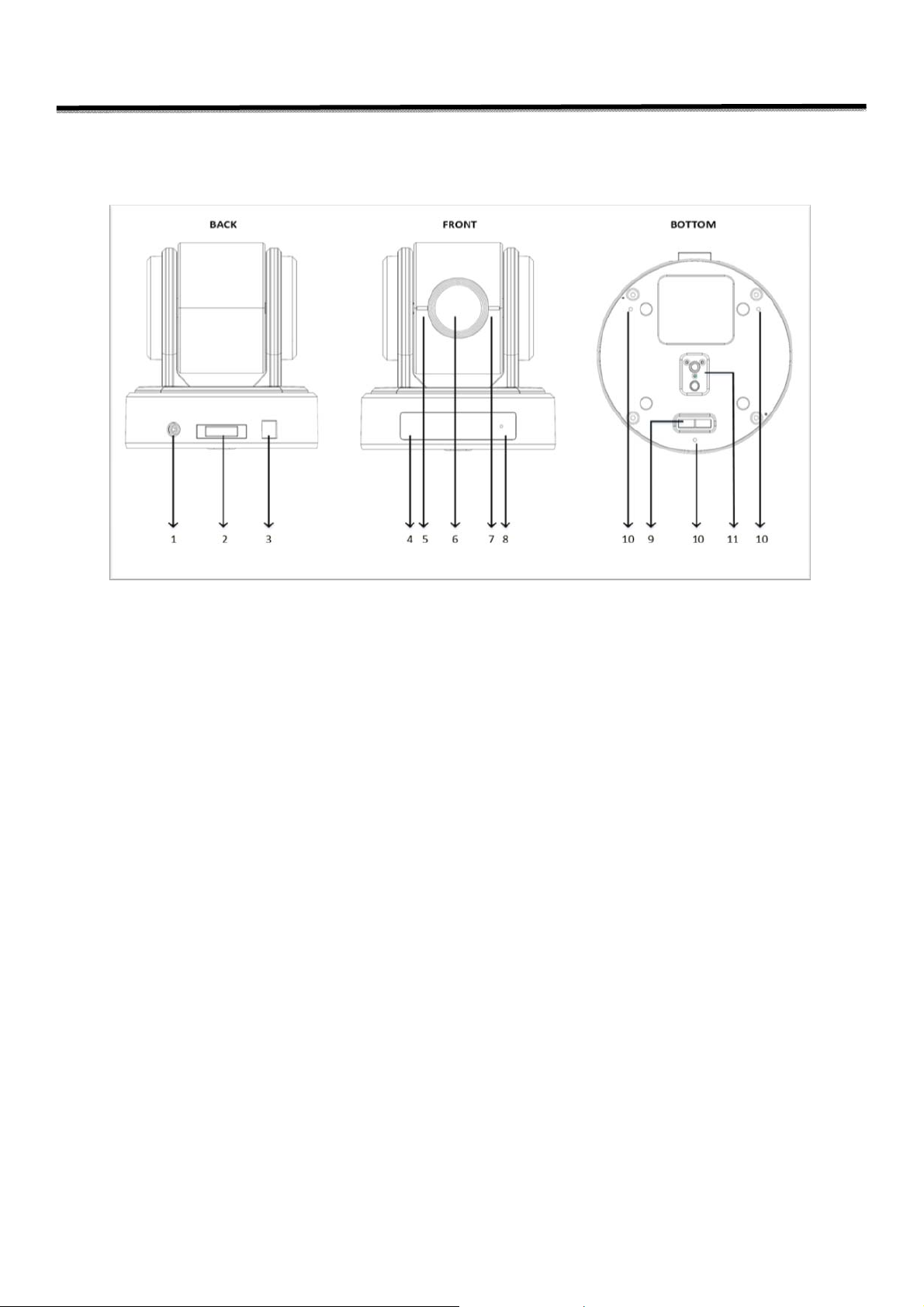

Camera Diagrams

Camera

1. 12V DC Power Port

Connect the supplied AC power adaptor and cord.

2. Extension Module Port

Composite port for extra features to provide RS-232, RS-422/RS-485, CVBS, HDMI, Audio Line
functionalities

3. USB 3.0 Port

Outputs the images from this unit as a USB3.0 video signal.
Do not apply the voltage higher than the rated value to the USB terminal.
This unit does not have the Battery Charging function. This unit does not support USB2.0 and USB3.1.
This unit does not support the USB suspend.

4. IR Remote Controller Sensors

These are sensors to receive commands from infrared remote controller.

5. Power LED Indicator

Turns green when the camera is connected to power outlet. When the power is turned on, it takes about 15
to 30 seconds to display the image after LED turns on.

6. Lens

This is a 10X magnification optical zoom lens.

7. Communication LED Indicator

Flashes orange when the camera receives commands from the infrared remote controller.

8. MIC

Built-in microphone. Range of sensitivity is within 15 feet.

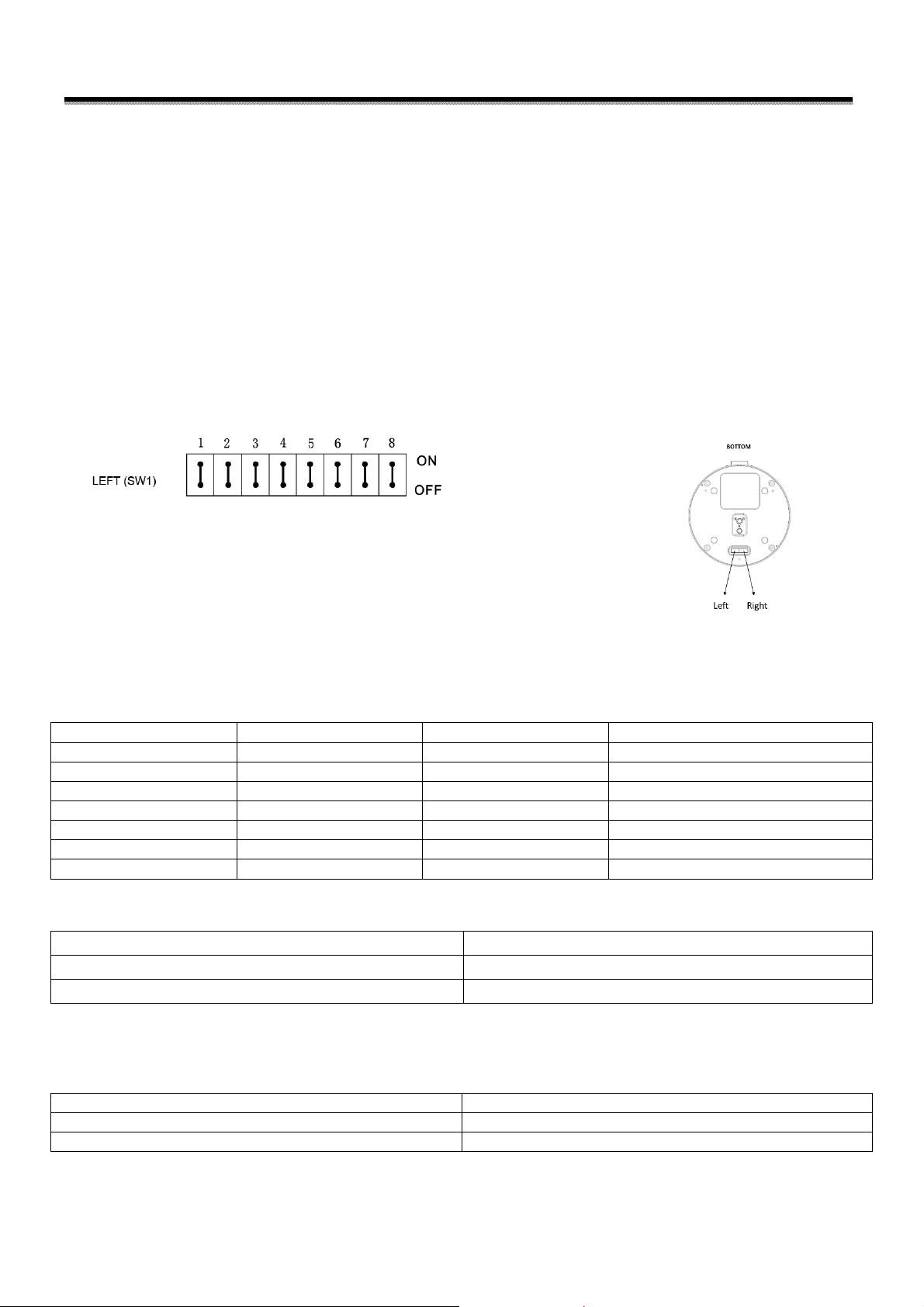

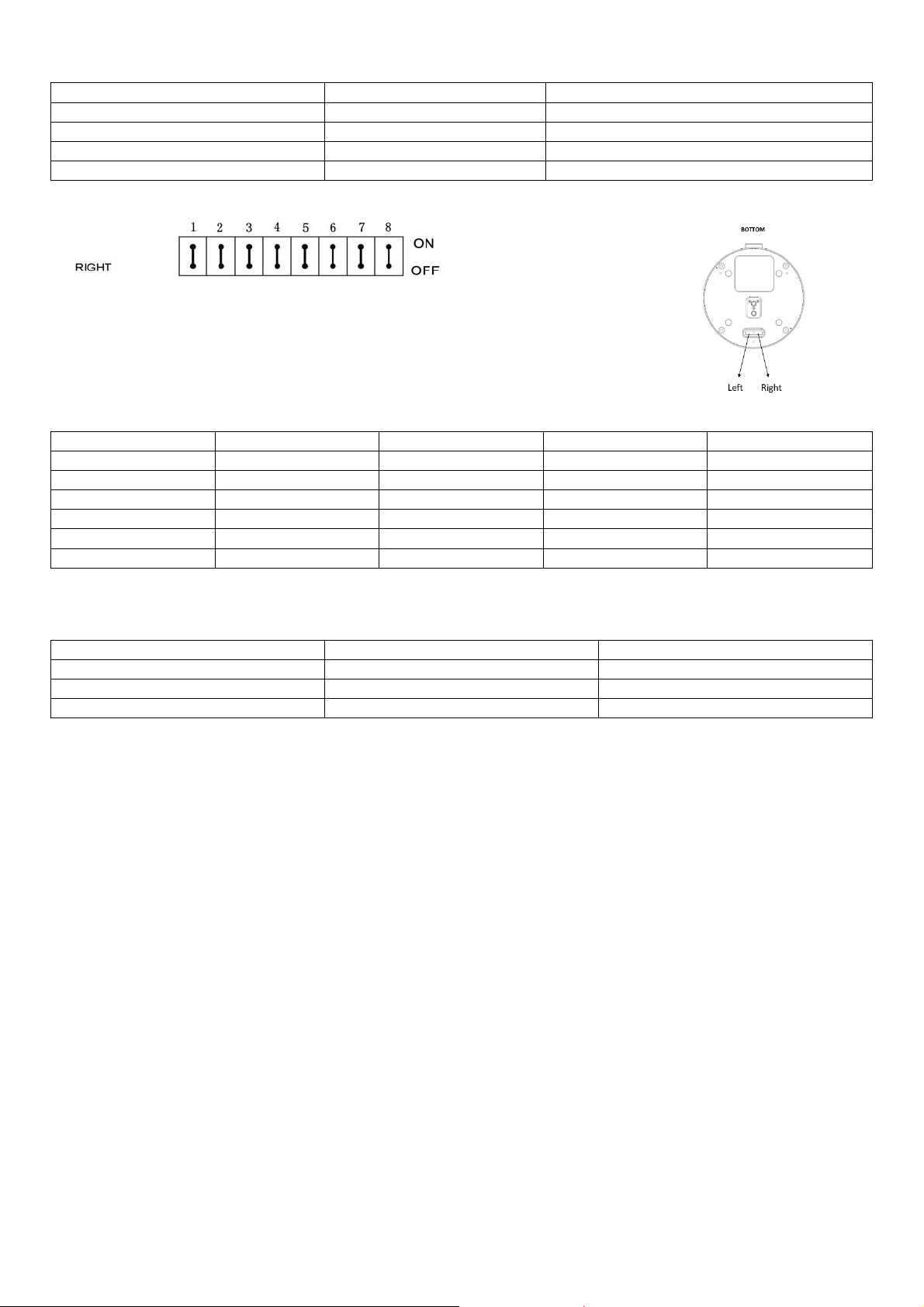

9. Bottom DIP Switch

Used for setting the camera configuration.
For details, refer to the Bottom DIP Switch Settings (page 16).

10. Fix mounting holes

11. Tripod mounting holes

7



Remote Controller

1. CAMERA SELECT

2. FOCUS

 Auto
 Far
 Near
 Manual

3. DATA SCREEN
 On screen menu display ON/OFF

4. PAN-TILT

 Pan and Tilt direction control
 HOME: Home position, Resolution reset

5. L/R DIRECTION SET
 Left and right orientation setting

6. POWER

7. BACK LIGHT

8. PRESET POSITION

9. PAN-TILT RESET

10. ZOOM IN/OUT

 Slow T
 Slow W
 Fast T
 Fast

Extension Module

Extension Module gives you capabilities of having HDMI video signal output, CVBS analog video output, RS232
control, RS422/485 control, External audio input.

8



System Configuration

Connection

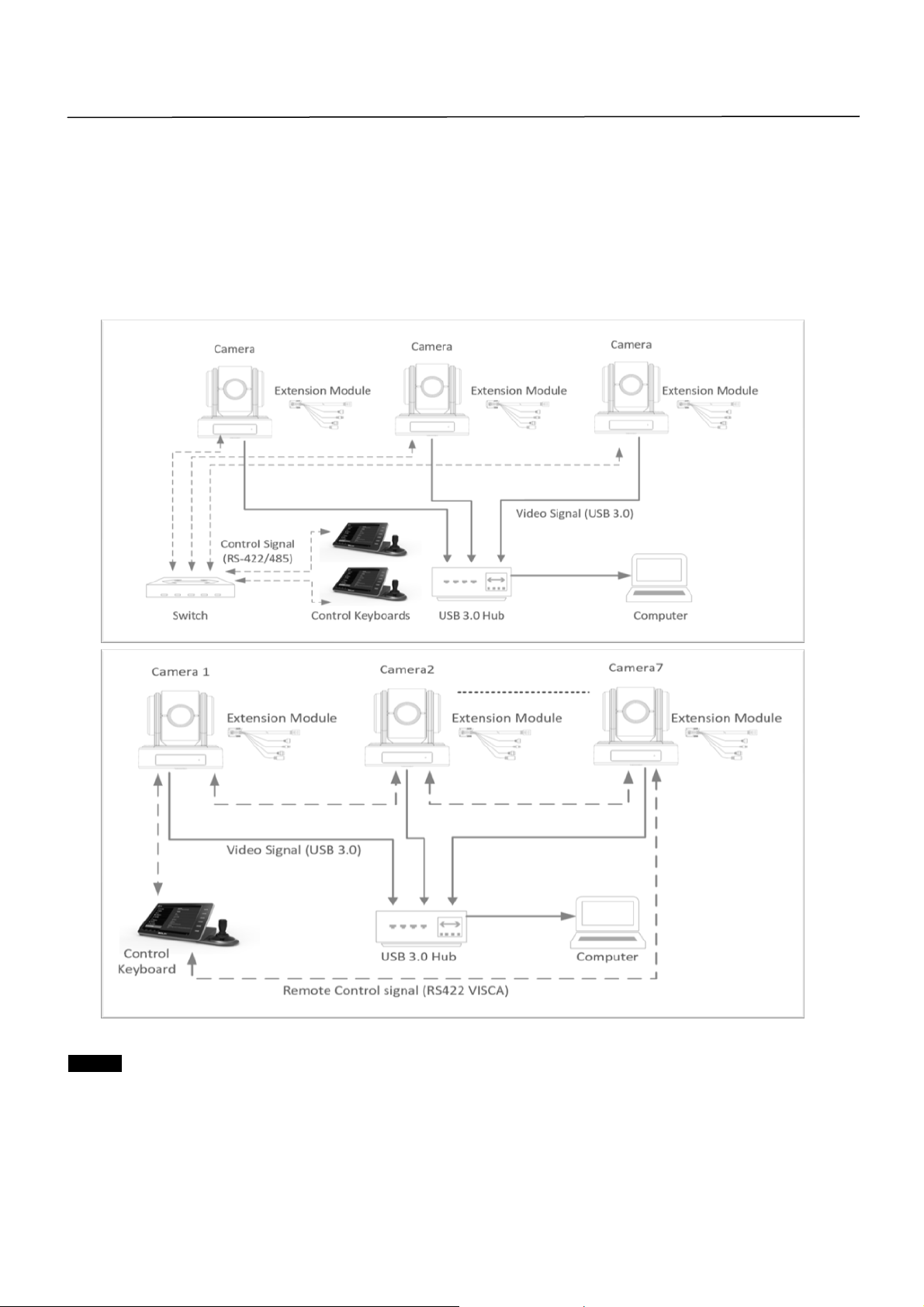

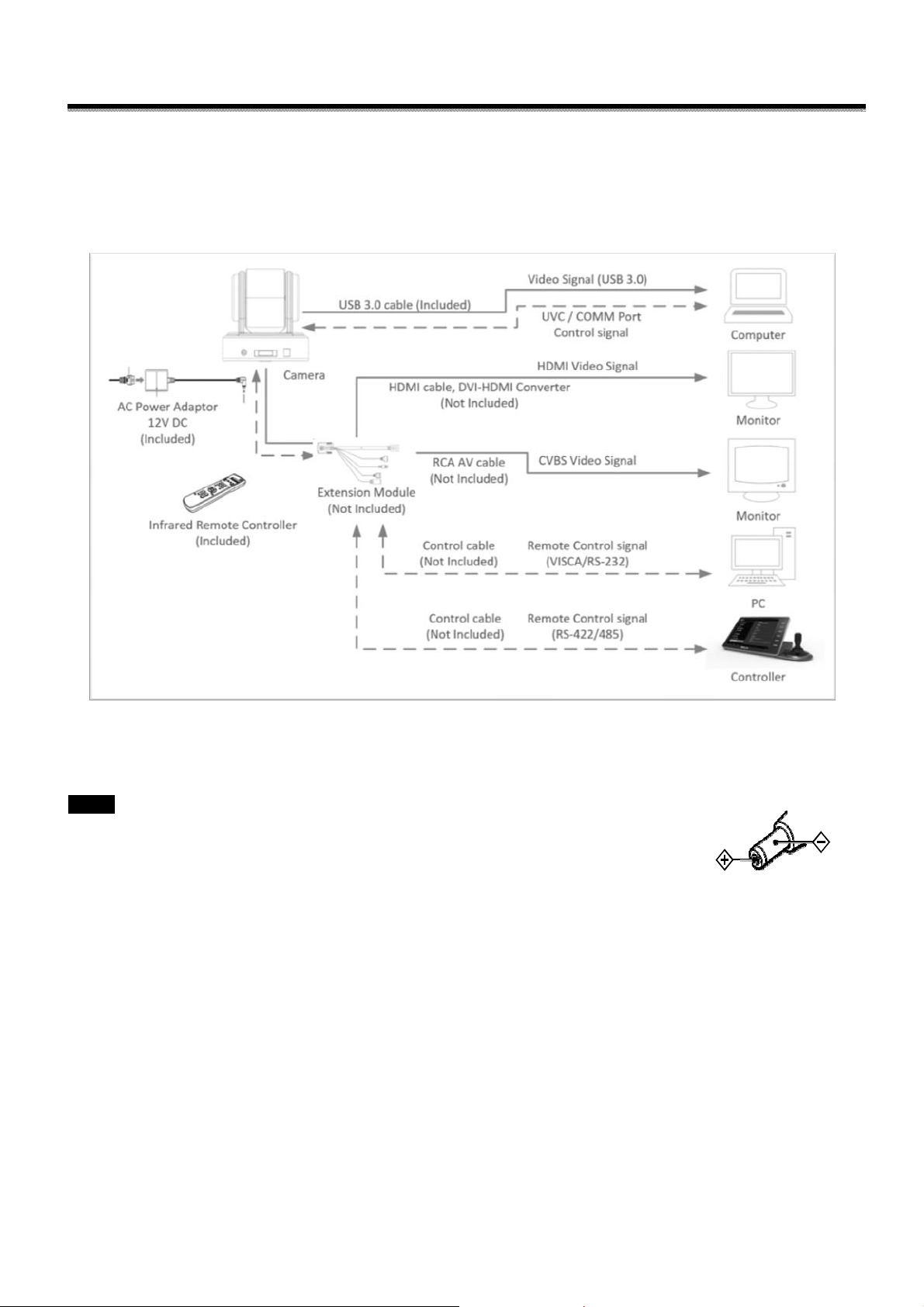

When the camera is connected to a computer and joystick keyboard via Extension Module with a VISCA cable (cross
type, RS-232), you can operate the camera with the computer and the joystick keyboard.
When the camera is connected to a joystick keyboard via Extension Module with a control cable (cross type, RS­422/485), you can operate the camera’s pan, tilt, zoom with the joystick keyboard.

In this connection configuration, Extension Module, DVI-HDMI converter, DVI cable, HDMI cable, Analog video
cable, data cable is required. To obtain these third party components or accessories, consult the dealer where you
bought your camera.

Notes

 Use only the AC power adaptor (JEITA type4) supplied with the unit.

Do not use any other AC power adaptor.

 Polarity of the plug
 You have to set the video format of the signal to output from the camera.

For detailed information on how to set the video format, see “SYSTEM SELECT
switch” on page 17, 21.

9



Obtain Video Signal

USB3.0 Video Signal

1. Install video client software on the computer that you want to use

the camera on.

2. Use the USB3.0 cable to connect the camera to the computer.

Connect the power adapter to the camera and the power outlet.

3. Power on the camera, wait for a while, the camera will be

recognized and installed automatically by the computer. USB3.0
driver is not required for the camera.

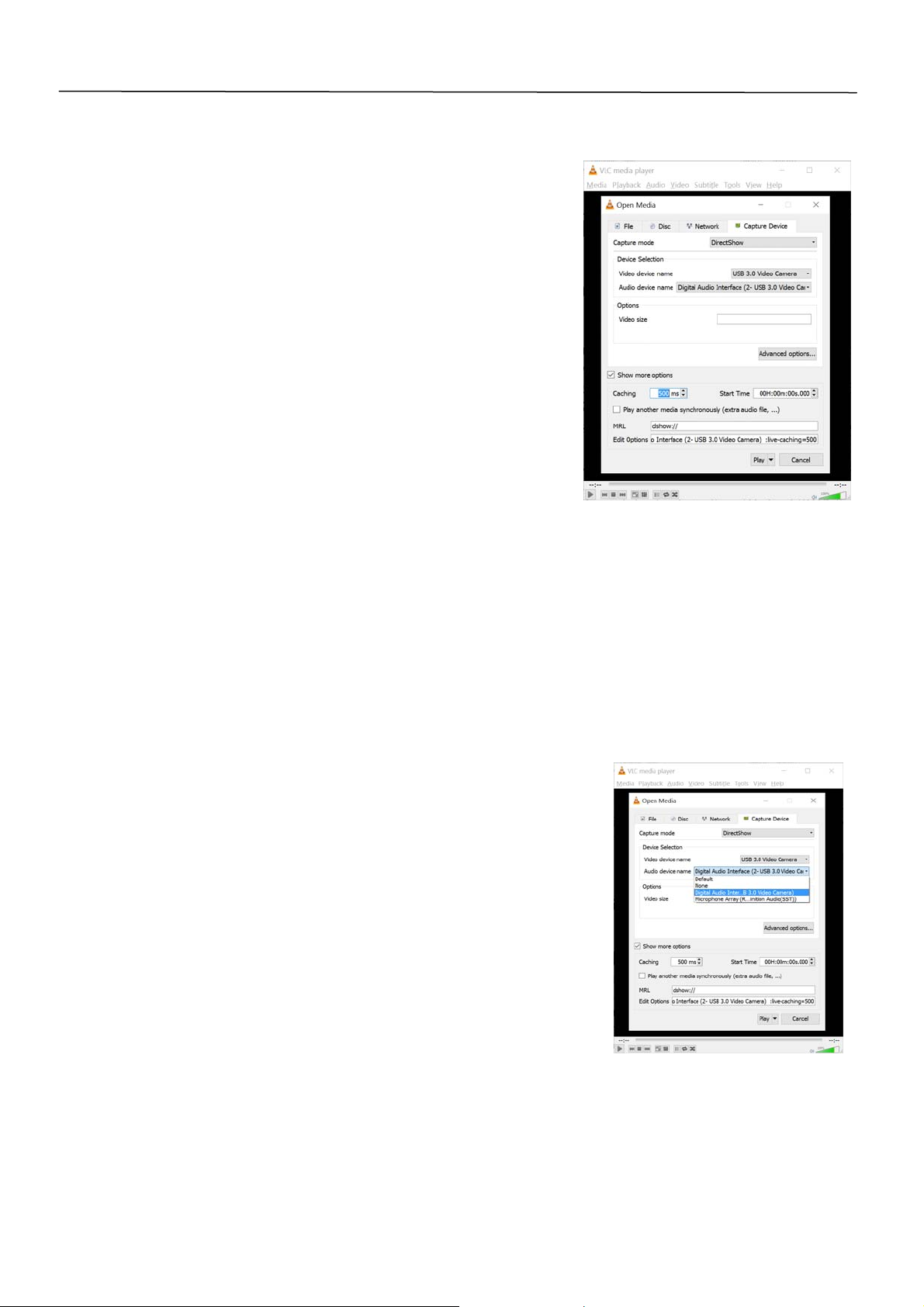

4. Open the video client software (Here, we use VLC Media Player

for example), under “Media”, select “Capture Device”. Under
Video device name, “USB3.0 Video Camera” will be listed.
Under the Audio device name, “Digital Audio Interface (2­USB3.0 Video Camera)” will be listed. Select both devices to
use.

5. Check the box “show more options”, Select Caching to 500ms.

6. Interface of the setting page and terminology of the setting items

may vary according to the video client software you are using.

7. Click “Play” or “Apply” the selections and the video will be

displayed on the screen.

HDMI / DVI Video Signal

The camera can simultaneously stream HDMI video output with USB3.0 video output. The DVI port on the rear
panel is not for DVI video output but it is a composite port for multiple use. In order to use HDMI video output, you
need to use the Extension Module (sold separately).

1. Connect the Extension Module to the camera composite port when the power is off. Turn on the camera

power, after the camera initializes, HDMI video signal can be activated automatically.

2. Connect HDMI cable in between the Extension Module and your HDMI display.

3. You now have HDMI video output.

4. You can use HDMI to DVI converter to obtain DVI video signal.

CVBS Video signal

The situation is same as DVI video signal. Use Extension Module and analog video cable to obtain CVBS video
signal. AV cable is needed.

Obtain Audio Signal

1. The camera has built in Mic. It generates audio signal to the video

client software. In the software Audio section find Microphone setting.
“Digital Audio Interface (USB3.0 Video Camera)” will be listed. Once
you select it as software audio device, you can use the built-in Mic
for communicating.

2. You can have external audio input by using Extension Module

(optional). The built-in Mic will be deactivated after the external audio
input is used.

10



Camera Control Methods and System Configurations

This unit has multiple ways of controlling the USB3.0 camera and various system configuration capabilities using
optional products. This section describes ways of controlling and typical system examples with the required
components and usage of each system.

1. Use the Infrared Remote Controller

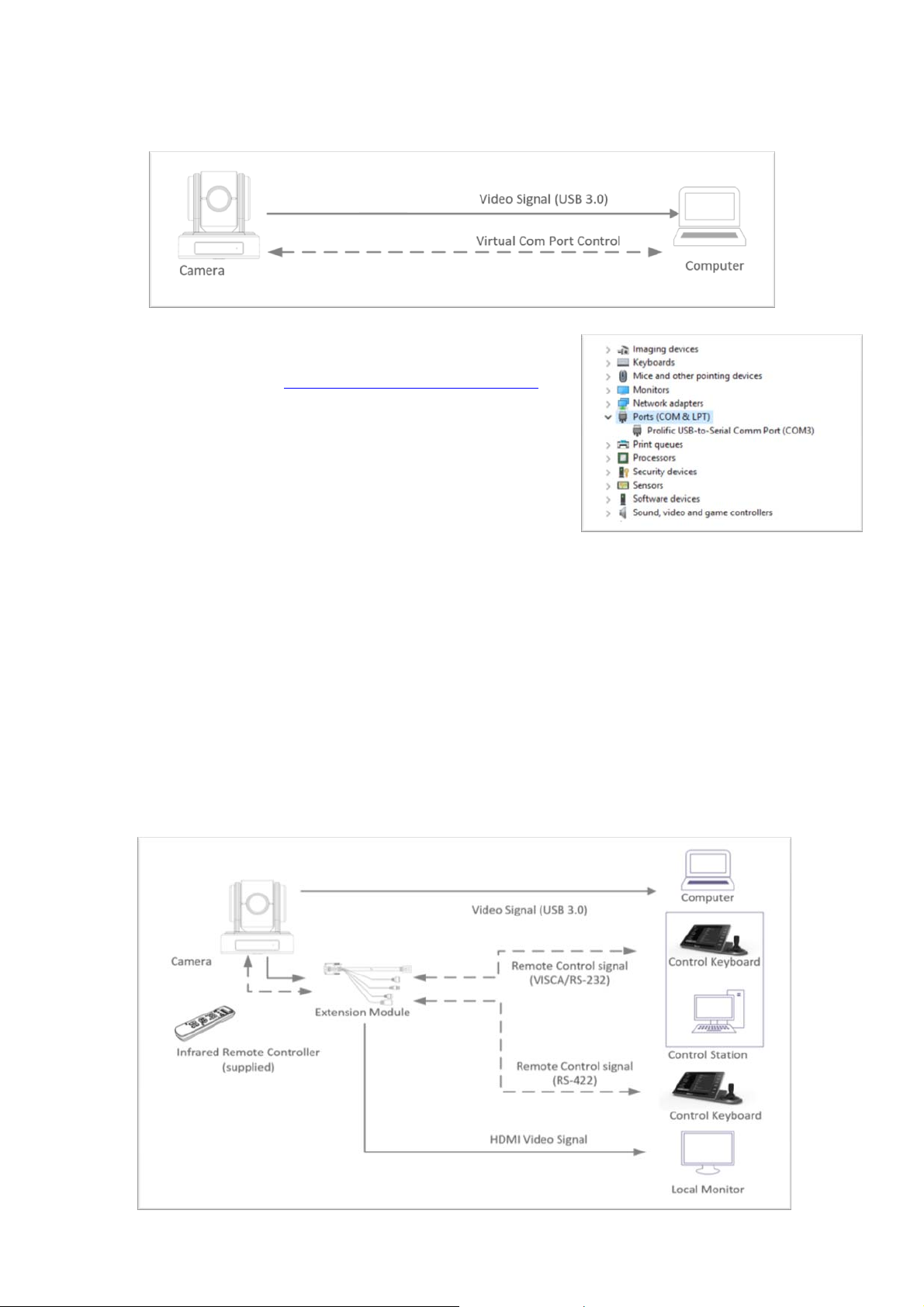

2. Use Third party video conference software (UVC1.5 compliant).

3. Use camera built-in virtual COM port.

4. Use RS-232 (VISCA), via Extension Module (optional).

5. Use RS-422(VISCA)/485 (PELCO P/D) via Extension Module (optional).

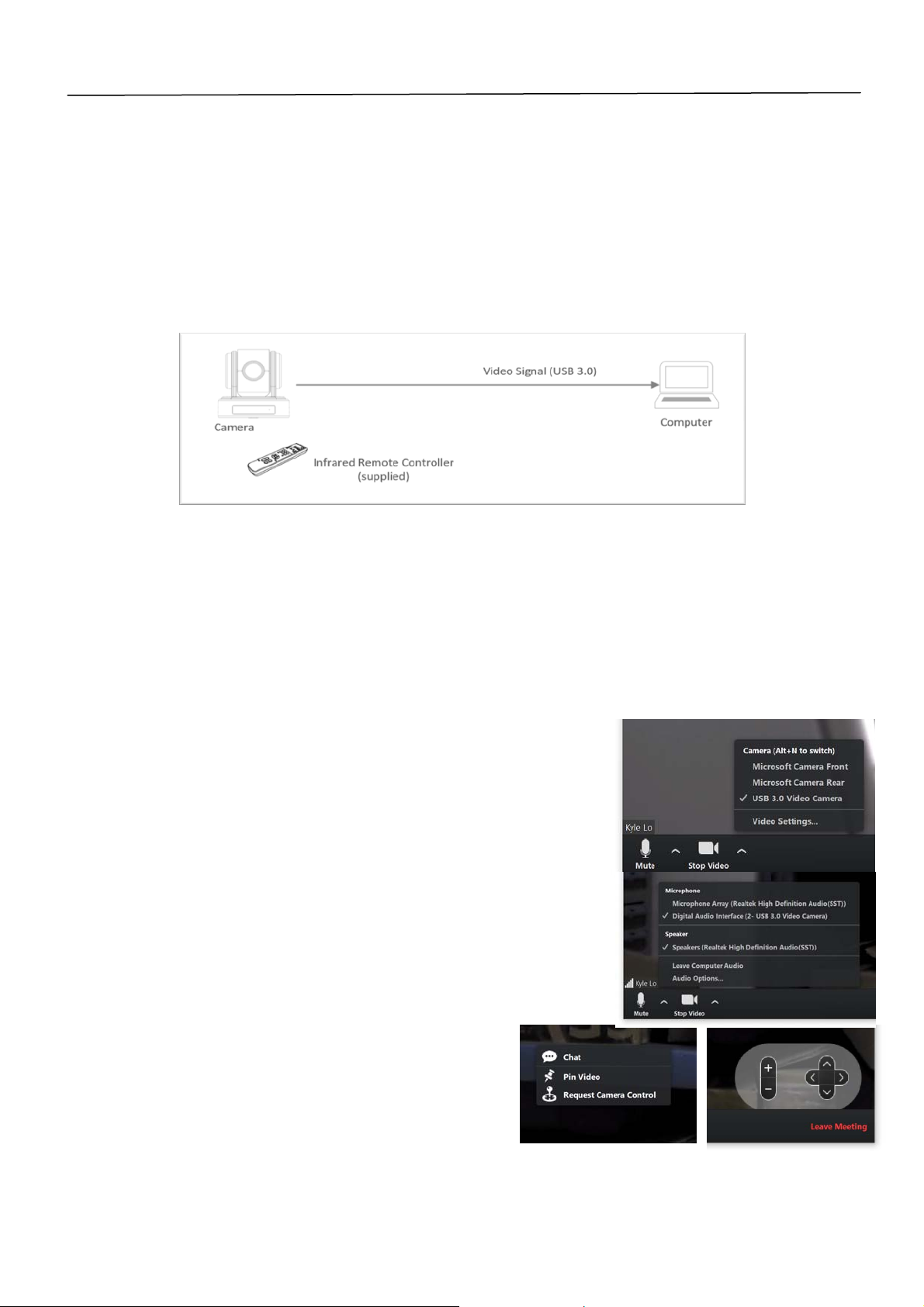

Use the Infrared Remote Controller

To operate the camera from a short distance.

System Configuration A

For IR remote control details, refer to Operation Using the Infrared Remote Controller, see page 22.

Use Third party video conference software (UVC1.5 compliant).

The camera can be controlled by any third party UVC1.5 compatible video software. Use USB3.0 cable to connect
the camera to the PC/device equipped with UVC1.5 compatible software, the camera will be recognized
automatically. Follow the instruction of the video software you are using. You can control the camera via PC, Pad,
Smartphone.

1. Install video client software on the computer that you want to use the

camera on.

2. Use the USB3.0 cable to connect the camera to the computer.

Connect the power adapter to the camera and the power outlet.

3. Power on the camera, wait for a while, the camera will be recognized

and installed automatically by the computer. USB3.0 driver is not
required for the camera.

4. Open the video client software (Here, we use ZOOM ROOM for

example), on left bottom under “Stop Video” setting, select video

device from Camera list “USB3.0 Video Camera”.

5. On left bottom under “Mute” Audio setting, select video device from

Microphone list “Digital Audio Interface (2-USB3.0 Video Camera)”.

6. Interface of the setting page and terminology of the setting items may

vary according to the video client software you are using.

7. You can have the video displayed after you made above selection.

Right Click mouse to pull out action selection, to Request Camera
Control from the meeting group.

8. After you get approve from the meeting group, the

control intereface will pop up. You can control the
camera.

9. For camera control detail, please refer to video software

user guide.

11



Use camera built-in virtual COM port

To operate the camera third party control software / interface, control distance may be short.

System Configuration B

Before you use the virtual COM port, you need to install the driver
onto your PC/Mac. You can download the driver (PL2303 Prolific
Driver Installer v1.12.0) here: http://plugable.com/drivers/prolific
You can use this Virtual COM port to control the USB camera.

Steps:

1. Install driver onto PC/Mac. After successful installation, you can

find the port “Prolific USB-to-Serial COM Port” in computer
Setting, Device Manager.

2. Connect the camera with your PC/Mac USB3.0 port.

3. You can find a Virtual COM port in your PC/Mac application

software setting.
You can choose the Virtual COM to control the camera.

4. COM port control system support: Windows 7, 8, 10 and Mac OS

Use RS-232 (VISCA), RS-422(VISCA)/485 (PELCO P/D) Control via Extension
Module.

The Extension Module is required when using RS-232 / RS-422/485 signals with external control devices.
You can use RS-232 port or RS-422/485 port on Extension Module to connect to optional controllers, such as
joystick control keyboard, control PC station, to operate the camera.
To perform pan/tilt and zoom operations using the joystick of the control keyboard, and to perform the Preset
operation using the control buttons.
An application software that supports this unit is needed if you use PC station.

System Configuration C

12



RS232 Connection

1. Set Bottom Dip Switch SW1-B6 to OFF. (See page 16).

2. Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using.

(See page 16).

3. Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly.

4. Camera ID address setting (see page 16).

The controller must be VISCA compatible.

5.

6.

Camera does not support Daisy Chain in RS232 control mode.

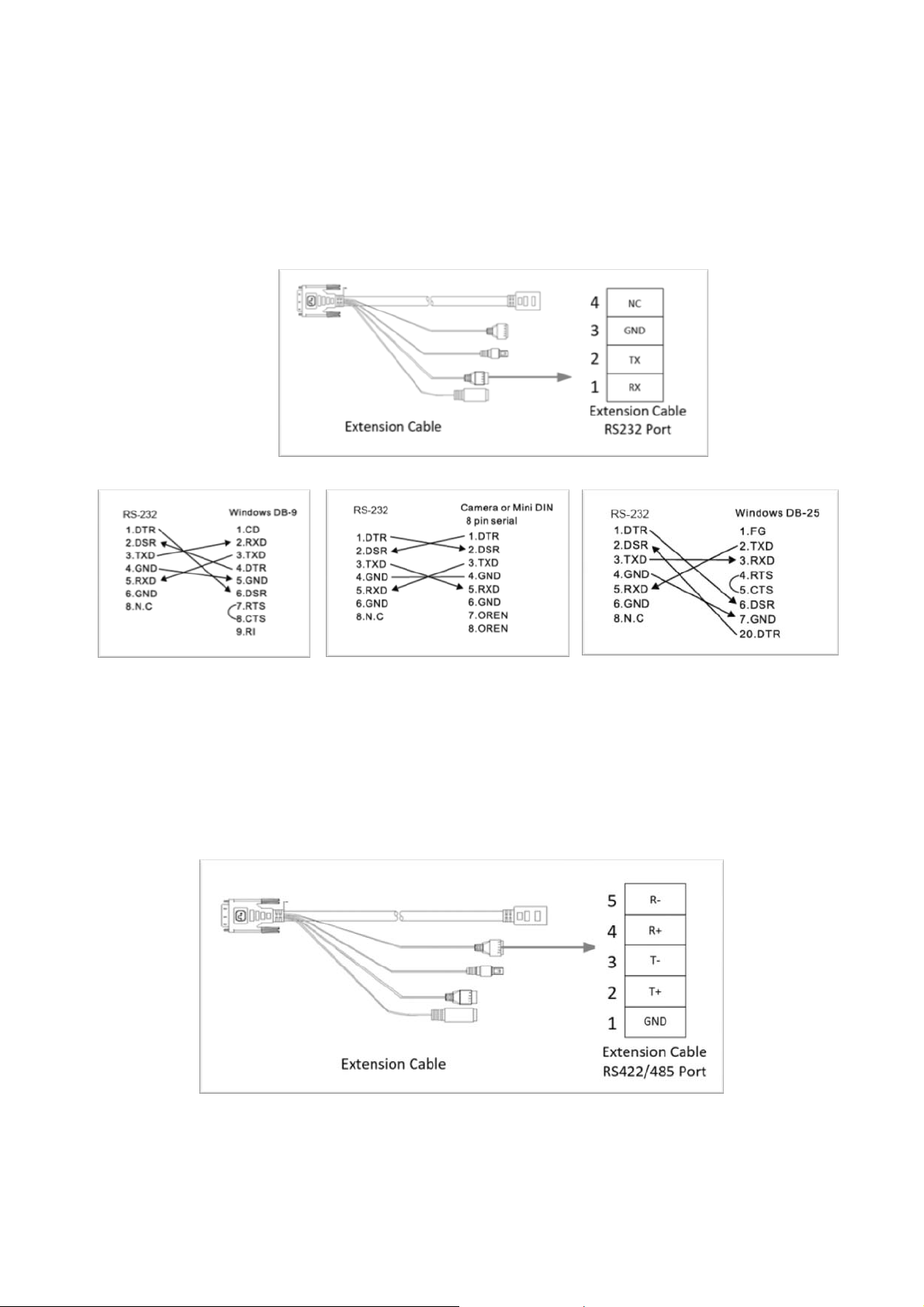

You can make RS232 connection cable if you have the following applications:

7.

Use RS-422(VISCA) / RS485 (PELCO P/D)

You can use RS-422/485 port connect to optional controllers, such as joystick control keyboard, control PC station,
to operate the camera.
To perform pan/tilt and zoom operations using the joystick of the control keyboard, and to perform the Preset
operation using the control buttons.
An application software that supports this unit is needed if you use PC station.

RS422/482 Connection

13



RS422 (VISCA) connection

1. Set Bottom DIP Switch SW1-B6 to OFF. (See page 16).

2. Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using.

(See page 16).

3. Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly.

4. Does not need setting camera address in way of RS422(VISCA) controlling.

The controller must be VISCA compatible.

5.

6. Camera supports Daisy Chain connection up to 7 cameras.

7. The connection of SONY keyboard is different than other VISCA (None-Sony) keyboard.

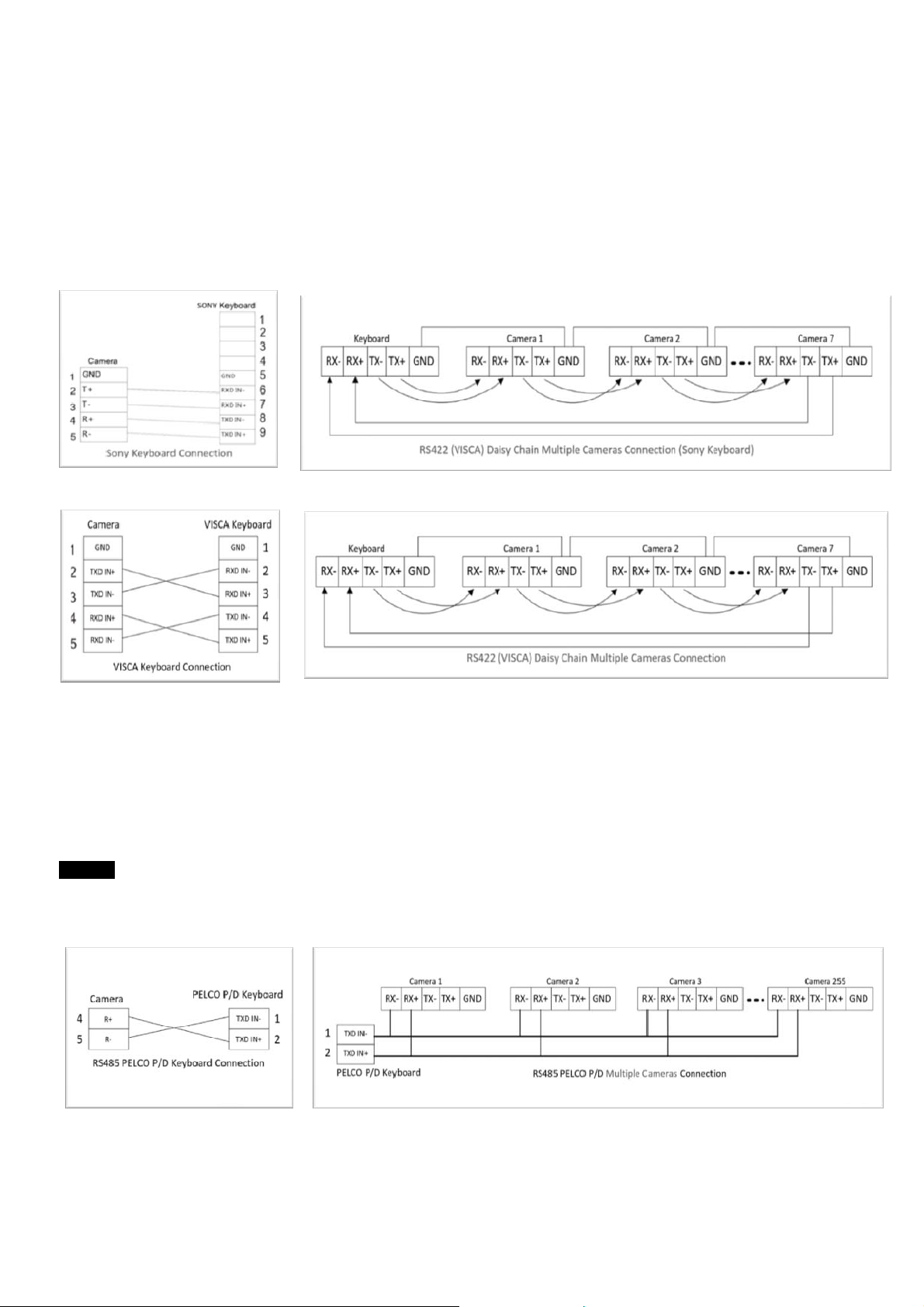

SONY Keyboard RS422 Connection

VISCA (None-Sony) Keyboard RS422 Connection

PELCO P/D Keyboard RS485 Connection

1. Use PELCO P/D compatible keyboard.

Use preset 95# on the keyboard to bring up/exit camera OSD menu.

2.

Use joystick and Button “OPEN” or “CLOSE” to navigate OSD menu.

3.

To operate keyboard, please refer to the user manual of the keyboard you are using.

4.

Note

For RS-232 VISCA control, this unit does not support daisy chain connection for using multiple cameras.

For control details, please refer to Operating Instructions of control keyboard/station software.

 You need to match the communication speed between the camera and the joystick controller.
 You can use the RS-232 connections when using the RS422/485 connection.
 The specified frame rate may change when communicating via a USB3.0 hub.

14



Operating Multiple Cameras Using RS-422/485

 Using RS-422 (VISCA), you can connect up to 7 cameras.
 Using RS-485 (PELCO), you can connect up to 255 cameras.
 Using RS-485 (PELCO), all camera addresses must be set up before the connection. You can set the

camera address by operating OSD menu.

 In this case, you can use multiple control keyboards. Only one keyboard that the camera can response to at

one time.

 The joystick of the remote keyboard controller allows comfortable pan/tilt and zoom operations.

System Configuration D (Operating Multiple Cameras)

Notes

 You can use the RS-232 connections when using the RS-422/485 connection.
 Only one camera at a time can be displayed on the computer.
 The specified frame rate may change when communicating via a USB3.0 hub

Precautions for Preventing Access to the Camera by an Unintended Third Party

The camera can be fraudulently accessed in a network environment where a device is connected or connectable to
the network without the administrator’s permission, or a PC or other network device connected to the network can

15



be used without any permission. If the computer to check USB images is connected to a network, there may be a
risk of information leaks, obstructed viewing due to infection by a virus, or other risks. Connect to these
environments at your own risk.

16



BOTTOM DIP SWITCH SETTINGS

The bottom dip switch is for setting the camera configuration for following items:

1. Camera ID Address for VISCA protocol

2. Video output / Video color space

3. RS-232 / RS-422/485 selection

4. Video resolutions selection

5. IR remote controller ID

Setting of the BOTTOM DIP Switches

Turn off power to the camera before changing the DIP switch settings.

From the above list, The NO.1 Camera ID address is for VISCA protocol up to 7. The camera ID address for
PELCO P/D protocol can be set on camera OSD menu. NO.2 Video resolution settings can be set in camera OSD
menu as well. The camera takes either the way of OSD menu setting or the way of bottom DIP switch setting. They
override each other. After the camera is turned on, the camera takes the last setting before it is turned on, either set
through the OSD or bottom DIP switch.

The DIP Switch Settings

Bit 1~3: Camera Address setting for VISCA protocol
Bit 4: Video Color Space
Bit 5: Reserve
Bit 6: Reserve for System firmware upgrade
Bit 7~8: RS-232/RS-422 Baud Rate

1. Camera Address setting for VISCA protocol
When just one camera is used, system takes the camera ID address that is set on Bottom DIP Switch. When
more than one camera is used, cameras will be automatically issued ID addresses by system via VISCA
protocol. The ID address setting on Bottom DIP Switch will be ignored by system.

B1 B2 B3 Address

ON OFF OFF 1

OFF ON OFF 2

ON ON OFF 3

OFF OFF ON 4

ON OFF ON 5

OFF ON ON 6

ON ON ON 7

2. Video Color Space

B4 Color Space Setting

OFF HDMI YUV

ON DVI-D RGB

3. Control Setting
In normal use, B6 has to be set to OFF, USB3.0. RS-232, RS-422, RS-485 way of controlling will be
recognized by the camera. B6 ON is only for authorized use.

B6 Control Setting

OFF For Normal Use

ON (For Authorized Use ONLY) Firmware Upgrade

4. RS-232 / RS-422 Baud Rate Setting
The baud rate of the camera has been set up as 9600bps, it is not changeable.

17

B7 B8 RS-232 / RS-422 Baud Rate Setting

OFF OFF 9600 bps

ON OFF 9600 bps

OFF ON 9600 bps

ON ON 9600 bps

Bit 1~4: Video resolution setting
Bit 5~6: Reserve
Bit 7~8: IR remote controller ID setting

1. Video Resolution Setting

B1 B2 B3 B4 Video Resolution

OFF OFF ON ON 1080P60

ON OFF ON ON 1080P50

OFF OFF OFF ON 1080P30

ON OFF OFF ON 1080P25

OFF OFF ON OFF 720P60

ON OFF ON OFF 720P50

2. IR Remote Controller ID Setting

B7 B8 IR Remote Controller ID

OFF OFF 1

ON OFF 2

OFF ON 3

18

Adjusting and Setting with Menus

About On-Screen Menus

You can change various settings, such as shooting conditions and system setup of the camera, while observing
menus displayed on a connected computer screen.
This section explains how to read the on-screen menus before starting menu operations.
The menu parameters may vary according to the different product model numbers.
For a complete configurations menu, see “Menu Configuration” (page 23).

Note

You cannot perform pan/tilt operations while the menu is displayed.

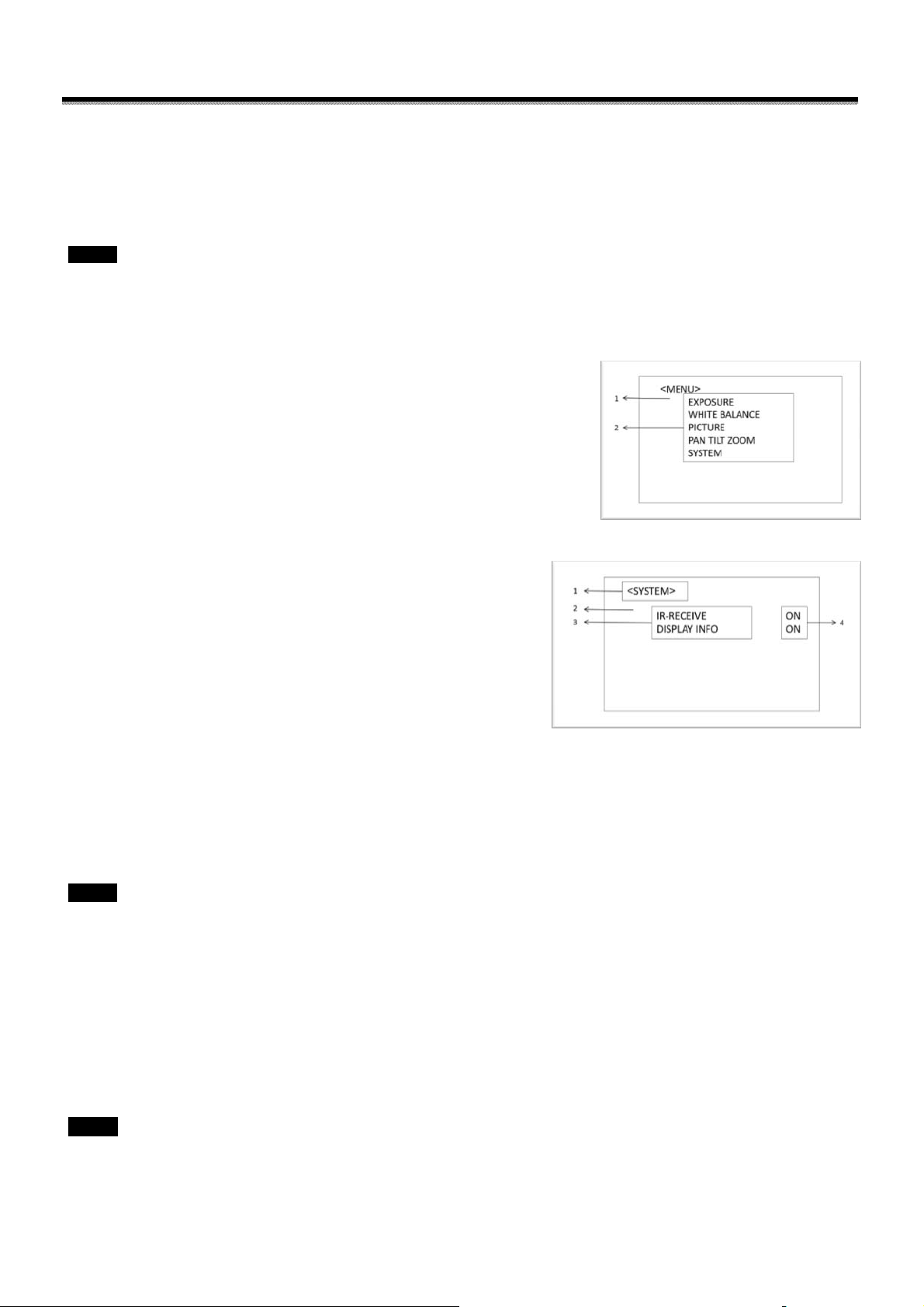

Main Menu

To display the main menu, press the DATA SCREEN button on the supplied infrared remote controller.

1.

Selected Items
Selects a setting menu.
The selected item is shown by the cursor. The cursor moves up or down by
pressing the “↑, ↓” button on the infrared remote controller.

2.

Menu Items
To display a setting menu, select one using the “↑, ↓” button on the infrared
remote controller and press the HOME button on the infrared remote
controller.

Setting Menu

The setting menu selected on the main menu is displayed.

1.

Setting Menu
The name of the setting menu currently selected is displayed here.

2.

Selected Item
Selects a setting item.
The selected item is shown by the cursor.
Move the cursor up or down by pressing the “↑, ↓” button on the
infrared remote controller.

3.

Setting Items
The setting items for this setting menu are displayed. Select the setting item using the “↑, ↓” button on the infrared
remote controller.

4.

Set Value
The currently set values are displayed.
To change a set value, use the “←, →” button on the infrared remote controller.

Note

In some product models, only use “←” button on the infrared remote controller to change the value. To confirm the
value, you can use either “→” button or HOME button.

Control Button

You can select the item by pressing “↑, ↓, ←, →” and HOME button.

1.

You can select a menu item by

the cursor (Color change).

2.

You can move to the next layer by

3.

You can return to the normal display by

Note

When you are operating the menu using the infrared remote controller, you cannot set IR- RECEIVE in the
SYSTEM menu to OFF. To set IR- RECEIVE to OFF, use the appropriate VISCA command.

“↑, ↓”

button on the infrared remote

You can change the value of the item by pressing “←, →” button.

pressing the HOME button.

pressing the DATA SCREEN button.

controller

. The selected item is shown by

19

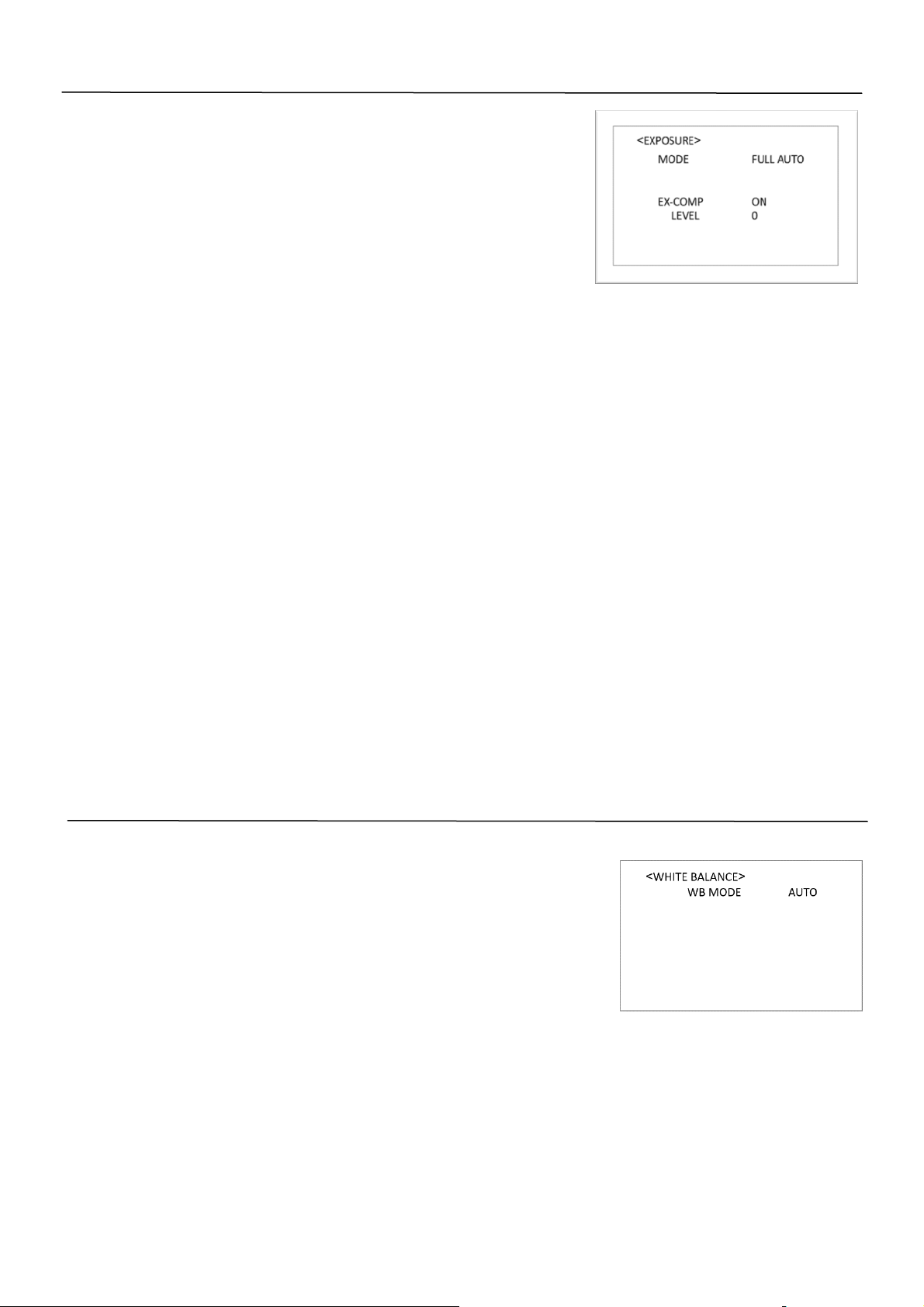

EXPOSURE Menu

The EXPOSURE menu is used to set the items related to exposure.

MODE (Exposure Mode)

FULL AUTO: The exposure is adjusted automatically using the
sensitivity, electronic shutter speed, and iris.

BRIGHT: Adjust the brightness level (LEVEL) manually.
SHUTTER PRI: Shutter Priority mode. The exposure is adjusted

automatically using the sensitivity and iris. Adjust the electronic
shutter speed (SPEED) manually.
IRIS PRI: Iris Priority mode. The exposure is adjusted automatically
using the sensitivity and electronic shutter speed. Adjust the iris (IRIS) manually.
MANUAL: Adjust the sensitivity (GAIN), electronic shutter speed (SPEED) and iris (IRIS) manually.

When you select one from various exposure modes, some of the following setting items that are required for the
selected mode appear.

GAIN: Select the gain from the following:

-3, 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24,26, 28 dB
SPEED: Select the electronic shutter speed from the following:
When video format is set to 1080P50, 1080P25, 720P50, Speed can be selected from the following:
1/1, 1/2, 1/3, 1/6, 1/12, 1/25, 1/50, 1/75, 1/100, 1/120, 1/150, 1/215, 1/300, 1/425, 1/600, 1/1000, 1/1250,
1/1750, 1/2500, 1/3500, 1/6000, 1/10K.
When video format is set to 1080P30, 1080P60, 720P60, Speed can be selected from the following:
1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500,
1/2000, 1/3000, 1/4000, 1/6000, 1/10K.
IRIS: Select the iris the following: CLOSE, F14, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4,
F2.0, F1.6
LEVEL: Select the brightness level from 0, 5 to 31.

EX-COMP (Exposure Compensation)

When MODE is set to one of FULL AUTO, SHUTTER PRI or IRIS PRI, set this item to ON to enable
exposure compensation. When you set EX-COMP to ON, LEVEL appears and you can select the exposure
compensation level from the following:

–10.5, –9, –7.5, –6, –4.5, –3, –1.5, 0, +1.5, +3, +4.5, +6, +7.5, +9, +10.5
If you set the level to 0, exposure compensation will be disabled. Level +10.5 is the brightest and –10.5 is the
darkest compensation value.
When EX-COMP is set to OFF, exposure compensation does not function.

WHITE BALANCE Menu

The WHITE BALANCE menu is used to select the white balance mode.

MODE (white balance mode)

Select the white balance mode from the following: AUTO, IN DOOR, OUT
DOOR, OPW (One Push White Balance), ATW (Auto Tracing White Balance),
USER.

When you select USER, R. GAIN (red gain) and B. GAIN (blue gain) appear.
You can select each item in the range from 0 to 255.

When you select the OPW (One Push White Balance)

Perform the following operations:

1. Place an image of white subject (For example: A piece of white paper) in the center of the screen.

2. Press the HOME button of the infrared remote controller.

The one-push white balance adjustment is activated.

20

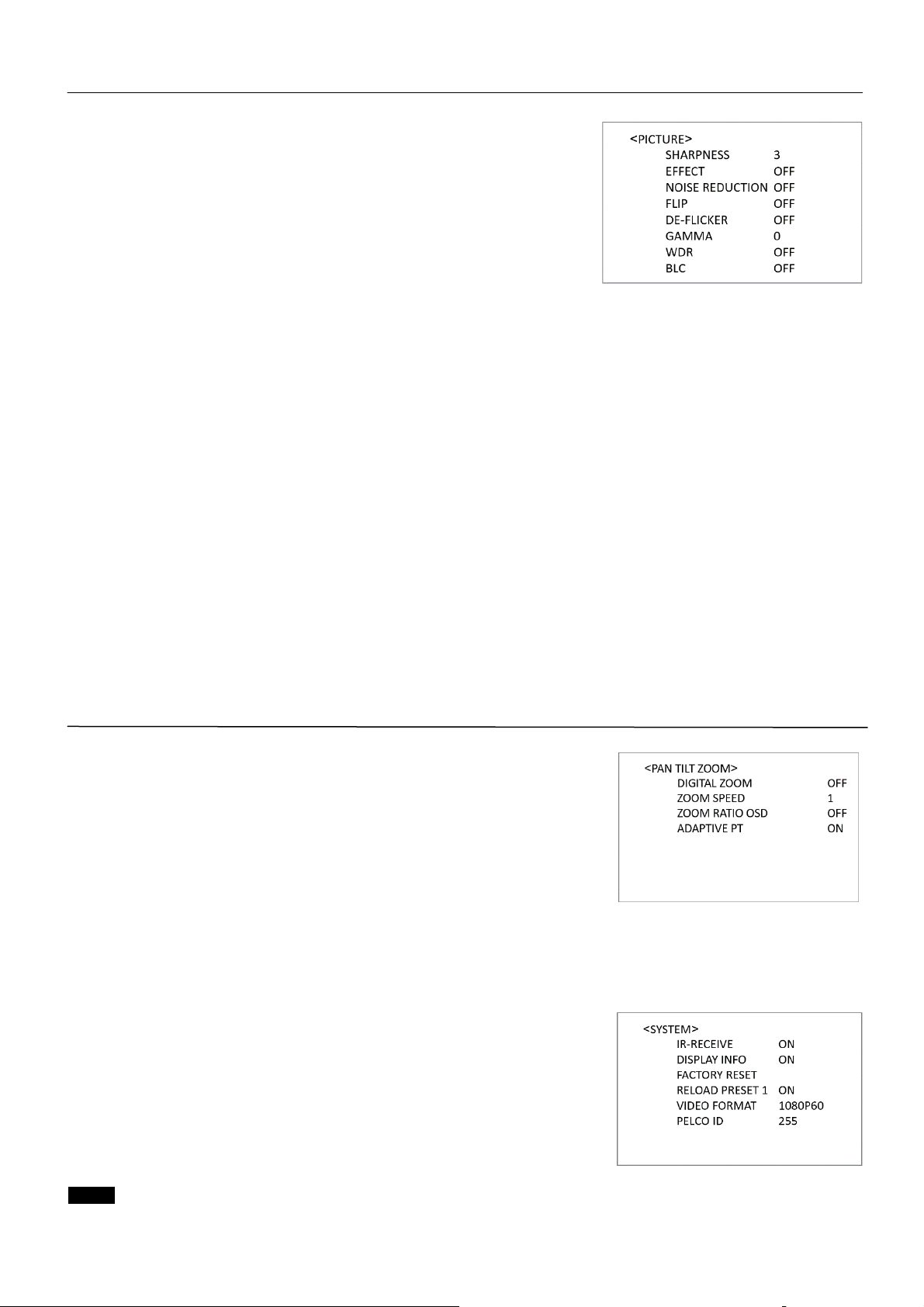

PICTURE Menu

The PICTURE menu is used to set the items related to the picture.

SHARPNESS:

Picture sharpness value ranges from 0 to 20. You can enjoy emphasized
edge and high-resolution images.

EFFECT: (Picture Effect)

It consists of the following functions:

Neg. Art: Negative/Positive Reversal
Black & White: Monochrome Image

Image effect from Off, B&W, NEG.ART

NOISE REDUCTION:

Noise reduction - you can enjoy clearer images by removing unnecessary noise. You can select 4 levels from OFF
(MIN), 1 to 3 (MAX).

FLIP:

Image E-Flipper – Used when ceiling mounting or upright mounting. Set to OFF is upright mode, set to ON is for
ceiling mount.

DE-FLICKER:

You can turn it ON if the Video output format frame rate is difference from your country’s electricity Frequency.

GAMMA:

In this mode, the gamma can be set to value from 0 to 4.

WDR: (Wide dynamic range mode): WDR feature is available on certain product
models.

Wide Dynamic: ON, OFF. The camera distinguishes light and dark areas within the same scene, adjusts the
brightness for dark areas, and also controls the blown out highlights.
You can select the wide dynamic range mode between ON and OFF

BLC (Back Light Compensation)

When the background of the subject is too bright, or when the subject is too dark due to shooting in the AE mode,
back light compensation will make the subject appear clearer.
This is set to ON, OFF

PAN / TILT / ZOOM Menu

The PAN TILT ZOOM menu is used to select the pan/tilt/ zoom mode.

DIGITAL ZOOM:

Set to DIGITAL ZOOM ON, 12X digital zoom is activated.
You can set digital zoom to ON or OFF. When set to OFF, digital zoom does
not operate, and only optical zoom is available. When set to ON, digital zoom
takes over after optical zoom reaches MAX (10×). Up to 120× can be
zoomed digitally.
When digital zoom is available, the resolution decreases

ZOOM SPEED:

Set Zoom Speed value to from 1 to 8 (The speed from low to high), to change the speed of SLOW ZOOM on
remote controller.

ZOOM RATIO OSD (Zoom times display):

Set Ratio OSD to ON, the number of the zoom times that you are operating displays on screen.

ADAPTIVE PT:

Set to ON, Pan Tilt speed would be adaptive with the zoom range

SYSTEM Menu

IR-RECEIVE (Infrared Signal Reception)

When this is set to OFF, the camera does not receive the signal from the
infrared remote controller.
Be sure to keep it set to ON when you use the infrared remote controller.

Note

You cannot set IR-RECEIVE to OFF when you operate the menu using the infrared remote controller. To set it to
OFF, use the appropriate VISCA controller.

21

DISPLAY INFO

When this item is set to ON, the message of the camera configuration appears for about 3 seconds on the screen,
after the camera is powered on or rebooted.

FACTORY RESET

You can select this item to set camera back to Factory Default setting by pressing HOME button to confirm the
action. All data of the camera that have been set will be deleted.

RELOAD PRESET 1:

When this item is set to ON, preset 1 is set to Home position. The camera goes to Home position when it is
powered on or reset.

VIDEO FORMAT:

You can change the video format by adjusting this item. Select the item, press “←” button to choose the video
format you want to set to, then press “→” (Pressing “→” button changes value on some product models) or HOME
button to confirm it. After you confirm your choice, press HOME button again to restore it. The camera will reboot by
itself. The new video format is activated.
You can cancel it by pressing the DATA SCREEN button.
Depending on the video client software you are using, some video software may need to be restarted to obtain the
new video format.
The video formats that you can select from are: 720P50, 1080P25, 1080P60, 720P60, 1080P30, 1080P50.

PELCO ID:

You can set camera address for RS422/485 control.

Note

The camera video format can be changed by setting bottom DIP switch as well. For details, see page 17.

22

Operation Using the Infrared Remote Controller

Pan/Tilt and Zoom Operation

Panning and Tilting

1. Press the POWER switch.
The camera will turn on and perform the pan/tilt reset operation automatically.

2. Press the arrow button to pan or tilt the camera.
While checking the picture on the screen, press the desired arrow button.

To move the camera in short increments, press the button just for a moment.
To move the camera in long increments, press and hold the button.
To move the camera diagonally, press the “←, →” button while

holding down the “↑, ↓” button.

Restore to starting position

Press the HOME button.

If the camera moves in a different direction from the one you intended

The camera is preset so that the image output from the camera is rotated toward the right whenever you press the
“←, →” button.

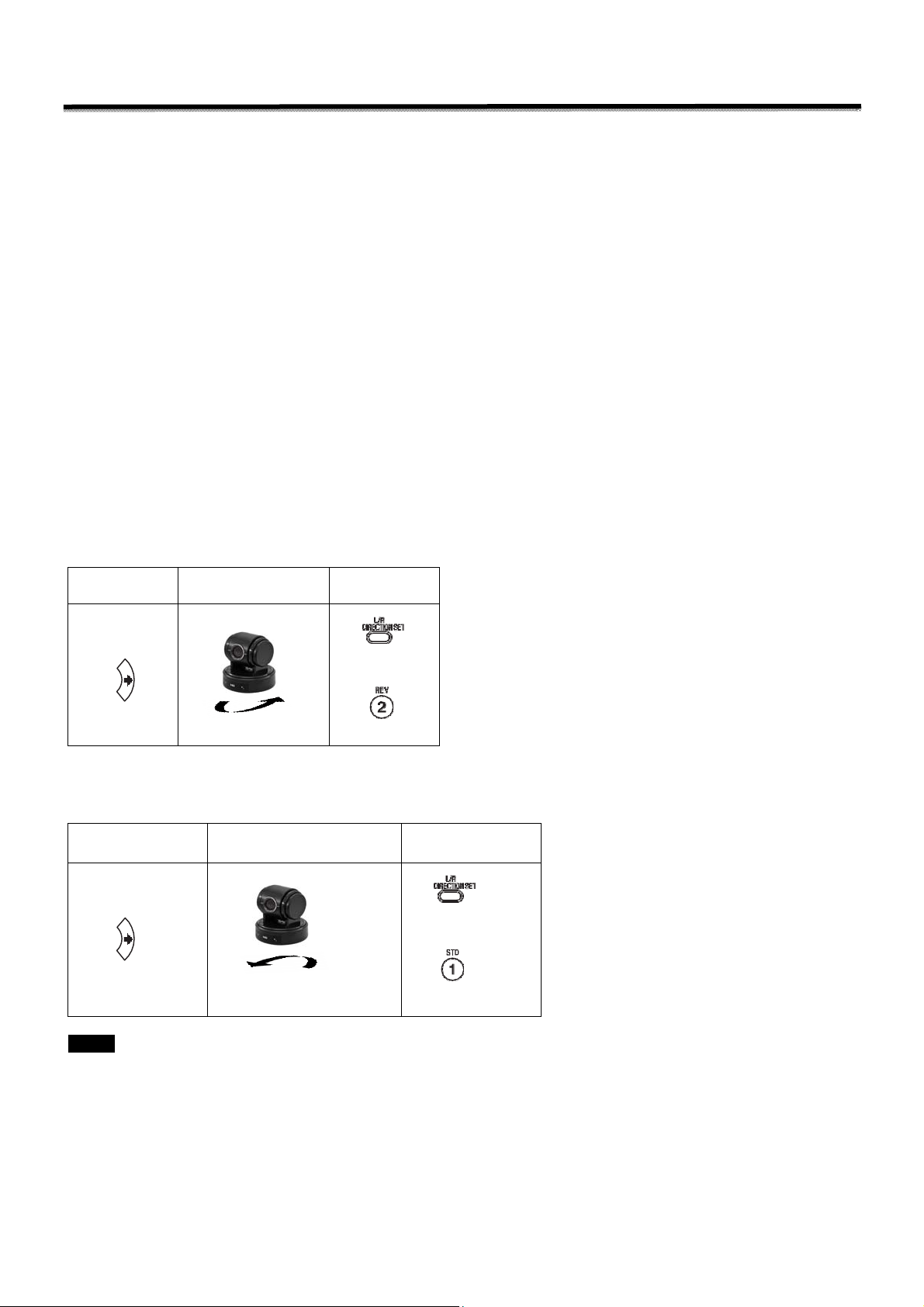

To face the camera toward the opposite direction

You might wish to face the camera toward the opposite direction from that of the button you pressed, for example,
when you change the direction of the camera while checking the picture on the screen. In such a case, press the 2
(REV) button while holding down the L/R DIRECTION SET button.

Arrow button

Movement of the

camera

To reset the setting

To reset the setting, press the 1 (STD) button while holding down the L/R DIRECTION SET button.

Arrow button

Movement of the

camera

Setting

While holding

down

Press

Setting

While holding
down

Press

Note

The above setting only changes the signal emitted from the infrared remote controller, and does not change the
setting of the camera itself. Therefore, repeat the setting for each infrared remote controller if you are using more
than one infrared remote controller.

When the STANDBY lamp is blinking

If the camera is moved forcibly, or a finger or other object interferes with camera movement, the camera may fail to
memorize the pan/tilt position.
Press the PAN-TILT RESET button to reset the pan/tilt position.

23

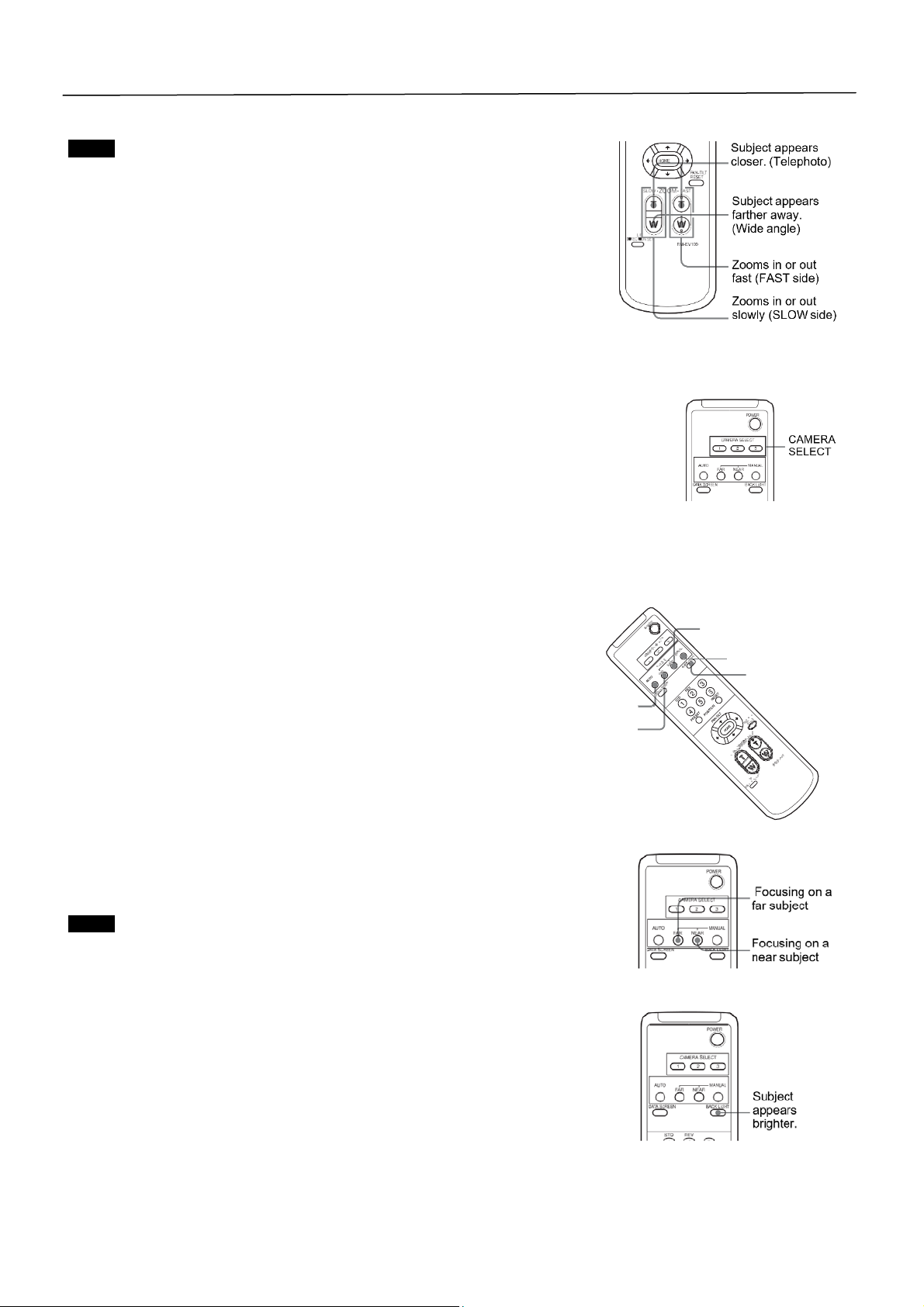

Zooming

A

Press either of the ZOOM buttons.

Note

When you perform pan/tilt operation while the camera is in the telephoto
mode, the moving speed of the image on the screen may be a little jerky.

Operating Multiple Cameras with the Infrared Remote Controller

1. Set the DIP Switch on the bottom of the camera to the number of camera you
want to operate to 1, 2 or 3.
(See bottom DIP Switch setting instruction)

2. Press the CAMERA SELECT button on the infrared remote controller that
corresponds to the number set in step 1.

Then, you can operate the camera(s) specified by number. Every time you operate the camera(s) using the infrared
remote controller, the CAMERA SELECT button pressed in step 2 lights.

Adjusting the Camera

Focusing on a Subject

Focusing the camera on a subject automatically

Press the AUTO button.
The camera focuses on the subject at the center of the screen automatically.

Focusing the camera on a subject manually

After pressing the MANUAL button, press either the FAR or the NEAR button to have the
camera focus on the subject.

Shooting with Back Lighting

When you shoot a subject with a light source behind it, the subject becomes dark.
In such a case, press the BACK LIGHT button.
To cancel the function, press the BACK LIGHT button again.

Note

The BACK LIGHT function is effective if MODE is set to FULL AUTO in the
EXPOSURE menu of the camera.

UTO

FAR

NEAR

MANUAL

BACK LIGHT

24

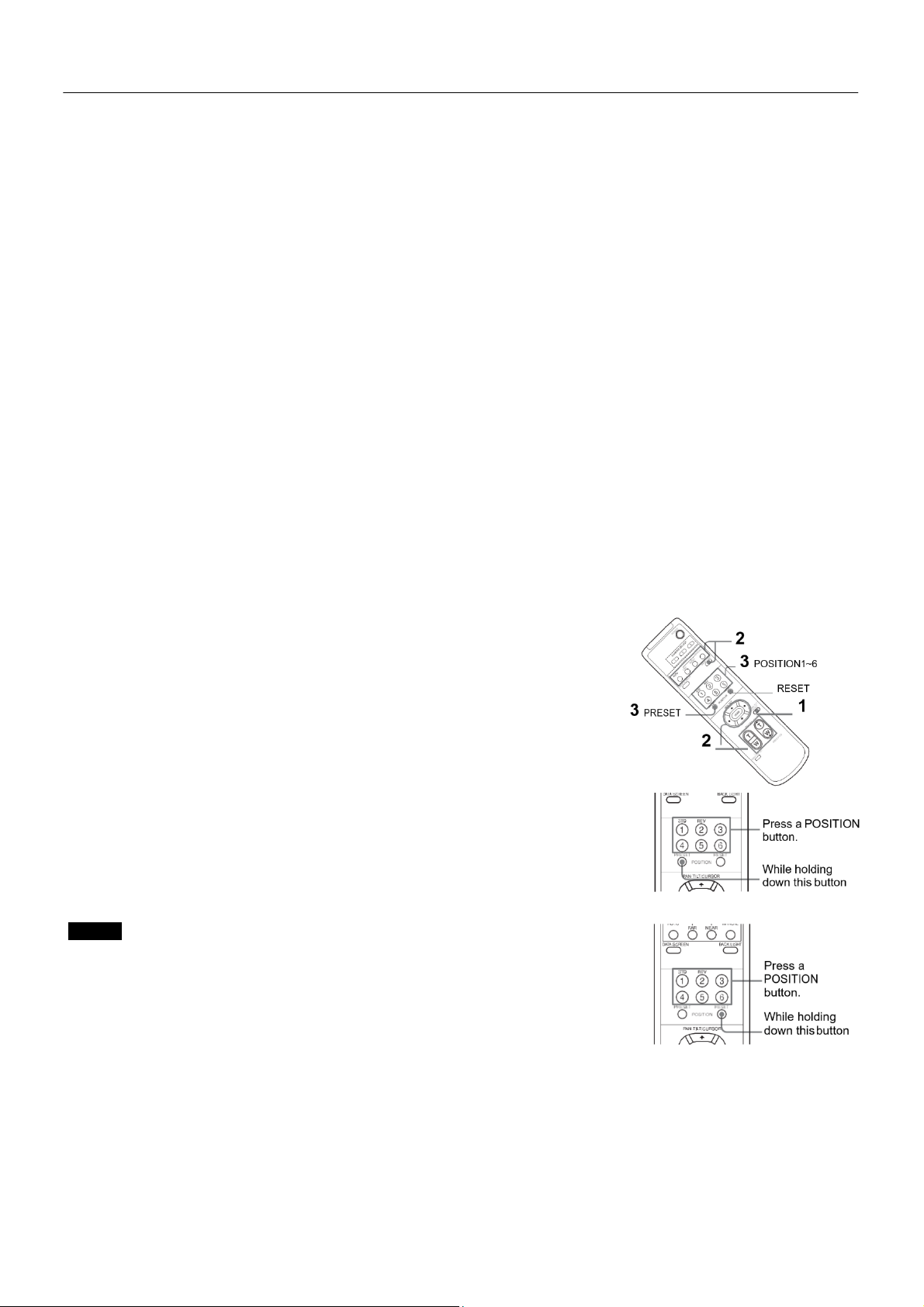

Storing the Camera Settings in Memory — the Presetting Feature

Memory (Preset)

Using the preset function, 6 sets of camera shooting conditions can be stored and recalled. 6 sets of camera
shooting conditions can be stored and recalled by using remote controller. Up to 128 presets via protocol
programming.

This function allows you to achieve the desired status instantly, even without adjusting the following items each time.

 Pan/Tilt Position
 Zoom Position
 Digital Zoom On/Off
 Focus Auto/Manual
 Focus Position
 AE Mode
 Shutter control parameters
 Bright Control
 Iris control parameters
 Gain control parameters
 Exposure Compensation On/Off
 Exposure Level
 Backlight Compensation On/Off
 White Balance Mode
 R/B Gain
 Aperture Control
 WD Parameter

The settings stored using this function are recalled when the power is turned on.

1. Press the PAN-TILT RESET button to reset the pan/ tilt

While holding down the PRESET button, press any of the POSITION buttons, 1
to 6, in which you want to store the settings.

position.

2. Adjust the position, zooming, focusing and backlighting of the
camera.

Recalling the stored settings

Press any of the POSITION buttons, 1 to 6, in which you have stored the settings.

Cancelling the preset memory

While holding down the RESET button, press the POSITION button from which
you want to cancel the settings.

Notes

 When the power is turned on, the camera starts with the settings stored in

POSITION 1.

 If you want to retain the previous pan and tilt positions, etc. before the

power is turned off and turned on again, store those positions in
POSITION 1.

 When you are storing or cancelling the settings in one POSITION, you

cannot call up, store or cancel the settings in another POSITION.

 When the menu is displayed on the screen, you cannot perform the operation for storing, recalling, or

cancelling the setting. Be sure to return to the normal display before starting these operations.

25

Menu Configuration

The menus of the camera are configured as described below. For more details, refer to the pages in

parentheses. The initial settings of each item are in bold.

26

Troubleshooting

Check the following as a guide for troubleshooting the problem. If the problem cannot be corrected, consult your
dealer.

Symptom Cause Remedy

The power of the camera is not turned
on.

The images are not displayed on the
connected computer screen.

The AC power adaptor is not connected
to the DC 12 V connector firmly.

The AC power cord is not inserted firmly
into the AC power adaptor or the AC
outlet.

-

The USB3.0 cable is not connected
properly.

A USB3.0 cable is not used. Use a USB3.0 cable.

The USB cable is not connected to the
USB3.0 port.

-

The exposure is not set correctly on the
camera.

The USB3.0 driver is not latest one. Install the latest driver.

-

The video device setting on video
client software is not set correctly.

Insert the power cord firmly as far as it will
go.

Insert the power cord firmly as far as it will
go.

Pull out the plug of the power cord from the
AC outlet, then reinsert it into the AC outlet
after waiting a while.

Make sure the connection between the
computer and camera is made correctly.

Connect it to the USB3.0 port.

Pull out the USB cable from the computer
once then reinsert it into the computer.

Set the exposure correctly on the
EXPOSURE menu (page 9).

Note

In the case of Windows 7, the USB3.0
drivers cannot be updated to the latest
version even if the drivers are updated from
the device manager of the computer.
Download the latest driver from the home
page of chipset manufacturers, and install
it.

Pull out the plug of the power cord from the
AC outlet, then reinsert it into the AC outlet
after waiting a while.

Select the device listed as “USB3.0
video camera”, reconnect it.

Restart the video client software.
Connect the device correctly.

Press the DATA SCREEN button on the
supplied infrared remote commander to

Pan or tilt cannot be operated.

The video client software hasn’t
taken the new video format setting.

A menu is displayed on the computer
screen.

remove the menu from the computer
screen.

The panning or tilting range is limited.

Change the PAN/TILT LIMIT setting on the
PAN TILT ZOOM menu (page 11).

Remote controller ID is not set correct.

Check ID setting on bottom Dip switch,
restart the camera. Press the right
number of ID button on remote controller.

The EXPOSURE menu cannot be set
except for FULL AUTO.

WDR (VIEW-DR) is not set to OFF.

After setting the WDR (VIEW-DR) to OFF,
select the MODE of the EXPOSURE
(page 9).

The infrared remote commander does
not work.

The CAMERA SELECT button you
pressed on the infrared remote
commander does not match the number

Press the CAMERA SELECT button
corresponding to the IR SELECT switch

setting on the camera (page 15).
set with the IR SELECT switch on the
camera.

The VISCA CONTROL is not available
with a computer connected to the

The computer is not correctly connected
to the camera.

Make sure the connection between the

computer and camera is made correctly.

Bottom DIP switch doesn’t work. The camera hasn’t been restarted. Set the DIP switch when the camera is

turned off. After setting, turn on the

camera.

27

Changing the video format on OSD
menu doesn’t work.

There is no audio.

The image is upside down. The Flip function is not set. Set the Flip function on OSD menu.

The camera hasn’t been restarted. After setting the video format, confirm with

pressing HOME button on the remote

controller. Camera will restart.

The audio device setting on video
client software is not set correct.

Select the device listed as “Digital audio

device, USB3.0 video camera”, reconnect

it.

The Pan movement is reversed. The L/R Direction Set on remote

controller is not set.

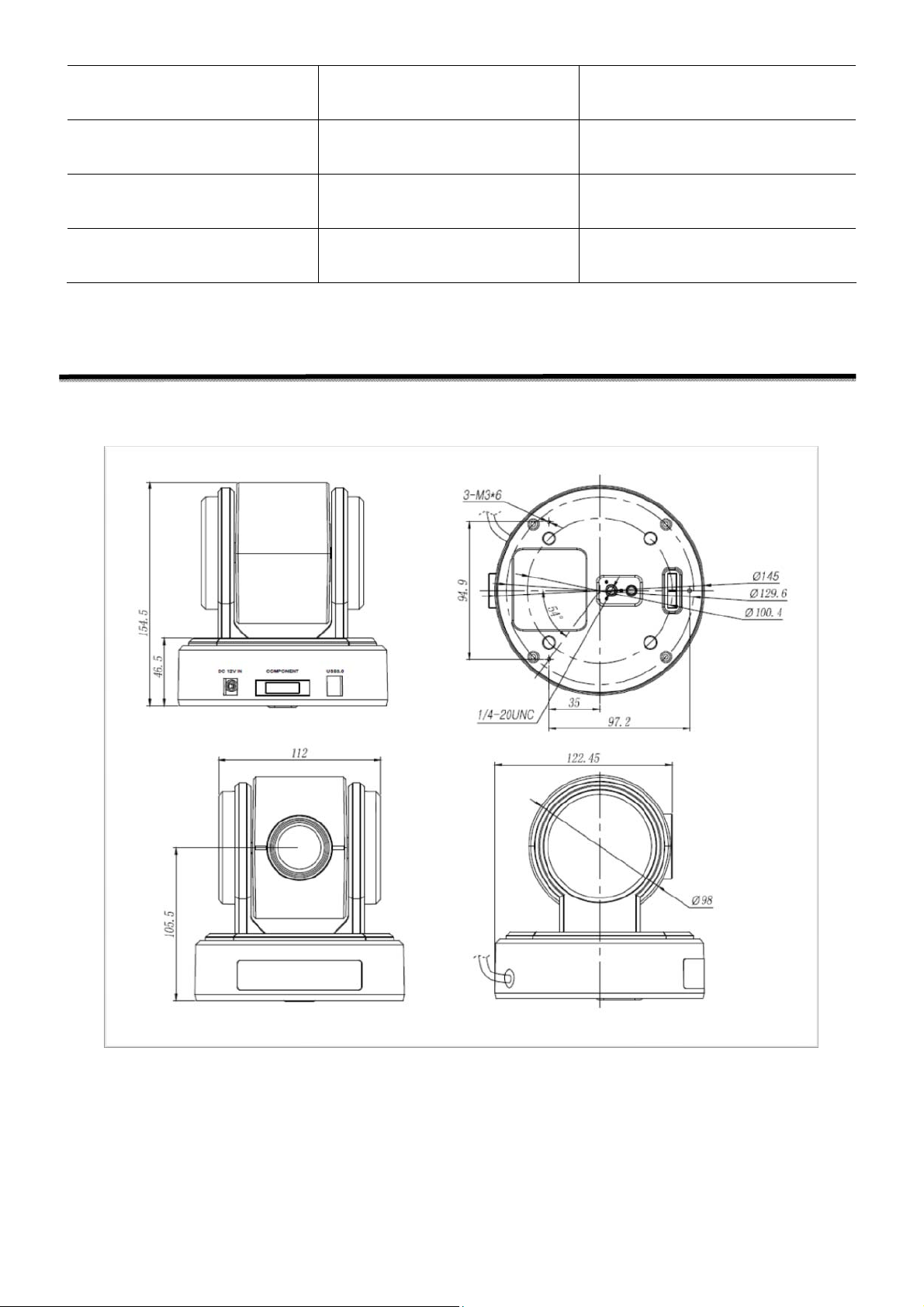

Dimensions

Unit: mm

Set the L/R Direction on the remote

controller.

28

Marshall Electronics

Tel: [phone] • [phone]

Fax: [phone]

www.LCDRacks.com

[e-mail]

29
