Page 1

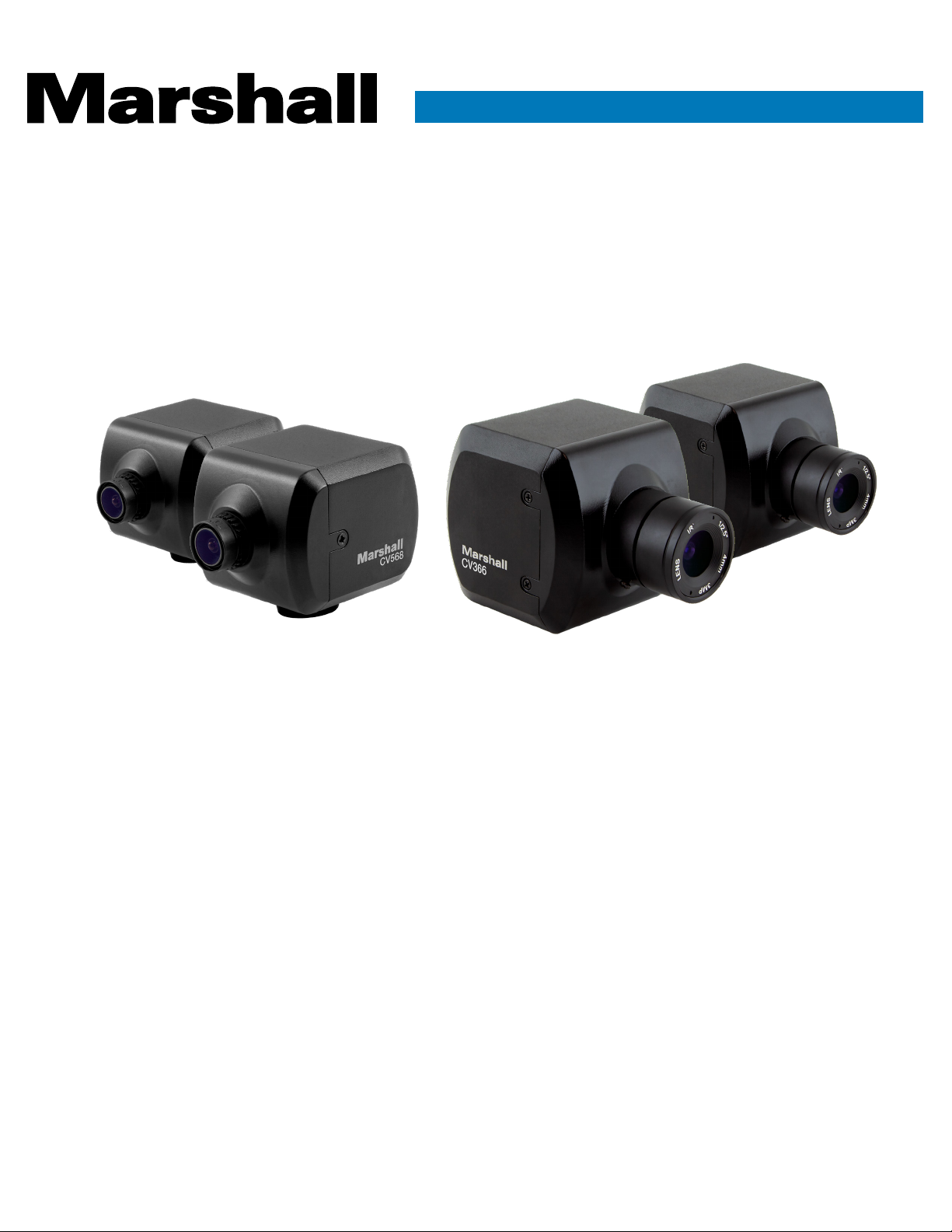

Broadcast A/V Division

CV566, CV568, CV366, CV368

Compact & Miniature Full-HD Genlock Cameras

User Manual

Page 2

Table of Contents

CV566/CV568/CV366/CV368 Manual

1. General Information

Thank you for your purchase of a Marshall Miniature or Compact Genlock Camera.

The Marshall Camera team recommends thoroughly reading this guide for a deep understanding of on-screen-display (OSD) menus, breakout cable operation, settings adjustment explanation, troubleshooting, and other critical information.

Table of Contents

1. General Information

2. Menu Structure

3. OSD Joystick and Button

4. WB Control

5. AE Control

6. Day / Night

7. Audio

8. Genlock

9. Image Control

Please carefully remove all contents of box, which should include the following components:

CV566/CV568 includes:

• CV566 camera with 3.6mm lens(interchangeable), CV568 camera with 4.4mm lens(interchangeable)

• Camera Breakout Cable (Power/RS485/Audio)

• 12V Power Supply

CV366/CV368 includes:

• Camera with CS/C mount (lens sold separately)

• C-Mount Lens Adaptor (only used when using C-mount lens)

• Camera Breakout Cable (Power/RS485/Audio)

• 12V Power Supply

The CV566 ships with a 3.6mm lens installed and is interchangeable to any number of Marshall M12 lenses. The CV568 ships with a 4.4mm lens installed and is interchangeable to 1/1.8” M12 lenses.

10. Special

11 Setup

12. Reset

13. Exit

14. Troubleshooting

Warranty

END

Each camera comes set to default at 1920x1080p @ 30fps out of the box; which can be changed in the OSD Menu to a variety of resolutions and framerates.

If the camera is accidentally changed to a resolution or framerate that your monitor or equipment doesn’t accept, please follow the instructions below to reset camera to factory default:

1. Plug the camera into power source and connect breakout cable to rear camera panel (locking connection), Power LED should illuminate.

2. Push OSD joystick button UP, DOWN, UP, DOWN and PUSH and HOLD for ﬁve seconds.

3. Camera should reset to 1920x1080p @ 30fps.

4. If camera does not reset, repeat steps after a power-cycle.

www.marshall-usa.com1 2

Page 3

CV566/CV568/CV366/CV368 Manual

2. Menu Structure

SETUP SUB MENU SUB MENU

WB CONTROL

AE CONTROL

ATW

ONE PUSH

INDOOR

OUTDOOR

MANUAL

AUTO

SHUT FIX

AGC FIX

BLUE OFFSET

RED OFFSET

BLUE

RED

AGC MAX

AE BRIGHT

LENS MODE

SHUTTER

AGC MAX

AE BRIGHT

AGC

AE BRIGHT

LENS MODE

SETUP SUB MENU SUB MENU

LENS SHADING

CONTRAST

BRIGHTNESS

SATURATION

HUE

EDGE ENHANCE

IMAGE CONTROL

AUTO SATURATE

AUTO EDGE

BLACK LEVEL

BLACK WHITE LV

WHITE LEVEL

GAMMA CORRECT

DNR

DZOOM

DEFOG

DIS

BACKLIGHT

DNR MODE

DNR LEVEL

DAY / NIGHT

AUDIO

GENLOCK

MANUAL

DAY

NIGHT

MIC/LINE

AUDIO LEVEL

MIC ATTENUATOR

SAMPLE BITS

MODE

SYNC OUTPUT

H-SYNC PHASE

V-SYNC PHASE

PHASE SET

SHUTTER

AGC

SPECIAL

SETUP

RESET

EXIT

BINNING

DEFECT PIXEL

DISP FUNCTION

WDR

PRIVACY

CAM TITLE

COMMUNICATION

MODEL

S/W VER

OUTPUT FORMAT

USER/FACTORY

CAM ID

ID D ISPL AY

BAUD R ATE

www.marshall-usa.com3 4

Page 4

CV566/CV568/CV366/CV368 Manual

566/568

366/368

Use the UP & DOWN

buttons to select the

desired item.

Use the LEFT & RIGHT

buttons to change the

sub-item.

> Icon indicates “Press OSD button” or “Enter Sub Menu”

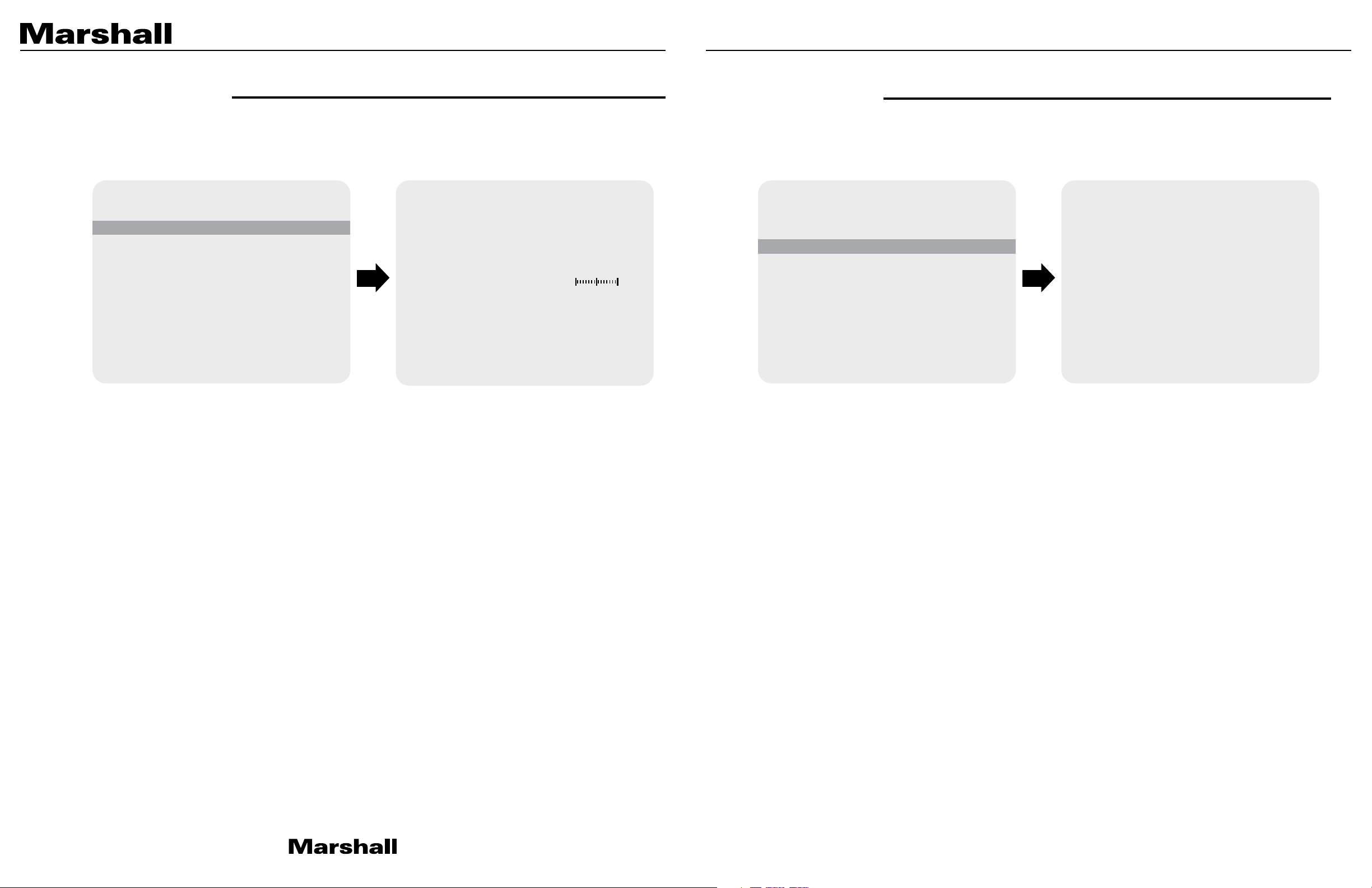

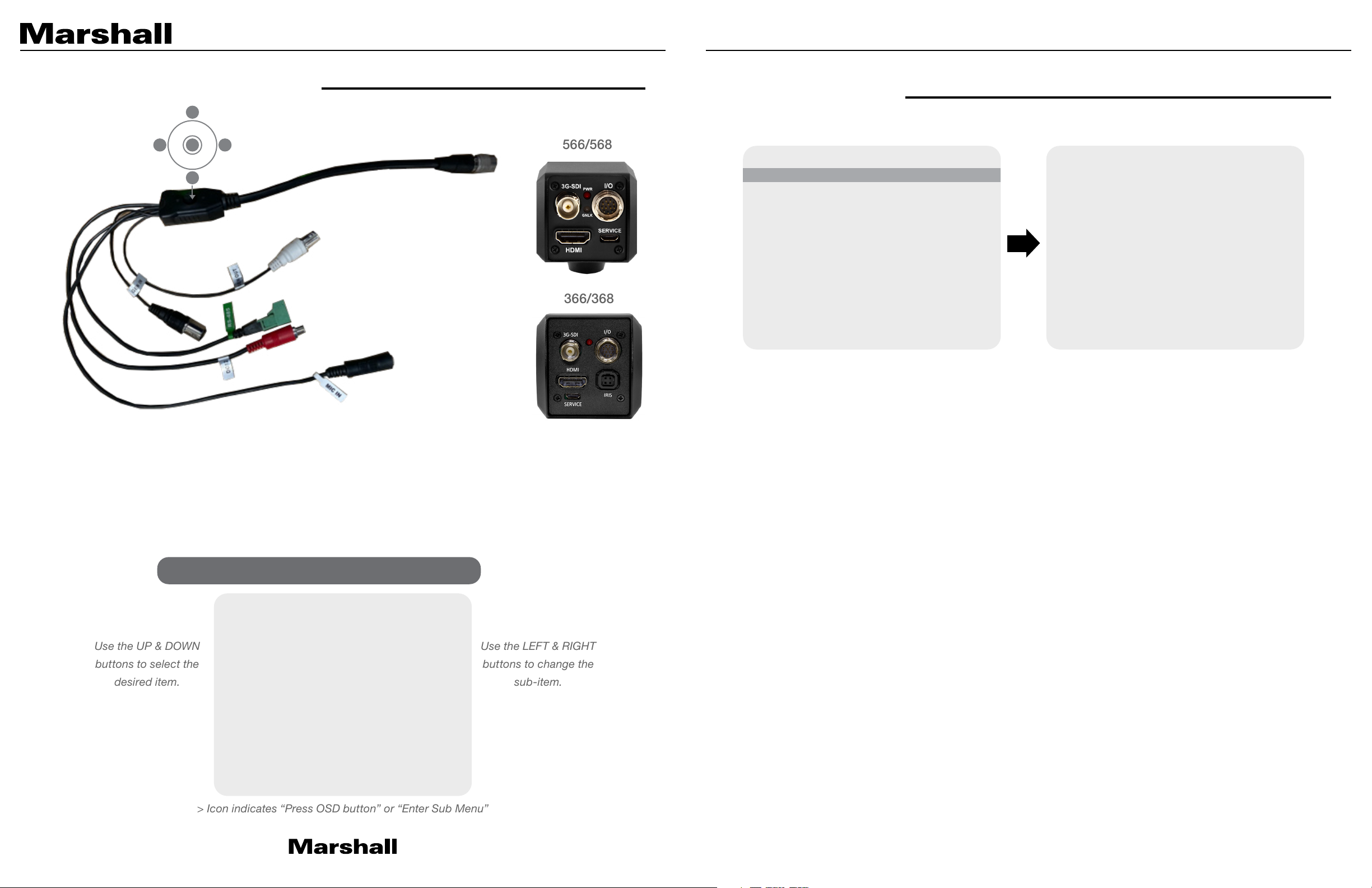

3. OSD Joystick and Button

4. WB CONTROL

Select WB CONTROL using the UP or DOWN button. You can change between AUTO, ATW, PUSH, and MANUAL using the LEFT or RIGHT buttons.

MENU WB CONTROL

WB CONTROL AE CONTROL DAY/N IGHT AUDIO GENLOCK IMAGE CONTROL SPECIAL SETUP RESET

> > > > > > > > >

MODE PUSH BLUE RED BLUE OFFSET RED OFFSET

RETURN

EXIT

• ATW : Continuously adjusts camera color balance in accordance with any change in color

temperature. Compensates for color temperature changes within the range of 1,900°K to

MANUAL

50 50 50 50

I/O Cable (included in box) for CV566, 568, 366, 368.

1. SET Used to access the menu and confrim selection.

2. UP Used to move the cursor up.

3. DOWN Used to move the cursor down.

4. LEFT Used to move the cursor left and change the value

5. RIGHT Used to move the cursor to the right and change the value.

Press SET button to access the Main Menu

WB CONTROL AE CONTROL DAY/N IGHT AUDIO GENLOCK IMAGE CONTROL SPECIAL SETUP

> > > > > > >

> RESET EXIT

11,000°K.

• BLUE OFFEST: Adjust the Blue tone within the ATW mode.

• RED OFFSET: Adjust the Red tone within the ATW mode.

• ONE PUSH: Color temperature will be manually adjusted by pushing the OSD button. Place

the white paper in front of the camera when OSD button is pressed to obtain optimum result.

• MANUAL: Select this to ﬁne-tune White Balance manually.

You can adjust the blue and red tone level manually.

1. BLUE: Adjust the Blue tone of the image. (0~255)

2. RED: Adjust the Red tone of the image. (0~255)

• INDOOR: Select this to adjust white balance to indoor lighting condition.

• OUTDOOR: Select this to adjust white balance to outdoor lighting condition.

1. Adjust White Balance ﬁrst by using the ATW mode before switching to MANUAL mode.

2. White Balance may not work properly under the following conditions. In this case, select the ATW mode.

• When the ambient illumination of the subject is dim.

• If the camera is directed towards a ﬂuorescent light or is installed in place where illumination changes dramatically, the White Balance operation may become unstable.

www.marshall-usa.com5 6

Page 5

CV566/CV568/CV366/CV368 Manual

5. AE CONTROL

Select AE CONTROL using the UP or DOWN button. You can select one sub-mode using the UP or DOWN buttons.

MENU AE CONTROL

WB CONTROL AE CONTROL DAY/N IGHT AUDIO GENLOCK IMAGE CONTROL SPECIAL SETUP RESET EXIT

• AUTO: Adjusts the exposure level automatically. Detailed ﬁne tuning options are available under

> > > > > > > >

AE MODE SHUTTER AGC AGC MAX AE BRIGHT LENS MODE RETURN

AUTO

7 MANUAL

6. DAY / NIGHT

Select DAY / NIGHT using the UP or DOWN button. You can select one sub-mode from AUTO, COLOR, and NIGHT using the UP or DOWN buttons.

MENU DAY/NIG HT

WB CONTROL AE CONTROL DAY/N IGHT AUDIO GENLOCK IMAGE CONTROL SPECIAL SETUP RESET EXIT

• MODE: Set camera to either color mode or B&W mode. (Day, Night)

> > > > > > > >

MODE RETURN

DAY (COLOR)

this menu.

• SHUT FIX: Provides more detailed shutter speed options. All other controls are tuned for the

selected shutter speed.

• AGC FIX: Provides more detailed gain option. All other controls are tuned for the selected gain.

• MANUAL: Adjusts the exposure level manually

1. SHUTTER: Speed can be set at auto or manual. (NTSC: 1/30~1/10,000, PAL: 1/25~1/10,000)

2. AGC: Electronic gain level can be controlled. (0dB~48dB)

3. AGC MAX: Used to set maximum gain value to control the video noise caused by Auto Gain

Control. (0~15)

• LENS MODE: Adjusts lens mode for the installed lens.

(This option is for DC IRIS lens only, available on CV366 and CV368 )

• DAY: When set to DAY mode, camera stays in color (and IR cut ﬁlter is engaged for CV366 &

CV566).

• NIGHT: When set to NIGHT mode, camera stays in B&W (and IR cut ﬁlter is removed for

CV366 & CV566).

www.marshall-usa.com7 8

Page 6

CV566/CV568/CV366/CV368 Manual

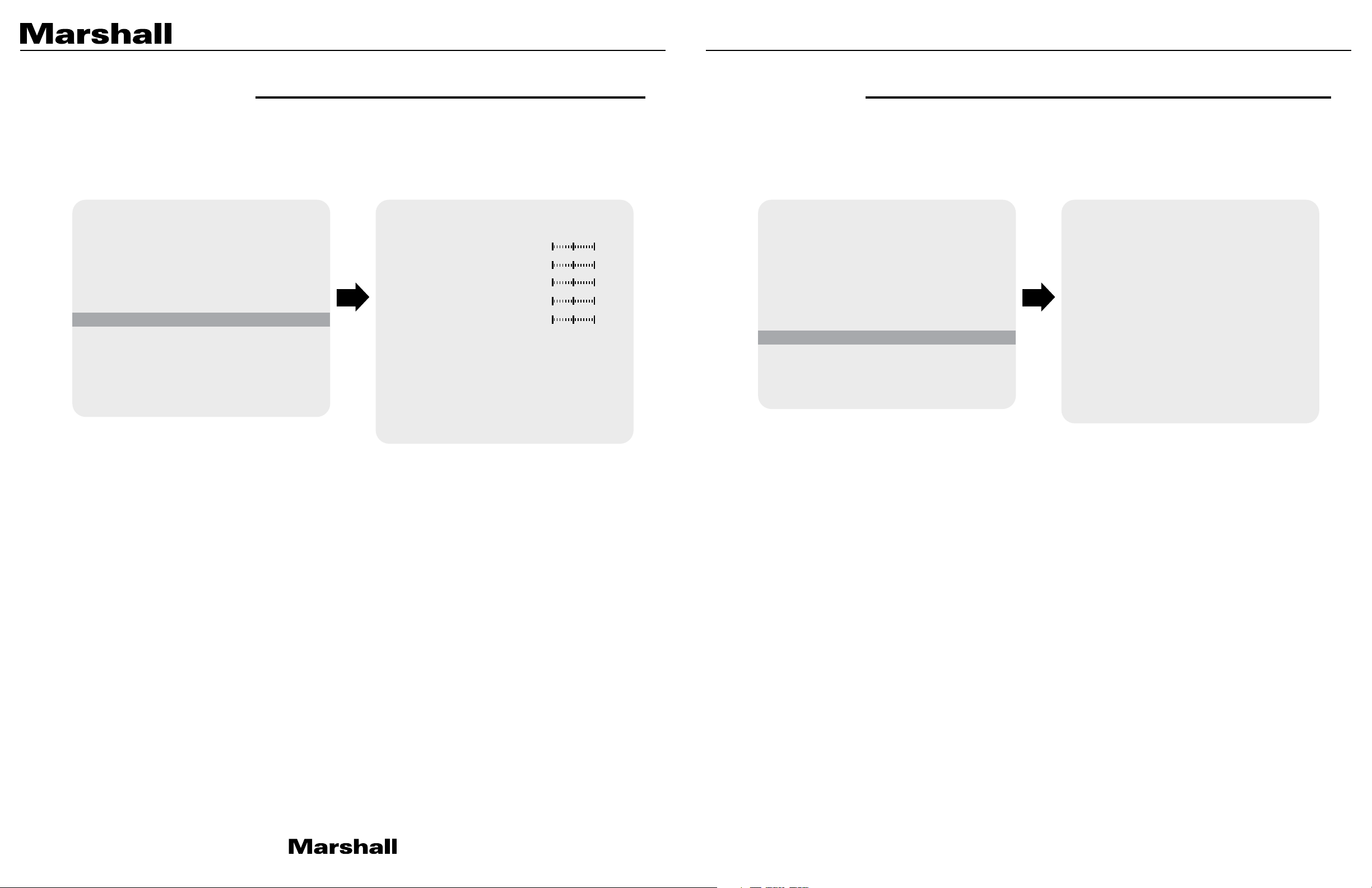

7. AUDIO

Select AUDIO using the UP or DOWN button and enter ON using SEL button. You can select one sub-mode using the UP or DOWN buttons.

MENU AUDIO

WB CONTROL AE CONTROL DAY/N IGHT AUDIO GENLOCK IMAGE CONTROL SPECIAL SETUP RESET EXIT

• MIC / LINE: Select MIC or LINE for the audio input source.

> > > > > > > >

MODE AUDIO LEVEL MIC AT TENUATOR AGC LIMIT SAMPLE BITS RETURN

OFF 0 dB OFF

24 BITS

8. GENLOCK

Select GENLOCK using the UP or DOWN button and enter ON using SEL button. You can select one sub-mode using the UP or DOWN buttons.

MENU AUDIO

WB CONTROL AE CONTROL DAY/N IGHT AUDIO GENLOCK IMAGE CONTROL SPECIAL SETUP RESET EXIT

• MODE(EXT. SYNC): Turn ON of OFF the tri-level genlock sync feature.

> > > > > > > >

MODE (EXT. SYNC) SYNC OUTPUT H-SYNC PHASE V-SYNC PHASE PHASE SET

RETURN

ON ON 0 0 PRESS OK

• AUDIO LEVEL: Select this to adjust audio levels manually.

• MIC AT TENUATOR : Audio attenuation can be controlled from this menu to minimize the

audio noise level

• AGC LIMIT: Audio gain limit can be controlled while MIC ATTENUATOR is in used.

1. SAMPLE BITS: Select the bit depth of audio

• When the camera is properly synchronized the blue LED from the back of the camera will light

up.

• SYNC OUTPUT: Turn ON the SYNC OUTPUT to enable genlock daisy chain feature.

• H-SYNC PHASE: Adjust the pixel shifting from this menu.

• V-SYNC PHASE: Adjust the line shifting from this menu.

• PHASE SET: When H-sync and/or V-sync is adjusted, press OK from this menu to apply the

changes.

www.marshall-usa.com9 10

Page 7

CV566/CV568/CV366/CV368 Manual

9. IMAGE CONTROL

Select IMAGE CONTROL using the UP or DOWN button. You can select LENS SHADING, CONTRAST, HUE, And EDGE ENHANCE using the UP or DOWN buttons.

MENU IMAGE CONTROL

WB CONTROL AE CONTROL DAY/N IGHT AUDIO GENLOCK IMAGE CONTROL SPECIAL SETUP RESET EXIT

> > > > > > > >

LENS SHADING CONTRAST BRIGHTNESS SATURATION HUE EDGE ENHANCE AU TO SATUR ATE AUTO EDGE BLACK WHITE LV GAMMA CORRECT DNR RETURN

11 11 10 0 5

10. SPECIAL

Select SPECIAL using the UP or DOWN button. You can select DEFOG, MOTION DETECT, BACKLIGHT, DEFECT PIXEL, and FLICKER DETECT using the UP or DOWN buttons.

MENU SPECIAL

WB CONTROL AE CONTROL DAY/N IGHT AUDIO GENLOCK IMAGE CONTROL SPECIAL SETUP RESET EXIT

> > > > > > > >

DZOOM DEFOG DIS BACKLIGHT BINNING DEFECT PIXEL DISP FUNCTION WDR PRIVACY RETURN

OFF OFF OFF OFF OFF ON > OFF >

• LENS SHADING: Corrects inconsistent brightness level in the image.

• CONTRAST: Adjust the image contrast level.

• BRIGHTNESS: Adjust the image brightness level.

• SATUR AT ION : Adjust the image saturation level.

• HUE: Adjust the image hue level.

• EDGE ENHANCE: Adjust the image sharpness level.

• AU TO S ATURAT E : Decrease saturation automatically when noise scene is detected.

• AUTO EDGE: Adjust line sharpness level automatically.

• BLACK WHITE LEVEL: Adjust the image black level value.

• GAMMA CORRECT: Adjust the image output gamma level.

• DNR: Reduces video noise at low ambient light.

Select the DNR level from OFF, LOW, MIDDLE, and HIGH using the LEFT or RIGHT button.

• DZOOM: Digitally zoom the video by the desired ratio.

• DEFOG: This feature will help increase visibility in extreme weather conditions, such as fog,

rain or in a very strong luminous intensity.

• DIS: This feature enables digital image stabilization

• BACKLIGHT: Adjust backlight compensation by choosing either BLC HLM from this menu.

• BINNING: Enable or disable pixel binning.

• DEFECT PIXEL: Advanced defective pixel correction menu.

• DISP FUNCTION: Display effect such as freeze mirror, rotation, and style can be applied from

this menu.

• WDR: This feature enables user to view both object and background more clearly when

background is too bright.

• PRIVACY: Mask an area you want to hide on the screen by applying the privacy zones.

www.marshall-usa.com11 12

Page 8

CV566/CV568/CV366/CV368 Manual

11. SETUP

CAMERA setup can be adjusted from this menu. You can select CAMERA ID, Communication, System Info, and Output Format using the UP or DOWN buttons.

MENU SETUP

WB CONTROL AE CONTROL DAY/N IGHT AUDIO GENLOCK IMAGE CONTROL SPECIAL SETUP RESET EXIT

> > > > > > > >

CAM TITLE COMMUNICATION MODEL S/W VER OUTPUT FORMAT RETURN

1080p30 >

12. RESET

Select RESET using the UP or DOWN buttons.

• RESET: Reset the camera settings the factory defaults or user setting value.

MENU RESET

WB CONTROL AE CONTROL DAY/N IGHT AUDIO GENLOCK IMAGE CONTROL SPECIAL SETUP RESET EXIT

> > > > > > > >

RESET MODE RESET SAVE AS USER RETURN

USER >

• CAM TITLE: Camera title can be turned ON or OFF.

• COMMUNICATION: VISCA communication can be adjusted.

1. CAM ID: Camera ID can be setup. (0~254)

2. ID DISPLAY: Camera ID display can be displayed.

3. BAU DRATE : Camera baudrate can be set.

(2400, 4800, 9600, 19200, 38400, 115200)

• MODEL: Displays product module number.

• S/W VER: Displays software version number.

• OUTPUT FORMAT: Camera resolution and frame rate can be set.

(1080 by default)

Select the FRAME RATE using the LEFT or RIGHT buttons. Available Frame Rates are: 1920 x 1080p 60, 59.94, 50, 30. 29.97, 25, 24, 23.98 1920 x 1080i 60, 59.94, 50 1280 x 720p 60, 59.94, 50

• RESET MODE: Select the desired setting mode.

1. USER: Select “USER” if setting value user saved last is needed.

2. FACTORY: Select “FACTORY” if factory default setting is needed.

“FRAME RATE”, “CAM ID”, and “BAUDRATE” will note change.

• RESET: Reset the camera to the mode set on RESET MODE.

• SAVE AS USER: Save the current camera settings as “USER”.

www.marshall-usa.com13 14

Page 9

CV566/CV568/CV366/CV368 Manual

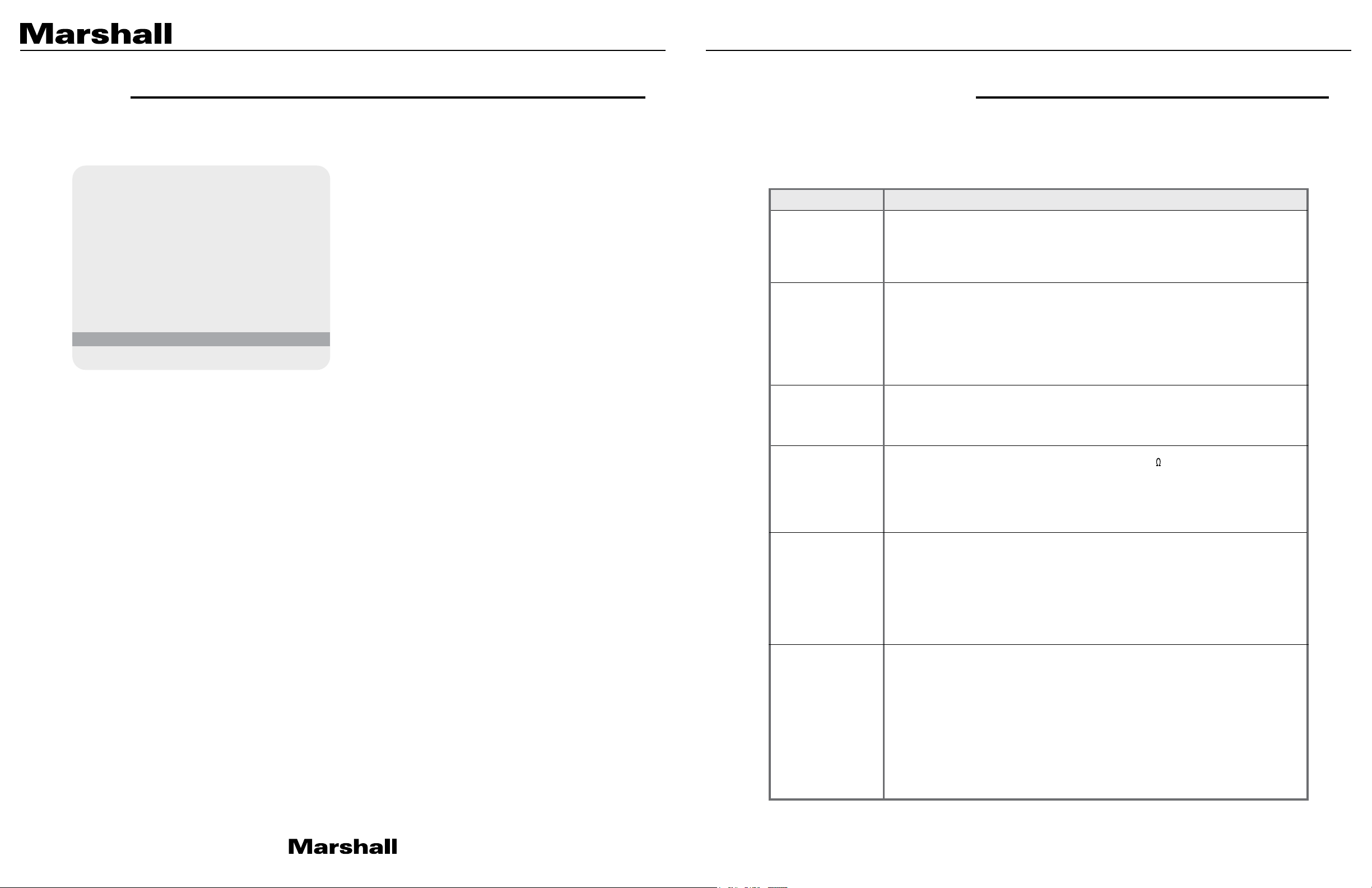

13. EXIT

Select EXIT using the UP or DOWN button.

WB CONTROL AE CONTROL DAY/N IGHT AUDIO GENLOCK IMAGE CONTROL SPECIAL SETUP RESET EXIT

• SAVE: Exit the setup after saving the value changes.

> > > > > > > >

13. TROUBLESHOOTING

Before sending the camera for repair, please check below to make sure that the camera is installed correctly. If it still does not perform adequately, please consult with your supplier.

Problem Solutions

a. Check that all connected devices are powered on.

Nothing appears

on the screen.

The picture is

not clear.

The picture has

interference.

b. Confirm that the voltage is correct. c. Confirm that the power supply provides enough current to power the camera. d. Check that all video cables are correctly connected.

a. Check that your monitor is correctly adjusted. b. Confirm that the glass in front of the lens is clean. If there is dust, dirt, or fingerprints on the glass, the image quality will be affected. To clean the glass, use a soft, dry, and non-abrasive cloth or a commercially available lens cleaning set. c. Correctly adjust the focus.

a. The camera may be close to a high voltage source, such as a power generator. b. The BNC cable is not terminated properly. c. The video cables are not connected properly.

The picture is

flickering

continually.

The camera is not

synchronizing with

the reference signal.

Focus The miniature (M12) lens that comes installed on camera is set to

a. Check the termination and set the impedance at 75 properly. b. Ensure that the camera is not pointing towards the Sun or any light source. c. Check if there is any intermediate device. d. Check if the distance of the video cable exceeds the maximum transferable limitation.

a. Make sure Tri-Level reference signal is used. b. Locking takes up to 1 minute depending on the signal strength. Make sure the sync LED is solidly lit. c. Check if the cable and connectors used in reference sync are in good condition. d. Make sure the cable length used in reference sync does not exceed 100 ft. e. Make sure OUTPUT EN is on when using the genlock output.

optimal focus position, however if lens is slightly out of focus rotate lens clockwise or counter-clockwise slightly to ﬁne tune. Once the desired focus point is achieved, rotate the locking nut back towards the camera which will hold the lens position at optimal focus point.

www.marshall-usa.com15 16

Page 10

Warranty

Marshall Electronics warranties to the ﬁrst consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of two years from the purchase date. This warranty is extended to the ﬁrst consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer. This warranty does not apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or modiﬁcations in design or construction void this warranty. No sales personnel of the seller or any other person is authorized to make any warranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.

Due to constant effort to improve products and product features, speciﬁcations may change without notice.

20608 Madrona Avenue, Torrance, CA 90503

Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688

www.marshall-usa.com

support@marshall-usa.com

NB0 60419a
