8000, 8092, 8200 & 8292
FULL SIZE ELECTRIC CONVECTION OVENS
PARTS AND SERVICE MANUAL
EFFECTIVE SEPTEMBER 24, 2014
The Company reserves the right to make substitution in the event that items specied are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802) 860-3732
Superseding All Previous Parts Lists.
MARKET FORGE INDUSTRIES
www.mi.com
P/N 14-0397 Rev A (9/14)
Page 2
WIRING DIAGRAMS
208-240 VOLT, SINGLE PHASE
SEPTEMBER 23, 2014 2 8000, 8092, 8200, 8292 ELECTRIC OVENS
Page 3
WIRING DIAGRAMS
208-240 VOLT, 3 PHASE
SEPTEMBER 23, 2014 3 8000, 8092, 8200, 8292 ELECTRIC OVENS
Page 4

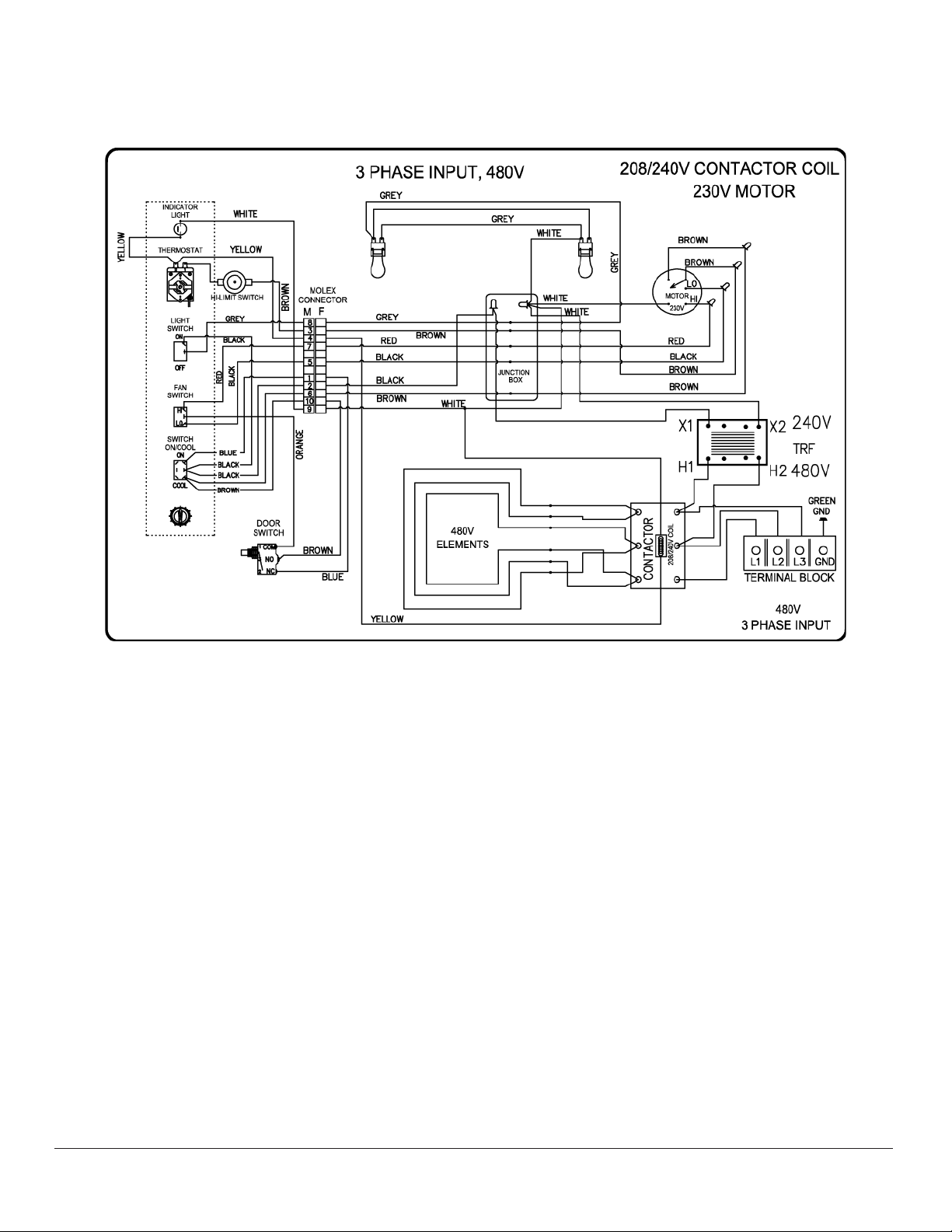

WIRING DIAGRAMS
480 VOLT, 3 PHASE
SEPTEMBER 23, 2014 4 8000, 8092, 8200, 8292 ELECTRIC OVENS
Page 5
PARTS LIST
SEPTEMBER 23, 2014 5 8000, 8092, 8200, 8292 ELECTRIC OVENS
Page 6
PARTS LIST
ITEM PART NO. DESCRIPTION
1 93-5357 Motor (230V)
2 93-5009 Motor Mount Bracket
3 93-5012 Motor Mount Weld Plate Assy.
4 93-5361 Outer Back Cover - Stainless Steel
5 93-5251 Blower Wheel RR-C
6 93-5259 Blower Bafe Cover
7 93-5013 Blower Spacer Tube
7 93-5015 Hex Head Shoulder Bolt ( 1/4-20 x 4")
8 93-5365 Element Clamp Bracket ( 2 pcs )
9 93-5369 Heater Element Bracket (2 pcs )
10 93-5370 Heater Element ( 8000 ) 3 KW
10 93-5371 Heater Element ( 8000 ) 3 KW
10 93-5388 Heater Element ( 8200 ) 4 KW
10 93-5389 Heater Element ( 8200 ) 4 KW
10 93-5390 Heater Element ( 8200 ) 4 KW
11 93-5392 Light Socket Assy with 220V Bulb ( Complete set )
12 93-5393 Heater Element Cover ( Outside Rear )
13 93-5394 Contactor ( 230V )
14 93-5395 Transformer, Step Down ( 480V - 240V )
15 93-5396 Mounting Bracket - Transformer
16 93-5397 Transformer Cover
17 93-5398 Thermal Cut Off Switch
18 93-5399 Terminal Block Assy
19 93-5400 Marker Cap for Terminal Block
20 93-5402 Top Panel ( 8000 )
20 93-5407 Top Panel ( 8200 )
21 93-5408 Side Panel LH ( 8000 )
21 93-5409 Side Panel LH ( 8200 )
22 93-5410 Side Panel RH ( 8000 )
22 93-5411 Side Panel RH ( 8200 )
23 93-5412 Control Frame Weld Assy
24 93-5240 Manual Timer, 1 Hour
25 93-5244 Thermostat ( KX )
26 93-5413 Door Switch
27 93-5237 Dial Knob, Thermostat ( KX )
28 93-5414 Indicator Light Red ( 230V )
29 93-5239 Switch, Power - 3 position
30 93-5241 Knob, Black w/Orange Dot ( Timer )
SEPTEMBER 23, 2014 6 8000, 8092, 8200, 8292 ELECTRIC OVENS
Page 7
PARTS LIST
ITEM PART NO. DESCRIPTION
31 93-5061 Oven Rack ( 8200 )
31 93-5062 Oven Rack ( 8000 )
32 93-5063 Oven Rack Guide ( 8200 )
32 93-5065 Oven Rack Guide ( 8000 )
33 93-5444 Door RH Assy ( Window )
34 93-5442 Door LH Assy ( Solid )
35 93-5046 Bronze Bushing ( 1/2 I.D. x 5/8 O.D )
36 93-5045 Chain Assy ( Complete set )
37 93-5445 Kickplate
38 93-5068 Leg Weld Assy for Single Deck
39 93-5446 Bottom Pan Rack Guide Assy ( 8000 )
39 93-5447 Bottom Pan Rack Guide Assy ( 8200 )
40 93-5071 Adjustable bullet feet (one piece only )
41 93-5073 Caster with Brake, Stud Mounting for Double Stack
41 93-5075 Caster with Brake, Stem Mounting for Single Deck
42 93-5072 Caster W/O Brake, Stud Mounting for Double Stack
42 93-5074 Caster W/O Brake, Stem Mounting for Single Deck
43 93-5076 6" Leg ( Double Stack Unit Only )
44 93-5077 Leg Plate Assy. ( 6" Leg & Stud Caster only ) Double Stack
45 93-5039 Switch, Oven Fan High/Low
46 93-5038 Light Switch, Momentary
47 93-5448 Control Panel
48 93-5449 Channel Sprocket Support
49 93-5450 Brace, Pan Rack Guide ( 8000 )
49 93-5451 Brace, Pan Rack Guide ( 8200 )
50 93-5452 Decal, Control Panel
SEPTEMBER 23, 2014 7 8000, 8092, 8200, 8292 ELECTRIC OVENS
