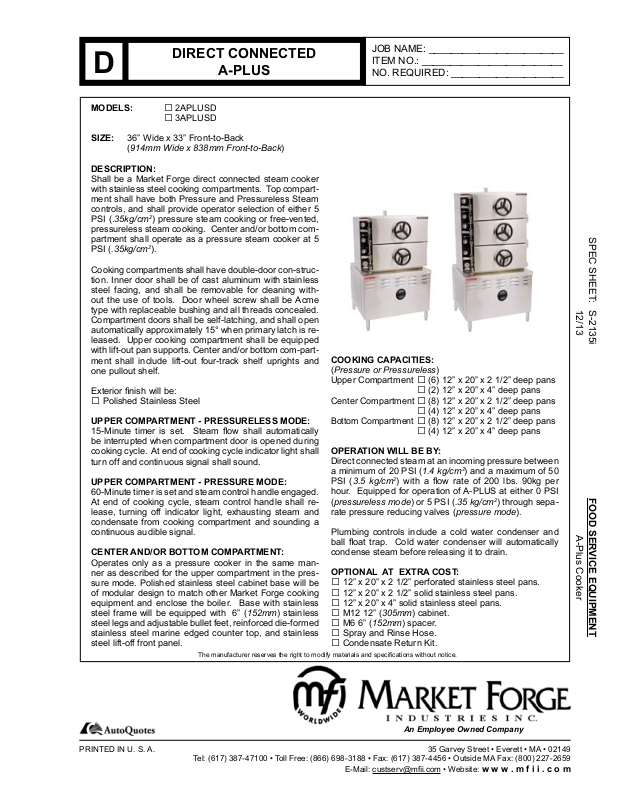

Market Forge 2-A-PLUSD User Manual

DIRECT CONNECTED

D

MODELS: � 2APLUSD

� 3APLUSD

SIZE: 36” Wide x 33” Front-to-Back
(

DESCRIPTION:
Shall be a Market Forge direct connected steam cooker
with stainless steel cooking compartments. Top compart­ment shall have both Pressure and Pressureless Steam
controls, and shall provide operator selection of either 5
PSI (.35kg/cm2) pressure steam cooking or free-vented,
pressureless steam cooking. Center and/or bottom com­partment shall operate as a pressure steam cooker at 5
PSI (.35kg/cm2).

Cooking compartments shall have double-door con-struc-

tion. Inner door shall be of cast aluminum with stainless
steel facing, and shall be removable for cleaning with­out the use of tools. Door wheel screw shall be Acme
type with replaceable bushing and all threads concealed.

Compartment doors shall be self-latching, and shall open
automatically approximately 15° when primary latch is re­leased. Upper cooking compartment shall be equipped
with lift-out pan supports. Center and/or bottom com-part­ment shall include lift-out four-track shelf uprights and
one pullout shelf.

Exterior nish will be:

� Polished Stainless Steel

UPPER COMPARTMENT - PRESSURELESS MODE:

15-Minute timer is set. Steam ow shall automatically
be interrupted when compartment door is opened during

cooking cycle. At end of cooking cycle indicator light shall
turn off and continuous signal shall sound.

UPPER COMPARTMENT - PRESSURE MODE:

60-Minute timer is set and steam control handle engaged.
At end of cooking cycle, steam control handle shall re­lease, turning off indicator light, exhausting steam and
condensate from cooking compartment and sounding a
continuous audible signal.

CENTER AND/OR BOTTOM COMPARTMENT:

Operates only as a pressure cooker in the same man­ner as described for the upper compartment in the pres-

sure mode. Polished stainless steel cabinet base will be

of modular design to match other Market Forge cooking

equipment and enclose the boiler. Base with stainless
steel frame will be equipped with 6” (152mm) stainless

steel legs and adjustable bullet feet, reinforced die-formed
stainless steel marine edged counter top, and stainless
steel lift-off front panel.

914mm Wide x 838mm Front-to-Back)

A-PLUS

The manufacturer reserves the right to modify materials and specications without notice.

JOB NAME: ________________________
ITEM NO.: _________________________
NO. REQUIRED: ____________________

COOKING CAPACITIES:

(Pressure or Pressureless)
Upper Compartment
 � (2) 12” x 20” x 4” deep pans
Center Compartment
 � (4) 12” x 20” x 4” deep pans
Bottom Compartment
 � (4) 12” x 20” x 4” deep pans

OPERATION WILL BE BY:

Direct connected steam at an incoming pressure between

a minimum of 20 PSI (1.4 kg/cm2) and a maximum of 50
PSI (3.5 kg/cm2) with a ow rate of 200 lbs. 90kg per
hour. Equipped for operation of A-PLUS at either 0 PSI
(pressureless mode) or 5 PSI (.35 kg/cm2) through sepa­rate pressure reducing valves (pressure mode).

Plumbing controls include a cold water condenser and
ball oat trap. Cold water condenser will automatically

condense steam before releasing it to drain.

OPTIONAL AT EXTRA COST:

�

12” x 20” x 2 1/2” perforated stainless steel pans.

�

12” x 20” x 2 1/2” solid stainless steel pans.

�

12” x 20” x 4” solid stainless steel pans.

�

M12 12” (305mm) cabinet.

�

M6 6” (152mm) spacer.

�

Spray and Rinse Hose.

�

Condensate Return Kit.

� (6) 12” x 20” x 2 1/2” deep pans

� (8) 12” x 20” x 2 1/2” deep pans

� (8) 12” x 20” x 2 1/2” deep pans

SPEC SHEET: S-2135i

12/13

FOOD SERVICE EQUIPMENT

A-Plus Cooker

An Employee Owned Company

PRINTED IN U. S. A. 35 Garvey Street • Everett • MA • 02149

Tel: [phone] • Toll Free: [phone] • Fax: [phone] • Outside MA Fax: [phone]

E-Mail: custserv@mi.com • Website: w w w . m f i i . c o m

SPEC SHEET: S-2135i

12/13

D

DIRECT CONNECTED

A-PLUS

DETAILS & DIMENSION

SERVICE CONNECTIONS

Direct Connected

S

Steam supply - 1/2” (13mm) NPT Incoming
steam pressure must not be less than 20 PSI
(1.4kg/cm2) nor exceed 50 PSI (3.5kg/cm2).

NOTE: STEAM SUPPLY MUST BE FOOD
GRADE QUALITY.

CW Cold Water - 3/8” (10mm) NPT for cold water

to condenser. Cold water lines shall have a

maximum of 50 PSI (3.5kg/cm2) water pres­sure and a minimum of 25 PSI (1.8kg/cm2).

D Drain - Pipe full 2” (50mm) I.P.S. to ush oor

drain capable of receiving water owing at a

maximum rate of 5 gallons 19 liters per min
ute. DO NOT MAKE SOLID CONNECTION

TO FLOOR DRAIN. DO NOT INSTALL
ELBOWS IN DRAIN LINE.

EC

Electrical Connection - 120 Volt AC, 60 Hz,
1/2” (13mm) conduit connection or equiva-

lent. Use wire suitable for at least 90°C.
Amp draw for 120 volt boiler controls is 2

amps. Automatic controls on compartments
require 2 amps per compartment.

-

A-Plus Cooker

FOOD SERVICE EQUIPMENT

It is our policy to build equipment which is design certied by U.L., A.S.M.E., N.S.F. and C.S.A. However, a continuing program of product improvement

makes it necessary to submit new models to the agencies as they are developed and consequently not all models bear the appropriate agency labels at all times.

NOTES: Allow 12” (305mm) spacing on left and 6”
(152mm) spacing on right if height of adjoining wall or
equipment exceeds 29” (737mm). Matching spacer
cabinets, either 12” (305mm) or 6” (152mm) wide, are

available and should be specied.

Interior dimensions of cooking compartment:
28-3/8” Wide x 12-34” High x 21-1/4” Front-to-Back
730mm Wide x 324mm High x 540mm Front-to-Back

The only available space to supply utilities to the boiler

is 6” (152mm) height between the oor and the cabinet

base.

CAUTION: Before connecting water to this unit, have
water supply analyzed to make sure hardness is no
greater than 2.0 grains and pH level is within the range
of 7.0-8.5. Water which fails to meet these standards
should be treated by installation of a water conditioner.

EQUIPMENT FAILURE CAUSED BY INADEQUATE
WATER QUALITY IS NOT COVERED UNDER WAR­RANTY.
