PLAY IT SAFE!
OPERATIONAL, MAINTENANCE, AND INSTALLATION MANUAL
FOR
RJ-88SC
RJ-100SC
RJ-250SC
RJ-250VL
Includes HT (Hydraulic Tailgate) Units and SL (StreamLine, Liquid Removal) Units
RAM-JET SELF-CONTAINED COMPACTOR CONTAINER
VERNON, AL • FAYETTE, AL
YERINGTON, NV • CLEARFIELD, PA
Marathon Equipment Company • OMI Manual No. 0018, Rev. 9/03
CONTENTS
SECTION 1 - Operation
Introduction ............................................................................. ..................... |
1-1 |
Specifications ............................................................................................... |
1-2 |
Pre-Operation Instructions ....................................................................... |
1-3 |
Operator Station .......................................................................................... |
1-4 |
Operating Instructions For RJ-88SC, RJ-100SC, or RJ-250SC .................. |
1-5 |
Operating Instructions For RJ-250VL .......................................................... |
1-6 |
Optional Controls ......................................................................................... |
1-7 |
Decals for RJ-88SC, RJ-100SC, RJ-250SC, or RJ-250VL .......................... |
1-8 |
Decal Placement for RJ-88SC, RJ-100SC, RJ-250SC, or RJ-250VL ......... |
1-9 |
Additional Decals and Decal Placement for Hydraulic Tailgate (HT) Units . 1-11
SECTION 2 - Maintenance
Lock-Out & Tag-Out Instructions ............................................................. |
2-1 |
Periodic Maintenance .................................................................................. |
2-2 |
Procedures (Hydraulic System Pressure Check) ........................................ |
2-3 |
Procedures (Ram Control Timer Adjustment) ............................................. |
2-4 |
Procedures (Cylinder Removal, Multi Cycle Timer Adjustment) .................. |
2-5 |
Principles of Operation ................................................................................ |
2-6 |
Tailgate Seal Replacement .......................................................................... |
2-7 |
Charts .......................................................................................................... |
2-8 |
Parts List ...................................................................................................... |
2-10 |
Motor Control Panel .................................................................................... |
2-11 |
Power Unit - Standard 5 HP......................................................................... |
2-12 |
Power Unit - Standard 10 HP........................................................................ |
2-13 |
Hydraulic Schematic - Typical ...................................................................... |
2-14 |
Trouble-shooting Chart ................................................................................ |
2-15 |
SECTION 3 - Installation |
|
Concrete Pad Requirements ....................................................................... |
3-1 |
Steel Installation Procedures ....................................................................... |
3-2 |
Electrical & Hydraulic Installation ................................................................ |
3-3 |
Through-The-Wall Power Unit Installation ................................................... |
3-5 |
SECTION 4 - Hauler Information |
|
Hauler Instructions - General ....................................................................... |
4-1 |
Hauler Instructions - Door/Latch Operation .................................................. |
4-2 |
Hauler Instructions - Hydraulic Tailgate Operation (for optional HT units) ... |
4-3 |
Hauler Instructions - TailGate Manitenance Bar (for optional HT units)........ |
4-4 |
Hauler Instructions - Liquid Removal (for optional SL units) ........................ |
4-5 |
© Copyright March 2002, Marathon Equipment Co.
1 OPERATION
INTRODUCTION |
1-1 |
|
|
THANK YOU FOR PURCHASING A MARATHON SELF-CONTAINED COMPACTOR/CONTAINER.
This product is designed to give you reliable service and superior performance for years to come. To guarantee top performance and the safest operation of the compactor, each person involved in the operation, maintenance, and installation of the compactor should read and thoroughly understand the instructions in this manual and follow all warnings.
The employer involved in the operation, maintenance, and installation of the self-con- tained compactor/container should read and understand the most current version of the following applicable standards:
ANSI Standard No. Z245.2, “Stationary Compactors Safety Requirements” A copy of this standard may be obtained from:
ENVIRONMENTAL INDUSTRIES ASSOCIATION 4301 Connecticut Avenue, NW Suite 300 Washington D.C. 20008
OSHA 29 CFR, Part 1910.147, “The control of hazardous energy (lockout/tagout)”
Any service or repairs that go beyond the scope of this manual should be performed by factory authorized personnel only.
IF YOU SHOULD NEED FURTHER ASSISTANCE, PLEASE CONTACT YOUR DISTRIBUTOR. YOU WILL NEED TO PROVIDE THE COMPACTOR SERIAL NUMBER, INSTALLATION DATE, AND ELECTRICAL SCHEMATIC NUMBER TO YOUR DISTRIBUTOR.
IF YOU HAVE ANY SAFETY CONCERNS WITH THE EQUIPMENT, OR NEED FURTHER INFORMATION, PLEASE CONTACT US AT:
Marathon Equipment Company
P.O. Box 1798
Vernon, Al 35592-1798
Attn: Field Service Department
1-800-633-8974
1 OPERATION
SPECIFICATIONS |
1-2 |
|
|
“B”
|
|
Fire Port - |
|
“A”, Clear Top Opening |
|||
|
Each Side |
||
|
|
||
|
|
|
SIDE VIEW
“D”
COMPACTOR CONTAINER
“C”
“E”
|
|
Model |
|
|
|
88SC |
100SC |
250SC |
250VL |
“A”, Clear Top Opening |
30 1/2 x 48 |
35 x 60 |
40.5 x 58 |
35 x 60 |
(L x W) |
|
|
|
|
“B” |
70 |
76 1/8 |
68 |
76 1/2 |
“C” |
42 |
49 5/8 |
52 1/2 |
51 1/2 |
“D” (max.) |
96* |
104* |
104* |
104* |
“E” (max.) |
254 1/2* |
276* |
275* |
288* |
Charge Box Capacity |
1.00 |
1.50 |
1.90 |
1.90 |
(cubic yards) |
|
|
|
|
WASTEC |
.70 |
1.32 |
1.53 |
1.53 |
Cycle Time (sec) |
44 |
37 |
33 |
37 |
* Determined by the size and capacity of the container.
1 OPERATION
PRE-OPERATION INSTRUCTIONS |
1-3 |
|
|
FEDERAL REGULATION PROHIBITS THE USE OF THIS
EQUIPMENT BY ANYONE UNDER 18 YEARS OF AGE.
STAY CLEAR OF ALL INTERNAL PARTS OF THE
SELF-CONTAINED COMPACTOR/CONTAINER
DURING OPERATION. FAILURE TO DO SO
COULD RESULT IN SERIOUS INJURY OR DEATH!
NEVER ENTER ANY PART OF THE COMPACTOR UNLESS THE DISCONNECT SWITCH HAS BEEN LOCKED-OUT AND TAGGED-OUT. See LockOut & Tag-Out instructions in the Maintenance section. Before starting the compactor, be sure no one is inside. Be certain that everyone is clear of all points of operation and pinch point areas before starting.
THE EMPLOYER SHOULD ALLOW ONLY AUTHORIZED AND TRAINED PERSONNEL TO OPERATE THIS COMPACTOR. This compactor is equipped with a key operated locking system. The key(s) should be in the possession of only authorized personnel.
DO NOT REMOVE ACCESS COVERS EXCEPT FOR SERVICING. Only authorized service personnel should be allowed inside. All access doors on the compactor body should always be secured in place when the unit is operating. See Lock-Out & Tag-
Out instructions in the Maintenance section.
ONLY AUTHORIZED PERSONNEL SHOULD BE ALLOWED INSIDE THE MOTOR CONTROL PANEL. The motor
control panel contains high voltage compo-
nents. See Lock-Out & Tag-Out
Instructions in the Maintenance section.
If the compactor is equipped with a security gate or doghouse with security door, BE
SURE THAT THE SECURITY GATE OR DOOR IS CLOSED BEFORE THE COMPACTOR IS STARTED.
1 OPERATION
OPERATOR STATION |
1-4 |
|
|
OPERATOR
STATION
FOR 88SC, 100SC, 250SC, & 250 VL
KEYED START SWITCH
REVERSE
EMERGENCY STOP
CONTROL DESCRIPTION FOR 88SC, 100SC, & 250SC
1.KEYED START SWITCH - This switch requires a key for operation. Insert the key and turn clockwise to the start position. Depress and hold the key for one to two seconds and release. The compactor will cycle one time (complete extension and retraction of the ram) and stop. After use, turn the key to the counterclockwise position and remove the key.
2.EMERGENCY STOP MUSHROOM HEAD PUSHBUTTON - When depressed, this pushbutton will stop all powered operation of the compactor.
3.REVERSE PUSHBUTTON - This pushbutton will reverse the compaction ram when depressed. The Keyed Start Switch must be energized for the REVERSE button to operate. See the MANUAL OVERRIDE INSTRUCTIONS on the next page for details of the operation.
CONTROL DESCRIPTION FOR 250VL
1.KEYED START SWITCH - This spring-loaded switch requires a key for operation. Insert the key and turn clockwise to the start position and release. The compactor will cycle one time (complete extension and retraction of the ram) and stop. After use, remove the key.
2.EMERGENCY STOP MUSHROOM HEAD PUSHBUTTON - When depressed, this pushbutton will stop all powered operation of the compactor.
3.REVERSE PUSHBUTTON - This pushbutton will reverse the compaction ram when depressed. The Keyed Start Switch must be energized for the REVERSE button to operate. See the MANUAL OVERRIDE INSTRUCTIONS on page 1-6 for details of the operation.
1 OPERATION
OPERATING INSTRUCTIONS FOR RJ-88SC, RJ-100SC, & RJ-250SC 1-5
1. First, place the material to be discarded into the compactor.
Note: If you are loading the compactor through a door or gate, close it before starting the compactor. Refer to “Optional Loading Configurations” in the Decal Placement section to determine how your compactor is set up.
2.Insert the key into the key switch. Turn it clockwise and depress for 1 to 2 seconds and release. The unit will make one complete cycle, then stop.
3.Repeat, if necessary, after the compactor has stopped.
4.When you have finished using the compactor, remove the key from the key switch.
IN CASE OF EMERGENCY:
Push the large red button to STOP
MANUAL OVERRIDE INSTRUCTIONS (RAM STOP REAR ONLY - 88SC, 100SC, & 250SC)
If the ram is stopped in any position:
-To move the ram forward, turn the key switch clockwise and depress.
-To move the ram rearward, hold the reverse button down, turn and depress the key switch, release the key switch, then release the reverse button.
While the ram is moving:
-To reverse the ram while it is moving forward, press the reverse button.
-To cause the ram to move forward while it is moving rearward, depress the key switch.
NOTE: Refer to Optional Controls for Manual Override on Ram Stop Forward Machines.
1 OPERATION
OPERATING INSTRUCTIONS FOR RJ-250VL |
1-6 |
|
|
1. First, place the material to be discarded into the compactor.
Note: If you are loading the compactor through a door or gate, close it before starting the compactor. Refer to “Optional Loading Configurations” in the Decal Placement section to determine how your compactor is set up.
2.Insert the key into the key switch. Turn it clockwise and release. The unit will make one complete cycle, then stop.
3.Repeat, if necessary, after the compactor has stopped.
4.When you have finished using the compactor, remove the key from the key switch.
IN CASE OF EMERGENCY:
Push the large red button to STOP
MANUAL OVERRIDE INSTRUCTIONS (RAM STOP REAR ONLY - RJ-250VL)
If the ram is stopped in any position:
-To move the ram forward, turn the key switch clockwise and release.
-To move the ram rearward, hold the reverse button down, turn and release the key switch, then release the reverse button.
While the ram is moving:
-To reverse the ram while it is moving forward, press the reverse button.
-To cause the ram to move forward while it is moving rearward, turn and release the key switch.
NOTE: Refer to Optional Controls for Manual Override on Ram Stop Forward Machines.
1 OPERATION
OPTIONAL CONTROLS |
1-7 |
|
|
1.SUSTAINED MANUAL PRESSURE CONTROL BUTTON (Hold-To-Run, Release- To-Stop) - This option requires the compactor operator to remain at the push button station while the compactor is in use. Actuation requires depressing the "Hold-To- Run" and "Start" buttons. After the unit has started, the "Start" button is released. If the "Hold-To-Run" button is released, the unit will stop instantly.
2.CONTAINER FULL LIGHT - When the light is on, the container is full and is ready to be emptied before its next use. To deactivate the light, depress the illuminated emergency stop button. (The unit will not run while the light is on.)
3.ADVANCE WARNING LIGHT - When the light is on, the container is nearing the full level and a pick up call should be made. At this time 200 PSI is left before the pressure switch is activated to shut the unit off and container is full. (Unit will run with light on.)
4.RAM STOP FORWARD - When a machine with this option has been stopped, the ram automatically begins to move rearward when restarted.
For the RJ-88SC, RJ-100SC, or RJ-250SC, to move the ram forward (when it is stopped), hold the FORWARD button down, turn the key switch clockwise, depress and release the key switch, then release the FORWARD button. To reverse the ram while it is moving forward, depress the key switch. To cause the ram to move forward while it is moving rearward, press the FORWARD button.
For the RJ-250VL, to move the ram forward (when it is stopped), hold the FORWARD button down, turn and release the key switch, then release the FORWARD button. To reverse the ram while it is moving forward, turn and release the key switch. To cause the ram to move forward while it is moving rearward, press the FORWARD button.
5.CYCLE TIMER - This option is used when more than one cycle is desired. The factory setting is for three strokes (adjustable).
6.ACCESS INTERLOCK - This is optional with units equipped with doors, chutes, or access gates. It prevents the unit from operating while a door or gate is open.
1 OPERATION
DECALS for RJ-88SC, RJ-100SC, RJ-250SC, or RJ-250VL |
1-8 |
|
|
WARNING DECAL REQUIREMENTS
When your compactor leaves the factory, several WARNING DECALS are installed for protection. These labels are subject to wear and abuse due to the nature of the refuse handling operation. THESE DECALS MUST BE MAINTAINED. Additional decals may be purchased from your distributor or from Marathon Equipment Company.
Decal Number 06-0002 - RAM JET - MARATHON EQUIPMENT COMPANY
Decal Number 06-0003 - PATENT PENDING
Decal Number 06-0011 - MOTOR ROTATION
Decal Number 06-0038 - CAUTION: DO NOT REMOVE ACCESS COVER EXCEPT FOR SERVICING. FOLLOW LOCK OUTTAG OUT PROCEDURES.
Decal Number 06-0039 - DANGER: DO NOT ENTER.
Decal Number 06-0040 - CAUTION: KEEP OUT. (used on hoppers)
Decal Number 06-0043 - DANGER: 208 VOLTS, or
Decal Number 06-0044 - DANGER: 230 VOLTS, or
Decal Number 06-0045 - DANGER: 460 VOLTS.
Decal Number 06-0052 - CAUTION: GATE MUST BE CLOSED BEFORE OPERATING COMPACTOR. (used on access gates)
Decal Number 06-0057 - CAUTION: STAND CLEAR WHEN CONTAINER IS BEING LIFTED. Decal Number 06-0058 - ‘A’ PORT
Decal Number 06-0059 - ‘B’ PORT
Decal Number 06-0067 - CAUTION: DO NOT REMOVE THIS CONTAINER UNTIL REAR STOP IS INSTALLED. Decal Number 06-0072 - QUICK CLEAN TANK
Decal Number 06-0093 - FIRE HOSE PORT.
Decal Number 06-0094 - NOTICE: WIPE OFF SEAL AFTER DUMPING.
Decal Number 06-0104 - HYDRAULIC TAILGATE OPERATING INSTRUCTIONS
Decal Number 06-0105 - DANGER: STAND CLEAR OF TAILGATE WHEN LIFTED.
Decal Number 06-0364 - SERIAL NUMBER PLATE
Decal Number 06-0121 - FEDERAL REGULATIONS PROHIBITS THE USE BY PERSONS UNDER 18 YEARS OF AGE.
Decal Number 06-0124 - CYCON
Decal Number 06-0249 - DANGER: HAZARDOUS VOLTAGE ... LOCK OUT & TAG OUT. Decal Number 06-1839 - AMERICAN FLAG
|
1 OPERATION |
|
|
|
|

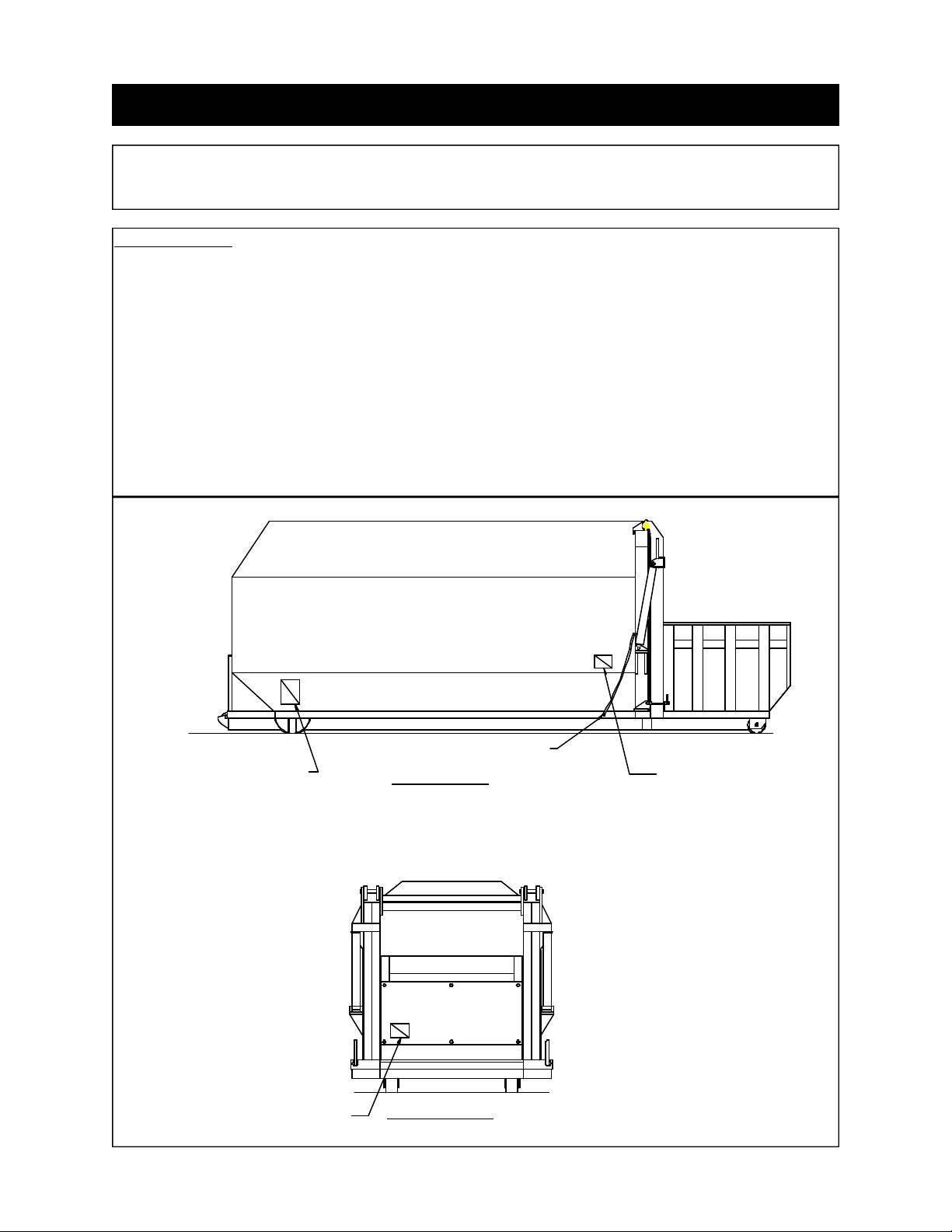

DECAL PLACEMENT for RJ-88SC, RJ-100SC, RJ-250SC, |
|
or RJ-250VL |
1-9 |
|
|

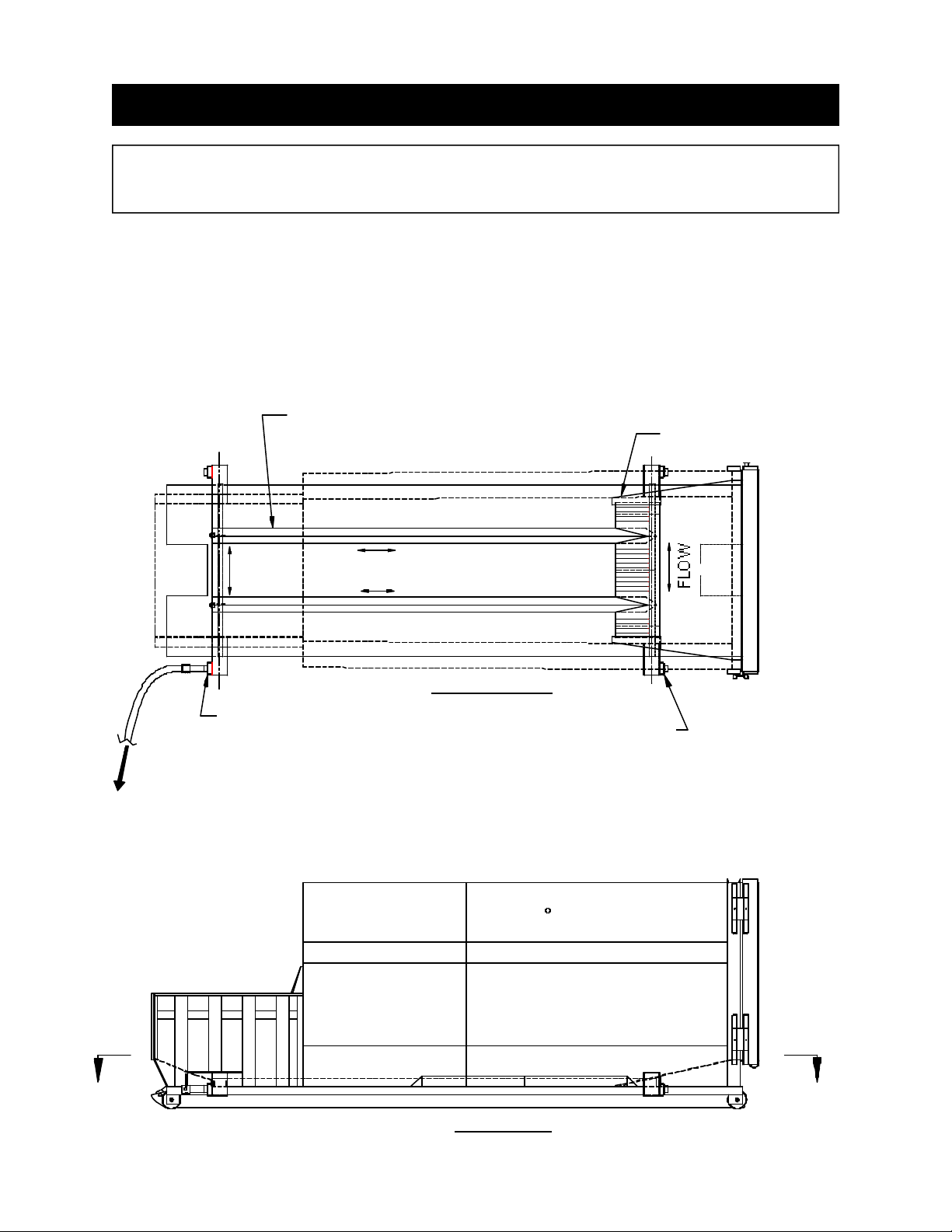

REMOTE POWER UNIT
|
1 OPERATION |
|
|
|
|
DECAL PLACEMENT for RJ-88SC, RJ-100SC, RJ-250SC, |
|
or RJ-250VL |
1-10 |
|
|
OPTIONAL LOADING CONFIGURATIONS
06-0039
|
|
|
|
THRU-THE-WALL |
|
06-0039 |
|
|
|
|
|
|
SECURITY CHUTE |
|
|
|
|
|
|
DOGHOUSE |
|
|
||
|
|
|||
|
|
|
|
|
06-0039 |
06-0040 |
|
EACH INSIDE WALL |
||
EACH OUTSIDE WALL |
||
06-0039 |
|
|
06-0039, |
|
|
06-0052 |
|
DOCK
ACCESS GATE & HOPPER
