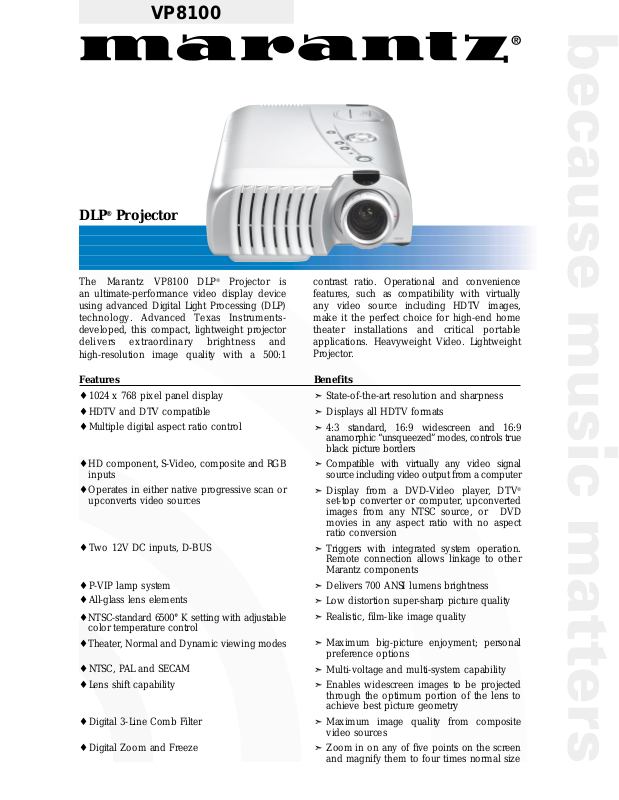

Marantz VP8100 Product Sheet

VP8100

The Marantz VP8100 DLP

®

Projector is
an ultimate-performance video display device
using advanced Digital Light Processing (DLP)
technology. Advanced Texas Instruments­developed, this compact, lightweight projector
delivers extraordinary brightness and
high-resolution image quality with a 500:1

contrast ratio. Operational and convenience
features, such as compatibility with virtually
any video source including HDTV images,
make it the perfect choice for high-end home
theater installations and critical portable
applications. Heavyweight Video. Lightweight
Projector.

Features

♦ 1024 x 768 pixel panel display
♦ HDTV and DTV compatible

♦ Multiple digital aspect ratio control

♦ HD component, S-Video, composite and RGB

inputs

♦ Operates in either native progressive scan or

upconverts video sources

♦ Two 12V DC inputs, D-BUS

♦ P-VIP lamp system
♦ All-glass lens elements

♦ NTSC-standard 6500° K setting with adjustable

color temperature control

♦ Theater, Normal and Dynamic viewing modes

♦ NTSC, PAL and SECAM
♦ Lens shift capability

♦ Digital 3-Line Comb Filter

♦ Digital Zoom and Freeze

Benefits

➣ State-of-the-art resolution and sharpness
➣ Displays all HDTV formats
➣ 4:3 standard, 16:9 widescreen and 16:9

anamorphic “unsqueezed” modes, controls true
black picture borders

➣ Compatible with virtually any video signal

source including video output from a computer

➣ Display from a DVD-Video player, DTV

®

set-top converter or computer, upconverted
images from any NTSC source, or DVD
movies in any aspect ratio with no aspect
ratio conversion

➣ Triggers with integrated system operation.

Remote connection allows linkage to other
Marantz components

➣ Delivers 700 ANSI lumens brightness
➣ Low distortion super-sharp picture quality
➣ Realistic, film-like image quality

➣ Maximum big-picture enjoyment; personal

preference options

➣ Multi-voltage and multi-system capability
➣ Enables widescreen images to be projected

through the optimum portion of the lens to
achieve best picture geometry

➣ Maximum image quality from composite

video sources

➣ Zoom in on any of five points on the screen

and magnify them to four times normal size

DLP®Projector

Cutting Edge DLP®Technology.

Specifications

General:

Panel Size aspect ratio (0.67")/4:3

Type DMD

Number of pixels 1024x768

Number of panels 1
Brightness 700 ANSI Im
Contrast 500:1
Screen size 22" to 270"
Lamp P-VIP

Watt 120

Life 2,000 hours
Projection lens 27.5 - 33.0mm
F. no. 3.0 - 3.3
Zoom ration 1.2
Zoom adjust Manual
Focus adjust Manual
Lens shift ­40” 17 - 2.1
100” 4.4 - 5.3
150” 6.7 - 8.0
200” 8.9 - 10.7
Picture mode 3
Film detection Auto 3:2 pulldown (defeatable)
16:9 wide mode Yes

Inputs/Outputs Terminals:

Video (composite) (RCA)x1
S-Video (S-Connector)x1

Component (3RCA)x1
DATA/RGB (D-sub M 15)x1
Trigger out 12V x2
Ele. image v-shift for 16:9 Yes
Dimensions 31/2"H x 9"W x 12"D

96mm x 235mm x 327mm
Weight 6.6lbs (3.0kg)
Power requirements 100-120V/200-240V auto
Power consumption 220W
Standby P.C 6W

Video System:

NTSC Yes
PAL Yes
SECAM Yes
HiVi Yes
HDTV (480i) Yes
HDTV (1080i) Yes
HDTV (720p) Yes
DVD prog: 480p Yes
DVD squeezes Yes

Data System:

VGA-XGA Scaled
Y/C separate process 3D comb filter
Scan doubler 3D motion adapter

Note: The specifications and design of this product are

subject to change without notice.
