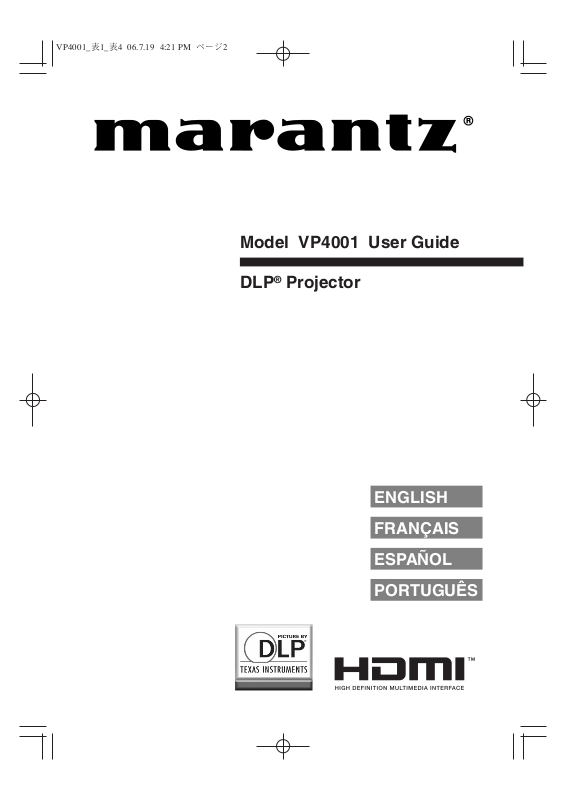

Model VP4001 User Guide

DLP

Projector

ENGLISH

FRANÇAIS

ESPAÑOL

PORTUGUÊS

Before using the projector, please read this user guide carefully.

Introduction

IMPORTANT

• For your assistance in reporting the loss or theft of your Projector, please record the Serial Number located on the bottom of the projector and retain this information.

• Before recycling the packaging, please ensure that you have checked the contents of the carton thoroughly against the list of “Supplied accessories” on page 10.

Model No.: VP4001

Serial No.:

ENGLISH

WARNING: High brightness light source. Do not stare into the beam of light, or view

directly. Be especially careful that children do not stare directly into the beam of light.

WARNING: To reduce the risk of fire or electric shock, do not expose

this product to rain or moisture.

See bottom of projector.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT REMOVE SCREWS

EXCEPT SPECIFIED USER

SERVICE SCREW.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.

DO NOT REMOVE COVER.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: FCC Regulations state that any unauthorized changes or modifications to

this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

U.S.A. ONLY

WARNING:

The cooling fan in this projector continues to run for about 90 seconds after the projector enters standby mode. During normal operation, when putting the projector into standby mode always

use the control. Ensure the cooling fan has stopped before disconnecting the power cord. DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.

/ I STANDBY/ON button on the projector or the STANDBY button on the remote

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the user guide, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

U.S.A. ONLY

Declaration of conformity

MARANTZ PROJECTOR, MODEL VP4001 This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

Marantz America, Inc. 100 Corporate Drive, Mahwah, NJ, 07430, U.S.A. TEL: 630-741-0300

U.S.A. ONLY

Caution Concerning Lamp Replacement

See “Replacing the Lamp” on page 54.

This Marantz projector uses a DLP® Chip. This very sophisticated panel contains 983,040 pixels (micromirrors). As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to. This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit.

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. This product and the accessories packed together are the applicable product to the WEEE directive except batteries. Please dispose of any materials in accordance with your local recycling regulations. When discarding the unit, comply with your local rules or regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

EUROPE ONLY

ECT

PUT

ASPECT

ENTER

INPUT

STANDBY/ON LAMP TEMP.

C2 S

STANDBY

COMP.1 COMP.2 S-VIDEO

VIDEO RGB HDMI

RGB HDMI

R/C

SYNC

ONON

KEYSTONE MENU

RETURN ENTER

AUTO SYNC ASPECT

IMAGE SHIFTRGB/COMP. PICTURE MODE

PIC

FREEZE IRIS

LIGHT

IRIS

Useful

Features

Using the Menu Screen

Menu Selections (Adjustments)

Example: Adjusting “Bright”.

• This operation can also be performed by using the buttons on the projector.

Press MENU.

• The “Picture” menu screen for the selected input mode is displayed.

Adjustment buttons (P/R/O/Q)

Example: “Picture” screen menu for Comp. 1 mode

Press Q or O to select the menu icon to adjust.

• The selected icon is highlighted.

ENTER button

RETURN button

Menu icons

Picture Comp. 1

Picture Mode Contrast 0

0 0 0

Bright Color Tint

0 0

Sharp

Red Blue

Standard

SEL./ADJ. RETURN

ENTER END

MENU button

• Press eRETURN to re-

turn to the previous screen when the menu is displayed.

Selected input mode

Menu icon Menu screen


Fine Sync

Options1

Options2

• The “Fine Sync” menu is not available for S-Video or Video.

Note

MENUMENU

RETURNRETURN ENTERENTER

MENUMENU

ENTERENTER

RETURNRETURN

Adjustment buttons (P/R/O/Q)

MENU button

ENTER button

How to Read this User Guide

Info

Note

■ The specifications are slightly different, depending on the model. However, you can connect and operate all models in the same manner.

••

• In this user guide, the illustration and the screen display are simplified for explanation, and may

••

differ slightly from the actual display.

Buttons used in this operation

Introduction

For Future Reference

........Indicates safeguards for using the projector.

.........Indicates additional information for setting up and operating the

projector.

PP. 60 and 61

Button used in this step

On-screen display

IndexMaintenance Troubleshooting

P. 6 4P. 5 1

Contents

Preparing

Introduction

How to Read this User Guide ............... 3

Contents ............................................... 4

IMPORTANT SAFEGUARDS ............... 6

Accessories ........................................ 10

Part Names and Functions ................. 11

Inserting the Batteries .......................... 14

Usable Range ...................................... 15

Quick Start

Quick Start .......................................... 16

Using

Basic Operation

Turning the Projector On/Off .............. 28

Connecting the Power Cord ................ 28

Turning the Projector on ....................... 28

Turning the Power off (Putting the

Projector into Standby Mode) ........... 29

Image Projection ................................. 29

Switching the Input Mode .................... 29

Adjusting the Projected Image ............ 30

Correcting Trapezoidal Distortion ........ 32

Aspect Mode ........................................ 36

Useful Features

Operating with the Remote Control .... 38

Shifting the Projected Image Vertically

(Image Shift) ...................................... 38

Switching the Iris Setting ..................... 38

Freezing a Moving Image .................... 38

Selecting the Picture Mode .................. 38

Menu Items ......................................... 39

Using the Menu Screen ...................... 41

Menu Selections (Adjustments) ........... 41

Picture Adjustment (“Picture” menu) .. 43

Selecting the Picture Mode .................. 43

Adjusting the Image ............................. 43

Adjusting the Color Temperature ......... 44

Adjusting the Colors ............................. 44

Progressive ........................................... 44

Setup

Setting up the Projector ...................... 18

Setting up the Projector ....................... 18

Standard Setup (Front Projection) ....... 18

Ceiling-mount Setup ............................ 18

Installation ............................................ 19

Picture (Screen) Size and Projection

Distance ............................................. 20

Connections

Samples of Cables for Connection .... 22

Connecting to Video Equipment......... 23

Connecting to a Computer ................. 26

Controlling the Projector by a

Computer .......................................... 27

Reducing Image Noise (DNR) ............. 45

Switching the Iris Setting ..................... 45

Lamp Setting ........................................ 45

Computer Image Adjustment

(“Fine Sync” menu) .......................... 46

Adjusting the Computer Image ........... 46

Special Modes Setting ......................... 46

Auto Sync (Auto Sync Adjustment) ..... 46

Checking the Input Signal ................... 46

Using the “Options” Menu .................. 47

Adjusting the Image Position ............... 47

Adjusting the Overscan ....................... 47

Adjusting the Vertical Size of the Display

(Subtitle Setting) ................................ 47

Setting On-screen Display ................... 48

Setting the Video System ..................... 48

Signal Type Setting .............................. 48

Selecting the HDMI Setting .................. 48

Selecting the Background Image ........ 48

Auto Power Off Function ...................... 49

Checking the Lamp Life Status ........... 49

Reversing/Inverting Projected

Images ............................................... 49

Selecting the Transmission Speed

(RS-232C) .......................................... 50

Reducing the Power Consumption When

the Power Is in Standby Mode .......... 50

Fan Mode Setting ................................. 50

Returning to the Default Settings ......... 50

Selecting the On-screen Display

Language ........................................... 50

Reference

Introduction

Appendix

Maintenance ....................................... 51

Maintenance Indicators ...................... 52

Regarding the Lamp ........................... 54

Lamp ..................................................... 54

Caution Concerning the Lamp ............ 54

Replacing the Lamp ............................. 54

Removing and Installing

the Lamp Unit .................................... 55

Resetting the Lamp Timer .................... 56

Connecting Pin Assignments ............. 57

RS-232C Specifications and Command

Settings ............................................ 58

Computer Compatibility Chart ............ 59

Troubleshooting .................................. 60

Specifications ..................................... 62

Dimensions ......................................... 63

Index ................................................... 64

CONSUMER LIMITED WARRANTY

(VALID IN USA ONLY) ..................... 65

LIMITED WARRANTY

(VALID IN CANADA ONLY) .............. 66

IMPORTANT SAFEGUARDS

CAUTION: Please read all of these instructions before you operate this product

and save these instructions for later use.

Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water–for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is provided with one of the following types of plugs. If the plug should fail to fit into the power outlet, please contact your electrician. Do not defeat the safety purpose of the plug.

a. Two-wire type (mains) plug. b. Three-wire grounding type (mains) plug with

a grounding terminal. This plug will only fit into a grounding type power outlet.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power-line surges.

Introduction

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is

damaged.

b. If liquid has been spilled, or objects have fallen

into the product.

c. If the product has been exposed to rain or

water.

d. If the product does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

e. If the product has been dropped or damaged

in any way.

f. When the product exhibits a distinct change

in performance, this indicates a need for service.

19. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

• DLP® and the DLP logo are registered trade marks of Texas instruments.

• BrilliantColor™ is a trademark of Texas Instruments.

• Microsoft

and Windows® are registered trademarks of Microsoft Corporation in the United

States and/or other countries.

• PC/AT is a registered trademark of International Business Machines Corporation in the United States.

• Macintosh

is a registered trademark of Apple Computer, Inc. in the United States and/or

other countries.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• All other company or product names are trademarks or registered trademarks of their respective companies.

• Some IC chips in this product include confidential and/or trade secret property belonging to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble or discompile the contents thereof.

Observe the following safeguards when setting up your projector.

Caution concerning the lamp unit

■

Potential hazard of glass particles if lamp ruptures. In case of lamp rupture, contact your nearest Authorized Dealer or Service

for replacement.

Center See “Replacing the Lamp” on page 54.

Marantz

Caution concerning the setup of the projector

■

For minimal servicing and to maintain high image quality, Marantz recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the vents and lens must be cleaned more often. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by Marantz Authorized Dealer or Service Center.

Do not set up the projector in places exposed to direct sunlight or bright light.

■ Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.

Caution regarding placing of the projector

■ Place the projector on a level site within the adjustment range (8 degrees) of the adjust-

ment foot.

■ After the projector is purchased, a faint smell from the vent may appear when the power is first turned on. This is normal and is not a malfunction. It will disappear after the projector is used for a while.

When using the projector in high-altitude areas such as mountains (at altitudes of approximately 4,900 feet (1,500 meters) or more)

■ When you use the projector in high-altitude areas with thin air, set “Fan Mode” to “High”. Neglecting this can affect the longevity of the optical system.

Warning about placing the projector in a high position

■ When placing the projector in a high position, ensure that it is secured carefully to avoid personal injury caused by the projector falling down.

Do not subject the projector to hard impact and/or vibration.

■ Protect the lens so as not to hit or damage the surface of the lens.

Rest your eyes occasionally.

■ Continuously watching the screen for long hours will cause eye strain. Be sure to occasionally rest your eyes.

Avoid locations with extremes of temperature.

■ The operating temperature of the projector is from 41°F to 95°F (+5°C to +35°C).

■ The storage temperature of the projector is from –4°F to 140°F (–20°C to +60°C).

Do not block the exhaust and intake vents.

■ Allow at least 11 13/16 inches (30 cm) of space between the exhaust vent and the nearest wall or obstruction.

■ Be sure that the intake vent and the exhaust vent are not obstructed.

■ If the cooling fan becomes obstructed, a protection circuit will automatically put the projector into standby mode to prevent overheat damage. This does not indicate a malfunction. (See pages 52 and 53.) Remove the projector power cord from the wall outlet and wait at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power cord back in and turn on the projector. This will return the projector to the normal operating condition.

■ When turning off the projector, the cooling fan

Info

runs to decrease the internal temperature for a while. Unplug the power cord after the cooling fan stops. The period the cooling fan runs will vary, depending on the circumstances and the internal temperature.

Caution regarding usage of the projector

■ When using the projector, be sure not to subject it to hard impact and/or vibration, as this can result in damage. Take extra care with the lens. Before moving the projector, be sure to unplug the power cord from the wall outlet, and disconnect any other cables connected to it.

■ Do not carry the projector by holding the lens.

■ When storing the projector, re-attach the lens

cap. (See page 11).

■ Do not expose the projector to direct sunlight or place next to heat sources. Doing so may affect the cabinet color or cause deformation of the plastic cover.

Using the projector in other countries

■ The power supply voltage and the shape of the plug may vary depending on the region or country you are using the projector in. When using the projector overseas, be sure to use an appropriate power cord for the country you are in.

Temperature monitor function

■

If the projector starts to overheat due to setup problems or blockage of the air vents, “ ” and

“

of the picture. If the temperature continues to rise, the lamp will turn off, the temperature warning indicator on the projector will blink, and after a 90-second cooling-off period the projector will enter standby mode. Refer to “Maintenance Indicators” on page 52 for details.

” will illuminate in the lower left corner

Introduction

Other connected equipment

■ When connecting a computer or other audiovisual equipment to the projector, make the connections AFTER unplugging the power cord of the projector from the AC outlet and turning off the equipment to be connected.

■ Please read the user guides of the projector and the equipment to be connected for instructions on how to make the connections.

• The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction.

• Do not unplug the power cord during projection or cooling fan operation. This can cause damage due to rise in internal temperature, as the cooling fan also stops.

C2 S

STANDBY

COMP.1 COMP.2 S-VIDEO

VIDEO RGB HDMI

RGB HDMI

R/C

SYNC

KEYSTONE MENU

RETURN ENTER

AUTO SYNC ASPECT

IMAGE SHIFTRGB/COMP. PICTURE MODE

PIC

FREEZE IRIS

IRIS

LIGHT

Accessories

Note

Supplied accessories

Remote control

Two R-03 batteries

(“AAA” size, UM/SUM-4,

Lens cap (attached)

HP-16 or similar)

Power cord

for U.S. and

Canada, etc.

(6n (1.8 m))

QACCDA007WJPZ

• User guide

Power cord

for Europe (6n (1.8 m)

QACCVA011WJPZ

DIN-D-Sub RS-232C

adaptor (5 57/64o (15 cm))

QCNWGA015WJPZ

Optional accessories

■ Lamp unit

• Some of the optional accessories may not be available depending on the region. Please check with your nearest Marantz Authorized Dealer or Service Center.

LU4001VP

NTER

INP

DBY

ASPECT

ENTER

INPUT

STANDBY/ON LAMP TEMP.

28, 5228, 52

Part Names and Functions

Numbers in Z refer to the main pages in this user guide where the topic is explained.

Projector

Top View

Power indicator

/ I STANDBY/

ON button

For turning the power on and putting the projector into standby mode.

ENTER button

For setting items selected or adjusted on the menu.

ASPECT button

For switching the screen size.

Front View

Lamp indicator

Temperature warning indicator

INPUT buttons (P/R)

For switching input mode Comp. 1, Comp. 2, SVideo, Video, RGB or HDMI.

MENU button

For displaying adjustment and setting screens.

Adjustment buttons (P/R/O/Q)

For selecting menu items.

Intake vent

Introduction

Focus ring

For adjusting the focus.

HEIGHT ADJUST lever

Zoom ring

For enlarging/ reducing the picture.

Remote control sensor (front)

Push both sides of the lens cap to attach or remove.

Part Names and Functions (Continued)

INP

Numbers in Z refer to the main pages in this user guide where the topic is explained.

Rear View

Exhaust vent

Intake vent

AC socket

Connect the supplied Power cord.

Rear adjustment foot

Terminals

Terminal Description

COMPONENT 1, 2 terminal

Connecting video equipment with component output terminal (DVD player, DTV decoder, DVD recorder with hard disc, etc.).

S-VIDEO terminal

Connecting video equipment with S-video output terminal (VCR, DVD

player, etc.).

VIDEO terminal

Connecting video equipment without S-video output terminal.

RGB terminal

■ Connecting video equipment with component output terminal

(DVD player, DTV decoder, DVD recorder with hard disc, etc.).

■

Connecting the computer.

HDMI terminal

Connecting video equipment with HDMI output terminal.

RS-232C terminal

This is the control port for the custom installer.

TRIGGER terminal

When the projector is turned on, a control signal (DC 12V) outputs from this terminal. If an electric screen or other compatible device is connected, it can be turned on when the projector is turned on.

Remote control sensor (rear)

Kensington Security Standard connector

Page

—

C2 S

STANDBY

COMP.1 COMP.2 S-VIDEO

VIDEO RGB HDMI

RGB HDMI

R/C

SYNC

KEYSTONE MENU

RETURN ENTER

AUTO SYNC ASPECT

IMAGE SHIFTRGB/COMP. PICTURE MODE

PIC

FREEZE IRIS

IRIS

LIGHT

Numbers in Z refer to the main pages in this user guide where the topic is explained.

ON button

For turning the power on.

Introduction

STANDBY button

For putting the projector into the standby mode.

KEYSTONE button

For entering the Keystone Correction mode.

RETURN button

For returning to the previous menu screen during menu operations.

AUTO SYNC button

For automatically adjusting images when connected to a computer.

RGB/COMP. button

For switching to the respective input signal type.

FREEZE button

For freezing images.

Backlight button

For lighting all buttons on the remote control.

Comp. 1, Comp. 2, S-Video, Video, RGB and HDMI buttons

For switching to the respective input modes.

MENU button

For displaying adjustment and setting screens.

Adjustment buttons (P/R/O/Q)

• For selecting menu items.

• For adjusting the Keystone Correction when in the Keystone Correction mode.

ENTER button

For setting items selected or adjusted on the menu.

ASPECT button

For switching the screen size (FULL, NORMAL, etc.).

PICTURE MODE button

For selecting the appropriate picture.

IRIS button

For switching “WIDE”, “MEDIUM” and “NARROW”.

IMAGE SHIFT buttons

For shifting the projected image vertically.

Using the Kensington Lock on the projector

• This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

Part Names and Functions (Continued)

Inserting the Batteries

Press the P mark on the cover and slide it

in the direction of the arrow.

Insert the batteries.

• Insert the batteries making sure the polarities

correctly match the m and n marks inside the battery compartment.

Attach the cover and slide it until it clicks

into place.

Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.

Caution

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Insert the batteries making sure the polarities correctly match the m and n marks inside the battery com- partment.

• Batteries of different types have different properties, therefore do not mix batteries of different types.

• Do not mix new and old batteries.

This may shorten the life of new batteries or may cause old batteries to leak.

• Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak. Battery fluid from leaked batteries is harmful to skin, therefore ensure that you first wipe them and then remove them using a cloth.

• The batteries included with this projector may run down in a short period, depending on how they are kept.

Be sure to replace them as soon as possible with new batteries.

• Remove the batteries from the remote control if you will not be using the remote control for a long time.

• Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.

ASP

ECT

ENTER

INPUT

INP

Y/O

LAM

Usable Range

Note

ANDB

Y/O

AMP

The remote control can be used to control the projector within the ranges shown in the illustration.

Remote control sensor (front)

30°

Introduction

Remote control signal

Remote control sensor (rear)

transmitters

30°

Remote control

23n (7 m)

30°

Remote control signal

23n (7 m)

30°

transmitters

Remote control

• The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance of the signal may differ depending on the screen material.

When using the remote control

• Ensure that you do not drop, expose to moisture or high temperature.

• The remote control may malfunction under a fluorescent lamp. In this case, move the projector

away from the fluorescent lamp.

NDBY

/ON

AMP

EMP

STA

NDBY

/ON

LAMP

C2 S

STANDBY

COMP.1 COMP.2 S-VIDEO

VIDEO RGB HDMI

RGB HDMI

R/C

SYNC

ONON

KEYSTONE MENU

RETURN ENTER

AUTO SYNC ASPECT

IMAGE SHIFTRGB/COMP. PICTURE MODE

PIC

FREEZE IRIS

LIGHT

IRIS

ASPECT

ENTER

INPUT

STANDBY/ON LAMP TEMP.

STANDBY

VIDEO

KEYSTONE

ENTER

Quick Start

This section shows the basic operation (projector connecting with the video equipment). For details, see the page described below for each step.

Setup and Projection

In this section, connection of the projector and the video equipment is explained using one example.

3 8

ON button

INPUT buttons

Focus ring

Zoom ring

HEIGHT

ADJUST lever

/ I STANDBY/

STANDBY button

ON button

VIDEO button

KEYSTONE button

Adjustment buttons

(P/R/O/Q)

ENTER button

1. Place the projector facing a wall or a screen

\P. 18

2. Connect the projector to the video equipment and plug the power cord into the AC socket of the projector

AC socket

3. Remove the lens cap and turn the projector on

On the

projector

On the remote

control

To VIDEO terminal

Connect the audio output of any video devices to an appropriate audio device.

\PP. 22–28

\P. 28

Comp. 1 Comp. 2 S-Video Video RGB HDMI

Video

4. Turn the video equipment on and start playback

STANDBY

ECT

ENTER

MEN

INPUT

/ON

ASP

ECT

TER

ENT

NPU

VIDEO

INPUT

5. Select the INPUT mode

\P. 29

Select the “Video” using the INPUT buttons on the projector or the VIDEO button on the remote control.

projector

On the

On the remote

control

On-screen display

• When pressing the INPUT buttons on the projector, input mode switches in the following order:

• Pressing the INPUT buttons on the remote control also allows you to switch the input mode.

6. Adjust the focus, image size, and projector angle

1. Adjust the focus by turning the focus ring.

2. Adjust the projection image size by turning the zoom ring.

Zoom ring

3. Adjust the projector angle using the HEIGHT ADJUST lever.

\PP. 30, 31

Focus ring

Correct trapezoidal distortion (GEOMETRIC ADJUSTMENT)

\PP. 32–35

1. Press c KEYSTONE on the remote control.

2. Press P/R/O/Q on the remote control to set the upper-left position of the projected image.

3. Press i ENTER on the remote control to set the position.

4. Follow steps 2 and 3 to also set the upper-right, lower-right, and lower-left positions of the projected image.

• When you confirm the lower left position, the screen adjustments will be set and setup will

end.

Quick Start

8. Turn the Power off

Press the / I STANDBY/ON button on the projector or the STANDBY button on the remote control to put the projector into standby mode.

On the

projector

• Unplug the power cord from the AC outlet after the cooling fan stops.

On the remote

control

\P. 29

On-screen Display

Setting up the Projector

Note

Setting up the Projector

For optimal image quality, position the projector perpendicular to the screen with the projector’s feet flat and level. Doing so will eliminate the need for Keystone correction and provide the best image quality.

Standard Setup (Front Projection)

■ Place the projector at the required distance from the screen according to the desired picture size. (See page 20.)

Example of standard setup

Side View

Screen

Lens center

• Refer to page 20 for additional information concerning “Picture (Screen) Size and Projection Distance”.

Ceiling-mount Setup

■ It is recommended that you use the optional Marantz ceiling-mount bracket for this installation. Before mounting the projector, contact your nearest Marantz Authorized Dealer or Service Center to obtain the recommended ceiling-mount bracket (sold separately).

• MT4001 ceiling-mount bracket.

■ Invert the image by setting “Ceiling + Front” in “Installation”. See page 49 for use of this function.

300"

200"

100"

80" 60"

261"×147"

174"

98"

87"

49"

70"

39"

52"

29"

29'9

–

34'

(9.1 m – 10.5 m)

19'10

"–

22'11

(6.0 m

–

7.0 m)

9'11

"–

11'6

(3.0 m

–

3.5 m)

7'11

"–

9'2

(2.4 m

–

2.8 m)

5'11

"–

6'11

(1.8 m – 2.1 m)

Installation

The projector can use any of the 4 projection modes, shown in the diagram below. Select the mode most appropriate for the projection setting in use. (You can set the Installation in “Options2” menu. See page 49.)

■ Table mounted, front projection

Menu item ➞ “Front”

■ Table mounted, rear projection (with a translucent screen)

■ Ceiling mounted, front projection

Menu item ➞ “Ceiling + Front”

■ Ceiling mounted, rear projection (with a translucent screen)

Menu item ➞ “Rear” Menu item ➞ “Ceiling + Rear”

Indication of the Projection Image Size and Projection Distance

Refer to page 20 for additional information concerning “Picture (Screen) Size and Projection Distance”. Example: When using a wide screen (16:9)

Picture (Screen) Size

Setup

Projection Distance

Setting up the Projector (Continued)

300 (762 cm)

270 (686 cm)

250 (635 cm)

200 (508 cm)

150 (381 cm)

100 (254 cm)

80 (203 cm)

70 (178 cm)

60 (152 cm)

40 (102 cm)

261 (664 cm)

235 (598 cm)

218 (553 cm)

174 (443 cm)

131 (332 cm)

87 (221 cm)

70 (177 cm)

61 (155 cm)

52 (133 cm)

35 (89 cm)

/32 (53 cm)

/16 (48 cm)

/32 (45 cm)

/64 (36 cm)

/64 (27 cm)

/64 (18 cm)

/64 (14 cm)

/32 (12 cm)

/64 (11 cm)

/64 ( 7 cm)

4

/32 (12.5 cm)

4

/32 (11.2 cm)

4

/64 (10.4 cm)

3

/64 (8.3 cm)

2

/64 (6.2 cm)

1

/64 (4.2 cm)

1

/16 (3.3 cm)

1

/64 (2.9 cm)



/64 (2.5 cm)



/32 (1.7 cm)

147 (374 cm)

132 (336 cm)

123 (311 cm)

98 (249 cm)

74 (187 cm)

49 (125 cm)

39 (100 cm)

34 (87 cm)

29 (75 cm)

20 (50 cm)



9 (9.1 m)



9 (8.2 m)



9 (7.5 m)



10 (6.0 m)



10 (4.5 m)



11 (3.0 m)



11 (2.4 m)



11 (2.1 m)



11 (1.8 m)



0 (1.2 m)



5 (10.5 m)



11 (9.4 m)



8 (8.7 m)



11 (7.0 m)



2 (5.2 m)



6 (3.5 m)



2 (2.8 m)



0 (2.4 m)



11 (2.1 m)



7 (1.4 m)

300 (762 cm)

270 (686 cm)

250 (635 cm)

200 (508 cm)

150 (381 cm)

100 (254 cm)

80 (203 cm)

70 (178 cm)

60 (152 cm)

40 (102 cm)

240 (610 cm)

216 (549 cm)

200 (508 cm)

160 (406 cm)

120 (305 cm)

80 (203 cm)

64 (163 cm)

56 (142 cm)

48 (122 cm)

32 (81 cm)

/64 (65 cm)

/64 (59 cm)

/64 (54 cm)

/32 (44 cm)

/8 (33 cm)

/64 (22 cm)

/64 (17 cm)

6 (15 cm)

/64 (13 cm)

/16 (9 cm)

6 (15.2 cm)

5

/32 (13.7 cm)

5 (12.7 cm)

4(10.2 cm)

3 (7.6 cm)

2 (5.1 cm)

1

/32 (4.1 cm)

1

/32 (3.6 cm)

1

/64 (3.0 cm)



/64 (2.0 cm)

180 (457 cm)

162 (411 cm)

150 (381 cm)

120 (305 cm)

90 (229 cm)

60 (152 cm)

48 (122 cm)

42 (107 cm)

36 (91 cm)

24 (61 cm)



4 (11.1 m)



9 (10.0 m)



4 (9.2 m)



3 (7.4 m)



2 (5.5 m)



1 (3.7 m)



8 (3.0 m)



6 (2.6 m)



3 (2.2 m)



10 (1.5 m)



1 (12.8 m)



10 (11.5 m)



1 (10.7 m)



1 (8.6 m)



0 (6.4 m)



0 (4.3 m)



3 (3.4 m)



10 (3.0 m)



5 (2.6 m)



7 (1.7 m)

Picture (Screen) Size and Projection Distance

The projection screen size varies according to the distance from the lens of the projector to the screen. Install the projector so that projected images are projected onto the screen at the optimum size by referring to the table below. Use the values in the table as a reference when installing the projector.

When using a wide screen (16:9) and projecting 16:9 image

Picture (Screen) size

Diag. [χ]

Width Height

Projection distance [L]

Minimum [L1] Maximum [L2]

Distance from the lens center

to the bottom of the image [H]

Adjustable range of

image position [S]

: Picture (Screen) size (diag.) (in/cm) L: Projection distance (ft/m) L1: Minimum projection distance (ft/m) L2: Maximum projection distance (ft/m) H: Distance from the lens center to the bottom of the image (in/cm) S: Adjustable range of image position (in/cm) See page 47.

The formula for picture size and projection distance

[Feet/inches]

L1 (ft) = 0.03019χ / 0.3048 L2 (ft) = 0.03493χ / 0.3048 H (in) = 0.17808χ / 2.54 S (in) = ±0.04151χ / 2.54

[m/cm]

L1 (m) = 0.03019 L2 (m) = 0.03493 H (cm) = 0.17808 S (cm) = ±0.04151

When using a normal screen (4:3) and projecting 4:3 image (NORMAL Mode)

Picture (Screen) size

Diag. [χ]

Width Height

Projection distance [L]

Minimum [L1] Maximum [L2]

Distance from the lens center

to the bottom of the image [H]

The formula for picture size and projection distance

[Feet/inches]

L1 (ft) = 0.03694χ / 0.3048 L2 (ft) = 0.04275χ / 0.3048 H (in) = 0.21794χ / 2.54 S (in) = ± 0.0508χ / 2.54

Adjustable range of

[m/cm]

L1 (m) = 0.03694 L2 (m) = 0.04275 H (cm) = 0.21794 S (cm) = ±0.0508

image position [S]

χ χ

When using a normal screen (4:3) and projecting 16:9 image

300 (762 cm)

270 (686 cm)

250 (635 cm)

200 (508 cm)

150 (381 cm)

100 (254 cm)

80 (203 cm)

70 (178 cm)

60 (152 cm)

40 (102 cm)

240 (610 cm)

216 (549 cm)

200 (508 cm)

160 (406 cm)

120 (305 cm)

80 (203 cm)

64 (163 cm)

56 (142 cm)

48 (122 cm)

32 (81 cm)

/16 (49 cm)

/8 (44 cm)

/32 (41 cm)

/8 (33 cm)

/32 (25 cm)

/16 (16 cm)

/64 (13 cm)

/2 (11 cm)

/64 (10 cm)

/64 (7 cm)

4

/2 (11.4 cm)

4

/64 (10.3 cm)

3

/4 (9.5 cm)

3 (7.6 cm)

2

/4 (5.7 cm)

1

/2 (3.8 cm)

1

/64 (3.0 cm)

1

/64 (2.7 cm)



/32 (2.3 cm)



/32 (1.5 cm)

180 (457 cm)

162 (411 cm)

150 (381 cm)

120 (305 cm)

90 (229 cm)

60 (152 cm)

48 (122 cm)

42 (107 cm)

36 (91 cm)

24 (61 cm)



3 (8.3 m)



7 (7.5 m)



9 (6.9 m)



2 (5.5 m)



8 (4.2 m)



1 (2.8 m)



3 (2.2 m)



4 (1.9 m)



5 (1.7 m)



8 (1.1 m)



7 (9.6 m)



5 (8.7 m)



4 (8.0 m)



0 (6.4 m)



9 (4.8 m)



6 (3.2 m)



5 (2.6 m)



4 (2.2 m)



4 (1.9 m)



2 (1.3 m)

Note

Picture (Screen) size

Diag. [χ]

Width

Height

Projection distance [L]

Minimum [L1] Maximum [L2]

Distance from the lens center to

the bottom of the image [H]

Adjustable range of

image position [S]

: Picture (Screen) size (diag.) (in/cm)

L: Projection distance (ft/m) L1: Minimum projection distance (ft/m) L2: Maximum projection distance (ft/m) H: Distance from the lens center to the bottom of the image (in/cm) S: Adjustable range of image position (in/cm) See page 47.

The formula for picture size and projection distance

[Feet/inches]

L1 (ft) = 0.02771χ / 0.3048 L2 (ft) = 0.03206χ / 0.3048 H (in) = 0.16346χ / 2.54 S (in) = ± 0.0381χ / 2.54

[m/cm]

L1 (m) = 0.02771 L2 (m) = 0.03206 H (cm) = 0.16346 S (cm) = ±0.0381

χ χ χ χ

• Refer to page 18 concerning “Projection distance [L]” and “Distance from the lens center to the bottom of the image [H]”.

• Allow a margin of error in the values in the diagrams.

Setup

Samples of Cables for Connection

•

For more details of connection and cables, refer to the user guide of the connecting equipment.

• You may need other cables or connectors not listed below.

Equipment

Audio-visual equipment

Input

Signal

HDMI video

Cable

HDMI cable (commercially available)

Terminal on the

projector

HDMI

Camera/ video game

Compo-

nent

video

Compo-

nent

video

S-video

Video

Compo-

nent

video

Compo-

nent

video

S-video

Component cable (commercially available)

3 RCA to 15-pin D-sub cable

S-video cable (commercially available)

Video cable (commercially available)

Cables for a camera or a video game

3 RCA to 15-pin Dsub cable

RCA adaptor plug (commercially available)

COMPONENT 1, 2

RGB

S-VIDEO

VIDEO

COMPONENT 1, 2

RGB

S-VIDEO

Computer

Video

RGB

video

Cables for a camera or a video game

RGB cable (commercially available)

VIDEO

RGB

Connecting to Video Equipment

PEC

DBY

AMP

Before connecting, ensure that the power cord of the projector is unplugged from the AC outlet and turn off the devices to be connected. After making all connections, turn on the projector first and then the other devices.

When connecting the component video equipment to the component input terminal on the projector (COMPONENT 1 or COMPONENT 2)

To component output

B/PB, CR/PR) terminal

(Y, C

DVD, etc.

To COMPONENT 1 terminal

Component cable (commercially available)

Connections

TER

INP

TAN

/ON

Connecting to Video Equipment (Continued)

When connecting to equipment with S-video output terminal (S-VIDEO)

To S-video output terminal

When connecting to equipment with video output terminal (VIDEO)

To video output terminal

DVD, etc.

To S-VIDEO terminal

S-video cable (commercially available)

DVD, etc.

Video cable (commercially available)

To VIDEO terminal

When connecting the component video equipment to the computer-RGB/

STA

DBY

AMP

AND

Note

component input terminal on the projector (RGB)

To component output (Y, CB/PB, CR/PR) terminal

DVD, etc.

To RGB terminal

3 RCA to 15-pin D-sub cable

When connecting to equipment with HDMI output teminal (HDMI)

HDMI is a new specialized interface capable of delivering a video and audio signal to the terminal using just one cable. Since this projector does not support an audio signal by itself, use an amplifier or other audio device. For video connection, use a cable that conforms to HDMI standards. Using cables that do not conform to HDMI standards may result in a malfunction.

To HDMI output terminal

• HDMI (High Definition Multimedia Interface) is a digital AV interface that can deliver a high-definition video signal, multi-channel audio signal, and bi-directional control signal all in just one cable.

• Because it is compatible with the HDCP (High-bandwidth Digital Content Protection) system, the digital video signal does not degrade when transmitted, and a high-quality image with a simple connection can be enjoyed.

• When a DVI to HDMI conversion cable is connected to the HDMI terminal, a proper picture may not be displayable.

HDMI compatible device

HDMI cable (type A) (commercially available)

To HDMI terminal

Connections

PUT

STA

Y/O

TEM

Connecting to a Computer

Note

When connecting a computer, ensure that it is the last device to be turned on after all the connections are made.

Ensure that you have read the tions.

user guide

s of the devices to be connected before making connec-

Computer

To RGB output terminal

Supplied

accessory

To RGB terminal

RGB cable (commercially available)

• See page 59 “Computer Compatibility Chart” for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions to not work.

• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Macintosh Dealer.

• Depending on the computer you are using, an image may not be projected unless the computer’s external output port is switched on. Refer to the specific instructions in your computer's

user guide to enable your computer’s external output port.

Controlling the Projector by a Computer

SPE

MEN

Note

Info

When the RS-232C terminal on the projector is connected to a computer with a DIN-D-sub RS232C adaptor (Supplied accessory) and an RS-232C serial control cable (cross type, commercially available), the computer can be used to control the projector and check the status of the projector. See page 58 for detail.

When connecting to a computer using an RS-232C serial control cable and a DIND-sub RS-232C adaptor

Computer

To RS-232C terminal

DIN-D-sub RS-232C adaptor

RS-232C serial control cable (cross type, commercially available)

• The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the user guide of the computer for details.

• See page 58 for connection of an RS-232C serial control cable.

To RS-232C terminal

Connections

• Do not connect the RS-232C cable to a port other than the RS-232C terminal on the computer. This may damage your computer or projector.

• Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on. This may damage your computer.

Turning the Projector On/Off

ASPECT

ENTER

INPUT

STANDBY/ON LAMP TEMP.

Note

Info

C1VC2 S

STANDBY

COMP.1 COMP.2 S-VIDEO

VIDEO RGB HDMI

RGB HDMI

ONON

KEYSTONE MENU

STAN

Info

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the rear of the projector.

• Make sure the AC power cord is firmly connected into the AC IN socket.

Turning the Projector on

Note that the connections to external equipment and power outlet should be done before performing the operations written below. (See pages 23 to 28.)

Remove the lens cap and press / I STANDBY/ON on the projector or bON on the remote control.

• About the Lamp Indicator The lamp indicator illuminates to indicate the status of the lamp.

Green: The lamp is on. Blinking in green: The lamp is warming up

Red:The lamp is shut down abnormally

or the lamp should be replaced.

• When switching on the projector, a slight flickering of the image may be experienced within the first minute after the lamp has been illuminated. This is normal operation as the lamp’s control circuitry is stabilising the lamp output characteristics. It should not be regarded as faulty operation.

• If the projector is put into standby mode and immediately turned on again, the lamp may take some time to start projection.

or shutting down.

Supplied

accessory

Power cord

AC socket

• English is the factory default language. If you want to change the on-screen display to another language, change the language according to the procedure on page 50.

Lamp indicator

Power indicator

/ I STANDBY/ON

button

ON button

Turning the Power off (Putting

Info

C1VC2 S

STANDBY

COMP.1 COMP.2 S-VIDEO

VIDEO RGB HDMI

RGB HDMI

ONON

KEYSTONE MENU

STANDBY

C2 S

STANDBY

COMP.1 COMP.2 S-VIDEO

VIDEO RGB HDMI

RGB HDMI

R/C

SYNC

ONON

KEYSTONE MENU

RETURN ENTER

AUTO SYNC ASPECT

IMAGE SHIFTRGB/COMP. PICTURE MODE

PIC

FREEZE IRIS

IRIS

C1VC2 S

COMP.1 COMP.2 S-VIDEO

VIDEO RGB HDMI

RGB HDMI

C1VC2 S

COMP.1 COMP.2 S-VIDEO

VIDEO RGB HDMI

RGB HDMI

Comp. 1 Comp. 2 S-Video

HDMI RGB Video

the Projector into Standby Mode)

Press / I STANDBY/ON on the

projector or aSTANDBY on the remote control to put the projector into standby mode.

STANDBY button

Unplug the power cord from the AC

outlet after the cooling fan stops.

• The power indicator on the projector blinks in green while cooling.

• The power indicator changes to red when the projector finishes cooling.

• Do not unplug the power cord during projection or cooling fan operation. This can cause damage due to rise in internal temperature, as the cooling fan also stops.

• When on standby, power to the projector is not OFF completely. If not planning to use the projector for an extended period of time, unplug the AC power cord from AC power outlet as explained above.

Image Projection

Switching the Input Mode

Select the appropriate input mode for the connected equipment.

Press the appropriate INPUT button on the remote control to select the desired input mode.

• When pressing INPUT (P/R) on the projector, in- put mode switches in the following order:

On-screen Display

Operation

Basic

INPUT buttons

ASPECT

ENTER

INPUT

STAN

LAMP

Image Projection (Continued)

/ON

EMP

Adjusting the Projected Image

1 Adjusting the Focus

You can adjust the focus with the focus ring on the projector.

Rotate the focus ring to adjust the focus while watching the projected image.

2 Adjusting the Screen Size

You can adjust the screen size using the zoom ring on the projector.

Rotate the zoom ring to enlarge or shrink the screen size.

3 Adjusting the Height

The height of the projector can be adjusted using the adjustment feet at the front and rear of the projector.

When the screen is above the projector, the projection image can be made higher by adjusting the projector.

Zoom ring

Focus ring

Lift the projector to adjust its

height while lifting the HEIGHT ADJUST lever.

Remove your hands from the

HEIGHT ADJUST lever of the projector after its height has been finely adjusted.

• The angle of projection is adjustable up to 8 degrees from the surface on which the projector is placed.

HEIGHT ADJUST lever

Make small adjustments.

Use the rear adjustment foot to

Info

Note

make the projector level.

• The projector is adjustable ± 1 degree from the standard position.

• When adjusting the height of the projector, trapezoidal distortion occurs. Follow the procedures in Keystone Correction to correct the distortion. (See page 32.)

• Do not apply too much pressure on the projector when the front adjustment foot comes out.

• When lowering the projector, be careful not to get your fingers caught in the area between the adjustment foot and the projector.

• Hold the projector firmly while lifting or carrying.

• Do not hold by the lens area.

Rear adjustment foot

Operation

Basic

C2 S

STANDBY

COMP.1 COMP.2 S-VIDEO

VIDEO RGB HDMI

RGB HDMI

R/C

SYNC

ONON

KEYSTONE MENU

RETURN ENTER

AUTO SYNC ASPECT

IMAGE SHIFTRGB/COMP. PICTURE MODE

PIC

FREEZE IRIS

LIGHT

IRIS

KEYSTONE

ENTERRETURN

KEYSTONE

RETURN

ENTER

Image Projection (Continued)

Correcting Trapezoidal Distortion

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction.

There are the two types of the Keystone Correction.

1) The “GEOMETRIC ADJUSTMENT” method corrects trapezoidal distortion by specifying 4 marks on the screen.

2) The “H & V KEYSTONE” method features corrections to 2 axes (horizontal and vertical) based on numerical values.

KEYSTONE button

Adjustment buttons (P/R/O/Q)

RETURN button

ENTER button

Selecting the Type of

GEOMETRIC

ADJUSTMENT

H & V KEYSTONE

The display disappears.

Note

Correction

Select the Keystone correction method. Press c KEYSTONE on the remote control.

•“GEOMETRIC ADJUSTMENT” will be

displayed.

• Each time c KEYSTONE is pressed, the

display toggles as follows:

• When corrections are made with Keystone correction, the changes are saved even if the power cord is unplugged.

• Since Keystone correction digitally corrects the signal, resolution may slightly decrease when it is used. Moiré patterns and line distortions may also be visible in detailed images. However, this is not a malfunction.

• If you cannot correct trapezoidal distortion with Keystone correction, change the placement position of the projector.

• Straight lines and the edges of the displayed image may appear jagged, when adjusting the Keystone setting.

• Also read “About Copyrights” on page 37.

GEOMETRIC ADJUSTMENT

H & V KEYSTONE

For correcting an image by designating the corner of the projected image. (See page 34.)

For correcting an image by designating the horizontal or vertical axes. (See page 35.)

Operation

Basic

Image Projection (Continued)

Adjust upper left corner

GEOMETRIC ADJUSTMENT ADJUST NEXT

RESET END

Note

Info

GEOMETRIC ADJUSTMENT

• When adjusting a 4:3-aspect-ratio input signal to a 4:3-aspect-ratio screen, correct the trapezoidal distortion by setting “ASPECT” to “FULL” (16:9).

Press c KEYSTONE on the remote

control repeatedly until “GEOMET- RIC ADJUSTMENT” is displayed.

Adjust the focus, size, and projec-

tion angle so that the screen edges line up into the blue area.

• Line up the screen edges into the blue area as closely as possible.

Press P, R, O or Q to move the po-

sition for the upper left of the image.

• Adjust the screen until the displayed red arrows line up in the upper left.

Press i ENTER to set the position.

• The arrow in the upper right turns red.

R On-screen display

Blue

Geometric Adjustment

area

Screen

Upper Left Upper Right

Repeat the same procedure with

the positions for the upper right, lower right and lower left of the image.

• When you press e RETURN at this point, you will return to the previous screen.

• If you press e RETURN before adjusting the upper left corner, the Reset Confirmation screen displays.

• When you confirm the lower left position, the screen adjustments will be set and the “GEOMETRIC ADJUSTMENT” mode will end.

• The placement of the screen and the projector may result in the image aspect ratio becoming slightly distorted.

• Try “H&V KEYSTONE” when “GEOMETRIC ADJUSTMENT” does not fully correct trapezoidal distortion.

Lower Left Lower Right

H & V KEYSTONE

H&V KEYSTONE

END

ENTER

ADJUST

RESET

Note

Project the image and adjust the

focus, image size, and projection angle.

Press c KEYSTONE on the remote

control repeatedly until “H & V KEYSTONE” is displayed.

• When the “GEOMETRIC ADJUSTMENT” mode has been used to adjust the image, a confirmation screen displays before the “H & V KEYSTONE” screen, asking if you want to reset the adjustments or not. Then select RESET.

R On-screen display

Press P or R on the remote con-

trol to align the left and right sides of the projected image.

Press O or Q on the remote con-

trol to align the upper and lower sides of the projected image.

Press c KEYSTONE or i ENTER on

the remote control and the “H&V KEYSTONE” mode ends.

• If adjustments are made using both “H KEYSTONE” and “V KEYSTONE” at the same time, the image aspect ratio may become slightly distorted.

• When adjusting “H KEYSTONE” and “V KEYSTONE” at the same time, the values of adjustable angles for each setting become smaller.

• The adjustable value of the “V KEYSTONE” becomes extremely small when “H KEYSTONE” is made to be the maximum value.

Vertical Keystone Correction

(Adjustment with P / R)

Horizontal Keystone Correction

(Adjustment with O / Q)

Operation

Basic

ASPEC

TER

INPUT

NPUT

ASPECT

ENTER

INPUT

STANDBY/ON LAMP TEMP.

Image Projection (Continued)

R/C

SYNC

RETURN ENTER

AUTO SYNC ASPECT

IMAGE SHIFTRGB/COMP. PICTURE MODE

PIC

FREEZE IRIS

IRIS

ASPECT

Aspect Mode

This function allows you to modify or customize the Aspect mode to enhance the input image. Depending on the input signal, you can choose “FULL”, “NORMAL”, “ZOOM” or “THROUGH (Computer

input only)” image.

Press ASPECT on the projector or A

ASPECT on the remote control.

On the projector

On the remote control

VIDEO

ASPECT button

•“FULL” is fixed when 540P, 720P or 1080I signals are entered.

Input Signal

DVD / Video Image type

4:3 aspect ratio

480I, 480P, 576I,

576P, NTSC, PAL,

SECAM

Letter box

FULL NORMAL

Output screen image

ASPECT button

ZOOM

Squeezed

16:9 aspect ratio

540P, 720P, 1080I

: Cutout area on which images cannot be projected.

16:9 aspect ratio

Computer

Note

Input Signal

Computer

Resolution lower than

XGA

(1024 × 768)

1280 × 720

: Cutout area on which images cannot be projected.

• You can select “ZOOM” when with a “VGA/SVGA” signal with a vertical frequency 60 Hz and less. However, when a “VGA/SVGA” signal with a vertical frequency of more than 60 Hz is used, “ZOOM” is not available.


type

4:3 aspect

ratio

4:3 aspect

ratio

16:9 aspect

ratio

FULL

Output screen image

NORMAL

ZOOM TROUGH

About Copyrights

• When using the ASPECT function to select an image size with a different aspect ratio to a TV program or video image, the image will look different from its original appearance. Keep this in mind while choosing an image size.

• The use of the Aspect, Keystone Correction, Subtitle, or Overscan function to compress or stretch the image for commercial purposes/public displays in a café, hotel, etc. may be an infringement of copyright protected by law for copyright holders. Please use caution.

• While watching non-widescreen images (4:3), if you use the ASPECT function to fill the screen or use the Overscan function to change the aspect ratio of a fixed-ratio input signal, parts of the outer edge of the image will be cut off or distorted. To watch original images as the producers intended, set ASPECT to “NORMAL” and Overscan to its default setting.

Operation

Basic

Operating with the Remote Control

C2 S

STANDBY

COMP.1 COMP.2 S-VIDEO

VIDEO RGB HDMI

RGB HDMI

R/C

SYNC

ONON

KEYSTONE MENU

RETURN ENTER

AUTO SYNC ASPECT

IMAGE SHIFTRGB/COMP. PICTURE MODE

PIC

FREEZE IRIS

LIGHT

IRIS

IMAGE SHIFT PICTURE MODE

PIC

FREEZE IRIS

IRIS

FREEZE

IRIS

PICTURE MODE

PIC

IMAGE SHIFT

Note

IRIS

WIDE MEDIUM

NARROW

PIC

Note

Standard Dynamic

Theater 2 Theater 1Memory

Natural

Note

Shifting the Projected Image Vertically (Image Shift)

For easier viewing, this function shifts the entire image projected on the screen up or down when projecting 16:9 images from DVD players or other connected devices.

Press PIMAGE SHIFT.

• The image moves up.

Press RIMAGE SHIFT.

• The image moves down.

• The Image Shift function operates when “Aspect” is not set to “THROUGH”.

• For details on Image Shift, see page 47.

Switching the Iris Setting

This function controls the quantity of the projected light and the contrast of the image.

Press

• Each time the button is pressed while the display is on, the mode is switched in the following order:

• For details on Iris, see page 45.

Freezing a Moving Image

IRIS.

Press hFREEZE.

• The projected image is frozen.

Press hFREEZE again to return to the moving image from the currently connected device.

IMAGE SHIFT buttons

PICTURE MODE button

IRIS button

FREEZE button

Selecting the Picture Mode

You can select the appropriate picture mode to best match the projected image you are watching.

Press

• When pressing mode changes in the following order:

• See page 43 for details on the picture mode.

PICTURE MODE.

PICTURE MODE, the picture

Menu Items

Picture Mode

K7500

CLR Temp

BrilliantColor™ C. M. S. Progressive

3D Progressive

DNR

Level 1

IRIS

WIDE

Picture Comp. 1

SEL./ADJ. RETURN

Single ADJ END

Reset

Standard

Lamp Setting

Normal

C. M. S. - Hue

0 0 0 0

C. M. S. - Saturation C. M. S. - Value

0 0

R Y G C B

C. M. S.

SEL./ADJ. RETURN

ENTER END

Reset

Main menu Sub menu


Page 43 Page 43

Page 43

Page 44

Page 43

Page 44

Page 45

+30-30

Contrast

+30-30

Tint

Color

Sharp

Bright

Progressive

Lamp Setting

Reset

5500K 6500K 7500K 8500K 9300K 10500K

2D Progressive 3D Progressive Film Mode

CLR Temp

BrilliantColor™ [0/1/2]

C.M.S.

Standard Natural Dynamic Theater1 Theater2 Memory

Picture Mode

Red

Blue

DNR OFF

Level 1 Level 2 Level 3

IRIS WIDE

MEDIUM NARROW

Normal Eco

C.M.S.-Hue

C.M.S.-Saturation

C.M.S.-Value

Page 44

Reset

+30-30

Reset

Picture Comp. 1

Picture Mode Contrast 0

0 0 0

Bright Color Tint

0 0

Sharp

Red Blue

Standard

SEL./ADJ. RETURN

ENTER END

The following shows the items that can be set in the projector. The selectable items vary depending on the selected input, input signals, or adjustment values. Items that cannot be selected will be greyed out.

“Picture” menu

PAGE 1

PAGE 2

“C.M.S.”

*1 When a video signal, S-video signal, or component 480I/

576I signal is input and the Progressive mode is set to “3D Progressive” or “Film Mode”, the C.M.S. function cannot be used.

*2 Item that cannot be set when inputting an RGB signal

through RGB or HDMI.

Features

Useful

Clock Phase

0 0 0 0

H-Pos V-Pos

Special Modes

Cur. sig. freq : H 33.8 kHz / V 60 Hz

Auto Sync

1080I

Fine Sync RGB

SEL./ADJ. RETURN

ENTER END

Reset

Options 2 Comp. 1

SEL./ADJ. RETURN

ENTER END

STANDBY Mode

Eco

Fan Mode

Normal

RS-232C

9600 bps

Installation

Front

All Reset

Language

English

Main menu Sub menu

Fine Sync

Clock

Phase

H-Pos

Reset

Special Modes 1035I

1080I The resolution changes depending on the input signal.

Page 46 Page 46

Page 46

Auto Sync [On/Off]

Page 46

V-Pos

Cur. sig. freq

Page 46

+150-150

+30-30

+60-60

Menu Items (Continued)

Image Shift Overscan H Overscan V

Subtitle

OSD Display

Options 1 Comp. 1

h0Lamp Timer(Life) 100%

Video System

Auto

Signal Type

Auto

HDMI Setting

Normal

Background

Blue

Auto Power Off

SEL./ADJ. RETURN

ENTER END

Main menu Sub menu

Options 1

Page 47

Image Shift

Subtitle

Overscan H Overscan V

OSD Display [On/Off]

Video System

Signal Type

Lamp Timer(Life)

Page 47

Page 48

Page 49

Auto RGB Component

Auto PAL SECAM NTSC 4.43

Auto Power Off [On/Off]

Page 49

Background

Page 48

Blue None

HDMI Setting

Page 48

Normal Expand

+24-24

+30-30 +30-30

+30-30

NTSC 3.58 PAL-M PAL-N PAL-60

Main menu Sub menu

Options2

RS-232C

STANDBY Mode

Fan Mode

9600bps 115200bps

Standard Eco

Normal High

Page 49

Page 50

Installation

All Reset

Front Ceiling + Front Rear Ceiling + Rear

Page 49

Page 50

Language

Page 50

English Deutsch Español Nederlands Français Italiano

Svenska Português

“Fine Sync” menu

• The “Fine Sync” menu is not available for SVideo or Video.

“Options1” menu

*1 Item that can be set when using S-Video or

Video.

*2 Item that can be set when using RGB or

HDMI.

“Options2” menu

Using the Menu Screen

Picture Comp. 1

Picture Mode Contrast 0

0 0 0

Bright Color Tint

0 0

Sharp

Red Blue

Standard

SEL./ADJ. RETURN

ENTER END

ASPECT

ENTER

INPUT

STANDBY/ON LAMP TEMP.

C2 S

STANDBY

COMP.1 COMP.2 S-VIDEO

VIDEO RGB HDMI

RGB HDMI

R/C

SYNC

ONON

KEYSTONE MENU

RETURN ENTER

AUTO SYNC ASPECT

IMAGE SHIFTRGB/COMP. PICTURE MODE

PIC

FREEZE IRIS

LIGHT

IRIS

RETURN ENTER

ENTER

RETURN

Note

ENTER button

Adjustment buttons (P/R/O/Q)

MENU button

Adjustment buttons (P/R/O/Q)

MENU button

ENTER button

RETURN button

• Press eRETURN to re-

turn to the previous screen when the menu is displayed.

Menu Selections (Adjustments)

Example: Adjusting “Bright”.

• This operation can also be performed by using the buttons on the projector.

Press MENU.

• The “Picture” menu screen for the selected input mode is displayed.

Press Q or O to select the menu

icon to adjust.

• The selected icon is highlighted.

Menu icon Menu screen

• The “Fine Sync” menu is not available for S-Video or Video.


Fine Sync

Options1

Options2

Example: “Picture” screen menu for Comp. 1 mode

Menu icons

Selected input mode

Features

Useful

Using the Menu Screen (Continued)

Picture Comp. 1

Picture Mode Contrast 0

0 0

Bright

Color Tint

0 0

Sharp

Red Blue

Standard

SEL./ADJ. RETURN

Single ADJ END

0Bright

SEL./ADJ. RETURN

Rtn. Menu END

Picture Comp. 1

Note

Picture Comp. 1

Picture Mode Contrast 0

0 0

Bright

Color Tint

0 0

Sharp

Red Blue

Standard

SEL./ADJ. RETURN

Single ADJ END

Note

Press P or R to select the item to

adjust.

• The selected item is highlighted.

To adjust the projected image while watching it

Press iENTER.

• The selected item (e.g. “Bright”) is displayed by itself at the bottom of the screen.

• When pressing P or R, the following item (“Color” after “Bright”) will be displayed.

The item displayed by itself

Items to be adjusted

• Press iENTER again to return to the pre-

vious screen.

Press O or Q to adjust the item se-

lected.

• The adjustment is stored.

Press MENU.

• The menu screen will disappear.

• The MENU button does not function while the projector is operating the “Auto Sync” or “FREEZE”

functions.

Picture Adjustment (“Picture” menu)

Picture Comp. 1

Picture Mode Contrast 0

0 0 0

Bright Color Tint

0 0

Sharp

Red Blue

Standard

Picture Mode

K7500

CLR Temp

BrilliantColor™ C. M. S. Progressive

3D Progressive

DNR

Level 1

IRIS

WIDE

Picture Comp. 1

Reset

Standard

Lamp Setting

Normal

Note

Menu operation = Page 41

Q PAGE 2Q PAGE 1

1 1

1 Selecting the Picture Mode

1 1

Selectable

items

Standard

Natural

Dynamic

Theater 1

Description

For standard image

A balanced color image is obtained.

A vivid image is obtained.

Makes the black levels of the dark portions of the screen

The default settings of each item when selecting Picture Mode

CLR Temp

6500K

BrilliantColor™

IRIS

WIDE

more pronounced and vivid.

Theater 2

Memory

Reduces glare and creates a subdued tone.

Allows you to store your picture adjustment settings. The settings

6500K

MEDIUM

WIDE

stored effect each input mode.

•

You can set or adjust each item in the “Picture” menu to your preference. Any changes you make are retained in memory.

• You can also press k PICTURE MODE on the remote control to select the picture mode. (See

page 38.)

2 Adjusting the Image

Adjustment items

Contrast

Bright

Color*

Tint*

Sharp*

Red

Blue

BrilliantColor™*

*1Item that cannot be adjusted in RGB mode.

BrilliantColor™ uses Texas Instruments' BrilliantColor™ technology. As the BrilliantColor™ level is increased,

the image becomes brighter while the color reproduction is kept at a high level.

• To reset all adjustment items, select “Reset” and press iENTER. The Picture Mode set-

tings of the selected input return to the default settings.

For less contrast.

For less brightness.

For less color intensity.

For making skin tones purplish.

For less sharpness.

For weaker red.

For weaker blue.

For making the effect weaker.

O button

For more contrast.

For more brightness.

For more color intensity.

For making skin tones greenish.

For more sharpness.

For stronger red.

For stronger blue.

For making the effect stronger.

Q button

Lamp Setting

Normal

Eco

Normal

Features

Useful

Picture Adjustment (“Picture” menu) (Continued)

Note

Info

Menu operation = Page 41

3 Adjusting the Color

Temperature

Selectable

items

5500K 6500K 7500K 8500K 9300K 10500K

• Values on “CLR Temp” are only for general standard purposes.

For lower color temperature for warmer, reddish incandescent-like images.

For higher color temperature for cooler, bluish, fluorescent-like images.

Description

P R

• When “Saturation” is selected, the selected color becomes O: lighter. Q: thicker.

• When “Value” is selected, the selected color becomes O: darker. Q: brighter.

• To reset the adjustment values of each color to the default settings, select “Reset” and press i ENTER.

• When a video signal, S-video signal, or component 480I/576I signal is input, set “Progressive” mode to “2D Progressive” and then adjust the colors.

5 Progressive

4 Adjusting the Colors

Select “C.M.S.” (Color Management System) in the “Picture” menu and then press i ENTER.

This function adjusts each of the six main colors that comprise the color wheel, altering their “Hue”, “Saturation”, or “Value”.

Selectable items

C.M.S.-Hue

C.M.S.-Saturation

C.M.S.-Value

Reset

Sets the hue of the main colors.

Sets the saturation of the main colors

Sets the brightness of the main colors.

The adjustments of “Hue”, “Saturation” and “Value” of all colors are reset to the default setting.

Description

Adjusting “Hue”, “Saturation”, or “Value”.

1Press P or R to select either “Hue”, “Saturation”, or

“Value” and then press i ENTER.

2Select the color to be adjusted with P or R and

adjust it with O or Q.

Example of adjusting the “Hue”

Main colors R (Red) Y (Yellow) G (Green) C (Cyan) B (Blue)

Magenta

M (

O button Closer to magenta Closer to red Closer to yellow Closer to green Closer to cyan

)

Closer to blue

Q button Closer to yellow Closer to green Closer to cyan Closer to blue Closer to magenta Closer to red

Selectable

items

2D Progressive

3D Progressive

Film Mode

* The film source is a digital video recording with the

original encoded as is at 24 frames/second. The projector can convert this film source to progressive video at 60 frames/second with NTSC and PAL60Hz or at 50 frames/second with PAL50Hz and SECAM to play back a high-definition image.

• In NTSC or PAL60Hz, even if the 3D Progressive mode has been set, the three-two pull down enhancement will be enabled automatically when the film source has been entered.

• When the image is blurred or noisy, switch to the optimal mode.

• When using progressive inputs, inputs are directly displayed so that 2D Progressive, 3D Progressive and Film Mode cannot be selected.

• The settings can be made either when S-Video or Video are selected or when Comp. 1, 2, RGB, or HDMI are selected and the input signal is 480I or 576I.

Useful to display fast-moving images such as sports.

Useful to display relatively slowmoving images such as drama and documentary more clearly.

Reproduces the image of film source* clearly. Displays the optimized image of film transformed with three-two pull down (NTSC and PAL60Hz) or two-two pull down (PAL50Hz and SECAM) enhancement to progressive mode images.

Description

Menu operation = Page 41

Note

IRIS

Note

6 Reducing Image Noise

(DNR)

Video digital noise reduction (DNR) provides high quality images with minimal dot crawl and cross color noise.

Selectable items

OFF

Level 1-3

Set “DNR” to “OFF” in the following cases:

• When the image is blurry.

• When the contours and colors of moving im-

ages drag.

• When TV broadcasts with weak signals are projected.

DNR does not function.

Sets the DNR level for viewing a clearer picture.

Description

7 Switching the Iris

Setting

This function controls the quantity of the projected light and the contrast of the image.

Selectable items

WIDE

MEDIUM

NARROW

• You can also use trol to change the Iris. (See page 38.)

8 Lamp Setting

Select-

Bright-

able

ness

items

100%

Normal

Approx.

Eco

87%

High brightness is given priority over high contrast.

Intermediate mode between high contrast and high brightness.

High contrast is given priority over high brightness.

Fan

sound

Normal

Low

Description

IRIS on the remote con-

Power

consumption

(When using

AC 100V)

355W

310W

Lamp Life

Approx.

2,000 hours

Approx.

3,000 hours

• When “Lamp Setting” is set to “Eco”, the power consumption will decrease and the lamp life will extend. (Projection brightness decreases approximately 13%.)

Features

Useful

SYNC

Note

Computer Image Adjustment

Clock Phase

0 0 0 0

H-Pos V-Pos

Special Modes

Cur. sig. freq : H 33.8 kHz / V 60 Hz

Auto Sync

1080I

Fine Sync RGB

Reset

SYNC

Note

(“Fine Sync” menu)

2 Special Modes Setting

Ordinarily, the type of input signal is detected and the correct resolution mode is automatically selected. However, for some signals, the optimal resolution mode in “Special Modes” in the “Fine Sync” menu may need to be selected to match the computer display mode.

1 Adjusting the

Computer Image

Use the Fine Sync function in case of irregularities such as vertical stripes or flickering in portions of the screen.

Selectable items

Clock

Phase

H-Pos

V-Pos

Adjusts vertical noise.

Adjusts horizontal noise (similar to tracking on your VCR).

Centers the on-screen image by moving it to the left or right.

Centers the on-screen image by moving it up or down.

Description

• Avoid displaying computer patterns which repeat every other line (horizontal stripes). (Flickering may occur, making the image hard to see.)

• Information on the currently selected input signal can be confirmed in item 4.

3 Auto Sync (Auto Sync

Selectable items

Off

Menu operation = Page 41

Adjustment)

Auto Sync adjustment will occur when the projector is turned on or when the input signals are switched, when connected to a computer.

Auto Sync adjustment is not automatically performed.

Description

• You can automatically adjust the computer image by setting “Auto Sync” in the “ Fine

Sync” menu to “On” or pressing SYNC on the remote control.

•“Clock”, “Phase”, “H-Pos” and “V-Pos” cannot be adjusted when HDMI is selected.

• The adjustable area of each item may be changed according to the input signal.

• To reset all adjustment items, select “Reset” and press i ENTER.

AUTO

• Auto Sync adjustment is also performed by pressing

trol.

• The Auto Sync adjustment may take some time to complete, depending on the image of the computer connected to the projector.

• When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments.

4 Checking the Input

AUTO SYNC on the remote con-

Signal

This function allows you to check the current input signal information.

Using the “Options” Menu

Image Shift Overscan H Overscan V

Subtitle

OSD Display

Options 1 Comp. 1

h0Lamp Timer(Life) 100%

Video System

Auto

Signal Type

Auto

HDMI Setting

Normal

Background

Blue

Auto Power Off

1 2

4 5 6 7 8 9 0

Note

Menu operation = Page 41

Adjusting the Overscan

This function allows you to adjust the Overscan area ratio (display area ratio).

Settings on the Options 1 menu

1 Adjusting the Image

Position

You can move the projected image vertically.

O button

• The Image Shift function cannot be selected when “Aspect” is set to “THROUGH”.

• You can also use the IMAGE SHIFT buttons on the remote control to adjust the image position.

Q button

Orientation

Overscan H (Horizontal)

Overscan V (Vertical)

• This function can only be adjusted when a video, S-video, or Component signal is input.

• If the display area ratio is set too large, noise may appear at the screen edges. If this happens, set the display area ratio to a smaller value.

• When “Aspect” is set to “ZOOM”, depending on the input signal, “Overscan V” may not be adjustable.

• Also read “About Copyrights” on page 37.

O button

Reduces the image. (The display area ratio becomes larger.)

Q button

Enlarges the image. (The display area ratio becomes smaller.)

Adjusting the Vertical Size of the Display (Subtitle Setting)

With this function, you can adjust the vertical size of the display to allow for subtitles.

O button

Q button

•

When changing the screen with the Subtitle setting, not only the bottom of the screen rises, but also the upper part is changed to a certain point.

• The Subtitle setting can be adjusted more effectively with the Overscan and Image Shift functions.

• The Subtitle setting only works when “Aspect” is set to “ZOOM”.

• The adjustment area changes according to the input signal.

The image is compressed by adjusting the vertical size of the display.

The image is enlarged by adjusting the vertical size of the display.

Features

Useful

Using the “Options” Menu (Continued)

R/C

Note

Menu operation = Page 41

Setting On-screen Display

Selectable

items

Off

All On-screen Displays are displayed.

INPUT/FREEZE/AUTO SYNC/ASPECT/ PICTURE MODE/IRIS are not displayed.

Setting the Video

Description

System

This function can only be set in S-Video or Video.

The video input system mode is factory preset to “Auto”;however, a clear picture from the connected audio-visual equipment may not be received, depending on the video signal difference. In that case, switch the video signal.

Selectable items

PA L

SECAM

NTSC4.43

NTSC3.58

When connected to PAL video equipment.

When connected to SECAM video equipment.

When reproducing NTSC signals in PAL video equipment.

When connected to NTSC video equipment.

Description

6 Signal Type Setting

This function allows you to select the input signal type (RGB or Component) for RGB or HDMI.

Selectable items

Auto

RGB

Component

• You can also select “Signal Type” using RGB/COMP. on the remote control (RGB or HDMI).

Selecting the HDMI Setting

When there is an HDMI-capable device connected to HDMI, an optimum picture may not be displayed if the device’s output signal type and the projector’s input signal type do not match. If this should occur, switch the HDMI Setting.

Selectable items

Normal

Expand

Automatically selects the appropriate input signal between RGB and Component.

Set when RGB signals are received.

Set when component signals are received.

When the black levels of the image show banding or appear faded, select the option that results in the best picture quality. (In most circumstances, “Normal” should be selected.)

Description

• The HDMI Setting can be selected only when HDMI is selected.

Selecting the Background


Selectable items

Blue

None

Blue screen

— (Black screen)

Description

Options 2 Comp. 1

STANDBY Mode

Eco

Fan Mode

Normal

RS-232C

9600 bps

Installation

Front

All Reset

Language

English

Note

9 Auto Power Off

Function

Menu operation = Page 41

Selectable

items

Off

• When the Auto Power Off function is set to “On”, 5 minutes before the projector enters

standby mode, the message “Enter STANDBY mode in X min.” will appear on the screen to indicate the remaining minutes.

0 Checking the Lamp Life

When no input signal is detected for more than 15 minutes, the projector will automatically enter standby mode.

The Auto Power Off function will be disabled.

Description

Status

You can confirm the cumulative lamp usage time and the remaining lamp life (percentage).

Lamp usage condition

“Life”

Operated exclusively with Lamp Setting set to “Eco”

Operated exclusively with Lamp Setting set to “Normal”

Remaining lamp life

100%

Approx. 3,000 hours

Approx. 2,000 hours

Approx. 150 hours

Approx. 100 hours

Settings on the Options 2 menu

1 Reversing/Inverting

Projected Images

Selectable items

Front

Ceiling + Front

Rear

Ceiling + Rear

See page 19 for details of Installation.

Normal image (Projected from the front of the screen)

Inverted image (Projected from the front of the screen with an inverted projector)

Reversed image (Projected from the rear of the screen or with a mirror)

Reversed and inverted image (Projected with a mirror)

Description

• It is recommended that the lamp be changed when the remaining lamp life becomes 5%.

• The lamp life may vary depending on the usage condition.

Features

Useful

Using the “Options” Menu (Continued)

Note

English Deutsch Español Nederlands Français Italiano

Svenska Português

Menu operation = Page 41

Selecting the Transmission

Speed (RS-232C)

Make sure that both the projector and computer are set for the same baud rate.

Selectable

items

9600bps

Transmission speed is slow.

Description

P R

115200bps

Transmission speed is rapid.

Reducing the Power Consumption When the Power Is in Standby Mode

When “STANDBY Mode” has been set to “Standard”, the RS-232C function is activated and power is consumed even in standby mode. It is recommended that “STANDBY Mode” be set to “Eco” when it is not being used. This reduces power consumption when the projector is in standby mode.

Selectable items

Standard

Eco

The RS-232C function is activated even if the projector is in standby mode.

The RS-232C function is switched off when the projector is in standby mode.

Description

4 Fan Mode Setting

This function changes the fan rotation speed.

Selectable

items

Normal

High

When “Fan Mode” is set to “High”, the fan rotation speeds up, and the fan noise becomes louder.

Suitable for normal environments.

Select this when using the projector at altitudes of approximately 4,900 feet (1,500 meters) or more.

Returning to the Default

Description

Settings

Use “All Reset” to initialize all the adjustments you have made to the default settings.

The following items cannot be initialized.

•“Fine Sync” menu – Special Modes

•“Options1” menu – Lamp Timer (Life) – Language

Selecting the On-screen

Display Language

The projector can switch the on-screen display language among 11 languages.

• When you want to control the projector using the RS-232C function, set to “Standard”.

Maintenance

Info

Cleaning the projector

■ Ensure that you have unplugged the power cord before cleaning the projector.

■ The cabinet as well as the operation panel is made of plastic. Avoid using benzene or thinner, as these can damage the finish on the cabinet.

■ Do not use volatile agents such as insecticides on the projector. Do not attach rubber or plastic items to the projector for long periods. The effects of some of the agents in the plastic may cause damage to the quality or finish of the projector.

■ Wipe off dirt gently with a soft flannel cloth.

■ When the dirt is hard to remove, soak a cloth in

a mild detergent diluted with water, wring the cloth well and then wipe the projector. Strong cleaning detergents may discolor, warp or damage the coating on the projector. Make sure to test on a small, inconspicuous area on the projector before use.

Mild detergent

Mild detergent diluted

with water

Cleaning the lens

■ Use a commercially available blower or lens cleaning paper (for glasses and camera lenses) for cleaning the lens. Do not use any liquid type cleaning agents, as they may wear off the coating film on the surface of the lens.

■ As the surface of the lens can easily get damaged, be sure not to scrape or hit the lens.

Cleaning the exhaust and intake vents

■ Use a vacuum cleaner to clean dust from the exhaust vent and the intake vent.

Thinner

Wax

Appendix

• If you want to clean the air vents during projector operation, be sure to press / I

STANDBY/ON on the projector or aSTANDBY on the remote control and put the projector into standby mode. After the cooling fan has stopped, clean the vents.

Maintenance Indicators

ASPECT

ENTER

INPUT

STANDBY/ON LAMP TEMP.

■ The warning lights (power indicator, lamp indicator and temperature warning indicator) on the projector indicate problems inside the projector.

■ If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate red, and the projector will enter standby mode. After the projector has entered standby mode, follow the procedures given below.

Top View

About the temperature warning indicator

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, “ ” will illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will turn off and the temperature warning indicator will blink, the cooling fan will run, and then the projector will enter standby mode. After “ ” appears, be sure to perform the measures described on page

53.

About the lamp indicator

Temperature warning indicator

Lamp indicator

Power indicator

■ When the remaining lamp life becomes 5% or less, (yellow) and “Change The Lamp” will be displayed on the screen. When the percentage becomes 0%, it will change to (red), the lamp will automatically turn off and then the projector will automatically enter standby mode. At this time, the lamp indicator will illuminate in red.

■ If you try to turn on the projector a fourth time without replacing the lamp, the projector will not turn on.

Indicators on the Projector

Power indicator

Lamp indicator

Red on

Green on

Red blinks Green blinks

Green on

Green blinks

Red on

Normal (Standby)

Normal (Power on)

Abnormal (See page 53.) Normal (Cooling)

Normal

The lamp is warming up or shutting down.

The lamp is shut down abnormally or requires to be changed. (See page 53.)

Temperature warning indicator

Off

Red on

Normal

The internal temperature is abnormally high. (See page 53.)

Maintenance indicator

Info

Tempera-

ture

warning

indicator

Lamp

indicator

Power

indicator

Green on

when the

warming

Green on/

(Cooling)

Normal

Off

(Green

blinks

lamp is

up or

turning

off.)

Red on

Green blinks

Abnormal

Red on

(Standby)

Red on

(Standby)

Red

blinks

Problem

The internal temperature is abnormally high.

The lamp does not illuminate.

Time to change the lamp.

The lamp does not illuminate.

The power indicator blinks in red when the projector is on.

Cause

• Blocked air intake

• Cooling fan

breakdown

• Internal circuit failure

• Clogged air intake

• The lamp is shut

down abnormally.

• Remaining lamp life becomes 5% or less.

• Burnt-out lamp

• Lamp circuit failure

• The lamp unit cover

is open.

Possible Solution

• Relocate the projector to an area with proper ventilation. (see page 8)

• Take the projector to your nearest Marantz Authorized Dealer or Service Center for repair.

• Disconnect the power cord from the AC outlet, and then connect it again.

• Carefully replace the lamp. (See page 55.)

• Take the projector to your nearest Marantz Authorized Dealer or Service Center for repair.

• Please exercise care when replacing the lamp.

• Securely install the cover.

• If the power indicator blinks

in red even when the lamp unit cover is securely installed, contact your nearest Marantz Authorized Dealer or Service Center for advice.

• If the temperature warning indicator illuminates, and the projector enters standby mode, follow the possible solutions above and then wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 10 minutes.)

• If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.

• The cooling fan keeps the internal temperature of the projector constant and this function is controlled automatically. The sound of the cooling fan may change during operation because the fan speed may change and this is not a malfunction.

• Do not unplug the power cord after the projector has entered standby mode and while the cooling fan is running. The cooling fan runs for about 90 seconds.

Appendix

Regarding the Lamp

Lamp

■ It is recommended that the lamp (sold separately) be replaced when the remaining lamp life becomes 5% or less, or when you notice a significant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display. (see page 49)

■ Purchase a replacement lamp of type LU4001VP from your place of purchase, nearest Marantz Authorized Dealer or Service Center.

Caution Concerning the Lamp

■ This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking.

■ When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.

■ Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest Marantz Authorized Dealer or Service Center to assure safe operation.

■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.

Replacing the Lamp

• Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn or injury.

■ Carefully change the lamp by following the instructions described in this section. * If you wish, you may have the lamp replaced at your nearest Marantz Authorized Dealer or Service Center.

* If the new lamp does not light after replacement, take your projector to the nearest Marantz Authorized

Dealer or Service Center.

Removing and Installing the

Info

Lamp Unit

Warning!

• The lamp unit becomes very hot while the projector is operating. Do not remove the lamp unit from the projector right after use. The lamp and parts around the lamp will be very hot and may cause burns or injury.

• Make sure that you remove the lamp unit by

the handle. Do not touch the glass surface of the lamp unit or the inside of the projector.

• To avoid injury to yourself and damage to the

lamp, be sure to carefully follow the steps below.

• Do not loosen other screws except for the

lamp unit cover and lamp unit.

Press / I STANDBY/ON on the projector or aSTANDBY on the remote control to put the projector into standby mode.

• Wait until the cooling fan stops.

Disconnect the power cord.

• Unplug the power cord from the AC socket.

• Leave the lamp until it has fully cooled down (about 1 hour).

Optional

accessory

AC socket

Lamp unit LU4001VP

/ I STANDBY/ON button

Remove the lamp unit cover.

• Turn the projector over. Loosen the user service screw (q) that secures the lamp unit cover. Remove the lamp unit cover (w).

User service screw (for lamp unit cover)

Appendix

Regarding the Lamp (Continued)

Info

ASPECT

ENTER

INPUT

STANDBY/ON LAMP TEMP.

Remove the lamp unit.

• Loosen the securing screws from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

Insert the new lamp unit.

• Press the lamp unit firmly into the lamp unit compartment. Fasten the securing screws.

Replace the lamp unit cover.

• Align the tab on the lamp unit cover (q) and place it while pressing the tab (w) to close it. Then tighten the user service screw to secure the lamp unit cover.

• If the lamp unit and lamp unit cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector.

Handle

Securing screws

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.

• Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.

Connect the power cord.

• Plug the power cord into the AC socket of the projector.

Reset the lamp timer.

• While simultaneously holding down

MENU, ENTER and R on the projector, press / I STANDBY/ON on the pro-

jector.

•“LAMP 0000H” is displayed, indicating that the lamp timer is reset.

AC socket

/ I STANDBY/

ON button

ENTER button

MENU button

R button

Connecting Pin Assignments

Note

COMPUTER-RGB/COMPONENT RGB Terminal: 15-pin Mini D-sub female connector

COMPUTER-RGB Input

1. Video input (red)

2. Video input (green/sync on green)

3. Video input (blue)

4. Not connected

5. Not connected

6. Earth (red)

7. Earth (green/sync on green)

8. Earth (blue)

9. Not connected

10. GND

11. Not connected

12. Bi-directional data

13. Horizontal sync signal: TTL level

14. Vertical sync signal: TTL level

15. Data clock

RS-232C Terminal: 9-pin Mini DIN female connector

Pin No.

RS-232C Terminal: 9-pin D-sub male connector of the DIN-D-sub RS-232C adaptor (Supplied accessory)

RS-232C Cable recommended connection: 9-pin D-sub female connector

Signal Name

Signal NamePin No.

SignalPin No.

RD SD

RS CS

RD SD

RS CS

CD RD SD ER SG DR RS CS CI

Receive Data Send Data

Signal Ground

Request to Send Clear to Send

Receive Data Send Data

Signal Ground

Request to Send Clear to Send

I/O Reference

Input Output

I/O Reference

Input Output

Component Input

1. PR (CR)

2. Y

3. P

4. Not connected

5. Not connected

6. Earth (P

7. Earth (Y)

8. Earth (PB)

9. Not connected

10. Not connected

11. Not connected

12. Not connected

13. Not connected

14. Not connected

15. Not connected

Not connected Connected to internal circuit Connected to internal circuit Not connected Connected to internal circuit Not connected Connected to CS in internal circuit Connected to RS in internal circuit Not connected

SignalPin No.

CD RD SD ER SG DR RS CS CI

B (CB)

• Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the controlling device (e.g. computer).

Projector

Pin No.

4 5 6

Computer

Pin No.

4 5 6

Appendix

Info

Note

Power Off Power On Comp. 1 Comp. 2 S-Video Video RGB HDMI

OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR

P P

I I I I I I

O O V V V V R R

W W E E E E G G

R R D D D D B B

_ _ _ _ _ _ _ _

0 1 1 2 3 4 1 2

CONTROL CONTENTS

COMMAND PARAMETER

RETURN

119

218

Connecting Pin Assignments (Continued)

HDMI Terminal

NamePin No.

TMDS Data2+

TMDS Data2 Shield

TMDS Data2-

TMDS Data1+

TMDS Data1 Shield

TMDS Data1-

TMDS Data0+

NamePin No.

TMDS Data0 Shield

8. TMDS Data0-

9. TMDS Clock+

10. TMDS Clock Shield

11. TMDS Clock-

12. CEC

13.

NamePin No.

Reserved

14. SCL

15. SDA

16. DDC/CEC Ground

17. +5V Power

18. Hot Plug Detect

19.

RS-232C Specifications and Command Settings

Computer control

A computer can be used to control the projector by connecting an RS-232C serial control cable (cross type, sold separately) to the projector. (See page 27 for connection.)

Communication conditions

Set the serial port settings of the computer to match that of the table. Signal format: Conforms to RS-232C standard. Parity bit: None Baud rate: * 9,600 bps/115,200 bps Stop bit: 1 bit Data length: 8 bits Flow control: None * Set the projector's baud rate to the same rate as used by the computer.

Basic format

Commands from the computer are sent in the following order: command, parameter, and return code. After the projector processes the command from the computer, it sends a response code to the computer.

Command format

C1 C2 C3 C4 P1 P2 P3 P4

Command 4-digit Parameter 4-digit

Response code format

Normal response

Return code (0DH)

Problem response (communication error or incorrect command)

Return code (0DH)

ERR

Return code (0DH)

• When controlling the projector using RS-232C commands from a computer, wait for at least 30 seconds after the power has been turned on, and then transmit the commands.

• When more than one code is being sent, send each command only after the response code for the previous command from the projector is verified.

Commands

Example: When turning on the

projector, make the following setting.

POWR _ 1__

→ ←

• If an underbar (_) appears in the parameter column, enter a space.

ProjectorComputer

Computer Compatibility Chart

27.0

31.5

37.5

27.0

31.5

37.9

27.0

31.5

27.0

31.5

37.9

26.2

31.5

34.7

37.9

37.5

43.3

31.4

35.1

37.9

46.6

48.1

46.9

53.7

40.3

48.4

56.5

60.0

45.0

47.8

34.9

37.8

49.7

60.2

60 70 85 60 70 85 60 70 60 70 85 50 60 70 72 75 85 50 56 60 70 72 75 85 50 60 70 75 60 60 67 60 75 75

640 × 350

640 × 400

720 × 350

720 × 400

640 × 480

800 × 600

1,024 × 768

1,280 × 720 1,280 × 768

640 × 480 800 × 600 832 × 624

1,024 × 768

VGA

SVGA

XGA

—

VGA

XGA

✔

PC/MAC

MAC 13"

MAC 16"

✔

✔ ✔ ✔

✔ ✔

✔ ✔ ✔

MAC 19"

SVGA

Note

Computer

• Multiple signal support Horizontal Frequency: 15-70 kHz, Vertical Frequency: 45-85 Hz, Pixel Clock: 12-85 MHz Sync signal: Compatible with TTL level

The following is a list of modes that conform to VESA. However, this projector suppor ts other signals that are not VESA standards.

Resolution

Horizontal Frequency

(kHz)

• Compatible with sync on green signal

• Expansion System resizing technology

Vertical Frequency

(Hz)

VESA

Standard

HDMI

Support

Display

Upscale

Tru e

• When this projector receives 640×350 VESA format VGA signals, “640×400” appears on the screen.

Horizontal Frequency (kHz)

15.7

31.5

33.8

15.6

31.3

37.5

45.0

28.1

33.8

28.1

33.8

DTV

Signal

480I

480P

540P

576I

576P

720P

1035I

1080I

Vertical Frequency (Hz)

HDMI Support

✓

Upscale

Tru e

Appendix

Troubleshooting

Problem

Picure does not appear

or projector does not

start.

No picture appears (or

picture is dark).

Color is faded or poor.

Picture is blurred;

noise appears.

Picture is green on RGB

(Component)/HDMI

(Component).

Picture is pink (no green)

on RGB (RGB)/HDMI

(RGB).

An unusual sound is

occasionally heard from

the cabinet.

Maintenance indicator on

the projector illuminates

or blinks in red.

Check

• Projector power cord is not plugged into the wall outlet.

• Power to the external connected devices is off.

• The selected input mode is wrong.

• Cables incorrectly connected to the projector.

• Remote control battery has run out.

• External output has not been set when connecting notebook

computer.

• The lamp unit cover is not installed correctly.

• Cables incorrectly connected to the projector.

•“Bright” is set to minimum position.

• Depending on the computer you are using, an image may not be

projected unless the signal output setting of the computer is switched to the external output. Refer to the computer’s user guide for how to switch its signal output settings.

• Image adjustments are incorrectly set.

• Make adjustments to “Color”, “Tint” and “BrilliantColor™” in “Picture

Mode”.

(Video Input only)

• Video input system is incorrectly set.

• Adjust the focus.

• The projection distance exceeds the focus range.

• There is fog on the lens. If the projector is carried from a cold room

into a warm room, or if it is suddenly heated, condensation may form on the surface of the lens and the image will become blurred. Please set up the projector at least one hour before it is to be used. If condensation should form, remove the power cord from the wall outlet and wait for it to clear.

(Computer Input only)

• Perform “Fine Sync” Adjustments (“Clock” Adjustment)

• Perform “Fine Sync” Adjustments (“Phase” Adjustment)

• Noise may appear depending on the computer.

• Select “Signal Type” in the “Options1” menu and change the input

signal type.

• If the picture is normal, the sound is due to cabinet shrinkage caused by room temperature changes. This will not affect operation or performance.

• See “Maintenance Indicators”.

Page

–

23–27

55, 56

23–27

–

Problem

Picture is too bright and

whitish.

The black levels of the

image show banding or

appear faded when

HDMI is selected.

The cooling fan becomes

The lamp suddenly turns

This unit is equipped with a microprocessor. Its performance could be adversely affected by incorrect operation or interference. If this should happen, unplug the Unit and plug it in again after more than 5 minutes.

noisy.

The lamp does not light

up even after the

projector turns on.

off during projection.

The image sometimes

flickers.

The lamp needs much

time to turn on.

Picture is dark.

The remote control

cannot be used.

• Image adjustments are incorrectly set.

• Select the HDMI Setting (“Normal” or “Expand”) that results in the

best picture quality.

• When temperature inside the projector increases, the cooling fan runs faster.

• The lamp indicator is illuminating in red. Replace the lamp.

• Cables incorrectly connected to the projector or the connected equipment works improperly.

• If this happens frequently, replace the lamp.

• The lamp will eventually need to be changed.

While the remaining lamp life draws to a close, replace the lamp.

• Operate the remote control while pointing it at the projector’s remote control sensor.

• The remote control may be too far away from the projector.

• If direct sunlight or a strong fluorescent light is shining on the

projector’s remote control sensor, place the projector where it will not be affected by strong light.

• The batteries may be depleted or inserted incorrectly. Make sure the batteries are inserted correctly or insert new ones.

Check

Page

–

52, 55

23-27

Appendix

Specifications

Product type

Model

Video system

Display method

Projection lamp

Component input signal

S-video input signal

Video input signal

Computer RGB/

Component input signal

HDMI input signal

Horizontal resolution

Vertical frequency

Horizontal frequency

RS-232C terminal

TRIGGER terminal

Rated frequency

Power consumption

Power consumption (standby)

Heat dissipation

Operating temperature

Storage temperature

I/R carrier frequency

Dimensions (approx.)

Weight (approx.)

chip

DLP

Lens

(Comp. 1/2)

(S-Video)

(Video)

(RGB)

(HDMI)

Pixel clock

Rated voltage

Input current

Cabinet

Projector VP4001 NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL-60/SECAM/DTV480I/DTV480P/ DTV540P/DTV576I/DTV576P/DTV720P/DTV1035I/DTV1080I/DTV1080I-50 DLP® Single Chip by Texas Instruments Panel size: 0.65 Drive method: Digital Light Processing (DLP®) No. of dots: 983,040 dots (1280 [H] × 768 [V]) 1–1.15 × zoom lens, F2.4–2.6, f = 19.0–21.9 mm 275 W DC lamp RCA connector Y: 1.0 Vp-p, sync negative, 75 Ω terminated

(CB): 0.7 Vp-p, 75 Ω terminated

PR (CR): 0.7 Vp-p, 75 Ω terminated 4-pin mini DIN connector Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated RCA connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ω terminated 15-pin mini D-sub connector RGB separate/sync on green type analog input: 0–0.7 Vp-p, positive, 75 Ω terminated HORIZONTAL SYNC. SIGNAL: TTL level (positive/negative) VERTICAL SYNC. SIGNAL: Same as above HDMI terminal (video signal only)

720 TV lines (DTV720P) 45–85 Hz 15–70 kHz 12–85 MHz 9-pin mini DIN connector Power jack: DC 12V output AC 100–240 V

3.7 A 50/60 Hz 355 W (Lamp Setting “Normal”)/ 310 W (Lamp Setting “Eco”) 340 W (Lamp Setting “Normal”)/ 300 W (Lamp Setting “Eco”) 4 W (AC 100 V) – 5 W (AC 240 V)* 1,335 BTU/hour (Lamp Setting “Normal”)/ 1,165 BTU/hour (Lamp Setting “Eco”) with AC 100 V 1,280 BTU/hour (Lamp Setting “Normal”)/ 1,130 BTU/hour (Lamp Setting “Eco”) with AC 240 V 41°F to 95°F (+5°C to +35°C) –4°F to 140°F (–20°C to +60°C) Plastic 38 kHz 12 13/32o × 4 19/64o × 11 1/32o (315 (W) × 109 (H) × 280 (D) mm) (main body only) 12 13/32o × 4 47/64o × 11 37/64o (315 (W) × 120 (H) × 294 (D) mm) (including adjustment foot and projecting parts)

9.1 lbs. (4.1 kg)

with AC 100 V

with AC 240 V

*1 When STANDBY Mode is set to “Eco”

As a part of policy of continuous improvement, Marantz reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Dimensions

ASPECT

ENTER

INPUT

STANDBY/ON LAMP TEMP.

12 13/32 (315)

/16 (77.5)

/32

(65.5)

/64

(46.2)

/32 (80)

/64 (47)

/8 (73)

2 61/64

(75)

/32 (33.8)

/64 (109)

/8 (47.5) 4

/64 (104)

/16 (11)

/32 (280)

/64 (9)

/64 (5)

/16 (11)

ø9 7/64 (69.2)

Units: inches (mm)

Appendix

Index

AC socket ....................................................... 28

Accessories ................................................... 10

Adjustment buttons ........................................ 41

Aspect ..................................................... 36, 37

ASPECT button ............................................. 36

Aspect ratio .................................................... 36

Auto Power Off............................................... 49

Auto Sync

(Auto Sync adjustment) .............................. 46

AUTO SYNC button.......................................46

Background....................................................48

Backlight button .............................................13

Blue ................................................................ 43

Bright .............................................................43

BrilliantColor™............................................... 43

Checking the Input Signal .............................46

Clock ..............................................................46

CLR Temp (Color Temperature) .................... 44

C.M.S. ............................................................44

Color .............................................................. 43

COMPONENT 1 terminal .............................. 23

COMPONENT 2 terminal .............................. 23

Contrast ......................................................... 43

DNR ............................................................... 45

ENTER button ............................................... 41

Exhaust vent ........................................... 12, 51

Fan Mode.......................................................50

Fine Sync ....................................................... 46

Focus ring ......................................................30

FREEZE button ............................................. 38

FULL ....................................................... 36, 37

GEOMETRIC ADJUSTMENT ....................... 34

H & V KEYSTONE ......................................... 35

HDMI Setting ................................................. 48

HDMI terminal ................................................ 25

H-Pos .............................................................46

HEIGHT ADJUST lever ................................. 30

Hue ................................................................44

Image Shift ....................................................47

IMAGE SHIFT buttons ................................... 38

INPUT modes ................................................29

INPUT buttons ...............................................29

Installation .............................................. 19, 49

Intake vent ........................................ 11, 12, 51

IRIS button ..................................................... 38

Kensington Security

Standard connector ............................. 12, 13

KEYSTONE button ........................................ 32

Keystone Correction ......................................32

Lamp ....................................................... 10, 54

Lamp indicator ...............................................52

Lamp Setting .................................................45

Lamp Timer (Life) ..........................................49

Lamp unit .......................................................55

Language (on-screen display language) ...... 50

Lens cap ........................................................11

MENU button ................................................ 41

NORMAL ................................................ 36, 37

ON button ...................................................... 28

Optional accessories .....................................10

OSD Display ..................................................48

Overscan ....................................................... 47

Phase ............................................................. 46

Picture Adjustment ........................................43

Picture Mode .......................................... 38, 43

PICTURE MODE button ................................38

Picture (Screen) Size and Projection Distance .......

Power cord.....................................................28

Progressive .................................................... 44

R-03 batteries ................................................14

Rear adjustment foot .....................................31

Red ................................................................43

Remote control ..............................................13

Remote control sensor ..................................15

Replacing the lamp ................................. 54, 55

RETURN button ............................................. 41

RGB terminal .......................................... 25, 26

RGB/COMP. button ........................................ 48

RS-232C Setting............................................50

RS-232C terminal ..........................................27

Saturation ...................................................... 44

Sharp ............................................................. 43

Special Modes ...............................................46

STANDBY button ...........................................29

STANDBY/ON button ............................. 28, 29

STANDBY Mode ............................................ 50

Subtitle ........................................................... 47

Supplied accessories .................................... 10

S-VIDEO terminal ..........................................24

Temperature warning indicator ......................52

THROUGH ..................................................... 37

Tint .................................................................43

TRIGGER terminal ........................................ 12

Value .............................................................. 44

Video System ................................................ 48

VIDEO terminal ............................................. 24

V-Pos .............................................................. 46

ZOOM ..................................................... 36, 37

Zoom ring ....................................................... 30
