Marantz VP-10S1 User Manual
Model VP-10S1 User Guide
DLP
TM
Projector
WARRANTY
For warranty information, contact your local Marantz distributor.
RETAIN YOUR PURCHASE RECEIPT
Your purchase receipt is your permanent record of a valuable
purchase. It should be kept in a safe place to be referred to as
necessary for insurance purposes or when corresponding with Marantz.
IMPORTANT
When seeking warranty service, it is the responsibility of the
consumer to establish proof and date of purchase. Your purchase
receipt or invoice is adequate for such proof.
FOR U.K. ONLY
This undertaking is in addition to a consumer’s statutory rights and
does not affect those rights in any way.
GARANTIE
Pour des informations sur la garantie, contacter le distributeur local
Marantz.
CONSERVER L’ATTESTATION D’ACHAT
L’attestation d’achat est la preuve permanente d’un achat de valeur. La
conserver en lieu sur pour s’y reporter aux fins d’obtention d’une
couverture d’assurance ou dans le cadre de correspondances avec
Marantz.
IMPORTANT
Pour l’obtention d’un service couvert par la garantie, il incombe au
client d’établir la preuve de l’achat et d’en corroborer la date. Le reçu
ou la facture constituent des preuves suffisantes.
GARANTIE
Bei Garantiefragen wenden Sie sich bitte an Ihren Marantz-Händler.
HEBEN SIE IHRE QUITTING GUT AUF
Die Quittung dient Ihnen als bleibende Unterlage für Ihren wertvollen
Einkauf Das Aufbewahren der Quittung ist wichtig, da die darin
enthaltenen Angaben für Versicherungswecke oder bei Korrespondenz
mit Marantz angeführt werden müssen.
WICHTIG!
Bei Garantiefragen muß der Kunde eine Kaufunterlage mit Kaufdatum
vorlegen. Ihren Quittung oder Rechnung ist als Unterlage ausreichend.
GARANZIA
L’apparecchio è coperto da una garanzia di buon funzionamento della
durata di un anno, o del periodo previsto dalla legge, a partire dalla
data di acquisto comprovata da un documento attestante il nominativo
del Rivenditore e la data di vendita. La garanzia sarà prestata con la
sostituzione o la riparazione gratuita delle parti difettose.
Non sono coperti da garanzia difetti derivanti da uso improprio,
errata installazione, manutenzione effettuata da personale non
autorizzato o, comunque, da circostanze che non possano riferirsi a
difetti di funzionamento dell’apparecchio. Sono inoltre esclusi dalla
garanzia gli interventi inerenti l’installazione e l’allacciamento agli
impianti di alimentazione.
Gli apparecchi verranno riparati presso i nostri Centri di Assistenza
Autorizzati. Le spese ed i rischi di trasporto sono a carico del cliente.
La casa costruttrice declina ogni responsabilità per danni diretti o
indiretti provocati dalla inosservanza delle prescrizioni di installazione,
uso e manutenzione dettagliate nel presente manuale o per guasti
dovuti ad uso continuato a fini professionali.
ITALIANO
DEUTSCH
FRANÇAIS
ENGLISH
English
WARNINGS
– Do not expose the equipment to rain or moisture.
– Do not remove the cover from the equipment.
– Do not insert anything into the equipment through the ventilation
holes.
– Do not handle the mains lead with wet hands.
– Do not cover the ventilation with any items such as tablecloths,
newspapers, curtains, etc.
– No naked flame sources, such as lighted candles, should be
placed on the equipment.
– When disposing of used batteries, please comply with
governmental regulations or environmental public instruction’s
rules that apply in your country or area.
– Do not place anything about 1 meter above the top panel.
– Make a space of about 0.2 meter around the unit.
Français
AVERTISSEMENTS
– Ne pas exposer l’appareil à la pluie ni à l’humidité.
– Ne pas essayer de retirer le boîtier de l’appareil.
– Ne rien insérer dans l’appareil par les orifices de ventilation.
– Ne pas manipuler le cordon d’alimentation avec les mains
mouillées.
– Ne pas recouvrir les ouïes de ventilation avec un objet
quelconque comme une nappe, un journal, un rideau, etc.
– Ne placer aucune source de flamme nue, comme une bougie
allumée, sur l'appareil.
– Pour mettre au rebut les piles usées, respecter les lois
gouvernementales ou les règlements officiels concernant
l’environnement qui s'appliquent à votre pays ou région.
– Ne placer aucun objet à moins d'un mètre environ du panneau
supérieur.
– Veiller à ce qu’aucun objet ne soit à moins de 0,2 mètre des côtés
de l'appareil.
Deutsch
WARNHINWEISE
– Das Gerät nicht Regen oder Feuchtigkeit aussetzen.
– Die Abdeckung nicht vom Gerät abnehmen.
– Keine Gegenstände durch die Belüftungsschlitze stecken.
– Das Netzkabel nicht mit feuchten oder nassen Händen
anfassen.
– Decken Sie die Lüftungsöffnungen nicht mit einem Tischtuch,
einer Zeitung, einem Vorhang usw. ab.
– Es dürfen keine Gegenstände mit offener Flamme, wie etwa
brennende Kerzen, auf dem Gerät aufgestellt werden.
– Beachten Sie bei der Entsorgung der verbrauchten Batterien
alle geltenden lokalen und überregionalen Regelungen.
– Darauf achten, daß über dem Gerät ein Freiraum von
mindestens 1 meter vorhanden ist.
– Auf allen Geräteseiten muß ein Zwischenraum von ungefähr
0,2 meter vorhanden sein.
Italiano
AVVERTENZE
– Non esporre l’apparecchio alla pioggia o all’umidità.
– Non rimuovere il coperchio dell’apparecchio.
– Non introdurre oggetti all’interno dell’apparecchio attraverso i
fori di ventilazione.
– Non toccare il cavo di alimentazione con le mani bagnate.
– Non coprire le fessure di ventilazione con tovaglie, giornali,
tende od oggetti analoghi.
– Non posare sull'apparecchio sorgenti di fiamme scoperte quali
candele accese.
– Smaltire le pile usate in conformità alle norme governative o
disposizioni ambientali vigenti nel proprio paese o zona.
– Non posare nulla per circa un metro sopra il pannello
superiore.
– Lasciare 0,2 metro liberi tutto intorno l'unità.
1
ENGLISH
FOREWORD
This section must be read carefully before any connection is
made to the mains supply.
EQUIPMENT MAINS WORKING SETTING
Your Marantz product has been prepared to comply with the
household power and safety requirements that exist in your
area.
VP-10S1 can be powered by 230V AC only.
COPYRIGHT
Recording and playback of some material may require
permission. For further information refer to the following:
- Copyright Act 1956
- Dramatic and Musical Performers Act 1958
- Performers Protection Acts 1963 and 1972
- Any subsequent statutory enactments and orders
WARNINGS
• When the projector is mounted on the ceiling, the Ceiling
Mount Kit approved by MARANTZ must be used for
installation.
• Do not look into the lens when the projector is turned on. It
could damage your eyesight.
• Unplug the projector from the wall outlet if it is not to be used
for a few days.
• When the switch is in the OFF position, the apparatus is NOT
disconnected from the AC supply mains.
• The socket-outlet shall be installed near the equipment and
shall be easily accessible.
Lamp Handling Precautions
DANGER
The P-VIP lamp is a high voltage glass mercury vapor lamp. The
lamp can break or fail to light if handled wrongly during replacement
or because of temperature in the room where the projector is being
used or stored.
Lamp life also varies according to the lamp with some even breaking
or burning out as soon as they are used the first time. If the lamp
breaks, glass fragments may be scattered inside the lamp unit and
projector, and mercury gas from the bulb may seep from the
projector’s vent.
Before use, carefully read the User Guide of the projector and the
Lamp Replacement Instructions. Remember to handle the lamp with
care. In the event of serious trouble, call for Marantz authorized dealer.
• Never look directly into the lamp with unprotected eyes while lit.
The bright light can cause sore eyes and impair vision.
• Never directly expose skin to the light of the lamp. Direct exposure
can inflame the skin.
• Do not drop, impact, subject to excessive force or otherwise
damage the lamp.
• Replacing the lamp runs the risk of burns and electric shock,
therefore shut off power supply, unplug the AC power cable from
its electrical outlet and wait at least 60 min for the lamp to cool
down before attempting to replace it.
• If the lamp breaks, unplug the AC power cable from its electrical
outlet and call for Marantz authorized dealer to replace it. Do not
replace the lamp yourself or clean up broken glass inside the
projector as this can result in cuts as well as scratching inside
the projector.
• If the projector is hung from a ceiling or installed in a high place,
it is extremely dangerous to replace the lamp. In this case, do
not replace or service the lamp yourself.
CAUTION
• The chance of the lamp breaking is high after extended use. It is
recommended to replace the lamp when near the end of its
designed life. Do not use a lamp beyond the maximum lighting
time.
• Use only Marantz original lamp units. Check the model code of
the lamp unit matches that in this User Guide.
• Before replacing the lamp, read carefully “Lamp Unit
Replacement” in this User Guide. Replace the lamp as explained
therein.
• Entrust disposal of a used lamp to a licensed industrial waste
handler or return it to the place of purchase. Do not break the
lamp or discard with general waste.
• If the lamp breaks, leave the area immediately and stay away for
at least 30 min, and ventilate the room so as not to inhale the
mercury vapor.
• If you inhale the mercury vapor, see a physician immediately.
2
ENGLISH
TABLE OF CONTENTS
PRECAUTIONS IN USE ............................................................................................................3
Precautions in Relocation......................................................................................................................3
Precautions in Installation .....................................................................................................................3
Precautions in Operation.......................................................................................................................3
Lamp Replacement Precautions ...........................................................................................................4
Lens Changes .......................................................................................................................................4
FEATURES ................................................................................................................................6
ACCESSORIES .........................................................................................................................7
NAMES AND FUNCTIONS OF PARTS.....................................................................................8
Front and Top........................................................................................................................................8
Rear and Terminals...............................................................................................................................9
Bottom ...................................................................................................................................................9
Remote Controller ...............................................................................................................................10
Remote Controller Operating Range...................................................................................................11
How to Load Batteries into the Remote Controller ..............................................................................11
INSTALLATION .......................................................................................................................12
How to Install.......................................................................................................................................12
Screen Size and Projection Distance (16:9 Screen) ...........................................................................13
Screen Size and Projection Distance (4:3 Screen) .............................................................................14
CONNECTIONS.......................................................................................................................15
Connecting the AC Power Cable.........................................................................................................15
Connecting to Video Equipment..........................................................................................................15
Connecting to an HD-Video, Satellite, Cable Tuner or PC..................................................................16
Connecting to a Home Theater System ..............................................................................................16
INITIAL SETTING ....................................................................................................................17
Activating the Power............................................................................................................................17
Focusing and Zooming........................................................................................................................17
Positioning the Projected Image..........................................................................................................18
Keystone Correction............................................................................................................................19
BASIC OPERATIONS .............................................................................................................20
Activating the Power............................................................................................................................20
Shutting Power OFF............................................................................................................................20
Selecting an Input signal .....................................................................................................................21
Selecting Aspect Mode........................................................................................................................21
When Using a 16:9 Screen .................................................................................................................22
When Using a 4:3 Screen ...................................................................................................................23
MENU OPERATIONS ..............................................................................................................24

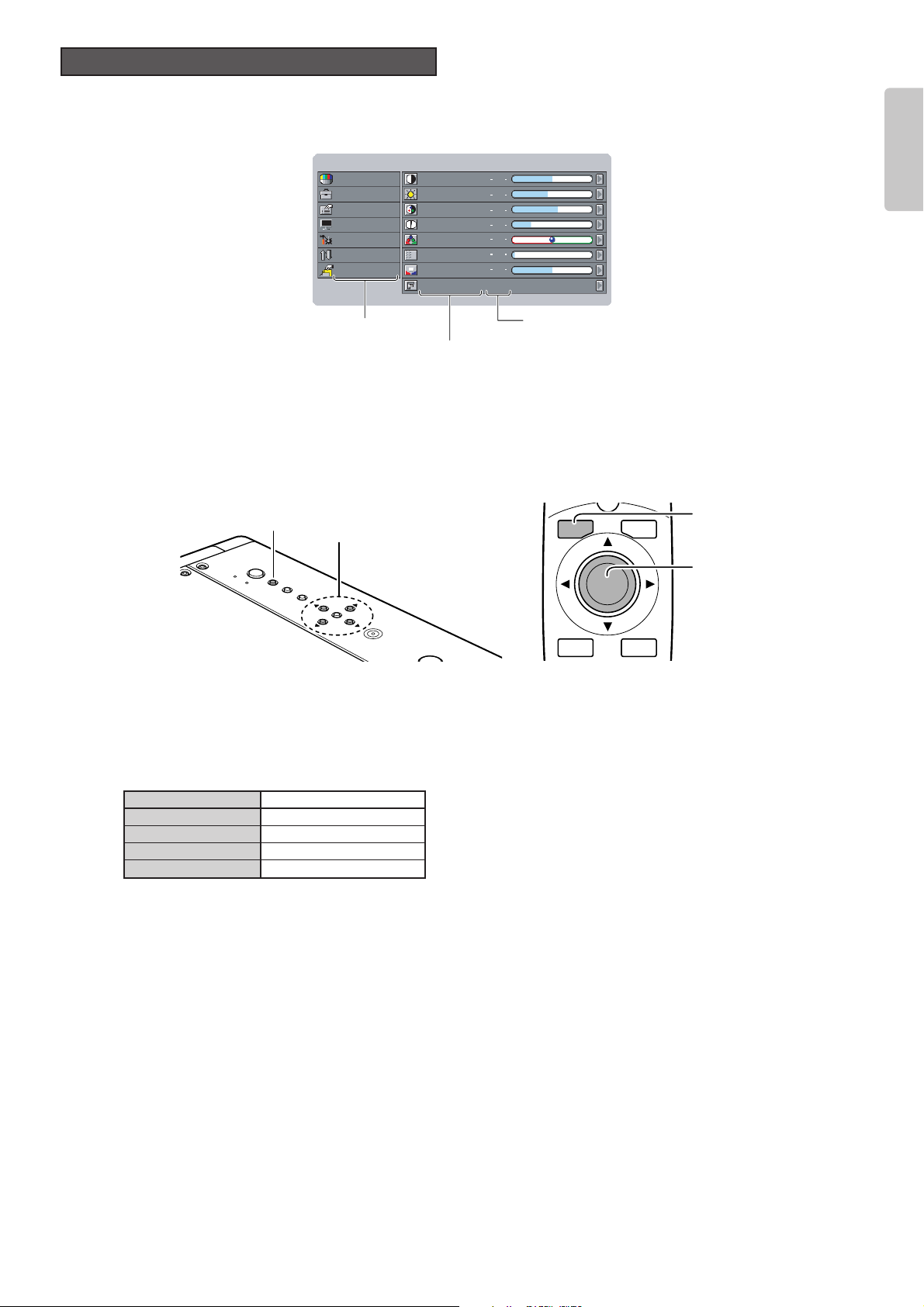

Menu Structure....................................................................................................................................24
How to Operate Menus .......................................................................................................................25

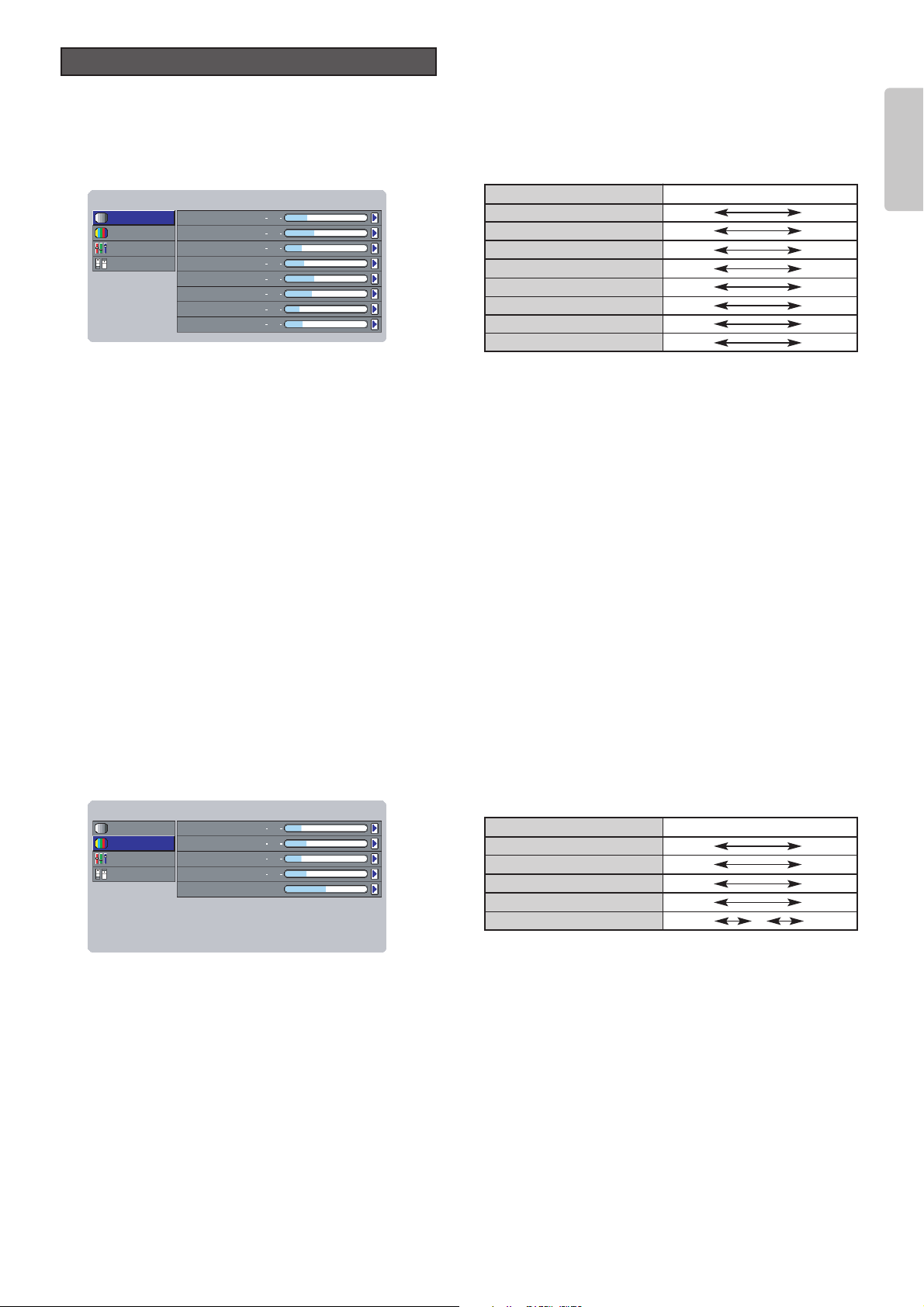

Picture Adjust ......................................................................................................................................26
Fine Menu ...........................................................................................................................................27
Setting .................................................................................................................................................29
System ................................................................................................................................................30
Display.................................................................................................................................................31
Configuration .......................................................................................................................................32
Trigger 2 ..............................................................................................................................................33
Preset ..................................................................................................................................................34
MAINTENANCE.......................................................................................................................35
Lamp Life and Replacement ...............................................................................................................35
Lamp Unit Replacement......................................................................................................................36
Color Temperature Adjustment ...........................................................................................................38
Lens Cleaning .....................................................................................................................................39
Replacement Parts..............................................................................................................................39
Optional Accessories...........................................................................................................................39
SPECIFICATIONS ...................................................................................................................40
GLOSSARY .............................................................................................................................41
TROUBLESHOOTING.............................................................................................................42
ERROR MODE.........................................................................................................................43
ON SCREEN MESSAGE .........................................................................................................43
DIMENSIONS...........................................................................................................................44
3
ENGLISH
• Hold the projector by the grooves in the bottom when
relocating. Work in group of 4 or more to carry the projector.
• Ensure sufficient space around the projector when
relocating the unit. Do not carry the projector through narrow
places, up/down stairs or anywhere that poses danger.
• Never drag or roll the projector when relocating the unit.
• Unplug the AC power cable and disconnect any other
cables from the projector before relocating the unit.
• If the projector is hung from a ceiling or installed in a high
place, do not detach and relocate the unit yourself.
Contact your nearest Marantz Authorized Dealer or
Service Center.
• This projector is heavy. Use due caution not to drop it or
strain your back when lifting the unit.
• If installing the projector on a flat surface, select a location
that is level, stable and sturdy enough to support the
projector’s weight.
• Keep the projector 30 cm or more from walls and other
equipment when installed. If locating in a rack or similar
arrangement, ensure a clearance of 10 cm or more from
the top surface of the equipment below it as well as a
clearance of 30 cm or more from objects on all sides.
• To hang the projector from a ceiling, contact the Marantz
Authorized Dealer or Service Center. To ensure safe
installation, the ceiling must be reinforced to support the
projector’s weight. Do not install the projector yourself.
Hanging the projector from the ceiling requires a
separately solder hanger and pole.
• Use a 100-120V/220-240V AC, 50/60 Hz, 5 A power
supply to run the projector.
• To maintain projector performance, do not install the
projector in humid, dusty or smoky places.
• Do not install the projector in extremely hot or cold places.
Operating temperature : 10°C to 35°C
Storage temperature : - 20°C to +60°C
Altitude : 0 to 1,500 m above sea level
• If installed on a flat surface, keep objects off the projector.
• If installed on a ceiling, do not hang from or hook anything
on the projector.
• Never look directly into the lamp with unprotected eyes
while lit.
• Never directly expose skin to the light of the lamp.
• When used in a dark room, the projected images (special
images, flashing lights and images, flashing vivid reds,
inverted images of strong contrast, sudden scene
changes, etc.) may have harmful effects on viewers. Keep
the room as bright as possible for viewing and watch from
a suitable distance.
• The vent, lamp cover and adjacent areas may get
extremely hot during use. Do not touch these areas
during use as it may result in burns.
Also, wait at least 60 min after shutting off the power for
the projector to cool down.
• If the cooling fan vent is blocked, a protective circuit trips
and automatically shuts off the lamp. However, there is
nothing wrong with the equipment. In such case, unplug
the AC power cable from its electrical outlet and wait at
least 10 min. Then, remove the obstruction from in front of
the vent and plug the power cable back into its electrical
outlet. The projector will resume normal operation.
• This projector is not intended for business use. Marantz
assumes no responsibility whatsoever for damages
caused directly or indirectly during use for business
purposes or by trouble that occurs during such use.
Precautions in Operation
+35˚C
+10˚C
Precautions in Installation
Precautions in Relocation
PRECAUTIONS IN USE
Hold projector by this groove.
4
ENGLISH
• Replacing the lamp runs the risk of burns and electric
shock, therefore shut off power supply, unplug the AC
power cable from its electrical outlet and wait at least 60 min
for the lamp to cool down before attempting to replace it.
• If the lamp breaks, contact your nearest Marantz Authorized
Dealer or Service Center.
• Before replacing the lamp, read carefully “Lamp Handling
Precautions” (
☞
pg. 1) and “Lamp Unit Replacement”
(
☞
pg. 36). Replace the lamp as explained therein.
• The lens of this projector can be changed as liked. (LN10VP32/LN-10VP40/LN-10VP53) With the right lens, you
can set the projection distance and screen size according
to the environment of use.
* The above projections distances are given for a
screen with an aspect ratio of 16:9. For screen sizes
and projection distances by lens, see pg. 13-14.
• To change the lens, contact your nearest Marantz
Authorized Dealer or Service Center.
Do not change the lens yourself.
• The lenses used with this projector are as follows.
Lens Changes
WARNING
THISCOVERISPROVIDEDWITH
INTERLOCKTOREDUCETHERISKOF
EXCESSIVEULTRAVIOLETRADIATION.
DONOTDEFEATITSPORPOSEOR
ATTEMPTTOSERVICEWITHOUT
REMOVINGCOVERCOMPLETELY.
RECYCLEORDISPOSE
ASHAZARDOUSWASTE
DON'TPUTINTRASH.
CONTAINSMERCURY,
CAUTION
Jordforbindaltidudstyret
Alwaysgroundtheequipment
Jordaalltidutrustningen
ＡＣ１２０Ｖ〜 ６０Ｈｚ Ｘ．ＸＡ
ＭＡＤＥ ＩＮ ＪＡＰＡＮ
ＭＯＤＥＬ ＮＯ．ＶＰ１０Ｓ１／Ｕ１Ｍ
ＦＡＢＲＩＱＵＥ ＡＵ ＪＡＰＯＮ
SERIALNO.
ＡＵＤＩＯ／ＶＩＤＥＯ ＡＰＰＡＲＡＴＵＳ
３６ＶＢ
VP10S1/UIM
WithFCCStandards
TestedToComply
MARANTZ
FORHOMEOROFFICEUSE
Ｎｏ．４３００
〜
ACIN
ON
OFF
RS-232CDVI-D INRGB IN
EXT.INT.
IN
OUT
OFFON
1
2
TRIG. LIGHT
REMOTE
VIDEO IN
S-VIDEO IN COMPONENT VIDEO IN 1 COMPONENT VIDEO IN 2
YP
B/CBPR/CR
YPB/CBPR/C
R
CAUTION
HIGH-PRESSURE LAMP MAY EXPLODE IF IMPROPERLY
HANDLED. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION HOT
UNPLUG THE POWER CORD AND WAIT 60
MINUTES BEFORE CHANGING THE LAMP.
ATTENTION
LA LAMPE SOUS HAUTE PRESSION PEUT EXPLOSER
SI ELLE, N'EST PAS MANIPULEE CORRECTEMENT,
CONFIER L'OPERATION A UN PERSONNEL D'ENTRETIEN
QUALIFIE.
VORSICHT
BEI FALSCHER HANDHABUNG KANN DIE
HOCHDRUCKLAMPE EXPLODIEREN UBERLASSEN SIE
WARTUNGSARBEITEN NUR FACHPERSONAL.
ATTENTION CHAUD
DEBRANCER LE CORD ON D'ALIMENTION ET
ATENDER 60 MINUTES AVANT DE CHANGER
LAMPE.
WARNUNG HEISS
ZIEHEN SIE DEN NETZSTECKER AB UND
WARTEN SIE 60 MINUTEN BEVOR SIE DIE
GLUHLAMPE WECHSELN.
ランプ交換は、電源プラグをコン
セントから抜いて60分待ってから
行ってください。
高温注意
高圧ランプは誤った扱いをすると
破裂する恐れがあります。万一の
際はサービスマンに依頼をしてく
ださい。
警告
CAUTION
HIGH-PRESSURE LAMP MAY EXPLODE IF IMPROPERLY
HANDLED. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION HOT
UNPLUG THE POWER CORD AND WAIT 60
MINUTES BEFORE CHANGING THE LAMP.
ATTENTION
LA LAMPE SOUS HAUTE PRESSION PEUT EXPLOSER
SI ELLE, N'EST PAS MANIPULEE CORRECTEMENT,
CONFIER L'OPERATION A UN PERSONNEL D'ENTRETIEN
QUALIFIE.
VORSICHT
BEI FALSCHER HANDHABUNG KANN DIE
HOCHDRUCKLAMPE EXPLODIEREN UBERLASSEN SIE
WARTUNGSARBEITEN NUR FACHPERSONAL.
ATTENTION CHAUD
DEBRANCER LE CORD ON D'ALIMENTION ET
ATENDER 60 MINUTES AVANT DE CHANGER
LAMPE.
WARNUNG HEISS
ZIEHEN SIE DEN NETZSTECKER AB UND
WARTEN SIE 60 MINUTEN BEVOR SIE DIE
GLUHLAMPE WECHSELN.
ラン
セン
行っ
高圧
破裂
際は
ださ
Lamp Replacement Precautions
Lens Projection distance of 100 inch image
LN10VP32 Approx. 3.19 to 3.98 m
LN10VP40 Approx. 3.98 to 5.31 m
LN10VP53 Approx. 5.31 to 7.97 m
Projector Lens
(Found on rear panel nameplate)
VP10S1L32/N1M LN10VP32
VP10S1L40/N1M LN10VP40
VP10S1L53/N1M LN10VP53
5
ENGLISH
Note: Pixel defects
DMD
TM
(Digital Micromirror DeviceTM) is one of the most
advanced technologies for consumer products. The DMD
TM
made by high precision technology, however some pixel
defects may be found on the projected image. We are
trying our best to control the quality in order to reduce the
number of defective pixels. It is almost impossible to have
zero pixel defects, even using the most advanced
technology. This is not a problem only for Marantz, but all
DLP
TM
projector manufactures. Therefore we have to note
that the warranty does not cover the DMD
TM
for pixel
defects. We appreciate your understandings.
Note: Lamp
P-VIP lamp is one of the most advanced technologies for
consumer products. The lamp made by high precision
technology, however some lamps might be failing before it
reaches its life. And projector’s brightness is getting darker
along with accumulated lamp usage hours. We are trying
our best to control the quality in order to reduce lamp
failures. It is almost impossible to have zero failure, even
using the most advanced technology. This is not a problem
only for Marantz, but all projector manufactures. Therefore
we have to note that the warranty does not cover the P-VIP
lamp for lamp failures: explosion, and non-lighting except
initial use. And also we have to note that the warranty does
not cover the P-VIP lamp for lamp failures: flickering, and
getting darker along with accumulated lamp usage hours.
We appreciate your understandings.
6
ENGLISH
- High Picture Quality Technology -
❖ DLP
TM
technology to deliver a high
contrast ratio (3600:1)
• Incorporates three HD2 DMD
TM
elements (1280 x 720
pixel, 16:9 wide panel) to distinctly reproduce R/G/B
colors. Using an optimized system for movie viewing with
the below image circuit and optical parts, the VP-10S1
brings high color reproduction and rich tones that balance
pitch black with bright white to images.
❖ Built-in image processing IC by Faroudja
to project high quality video images
• Images are sharply detailed, smooth and high quality
owing to a powerful 3-chip set that builds into a dedicated
processor an image processing IC featuring Faroudja’s
proud “DCDi
TM
” high quality contouring technology, “high
performance adaptive IP conversion” and “2-3 pull-down
capabilities”.
- Wide Array of Features -
❖ Motorized zoom, focus and vertical /
horizontal lens shift
• Using the included remote controller or by operating
buttons on the projector, the user can zoom in/out, focus
the image, and vertically and horizontally shift the lens.
❖ Automatic color temperature adjustment
• Using the included color temperature sensor, the VP-
10S1 automatically adjusts color temperature after lamp
changes or as lighting changes over time.
❖ Image quality adjustment capabilities for
making images as one prefers
• 4 picture modes to select as demanded by the listening /
viewing environment and image source (Theater, Standard,
Dynamic and User)
• Fine-adjustment menus that allow the user to adjust images
as they like
• 12 user memory for saving adjusted images
• Color temperature setting (5250K, 5800K, 6500K, 7500K,
9300K)
• Black level adjustment (0 IRE, 7.5 IRE/ EXPAND, NORMAL
[For DVI-D input])
- Create a Comfortable Home Theater
Environment -
❖ Versatile input support including high-
vision satellite broadcast
• Supports input of NTSC, PAL, SECAM and high-vision
satellite broadcasts (480i, 480p, 720p, 1035i, 1080i).
• Rich array of input jacks including HDCP supported DVI-D
digital input jack and dual system component jacks
❖ Easy to install and operate
• Motorized lens shift feature for vertically and horizontally
positioning the projection point
• Digital correction of horizontal-vertical keystone distortion
• Projection modes for ceiling-mount projection and rear
projection
•
Light-up luminous remote control
• Light-up I/O jacks for easy connections and setup in dark
environments
• Equipped with RS-232C port and 12V trigger terminal for
custom installation
• Marantz system bus port
❖ Designed for silence and safety
• Low operating noise thanks to double-shielded construction
and fan speed control
• Highly rigid to minimize radiating noise
• 1,500 hr long-life 250W P-VIP lamp
– DLP, Digital Micromirror Device and DMD are trademarks
of Texas Instruments.
– “DCDi” is a trademark of Faroudja. Faroudja is a wing of
Genesis Microchip Inc.
– The DVI logo is a trademark of the DDWG (Digital Display
Working Group).
– All trademarked product names mentioned in this manual
are the property of their respective companies.
FEATURES
7
ENGLISH
• Lens cap x 1
• Remote controller x 1
• AA batteries x 2
• Color temperature sensor x 1
• Ferrite Cores x 2
• Attachment for Color temperature sensor x 1
• AC power cable x 1
• Control adapter cable (RCA miniature jack) x 1
• Scart - RCA plug Cable x 1
• User Guide x 1
R
COMP.1
PATT.
INPUT
ASPECT
MENU
V-MUTE
COMP.2
S-VIDEO
VIDEO
RGB
AUX
REMOTE CONTROLLER
RC-12VPS3
INPUT1
ENTER
PATTERN
STANDBY POWER ON
THEATER
STD
DYNA.
USER
CINEMA
MODE
FULL
NORMAL
ZOOM
THROUGH
INFO
ASPECT
LIGHT
After opening the package, check the below accessories have been included.
ACCESSORIES
8
ENGLISH
Front and Top
q POWER button (
☞
pg. 20)
Switches power ON/OFF (standby).
w MENU button (
☞
pg. 25)
Displays the on-screen menu (*OSD).
* OSD: Acronym for On Screen Display. With this projector,
OSD entails menus for making adjustments and
settings.
e INPUT button (
☞
pg. 21)
Selects the Input signal.
Pressing the button one time displays the currently selected
Input signal. Every time the button is pressed after that, the
Input signal rotates in the order of COMPONENT 1
➔
COMPONENT 2 ➔S-VIDEO ➔VIDEO ➔RGB ➔AUX.
r PATTERN button (
☞
pg. 17)
Projects a focus pattern on the screen. The focus and zoom
can then be set using the cursor buttons.
t ENTER button
Enters items selected on menus and settings.
y Cursor buttons
Press the cursor buttons (3[UP], 4[DOWN], 1 [LEFT],
2[RIGHT]) to select menu items.
u POWER ON indicator
Lights up blue when power is on. When power is shut off, the
lamp flashes for about 1 min before going out.
i STANDBY indicator
Lights up red when the projector is on standby.
o WARNING indicator
Lights up or flashes if trouble occurs with the projector.
For error mode, see the list in “Error Mode List” (
☞
pg. 43).
!0 Vents (Exhaust / Intake)
Notes:
• Keep hands away from the exhaust vent as hot air is blown
from inside the projector.
• Do not block the intake vent. This prevents cooling and
causes the protective circuit to trip. (
☞
pg. 3)
!1 ON/OFF switch
This is the main power switch.
!2 AC IN socket (
☞
pg. 15)
Connect the included AC power cable here to supply power to
the projector.
NAMES AND FUNCTIONS OF PARTS
Projection
Lens
IR sensor
IR sensor
10
1
7
2
8
POWER
STANDBY ON
4
3
MENUINPUTPATTERN
6
9
5
N
N
N
I
I
I
R
R
R
N
N
N
A
A
A
G
G
G
W
W
W
W
W
W
G
G
G
A
A
A
N
N
N
R
R
R
I
I
I
N
N
ENTER
N
9
ENGLISH
Rear and Terminals
RS-232CDVI-D INRGB IN
EXT.INT.
IN
OUT
OFF ON
1
2
TRIG. LIGHT
REMOTE
VIDEO IN
S-VIDEO IN COMPONENT VIDEO IN 1 COMPONENT VIDEO IN 2
YP
B/CBPR/CR
YPB/CBPR/C
R
1
11 9 8 610
11
12
5
2 3 4
10
10
7
❖ Terminals
z VIDEO IN jack
Connect to the video (composite) output of a video device.
x S-VIDEO IN jack
Connect to the S-video output of a video device.
c COMPONENT VIDEO IN 1 & 2 jacks
Jacks 1 and 2 have each Y, PB /CBand PR /CRjacks.
Connect to the component video output of a video device, AV
amp/processor, DVD player, etc.
v TRIG. 1 (TRIGGER 1) jack
Use to control an external unit from this projector by
interlocking the external unit to power ON/OFF (standby) on
this projector. The TRIG. 1 jack outputs 0 V when the projector
is on standby and 12 V when POWER button is in the on
position.
Note:
To connect with external devices, use an ordinal 35mm miniplug (mono) cable with attaching the supplied ferrite core.
b LIGHT ON/OFF switch
Switches the terminal lamps on/off.
n TRIG. 2 (TRIGGER 2) jack
The TRIG. 2 jack outputs 12 V in each aspect ratio mode (Full,
Normal, Zoom or Through). For setting instructions, see “Trigger
2” (
☞
pg. 33).
Notes:
• Do not use the TRIG. 1 or 2 jack for power supply.
• To connect with external devices, use an ordinal 35mm mini-
plug (mono) cable with attaching the supplied ferrite core.
m REMOTE IN / OUT jacks
Use to control this projector when combined with Marantz
products into a system. Connect the REMOTE CONTROL OUT
of the other Marantz product to the REMOTE CONTROL IN of
this projector and the REMOTE CONTROL IN of this other
Marantz product to the REMOTE CONTROL OUT of this
projector.
Note:
Use the included bus control adapter cable to connect this
projector to other Marantz products.
, REMOTE switch (INT. / EXT.)
Set to “EXT.” to control this projector from another connected
Marantz product, whereas set to “INT.” to control this
projector and other connected products from this projector.
. RS-232C port
This is the control terminal for custom installers.
⁄0 DVI-D IN jack
Connect to the RGB digital output of a video device or PC.
Note: When using the DVI-D IN jack, operate the projector
as explained in the precautions on pg. 16.
⁄1 RGB IN jack
Connect to the RGB output of a video device or PC.
!3 Screw holes for ceiling mount kit
Use to hang the projector from a ceiling. To hang the projector
from a ceiling, contact your nearest Marantz Authorized Dealer
or Service Center.
13
Bottom
Lamp cover
Lamp cover
securing screw
IR sensor
Terminals
10
ENGLISH
Remote Controller
a STANDBY button (
☞
pg. 20)
Sets the projector on standby provided power to the projector
is on.
s MENU button (
☞
pg. 25)
Displays the on-screen menu (*OSD).
* OSD: Acronym for On Screen Display. With this projector,
OSD entails menus for making adjustments and
settings.
d 3 / 4 / 1 / 2 / ENTER button
Press the cursor buttons (3[UP], 4[DOWN], 1[LEFT],
2[RIGHT]) to select menu items. Press the button at its center
to enter the selected item.
f INPUT button (
☞
pg. 21)
Selects the Input signal.
Pressing the button one time displays the currently selected
Input signal. Every time the button is pressed after that, the
Input signal rotates in the order of COMPONENT 1
➔
COMPONENT 2 ➔S-VIDEO ➔VIDEO ➔RGB ➔AUX.
g COMP. 1 (Component video in 1) button
(
☞
pg. 21)
Selects the device connected to the COMPONENT VIDEO IN 1
jack as the Input signal.
h COMP. 2 (Component video in 2) button
(
☞
pg. 21)
Selects the device connected to the COMPONENT VIDEO IN 2
jack as the Input signal.
j S-VIDEO button (
☞
pg. 21)
Selects the device connected to the S-VIDEO IN jack as the
Input signal.
k VIDEO button (
☞
pg. 21)
Selects the device connected to the VIDEO IN jack as the
Input signal.
l RGB button (
☞
pg. 21)
Selects the device connected to the RGB IN jack as the Input
signal.
¡0 AUX button (
☞
pg. 21)
Selects the device connected to the DVI-D IN jack as the
Input signal.
¡1 LIGHT button
Lights up backlit buttons (POWER ON, STANDBY, MENU, VMUTE, INPUT, ASPECT, PATTERN) for about 7 sec.
¡2 POWER ON button (
☞
pg. 17)
Turns on power to the projector.
¡3 PATT. (Pattern) button (
☞
pg. 17)
Projects a focus pattern on the screen. The focus and zoom
can then be set using the cursor buttons.
¡4 V-MUTE button
Blacks out the projected image. Pressing the button again
returns the image.
¡5 ASPECT (Aspect select) button (
☞
pg. 21)
Selects the aspect ratio.
Pressing the button one time displays the currently selected
aspect ratio. Every time the button is pressed after that, the
aspect ratio mode rotates in the order of Full ➔Normal ➔Zoom
➔
Through.
¡6 FULL button (
☞
pg. 21)
Selects the full mode as the aspect ratio.
¡7 NORMAL button (
☞
pg. 21)
Selects the normal mode as the aspect ratio.
¡8 ZOOM button (
☞
pg. 21)
Selects the zoom mode as the aspect ratio.
¡9 THROUGH button (
☞
pg. 21)
Selects the through mode as the aspect ratio.
™0 INFO. button (
☞
pg. 35)
Displays information on settings. Pressing the button again
disappears the information display.
™1 THEATER button (
☞
pg. 25)
Selects the theater mode.
The theater mode is for enjoying movie software because of
its high fidelity reproduction of black. Every time the button is
pressed, the selection rotates in the order of Theater 1
➔
Theater 2 ➔Theater 3 ➔Default.
™2 STD button (
☞
pg. 25)
Selects the standard mode.
The standard mode is for enjoying normal image software.
Every time the button is pressed, the selection rotates in the
order of Standard 1 ➔Standard 2 ➔Standard 3 ➔Default.
COMP.1
PATT.
INPUT
ASPECT
MENU
V-MUTE
COMP.2
S-VIDEO
VIDEO
RGB
AUX
REMOTE CONTROLLER
RC-12VPS3
INPUT
ENTER
PATTERN
STANDBY POWER ON
THEATER
STD
DYNA.
USER
CINEMA
MODE
FULL
NORMAL
ZOOM
THROUGH
INFO
ASPECT
LIGHT
¡2
¡3
¡4
¡5
a
s
f
g
h
j
k
l
¡6
¡7
¡8
¡9
™0
¡0
¡1
d
™1
™2
™4
™3
™5
11
ENGLISH
™3 CINEMA button
Pressing the button one time displays the currently selected
cinema mode. Pressing the button after that switches the 2-3
pull-down feature between Auto/Off.
™4 USER button (
☞
pg. 25)
Selects the user mode.
The user mode is for enjoying images at a user-selected
gamma curve.
Every time the button is pressed, the selection rotates in the
order of User 1 ➔User 2 ➔User 3.
™5 DYNA. button (
☞
pg. 25)
Selects the dynamic mode.
The dynamic mode is for enjoying visually dynamic images.
Every time the button is pressed, the selection rotates in the
order of Dynamic 1 ➔Dynamic 2 ➔Dynamic 3 ➔Default.
Use the remote controller within 5 m of the projector. The
projector may not respond to the remote controller if the remote
controller is pointed in a different direction from the projector, if
there are objects between the remote controller and projector or
if strong light shines on the projector’s IR sensor.
MENUINPUTPATTERN
ENTER
POWER
STANDBYON
W
A
R
N
I
N
G
W
A
R
N
I
N
G
W
A
R
N
I
N
G
W
A
R
N
I
N
G
W
A
R
N
I
N
G
W
A
R
N
I
N
G
ON
LIGHT
OFFEXT. OUT
IN
2
1
TRIG.REMOTE
RS-232CDVI-D INRGB IN
VIDEO IN
S-VIDEO INCOMPONENT VIDEO IN 1 COMPONENT VIDEO IN 2
YP
B/CBPR/CRYPB/CBPR/CR
INT.
〜
ACIN
ON
OFF
60
5m
60
5m
60
5m
60
5m
VP-10S1
60
5m
VP-10S1
60
5m
VP-10S1
Remote Controller Operating Range
1. Detach the battery case cover from the back of the remote
controller.
2. Insert two AA batteries with their +/– poles matching the
indications inside the battery compartment.
3. Reattach the battery case cover as before.
CAUTION
– The available battery types are limited: manganese dry cell
and alkaline dry cell.
– Do not mix different battery types.
– Do not mix old and new batteries.
– Only batteries of the same type are to be used.
– Remove exhausted batteries from the Remote Controller.
– Do not attempt to recharge non-rechargeable batteries.
– Do not use rechargeable batteries.
– Batteries are to be inserted with the correct polarity.
– The supply terminals are not to be short-circuited.
– Never throw batteries in a fire or attempt to open up its outer
casing.
– If the user does not intend to use the Remote Controller for
a long time, remove the batteries.
– Keep away from heat.
– Do not be subjected to strong shock.
– Do not be subjected to moisture. If the unit gets moistured,
wipe it off immediately.
– The Remote Controller operation may not function if the
projector’s IR sensors are exposed to direct sun light or
strong artificial light, or if there is an obstacle between the
IR sensors and the Remote Controller.
How to Load Batteries into the Remote Controller
Battery case cover
AA batteries
Remote
Controller
Remote
Controller
Remote
Controller
Remote
Controller
Remote
Controller
Remote
Controller
Battery case cover
12
ENGLISH
Note :
• Before installing the projector, carefully read “Precautions in Use” (
☞
pg. 3) in this User Guide.
• Specialized skill is required to hang this projector from a ceiling. For safety reasons, do not install the projector yourself.
Contact your nearest Marantz Authorized Dealer or Service Center. Hanging the projector from the ceiling requires a
separately solder hanger and pole.
• Do not look through the lens with power to the projector on. Exposure to the lamp can harm eyes.
❖ When installing on a flat surface
❖ When mounting on a ceiling
How to Install
INSTALLATION
Screen
Screen upper end
Height range as
installed
Screen size (vertical)
Screen lower end
Projection distance
Screen
Screen upper end
Height range as
installed
Screen size (vertical)
Screen lower end
Projection distance
13
ENGLISH
The projection distance for projecting a 16:9 image on a 16:9 screen is shown below.
Note : When installing the projector, allow for ±5% tolerance in the above projection distances.
❖ How to calculate projection distance
• When using the LN10VP32 lens
Min. projection distance (m) = Diagonal (inch) x 3.188/100
Max. projection distance (m) = Diagonal (inch) x 3.985/100
• When using the LN10VP40 lens
Min. projection distance (m) = Diagonal (inch) x 3.985/100
Max. projection distance (m) = Diagonal (inch) x 5.313/100
• When using the LN10VP53 lens
Min. projection distance (m) = Diagonal (inch) x 5.313/100
Max. projection distance (m) = Diagonal (inch) x 7.970/100
16:9 Screen
Image width Image hight
(m)(inch) (m) (m) Min Max Min Max Min Max
1.5260 1.33 0.75 2.39 3.19 4.78
1.7870 1.55 0.87 2.23 2.79 2.79 3.72 3.72 5.58
1.8372 1.59 0.90 2.30 2.87 2.87 3.83 3.83 5.74
2.0380 1.77 1.00 2.55 3.19 3.19 4.25 4.25 6.38
2.0882 1.82 1.02 2.61 3.27 3.27 4.36 4.36 6.54
2.1384 1.86 1.05 2.68 3.35 3.35 4.46 4.46 6.69
2.2990 1.99 1.12 2.87 3.59 3.59 4.78 4.78 7.17
2.3492 2.04 1.15 2.93 3.67 3.67 4.89 4.89 7.33
2.54100 2.21 1.25 3.19 3.98 3.98 5.31 5.31 7.97
2.69106 2.35 1.32 3.38 4.22 4.22 5.63 5.63 8.45
2.79110 2.44 1.37 3.51 4.38 4.38 5.84 5.84 8.77
3.05120 2.66 1.49 3.83 4.78 4.78 6.38 6.38 9.56
3.12123 2.72 1.53 3.92 4.90 4.90 6.54 6.54 9.80
3.38133 2.94 1.66 4.24 5.30 5.30 7.07 7.07 10.60
3.43135 2.99 1.68 4.30 5.38 5.38 7.17 7.17 10.76
3.81150 3.32 1.87 4.78 5.98 5.98 7.97 7.97 11.95
4.32170 3.76 2.12 5.42 6.77 6.77 9.03 9.03 13.55
5.08200 4.43 2.49 6.38 7.97 7.97 10.63 10.63 15.94
6.35250 5.53 3.11 7.97 9.96 9.96 13.28 13.28 19.92
7.62300 6.64 3.74 9.56 11.95 15.94 23.91
Screen size
Throw distance (m)
LN10VP32 LN10VP40 LN10VP53
Screen Size and Projection Distance (16:9 Screen)
Image width
Image height
: Projected image = Screen size
Diagonal
Diagonal
Projection distance
Screen
Loading...
