IR3000TX

Marantz IR3000RX, IR3000TX Service Manual

Download

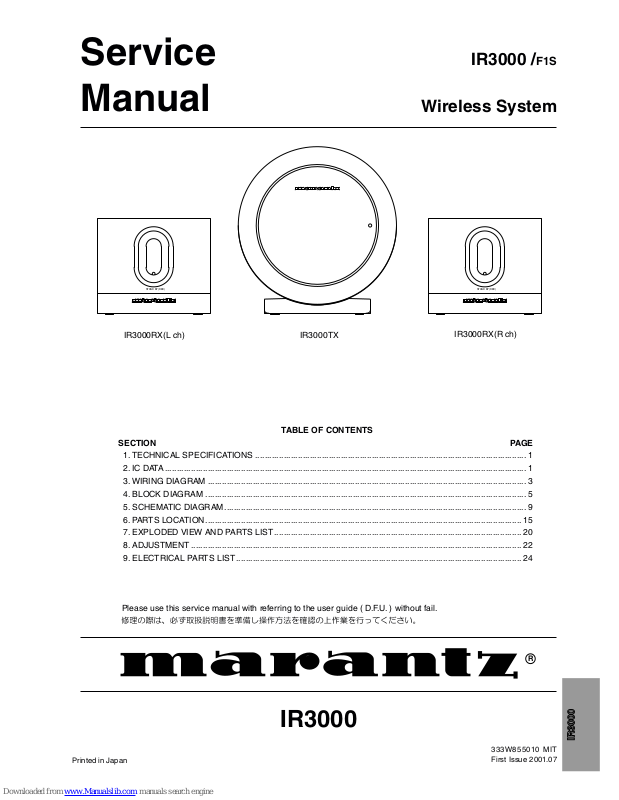

Page 1
Wireless System
IR3000
333W855010 MIT First Issue 2001.07
TABLE OF CONTENTS
SECTION PAGE
1. TECHNICAL SPECIFICATIONS .................................................................................................................. 1
2. IC DATA ........................................................................................................................................................ 1
7. EXPLODED VIEW AND PARTS LIST........................................................................................................ 20
8. ADJUSTMENT........................................................................................................................................... 22
9. ELECTRICAL PARTS LIST........................................................................................................................ 24
IR3000 /F1S
R
IR3000
Printed in Japan
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
Service Manual
STAND BY(RED)STAND BY(RED)
IR3000TXIR3000RX(L ch)
IR3000RX(R ch)
Page 2
MARANTZ DESIGN AND SERVICE
Using superior design and selected high grade components,
MARANTZ
company has created the ultimate in stereo sound.
Only original
MARANTZ
parts can insure that your
MARANTZ
product will continue to perform to the specifi cations for which it is famous. Parts for your
MARANTZ
equipment are generally available to our National Marantz Subsidiary or Agent.
ORDERING PARTS :
Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed. The following information must be supplied to eliminate delays in processing your order :
1. Complete address
2. Complete part numbers and quantities required
3. Description of parts
4. Model number for which part is required
5. Way of shipment
6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.
SHOCK, FIRE HAZARD SERVICE TEST :
CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC
cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verifi ed before it is return to the user/customer. Ref. UL Standard No. 1492.
In case of diffi culties, do not hesitate to contact the Technical Department at above mentioned address.
010620MIT
USA
MARANTZ AMERICA, INC 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301
BRAZIL
PHILIPS DA AMAZONIA IND. ELET. ITDA
CENTRO DE INFORMACOES AO
CEP 04698-970 SAO PAULO, SP, BRAZIL PHONE : 0800 - 123123
(Discagem Direta Gratuita)
FAX : +55 11 534. 8988
JAPAN
Technical
MARANTZ JAPAN, INC. 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190
EUROPE / TRADING
MARANTZ EUROPE B.V. P.O.BOX 80002, BUILDING SFF2 5600 JB EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2732241 FAX : +31 - 40 - 2735578
TECHNICAL AUDIO GROUP PTY, LTD 558 DARLING STREET, BALMAIN, NSW 2041, AUSTRALIA PHONE : 61 - 2 - 9810 - 5300 FAX : 61 - 2 - 9810 - 5355
CANADA
LENBROOK INDUSTRIES LIMITED 633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936
AUSTRALIA
QualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677
NEW ZEALAND
WILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554
THAILAND
MRZ STANDARD CO.,LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795
TAIWAN
PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415
MALAYSIA
WO KEE HONG ELECTRONICS SDN. BHD. SUITE 8.1, LEVEL 8, MENARA GENESIS, NO. 33, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA PHONE : +60 3 - 2457677 FAX : +60 3 - 2458180
AMERICAS
SUPERSCOPE TECHNOLOGIES, INC. MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103
AUSTRALIA
KOREA
MK ENTERPRISES LTD. ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154
SINGAPORE
WO KEE HONG DISTRIBUTION PTE LTD 130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 858 5535 / +65 381 8621 FAX : +65 858 6078
Page 3
1

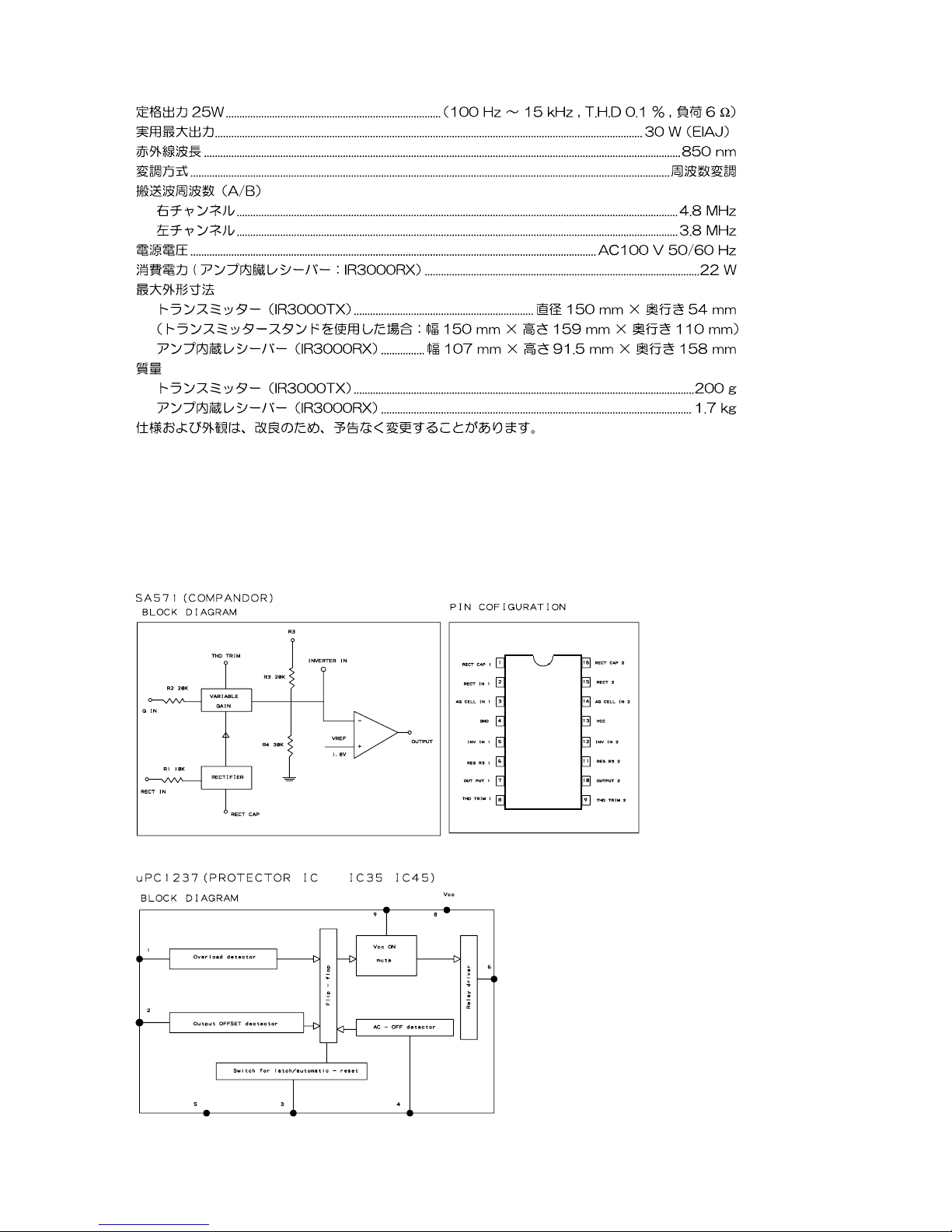

1. TECHNICAL SPECIFICATIONS

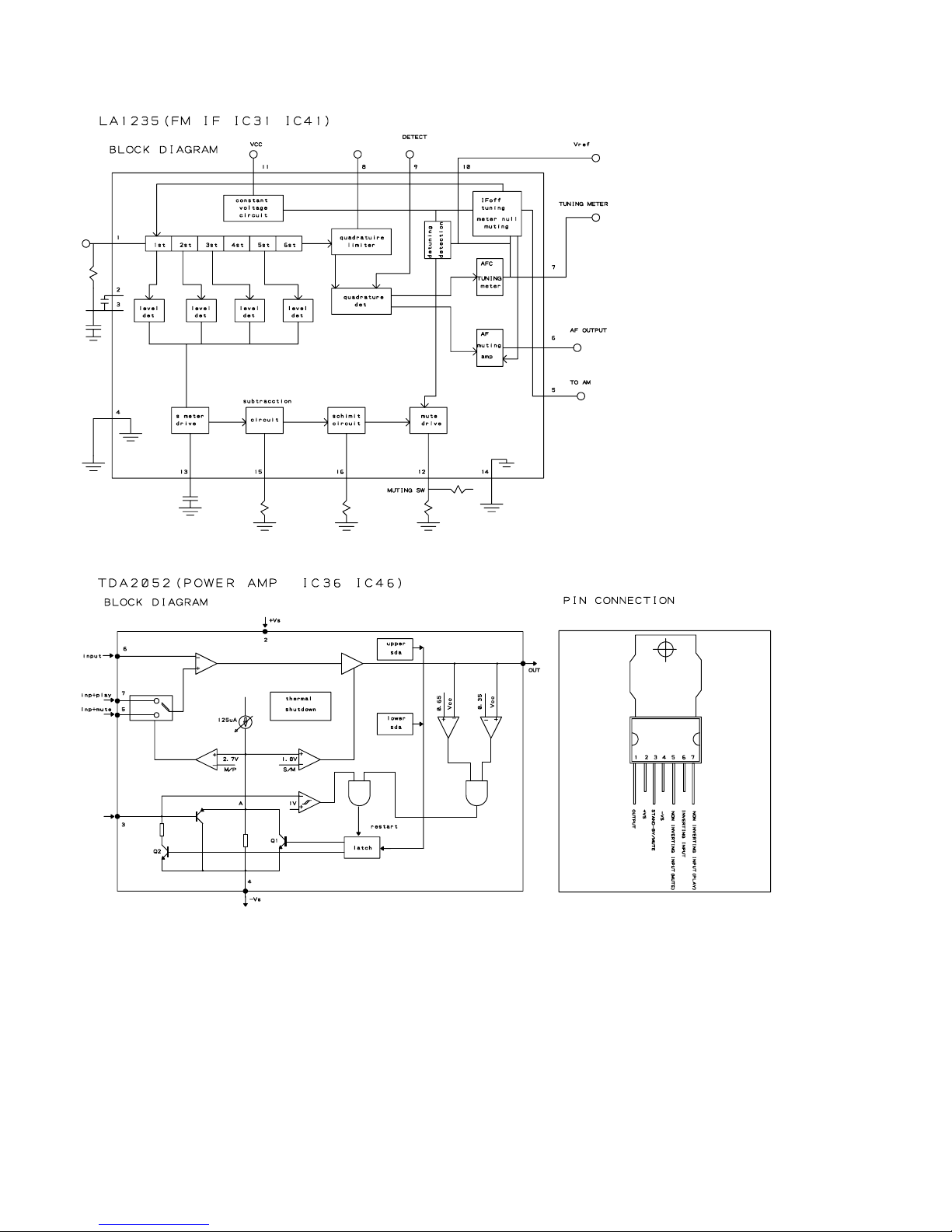

2. IC DATA
Page 4
2
Page 5
3 4

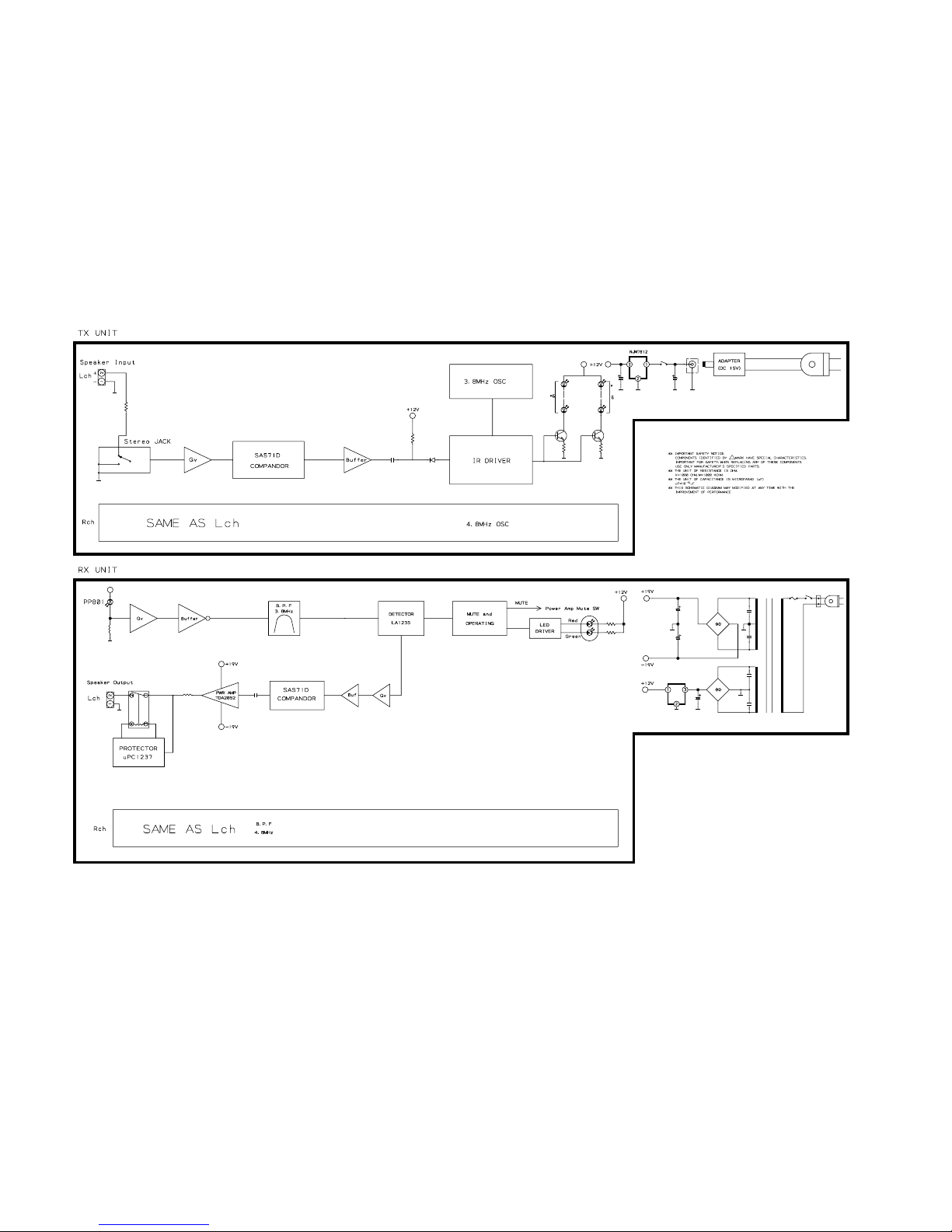

3. BLOCK DIAGRAM
Page 6
5 6

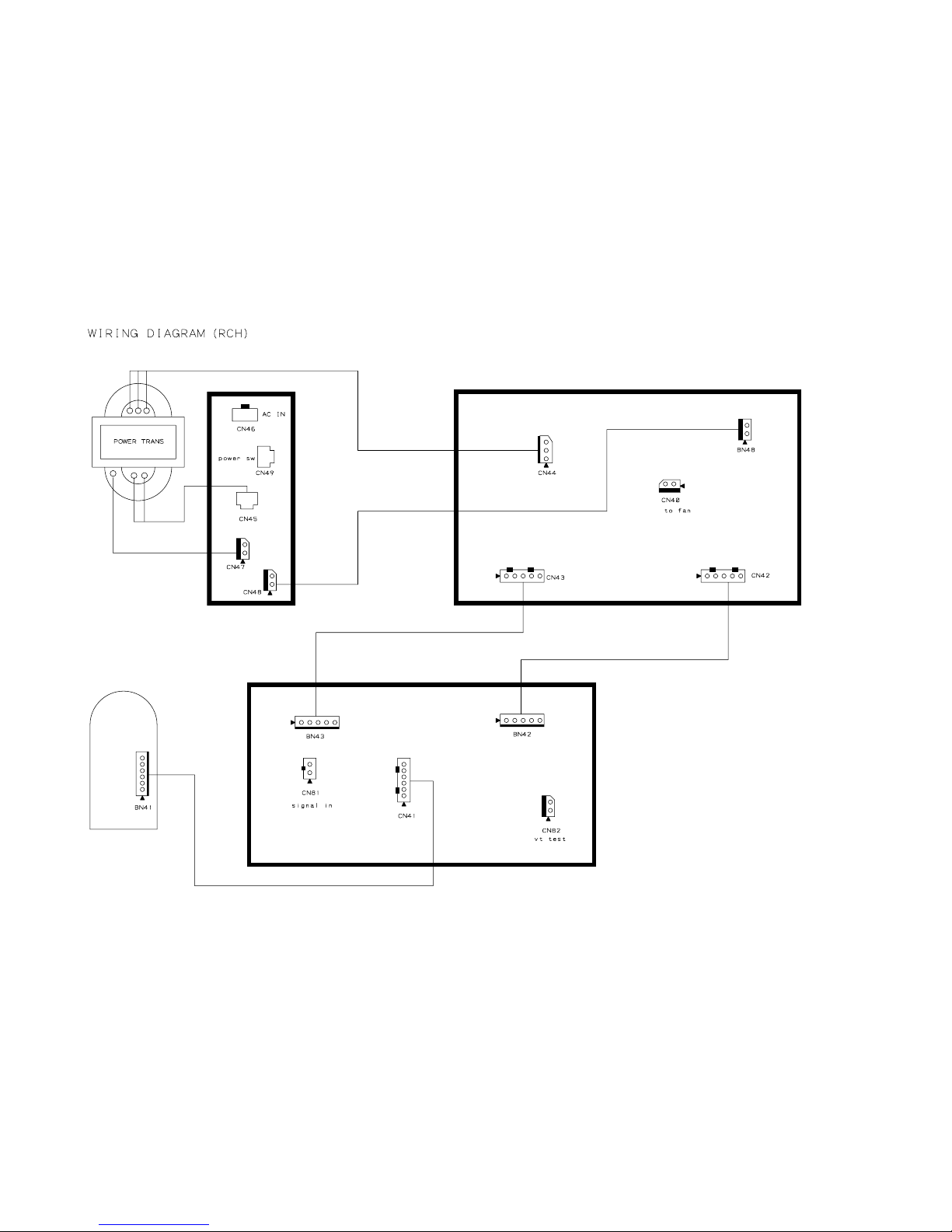

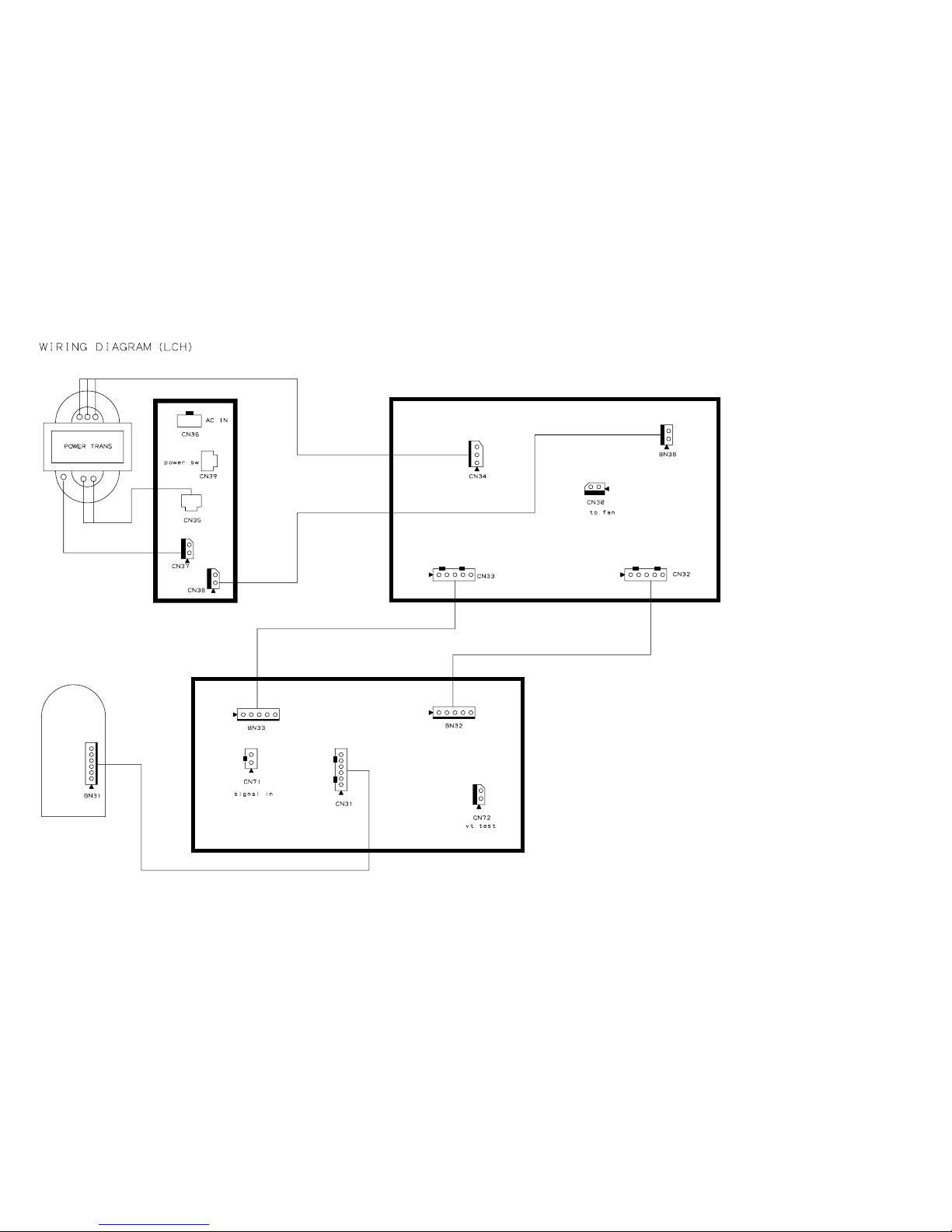

4. WIRING DIAGRAM
Page 7
7 8
Page 8
9 10

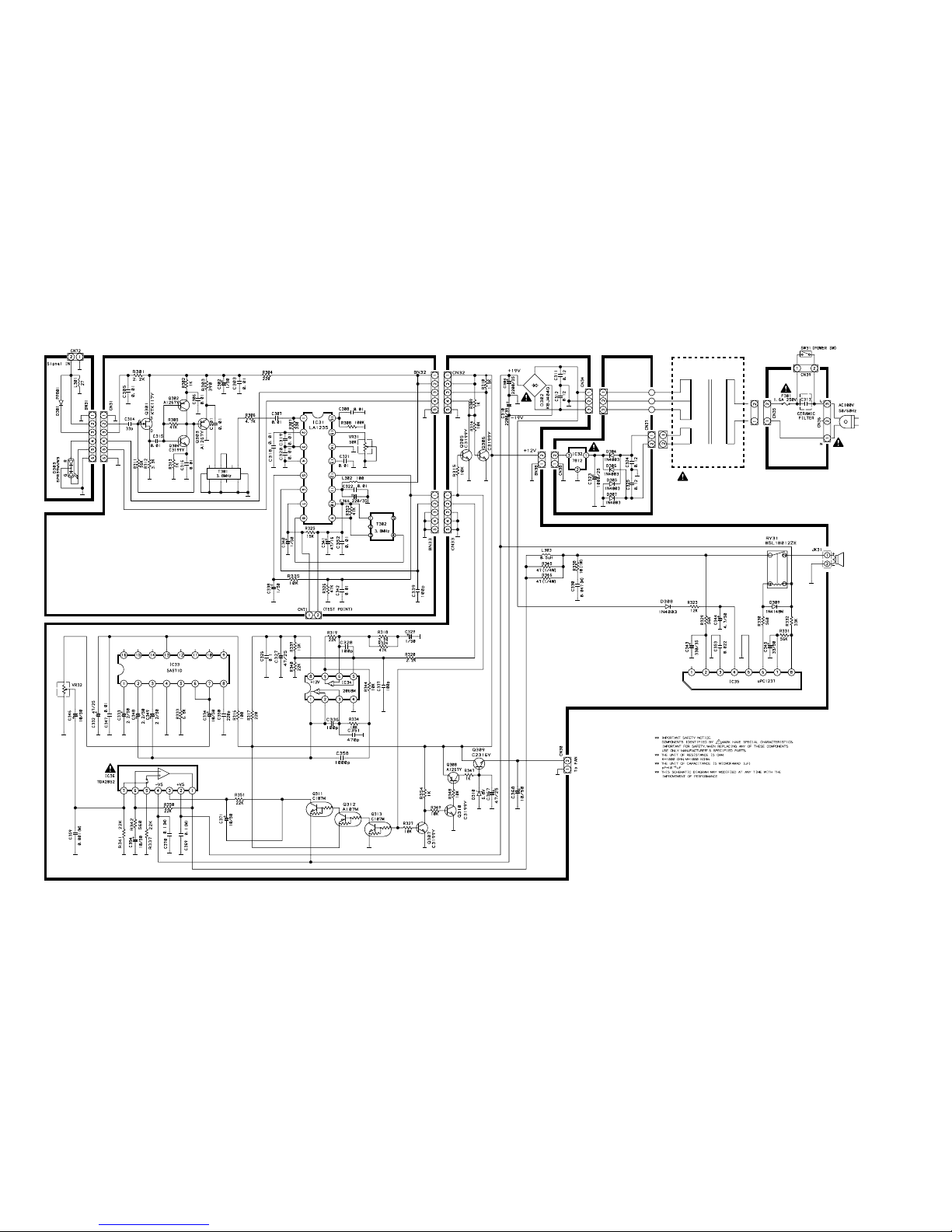

5. SCHEMATIC DIAGRAM
IR3000RX (L CH)
Page 9
11 12

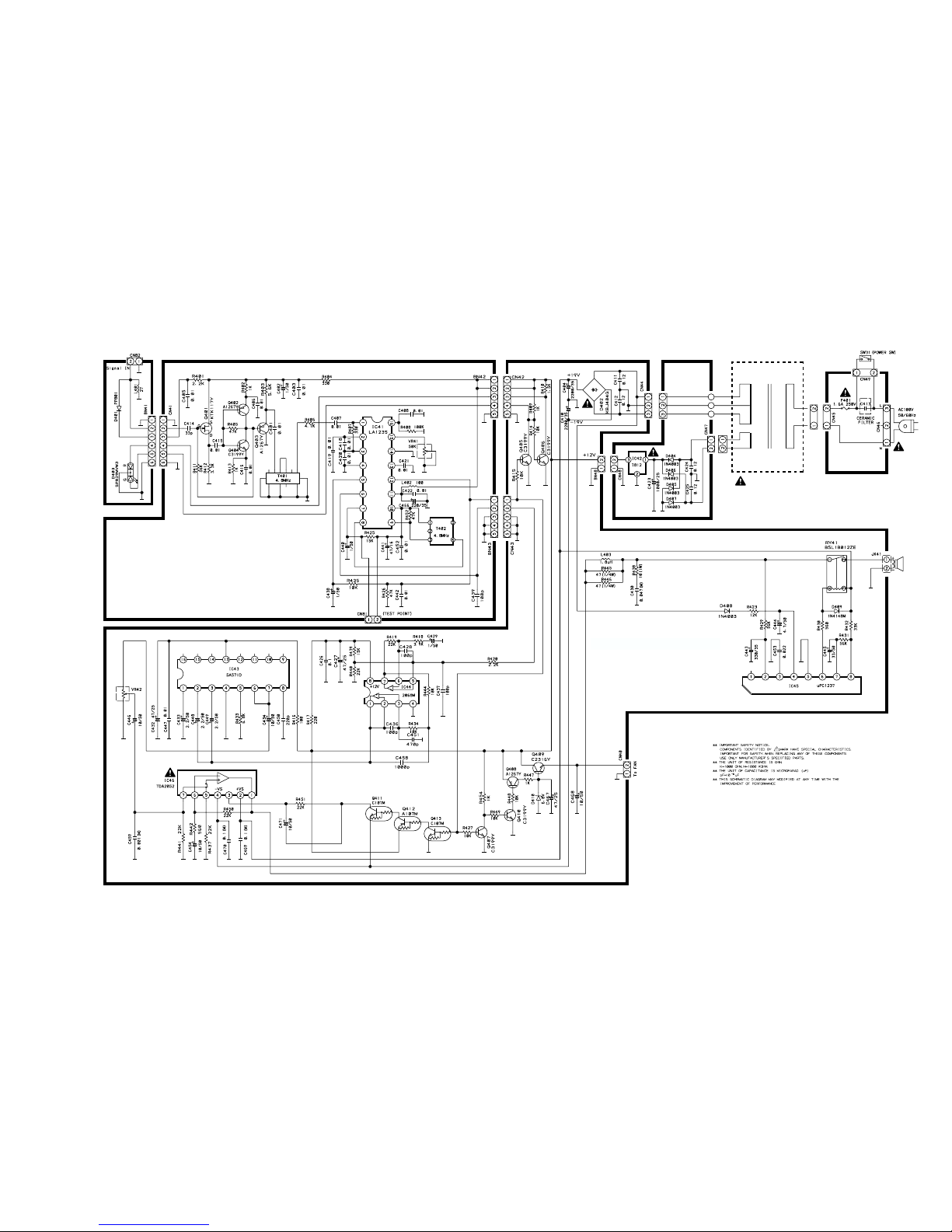

IR3000RX (R CH)
Page 10
13 14

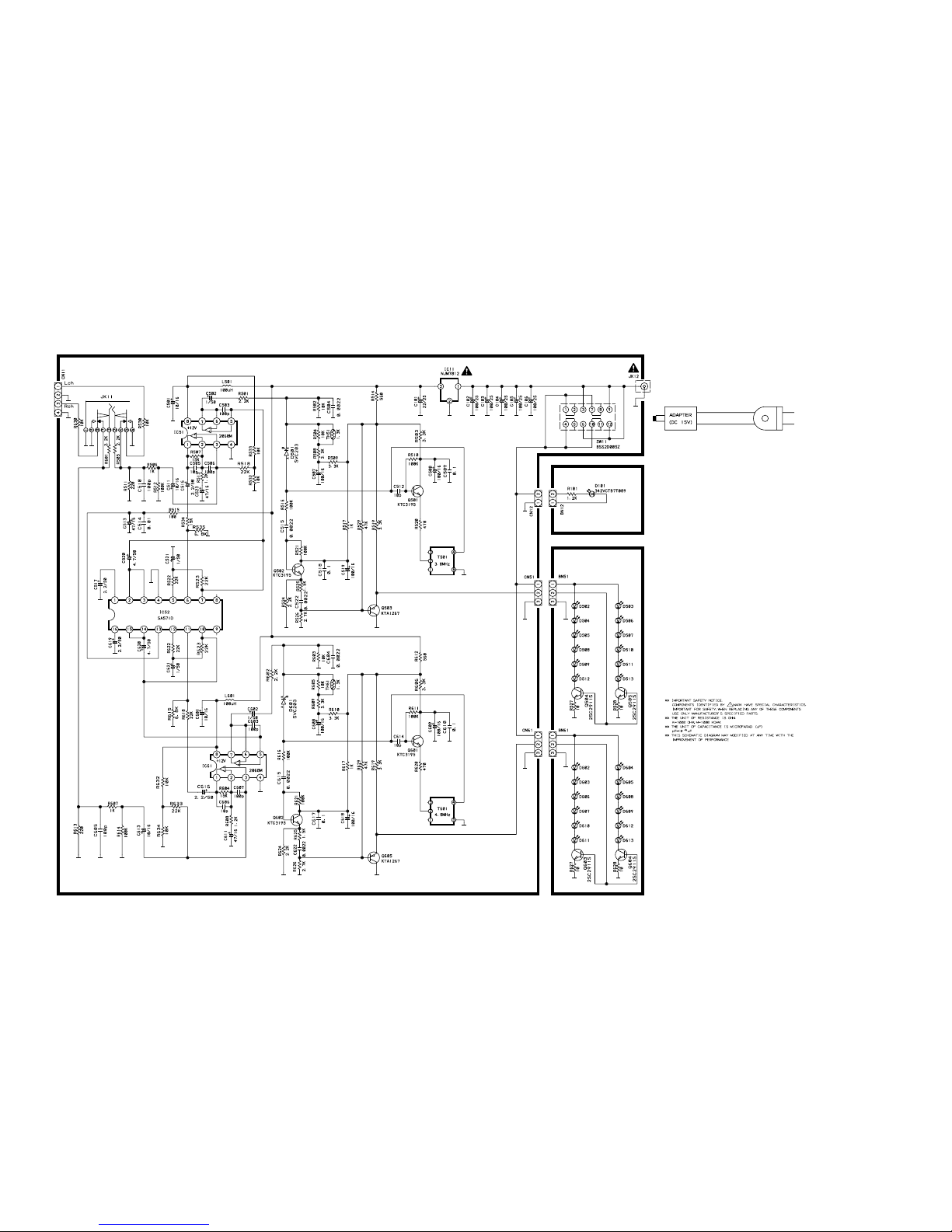

IR3000TX
Page 11
15

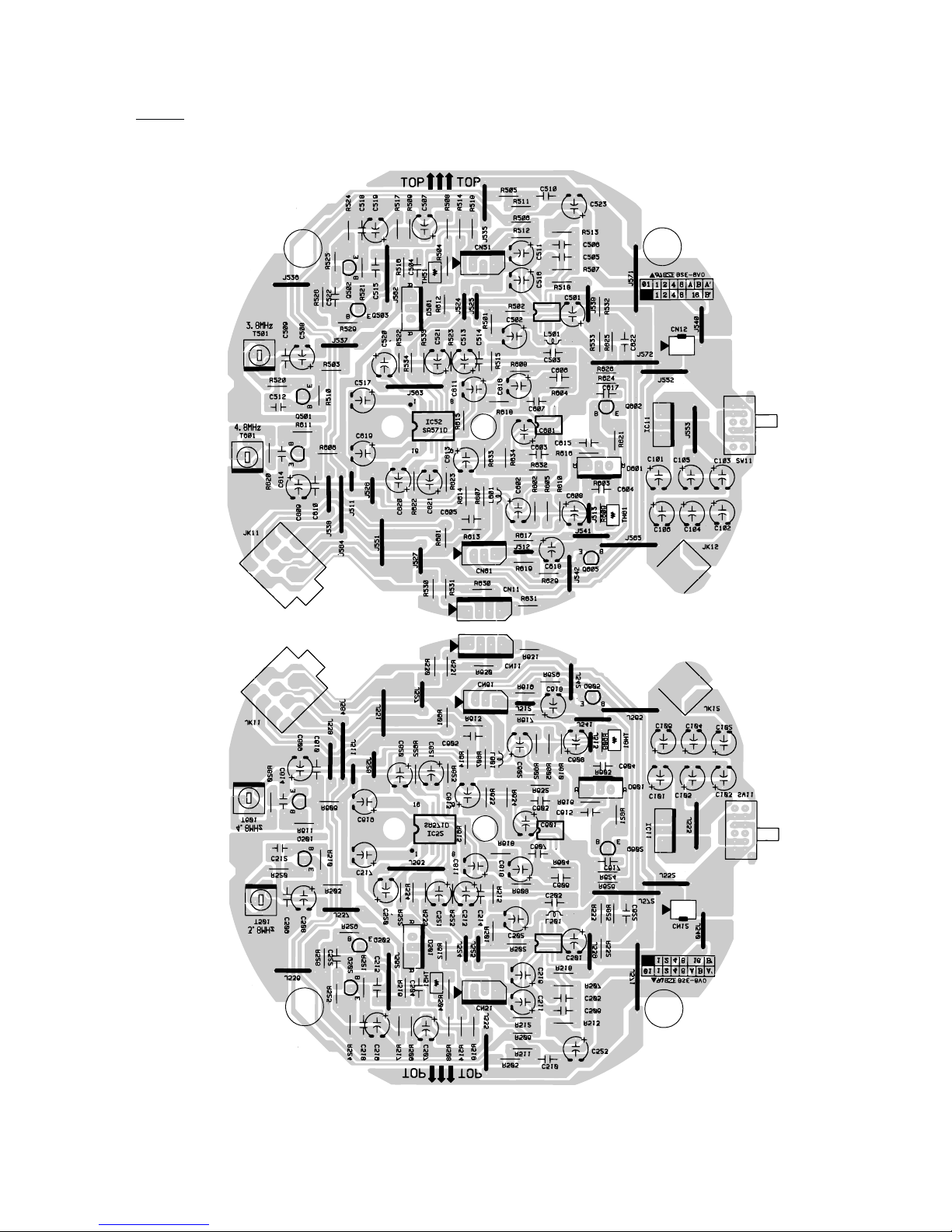

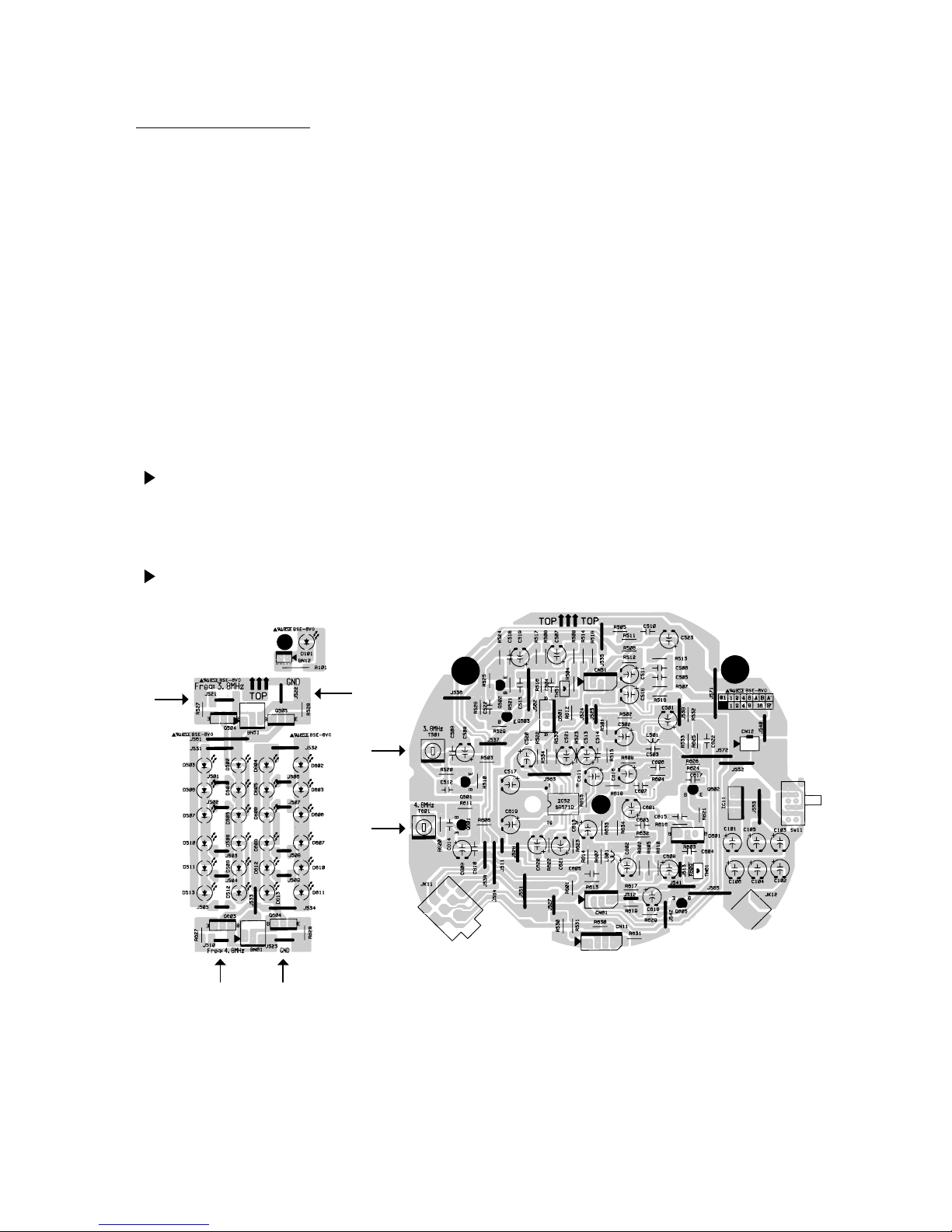

6. PARTS LOCATION
Q502 Q503 IC52
Q601
Q601 Q510 IC52 IC61 Q602 IC11
Q605
IC52
IC61
Q601
IC52
IC61

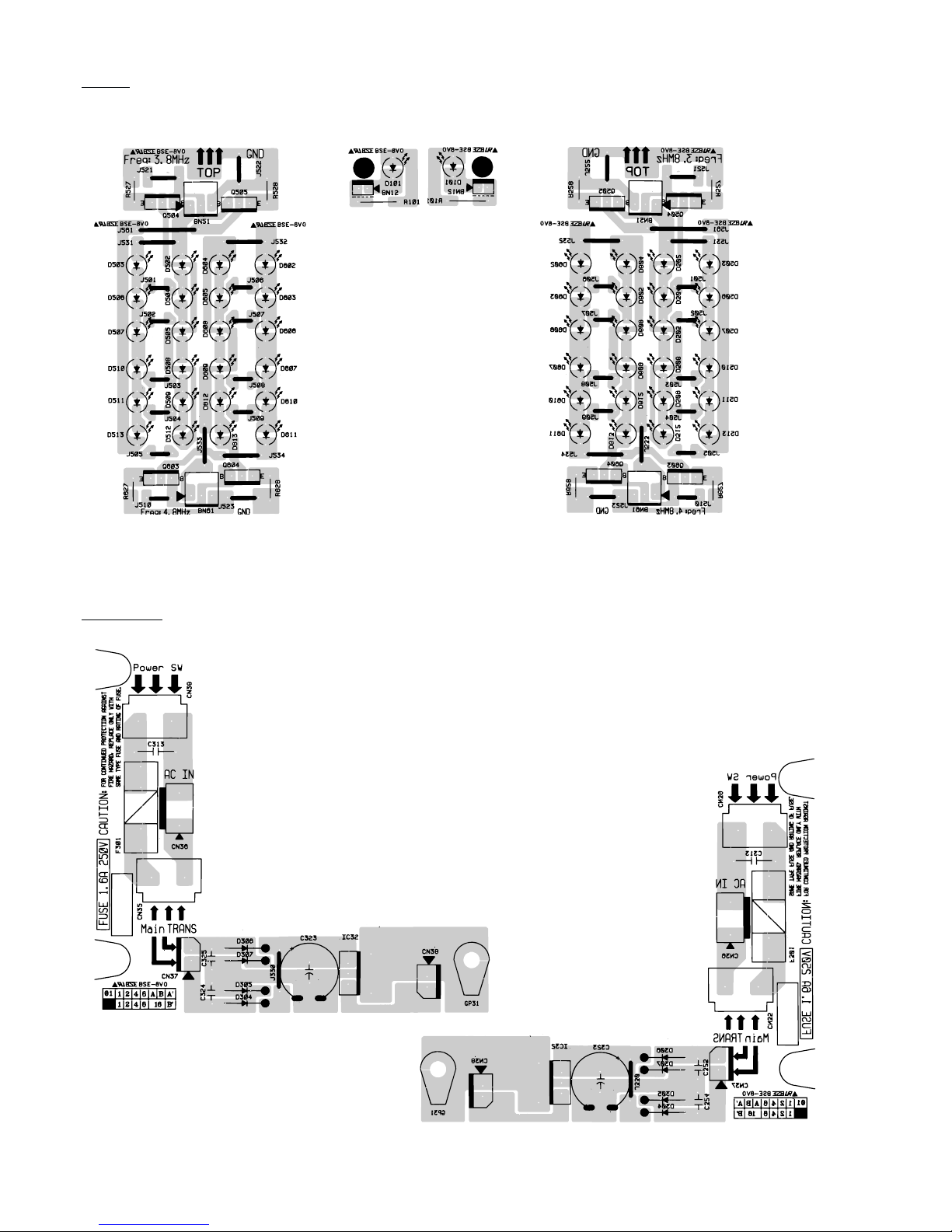

TX PCB
Page 12
16
RX LCH PCB
Q504 Q505
Q603 Q604
IC32
TX PCB
Page 13
17
IC31
Q301 - Q304
IC36 IC35 IC34
Q311 Q309 IC34
Q313 Q312 Q310 Q308 Q307 Q305 Q306

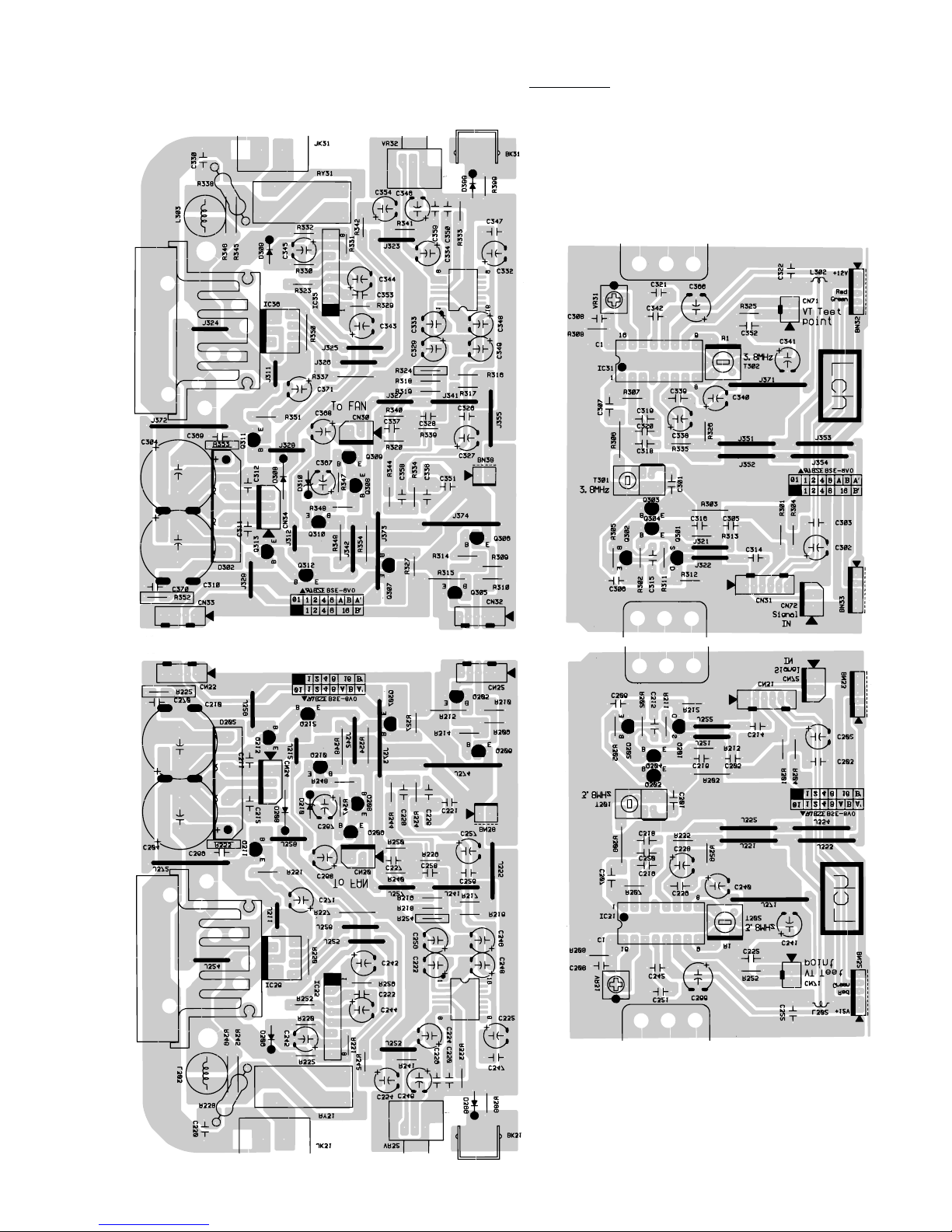

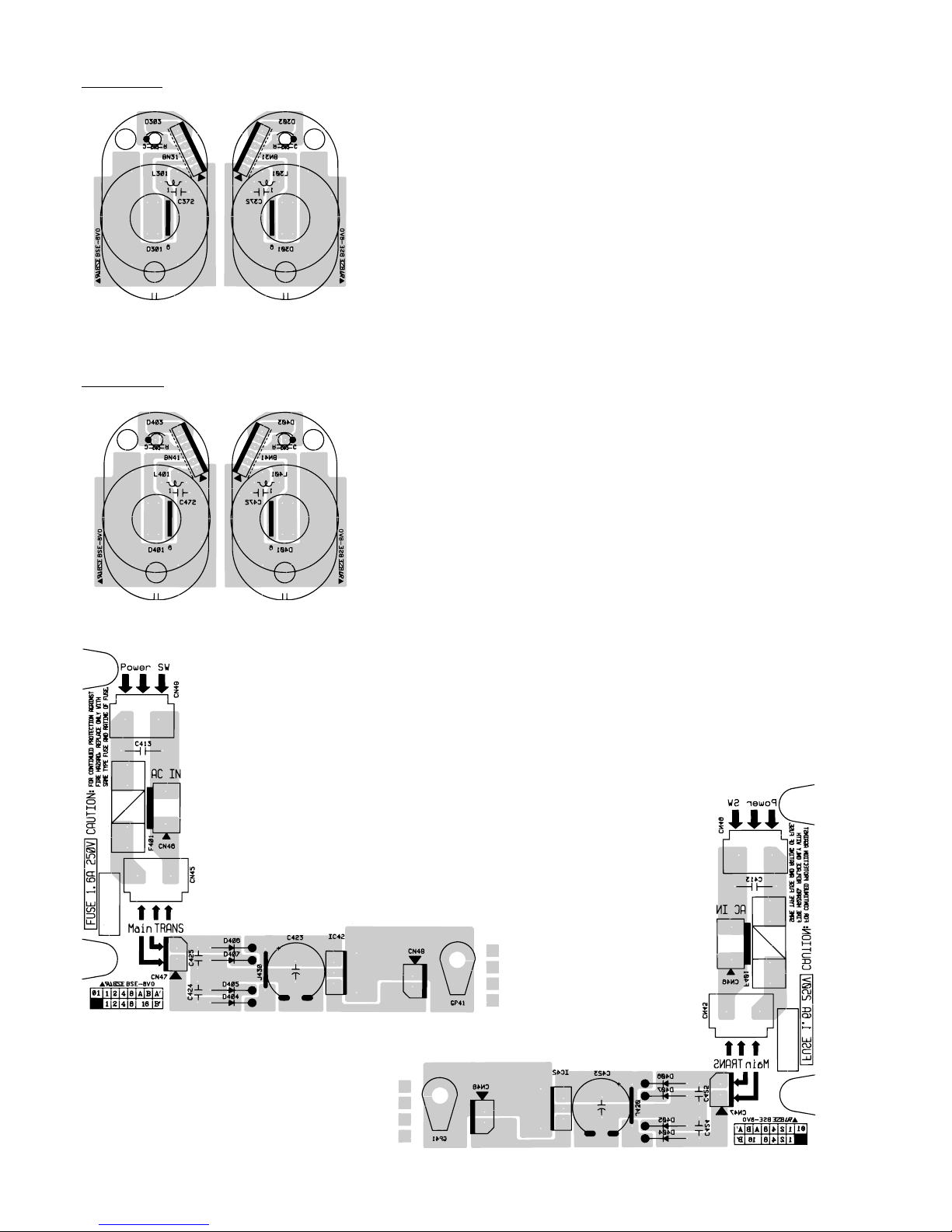

RX LCH PCB
Page 14
18

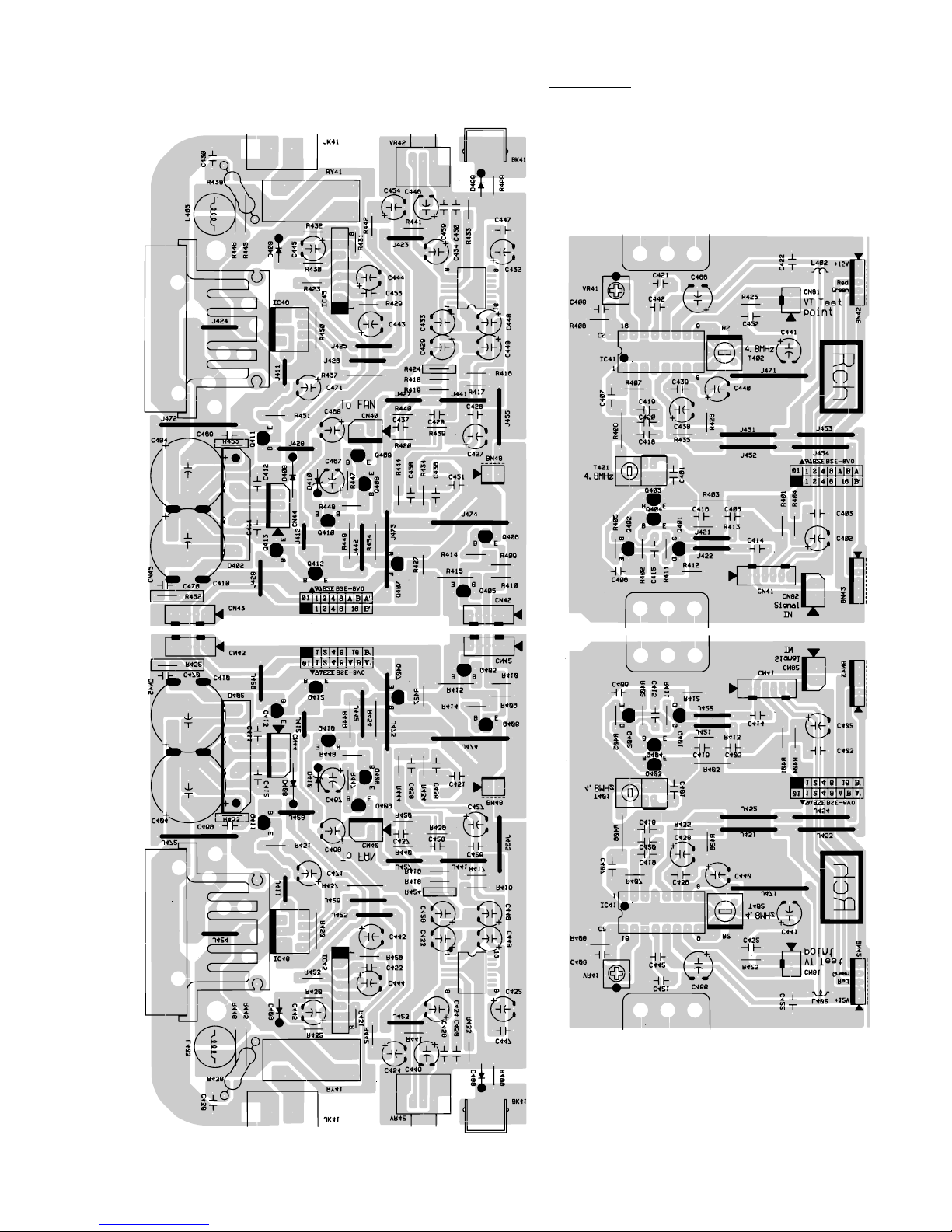

RX RCH PCB
IC42
RX LCH PCB
Page 15
19
IC46 IC45 IC44
Q411 Q409 IC44
Q413 Q412 Q410 Q408 Q407 Q405 Q406
IC41
Q401 - Q404
RX RCH PCB
Page 16
20

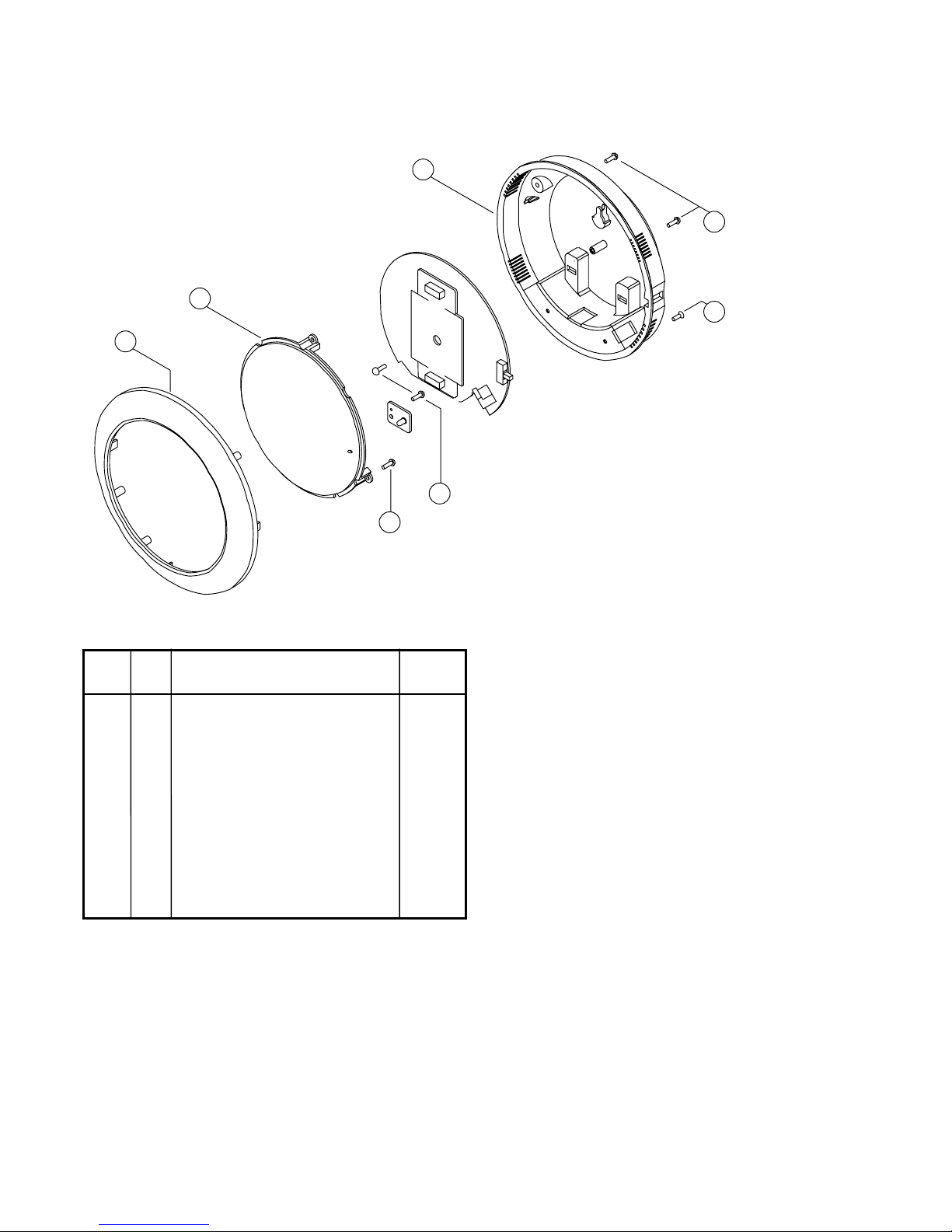

7. EXPLODED VIEW AND PARTS LIST
IR3000TX
S22
x2
S21
x2
21
22
23
S21
x2
S21
x3
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
MECHANICAL/ ELECTRICAL
PART for IR3000TX (Transmitter)
21
KGR1A232M7K107
FRONT ORNAMENT 333W064010 22 KGU1A258A19Z DOME FILTER 333W053010 23
KGP1A019M7K107
BACK COVER 333W064020 S21 KTB26+8GFN SCREW nsp S22 KTS26+8JFN SCREW nsp
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
Page 17
21

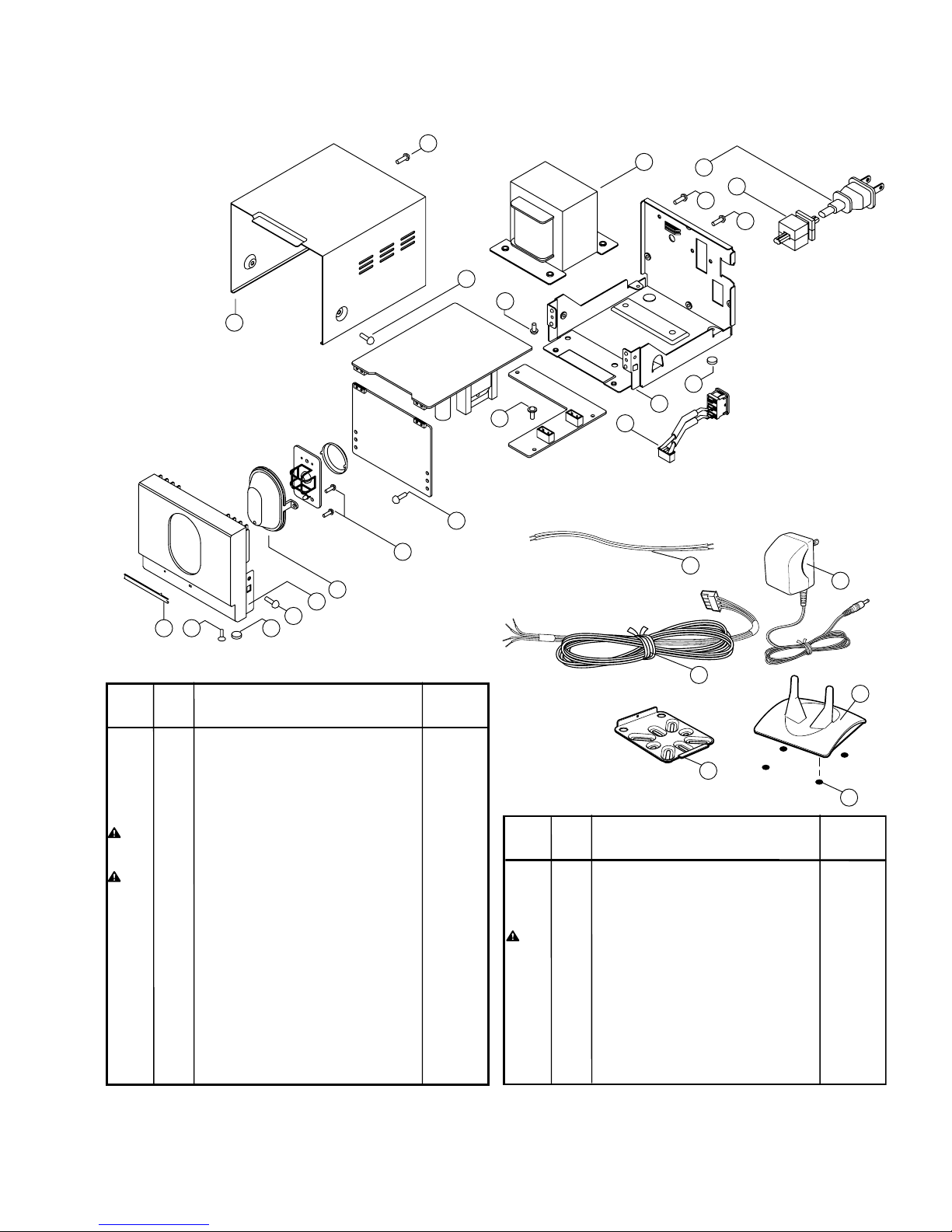

IR3000RX
m
a
ra
n
tz
10
1
2
S3
5
3
8
S2
x2 x2
S1
x3
x2
x3
S3
8
x2
4
7
6
S4
S5
x4
S4
x3
x2
9
S3
x2
S6
x2
S7
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
MECHANICAL/ ELECTRICAL
PART for IR3000RX (Receiver Rch and Lch)
1
KGW1A312M7ZK107
FRONT PANEL 333W064030 2 KGU1A259A19Z RX FILTER 333W053020 3 KUA1A197Z MAIN CHASSIS nsp
4 KLT5N024ZT TRANS POWER *TS001470R
5
KWZIR3000SW31
POWER SWITCH ASS'Y *ZZ001740R 6 KHR1A028 BUSHING AC CORD 400K259010
7 BJA2J049Z CORD POWER JAPAN
(100V 7A)
*YC000520R
8 KHG1A188 FOOT 333W057010 9 KKC1A119K111 TOP COVER 333W257010 10 KGB1A085G MARANTZ BADGE 333W251010
S1 KTB26+8GFN SCREW nsp S2 KTS3+8JFN SCREW nsp S3 KTW3+8J SCREW nsp S4 KTBD3+8JFN SCREW nsp S5 KTB4+6F SCREW nsp S6 KTB3+8JFZ SCREW nsp S7 KTB3+10GFZ SCREW nsp
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
PARKING Accessories for IR3000 A1 KWX1A031 CORD SPEAKER nsp A2 KWZIR3000BN11 WIRE ASS'Y for IR3000TX *ZD000390R
A3 KJS3F001Z AC ADAPTOR AD90143A *AA000020R A4 KMD1A439K111 RX BRACKET( FOR IR3000RX) 333W160010 A5 KSB5+10N SCREW FOR RX BRACKET
M5mm x 10mm
51100510E9
A6
KMH1A129M7K107
TX BASE(STAND FOR IR3000TX TRANSMITTER)
333W128010
A7 KHG1A188 FOOT( FOR TX BASE) 333W057010 A8 KQX1A687Z USER GUIDE 333W851110
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
A2
A1
x2
A6
A7
x4
A4
A3
Page 18
22

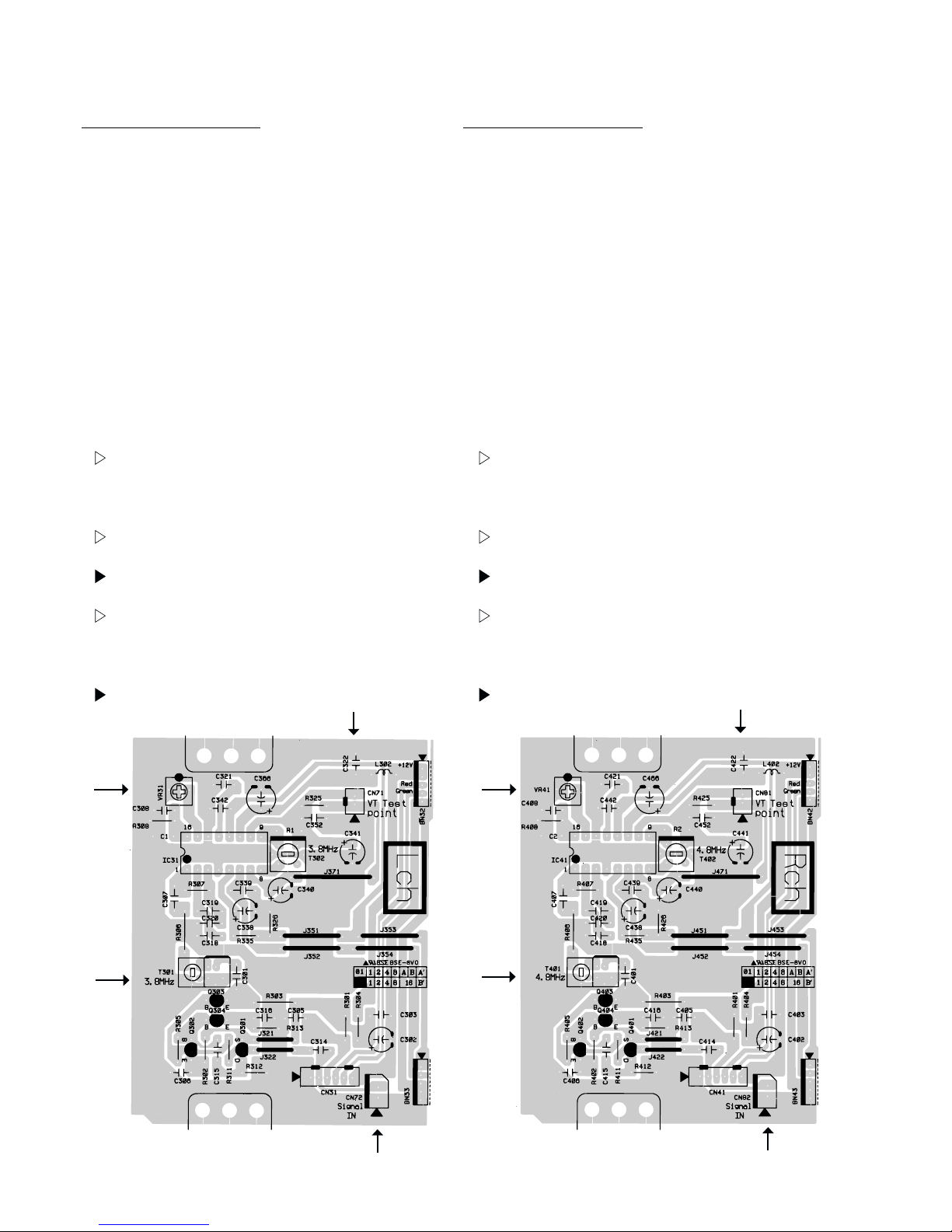

RX RCH ADJUST METHODS
1.Setting Millivolt ammeter S.S.G
4.8000 MHz 75 kHz (mod) 60 dB (EMF) Connection CN81, CN82 Adjust T402, VR41 PCB RX RCH BOARD PCB
2. Adjust
1) AC 100V connection (power on)
2) S.S.G and CN82 connection Condition: mod 75 kHz (100 %)
EMF 60 dB Freq’ 3.8 MHz
3) Millivolt ammeter and CN81 connection Condition: range 50 mV
4) T402 4.8 MHz Coil Adjust Millivolt ammeter ---> 0 mV ± 10 mV
5) S.S.G and CN82 connection Condition: mod 75 kHz (100%)
EMF 24 dB Freq’ 4.8 MHz
6) VR41 Semi volume Adjust
SPK OUT ---> MUTE ON Point
RX LCH ADJUST METHODS
1.Setting Millivolt ammeter S.S.G
3.8000 MHz 75 kHz (mod) 60 dB (EMF) Connection CN71, CN72 Adjust T302, VR31 PCB RX LCH BOARD PCB
2. Adjust
1) AC 100V connection (power on)
2) S.S.G and CN72 connection Condition: mod 75 kHz (100 %)
EMF 60 dB Freq’ 3.8 MHz
3) Millivolt ammeter and CN71 connection Condition: range 50 mV
4)T302 3.8MHz Coil Adjust Millivolt ammeter ---> 0 mV ± 10 mV
5) S.S.G and CN72 connection Condition: mod 75 kHz (100 %)
EMF 24 dB Freq’ 3.8 MHz
6) VR31 Semi volume Adjust
SPK OUT ---> MUTE ON Point
8. ADJUSTMENT
Page 19
23
TX PCB ADJUST METHODS
1.Setting Frequency counter OOOOOOOOOMHz Connection Lch : J521, J510 Rch : J522, J523 Adjust Lch : T501, Lch : T601 PCB TX BOARD PCB
2. Adjust
1) AC adaptor connection (DC 12V)
2) Freq’ counter connection (L ch) J521 ---> + J522 ---> -
3) T501 3.8MHz Coil Adjust Freq’ counter ---> 3.8 MHz ± 10 kHz
4) Freq’ counter connection (R ch)
J510 ---> + J523 ---> -
5) T601 4.8 MHz Coil Adjust
Freq’ counter ---> 4.8 MHz ± 10 kHz
Page 20
24
9. ELECTRICAL PARTS LIST
The suppliers and their type numbers of fusible resistors are as follows;
1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ(±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ(±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ(±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ(±5% 1/4W)
2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140
ERD-2FCG
× × × (±2% 1/4W)
RF02 × × × 140
Examples ;
Resistance value
0.1 Ω....001 10 Ω .... 100 1 kΩ ....102 100 kΩ.... 104
0.5 Ω....005 18 Ω .... 180 2.7 kΩ.... 272 680 kΩ.... 684
1 Ω.... 010 100 Ω ....101 10 kΩ ....103 1 MΩ.... 105
6.8 Ω....068 390 Ω .... 391 22 kΩ ....223 4.7 MΩ .... 475
ASSIGNMENT OF COMMON PARTS CODES.
RESISTORS
R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W
Examples ;
Resistance value
0.1 Ω....001 10 Ω ....100 1 kΩ ....102 100 kΩ.... 104
0.5 Ω....005 18 Ω ....180 2.7 kΩ ....272 680 kΩ....684
1 Ω.... 010 100 Ω ....101 10 kΩ ....103 1 MΩ.... 105
6.8 Ω....068 390 Ω .... 391 22 kΩ ....223 4.7 MΩ .... 475
Note : Please distinguish 1/4W from 1/6W by the shape of parts
used actually.
CAPACITORS
C : CERAMIC CAP.
3) DD1 × × × × 370, Ceramic capacitor
Disc type Temp.coeff.P350 N1000, 50V
Examples ;
Tolerance (Capacity deviation)
±0.25 pF .... 0
±0.5 pF .... 1
±5% .... 5
Tolerance of COMMON PARTS handled here are as follows :
0.5 pF 5 pF .... ±0.25 pF
6 pF 10 pF .... ±0.5 pF
12 pF 560 pF .... ±5%
Capacity value
0.5 pF ....005 3 pF .... 030 100 pF .... 101
1 pF .... 010 10 pF .... 100 220 pF .... 221
1.5 pF ....015 47 pF .... 470 560 pF .... 561
C : CERAMIC CAP.
4) DK16 × × × 300, High dielectric constant ceramic
capacitor Disc type Temp.chara. 2B4, 50V
Examples ;
Capacity value
100 pF .... 101 1000 pF .... 102 10000 pF .... 103
470 pF .... 471 2200 pF .... 222
C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( )
5) EA
× × × × × × 10, Electrolytic capacitor
One-way lead type, Tolerance ±20%
Examples ;
Capacity value
0.1 µF....104 4.7 µF .... 475 100 µF ....107
0.33 µF....334 10 µF ....106 330 µF ....337
1 µF....105 22 µF .... 226 1100 µF ....118
2200 µF ....228
Working voltage
6.3V....006 25V .... 025
10V ....010 35V .... 035
16V ....016 50V .... 050
6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor
One-way type, Mylar ±10% 50V
Examples ;
Capacity value
0.001 µF (1000 pF) ....... 102 0.1 µF....104
0.0018 µF ........................ 182 0.56 µF....564
0.01 µF........................ 103 1 µF ....105
0.015 µF ........................ 153
: 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some
case.
2) On the occasion, be confirmed the common parts on the parts list.
3) Refer to “ Common Parts List” for the other common parts (RI05, DD4, DK4).
➀
➁
Capacity value Tolerance
➃
Capacity value
Resistance value
➄
Working voltage Capacity value
➆
Capacity value
NOTE
NOTE ON SAFETY FOR FUSIBLE RESISTOR :
Resistance value
Resistance value (0.1 Ω − 10 kΩ)
Resistance value
Resistance value
ANT. : ANTENNA BATT. : BATTERY CAP. : CAPACITOR CER. : CERAMIC CONN. : CONNECTING DIG. : DIGITAL HP : HEADPHONE MIC. : MICROPHONE µ-PRO : MICROPROCESSOR REC. : RECORDING RES. : RESISTOR SPK : SPEAKER SW : SWITCH TRANSF. : TRANSFORMER TRIM. : TRIMMING TRS. : TRANSISTOR VAR. : VARIABLE X’TAL : CRYSTAL
ABBREVIATION AND MARKS
{
{
{
{
{
{
{
{
{
{
➂
➀
➁
➂
➃
➄
➅
➆
➅
NOTE ON SAFETY :
Symbol Fire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol
. Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard.
NOTE ON FUSE :
Regarding to all parts of parts code FS20xxx2xx, replace only with Wickmann-Werke GmbH, Type 372 non glass type fuse.
010728MIT
Page 21
25
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
PCB Assy for IR3000RX
(Receiver Lch)
KUP11446Z PCB RX LCH nsp C301 KCBS1H103ZFT CAP. CER. 0.01µF 50V Z nsp C302 KCEA1HH1R0T CAP. ELECT 1.0µF 50V OA10505020 C303 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C305 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C306 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C307 KCBS1H103ZFT CAP. CER. 0.01µF 50V Z nsp C308 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C311 KCFE1J124JBT CAP. FILM 0.12µF 63V J nsp C312 KCFE1J124JBT CAP. FILM 0.12µF 63V J nsp C314 KCCT1H330JC CAP. CER. 33pF 50V J nsp C315 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C316 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C318 KCBS1H103ZFT CAP. CER. 0.01µF 50V Z nsp C319 KCBS1H103ZFT CAP. CER. 0.01µF 50V Z nsp C320 KCBS1H103ZFT CAP. CER. 0.01µF 50V Z nsp C321 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C322 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C324 KCFE1J124JBT CAP. FILM 0.12µF 63V J nsp C325 KCFE1J124JBT CAP. FILM 0.12µF 63V J nsp C326 KCKT1H104ZF CAP 0.1uF 50V Z nsp C327 KCEA1EH470T CAP. ELECT 47µF 25V OA47601020 C328 KCKT1H101KB CAP. CER. 100pF 50V K nsp C329 KCEA1HH1R0T CAP. ELECT 1.0µF 50V OA10505020 C330 KCQI1H473JZT CAP. MYLAR 0.047µF 50V J nsp C332 KCEA1EH470T CAP. ELECT 47µF 25V OA47601020 C333 KCEA1HH2R2T CAP. ELECT 2.2µF 50V OA22505020 C334 KCEA1HH100T CAP. ELECT 10µF 50V OA10605020 C336 KCKT1H101KB CAP. CER. 100pF 50V K nsp C337 KCKT1H101KB CAP. CER. 100pF 50V K nsp C338 KCEA1HKS1R0T CAP. ELECT 1µF 50V nsp C339 KCBS1H101KBT CAP. CER. 100pF 50V K nsp C340 KCEA1HKS1R0T CAP. ELECT 1µF 50V nsp C341 KCEA1CKS470T CAP. ELECT 47µF 16V nsp C342 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C344 KCEA1HH100T CAP. ELECT 10µF 50V OA10605020 C345 KCEA1HH330T CAP. ELECT 33µF 50V nsp C346 KCEA1HH100T CAP. ELECT 10µF 50V OA10605020 C347 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C348 KCEA1HH2R2T CAP. ELECT 2.2µF 50V OA22505020 C349 KCEA1HH2R2T CAP. ELECT 2.2µF 50V OA22505020 C350 KCKT1H221KB CAP. CER. 220pF 50V K nsp C351 KCKT1H471KB CAP. CER. 470pF 50V K nsp C352 KCBS1H103ZFT CAP. CER. 0.01µF 50V Z nsp C353 KCKT1H223ZF CAP. CER. 0.022µF 50V Z nsp C354 KCEA1HH100T CAP. ELECT 10µF 50V OA10605020 C358 KCKT1H102KB CAP. CER. 1000pF 50V K nsp C359 KCQI1H102JZT CAP. MYLAR 1000pF 50V J nsp C366 KCEA1EH221T CAP ELECT 220µF 25V nsp C367 KCEA1EH470T CAP. ELECT 47µF 25V OA47601020 C368 KCEA1HH100T CAP. ELECT 10µF 50V OA10605020 C369 KCQI1H104JZT CAP. MYLAR 0.1µF 50V J nsp C370 KCQI1H104JZT CAP. MYLAR 0.1µF 50V J nsp C371 KCEA1HH100T CAP. ELECT 10µF 50V OA10605020
D304 KVD1N4003ST DIODE 1N4003 HD200010AR D305 KVD1N4003ST DIODE 1N4003 HD200010AR D306 KVD1N4003ST DIODE 1N4003 HD200010AR D307 KVD1N4003ST DIODE 1N4003 HD200010AR D308 KVD1N4003ST DIODE 1N4003 HD200010AR D309 KVD1N4148MT DIODE 1N4148 *HD201550R D310 KVDMTZJ6.8BT DIODE ZENER 6.8V 1/2W *HD301620R
F301H KJCFC5S HOLDER FUSE nsp
IC33 BVISA571D IC COMPANDOR SA571D HC10169490 IC34 BVINJM2068M IC OP AMP NJM2068M HC10102090
L301 KLQ02C270JT COIL AXAIL 27µHJ nsp L302 KLQ02C101JT COIL AXAIL 100µHJ nsp
Q301 KVTKTK117YT F.E.T KTK117Y *HF200280R Q302 KVTKTA1267YT T.R KTA1267Y *HT100550R Q303 KVTKTA1267YT T.R KTA1267Y *HT100550R Q304 KVTKTC3199YT T.R KTC3199Y *HT300840R Q305 KVTKTC3199YT T.R KTC3199Y *HT300840R Q306 KVTKTC3199YT T.R KTC3199Y *HT300840R Q307 KVTKTC3199YT T.R KTC3199Y *HT300840R Q308 KVTKTA1267YT T.R KTA1267Y *HT100550R Q309 KVTKSC2316YT T.R KSC2316Y *HT300580R Q310 KVTKTC3199YT T.R KTC3199Y *HT300840R Q311 KVTKRC107MT T.R KRC107M *BA001070R Q312 KVTKRA107MT T.R KRA107M *BA001060R Q313 KVTKRC107MT T.R KRC107M *BA001070R
R301 KRD20TJ222T RES. CARBON 2.2k
Ω
1/5W J nsp
R302 KRD20TJ102T RES. CARBON 1k
Ω
1/5W J nsp
R303 KRD25TJ221T RES. CARBON 220
Ω
1/4W J nsp
R304 KRD20TJ331T RES. CARBON 330
Ω
1/5W J nsp
R305 KRD20TJ473T RES. CARBON 47k
Ω
1/5W J nsp
R306 KRD25TJ472T RES. CARBON 4.7k
Ω
1/4W J nsp
R307 KRD20TJ331T RES. CARBON 330
Ω
1/5W J nsp
R308 KRD20TJ104T RES. CARBON 100k
Ω
1/5W J nsp
R309 KRD20TJ102T RES. CARBON 1k
Ω
1/5W J nsp
R310 KRD20TJ152T RES. CARBON 1.5k
Ω
1/5W J nsp
R311 KRD20TJ563T RES. CARBON 56k
Ω
1/5W J nsp
R312 KRD20TJ332T RES. CARBON 3.3k
Ω
1/5W J nsp
R313 KRD20TJ102T RES. CARBON 1k
Ω
1/5W J nsp
R314 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R315 KRD25TJ103T RES. CARBON 10k
Ω
1/4W J nsp
R316 KRD20TJ101T RES. CARBON 100
Ω
1/5W J nsp
R317 KRD20TJ221T RES. CARBON 220
Ω
1/5W J nsp
R318 KRD20TJ392T RES. CARBON 3.9k
Ω
1/5W J nsp
R319 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp
R320 KRD20TJ222T RES. CARBON 2.2k
Ω
1/5W J nsp
R323 KRD20TJ123T RES. CARBON 12k
Ω
1/5W J nsp
R324 KRD20TJ473T RES. CARBON 47k
Ω
1/5W J nsp
R325 KRD20TJ153T RES. CARBON 15k
Ω
1/5W J nsp
R326 KRD20TJ473T RES. CARBON 47k
Ω
1/5W J nsp
R327 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R329 KRD20TJ563T RES. CARBON 56k
Ω
1/5W J nsp
R330 KRD20TJ561T RES. CARBON 560
Ω
1/5W J nsp
R331 KRD20TJ563T RES. CARBON 56k
Ω
1/5W J nsp
R332 KRD20TJ333T RES. CARBON 33k
Ω
1/5W J nsp
R333 KRD20TJ682T RES. CARBON 6.8k
Ω
1/5W J nsp
R334 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R335 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R337 KRD25TJ223T RES. CARBON 22k
Ω
1/4W J nsp
R339 KRD20TJ153T RES. CARBON 15k
Ω
1/5W J nsp
R340 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp
R341 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp
R342 KRD20TJ561T RES. CARBON 560
Ω
1/5W J nsp
R344 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R345 KRD25TJ470T RES. CARBON 47
Ω
1/4W J nsp
R346 KRD25TJ470T RES. CARBON 47
Ω
1/4W J nsp
R347 KRD20TJ102T RES. CARBON 1k
Ω
1/5W J nsp
R348 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R349 KRD25TJ103T RES. CARBON 10k
Ω
1/4W J nsp
R350 KRD25TJ223T RES. CARBON 22k
Ω
1/4W J nsp
R351 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp
R352 KRD20TJ473T RES. CARBON 47k
Ω
1/5W J nsp
R354 KRD25TJ102T RES. CARBON 1k
Ω
1/4W J nsp
VR31 BVN1PA503B01T RES. SEMI FIXED
EVNDJAA03B54
*RA000940R
BK31 KMD1A387 BRACKET PCB nsp BN31 KWZIR3000BN31 SHIELD WIRE ASS'Y nsp BN32 KJP05GB99ZM CONNECTOR nsp
Page 22
26
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
BN33 KJP05GB99ZM CONNECTOR nsp BN38
KWB1D902120BM
WIRE ASS'Y nsp
CN30 BJPB2BXHA WAFER
2.5MM PITCH JST B 2B-XH-A
nsp
CN31 KJP06GA19ZM WAFER MOLEX53014-0610 nsp CN32 KJP05GA98ZM WAFER nsp CN33 KJP05GA98ZM WAFER nsp CN34 KJP03GA01ZM WAFER MOLEX 5267-03A nsp CN35 KJP02GA89ZM WAFER MOLEX35328-02 nsp CN36 KJP02KA060ZY WAFER 7.92MM(YUNHO) nsp CN37 KJP02GA01ZM WAFER MOLEX 5267-02A nsp CN38 KJP02GA01ZM WAFER MOLEX 5267-02A nsp CN39 KJP02GA89ZM WAFER MOLEX35328-02 nsp CN71 KJP02GA19ZM WAFER nsp CN72 KJP02GA01ZM WAFER MOLEX 5267-02A nsp C304 KCEA1VH222E CAP. ELECT 2200µF 35V EA22803510 C310 KCEA1VH222E CAP. ELECT 2200µF 35V EA22803510 C313 BCKWKH103MF CAP. CER.(KH TYPE)
DE1610-610F103M
nsp
C323 KCEA1EH102E CAP. ELECT 1000µF 25V OA10802520 C343 KCEA1VH331E CAP. ELECT 330V 35V EA33703510
D301 BVDPP801 DIODE PHOTO PP801 (Stanley) *HI600010R
D302 BVDKBJ404G DIODE BRIDGE KBJ404G *HE200210R
D303
KVDSPR39MVW3
L.E.D SPR-39MVW3 *HI100950R
GP31 KNE75 PLATE EARTH nsp
IC31 BVILA1235 IC FM.IF LA1235 *HC105130R
IC32 BVINJM7812FA IC REGULATOR NJM7812FA HC3891209F IC35 BVIUPC1237HA IC PROTECT UPC1237HA *HC107040R IC36 KMYIR3000 HEAT SINK ASS'Y AMP IC nsp
IC36-1
BDMKD1204PFB2-8
MOTOR FAN (BRUSHLESS) KD1204PFB2-8
*MM001110R
IC36-2
BVITDA2052 IC MONO AMP TDA2052 *HC107050R
JK31 KJJ5N007Z SPK TERMINAL *YT002440R L303 KLEYK1R8KA COIL *LC107200R
RY31 BSL1B012ZE RELAY DC24V G5PA-1-8 DC24 LY10240280 R338 KRG1ANJ100H RES. METAL OXIDE FILM
10
Ω
1W J
GA05100010
T301 KLM3H001Z MPX FILTER COIL (3.8MHz) *LS000070R T302 KLR3B001Z MPX FILTER COIL(3.8MHz) *LS000080R VR32 KVV1J06B104Z VR VOL RK09K1110202 *RK000090R
F301 KBA2C1600TLU FUSE 1.6A 250V *FS000840R
PCB Assy for IR3000RX
(Receiver Rch)
KUP11448Z PCB RX RCH C401 KCBS1H103ZFT CAP. CER. 0.01µF 50V Z nsp C402 KCEA1HH1R0T CAP. ELECT 1.0µF 50V OA10505020 C403 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C405 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C406 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C407 KCBS1H103ZFT CAP. CER. 0.01µF 50V Z nsp C408 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C411 KCFE1J124JBT CAP. FILM 0.12µF 63V J nsp C412 KCFE1J124JBT CAP. FILM 0.12µF 63V J nsp C414 KCCT1H330JC CAP. CER. 33pF 50V J nsp C415 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C416 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C418 KCBS1H103ZFT CAP. CER. 0.01µF 50V Z nsp C419 KCBS1H103ZFT CAP. CER. 0.01µF 50V Z nsp C420 KCBS1H103ZFT CAP. CER. 0.01µF 50V Z nsp C421 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C422 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C424 KCFE1J124JBT CAP. FILM 0.12µF 63V J nsp
C425 KCFE1J124JBT CAP. FILM 0.12µF 63V J nsp C426 KCKT1H104ZF CAP 0.1uF 50V Z nsp C427 KCEA1EH470T CAP. ELECT 47µF 25V OA47601020 C428 KCKT1H101KB CAP. CER. 100pF 50V K nsp C429 KCEA1HH1R0T CAP. ELECT 1.0µF 50V OA10505020 C430 KCQI1H473JZT CAP. MYLAR 0.047µF 50V J nsp C432 KCEA1EH470T CAP. ELECT 47µF 25V OA47601020 C433 KCEA1HH2R2T CAP. ELECT 2.2µF 50V OA22505020 C434 KCEA1HH100T CAP. ELECT 10µF 50V OA10605020 C436 KCKT1H101KB CAP. CER. 100pF 50V K nsp C437 KCKT1H101KB CAP. CER. 100pF 50V K nsp C438 KCEA1HKS1R0T CAP. ELECT 1µF 50V nsp C439 KCBS1H101KBT CAP. CER. 100pF 50V K nsp C440 KCEA1HKS1R0T CAP. ELECT 1µF 50V nsp C441 KCEA1CKS470T CAP. ELECT 47µF 16V nsp C442 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C444 KCEA1HH100T CAP. ELECT 10µF 50V OA10605020 C445 KCEA1HH330T CAP. ELECT 33µF 50V nsp C446 KCEA1HH100T CAP. ELECT 10µF 50V OA10605020 C447 KCKT1H103ZF CAP. CER. 0.01µF 50V Z nsp C448 KCEA1HH2R2T CAP. ELECT 2.2µF 50V OA22505020 C449 KCEA1HH2R2T CAP. ELECT 2.2µF 50V OA22505020 C450 KCKT1H221KB CAP. CER. 220pF 50V K nsp C451 KCKT1H471KB CAP. CER. 470pF 50V K nsp C452 KCBS1H103ZFT CAP. CER. 0.01µF 50V Z nsp C453 KCKT1H223ZF CAP. CER. 0.022µF 50V Z nsp C454 KCEA1HH100T CAP. ELECT 10µF 50V OA10605020 C458 KCKT1H102KB CAP. CER. 1000pF 50V K nsp C459 KCQI1H102JZT CAP. MYLAR 1000pF 50V J nsp C466 KCEA1EH221T CAP. ELECT 220µF 25V nsp C467 KCEA1EH470T CAP. ELECT 47µF 25V OA47601020 C468 KCEA1HH100T CAP. ELECT 10µF 50V OA10605020 C469 KCQI1H104JZT CAP. MYLAR 0.1µF 50V J nsp C470 KCQI1H104JZT CAP. MYLAR 0.1µF 50V J nsp C471 KCEA1HH100T CAP. ELECT 10µF 50V OA10605020
D404 KVD1N4003ST DIODE 1N4003 HD200010A
R
D405 KVD1N4003ST DIODE 1N4003 HD200010AR D406 KVD1N4003ST DIODE 1N4003 HD200010AR D407 KVD1N4003ST DIODE 1N4003 HD200010AR D408 KVD1N4003ST DIODE 1N4003 HD200010AR D409 KVD1N4148MT DIODE 1N4148 *HD201550R D410 KVDMTZJ6.8BT DIODE ZENER 6.8V 1/2W *HD301620R
F401H KJCFC5S HOLDER FUSE nsp
IC43 BVISA571D IC COMPANDOR SA571D HC10169490 IC44 BVINJM2068M IC OP AMP NJM2068M HC10102090
L401 KLQ02C270JT COIL AXAIL 27µHJ nsp L402 KLQ02C101JT COIL AXAIL 100µHJ nsp
Q401 KVTKTK117YT F.E.T KTK117Y *H
F200280R
Q402 KVTKTA1267YT T.R KTA1267Y *HT100550R Q403 KVTKTA1267YT T.R KTA1267Y *HT100550R Q404 KVTKTC3199YT T.R KTC3199Y *HT300840R Q405 KVTKTC3199YT T.R KTC3199Y *HT300840R Q406 KVTKTC3199YT T.R KTC3199Y *HT300840R Q407 KVTKTC3199YT T.R KTC3199Y *HT300840R Q408 KVTKTA1267YT T.R KTA1267Y *HT100550R Q409 KVTKSC2316YT T.R KSC2316Y *HT300580R Q410 KVTKTC3199YT T.R KTC3199Y *HT300840R Q411 KVTKRC107MT T.R KRC107M *BA001070R Q412 KVTKRA107MT T.R KRA107M *BA001060R Q413 KVTKRC107MT T.R KRC107M *BA001070R
R401 KRD20TJ222T RES. CARBON 2.2k
Ω
1/5W J nsp
R402 KRD20TJ102T RES. CARBON 1k
Ω
1/5W J nsp
R403 KRD25TJ391T RES. CARBON 390
Ω
1/4W J nsp
R404 KRD20TJ331T RES. CARBON 330
Ω
1/5W J nsp
Page 23
27
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
R405 KRD20TJ473T RES. CARBON 47kΩ 1/5W J nsp R406 KRD25TJ472T RES. CARBON 4.7k
Ω
1/4W J nsp
R407 KRD20TJ331T RES. CARBON 330
Ω
1/5W J nsp
R408 KRD20TJ104T RES. CARBON 100k
Ω
1/5W J nsp
R409 KRD20TJ102T RES. CARBON 1k
Ω
1/5W J nsp
R410 KRD20TJ152T RES. CARBON 1.5k
Ω
1/5W J nsp
R411 KRD20TJ563T RES. CARBON 56k
Ω
1/5W J nsp
R412 KRD20TJ332T RES. CARBON 3.3k
Ω
1/5W J nsp
R413 KRD20TJ102T RES. CARBON 1k
Ω
1/5W J nsp
R414 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R415 KRD25TJ103T RES. CARBON 10k
Ω
1/4W J nsp
R416 KRD20TJ101T RES. CARBON 100
Ω
1/5W J nsp
R417 KRD20TJ221T RES. CARBON 220
Ω
1/5W J nsp
R418 KRD20TJ392T RES. CARBON 3.9k
Ω
1/5W J nsp
R419 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp
R420 KRD20TJ222T RES. CARBON 2.2k
Ω
1/5W J nsp
R423 KRD20TJ123T RES. CARBON 12k
Ω
1/5W J nsp
R425 KRD20TJ153T RES. CARBON 15k
Ω
1/5W J nsp
R426 KRD20TJ473T RES. CARBON 47k
Ω
1/5W J nsp
R427 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R429 KRD20TJ563T RES. CARBON 56k
Ω
1/5W J nsp
R430 KRD20TJ561T RES. CARBON 560
Ω
1/5W J nsp
R431 KRD20TJ563T RES. CARBON 56k
Ω
1/5W J nsp
R432 KRD20TJ333T RES. CARBON 33k
Ω
1/5W J nsp
R433 KRD20TJ682T RES. CARBON 6.8k
Ω
1/5W J nsp
R434 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R435 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R437 KRD25TJ223T RES. CARBON 22k
Ω
1/4W J nsp
R439 KRD20TJ153T RES. CARBON 15k
Ω
1/5W J nsp
R440 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp
R441 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp
R442 KRD20TJ561T RES. CARBON 560
Ω
1/5W J nsp
R444 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R445 KRD25TJ470T RES. CARBON 47
Ω
1/4W J nsp
R446 KRD25TJ470T RES. CARBON 47
Ω
1/4W J nsp
R447 KRD20TJ102T RES. CARBON 1k
Ω
1/5W J nsp
R448 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R449 KRD25TJ103T RES. CARBON 10k
Ω
1/4W J nsp
R450 KRD25TJ223T RES. CARBON 22k
Ω
1/4W J nsp
R451 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp
R452 KRD20TJ473T RES. CARBON 47k
Ω
1/5W J nsp
R454 KRD25TJ102T RES. CARBON 1k
Ω
1/4W J nsp
VR41 BVN1PA503B01T RES. SEMI FIXED
EVNDJAA03B54
*RA000940R
BK41 KMD1A387 BRACKET PCB nsp BN41 KWZIR3000BN31 SHIELD WIRE ASS'Y nsp BN42 KJP05GB99ZM CONNECTOR nsp BN43 KJP05GB99ZM CONNECTOR nsp BN48
KWB1D902120BM
WIRE ASS'Y nsp
CN40 BJPB2BXHA WAFER
2.5MM PITCH JST B 2B-XH-A
nsp
CN41 KJP06GA19ZM WAFER MOLEX53014-0610 nsp CN42 KJP05GA98ZM WAFER nsp CN43 KJP05GA98ZM WAFER nsp CN44 KJP03GA01ZM WAFER MOLEX 5267-03A nsp CN45 KJP02GA89ZM WAFER MOLEX35328-02 nsp CN46 KJP02KA060ZY WAFER 7.92MM(YUNHO) nsp CN47 KJP02GA01ZM WAFER MOLEX 5267-02A nsp CN48 KJP02GA01ZM WAFER MOLEX 5267-02A nsp CN49 KJP02GA89ZM WAFER MOLEX35328-02 nsp CN81 KJP02GA19ZM WAFER nsp CN82 KJP02GA01ZM WAFER MOLEX 5267-02A nsp C404 KCEA1VH222E CAP. ELECT 2200µF 35V EA22803510 C410 KCEA1VH222E CAP. ELECT 2200µF 35V EA22803510 C413 BCKWKH103MF CAP. CER.(KH TYPE)
DE1610-610F103M
nsp
C423 KCEA1EH102E CAP. ELECT 1000µF 25V OA10802520 C443 KCEA1VH331E CAP. ELECT 330µF 35V EA33703510
D401 BVDPP801 DIODE PHOTO PP801 (Stanley) *HI600010R
D402 BVDKBJ404G DIODE BRIDGE KBJ404G *HE200210R
D403
KVDSPR39MVW3
L.E.D SPR-39MVW3 *HI100950R
GP41 KNE75 PLATE EARTH nsp
IC41 BVILA1235 IC FM.IF LA1235 *HC105130R
IC42 BVINJM7812FA IC REGULATOR NJM7812FA HC3891209F IC45 BVIUPC1237HA IC PROTECT UPC1237HA *HC107040R IC46 KMYIR3000 HEAT SINK ASS'Y AMP IC nsp
IC46-2
IC46-1
BDMKD1204PFB2-8
MOTOR FAN (BRUSHLESS) KD1204PFB2-8
*MM001110R
BVITDA2052 IC MONO AMP TDA2052 *HC107050R JK41 KJJ5N007Z SPK TERMINAL *YT002440R L403 KLEYK1R8KA COIL *LC107200R
RY41 BSL1B012ZE RELAY DC24V G5PA-1-8 DC24 LY10240280 R438 KRG1ANJ100H RES. METAL OXIDE FILM
10
Ω
1W J
GA05100010
T401 KLM3H002Z MPX FILTER COIL (4.8MHz) *LS000090R T402 KLR3B002Z MPX FILTER COIL(4.8MHz) *LS000100R VR42 KVV1J06B104Z VR VOL RK09K1110202 *RK000090R
F401 KBA2C1600TLU FUSE 1.6A 250V *FS000840R
PCB Assy for IR3000TX
(Transmitter)
KUP11434Z PCB TX C101 KCEA1EH220T CAP. ELECT 22µF 25V nsp C102 KCEA1EH101T CAP. ELECT 100µF 25V nsp C103 KCEA1EH101T CAP. ELECT 100µF 25V nsp C104 KCEA1EH101T CAP. ELECT 100µF 25V nsp C105 KCEA1EH101T CAP. ELECT 100µF 25V nsp C106 KCEA1EH101T CAP. ELECT 100µF 25V nsp C501 KCEA1CKS100T CAP. ELECT 10µF 16V nsp C502 KCEA1HKS1R0T CAP. ELECT 1µF 50V nsp C503 KCBS1H101KBT CAP. CER. 100pF 50V K nsp C504 KCBS1C222MXT CAP. CER. 2200pF 16V M nsp C505 KCBS1H100JCT CAP. CER. 10pF 50V J nsp C506 KCBS1H101KBT CAP. CER. 100pF 50V K nsp C507 KCEA1CKS101T CAP. ELECT 100µF 16V nsp C508 KCEA1CKS101T CAP. ELECT 100µF 16V nsp C509 KCBS1H104ZFT CAP. CER. 0.1µF 50V Z nsp C510 KCBS1H101KBT CAP. CER. 100pF 50V K nsp C511 KCEA1CKS100T CAP. ELECT 10µF 16V nsp C512 KCCT1H100DC CAP. CER. 10pF 50V D nsp C513 KCEA1CKS470T CAP. ELECT 47µF 16V nsp C514 KCBS1H103ZFT CAP. CER. 0.01µF 50V Z nsp C515 KCBS1C222MXT CAP. CER. 2200pF 16V M nsp C516 KCEA1HKS2R2T CAP. ELECT 2.2µF 50V nsp C517 KCEA1HKS2R2T CAP. ELECT 2.2µF 50V nsp C518 KCBS1H104ZFT CAP. CER. 0.1µF 50V Z nsp C519 KCEA1CKS101T CAP. ELECT 100µF 16V nsp C520 KCEA1HKS4R7T CAP. ELECT 4.7µF 50V nsp C521 KCEA1HKS1R0T CAP. ELECT 1µF 50V nsp C522 KCBS1C222MXT CAP. CER. 2200pF 16V M nsp C523 KCEA1CKS470T CAP. ELECT 47µF 16V nsp C601 KCEA1CKS100T CAP. ELECT 10µF 16V nsp C602 KCEA1HKS1R0T CAP. ELECT 1µF 50V nsp C603 KCBS1H101KBT CAP. CER. 100pF 50V K nsp C604 KCBS1C222MXT CAP. CER. 2200pF 16V M nsp C605 KCBS1H101KBT CAP. CER. 100pF 50V K nsp C606 KCBS1H100JCT CAP. CER. 10pF 50V J nsp C607 KCBS1H101KBT CAP. CER. 100pF 50V K nsp C608 KCEA1CKS101T CAP. ELECT 100µF 16V nsp C609 KCEA1CKS101T CAP. ELECT 100µF 16V nsp C610 KCBS1H104ZFT CAP. CER. 0.1µF 50V Z nsp C611 KCEA1CKS470T CAP. ELECT 47µF 16V nsp C613 KCEA1CKS100T CAP. ELECT 10µF 16V nsp C614 KCCT1H100DC CAP. CER. 10pF 50V D nsp
Page 24
28
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
C615 KCBS1C222MXT CAP. CER. 2200pF 16V M nsp C616 KCEA1HKS2R2T CAP. ELECT 2.2µF 50V nsp C617 KCBS1H104ZFT CAP. CER. 0.1µF 50V Z nsp C618 KCEA1CKS101T CAP. ELECT 100µF 16V nsp C619 KCEA1HKS2R2T CAP. ELECT 2.2µF 50V nsp C620 KCEA1HKS4R7T CAP. ELECT 4.7µF 50V nsp C621 KCEA1HKS1R0T CAP. ELECT 1µF 50V nsp C622 KCBS1C222MXT CAP. CER. 2200pF 16V M nsp
D101
KVD342VCTB7T089
L.E.D RED SLR342VCTB7 HI10071210 D501 BVDSVC203SPA DIODE VARICAP SVC203SPA *HD400180R D502 BVDDNF318U IR LED DNF318U *HI200010R D503 BVDDNF318U IR LED DNF318U *HI200010R D504 BVDDNF318U IR LED DNF318U *HI200010R D505 BVDDNF318U IR LED DNF318U *HI200010R D506 BVDDNF318U IR LED DNF318U *HI200010R D507 BVDDNF318U IR LED DNF318U *HI200010R D508 BVDDNF318U IR LED DNF318U *HI200010R D509 BVDDNF318U IR LED DNF318U *HI200010R D510 BVDDNF318U IR LED DNF318U *HI200010R D511 BVDDNF318U IR LED DNF318U *HI200010R D512 BVDDNF318U IR LED DNF318U *HI200010R D513 BVDDNF318U IR LED DNF318U *HI200010R D601 BVDSVC203SPA DIODE VARICAP SVC203SPA *HD400180R D602 BVDDNF318U IR LED DNF318U *HI200010R D603 BVDDNF318U IR LED DNF318U *HI200010R D604 BVDDNF318U IR LED DNF318U *HI200010R D605 BVDDNF318U IR LED DNF318U *HI200010R D606 BVDDNF318U IR LED DNF318U *HI200010R D607 BVDDNF318U IR LED DNF318U *HI200010R D608 BVDDNF318U IR LED DNF318U *HI200010R D609 BVDDNF318U IR LED DNF318U *HI200010R D610 BVDDNF318U IR LED DNF318U *HI200010R D611 BVDDNF318U IR LED DNF318U *HI200010R D612 BVDDNF318U IR LED DNF318U *HI200010R D613 BVDDNF318U IR LED DNF318U *HI200010R
IC51 BVINJM2068M IC OP AMP NJM2068M HC10102090 IC52 BVISA571D IC COMPANDOR SA571D HC10169490 IC61 BVINJM2068M IC OP AMP NJM2068M HC10102090
L501 KLQ02C101JT COIL AXAIL 100UHJ nsp L601 KLQ02C101JT COIL AXAIL 100UHJ nsp
Q501 KVTKTC3194YT TR KTC3194Y *HT300850R Q502 KVTKTC3194YT TR KTC3194Y *HT300850R Q503 KVTKTA1267YT T.R KTA1267Y *HT100550R Q601 KVTKTC3194YT TR KTC3194Y *HT300850R Q602 KVTKTC3194YT TR KTC3194Y *HT300850R Q605 KVTKTA1267YT T.R KTA1267Y *HT100550R
R101 KRD25TJ122T RES. CARBON 1.2k
Ω
1/4W J nsp
R501 KRD20TJ222T RES. CARBON 2.2k
Ω
1/5W J nsp
R502 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R503 KRD20TJ332T RES. CARBON 3.3k
Ω
1/5W J nsp
R504 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
R505 KRD20TJ222T RES. CARBON 2.2k
Ω
1/5W J nsp
R506 KRD20TJ102T RES. CARBON 1k
Ω
1/5W J nsp
R507 KRD20TJ153T RES. CARBON 15k
Ω
1/5W J nsp
R508 KRD20TJ332T RES. CARBON 3.3k
Ω
1/5W J nsp
R509 KRD20TJ332T RES. CARBON 3.3k
Ω
1/5W J nsp
R510 KRD20TJ104T RES. CARBON 100k
Ω
1/5W J nsp
R511 KRD20TJ221T RES. CARBON 220
Ω
1/5W J nsp
R512 KRD20TJ104T RES. CARBON 100k
Ω
1/5W J nsp
R513 KRD20TJ122T RES. CARBON 1.2k
Ω
1/5W J nsp
R514 KRD20TJ561T RES. CARBON 560
Ω
1/5W J nsp
R515 KRD20TJ101T RES. CARBON 100
Ω
1/5W J nsp
R516 KRD20TJ104T RES. CARBON 100k
Ω
1/5W J nsp
R517 KRD20TJ102T RES. CARBON 1k
Ω
1/5W J nsp
R518 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp
R519 KRD20TJ332T RES. CARBON 3.3k
Ω
1/5W J nsp
R520 KRD20TJ471T RES. CARBON 470
Ω
1/5W J nsp
R521 KRD20TJ104T RES. CARBON 100k
Ω
1/5W J nsp
R522 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp
R523 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp
R524 KRD20TJ222T RES. CARBON 2.2k
Ω
1/5W J nsp
R525 KRD20TJ152T RES. CARBON 1.5k
Ω
1/5W J nsp
R526 KRD20TJ272T RES. CARBON 2.7k
Ω
1/5W J nsp
R527 KRD20TJ100T RES. CARBON 10
Ω
1/5W J GD05100160
R528 KRD20TJ100T RES. CARBON 10
Ω
1/5W J GD05100160
R529 KRD20TJ473T RES. CARBON 47k
Ω
1/5W J nsp
R530 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp R531 K3A406 WIRE COPPER 0.58MM nsp R532 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp R533 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp R534 KRD20TJ153T RES. CARBON 15k
Ω
1/5W J nsp R535 KRD20TJ682T RES. CARBON 6.8k
Ω
1/5W J nsp
R601 KRD20TJ222T RES. CARBON 2.2k
Ω
1/5W J nsp
R602 KRD20TJ222T RES. CARBON 2.2k
Ω
1/5W J nsp
R603 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp R604 KRD20TJ153T RES. CARBON 15k
Ω
1/5W J nsp R605 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp R606 KRD20TJ332T RES. CARBON 3.3k
Ω
1/5W J nsp
R607 KRD20TJ102T RES. CARBON 1k
Ω
1/5W J nsp
R608 KRD20TJ122T RES. CARBON 1.2k
Ω
1/5W J nsp
R609 KRD20TJ332T RES. CARBON 3.3k
Ω
1/5W J nsp
R610 KRD20TJ332T RES. CARBON 3.3k
Ω
1/5W J nsp
R611 KRD20TJ104T RES. CARBON 100k
Ω
1/5W J nsp
R612 KRD20TJ561T RES. CARBON 560
Ω
1/5W J nsp
R613 KRD20TJ221T RES. CARBON 220
Ω
1/5W J nsp
R614 KRD20TJ104T RES. CARBON 100k
Ω
1/5W J nsp
R615 KRD20TJ682T RES. CARBON 6.8k
Ω
1/5W J nsp
R616 KRD20TJ104T RES. CARBON 100k
Ω
1/5W J nsp
R617 KRD20TJ102T RES. CARBON 1k
Ω
1/5W J nsp
R618 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp R619 KRD20TJ332T RES. CARBON 3.3k
Ω
1/5W J nsp
R620 KRD20TJ471T RES. CARBON 470
Ω
1/5W J nsp
R621 KRD20TJ104T RES. CARBON 100k
Ω
1/5W J nsp
R622 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp R623 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp R624 KRD20TJ222T RES. CARBON 2.2k
Ω
1/5W J nsp
R625 KRD20TJ152T RES. CARBON 1.5k
Ω
1/5W J nsp
R626 KRD20TJ272T RES. CARBON 2.7k
Ω
1/5W J nsp
R627 KRD20TJ100T RES. CARBON 10
Ω
1/5W J GD05100160
R628 KRD20TJ100T RES. CARBON 10
Ω
1/5W J GD05100160
R629 KRD20TJ473T RES. CARBON 47k
Ω
1/5W J nsp R630 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp R631 K3A406 WIRE COPPER 0.58MM nsp R632 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp R633 KRD20TJ223T RES. CARBON 22k
Ω
1/5W J nsp R634 KRD20TJ103T RES. CARBON 10k
Ω
1/5W J nsp
BN12
KWB2B902070EN
WIRE ASS'Y nsp BN51 KJP03HA37ZM WAFER nsp BN61 KJP03HA37ZM WAFER nsp
CN11 KJP04GB03ZM WAFER 5268-04A (4P) YJ07002460 CN12 KJP02GA19ZM WAFER nsp CN51 KJP03TT45ZO WAFER nsp CN61 KJP03TT45ZO WAFER nsp
IC11 BVINJM7812FA IC REGULATOR NJM7812FA HC3891209F
JK11 BJJ2D007Z JACK PHONE TC38-160-01G *YJ002370R
JK12 BJJ1B001Z JACK DC IN TC18-013-04 *YJ002380R
Q504 BVT2SC2911S T.R 2SC2911S HT329111B0 Q505 BVT2SC2911S T.R 2SC2911S HT329111B0 Q603 BVT2SC2911S T.R 2SC2911S HT329111B0 Q604 BVT2SC2911S T.R 2SC2911S HT329111B0
Page 25
29
NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
POS.
NO
VERS.
COLOR
DESCRIPTION
PART NO.
(MJI)
SW11 BSS2D005Z SW SLIDE SKL-42D01N-G6 *SS000690R
TH51
KRTNTC5D132KPC
THERMISTOR(1.3K) NTC5D132KPC(TA)
*HH000100R
TH61
KRTNTC5D132KPC
THERMISTOR(1.3K) NTC5D132KPC(TA)
*HH000100R
T501 KLI9A001Z I.F.T (3.8MHz) *TC000400R T601 KLI9A003Z I.F.T (4.8MHz) *TC000410R
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
