ENGLISH

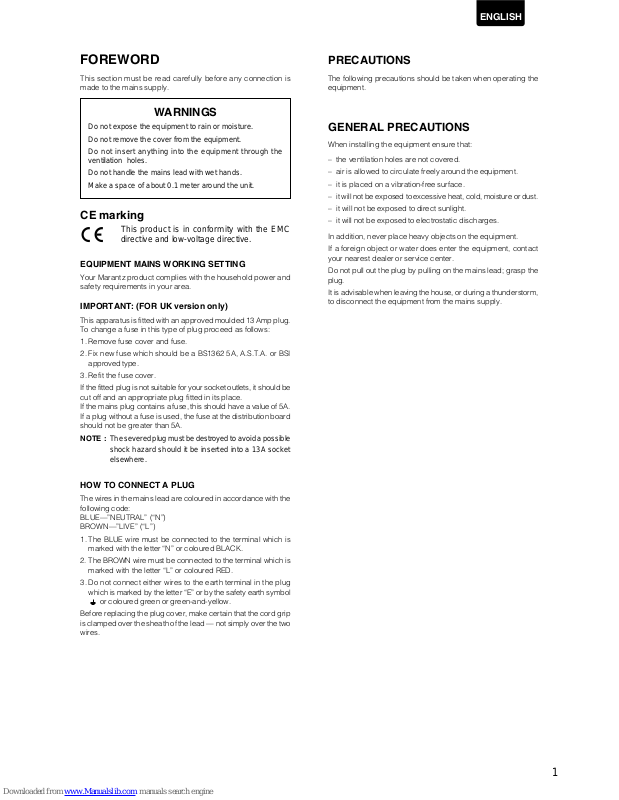

FOREWORD

This section must be read carefully before any connection is made to the mains supply.

WARNINGS

Do not expose the equipment to rain or moisture. Do not remove the cover from the equipment. Do not insert anything into the equipment through the

ventilation holes. Do not handle the mains lead with wet hands. Make a space of about 0.1 meter around the unit.

CE marking

This product is in conformity with the EMC directive and low-voltage directive.

EQUIPMENT MAINS WORKING SETTING

Your Marantz product complies with the household power and safety requirements in your area.

IMPORTANT: (FOR UK version only)

This apparatus is fitted with an approved moulded 13 Amp plug. To change a fuse in this type of plug proceed as follows:

1. Remove fuse cover and fuse.

2. Fix new fuse which should be a BS1362 5A, A.S.T.A. or BSI approved type.

3. Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A.

NOTE : The severed plug must be destroyed to avoid a possible

shock hazard should it be inserted into a 13A socket elsewhere.

HOW TO CONNECT A PLUG

The wires in the mains lead are coloured in accordance with the following code: BLUE—”NEUTRAL” (“N”) BROWN—”LIVE” (“L”)

1. The BLUE wire must be connected to the terminal which is marked with the letter “N” or coloured BLACK.

2. The BROWN wire must be connected to the terminal which is marked with the letter “L” or coloured RED.

3. Do not connect either wires to the earth terminal in the plug which is marked by the letter “E” or by the safety earth symbol

or coloured green or green-and-yellow.

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead — not simply over the two wires.

PRECAUTIONS

The following precautions should be taken when operating the equipment.

GENERAL PRECAUTIONS

When installing the equipment ensure that: – the ventilation holes are not covered.

– air is allowed to circulate freely around the equipment. – it is placed on a vibration-free surface. – it will not be exposed to excessive heat, cold, moisture or dust. – it will not be exposed to direct sunlight. – it will not be exposed to electrostatic discharges.

In addition, never place heavy objects on the equipment. If a foreign object or water does enter the equipment, contact

your nearest dealer or service center. Do not pull out the plug by pulling on the mains lead; grasp the

plug. It is advisable when leaving the house, or during a thunderstorm,

to disconnect the equipment from the mains supply.

Page 2

ENGLISH

Features of This Player

Compatible with DVD, Video CD and CD formats

DVD, Video CD and CD discs that display the logos shown below can be played back on MARANTZ DVD players. For more information on discs compatible with this player, refer to the table below.

The disc format logos shown above are found on disc labels or on disc jackets.

• To prevent malfunction, do not use an 8 cm (3 in.) adaptor (for CDs).

• Discs other than the ones indicated above cannot be played on this unit.

• DVDs that have incompatible region numbers, DVD-Audio, DVD-ROM, and CD-ROM cannot be played on this unit. The region number of the player can be found on the rear panel.

*1Playing recordable CDs

• Note that this unit cannot record onto recordable discs.

• This unit can play music-use CD-R and CD-RW discs. However, depending on the condition of the player and the disc, you may find that not all discs will play successfully. (For example, if the disc is scratched or dirty, or if the player’s pickup lens is dirty.)

12 cm (5in.)/ single-sided

12 cm (5in.)/ double-sided

8 cm (3 in.)/ single-sided

8 cm (3 in.)/ double-sided

1 layer 2 layer

DVD VIDEO

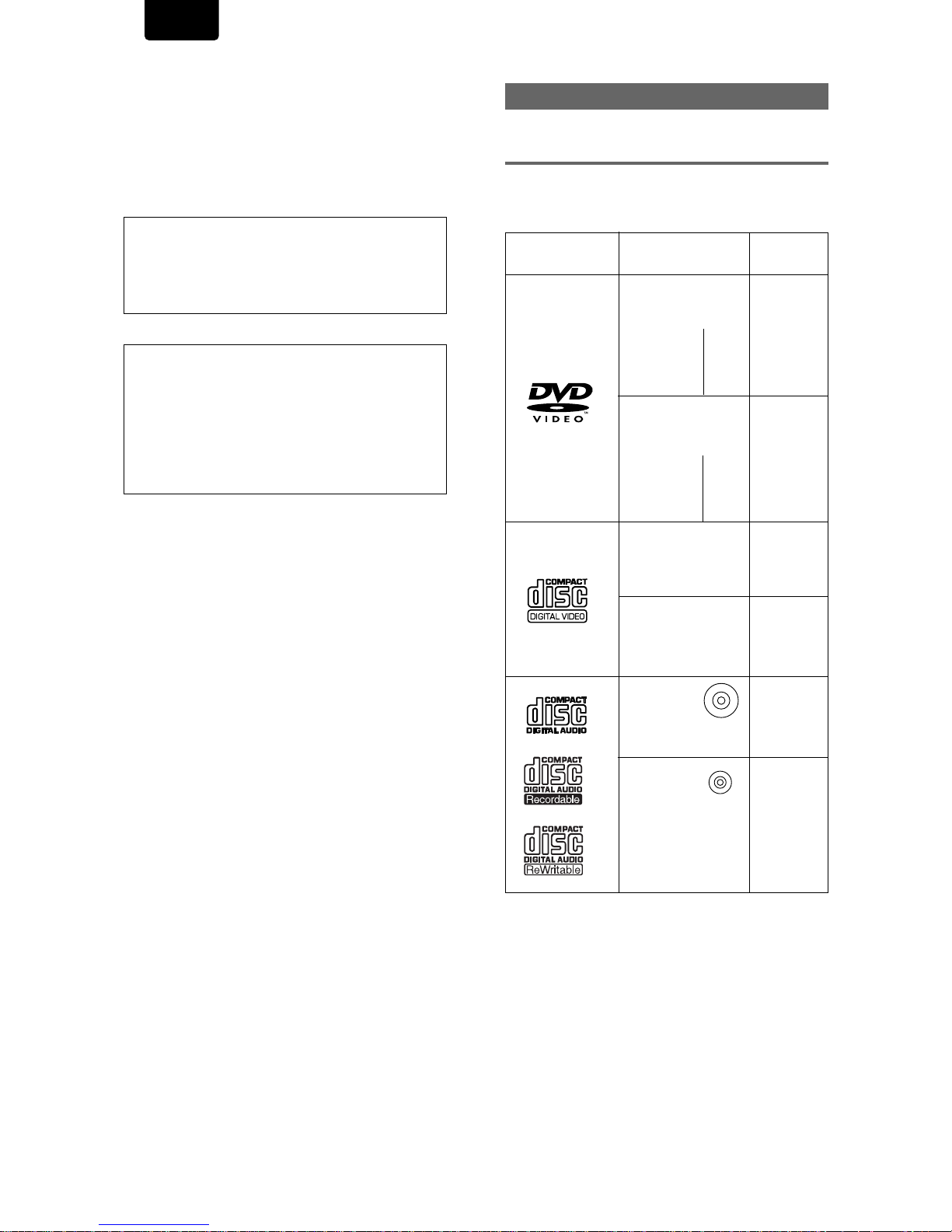

Types of playable discs and their marks

Diameter/ Playable sides

Playback time

Digital audio Digital video (MPEG 2)

133 min. 242 min.

266 min. 484 min.

VIDEO CD

Digital audio Digital video (MPEG 2)

DVD VIDEO

VIDEO CD

41 min. 75 min.

82 min. 150 min.

VIDEO CD single

CD single

Digital audio Digital video (MPEG 1) Max. 74 minutes

Digital audio Digital video (MPEG 1) Max. 20 minutes

Digital audio

Max. 74 minutes

12 cm (5 in.)/ single-sided

8 cm (3 in.)/ single-sided

12 cm (5 in.)/ single-sided

8 cm (3 in.)/ single-sided

Digital audio

Max. 20 minutes

CONGRATULATIONS ON YOUR PURCHASE OF THIS

FINE MARANTZ PRODUCT.

MARANTZ is on the leading edge of DVD research for consumer products and this unit incorporates the latest technological developments.

We are sure you will be fully satisfied with the DVD player. Thank you for your support.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

• This player is not suitable for commercial use.

This product incorporates copyright protection technology that is protected by method claims of certain U. S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be Authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision corporation. Reverse engineering or disassembly is prohibited.

Page 3

ENGLISH

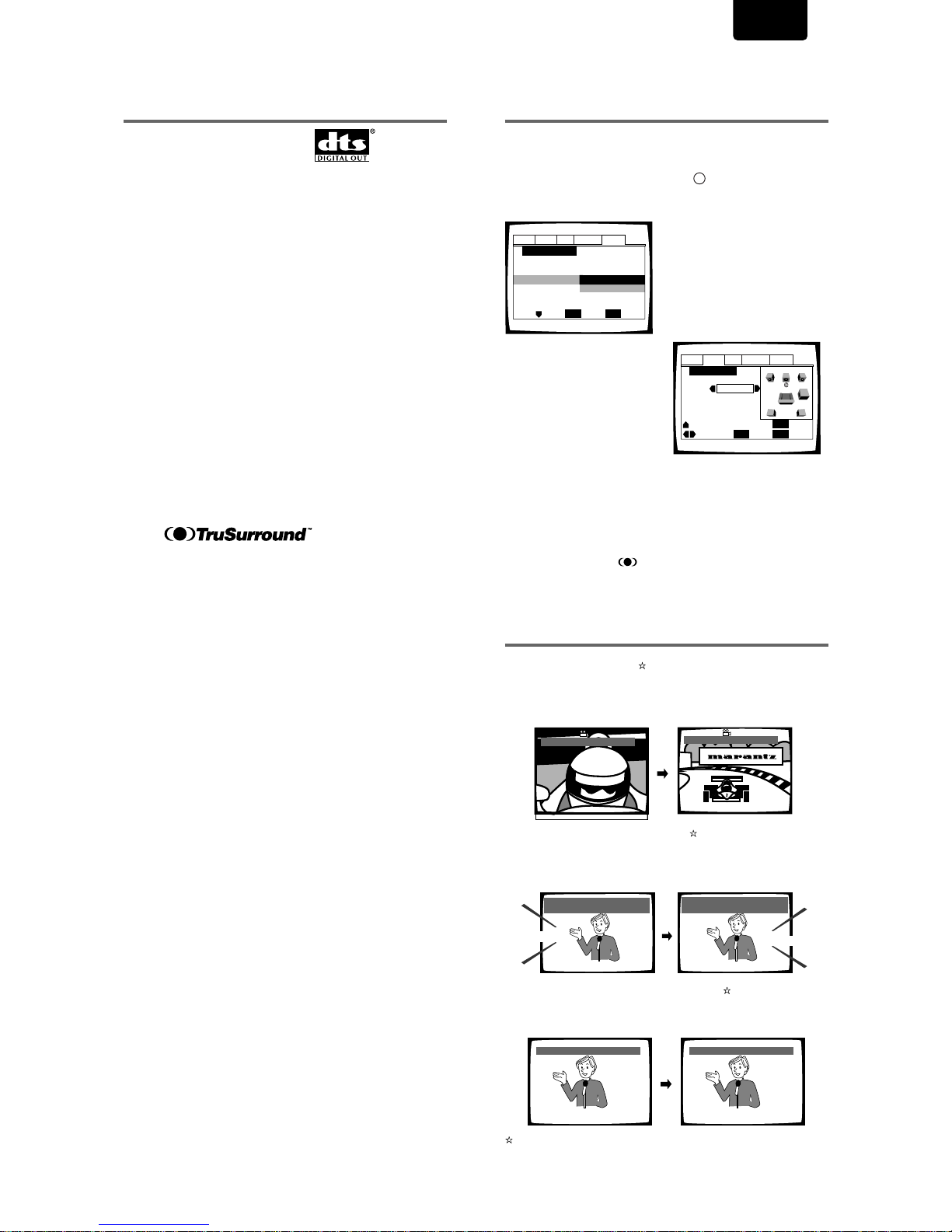

Wide range of DVD viewing options

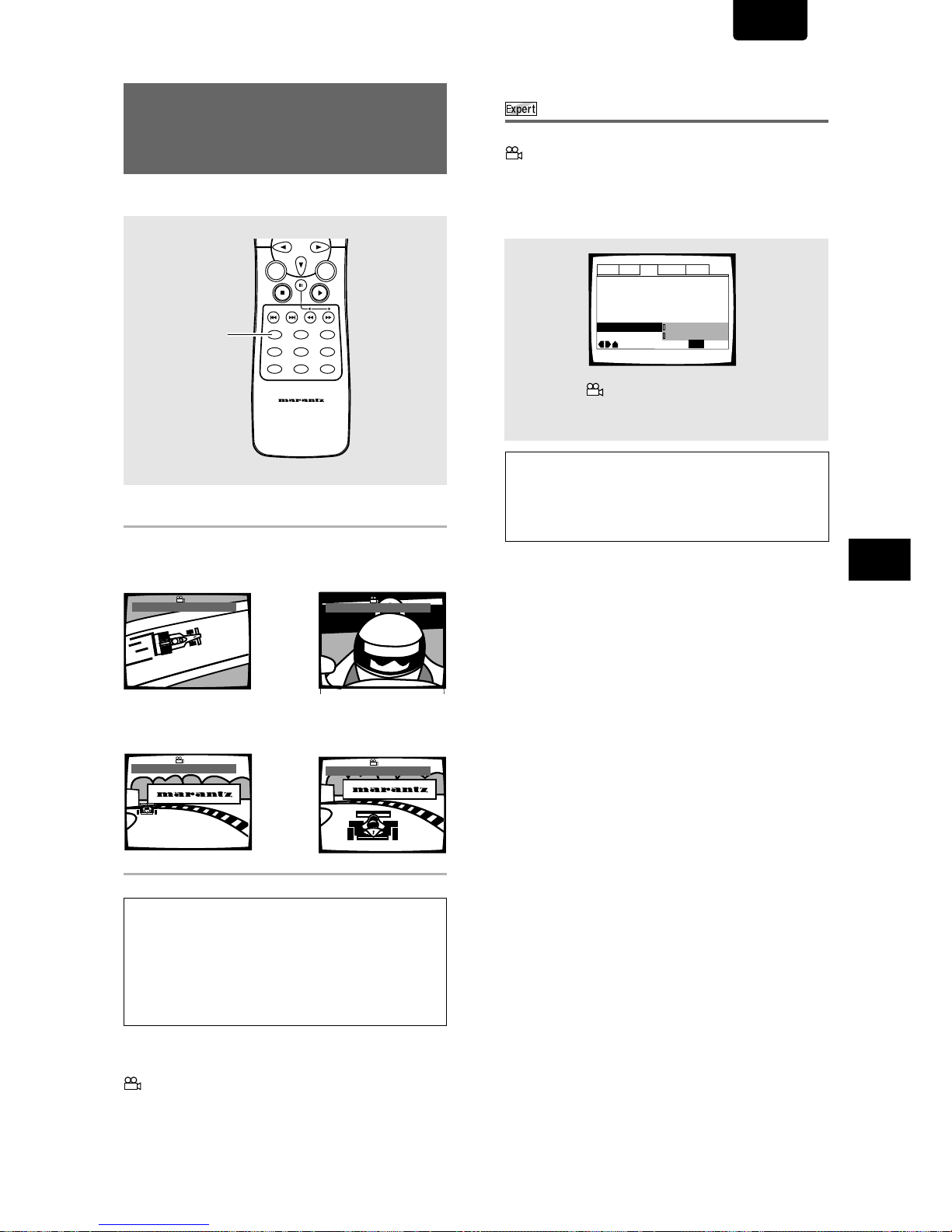

Multi-Angle (page 31)

You can view scenes from different camera angles when watching movies or other media with multiple angle playback available.

Multiple Languages (page 34)

You can select the language on when watching movies or other media that have multiple language and/or audio soundtracks recorded on them.

Multi-Language Subtitles (page 35)

You can select a subtitle language or turn subtitles off when watching movies or other media with subtitles available.

This mark indicates this may not be possible with certain discs.

Audio : 1 English

Dolby Digital

5.1CH

Audio : 2 Spanish

HELLO

HOLA

Dolby Digital

5.1CH

HELLO!

HOLA!

Subtitle :1 English Subtitle :2 Spanish

ANGLE : 3/4

ANGLE : 2/4

Compatible with a wide range of DVD digital audio output formats

DVDs are recorded in one of four types of digital audio formats (as of October 1998). The digital audio output jacks of this player output Dolby Digital*, DTS**, MPEG, and linear PCM digital bitstreams.

This player has a function that converts Dolby Digital and MPEG audio formats into the linear PCM format. This allows playback of DVDs recorded in Dolby Digital and MPEG without the need for a decoder.

Equipped with six channel discrete audio output and an internal Dolby Digital and DTS decoder

Enjoy the cinematic surround sound produced by Dolby Digital and DTS audio soundtracks without the need for an external decoder. This player features six channel discrete audio output jacks so you can connect this player directly to an amplifier or receiver with 6 channel discrete input, and utilize the player’s built-in Dolby Digital and DTS decoding capabilities.

Multiple video output formats that can be selected to best suit your TV or monitor

This player features one composite, one S-video jacks, and one AV CONNECTOR terminals. RGB signal output is possible from the AV CONNECTOR terminal.

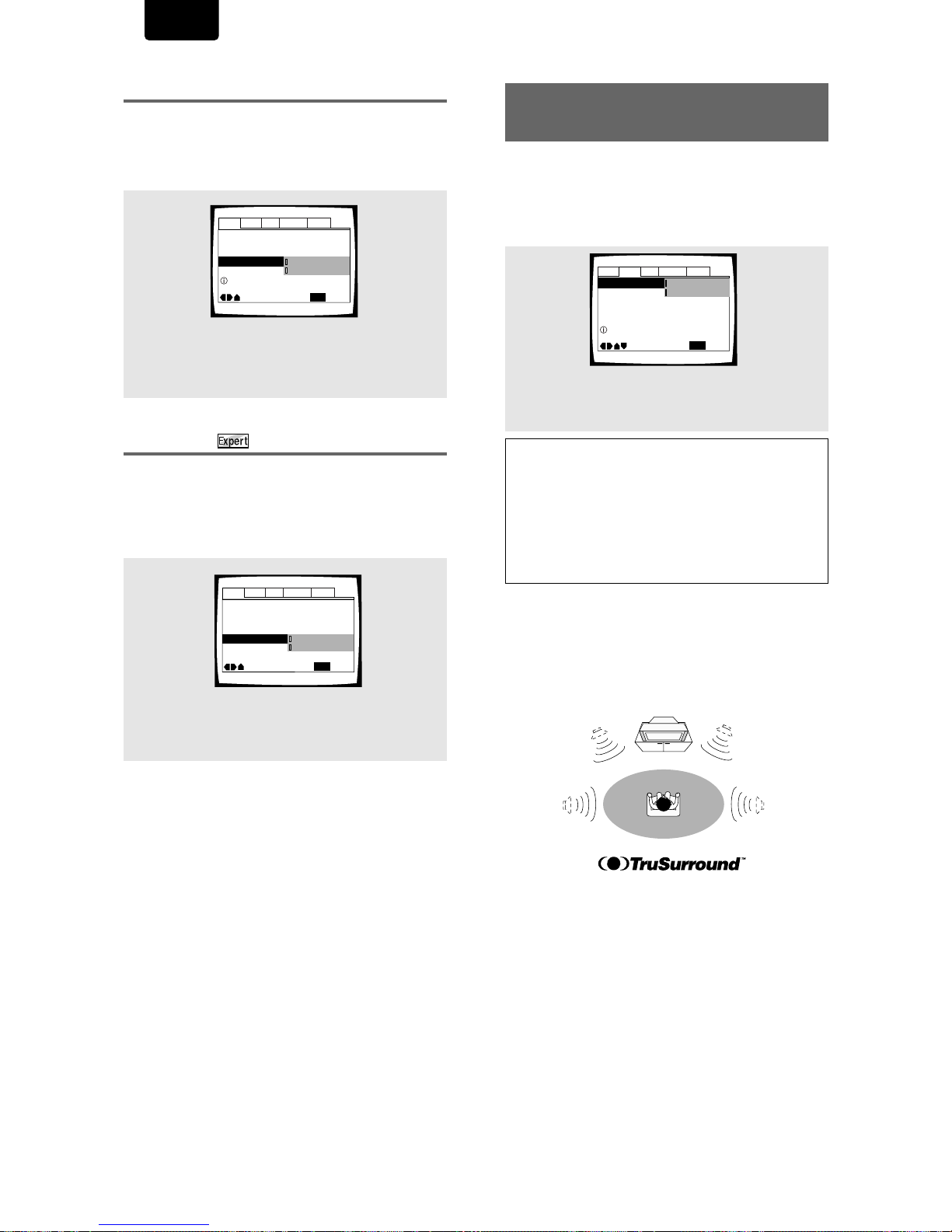

TruSurround and Virtual Dolby Digital

TruSurround*** uses technology that simulates multichannel surround sound using only two speakers. Virtual Dolby Digital works in conjunction with Dolby Digital audio sources to create a realistic surround sound. Virtual Dolby Digital is selected automatically when Dolby Digital sources are loaded.

Frame advance playback in foward and reverse direction

This player incorporates technology that enables frame advance playback of DVDs. In the foward direction, the playback speed can be adjusted four steps. In the reverse direction, the playback speed can be adjusted two steps.

Answer a few questions and have all the necessary audio, video, and on-screen language adjustments set automatically by the player using the Setup Navigator (page 15).

Audio1 Audio2 GeneralLanguageVideo

Setup Navigator

Move

Exit

SETUP

Select

ENTER

Setup Navigator

Auto Start Off

Start

Easy setup and adjustment using onscreen menus

Press SETUP on the remote control to open the Setup screen and you’ll find setting up and adjusting the system easy to do with on-screen menus conveniently organized and arranged. Additionally, on-screen information (i)❖ appears to clarify the functions and explain the options available. Below are just a few examples.

Set up the on-screen speaker system to match your home audio system in the Audio 2 menu for ideal presentation of multichannel audio (page 28).

Audio1 Audio2 GeneralLanguageVideo

Speaker Setting

Center

—/+

SETUP

Move

Exit

ENTER

Select

Speaker

Return

L R

LS RS

RETURN

* Manufactured under license from Dolby Laboratories. “Dolby” and

** “DTS” and “DTS Digital Surround” are trademarks of Digital

Theater Systems, Inc. Manufactured under license from Digital Theater Systems, Inc.

*** TruSurround and the

symbol are trademarks of SRS Labs, Inc. in the United States and selected foreign countries. TruSurround technology is incorporated under license from SRS Labs, Inc.

Page 4

ENGLISH

How to Proceed in This Manual

DVD is an incredible format that presents the highest quality digital audio and video available today. The amount of information that can be recorded onto a DVD disc is remarkable, allowing it to offer numerous functions and features available with no other format. Because using the DVD player and DVDs may be confusing at first, following the order below should help you get through the important stages of getting set up so you can start using your player as soon as possible.

Get familiar with the player.

Refer to the section

“Before Using”

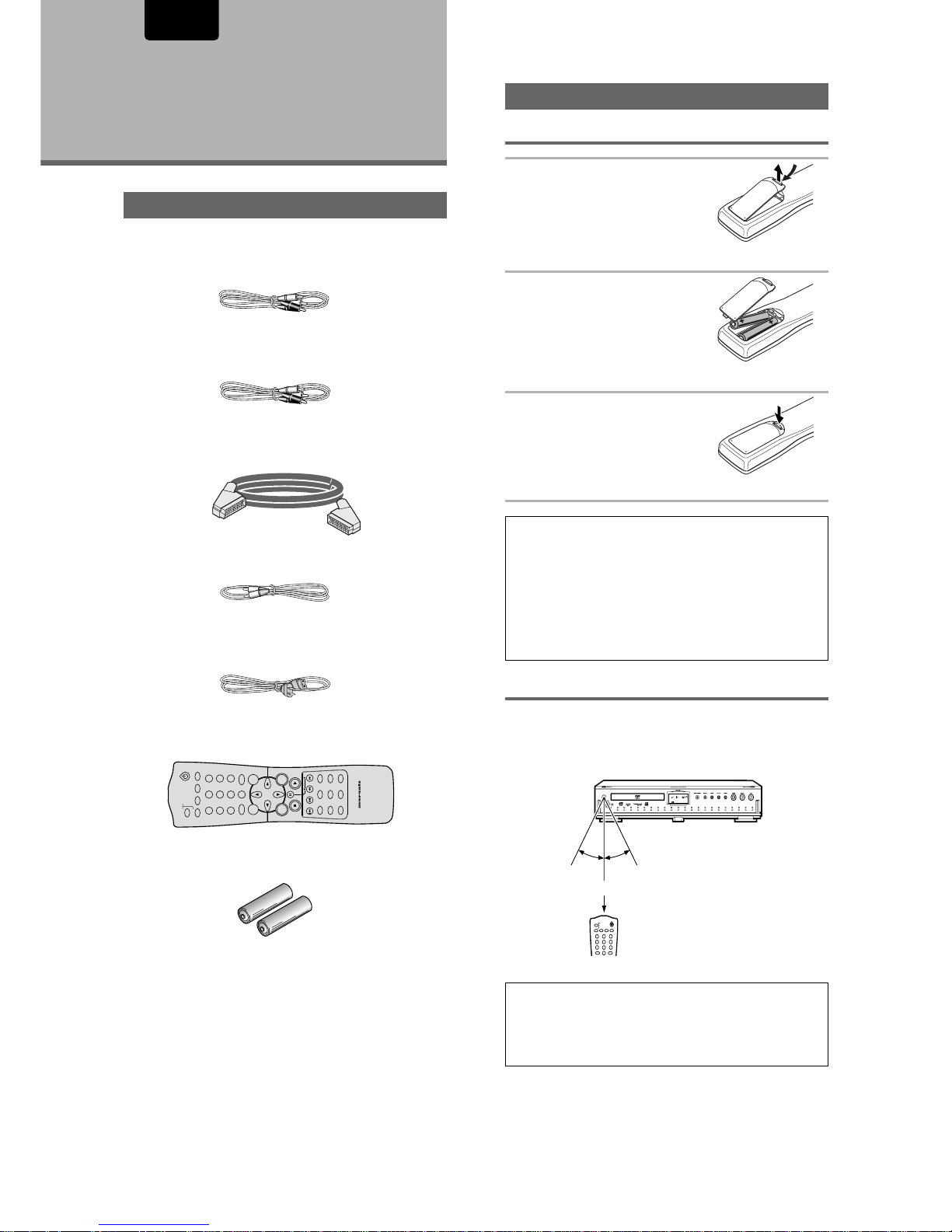

on page 6 to confirm that all the accessories were included with the player. If you are new to DVD, it might be beneficial for you to go through the

“Names and Functions”

section starting on page 7 to get familiar with the parts and buttons on the main unit and remote control as they will be referred to throughout this manual.

There is also a list of terms that can be found on page 56 if you are having trouble understanding some of the terminology associated with DVD.

Make the necessary connections.

No entertainment system seems to be set up exactly the same way. The

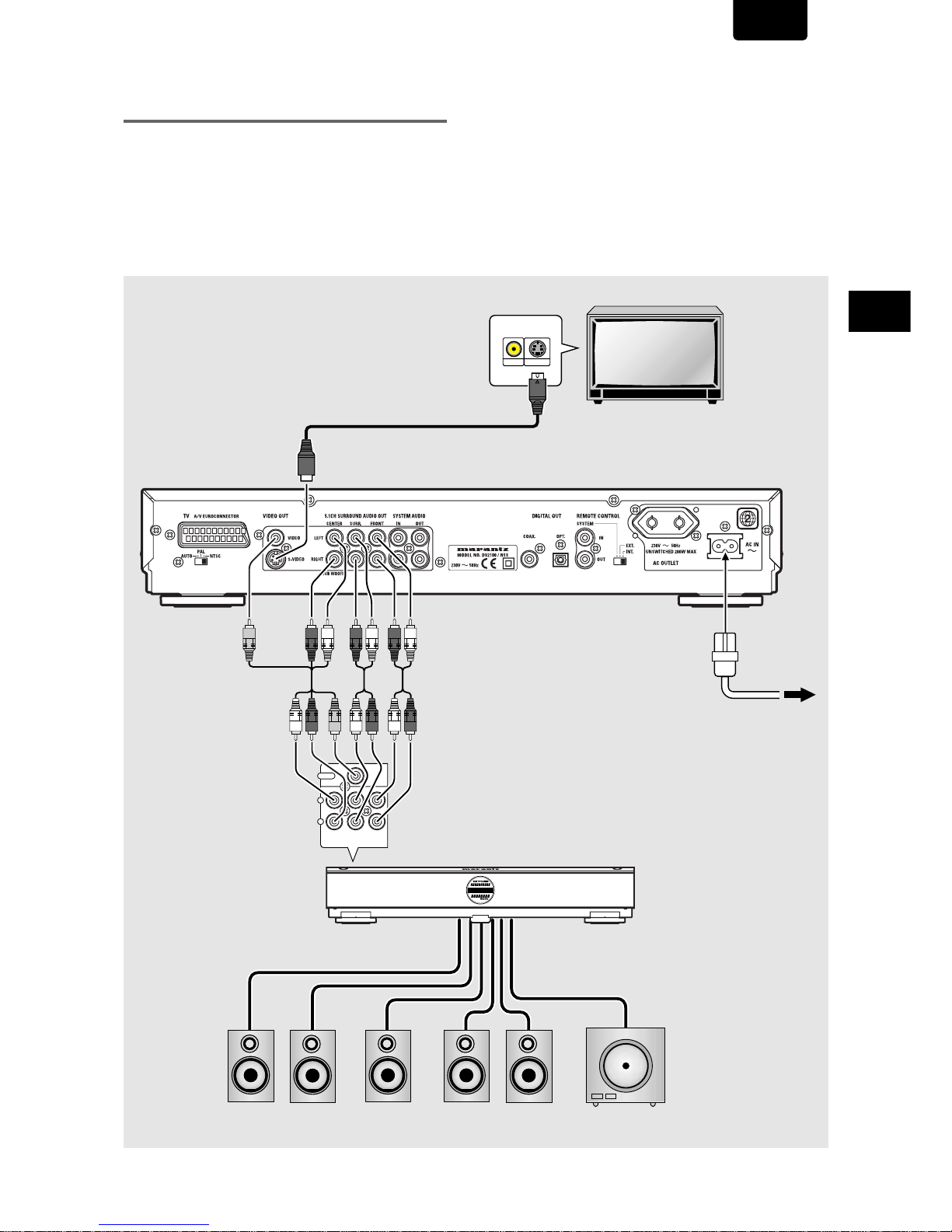

“Making Connections”

section starting on page 10 shows how video and audio connections may be made to suit your home entertainment system.

Set up the necessary player menus.

Before you can begin to enjoy the benefits of the DVD format, it is first necessary to set up the player to output the video and audio information that corresponds to your system. The section

“Setting Up the Player”

starting on page 15 explains how to use the Setup Navigator, a function that automatically sets up the player corresponding to the answers given in a multiple-choice on-screen procedure. The Setup screen menus, described in the section starting on page 23, are also used in a number of other functions. Learning the procedure for operating these menus will make using this player much easier and more enjoyable.

Play a disc.

When all the connections and setups have been made, you are ready to play a DVD, Video CD, or CD with the player. The section

“Getting Started Using Your DVD Player”

starting on

page 19 outlines the basic player operations.

Enjoy the many features available.

Once you are comfortable using the basic player functions, you are ready to take advantage of the various options DVD and this player have to offer. The section

“Advanced

Functions”

starting on page 37 describes how to use the

features available on many DVDs.

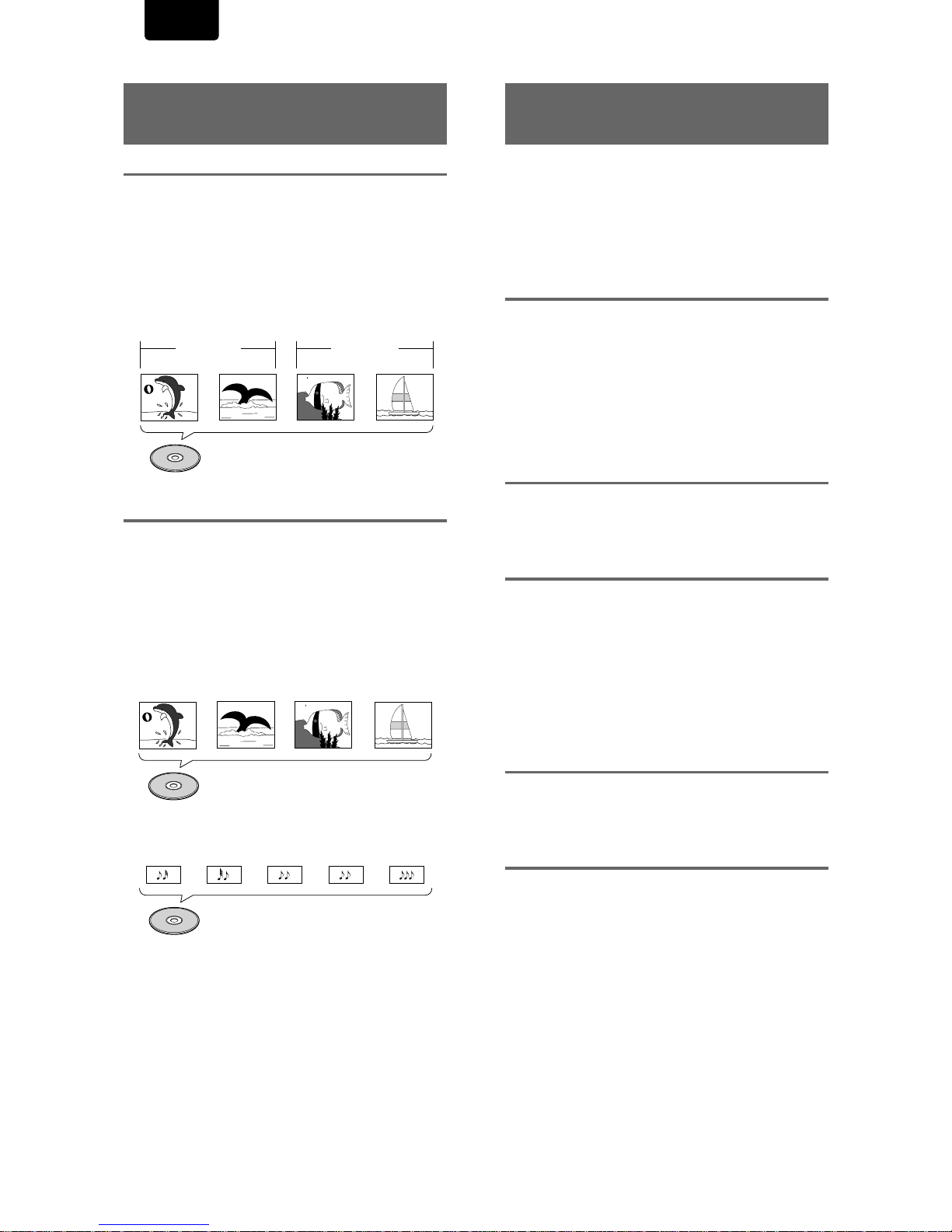

Differences in Disc Composition

DVD

DVDs are divided into units referred to as titles, and titles are divided into chapters. A DVD which contains a movie may have only one title with many or no chapter divisions. Karaoke DVDs may have many titles, assigning a title to each song on the disc. Menu screens do not belong to any title.

DVD player functions generally apply to titles on a disc or chapters within a selected title. The player functions available may also vary from title to title, depending on the disc. When discs have a unique title division, it should be noted that search and program functions may be affected.

Video CD/CD

Video CDs and CDs are divided into units referred to as tracks (Video CD tracks may also be referred to as scenes). One song generally corresponds to one track. Some tracks are further divided into units referred to as indexes. Video CDs with PBC (Playback Control) also contain menus recorded on the disc which enable easy access to the contents of the disc.

When played back on a DVD player, both Video CDs and CDs are considered to be a single title, regardless of the number of tracks.

Title 1

Title 2

Chapter 1

Chapter 2 Chapter 2

DVD

Chapter 1

Video CD

Track 1 Track 2 Track 3 Track 4

Track 2 Track 4Track 3Track 1 Track 5

Page 5

ENGLISH

Table of contents

Before Using ...............................................6

Checking Accessories ...........................................6

Preparing the Remote Control ................................6

Names and Functions ................................7

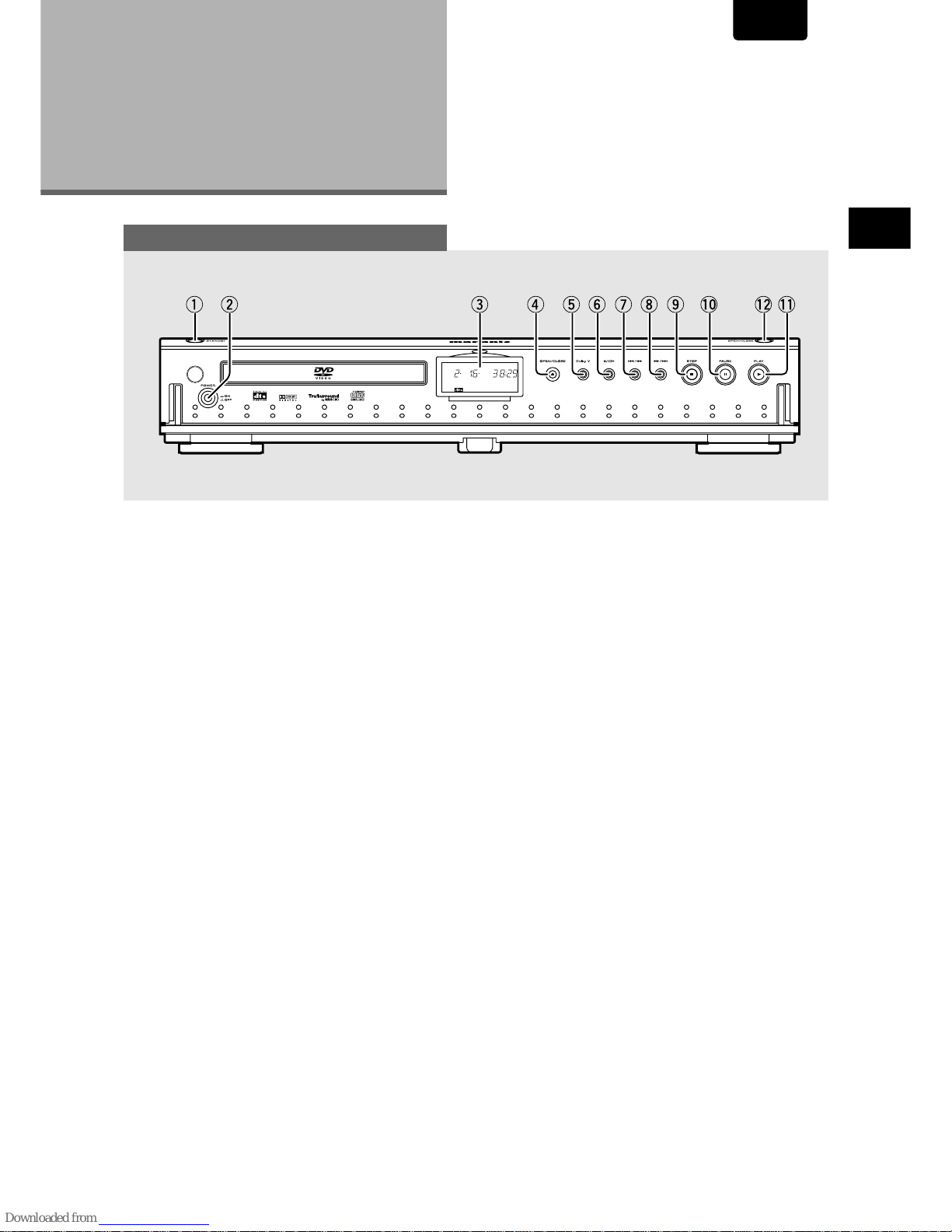

Front Panel .............................................................7

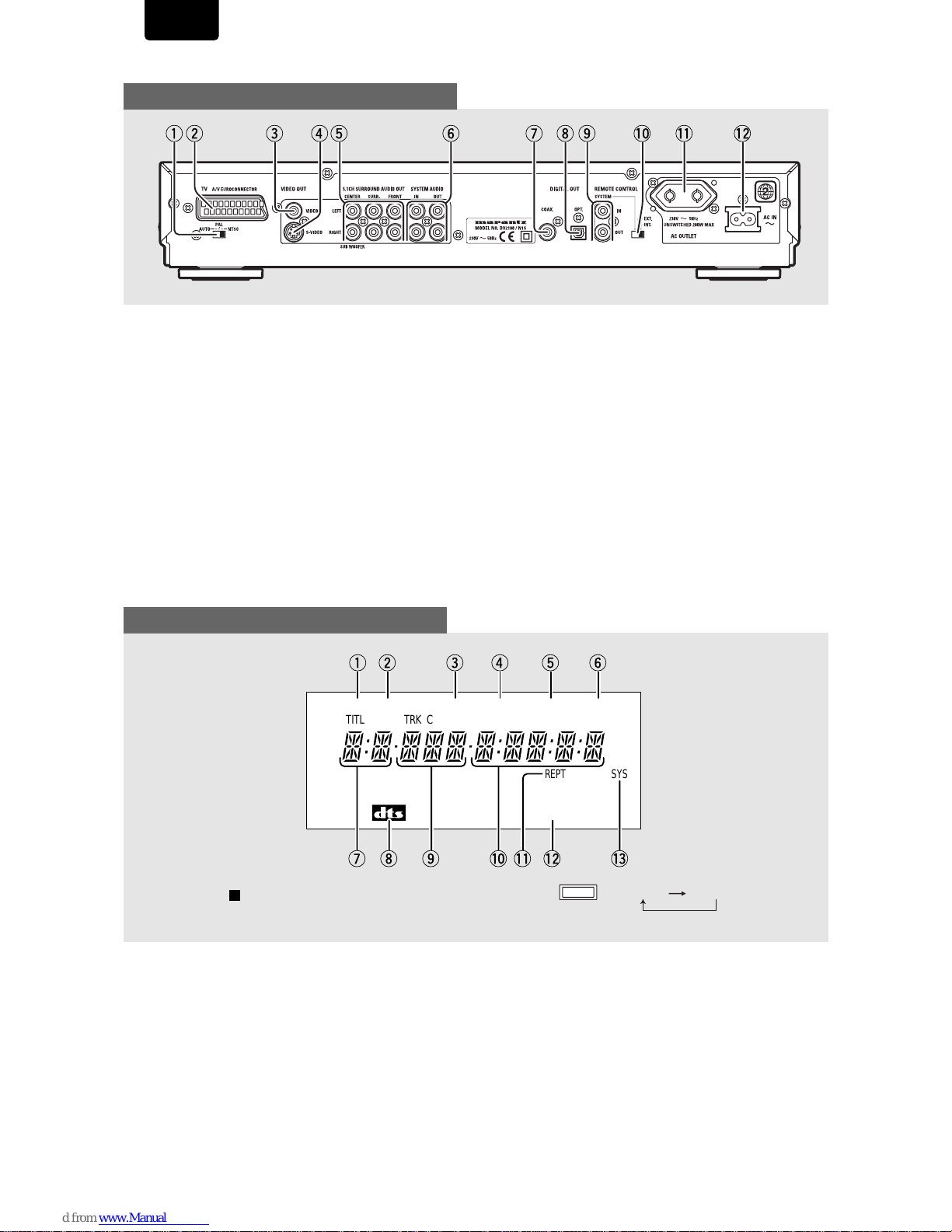

Rear Panel ..............................................................8

Display Window......................................................8

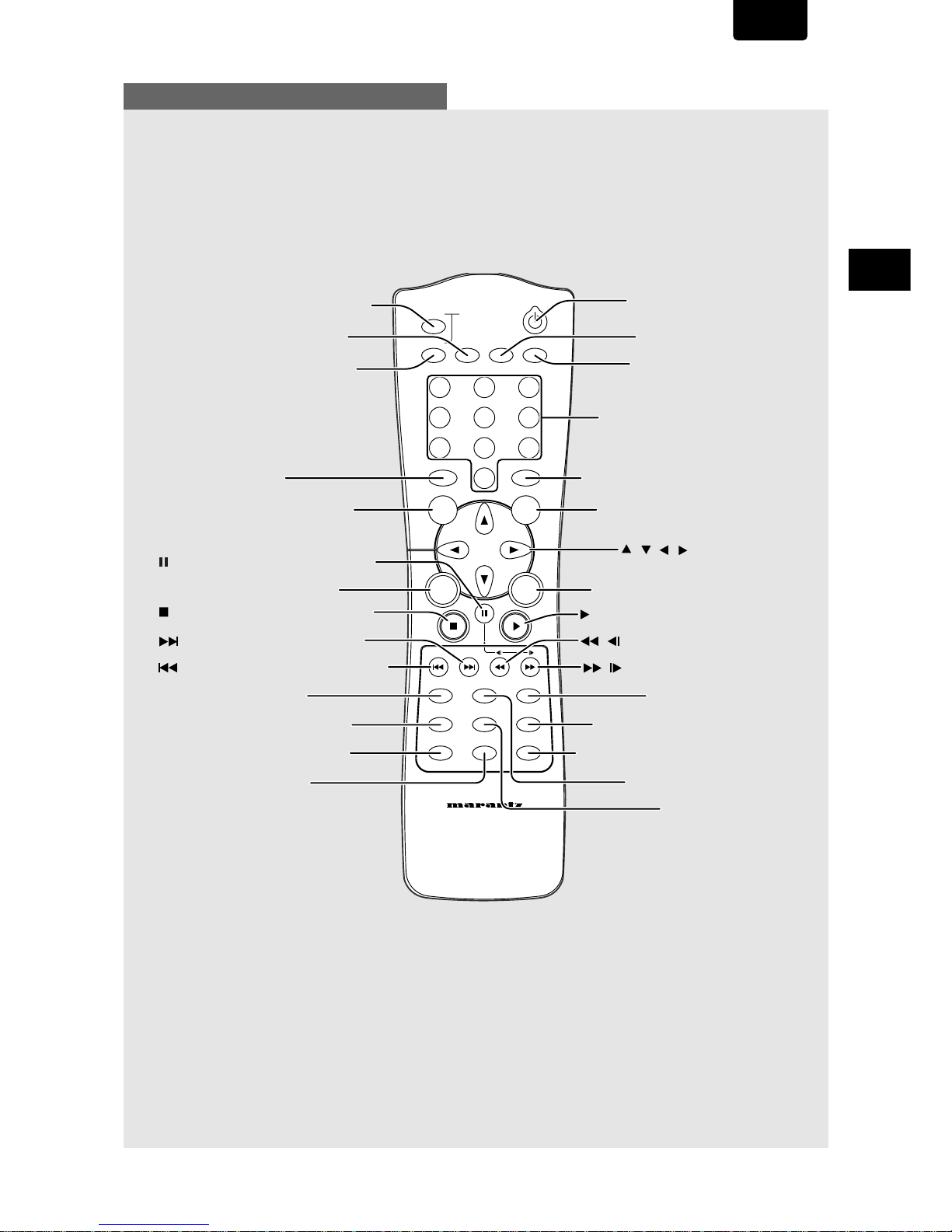

Remote Control.......................................................9

Making Connections ................................10

Connecting Your DVD Player ............................... 10

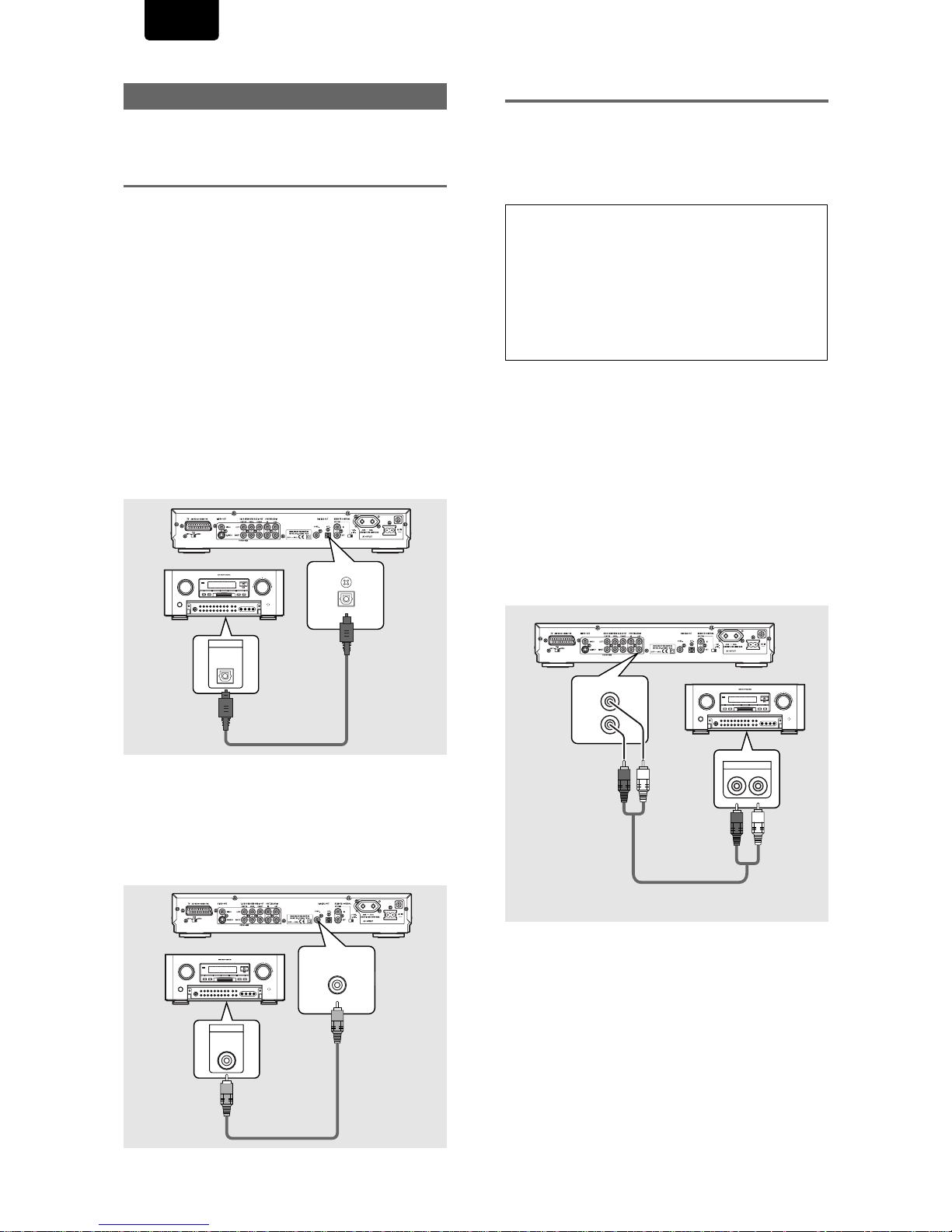

Audio Connections ...............................................12

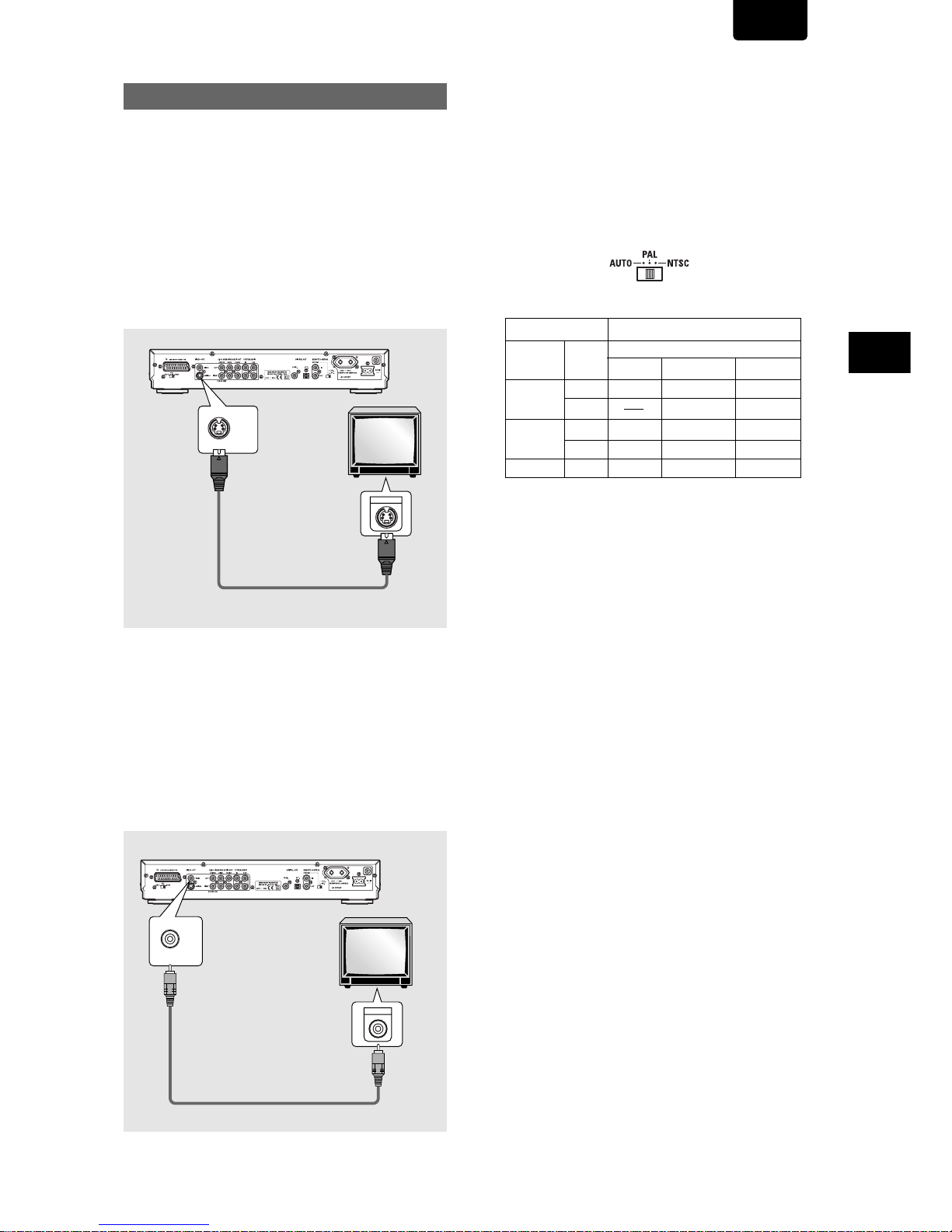

Video Connections ...............................................13

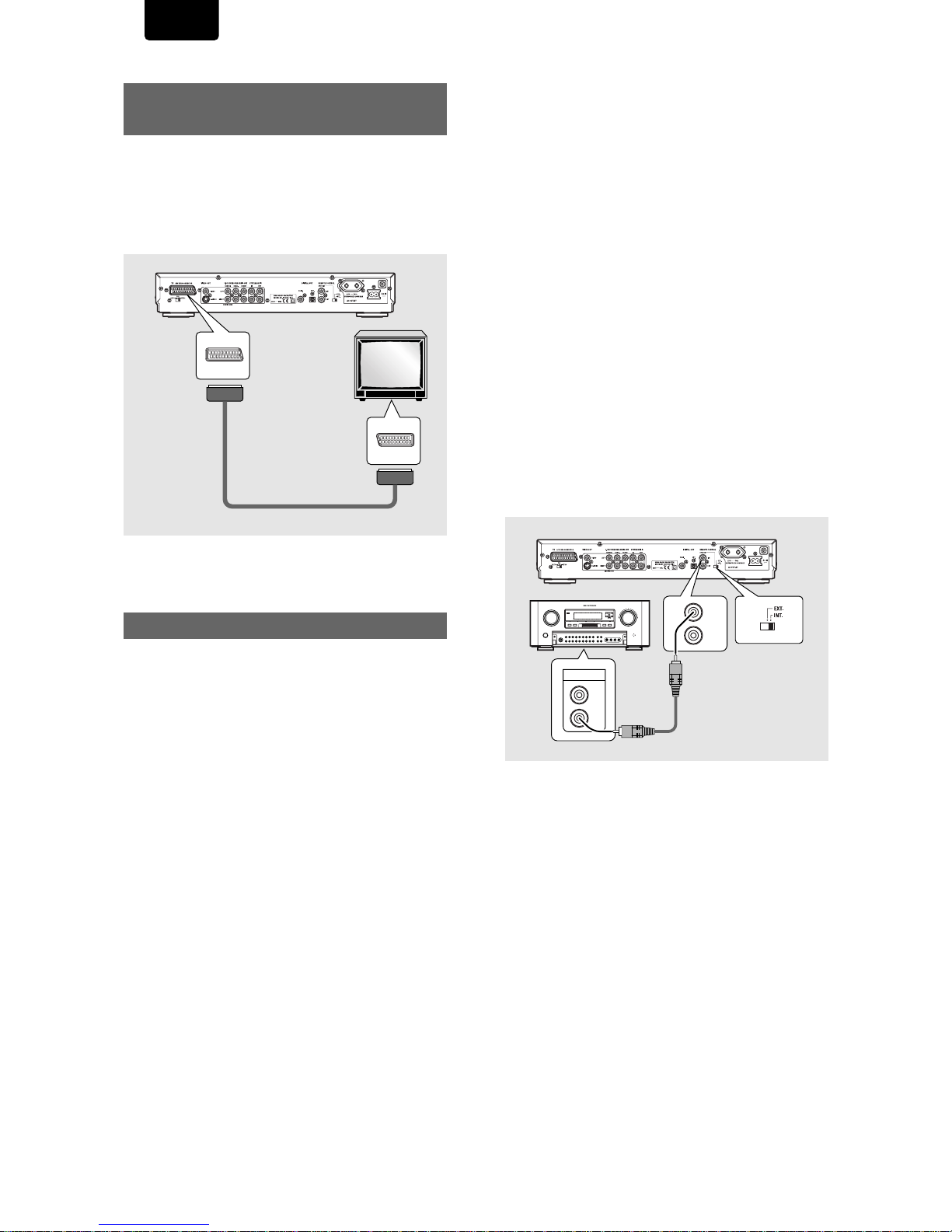

A/V EUROCONNECTOR Connection ...................14

System Control Connections ................................14

Setting Up the Player ...............................15

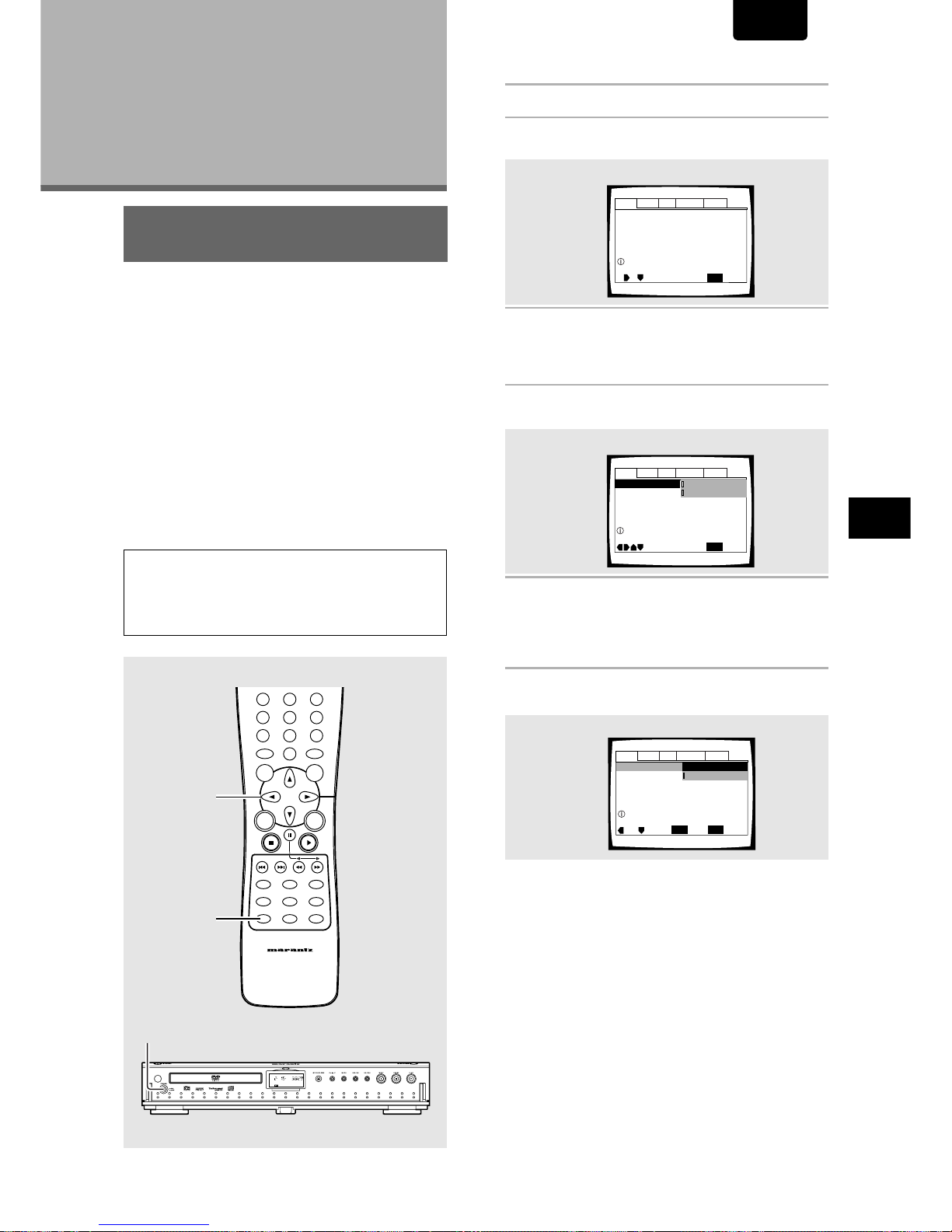

Using the Setup Navigator ...................................15

Getting Started Using Your DVD Player ...19

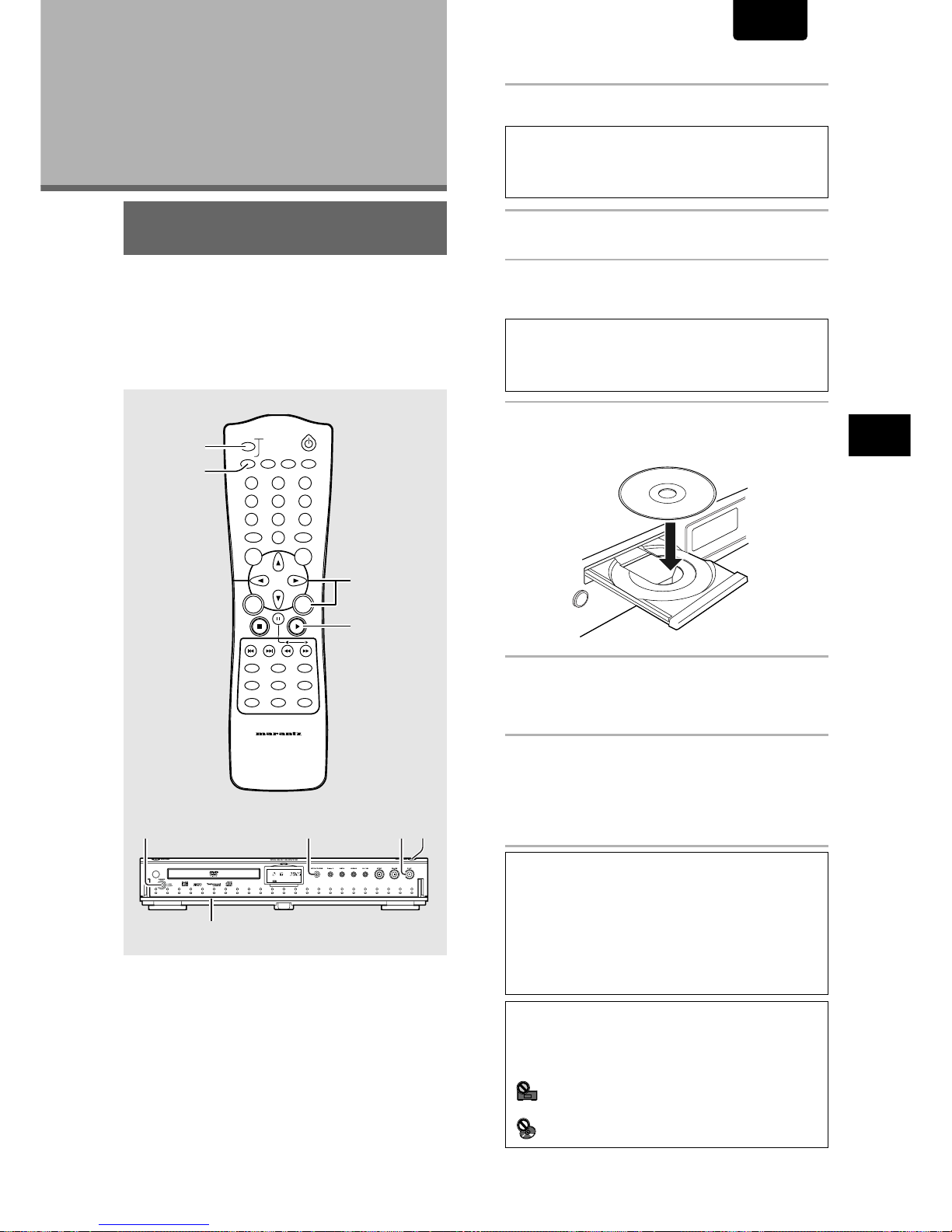

Playing DVDs, Video CDs and CDs .....................19

Chapter (Track) Skip Forward/Skip Back .............21

Forward and Reverse Scanning........................... 21

Resuming playback from where you stopped .....22

Stopping Playback and Switching Power Off.......22

Adjusting Audio and Video Settings ......23

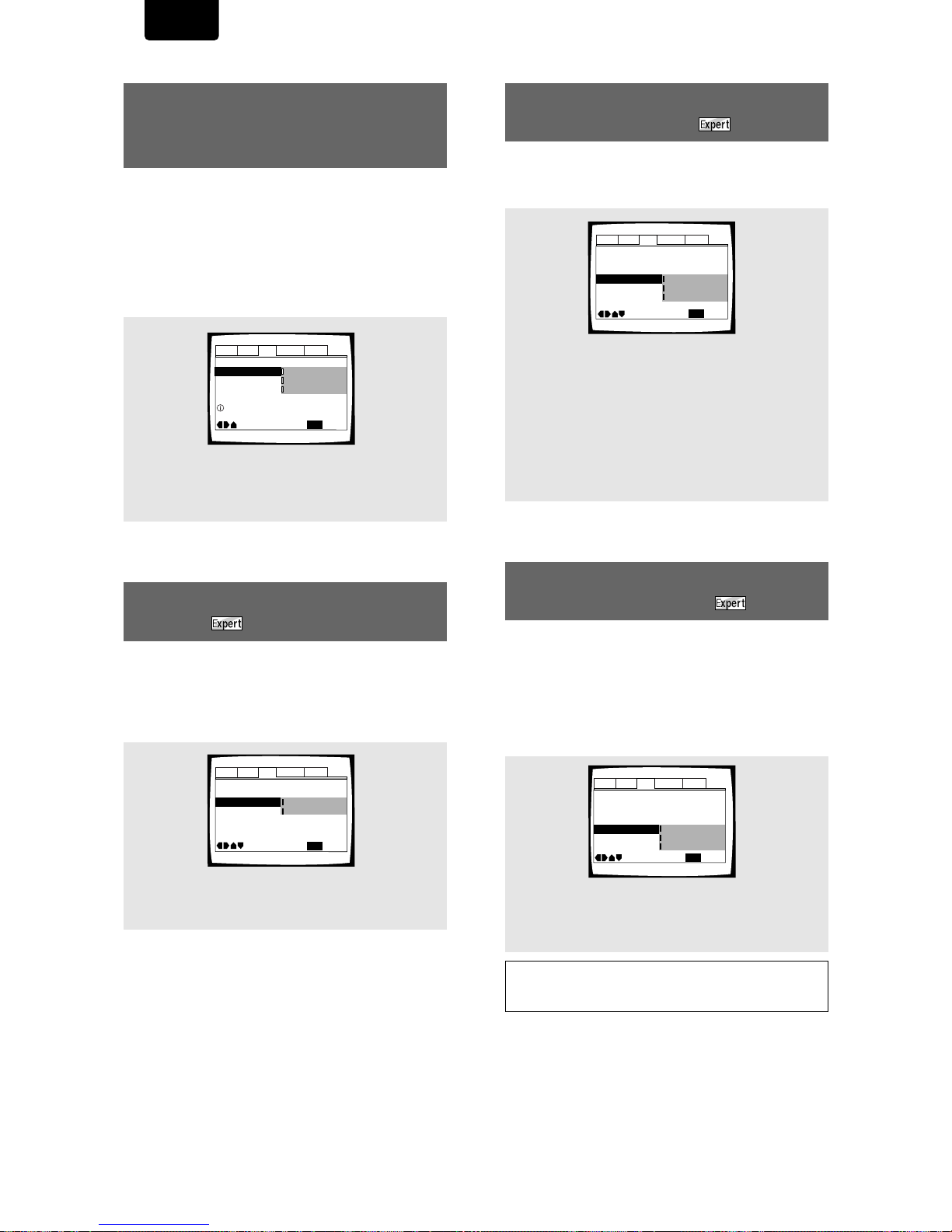

Using the Setup Screen Menus............................23

Changing to the Setup Screen “Expert” Menu

Mode...............................................................24

Setting the Digital Audio Output To Be Compatible

with Your AV Component ................................25

Getting Surround Sound from Stereo Speakers... 26 Adjusting the Dynamic Range of the Audio

Soundtrack ..................................................... 27

Setting Analog Audio Connections to an AV

Amplifier or Receiver ......................................27

Setting Your Speaker System for Multichannel

Audio Playback...............................................28

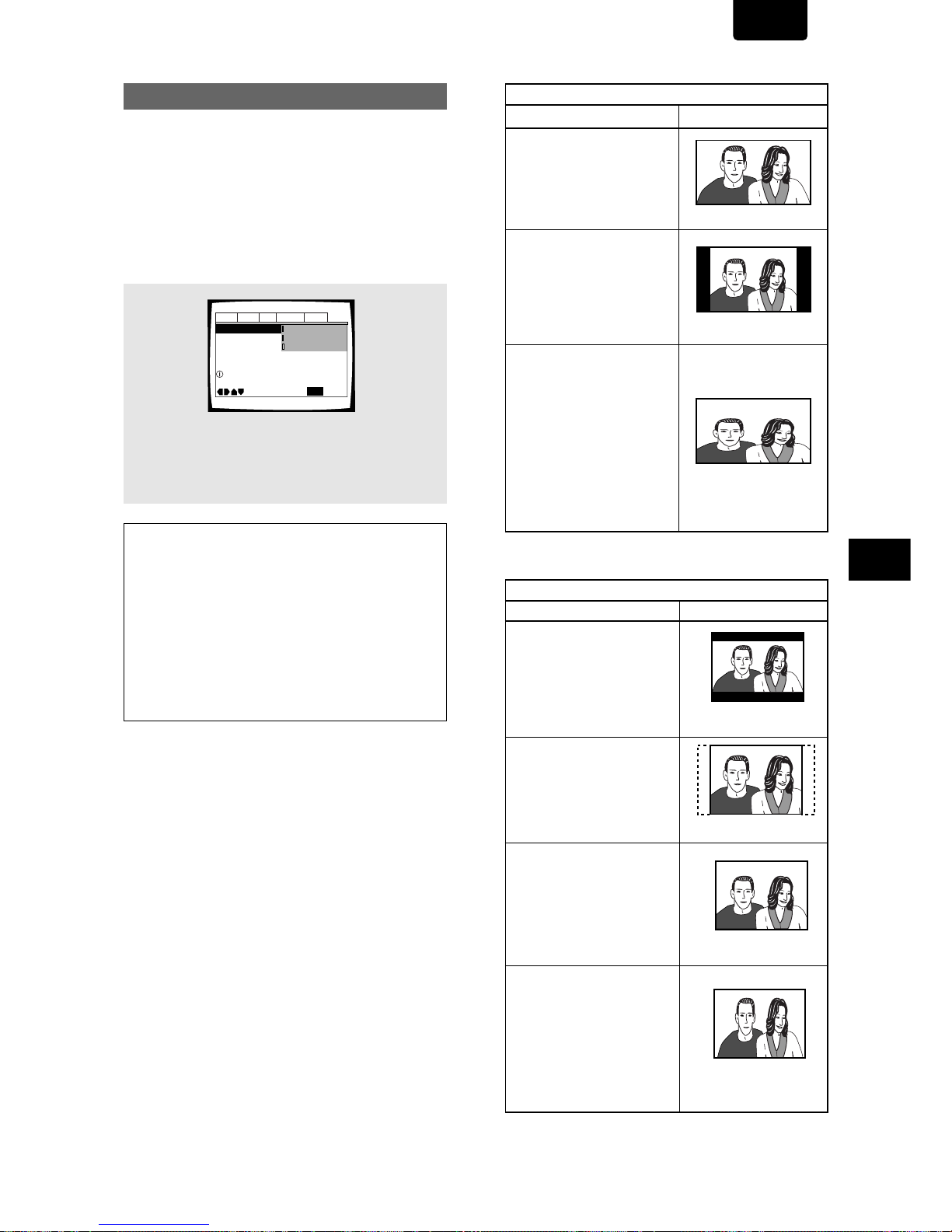

Setting the TV Screen Size ...................................29

Setting the Video Output Format for AV

CONNECTOR Connections ............................30

Switching the S-Video Output ..............................30

Selecting the type of paused image to display.... 30

Setting the position of the on-screen display .......30

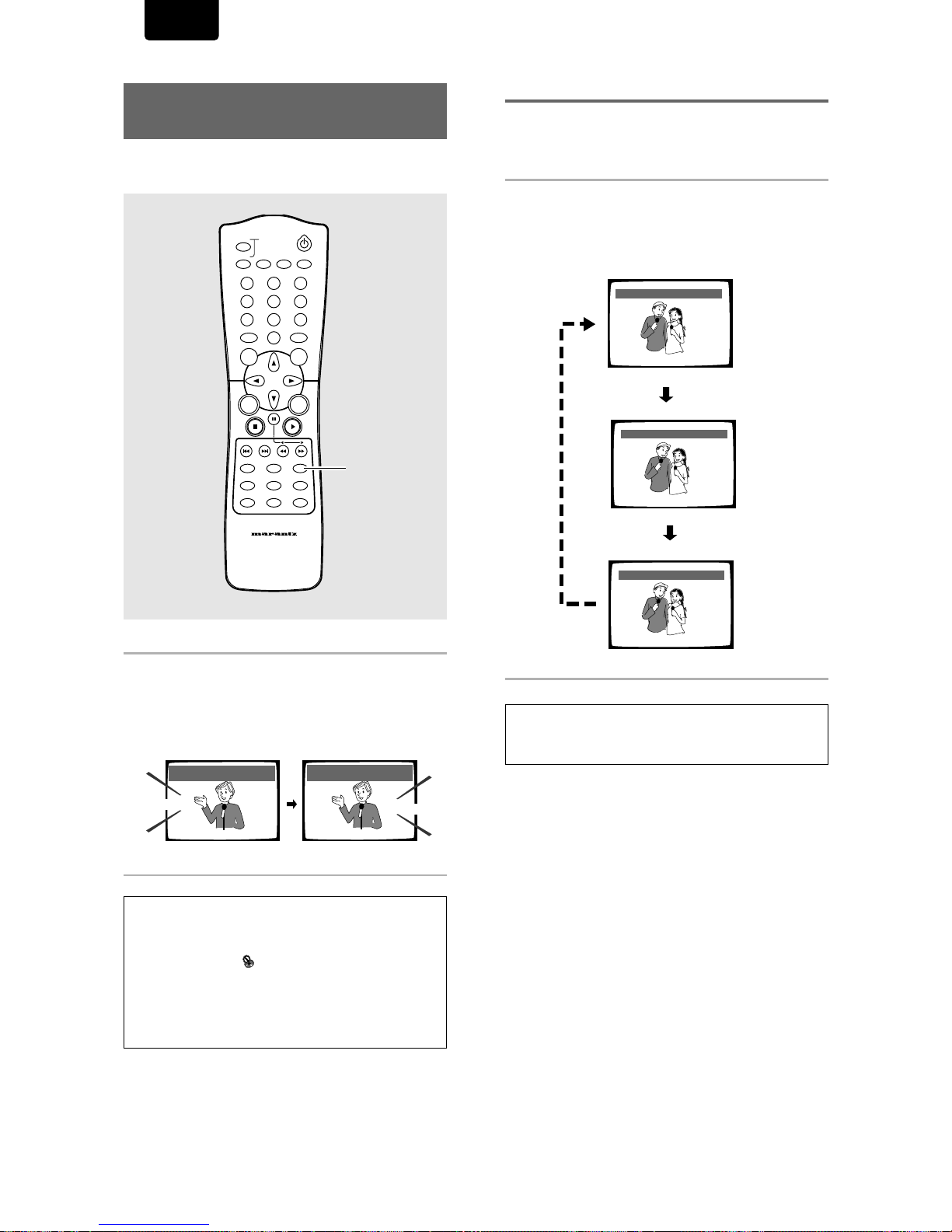

Viewing from a Desired Camera Angle (Multi-

Angle) .............................................................31

Setting the Language Options ................32

Setting the on-screen display (OSD) language ... 32 Setting Language and Subtitle Preferences in the

Setup Screen Menus ......................................32

Changing the Audio Language (Multi-Language

Function) .........................................................34

Selecting a Subtitle Language (Multi-Language

Subtitles) .........................................................35

Advanced Functions ................................37

Setting the Parental Lock Level............................ 37

Turning the Screen Saver On and Off ..................39

Changing the Background Color of the Screen ...39 Still Frame/Slow Play/Frame Advance Playback ..40 Searching for a Title, Chapter, Track, or Location on

a Disc.............................................................. 41

Repeat Play ..........................................................42

Random Play ........................................................43

Playback in a Desired Order (Program Play) .......44

Continuing Playback from a Specified Location

(Last Memory)................................................. 47

Memorizing Settings for Often Viewed DVDs

(Condition Memory) ........................................48

Viewing Disc Information ...................................... 49

Resetting the Player to System Settings .............. 50

Additional Information .............................51

Disc Care..............................................................51

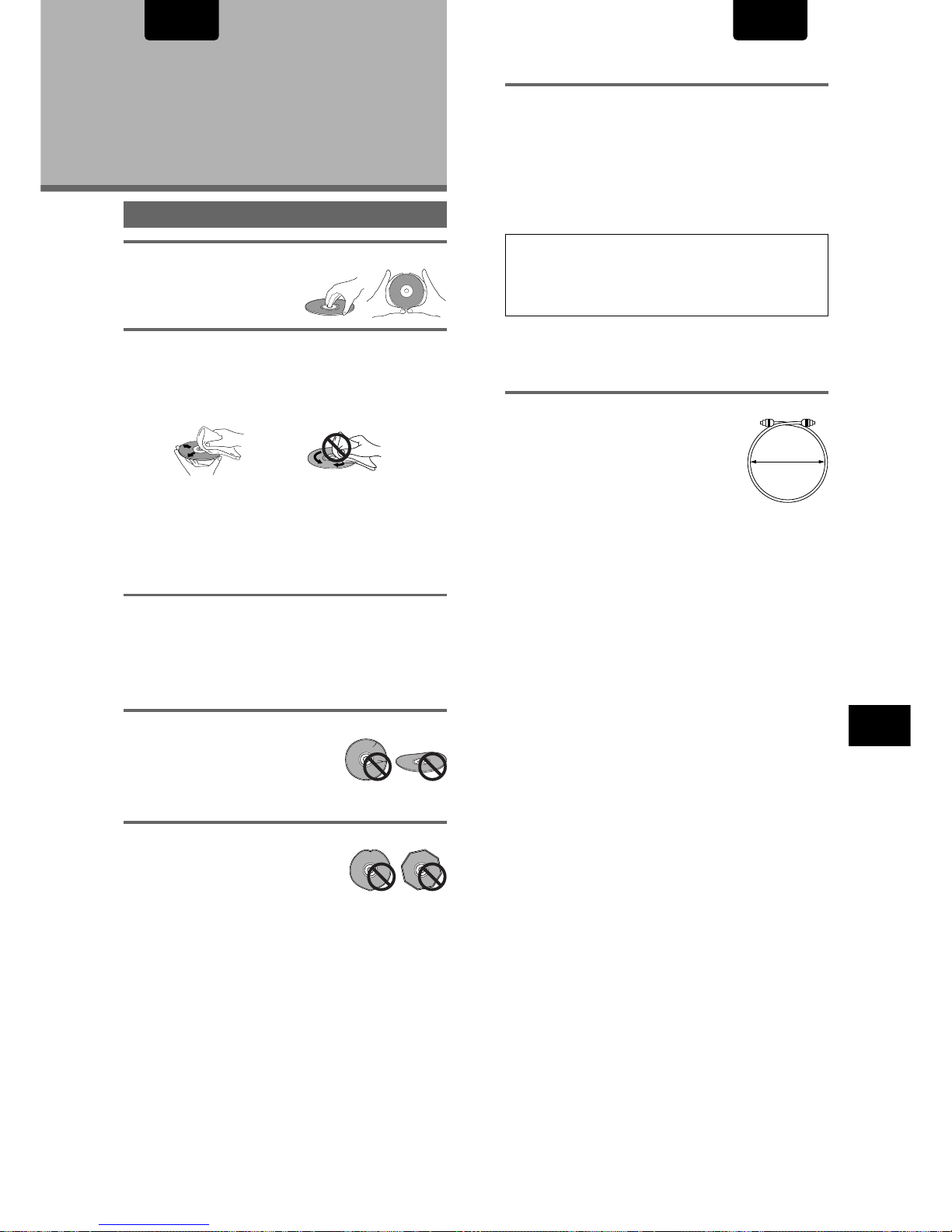

For Proper and Long Use of This Unit .................. 52

Language Code List............................................. 53

Troubleshooting ....................................................54

Terms ....................................................................56

Specifications .......................................................57

Page 6

ENGLISH

Before Using

Checking Accessories

Please confirm that the following were received with the player.

Audio / Video cord ........................................ 1

Audio Cord ..................................................... 2

Euro SCART cable ......................................... 1

Remote Control cord ..................................... 1

Power cord ..................................................... 1

Remote control unit ....................................... 1

AA/R6P batteries ............................................2

Operating instructions (this manual) ........... 1

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

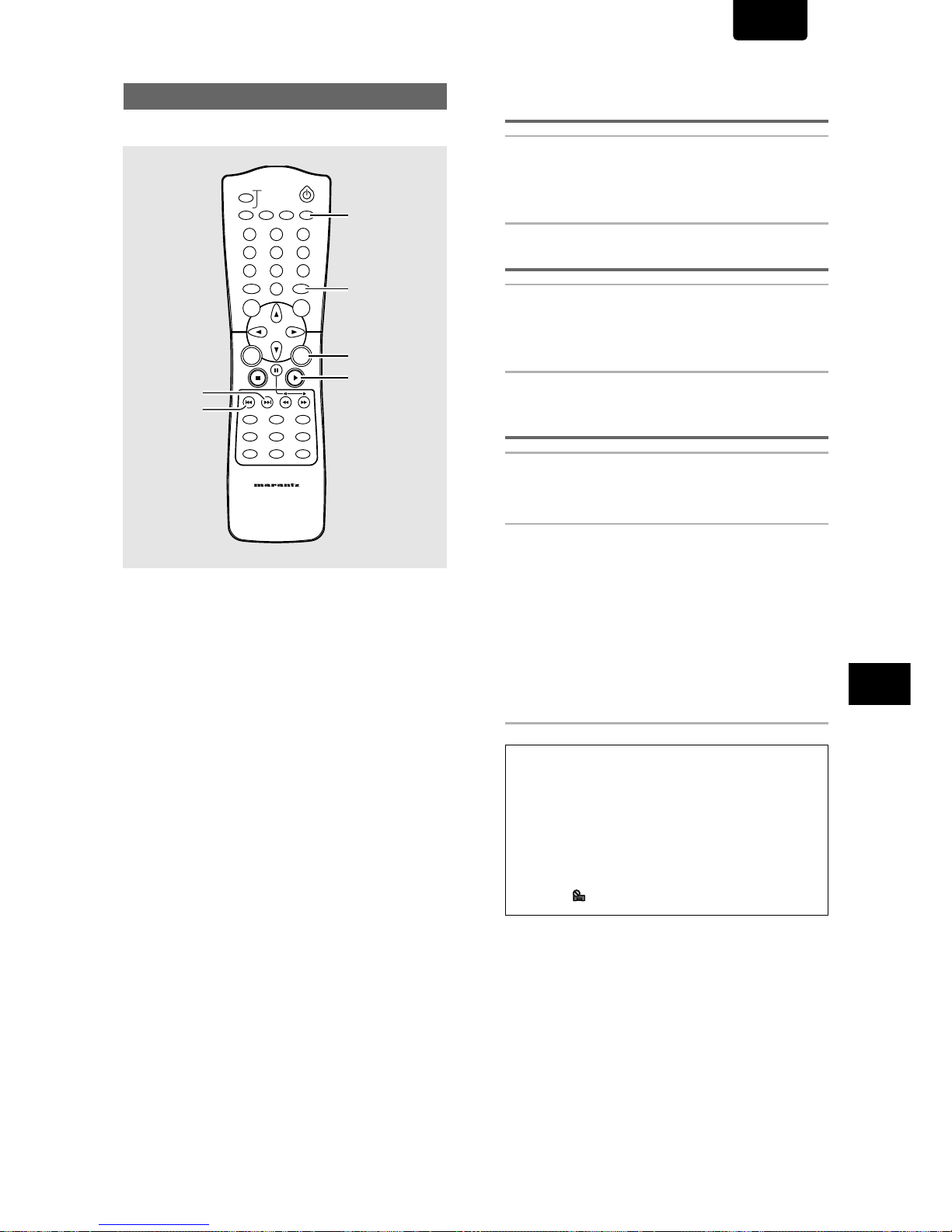

REMOTE CONTROLLER

RC2100DV

TRAY

OPEN/CLOSE

DOOR

Preparing the Remote Control

Inserting batteries into the remote control

1 While pushing the tab on the

battery compartment cover toward the center of the remote, pull out in the direction indicated by the arrow.

2 Insert batteries.

Make sure to match the plus (+) and minus (–) polarity guides on the batteries with the marks inside the battery compartment.

3 Close the cover.

Notes

• Do not mix old and new batteries.

• When replacing batteries, use all new batteries.

• When not using the remote control for a long period of time (over 1 month), remove the batteries to avoid possible damage from battery corrosion. If battery leakage occurs, wipe the battery liquid from the battery component, then insert new batteries.

• When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country or area.

Remote control operation

When operating the remote control, point it at the remote sensor located on the player’s front panel. The remote control can be used up to 17 feet (5 m) from the player and within a 30° angle on each side of the sensor.

Notes

• Exposing the remote sensor to direct sunlight or strong light may cause faulty operation.

• When using this DVD player independently, set a REMOTE CONTROL switch on the rear panel to “INTERNAL”. (Page 14)

Within about 17 feet

SYSANAMANUOPTSYNC RANDTRKPROGSCAN REPTALLA-BDIG

REMTITL TIME TIMETRKCHP TOTL TOTLREM REMSTEPTRK

DOWN MIXANGLE LAST MEMO

Dolby V

96kHz5.1CH CONDITIONOSD

DUBBING

CD-RW CD-RW

T-C

+10

RANDOMREPEAT

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

DOOR

30° 30°

Page 7

ENGLISH

Names and Functions

Front Panel

BEFORE USING / NAMES AND FUNCTIONS

q STANDBY button/standby indicator

(Page 22)

w Power switch (Page 15, 19, 22, 23,

50)

e DISPLAY (Page 8) r (Tray) Open/close button (Page 19,

22)

t Dolby V (irtual) button (Page 26) y 5.1 CH (mode) button (Page 12, 27)

u REVERSE button (Page 21, 40) i FORWARD button (Page 21, 40) o STOP button (Page 22, 50) !0 PAUSE/STEP button (Page 40) !1 PLAY button (Page 19, 21, 40) !2 (Door) open/close button (Page 19)

SYSANAMANU OPTSYNC RANDTRKPROGSCAN REPT ALL A-BDIG

REM TITL TIME TIMETRK CHP TOTL TOTLREM REMSTEPTRK

DOWN MIXANGLE LAST MEMO

Dolby V

96kHz 5.1CH CONDITIONOSD

DUBBING

CD-RW CD-RW

e r tyuio !0 !1qw !2

Page 8

ENGLISH

Rear Panel

q TV SYSYEM switch (Page 13) w A/V EUROCONNECTOR Jacks

(Page 14)

e Video out jacks (Page 10, 11, 13) r S Video out jack (Page 11, 13) t 5.1CH SURROUND AUDIO OUT

jacks (Page 11)

y SYSYEM AUDIO IN/OUT jacks

(Page 10, 12)

u BITSTREAM/PCM Coaxial digital audio

out jack (Page 12)

i BITSTREAM/PCM Optical digital audio

out jack (Page 12)

o REMOTE Control in/out jacks (Page 14) !0 REMOTE CONTROL SYSTEM/

EXTERNAL/INTERNAL switch (Page 14)

!1 AC outlet jack !2 AC IN power cord connection terminal

(Page 10, 11)

Display Window

q 96 kHz indicator w 5.1CH indicator e Condition MEMO indicator r Camera Angle indicator t DOWN MIX indicator y LAST MEMO indicator u TITLE number indicator

i DTS indicator o CHAPTER/TRACK number indicator !0 TOTAL/TRACK indicator !1 CHAPTER/TITLE/TRACK Repeat

indicator

!2 Dolby V(irtual) indicator !3 SYS BUS indicator

Pressing of the DIMMER button changes the brightness of the display.

Normal

Dimmed

qw e rt !2!1uio !0y

SYSREPT

TITL TRK CHP TOTL REM

DOWN MIXANGLE LAST MEMO

Dolby V

96kHz 5.1CH CONDITION

qw e r t y

u i !2 !3o!0!1

DIMMER

Page 9

ENGLISH

Remote Control

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

(Play) button (Page 19, 21, 40, 41, 42, 43, 44, 45, 47)

STANDBY button (Page 22)

REPEAT button (Page 42)

RANDOM button (Page 43)

OSD button (Page 49)

MENU button (Page 20, 31, 34, 35, 36)

(Direction) button

(Page 15, 19, 20, 23, 24, 33, 44, 45)

Number button (Page 20, 41, 45)

CLEAR button (Page 35, 42, 43, 44, 45, 47, 48)

AUDIO button (Page 34)

CONDITION MEMORY button (Page 48)

DIMMER button (Page 8)

(REPEAT) A/B button (Page 42)

(Next) button (Page 20, 21, 43)

(Previous) button (Page 20, 21, 43)

TRAY OPEN/CLOSE button (Page 19, 22)

TOP MENU button (Page 20, 41)

(PAUSE / STEP) button (Page 40)

RETURN button (Page 20, 24)

(Stop) button (Page 20, 22, 44, 47)

T-C button (Page 41)

ANGLE button (Page 31)

SETUP button (Page 15, 23, 24)

SUBTITLE button (Page 35)

LAST MEMORY button (Page 47)

DOOR OPEN/CLOSE button (Page 19)

(Foward/Slow) button (Page 21, 40)

(Reverse/Slow) button (Page 21, 40)

PROGRAM button (Page 44, 45)

ENTER buttons (Page 15, 19, 20, 24, 33, 43, 44, 45)

NAMES AND FUNCTIONS

Page 10

ENGLISH

Making Connections

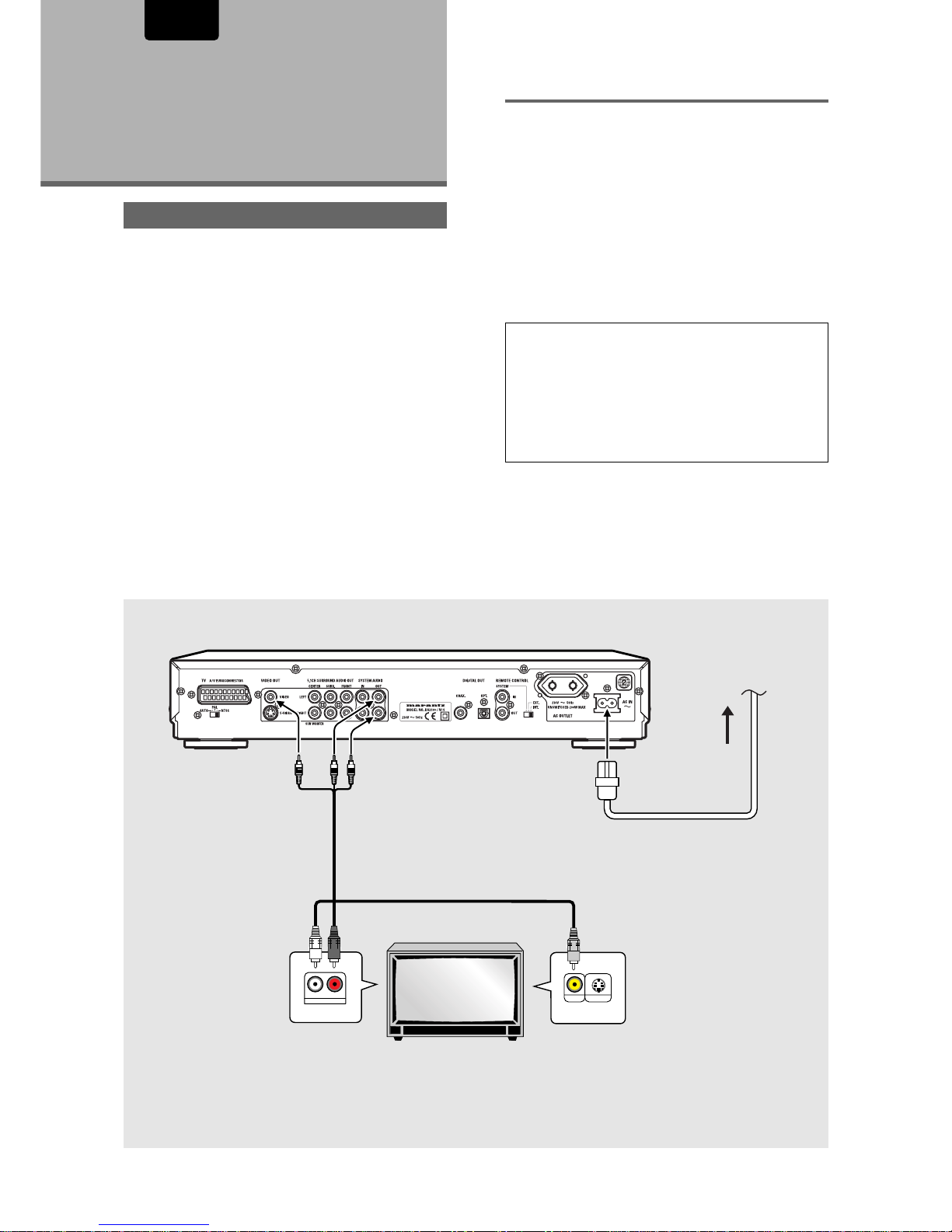

Connection Guide

The illustration on this page shows the basic setup using the audio and video cords included with this player. Use this illustration as a guide to setting up your home system. An explanation of each type of audio and video connection available can be found on pages 12 to 14. To determine the best audio and video connection setup for your system, refer to the manuals supplied with the components you are making connections to. In addition to making physical connections to your TV or monitor, it is also necessary to assign the TV screen size. You can use the [Setup Navigator] in the Setup screen General menu to set whether you are using a wide screen or standard size TV or monitor (page 16). Additionally, you can use the

[TV Screen] setting in the Setup screen Video menu (page

29).

Notes

• When making connections to this unit or when changing connections, check that the unit is off by pressing Power Switch and unplug the power cord from the power outlet.

• The analog video output on this player uses copy protect circuitry to prevent the video playback on DVDs from being copied. If you connect the player to a TV via a VCR, or record and play back the contents of a disc with a VCR, the playback picture may not be normal.

Connecting Your DVD Player

Unlike any other audiovisual media format, DVD offers a wide array of audio and video output options which allows playback to be enjoyed in any number of system configurations from a standard TV with stereo audio input to a home theater system with a TV or monitor and full surround sound capabilities.

TV or monitor

Make video connections from the VIDEO OUT jacks on the player to the VIDEO IN jack on the TV or monitor using the video cord included with the player.

Make audio connections from the AUDIO OUT jacks on the player to the AUDIO IN jacks on the TV or monitor using the stereo audio cord included with the player. Be sure to match the color of the plugs with the color of the jacks (red and white).

(white)

(red) (yellow)

AUDIO IN

S-VIDEO INVIDEO IN

(white)

(

red

)

(yellow)

Finally, connect to a power outlet (220-240 V)

Page 11

MAKING CONNECTIONS

ENGLISH

S-video cord (Not included)

TV or monitor

Finally, connect to a power outlet. (220–240V)

S-video connection produces a high quality video image. If you have a TV or monitor that features an S-video input, make video connections from one of the S-VIDEO OUT jacks on the player to the S-VIDEO IN jack on the TV or monitor using an S-video cord (not included) (page 13).

Make connections from the

5.1 CH SURROUND AUDIO OUT on the player to an AV receiver or AV amplifier with 6 channel discrete input, often referred to as “5.1 channel ready” or “Dolby Digital ready”. This allows you to use the high quality Dolby Digital and DTS decoding capabilities of the player. When making this kind of connection, be sure to select [5.1 Channel] in the Setup Navigator [Analog Jacks] screen (page 17).

Home Theater Component Connections

The connections on this page demonstrate the versatility of this player to conform to any number of home entertainment systems. Please note that the illustration shown on this page is meant as an example. Please refer to the manuals supplied with

the components to which you are making connections to determine the best possible setup for your home system.

An explanation of each type of audio and video connection available can be found on pages 12-14.

5.1 CH SURROUND AUDIO OUT

5.1 channel audio refers to the current industry surround sound standard requiring two front speakers, a center speaker, two surround (rear) speakers and a sub woofer. Although in actuality there are 6 channels, because the sub woofer channel, or LFE channel, makes up a mere fraction of the total audio soundtrack, it has been designated as the 0.1 of the 5.1 system. By utilizing the player’s internal multichannel audio decoder, the audio of Dolby Digital and DTS DVDs can be output from the 5.1 channel discrete outputs to an AV amplifier or receiver with 5.1 channel input capability.

VIDEO IN

S-VIDEO IN

PS2100

STANDBY

OPEN/CLOSE

DVD/6CH IN

FRONT

SURR.

SUB WOOFER

CENTER

VIDEO

Front

Speaker (L)

Front

Speaker (R)

Center

Speaker

Rear

Speaker (L)

Rear

Speaker (R)

Sub woofer

1 A/V cords 2 stereo audio cords (Included)

AV amplifier or AV receiver

• See your audio system’s

owner’s manual for detail.

Page 12

ENGLISH

Audio Connections

This player features two digital (optical and coaxial) and also analog 2 channel and 5.1 channel audio output connection possibilities.

Digital Audio Connections:

You can enjoy the digital audio recorded on DVD discs from both optical digital and coaxial digital output jacks.

When making digital audio connections, do not make connections from both the coaxial and optical digital outputs to the same component.

When a DVD recorded in Dolby Digital, DTS, or MPEG is loaded, noise will be output if you have made connections via the digital audio jacks to a receiver or amplifier that cannot decode a Dolby Digital, DTS, or MPEG digital bitstream. In this case, be sure to set up the Setup Navigator audio settings to best reflect the type of system you are using (page

18). Additionally, the digital audio settings can be adjusted manually in the Setup screen Audio 1 menu (page 25-26).

DIGITAL OUT (Optical)

The digital signal is transmitted as light pulses through a fiber-optic cable.

• Use to connect to an AV amplifier or receiver with built-in Dolby Digital, DTS, or MPEG decoder.

• Use a fiber-optic cable (not supplied) to connect the DIGITAL OUT OPT (digital optical output) on the player to the digital optical input on an AV amplifier or receiver.

DIGITAL OUT (Coaxial)

The digital signal is transmitted electronically through a coaxial cable.

• Use to connect to an AV amplifier or receiver with built-in Dolby Digital, DTS, or MPEG decoder.

• Use a coaxial cable (not supplied) to connect the DIGITAL OUT (coaxial digital output) on the player to the coaxial digital input on an AV amplifier or receiver.

AV amplifier or receiver with built-in Dolby Digital, DTS, or MPEG decoder

2 CH AUDIO OUT

• Make analog audio connections to a stereo amplifier or receiver.

• Analog audio connections can also be made to a TV or monitor with stereo input jacks.

• Use the supplied audio cord to connect the SYSTEM AUDIO OUT on the player to the audio input on the stereo amplifier or receiver.

• When making analog audio connections, be sure to match the color of the plugs with the color of the jacks (red and white).

• When making this kind of connection, be sure to select [2 Channel] in the Setup Navigator [Analog Jacks] screen (page 17).

Stereo amplifier or receiver

AV amplifier or receiver with built-in Dolby Digital, DTS, or MPEG decoder

(white)

(red)

(white)

(red)

Analog Audio Connection:

After making physical connections to either the 2 CH AUDIO OUT or 5.1 CH SURROUND AUDIO OUT analog jacks, be

sure to identify which output you are going to be using in the [Analog Jacks] screen of the Setup Navigator (page 17). You can also manually set the output in the [Audio Out] setting of the Setup screen Audio 2 menu (page 27).

Notes

• When [5.1 Channel] is selected, the front right (R) and left (L) audio channels are output from the SYSTEM AUDIO OUT jacks.

• The [Audio Out] setting creates an audio output default for the player. If connections are made to both SYSTEM AUDIO OUT (2 CH) and 5.1 CH SURROUND AUDIO OUT (5.1 CH) analog jacks to make different audio connections for multichannel and stereo audio sources, it is possible to switch between 2 channel and 5.1 channel audio output by pressing 5.1 CH (MODE) on the front panel. However, this button does not work when the on screen menu operation is being performed.

DIGITAL IN

OPT.

AUDIO IN

OUT

DIGITAL IN

COAXIAL

5.1 CH SURROUND AUDIO OUT

• prease refer to previous page.

Page 13

MAKING CONNECTIONS / SETTING UP THE PLAYER

ENGLISH

Video Connections

This player features S-video, composite, and component video output possibilities. Check the manual supplied with your TV or monitor to determine the best possible connection for your system. In addition to making physical connections to your TV or monitor, it is also necessary to assign the TV screen size. You can use the [Setup Navigator] in the Setup screen General to set whether you are using a wide screen or standard size TV or monitor (page 16). Additionally, you can use the [TV

Screen] setting in the Setup screen Video menu (page 29).

S-VIDEO OUT

• Make S-video connections to a TV or monitor with S-video input to produce a high quality video image.

• Use an S-video cable (not supplied) to connect the output on the player to S-video input on the TV or monitor.

VIDEO OUT

• Make composite video connections to a standard TV or monitor with a video input jack.

• Use the supplied video cable to connect the VIDEO OUT jacks on the player to the video input on the TV or monitor.

• Be sure to match the color of the plug with the color of the jack (yellow).

TV or monitor

S-VIDEO IN

S-VIDEO

VIDEO IN

VIDEO

(yellow)

TV SYSTEM switch

Video output changes as follows according to the playback disc‘s recorded format.

NTSC = PAL, PAL = NTSC conversion is possible on Video CDs. PAL = NTSC conversion is not possible on DVDs. When the TV SYSTEM switch is set to the AUTO position, the disc’s format will be output as is. When a CD or disc is not loaded, the previous video output format will be selected.

About MOD. (Modulation) PAL

• SHRINK Most models of the newly developed countdown PAL TV

system detect 50 Hz (PAL)/60 Hz (NTSC) and automatically switch vertical amplitude, resulting in a display without vertical shrinkage.

• If your PAL TV does not have a V-Hold control, you may not be able to view NTSC disc because the picture may roll. If the TV has a V-Hold control, adjust it until the picture stops rolling. On some TVs, the picture may shrink vertically, leaving black bands at the top and bottom of the screen. This is not a malfunction; it is caused by the NTSC = PAL conversion.

Type

DVD

Video CD

CD, No disc

Format

NTSC PAL NTSC PAL

Disc Output format

Position of TV SYSTEM switch NTSC PAL AUTO NTSC MOD. PAL NTSC

PAL PAL NTSC MOD. PAL NTSC NTSC PAL PAL NTSC PAL NTSC or PAL

TV or monitor

Page 14

ENGLISH

OUT

REMOTE

CONTROL

TV or monitor

AV EUROCONNECTOR Connection

Using a 21-pin SCART cable (in cluded), connect the A/V EUROCONNECTOR jack on the player to a TV or monitor to

achieve audio and video with a single connection.

• In addition to making physical connections to your TV or monitor, it is also necessary to set the video output format to composite video, S-video, or RGB in the Setup screen

Video menu (page 30).

System Control Connections

CONNECTIONS

By connecting this DVD player to another Marantz audio component using a supplied Remote control cord, you can remotely operate the components as a single system.

• When connecting to component with a remote sensor (such as the SR-14, SR-18, SR-19, SR2100, PS2100), be sure to connect the “REMOTE CONTROL IN” jack of this DVD player to the “REMOTE CONTROL OUT” jack of the component with the remote sensor.

• When connecting to component which is not equipped with a remote sensor, be sure to connect the component to the “REMOTE CONTROL OUT” jack of this DVD player.

Remote switch

• INTERNAL MODE

q When using this DVD player independently, set this

switch to “INTERNAL”.

• EXTERNAL MODE

q When using this DVD player in a system with a Marantz

tuner or timer equipped with a remote sensor, set the switch to “EXTERNAL.

w Synchronized power on and off

Connect with the remote control output jack of a component (such as the SR-14, SR-18, SR-19) which is compatible with Marantz remote control system. The remote control allows to switch the power of this DVD player to “POWER ON and Standby mode”.

Note

be sure to leave power switch on the Front panel in the power mode.

• SYSTEM MODE

For details, refer to the User Guide of the PS2100 or SR2100.

When connecting this DVD player with any other New Slim Line Receiver (PS2100 or SR2100) using the remote control cable, set this switch to "SYSTEM." This makes it possible to do the following.

q Control this DVD player by the remote control of the

New Slim Line Receiver (PS2100 or SR2100).

Note:

Use this combination of components with the power switch turned on. If the "SYSTEM BUS ERROR" message is displayed when this combination of components is used, re-check the remote control switch setting and connecting cables.

w Control the whole system using this DVD player's

standby ON/OFF function.

e Control this DVD player's PLAY and STOP modes from

the New Slim Line Receiver. For further details, refer to the User Guide of the PS2100 or SR2100.

r Switch the New Slim Line Receiver's input selector to

DVD by pressing this DVD player's play key.

t Automatically switch this DVD player’s output (5.1

channels or 2 channels) to match the New Slim Line Receiver’s surround mode. (PS2100 only)

y Switch this DVD player's output to 2-channel playback

when the headphones facility of the New Slim Line Receiver (PS2100 or SR2100) is used.

Page 15

MAKING CONNECTIONS / SETTING UP THE PLAYER

ENGLISH

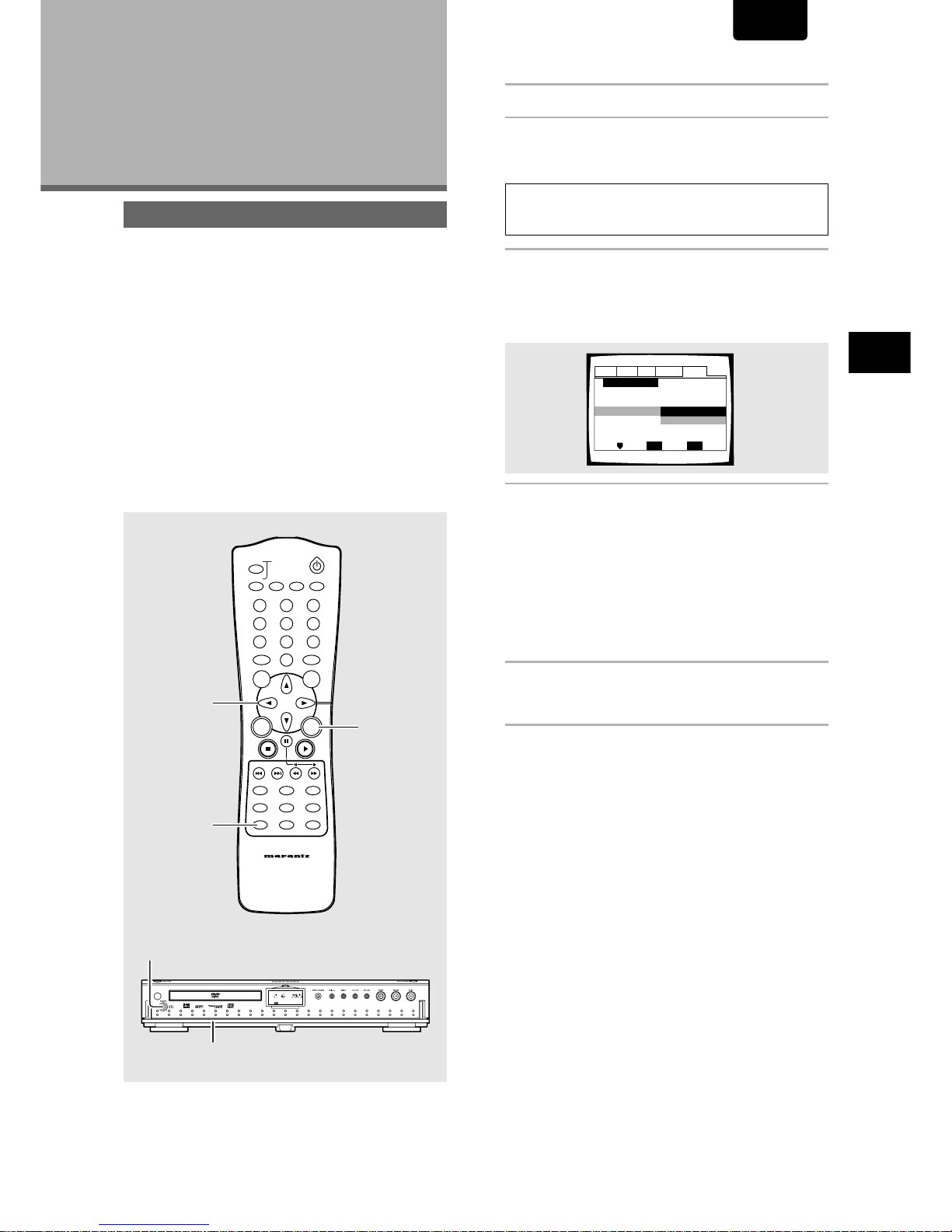

Setting Up the Player

Using the Setup Navigator

The Setup Navigator has been designed to simplify the process of getting the DVD player ready to perform. Designed as a series of on-screen multiple-choice questions, the Setup Navigator automatically sets the audio, video, and language settings according to how the questions are answered. Once this procedure is complete, it will be possible to begin using the DVD player to enjoy DVDs.

The procedure on this page describes the operations necessary to function within the Setup Navigator screens. A detailed description of the contents of each question that appears on the screen can be found on the following pages.

When setting up for the first time

Some DVDs start playing automatically when loaded in the player. Because the Setup Navigator cannot be used if a disc is playing, it is recommended to set up the player using the Setup Navigator before loading a DVD for the first time. If a DVD has been loaded, be sure to press STOP

7 before

proceeding.

1 Open the Door Panel by hand. 2 Press Power switch on the front panel.

• Press the POWER switch on the Front panel to turn the power on, and press it again to turn the power off.

Note

When it is required to remote control the power mode of this DVD player, be sure to leave this switch in the power on mode.

3 Press SETUP.

When SETUP is pressed for the first time, the following screen appears. Though the Setup Navigator may be used more than once, this screen only appears the first time SETUP is pressed.

4 Use the cursor buttons (

5/∞) to make a

selection.

• If you are going to use the Setup Navigator, it is not necessary to change the setting on the first screen. Please proceed to the next step.

• If you do not want to set up the player using the

Setup Navigator, use the cursor button (∞) to select [Auto Start Off] at this time.

The Setup Navigator function may still be used at a later time in manual Setup screen menu operation (page 23).

5 Press ENTER.

The selection is entered and the next Setup Navigator screen appears.

Use steps 4 and 5 as a basis for entering selections on the all of the Setup Navigator screens described on the following pages.

To change the answer to a prior question

Use the cursor button (2) to return to previous screens. Please note, however, that you cannot go forward using the cursor button (3), so it will be necessary to answer all the questions that occur after the screen that was returned to.

To exit the Setup Navigator

Press SETUP while on any of the screens to exit the Setup Navigator. Please note that if the Setup Navigator is exited before all the questions are answered, no settings are changed.

To return to the Setup screen

Press RETURN. The Setup Navigator is exited and the Setup screen General menu screen appears. Please note that no settings are changed if RETURN is pressed before the Setup Navigator is finished.

Audio1 Audio2 GeneralLanguageVideo

Setup Navigator

Move

Exit

SETUP

Select

ENTER

Setup Navigator

Auto Start Off

Start

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

SYSANAMANU OPTSYNC RANDTRKPROGSCAN REPTALL A-BDIG

REMTITL TIME TIMETRK CHPTOTL TOTLREM REM STEPTRK

DOWN MIXANGLE LAST MEMO

Dolby V

96kHz5.1CH CONDITIONOSD

DUBBING

CD-RW CD-RW

Page 16

ENGLISH

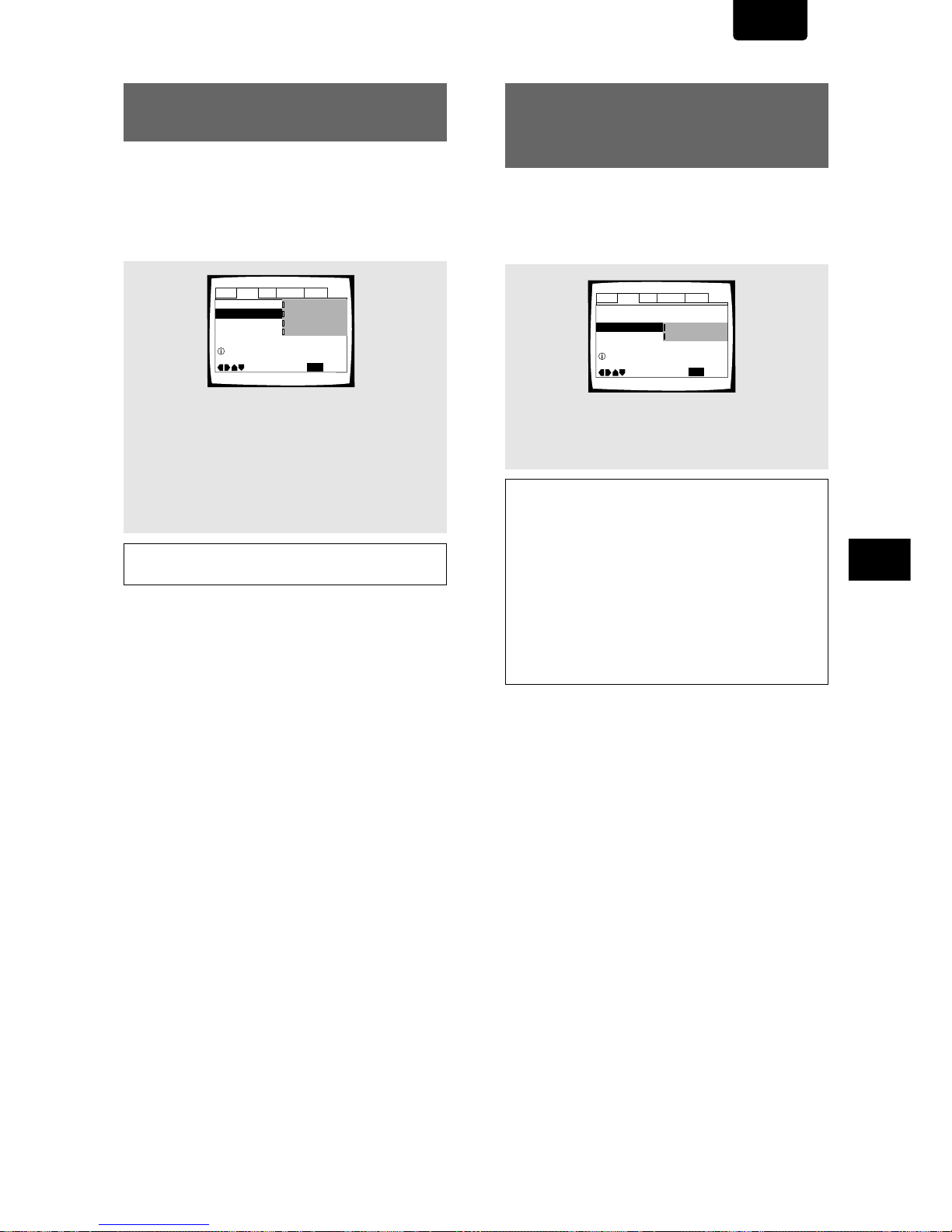

Setting the OSD Language (On-Screen Display Language)

The [OSD Language] screen establishes the OSD language, or on-screen display language, which refers to the language that is used by the player in menus and on-screen messages. Additionally, the language that is established at this setting will also be used for the default audio and subtitle language.

Settings: English* français

Deutsch Italiano Español

* Factory setting

Note

In addition to setting the OSD language, the audio and subtitle language are also set at this time. If you wish to change the audio or subtitle language to a different language, make changes in the Setup screen Language menu [Audio Language] and [Subtitle Language] as needed (page 32, 35).

Audio1 Audio2 GeneralLanguageVideo

Setup Navigator

Move

Exit

SETUP

Select

ENTER

OSD Language

Español

français Deutsch Italiano

English

Language

Audio1 Audio2 GeneralLanguageVideo

Setup Navigator

Move

Exit

SETUP

Select

ENTER

TV Type

Standard (4:3)

Widescreen (16:9)

TV Connection

Setting the TV screen size

The [TV Type] screen establishes the size, or more appropriately the width to height ration of your television or monitor. The width-to-height ratio of conventional TVs is 4:3, while the width-to-height ratio of wide screen and highdefinition TVs is 16:9. This width-to-height ratio is called the aspect ratio.

Settings: Widescreen (16:9)* Standard (4:3)

* Factory setting

Note

• There are two screen formats that can be used to display wide-screen format DVDs: letter box and pan & scan. When [Standard (4:3)] is selected in the Setup Navigator, the letter box screen format is automatically selected. To switch the preference to the pan & scan format, make changes in the Setup screen Video menu [TV Screen] setting (page 29).

• When [Standard (4:3)] is selected in the Setup Navigator, Linear PCM digital audio playback is output is automatically downsampled to 48 kHz (when the original signal is 96 kHz). In order to hear audio at the sampling rate of 96 kHz, set the Setup screen Video menu [TV Screen] setting to either [16:9 (Wide)] or [4:3 (Pan & Scan)] (page 29). Additionally, make sure that your system is set up to output the 96 kHz bitstream using either the Setup Navigator or the Setup screen Audio 1 menu [96kHz PCM Out] setting (pages 18, 25).

Page 17

SETTING UP THE PLAYER

ENGLISH

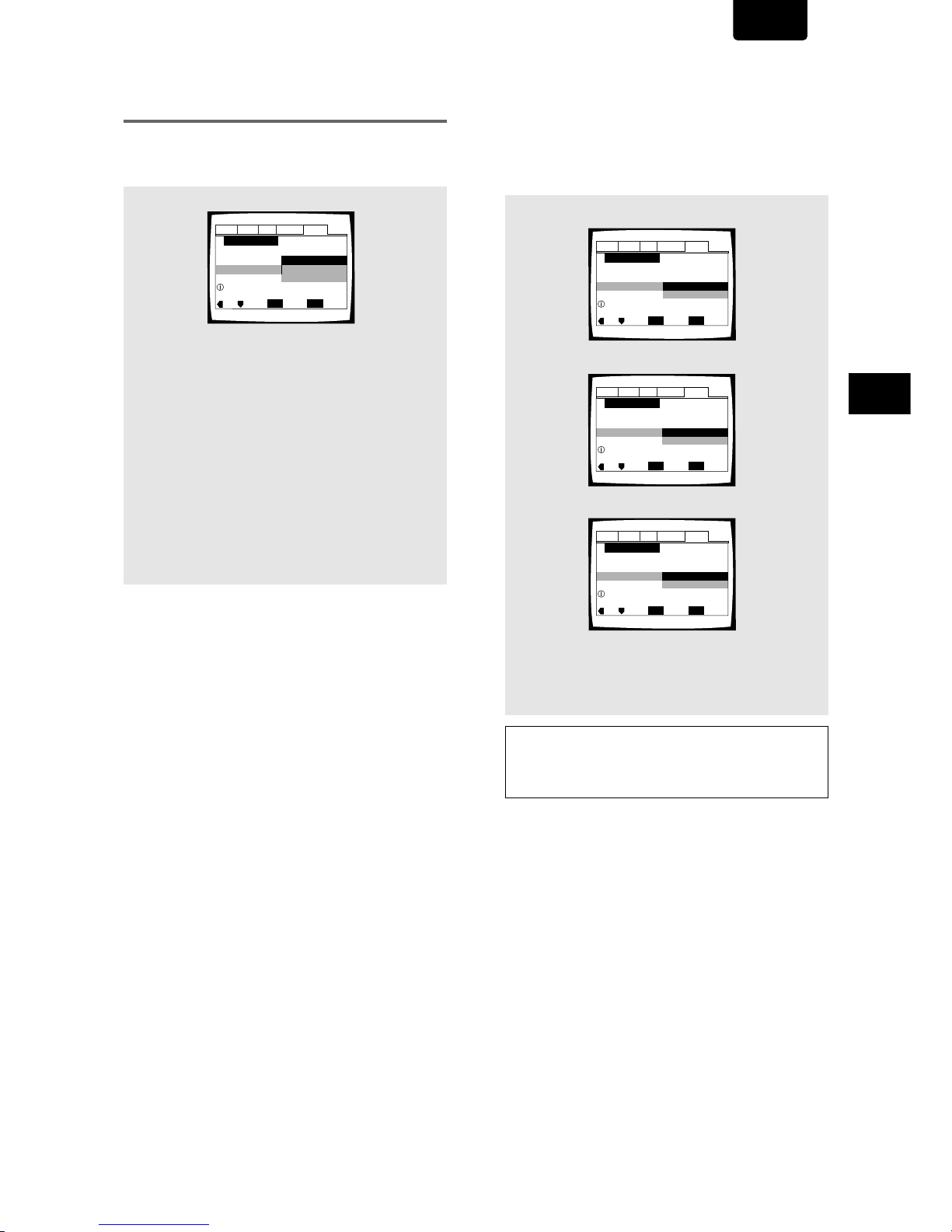

Setting analog audio connections to an AV amplifier or receiver

The [Analog Jacks] screen establishes whether analog connections have been made to an AV amplifier or receiver, and if connections are made, whether the connections made are for 2 channel stereo or for 5.1 channel surround sound.

Settings: 2 Channel*

Select if you have made 2 channel connections to an amplifier or receiver.

5.1 Channel

Select if you have made 5.1 channel connections to an AV amplifier or receiver with the appropriate inputs. When this setting is selected, several screens will follow to determine the configuration of your speaker system. These screens are described in the section

‘To coordinate your

speaker system for 5.1 channel output’

on this

page.

Not Connected

Select if you have not made connections to an amplifier or receiver or if you have made stereo connections to a TV or monitor.

* Factory setting

To coordinate your speaker system for 5.1 channel output

When [5.1 Channel] is selected in the [Analog Jacks] screen, the following screens appear to determine the configuration of your speaker system. In all of the following screens, select [Present] if the speaker in question is present in your system, and [Not Present] if it is not.

[Center Speaker]

[Surround Speakers]

[Sub-woofer]

Settings: Present*

Not Present

* Factory setting

Note

If [Not Present] is selected for both [Center Speaker] and [Surround Speaker], [Sub-woofer] is automatically set to [Not Present] and the [Sub-woofer] screen is not displayed.

Audio1 Audio2 GeneralLanguageVideo

Setup Navigator

Move

Exit

SETUP

Select

ENTER

2 CH jacks for L/R

Analog Jacks

Not Connected

5.1 Channel

2 Channel

Amp Connection

Audio1 Audio2 GeneralLanguageVideo

Setup Navigator

Move

Exit

SETUP

Select

ENTER

Center speaker is connected to an amplifier

Center Speaker

Not Present

Prese

Present

Amp Connection

Audio1 Audio2 LanguageVideo

Setup Navigator

Move

Exit

SETUP

Select

ENTER

Surround speakers are connected to an amplifier

Surround Speaker

Not Present

Present

Amp Connection

General

Audio1 Audio2 LanguageVideo

Setup Navigator

Move

Exit

SETUP

Select

ENTER

Sub-woofer is connected to an amplifier

Sub-woofer

Not Present

Prese

Present

Amp Connection

General

Page 18

ENGLISH

Audio1 Audio2 GeneralLanguageVideo

Setup Navigator

Move

Exit

SETUP

Select

ENTER

Exit Setup Navigator

Start Again

Delete Changes

Save Changes

Confirming the settings

The [Exit Setup Navigator] is the final screen in the Setup Navigator.

Settings: Save Changes*

Select to have the player make all of the necessary audio, video and language settings automatically.

Delete Changes

Select to exit the Setup Navigator without changing any of the system settings.

Start Again

Select to return to the [OSD Language] screen of the Setup Navigator and do the settings again.

* Factory setting

To exit the Setup screen

When you have completed setting up the player using the Setup Navigator or if you exit the Setup Navigator, the Setup screen General menu appears. Press SETUP to close the Setup screen.

To change other player settings in the Setup screen menus

The procedure for changing the settings in the Setup screen menus is described on page 23.

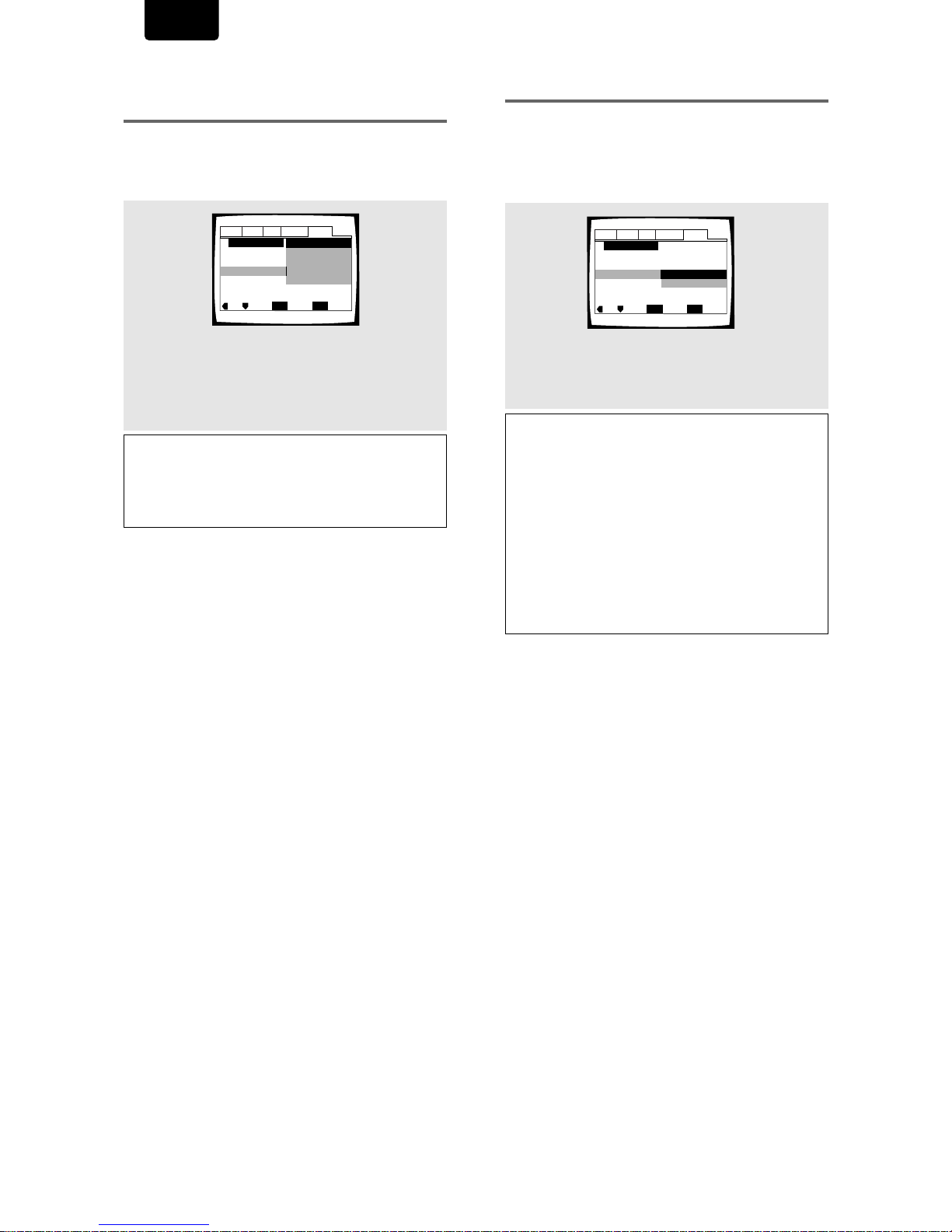

Setting digital audio connections to an AV amplifier or decoder

The [Digital Jack] screen establishes whether digital connections have been made to an AV amplifier, receiver, or external decoder. As there are numerous options available, please refer to the instructions supplied with the component the player is connected to determine what digital audio formats can be decoded. If you have made no digital connections, select [Not Connected].

Settings: Dolby Digital*

Dolby Digital/DTS Dolby Digital/MPEG Dolby D/DTS/MPEG PCM Not Connected

* Factory setting

Setting compatibility with 96 kHz output

The [96 kHz PCM Audio] screen establishes whether or not the AV component the player is connected to is capable of processing an audio signal with a sampling rate of 96 kHz. This screen only appears if connections have been made to an external AV component as determined in previous screens.

Settings: No*

Select if the connected AV component cannot process an audio signal with a sampling rate of 96 kHz.

Yes

Select if the connected AV component can process an audio signal with a sampling rate of 96 kHz.

Don’t Know

Select if you are uncertain whether the connected AV component can process an audio signal with a sampling rate of 96 kHz.

* Factory setting

Audio1 Audio2 GeneralLanguageVideo

Setup Navigator

Move

Exit

SETUP

Select

ENTER

Digital Jack

Not Connected

Dolby D/DTS/MPEG

Dolby Digital/MPEG

Dolby Digital/DTS

PCM

Dolby Digital

Amp Connection

Audio1 Audio2 GeneralLanguageVideo

Setup Navigator

Move

Exit

SETUP

Select

ENTER

96 kHz PCM Audio

Don’t Know

Yes

Amp Connection

Note

When a DVD is played back in the letter box format, 96 kHz Linear PCM digital audio playback is automatically downsampled to 48 kHz. In order to hear audio at the sampling rate of 96 kHz, set the Setup screen Video menu [TV Screen] setting to either [16:9(Wide)] or [4:3 (Pan & Scan)] (page 29).

Page 19

ENGLISH

SETTING UP THE PLAYER/

GETTING STARTED USING YOUR DVD PLAYER

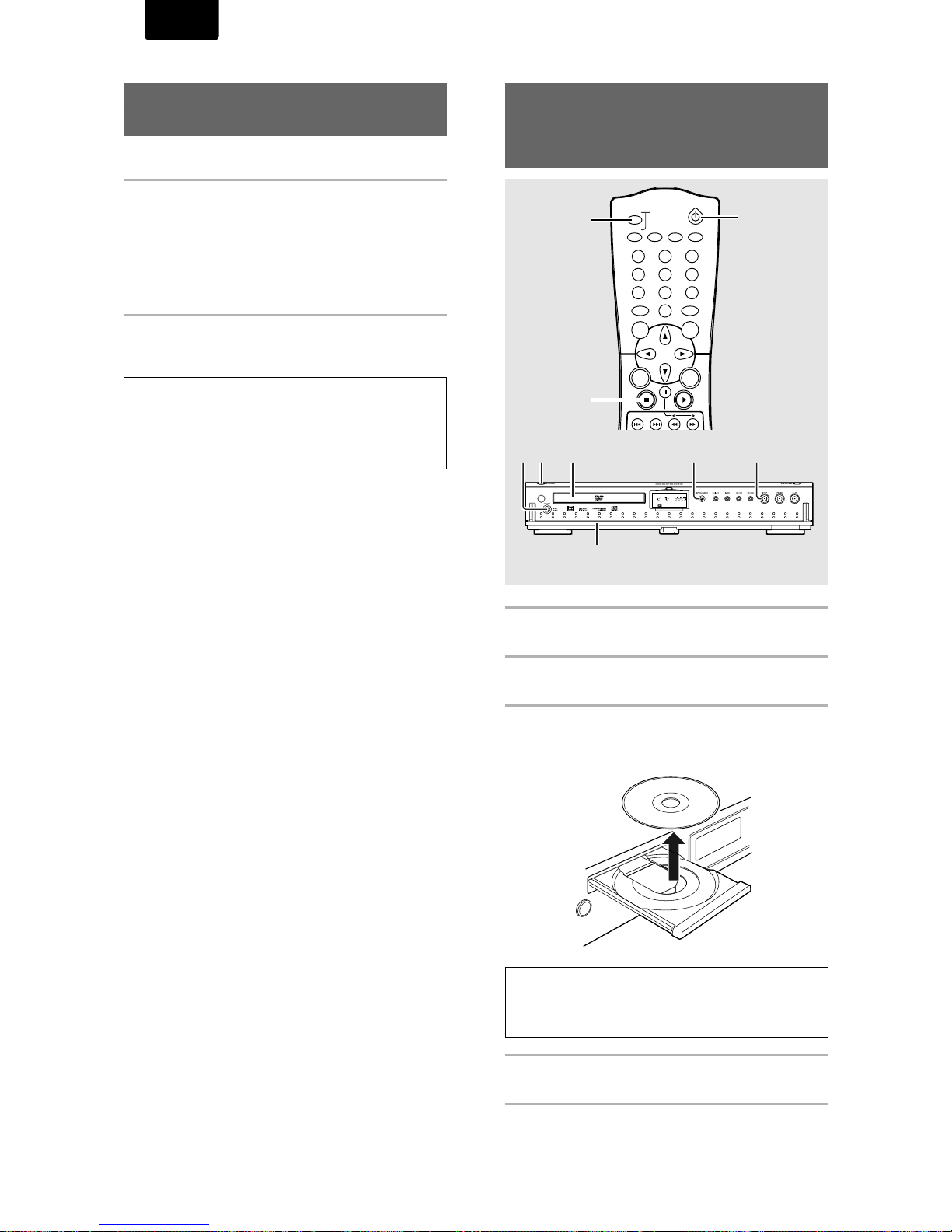

1 Open the Door Panel by hand.

Note

When power switch on the front panel is set in the power on mode, the door panel is opened by pressing the door OPEN/CLOSE button (7).

2 Press POWER switch on the front panel to turn

on the player.

3 Press Tray OPEN/CLOSE.

The disc tray comes out.

Note

When Power switch on the front panel is set in the power on mode, door panel is opened and the disc tray comes out by pressing the

tray OPEN/CLOSE button.

4 Load a disc.

Load a disc with the label side facing up, using the disc tray guide to align the disc.

5 Press PLAY

3 .

• The disc tray closes, and playback begins.

• Depending on the disc, a menu may be displayed.

If a menu is displayed, proceed to step 6.

6 Select the item you want to view.

• When a DVD is loaded: Select the item with the cursor buttons (2/3/5/∞ ) or

the number buttons then press ENTER.

• When a Video CD is loaded: Use the number buttons to select the item.

Getting Started Using Your DVD Player

When an operation is prohibited

There are times when you are using the player and attempt to perform an operation, but for some reason it cannot be performed. When this occurs, one of the two following icons appears on the screen.

The operation is prohibited by the player.

The operation is prohibited by the programming on the disc.

Playing DVDs, Video CDs and CDs – DVD/Video CD/CD

Before you can start to enjoy the digital audio and video on DVDs, be sure that you have either performed the Setup Navigator procedure described in the previous section or made the necessary settings in the Setup screen menus as outlined in the next section to set up the player to correspond to your home system. Having made these settings, you are now ready to start using the player to enjoy DVDs, Video CDs, and CDs.

Notes

• Noise is output if you make digital audio connections to a receiver or amplifier that does not have a built-in decoder. Check that the digital audio output format selected in the Audio 1 menu corresponds to the audio components you have made connections to (page 25-26).

• The TV screen size is factory set to present the wide screen format (16:9 aspect ratio). If you have a standard TV screen (4:3 aspect ratio), this setting can be changed to match your TV screen size in the Video menu (page 29).

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP MENU

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

3 7

SYSANAMANU OPTSYNC RANDTRKPROGSCAN REPTALL A-BDIG

REMTITL TIME TIMETRK CHPTOTL TOTLREM REM STEPTRK

DOWN MIXANGLE LAST MEMO

Dolby V

96kHz5.1CH CONDITIONOSD

DUBBING

CD-RW CD-RW

VCD

Page 20

ENGLISH

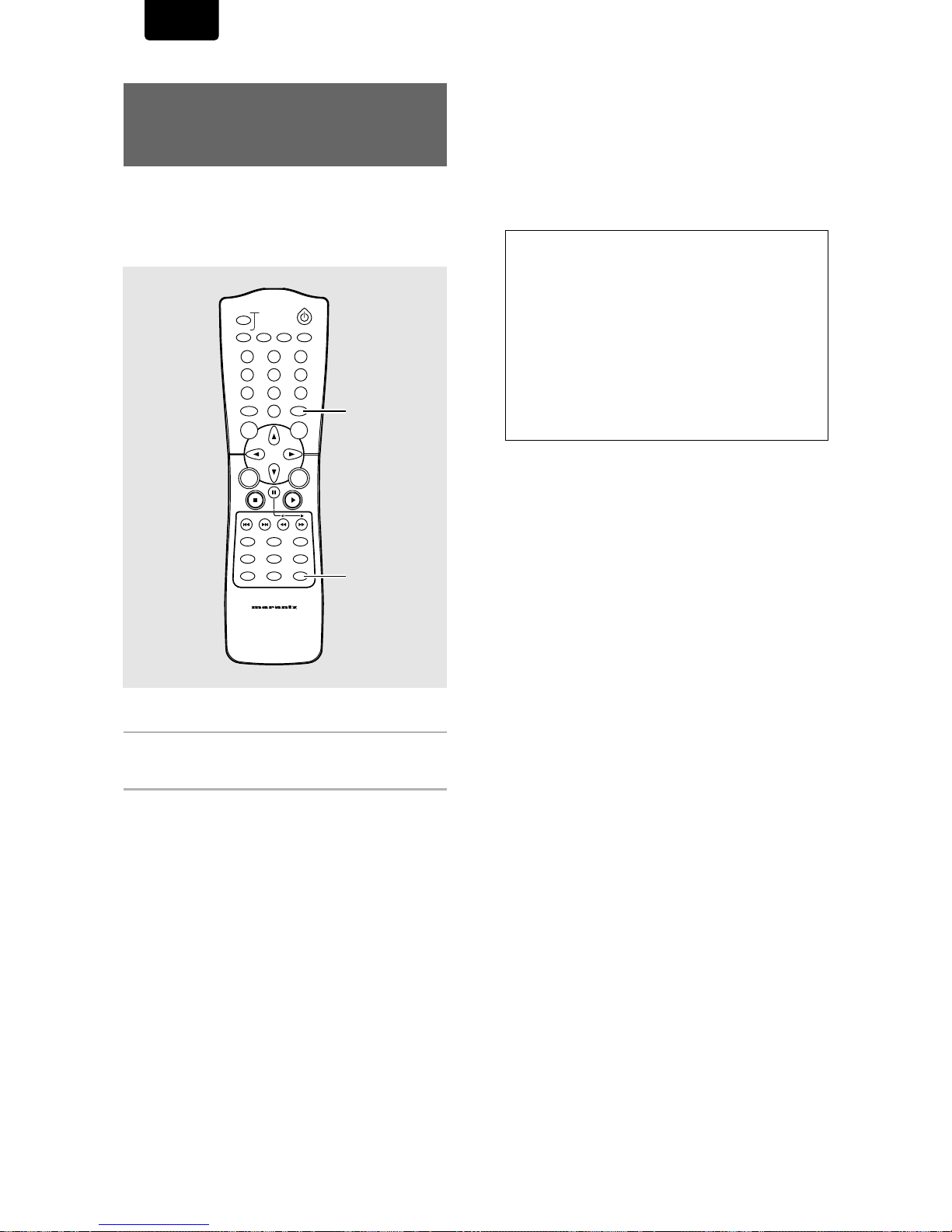

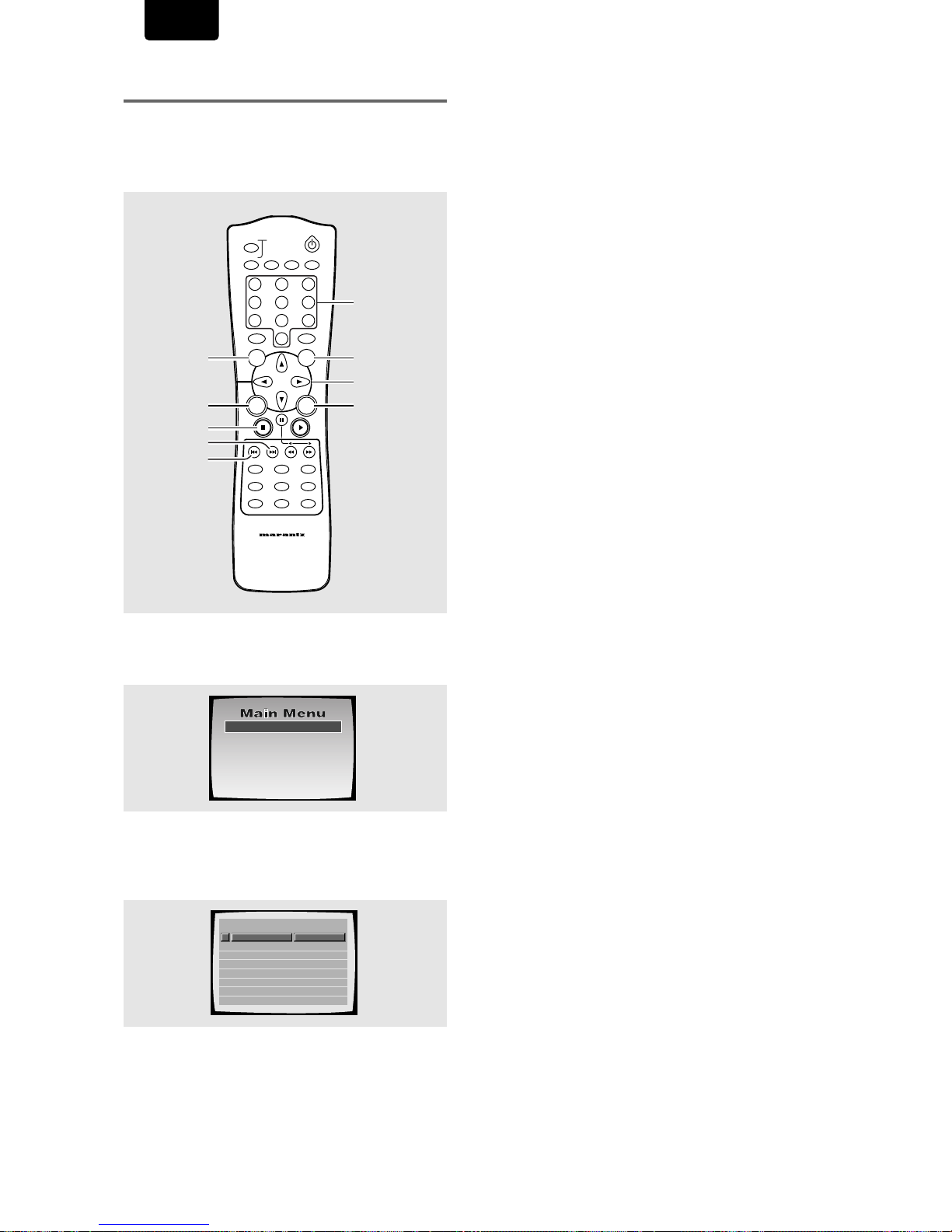

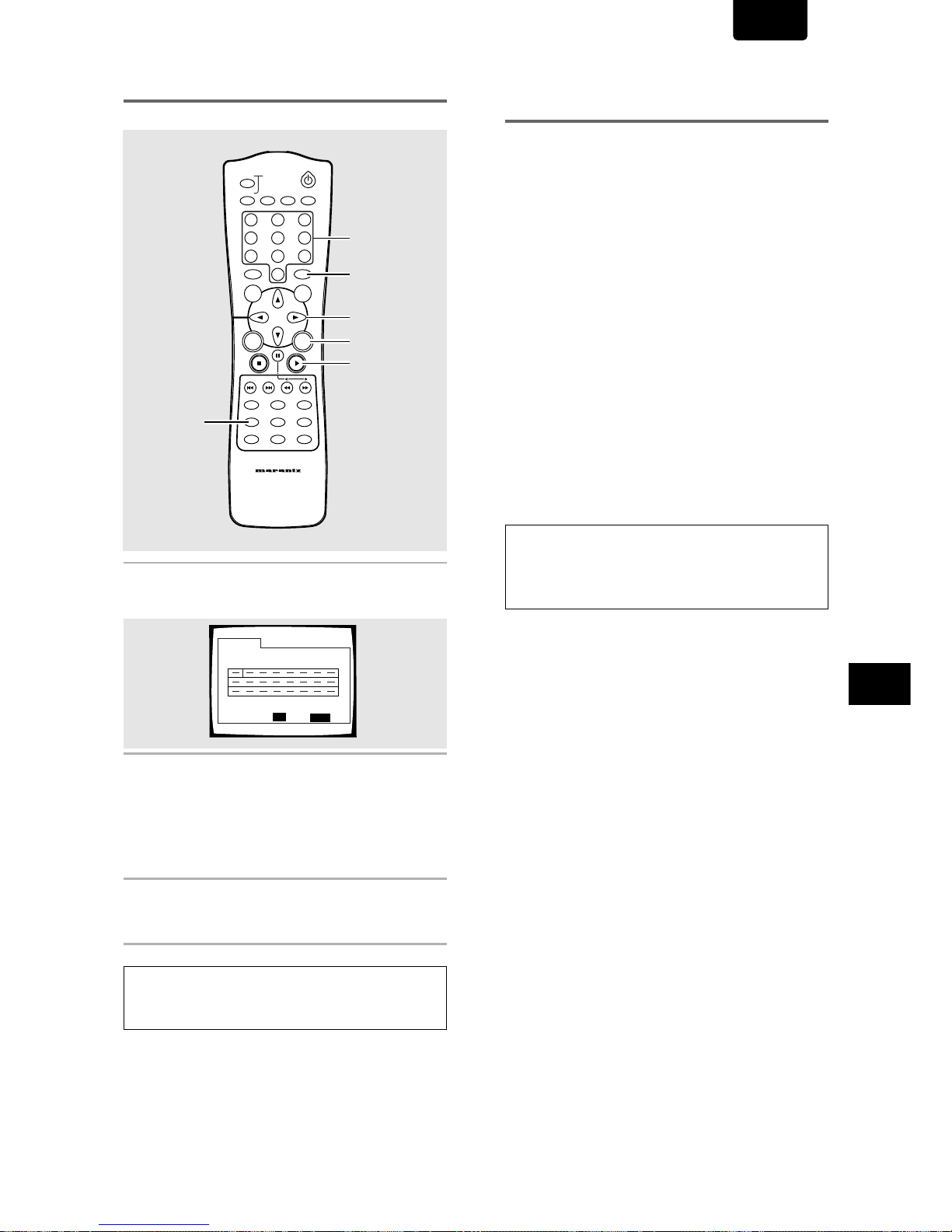

When a menu screen is displayed

Menu screens are displayed for DVDs that have menu screens or Video CDs that include Playback Control (PBC). DVDs often contain extra information that can be accessed in the DVD menu and sometimes makes navigating DVD menu screens as enjoyable as watching the feature presentation.

To open or return to the DVD or Video CD menu screen

Although this differs depending on the disc, pressing MENU, TOP MENU, or RETURN during DVD playback or RETURN

during Video CD playback displays the menu screen. Refer to the DVD or Video CD disc jacket and accompanying documentation for more information.

To navigate a menu screen

• Although individual DVD titles may differ, when a menu screen is displayed, use the cursor buttons (2/3/5/∞ ) and ENTER on the remote control. The cursor buttons are used to move around the options on the screen and ENTER is used for selection.

• Occasionally, the number buttons may also be used to make selections. If this is possible, using number buttons serves to directly select an option on a menu screen. Only number buttons are used to make selections on Video CD menu screens.

• When the Video CD has more than one menu, pages can be advanced to or returned to with PREV 4 or NEXT ¢.

To play Video CDs without displaying menu screens

Video CDs with Playback Control (PBC) display a menu screen when play is started. It is possible, however, to play back Video CDs without displaying menu screens.

When a Video CD with PBC is loaded, press STOP 7, and then the number button of the track you want to play.

1 Highlight Clips

2 Chapter List 3 Commercial Header 4 Subtitles 5 Soundtrack 6 Start Main Feature

Don't Tekno for an Answer

Bad Whack Naff Riff

dubmyheadbassman

Gooey Love Jingle

Praise the Day

G3, Ba-san

Abstract Jazz Phunk

Rock the Love Jive

Bertie B.& the Goans

Hood in the Boyz

Sleek Machine

Philip William

Formerly an Artist

Pfeuti

John Torn

Hot Monkey Stick

STANDARD VOCAL BEST

Example: When a DVD that has menu screens is loaded

Example: When a Video CD that has Playback Control is

loaded

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

Number buttons

ENTER

Cursor

TOP MENU

RETURN

STOP NEXT

PREV.

Page 21

GETTING STARTED USING YOUR DVD PLAYER

ENGLISH

Advancing to the next chapter (track)

Press NEXT

¢¢

¢ (

¡¡

¡/

¢¢

¢ on the front panel).

• Press to skip forward to the next chapter (track).

• You can advance more than one chapter (track) forward by pressing and holding NEXT ¢ and releasing when the desired chapter (track) number appears in the display.

Skipping back to the previous chapter (track)

Press PREV

4 (

1 on the front panel).

• Press once to skip back to the start of the chapter (track) currently playing.

• Press twice to skip back to the start of the previous chapter (track).

• You can skip back to previous chapters (tracks) by pressing and holding PREV 4 and releasing when the desired chapter (track) number appears in the display.

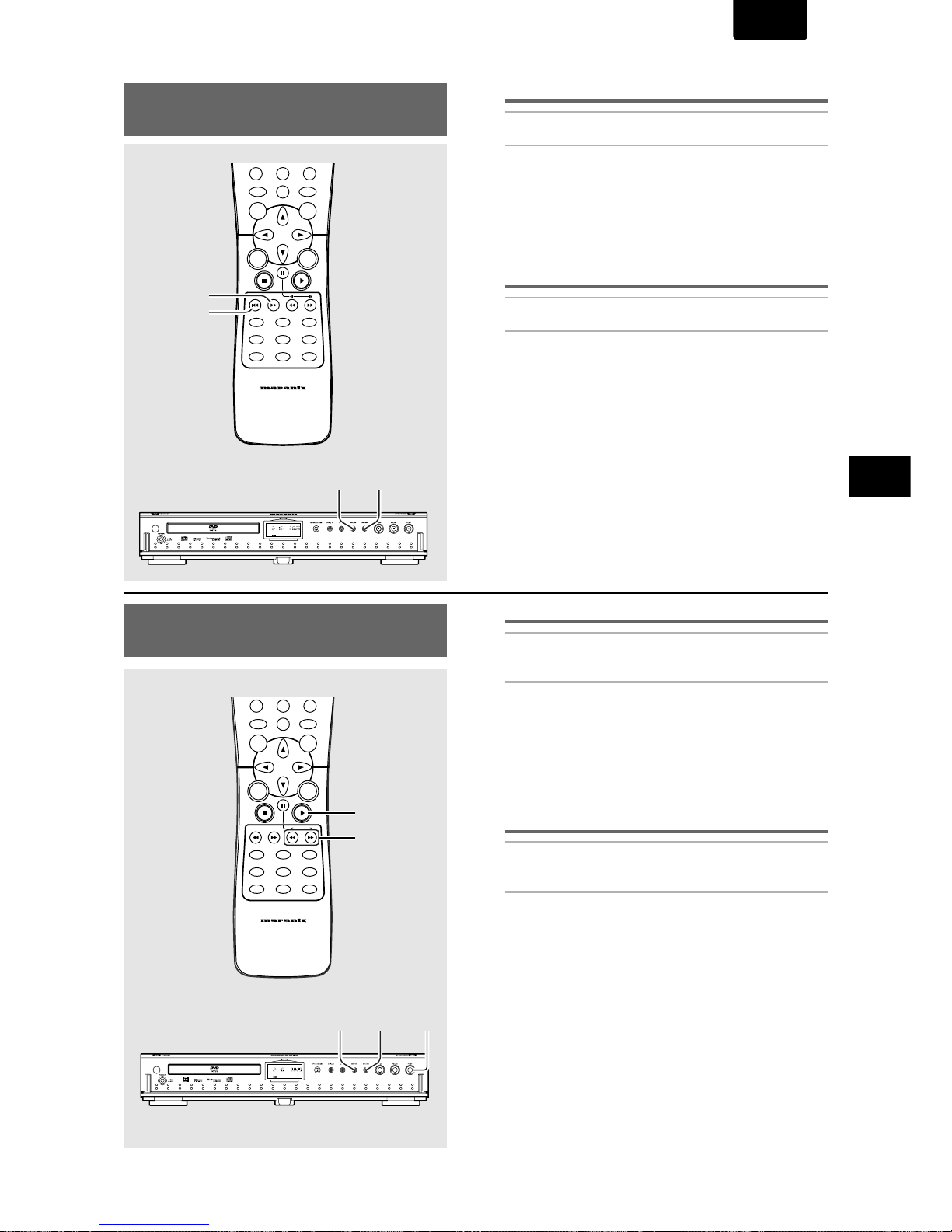

Chapter (Track) Skip Forward/ Skip Back – DVD/Video CD/CD

Forward and Reverse Scanning – DVD/Video CD/CD

Fast forward scanning

Press and hold FWD

¡¡

¡ (

¡¡

¡/

¢¢

¢ on the front

panel) during playback.

• Release FWD ¡ when you reach the desired location. Normal playback resumes.

• When the “Scan” indicator on the screen changes from flashing to lit, fast forward scanning will continue even if the button is released. When the desired location has been reached, press PLAY 3.

Fast reverse scanning

Press and hold REV

1 (

1 on the front

panel) during playback.

• Release REV 1 when you reach the desired location. Normal playback resumes.

• When the “Scan” indicator on the screen changes from flashing to lit, fast reverse scanning will continue even if the button is released. When the desired location has been reached, press PLAY 3.

DIMMER

ENTER

RETURN

T-C

+10

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

REMOTE CONTROLLER

RC2100DV

PREV.

DIMMER

ENTER

RETURN

T-C

+10

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

REMOTE CONTROLLER

RC2100DV

PLAY REV/FWD

SYSANAMANU OPTSYNC RANDTRKPROGSCAN REPTALL A-BDIG

REMTITL TIME TIMETRK CHPTOTL TOTLREM REM STEPTRK

DOWN MIXANGLE LAST MEMO

Dolby V

96kHz5.1CH CONDITIONOSD

DUBBING

CD-RW CD-RW

4/1 ¡/¢

SYSANAMANU OPTSYNC RANDTRKPROGSCAN REPTALL A-BDIG

REMTITL TIME TIMETRK CHPTOTL TOTLREM REM STEPTRK

DOWN MIXANGLE LAST MEMO

Dolby V

96kHz5.1CH CONDITIONOSD

DUBBING

CD-RW CD-RW

4/1 ¡/¢3

Page 22

ENGLISH

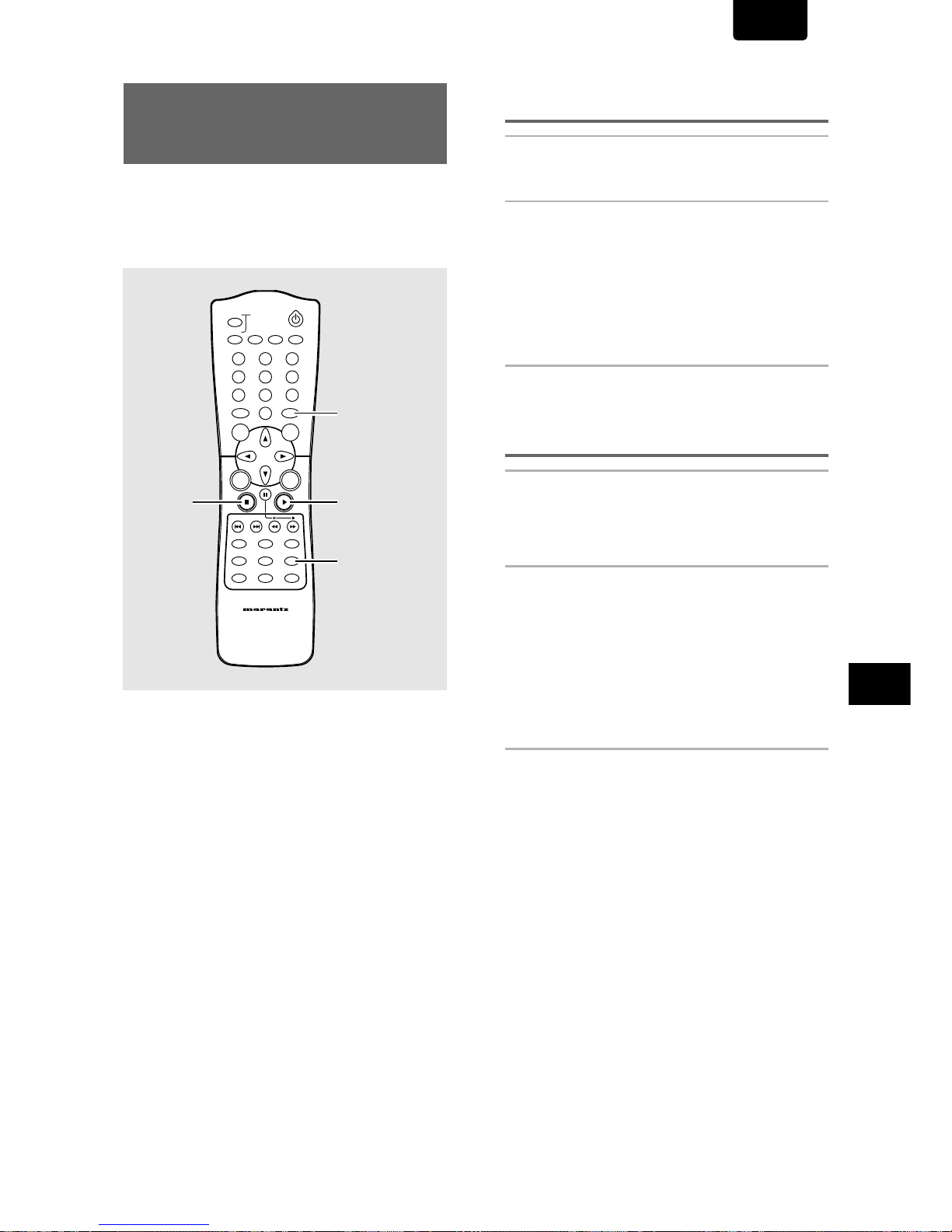

1 Press STOP

Playback stops.

2 Press Tray OPEN/CLOSE.

The door is opened and the disc tray comes out.

3 Remove the disc.

Be sure to press the Tray OPEN/CLOSE button to closs the disc tray after you remove the disc.

Note

Press standby switch (6) to set the player in standby mode so that the disc tray goes back in, the door panel is closed and standby indicator lights.

4 Press Power button on the front panel.

The player turns off.

5 Close the door panel by hand.

Stopping Playback and Switching Power Off

– DVD/Video CD/CD

Resuming playback from where you stopped – DVD/Video CD

Use the resume feature to restart playback from the point that the disc was stopped last time.

Press STOP

7 once.

The display shows “RESUME” and the stop position is memorized.

• The resume position remains memorized as long as the disc is in the player — even if you switch the power off.

• Pressing STOP 7 twice causes the disc to return to the beginning when PLAY 3 is pressed again. The display shows the disc type (DVDs or Video CDs)

Press PLAY

Playback starts from the resume position.

Notes

• The actual restart position may be slightly before or after the resume position.

• If you want to remove the disc, but still want to resume playback from the last stopped position, use the LAST MEMORY feature instead (page 47).

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

DOOR

SYSANAMANU OPTSYNC RANDTRKPROGSCAN REPTALL A-BDIG

REMTITL TIME TIMETRK CHPTOTL TOTLREM REM STEPTRK

DOWN MIXANGLE LAST MEMO

Dolby V

96kHz5.1CH CONDITIONOSD

DUBBING

CD-RW CD-RW

3 14

DVD

VCD

Page 23

ENGLISH

GETTING STARTED USING YOUR DVD PLAYER/

ADJUSTING AUDIO AND VIDEO SETTINGS

(Example)

Audio1 Audio2 GeneralLanguageVideo

Dolby Digital Out

DTS Out -

96kHz PCM Out – 96kHz 3 48kHz

MPEG Ou

t – MPEG 3 PCM

Move

Exit

Dolby Digital 3 PCM

Dolby Digital

SETUP

Select

ENTER

Output Dolby Digital

(Example)

Audio1 Audio2 GeneralLanguageVideo

DTS Out -

96kHz PCM Out – 96kHz 3 48kHz

MPEG Ou

t – MPEG 3 PCM

Move

Exit

Dolby Digital 3 PCM

Dolby Digital

SETUP

Dolby Digital Out

Change Dolby Digital output mode

Adjusting Audio and Video Settings

Audio1 Audio2 GeneralLanguageVideo

Dolby Digital Out – Dolby Digital

DTS Out – Off

96kHz PCM Out – 96kHz 3 48kHz

MPEG Ou

t – MPEG 3 PCM

SETUP

Move

Exit

Setup audio Digital output format/tone adjust

continued

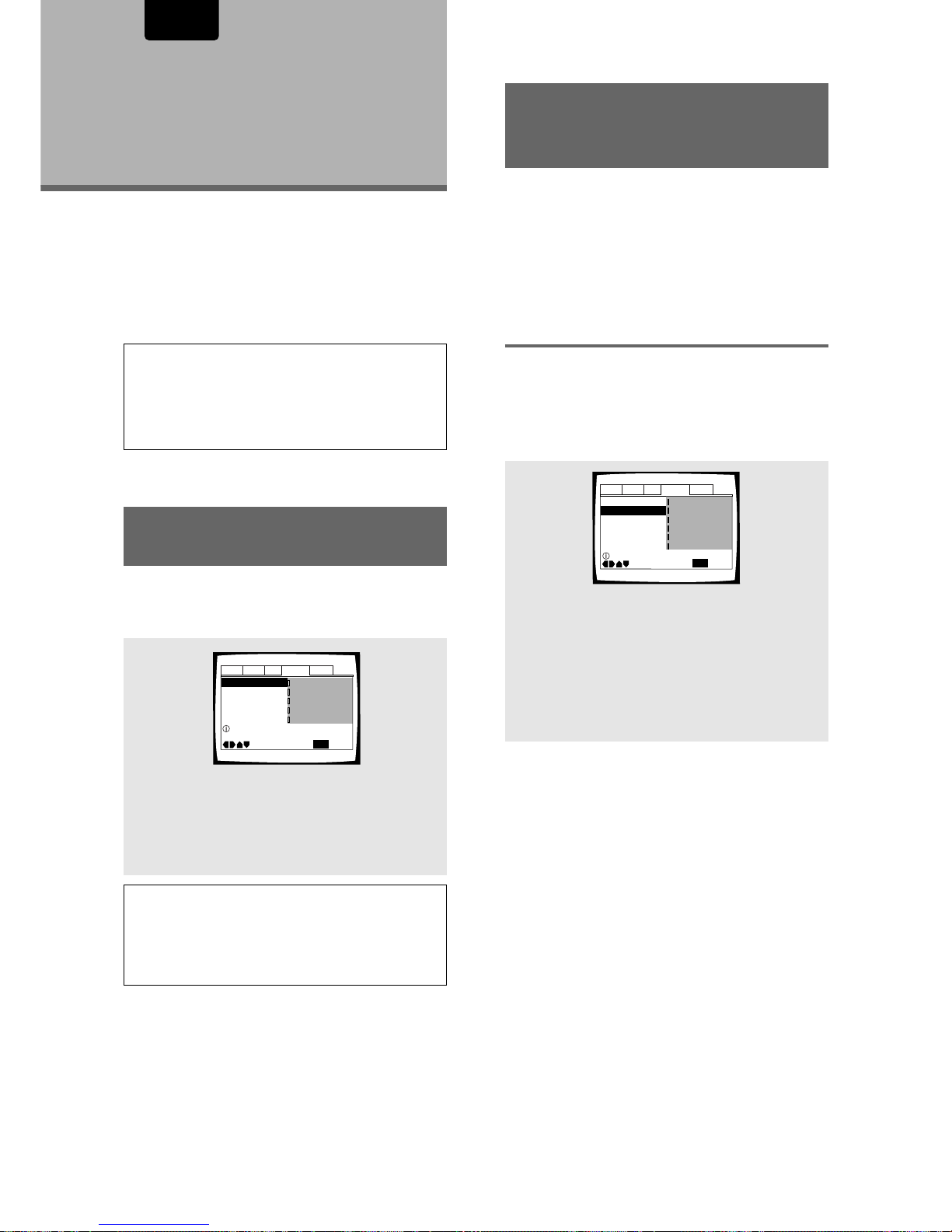

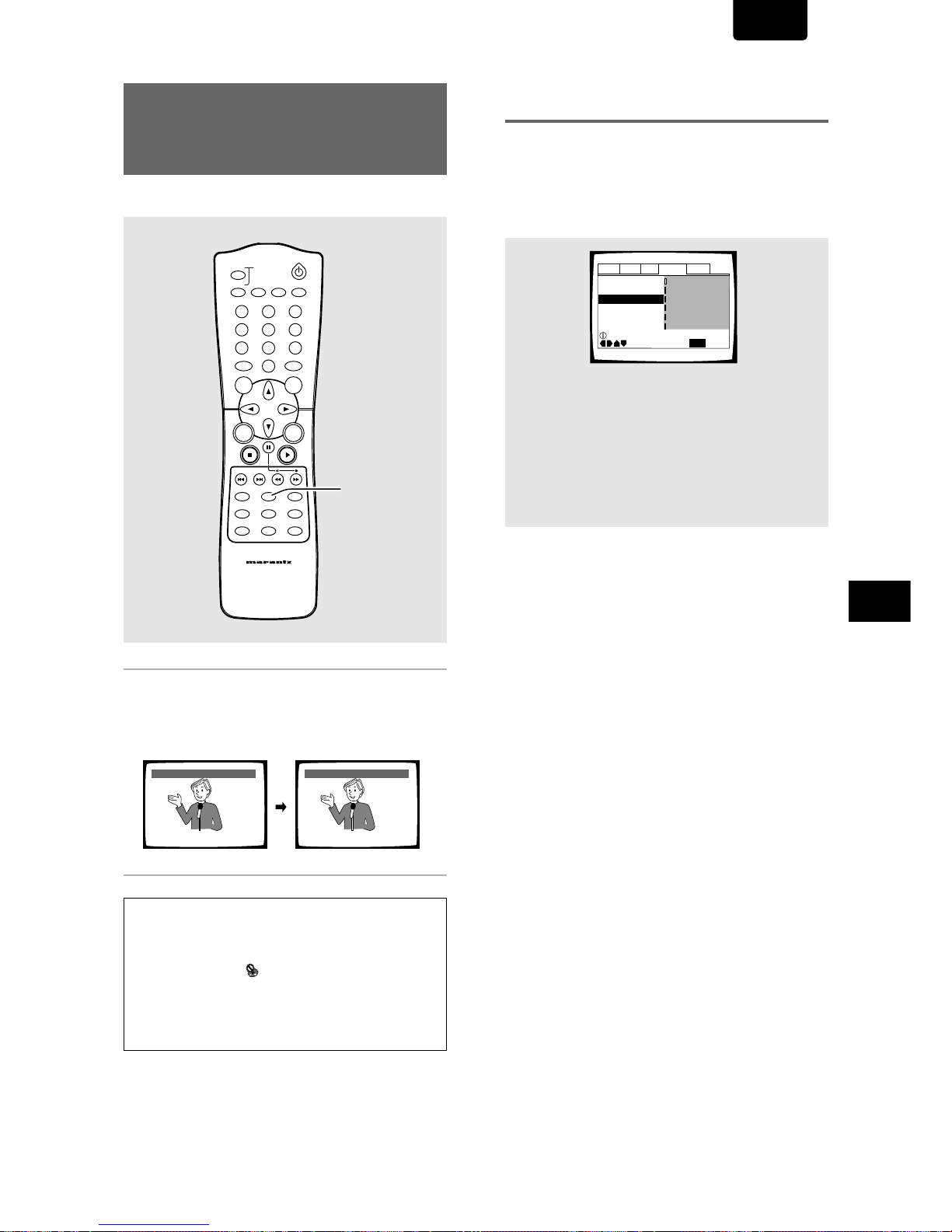

Using the Setup Screen Menus

The procedure on this page describes how to operate the menus on the Setup screen. These menus are used to set and adjust a number of system settings. The various functions that can be adjusted are covered throughout this manual. The procedure on this page provides a basic outline for using the Setup screen menus.

When setting up for the first time

It is recommended to set up player using the Setup Navigator (page 15). If you selected [Auto Start Off] when the Setup Navigator appeared, you may still set up the player using the Setup Navigator in the General menu screen. If you choose not to use the Setup Navigator, be sure to make the necessary settings in the Setup screen Audio 1, Audio 2, Video, and Language menus as described on the following pages.

Some DVDs start playing automatically when loaded in the player. If a DVD has been loaded, be sure to press STOP 7 before proceeding.

Note

If the Setup screen is opened during playback of a DVD being viewed in the letter box format, the screen may switch to the wide screen format. This is not a malfunction, and the screen will return to normal when the Setup screen is closed.

DIMMER

ENTER

RETURN

T-C

+10

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

REMOTE CONTROLLER

RC2100DV

3, 4, 5, 6

1 Press Power on the front panel. 2 Press SETUP.

The Setup screen appears.

3 Use the cursor buttons (

3) to select the

menu you want.

As each menu is selected with the cursor, the settings appear below the menu heading.

4 Use the cursor buttons (∞) to enter the menu.

The top item within the menu becomes highlighted.

5 Use the cursor buttons (

5/∞) to select the

setting you want to change.

The options available for each setting appear to the right when the setting is selected. The current setting appears with the setting indicator lit.

6 Use the cursor buttons (

3) to enter the setting

options.

• Not all menu options can be changed while a disc is playing. In these cases, the options appear grayed out on the screen and cannot be adjusted. To change these settings, press STOP 7 first before pressing SETUP.

• Operating the menu after pressing STOP 7 may cancel the resume function.

• Some menu options are not immediately effective if set while a disc is playing. To make these settings effective, stop playback and then start again, or change the settings while the disc is stopped.

SYSANAMANU OPTSYNC RANDTRKPROGSCAN REPTALL A-BDIG

REMTITL TIME TIMETRK CHPTOTL TOTLREM REM STEPTRK

DOWN MIXANGLE LAST MEMO

Dolby V

96kHz5.1CH CONDITIONOSD

DUBBING

CD-RW CD-RW

(Example)

Page 24

ENGLISH

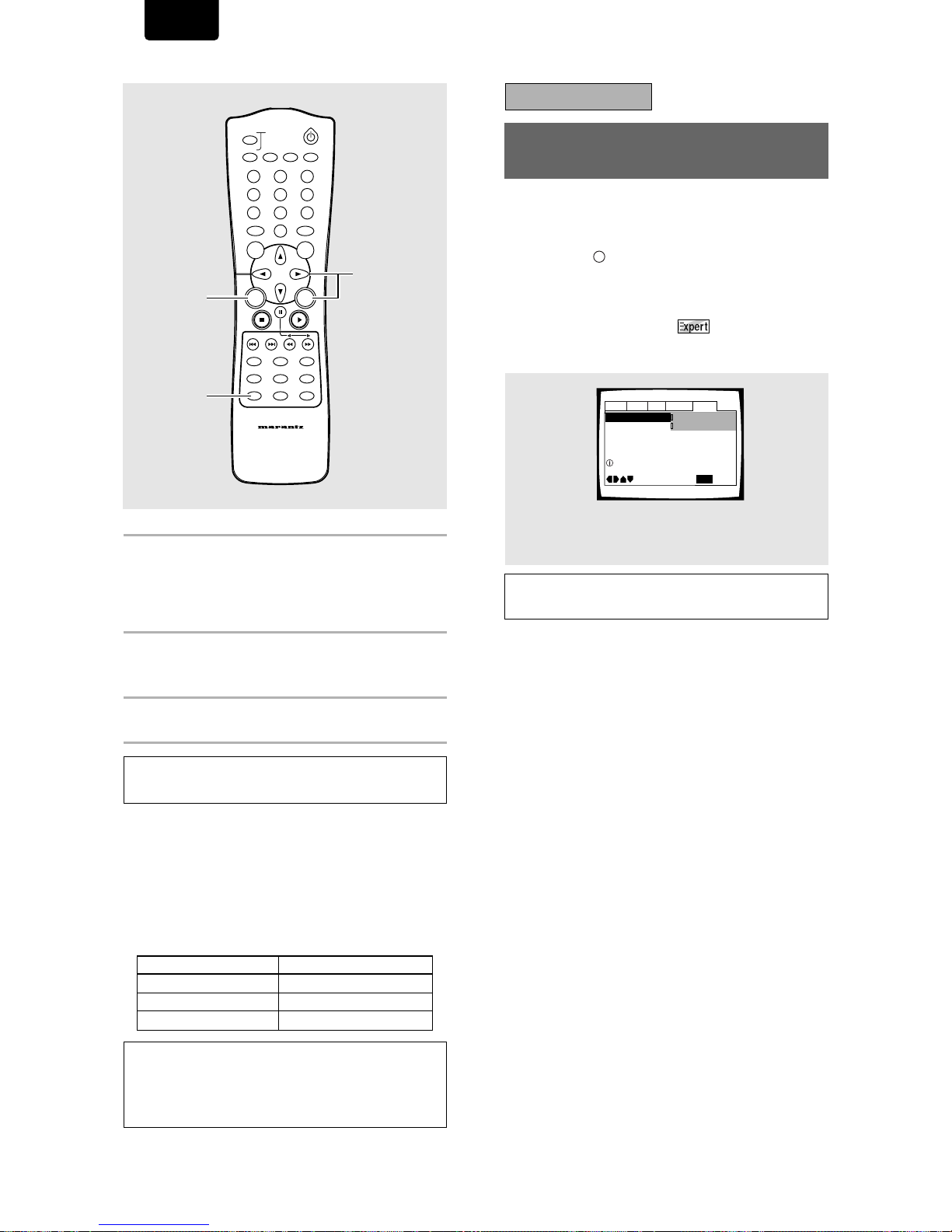

Changing to the Setup Screen “Expert” Menu Mode

The Setup screen menus are divided into two levels, [Basic] and [Expert], to make this unit more convenient to operate for different levels of users. The [Basic] menu mode contains functions that may be considered necessary for the basic operations of this player and helpful on-screen information identified by the i mark. The [Expert] menu mode adds to the [Basic] menu mode additional functions of the player that can be adjusted to further personalize performance of the player. In this manual, functions that are contained in the [Expert] menu mode are identified by the icon. Make changes to the [Setup Menu Mode] setting in the Setup screen General menu.

7 Use the cursor buttons (

5/∞) to select a new

setting and press ENTER to set the new setting in memory. Press RETURN or the cursor button (

2) to exit the options without making any

changes.

8 Press RETURN or the cursor button (

2) to go

back to the main menu bar to select another menu.

9 Press SETUP to close the Setup screen.

The Setup screen closes.

How to interpret the setting indicator colors in the Setup screen menus

When setting up the system, or when making adjustments, it is convenient to know what settings are applicable to the different disc formats. When the settings appear for each menu option, the currently selected setting appears with the setting indicator highlighted in one of three colors: blue, green or yellow. These colors correspond to what formats the menu option effects as shown in the table below.

Note

If a setting applicable only to DVDs is changed while a Video CD or CD is loaded, a blue DVD icon appears in the upper right hand corner of the screen to indicate that the setting is not applicable to the currently loaded disc. The setting will be effective the next time a DVD is loaded.

Audio1 Audio2 GeneralLanguageVideo

Parental Lock – Level 8

Setup Navigator

Setup Menu Mode

Move

Exit

Expert Basic

SETUP

Change menu mode

IMPORTANT

Settings: Expert

Basic*

* Factory setting

Note

On-screen information only appears in the [Basic] menu mode.

Note

The next time you press SETUP, you’ll see the menu screen that you exited from last time.

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

Color of indicator Disc format(s)

Blue DVD only

All compatible formats

DVD / Video CD

Green

Yellow

Page 25

ADJUSTING AUDIO AND VIDEO SETTINGS

ENGLISH

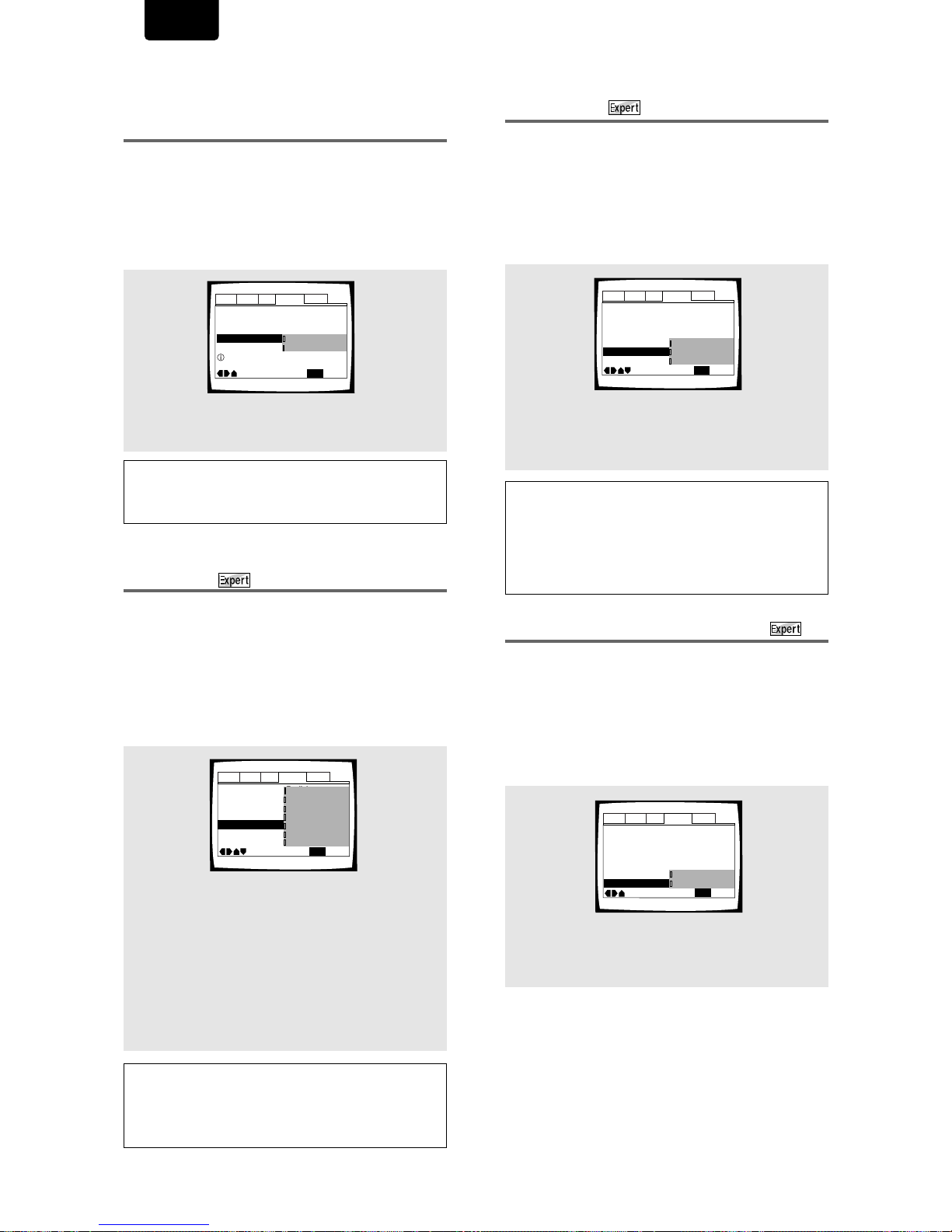

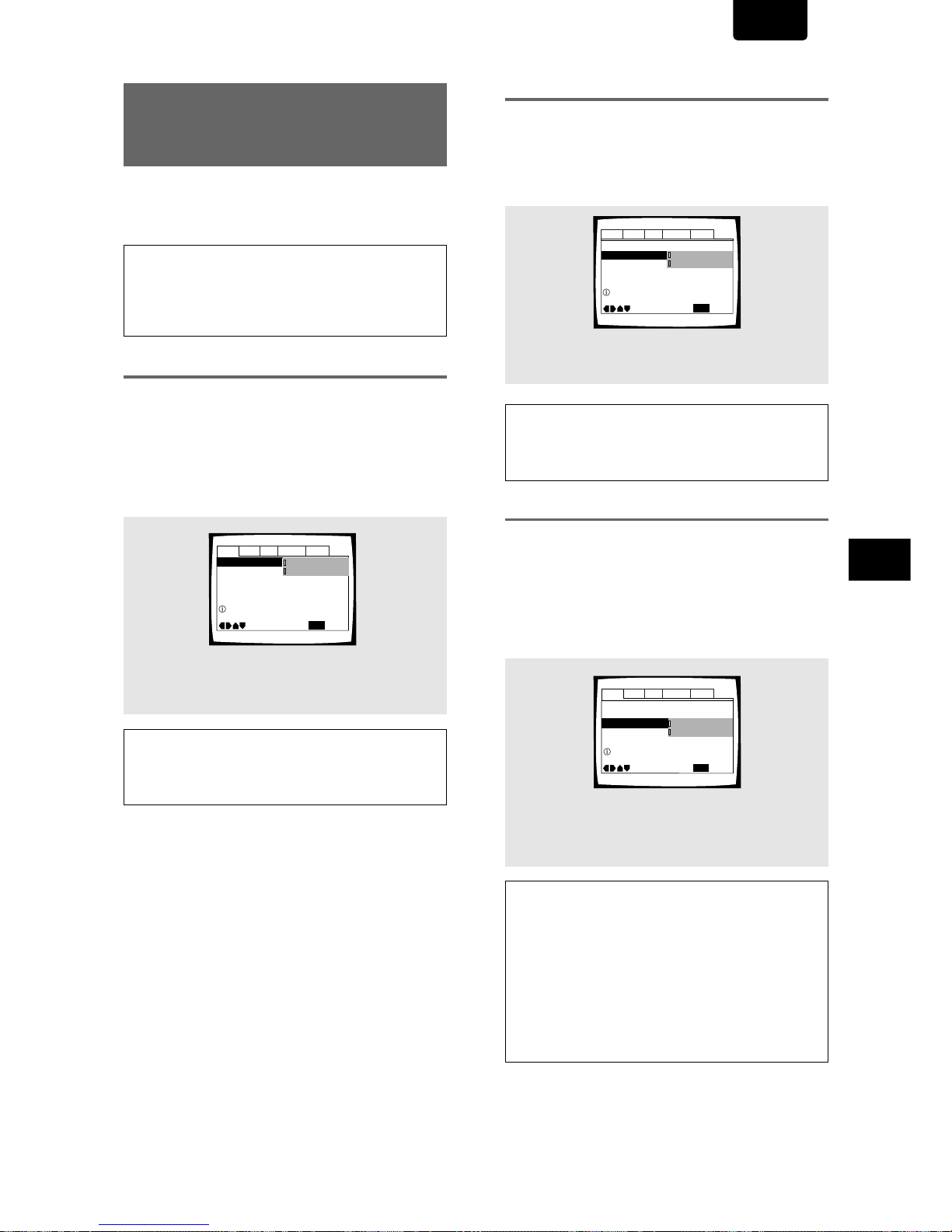

Setting the Digital Audio Output To Be Compatible with Your AV Component – DVD

This player is capable of digital audio output for Dolby Digital, DTS, MPEG, and signals with a sampling rate of 96 kHz. Make settings in the Setup screen Audio 1 menu to reflect the capabilities of the components that you have made digital connections to.

Notes

• If you have already completed the Setup Navigator screen operations, the settings on this page have already been set by the player.

• If you have made only stereo line connections (analog) using the supplied audio cord, it is not necessary to make any changes in this menu.

Dolby Digital Out

This player is capable of outputting the Dolby Digital surround sound audio signal. When the player is connected to an AV component that has a built-in Dolby Digital decoder, select [Dolby Digital]. This player can also convert the Dolby Digital signal to a digital Linear PCM signal, the same digital signal output from a CD. Select [Dolby Digital

3 PCM] when

you have made connections to an amplifier or receiver with a Dolby Pro Logic decoder or a Digital Analog Converter (DAC).

Audio1 Audio2 GeneralLanguageVideo

DTS Out -

96kHz PCM Out – 96kHz 3 48kHz

MPEG Ou

t – MPEG 3 PCM

Move

Exit

Dolby Digital 3 PCM

Dolby Digital

SETUP

Dolby Digital Out

Change Dolby Digital output mode

Dolby Digital Out –

DTS Out

96kHz PCM Out - 96kHz>48kHz

MPEG Ou

t – MPEG 3 PCM

Move

Exit

DTS

Off

Dolby Digital

SETUP

Change DTS output mode

Audio1 Audio2 GeneralLanguageVideo

MPEG Ou

t - PCM

Dolby Digital Out –

DTS Out –

96kHz PCM Out

Move

Exit

96kHz

96kHz 3 48kHz

Dolby Digital Off

SETUP

Change 96 kHz output mode

Audio1 Audio2 GeneralLanguageVideo

DTS Out

This player is capable of outputting DTS digital audio for DVDs recorded in DTS. When this player is connected to an AV component that has a built-in DTS decoder, select [DTS]. If your system is not equipped to decode DTS, select [Off]. Refer to the operating instructions supplied with your audio components if you are unsure about compatibility with DTS.

96 kHz PCM Out

This player is capable of outputting digital signals with a sampling frequency of 96 kHz. If you have made connections to a component capable of processing this signal rate, select [96 kHz] for the signal to be output as is. As some components are incapable of processing digital signal input with sampling rates of 96 kHz, selecting [96 kHz

3 48 kHz]

compresses the signal to a standard signal with a sampling rate of

48 kHz.

Settings: Dolby Digital*

Dolby Digital

3 PCM

* Factory setting

Settings: Off*

DTS

* Factory setting

Note

If you have made digital audio connections to component(s) not equipped to decode the DTS digital bitstream, be sure to select [Off]. If a DTS signal is output without decoding, the output is digital noise that could potentially cause damage to your speakers.

Settings: 96 kHz

3 48 kHz*

96 kHz

* Factory setting

Note

There is no digital signal output when [Dolby Digital

3 PCM] is

selected during 5.1 channel output or when the “Dolby V” indicator is lit.

Notes

• On DVDs that contain copy protection, the 96 kHz signal may only be output from the analog audio jacks. When this type of disc is encountered, even if [96 kHz] is selected, the player automatically outputs the digital audio signal at a compressed rate of 48 kHz.

• When a DVD is played back in the letter box format, Linear PCM digital audio playback is output is automatically downsampled to 48 kHz (when the original signal is 96 kHz). In order to hear audio at the sampling rate of 96 kHz, set the Setup screen Video menu [TV Screen] setting to either [16:9 (Wide)] or [4:3 (Pan & Scan)] (page 29).

• Changes to the [96 kHz PCM Out] setting cannot be made when a disc is playing.

Page 26

ENGLISH

Digital Out -DVD/Video CD/CD

Depending on your preferences and the type of connections made, you may opt not to have the digital audio signal output at all. When this setting is set to [Off] there is no signal output from the digital audio output jacks. Make changes to the [Digital Out] setting in the Setup screen Audio 1 menu in the [Expert] menu mode (page 24).

Audio1 Audio2 GeneralLanguageVideo

Dolby Digital Out –

DTS Out –

Digital Out

96kHz PCM Out – 96kHz>48kHz

MPEG Ou

t – MPEG 3 PCM

Move

Exit

Off

Dolby Digital

SETUP

MPEG Out

This player is capable of outputting the MPEG digital bitstream. When the player is connected to an AV component that has a built-in MPEG decoder, select the [MPEG] setting. Otherwise, select [MPEG

3 PCM] to convert the digital signal

to the PCM signal, the digital signal output from a CD.

Audio1 Audio2 GeneralLanguageVideo

Dolby Digital Out –

DTS Out – Off

96kHz PCM Out – 96kHz 3 48kHz

MPEG Ou

Move

Exit

MPEG 3 PCM

MPEG

Dolby Digital

SETUP

Change MPEG audio output mode

Settings: MPEG

MPEG

3 PCM*

* Factory setting

Settings: On (Digital bitstream is output)*

Off (Digital bitstream is not output)

* Factory setting

Getting Surround Sound from Stereo Speakers. – DVD/Video CD

Depending on the audio source, this player is capable of switching between Virtual Dolby Digital (multichannel audio sources) and TruSurround (stereo audio sources) to produce a surround sound effect from stereo speakers.

This function works only when connections are made to the SYSTEM AUDIO OUT (2 CH) jacks and AV EUROCONNECTOR jacks.

Settings: Off*

2V/TruSurround

*Factory setting

Notes

• There is no effect when the audio source is either DTS or 96 kHz LPCM or during CD playback.

• When the “Dolby V” indicator is lit during playback, and [Dolby Digital

3 PCM] is selected in the [Dolby Digital Out] setting in

the Setup screen Audio 1 menu, there is no audio output from the digital output jacks.

• The Virtual Surround mode can also be turned on and off by pressing Dolby V on the front panel.

However, this button does

not work when the on

screen menu operation is being performed.

Audio1 Audio2 GeneralLanguageVideo

Audio DRC -

Audio Out — 2 Channel

Speaker Setting

Virtual Surround

Move

Exit

Off 2V/TruSurround

SETUP

Surround effect from 2 speakers

TruSurround and Virtual Dolby Digital

TruSurround uses technology that simulates multichannel surround sound using only two speakers. Virtual Dolby Digital works in conjunction with Dolby Digital audio sources to create a realistic surround sound. Virtual Dolby Digital is selected automatically when Dolby Digital sources are loaded.

Page 27

ADJUSTING AUDIO AND VIDEO SETTINGS

ENGLISH

Adjusting the Dynamic Range of the Audio Soundtrack – DVD

Audio DRC stands for Audio Dynamic Range Compression. When Audio DRC is on, soft sounds such as dialog can be heard more clearly without making loud sounds even louder. Select from three levels of compression depending on how much effect you want. When Audio DRC is set to [Off], there is no effect on the audio source. Make changes to the [Audio DRC] setting in the Setup screen Audio 2 menu.

Settings: High

(maximum compression of audio source)

Medium

(moderate compression of audio source)

Low

(very little compression of audio source)

Off*

* Factory setting

Note

Audio DRC is only effective with Dolby Digital audio sources.

Setting Analog Audio Connections to an AV Amplifier or Receiver

This player is capable of both 2 channel stereo and 5.1 multichannel surround sound audio output. Use this setting to select which analog outputs are connected to an AV component.

Make adjustments in the [Audio Out] setting in the Setup screen Audio 2 menu.

Settings: 2 Channel*

5.1 Channel

*Factory setting

Notes

• This setting can also be changed by using 5.1 CH (MODE) on the front panel. However, this button does not work when the on screen menu operation is being performed.

• When [5.1 Channel] is selected, the front right (R) and left (L) audio channels are also output from the SYSTEM AUDIO OUT jacks.

• If the center or surround components are not recorded on the disc, there will be no output from the CENTER or SURROUND output jacks. This is not a malfunction. Speaker channels can be verified in the program format indicators in the display.

• When [5.1 Channel] is selected at this setting and [Dolby Digital

3 PCM] is selected in the [Dolby Digital Out] setting in

the Setup screen Audio 1 menu, there is no audio output from the digital output jacks.

Audio1 LanguageVideo

Audio DRC — Off

Audio Out

Speaker Setting

Virtual Surround —

Move

Exit

5.1 Channel

2 Channel

Off

SETUP

Setting up audio output

GeneralAudio2

Audio1 Audio2 GeneralLanguageVideo

Audio Out - 2 Channel

Audio DRC

Speaker Setting

Virtual Surround -

Move

Exit

High Medium Low Off

SETUP

Dynamic playback at low volume

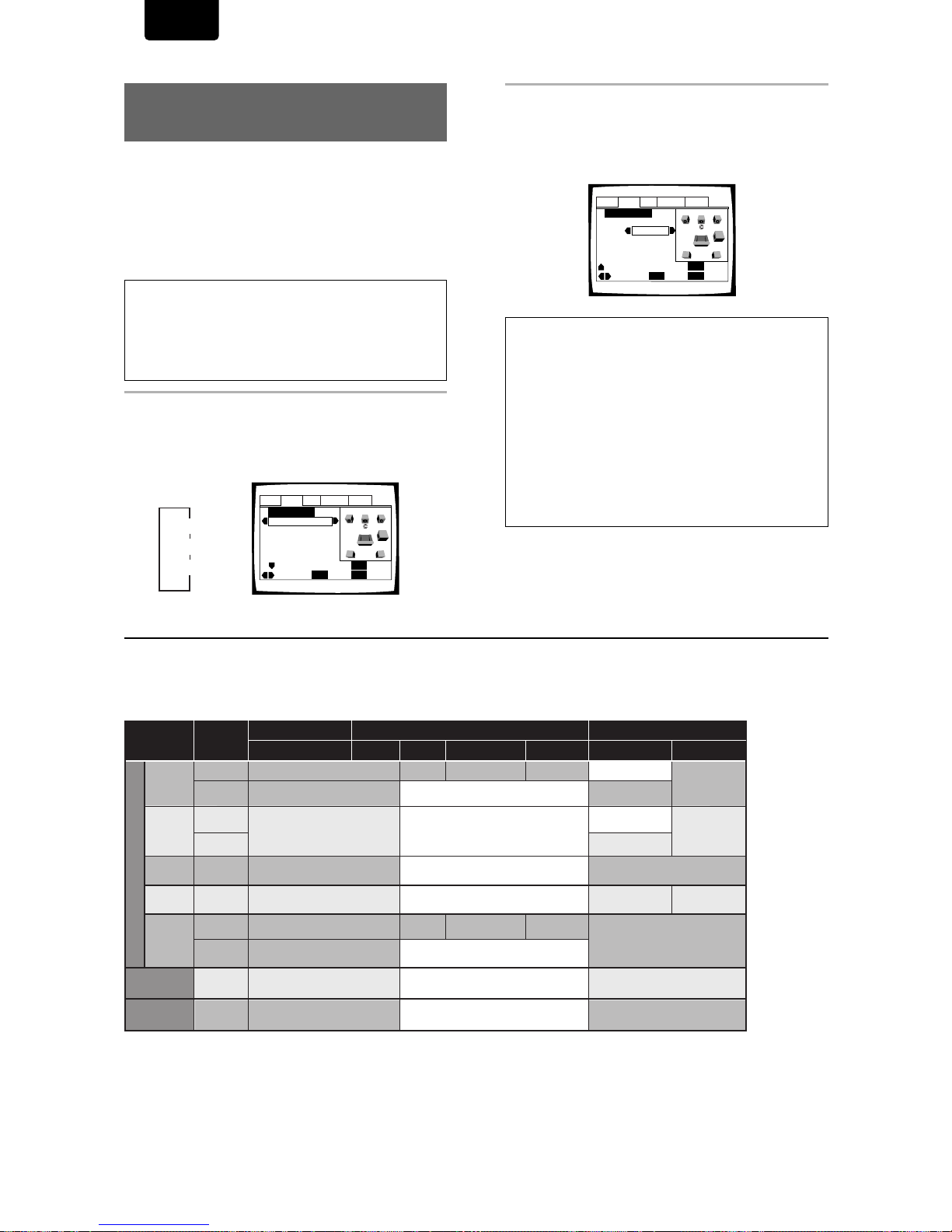

Page 28

ENGLISH

About source audio output

When the source input mode has been switched between the [5.1 Channel] and [2 Channel] mode settings using the [Audio Out] setting in the Setup screen Audio 2 menu or by pressing 5.1 CH (MODE) on the front panel, audio output for each source will be as shown on the following table.

Setting Your Speaker System for Multichannel Audio Playback

This player contains a built-in decoder for Dolby Digital and DTS audio sources as well as 5.1 channel discrete audio output. Ideally, a 5.1 channel system contains 6 speakers: 2 front speakers, 2 surround speakers, a center speaker, and a sub woofer. However, as this is not always the case, accurately setting the [Speaker Setting] setting to reflect your speaker setup allows the player’s built-in decoder to reroute signals to compensate for absent speakers. Make adjustments in the [Speaker Setting] setting in the Setup screen Audio 2 menu.

Notes

• If you have already completed the Setup Navigator screen operations, the settings on this page have already been set by the player.

• If you have not made connections to the 5.1 CH SURROUND AUDIO OUT jacks on the rear panel of the player, it is not necessary to make any changes to this setting.

1 Use the cursor buttons (

3) to select the

speaker.

Every time the cursor button is pressed, the selected speaker changes in the following order.

*1: When the “DOLBY V” indicator is lit, PCM output is muted. *2: When the Setup screen Audio 1 menu [DTS Out] setting is set to [Off], DTS digital output is muted. *3: When the 5.1 CH mode is selected, “5.1 CH” indicator is lit.

Center

Sub-woofer

Surround

5 ∞

∞

2 Use the cursor button (∞) to move the cursor

down to the speaker bar and use the cursor buttons (

3) to select [On] or [Off]

corresponding to whether the selected speaker is present in your system or not, respectively.

Notes

• To help identify the speakers being selected, the initials of the speakers in the speaker system representation on the right side of the screen will appear in blue.

• When [On] is selected for a speaker or pair of speakers, the icons for those speakers turn yellow in the speaker system representation on the right side of the screen.

• If [Off] is selected for both [Center Speaker] and [Surround Speaker], [Sub-woofer] is automatically set to [Off].

• When the sub woofer is [On], the low range components of the center and surround signals will be mixed in the LFE signal and output from the SUB WOOFER jack.

• When the sub woofer is [Off], the low range components of the center and surround signals will be mixed in the L and R signals and output from the front speakers.

Audio1 Audio2 GeneralLanguageVideo

Speaker Setting

Center

—/+

SETUP

Move

Exit

ENTER

Select

Speaker

Return

L R

LS RS

¥ ¥ ¥

RETURN

Audio1 Audio2 GeneralLanguageVideo

Speaker Setting

Center

—/+

SETUP

Move

Exit

ENTER

Select

Speaker

Return

L R

LS RS

RETURN

AUDIO

CONTENTS

OUTPUT

MODE

SYSTEM AUDIO OUT (2 CH)

5.1 CH

2 CH

5.1 CH

2 CH

5.1 CH / 2 CH

5.1 CH

2 CH

5.1 CH / 2 CH

5.1 CH /

2 CH

DVD

VIDEO CD

Dolby

Digital

Dolby Digital

Karaoke

LPCM

DTS

Front Lch, Rch

2 ch DOWNMIX Lch, Rch

MUTE

Lch, Rch

Center

Surround Lch, Rch

LFE

2 ch DOWNMIX Lch, Rch

Lch, Rch

(5.1 CH SURROUND AUDIO OUT)

DIGITAL OUTPUT (S/PDIF)

Lch, Rch

Front Lch, Rch

L, R

Front L,R

Center Surround L,R

Sub Woofer

Dolby Digital3PCM

Dolby digital

Dolby Digital

Lch, Rch

DTS

Center

Surround Lch, Rch

LFE

MUTE

Lch, Rch

MUTE

5.1 CH / 2 CH

MPEG

Lch, Rch

Lch, Rch MPEGMUTE

MUTE

Dolby Digital

Lch, Rch

MUTE

Lch, Rch

MUTE

Page 29

ADJUSTING AUDIO AND VIDEO SETTINGS

ENGLISH

Setting the TV Screen Size

– DVD

The width-to-height ratio of conventional TVs is 4:3, while the width-to-height ratio of wide screen and high-definition TVs is 16:9. This width-to-height ratio is called the aspect ratio. When viewing software recorded in different aspect ratios, the image’s height to width ratio can be switched to match the TV or monitor being used. Make changes to the TV screen size in the [TV Screen] setting in the Setup screen Video menu. Please note that changes to the [TV Screen] setting cannot be made when a disc is playing. Stop playback of the disc before attempting to make any changes.

When viewing a wide screen TV or monitor

Standard screen format DVD

When viewing a standard screen format DVD on a wide screen TV, black bars may be automatically placed at the side of the screen to adjust to the DVD format.

“Wide” setting

Wide screen format DVD

Please note that there are some wide screen letter box formats that place black bars at the top and bottom of the screen. This is not a malfunction.

“Wide” setting

Standard screen format DVD (unnatural stretched effect)

If you are viewing a standard screen format DVD on a wide screen TV, the picture may appear ‘stretched’ on the screen. To remedy this condition, change your wide screen TV to display a standard (4:3) screen. Refer to the instructions supplied with your wide screen TV or monitor for more information.

DVD screen size format

Setting and Appearance

Standard screen format DVD

If you have a standard TV, the standard screen format will be presented regardless of the setting.

When viewing a standard size TV or monitor

Wide screen format DVD

The Pan & Scan presentation crops both sides of the wide screen presentation to use the full standard TV screen.

“Letter Box” setting

Wide screen format DVD

The Letter box presentation places black bars at the top and bottom portions of the screen to provide the full wide screen presentation of a movie on a standard TV (4:3 aspect ratio).

“Pan & Scan” setting

Any setting

Wide screen format DVD (unnatural squeezed effect)

If you are viewing a wide screen format DVD on a standard TV and the [TV Screen] setting is set to [16:9 (Wide)], the picture may appear ‘squeezed’ on the screen. To remedy this condition, select either [4:3 (Letter Box)] or [4:3

(Pan & Scan)].

DVD screen size format Setting and Appearance

“Wide” setting

Settings: 4:3 (Letter Box)

4:3 (Pan & Scan) 16:9 (Wide)*

* Factory setting

Notes

• If [Standard (4:3)] is selected in the Setup Navigator screen, [4:3 (Letter Box)] is selected on this screen. If you prefer the

pan&scan format, change the settings on this screen.

• Whether the aspect can be switched or not depends on the disc. Please refer to the information written on the disc jacket, etc.

• Some discs may not include the screen format selected in the [TV Screen] setting. When this occurs, the standard TV screen format available on the disc is automatically selected.

Differences in screen sizes and DVD formats

The number of screen size formats currently available can be somewhat confusing. If set incorrectly, the video presentation may not appear as it should. The following diagrams and descriptions are intended to help you set your TV screen size in a way that will allow you to fully enjoy the digital video of DVD. The settings in the [TV Screen] setting are perhaps most applicable when the DVD you are watching is programmed in the wide screen format. If you have a standard TV, select either [4:3 (Letter Box)] or [4:3 (Pan & Scan)] based on your personal preference. If you have a wide screen TV, select

[16:9 (Wide)].

TV Screen

Move

Exit

16:9(Wide)

4:3(Pan&Scan)

4:3(Letter Box)

SETUP

Select your display preference

Audio1 Audio2 GeneralLanguageVideo

Page 30

ENGLISH

Selecting the type of paused image to display

This function lets you view a clear still-image when DVD playback is paused. Make changes in the [Still Picture] setting in the Setup screen Video menu in the [Expert] menu mode (page 24).

Settings: Field

(Picture shake will be eliminated during a paused picture.)

Frame

(Select to obtain higher picture quality.)

Auto*

(Selects field or frame automatically according to the disc.)

* Factory setting

Setting the position of the on-screen display

When watching conventional software on a wide screen TV, the operation display is at the very top of the screen, and may be difficult to see. Changing the position of the display lets you see operation indicators clearly even on a wide screen TV. Alternatively, you can choose to turn them off completely with the [Off] setting. Make changes in the [On Screen Display] in the Setup screen Video menu in the [Expert] menu mode (page 24).

Note

This setting is only effective with DVDs that contain a 4:3 aspect ratio video presentation.

Setting the Video Output Format for AV CONNECTOR Connections

When connections are made to the A/V EUROCONNECTOR on the player via a SCART cable, it is possible to select the video format that is compatible with your TV or monitor. Select [Video] to have a composite video signal output, [S-Video] to have an S-video signal output, and [RGB] to have an RGB signal output. For more information on which format is most appropriate, refer to the instructions supplied with your TV or monitor. Make changes to the [Video Out] setting in the Setup screen Video menu.

Settings: Video*

S-Video RGB

* Factory setting

Audio1 Audio2 Language

TV Screen — 16:9(Wide)

Video Out

Move

Exit

RGB

S-Video

Video

SETUP

Set AV CONNECTOR video format

GeneralVideo

Switching the S-Video Output

You can Switch the kind of S-Video signal output from the SVideo outputs. If you connected your TV with an S-Video cord, in rare cases the TV picture may appear stretched. In this case switch the output from [S2] to [S1].

Make changes in the [S-Video Out] in the Setup screen Video menu in the [Expert] menu mode (page 24).

Settings: S1

S2*

* Factory setting

Settings: Position-Wide

Position-Normal* Off

* Factory setting

Still Picture —

Angle Indicator

—

TV Screen —

S-Video Out

On Screen Display

—

Move

Exit

16:9(Wide)

Video Out —

Video

SETUP

Position-Normal On

Audio1 Audio2 GeneralLanguageVideo

On Screen Display

—

Angle Indicator

— On

TV Screen —

Still Picture

Move

Exit

S-Video Out —

Video Out —

Video

16:9(Wide)

Field Frame Auto

SETUP

Audio1 Audio2 GeneralLanguageVideo

Angle Indicator

—

TV Screen —

Still Picture —

On Screen Display

Move

Exit

S-Video Out —

16:9(Wide)

Field Position-Wide Position-Normal

SETUP

Off

Video Out —

Video

Page 31

ADJUSTING AUDIO AND VIDEO SETTINGS

ENGLISH

Viewing from a Desired Camera Angle (Multi-Angle)

– DVD

You can select a camera angle when viewing DVDs with the multi-angle option.

Press ANGLE during playback.

The camera angle changes each time you press the button.

Notes

• You can use the Multi-Angle function only with discs featuring recordings of images shot from different camera angles.

• During Multi-Angle playback, the “ANGLE” indicator in the display lights.

• For some discs, selection can be made using the DVD menu. In this case, press MENU to display the DVD menu screen and then make your selection.

To check whether or not a disc is recorded with angles:

The jacket of discs that are recorded with angles will be marked with

. When locations on discs that are recorded with angles are played back, the “ANGLE” indicator can be displayed. To cancel the angle mark, set [Angle Indicator] to [Off] in the Setup screen Video menu described in the section below.

Turning the angle indicator on and off

When a picture recorded in different angles is played back

is displayed on the screen. This setting lets you see clearly whether the playback picture is recorded in multiple angles or not. Turn the angle indicator on or off in the [Angle Indicator] setting in the Setup screen Video menu in the [Expert] menu mode (page 24).

Note

Even when the [Angle Indicator] setting is set to [Off], the “ANGLE” indicator in the display panel of the player lights during multi-angle playback. Therefore, it is possible to know when the multi-angle function can be used without having to display the icon on the screen.

Settings: On* ( is displayed)

Off (Not Displayed)

* Factory setting

ANGLE : 1/4

ANGLE : 2/4

ANGLE : 3/4

ANGLE : 4/4

DIMMER

ENTER

RETURN

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

REMOTE CONTROLLER

RC2100DV

ANGLE

Audio1 Audio2 GeneralLanguageVideo

Off

TV Screen —

Still Picture —

On Screen Display — Position-Normal

Angle Indicator

Move

Exit

S-Video Out —

16:9(Wide)

Field

SETUP

Video Out —

Video

Page 32

ENGLISH

Setting the Language

Options

DVDs have the capacity to contain a great deal of audio information, which includes the ability to hold up to 8 different language tracks and subtitle information in as many as 32 different languages. This section outlines the variety of audio language and subtitle options available with this player. Please note that if you have completed the Setup Navigator, the audio and subtitle language options have automatically been set in accordance with the OSD language (the language that appears on the screen).

Notes

• DVDs differ in content and do not all contain multiple language or subtitle information. Therefore making settings in this section may have no effect on some DVDs.

• If you have already completed the Setup Navigator screen operations, the settings on this page have already been set by the player.

Setting the on-screen display (OSD) language

This setting is used to establish the language that operation indicators and on-screen messages and operations display. Change this setting in the Setup screen Language menu [OSD Language] setting.

Audio1 Audio2 GeneralVideo

OSD Language English

Audio Language - English

Subtitle Language - Japanese

Auto Language - Japanese

Move

Exit

English français

Español

Deutsch Italiano

SETUP

Select On Screen Language

Language

Note

• The languages that can be selected may be different from those shown above.

• The [OSD Language] setting is factory set to [English]. If you want English to be displayed, it is not necessary to adjust this setting.

Settings: English*

français German Italiano Español

* Factory setting

Selecting an audio language preference

The audio language that you normally listen to can be selected from the various audio languages on a DVD. Even when the audio language is changed during playback by pressing AUDIO, the language selected at this setting will be selected as the default when the DVD is changed. Make changes to the [Audio Language] setting in the Setup screen Language menu.

Settings: English*

French German Italiano Spanish Other

(For details on how to select other languages, see

‘When “Other” is selected’

on page 33.)

*Factory setting

Audio1 Audio2 GeneralLanguageVideo

OSD Language - English

Audio Language - English

Subtitle Language - Japanese

Auto Language - Japanese

Move

Exit

English French

Spanish

German Italian

Other

SETUP

Setup audio language

Setting Language and Subtitle Preferences in the Setup Screen Menus

The Setup screen Language menu contains a number of settings related to the audio and subtitle language preferences.

Please note that changes to the settings in the Language menu in this section cannot be made when a disc is playing. Stop playback of the disc before attempting to make any changes.

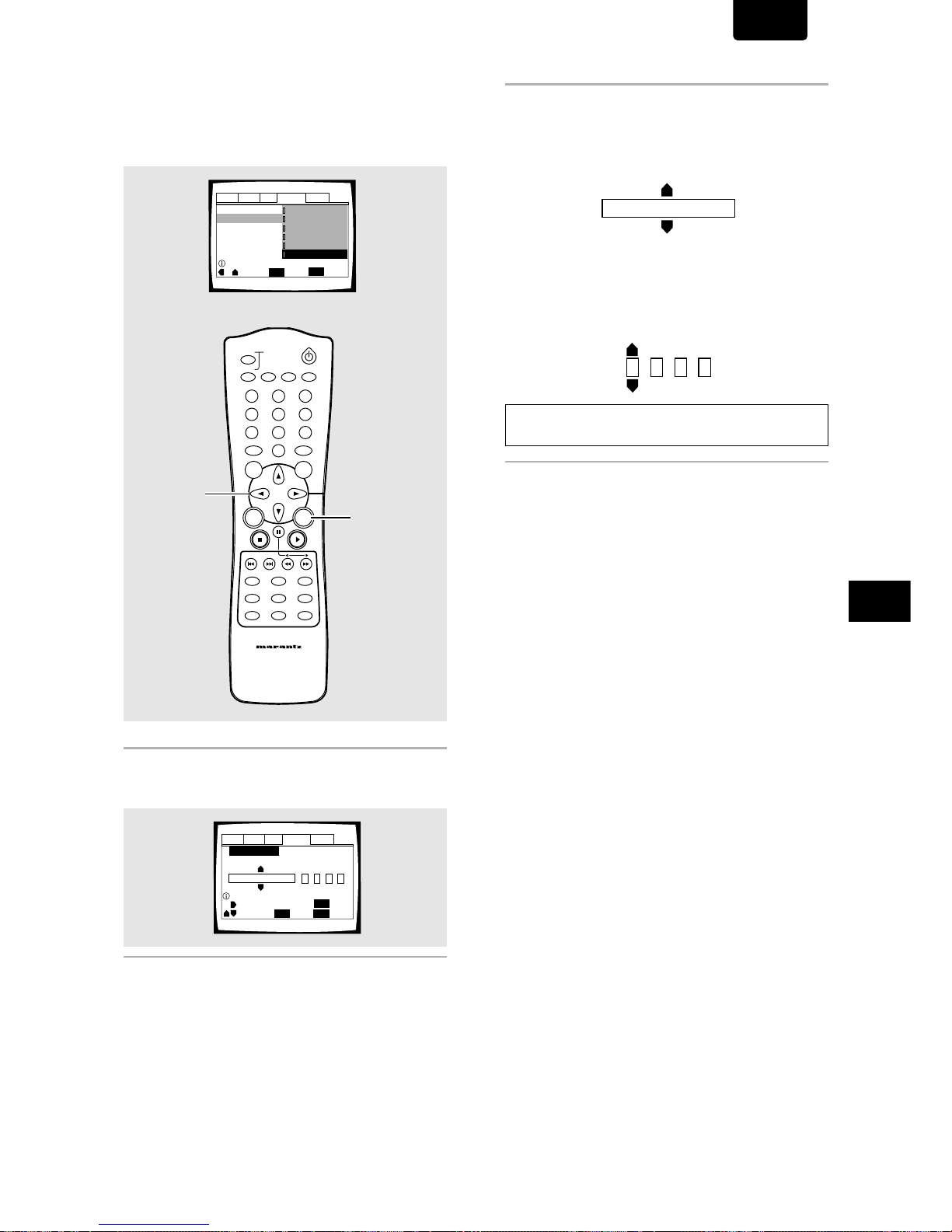

Page 33

SETTING THE LANGUAGE OPTIONS

ENGLISH

Code (0~2)

1001

When “Other” is selected

When you want to select one of the 136 languages as the main audio language, follow the steps below when the following screen appears.

A language code list can be found on page 53.

1 Use the cursor buttons to select “Other” and

press ENTER.

The language selection screen appears.

2 Use the cursor buttons (

3) to select either

“List of Languages” or “Code”.

Audio1 Audio2 GeneralLanguageVideo

Setup audio language

+/–

Audio Language

SETUP

Move

Exit

ENTER

Select

Return

ja: Japanese

List of Languages

Code (0~2)

1001

RETURN

ja: Japanese

List of Languages

Audio1 Audio2 GeneralLanguageVideo

OSD Language - English

Audio Language English

Subtitle Language - Japanese

Auto Language - Japanese

Move

Exit

ENTER

Select

English French

Spanish

German Italian

Other

SETUP

Setup audio language

3 If you select “List of Languages”, use the

cursor buttons (

∞) to select the language.

For languages which are only shown as a code, please refer to

“Language Code List”

on page 53.

If you select “Code”, use the cursor buttons (

∞) to input the numbers of the input code.

Use the cursor buttons (2/3) to change the position of the cursor. You can also use the number buttons to enter the code.

Note

To select number 0, press +10/0 rapidly.

4 Press ENTER to set the new language.

To exit the screen without making any changes, press

RETURN.

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

1, 4

1, 2, 3

Page 34

ENGLISH

Changing the Audio Language (Multi-Language Function) – DVD

Dolby Digital, PCM, and other audio data can be recorded on DVDs in a number of languages or audio tracks, letting you choose the desired language or audio.

Press AUDIO repeatedly to select the desired language.

Pressing AUDIO once displays the currently selected language. Subsequent presses rotates through the audio languages available on the DVD.

Notes

• You cannot switch languages if there is only one language recorded on the disc.

• Switching the audio language may not be possible with some titles. In this case, the

mark is displayed.

• For some titles, selection can be made using the DVD menu. In these cases, press MENU to display the DVD menu screen and then make your selection.

• Depending on the disc, when the audio track is changed by pressing AUDIO, the screen may briefly turn black. This is not a malfunction.

Audio : 1 English

Dolby Digital

5.1CH

Audio : 2 Spanish

HELLO

HOLA

Dolby Digital

5.1CH

Audio : 1/L

Audio : 2/R

Audio : Stereo

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

AUDIO

Changing Audio Type – Video CD/CD

For enjoyment of karaoke or similar format Video CDs and CDs, it is possible to select stereo audio, or either right or left channel mono depending on the requirements of the source.

Press AUDIO repeatedly during playback to switch the audio type.

Audio output changes from [1/L] (Left channel) to [2/R] (Right channel) to [Stereo].

Note

With karaoke and other discs, set the appropriate audio type for singing and accompaniment after referring to information on the disc jacket or accompanying material.

Page 35

SETTING THE LANGUAGE OPTIONS

ENGLISH

Selecting a Subtitle Language (Multi-Language Subtitles)

– DVD

You can select a desired subtitle language with DVDs that have subtitle data in multiple languages recorded on them.

Press SUBTITLE repeatedly during playback.

Pressing SUBTITLE once displays the currently selected subtitle language. Subsequent presses rotates through the subtitle languages available on the DVD.

Notes

• The subtitle language cannot be switched if the subtitle language is not recorded, or if only one language is recorded.

• Switching the subtitle language may not be possible with some discs. In this case, the

mark will be displayed.

• To clear subtitles during playback, press SUBTITLE and then press CLEAR, or press SUBTITLE until [Off] appears.

• For some discs, subtitle language selection can be made using the menu on the DVD. In this case, press MENU to display the DVD menu screen and then make your selection.

HELLO!

HOLA!

Subtitle :1 English Subtitle :2 Spanish

Selecting a subtitle language preference

The subtitle language that you will normally display can be selected from the subtitles programmed on a disc. Even when the subtitle language is changed during playback by pressing SUBTITLE, the language selected at this setting will be selected when the disc is changed. Make changes to the [Subtitle Language] setting in the Setup screen Language menu.

Audio1 Audio2 GeneralLanguageVideo

OSD Language - English

Audio Language - English

Auto Language - English

Subtitle Language Japanese

Move

Exit

English

French

Spanish

German Italian

Other

SETUP

Setup disc’s subtitle language

Settings: English*

French German Italiano

Spanish Other

(For details on how to select other languages, see

‘When “Other” is selected’

on page 33.)

*Factory setting

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

SUBTITLE

Page 36

ENGLISH

Selecting a DVD menu language preference

In addition to containing different audio languages, DVD may also contain menu screens in different languages as well. Setting a DVD language preference, sets the selected language as a default when DVDs with menu information in that language are encountered. Selecting [w/ Subtitle Language] automatically assigns the language selected in the [Subtitle Language] setting. Make changes to the [DVD Language] setting in the Setup screen Language menu in the [Expert] menu mode (page

24).

Audio1 Audio2 GeneralLanguageVideo

OSD Language – English

Audio Language – English

Subtitle Language - Japanese

DVD Language

English

Subtitle Off

- Selected Subtitle

Auto Language

- On

Subtitle Display

- On

Move

Exit

w/ Subtitle Language

English French

Spanish

German Italian

Other

SETUP

Notes

• The menu settings may look different from the one shown above.

• If this function is not effective, the languages that can be selected may also be selected in the DVD menu. Press MENU to open the DVD menu and make your selection accordingly.

Settings: w/ Subtitle Language*

English French German Italiano Spanish Other

(For details on how to select other languages, see

‘When “Other” is selected’

on page 33.)

* Factory setting

Forcing subtitles to be displayed

This setting allows you to force subtitles to be displayed with DVDs that do not automatically display them on the screen. Select [With Audio] to display the subtitles in the same language as the currently selected audio language. Select [Selected Subtitle] to display the subtitles in the language set in the [Subtitle Language] setting. Make changes to the [Subtitles Off] setting in the Setup screen Language menu in the [Expert] menu mode (page

24).

Selecting subtitles, assist subtitles or no subtitles

Use this function to turn the subtitles on or off. Additionally, some DVDs provide assist subtitles that provide additional explanations of scenes in addition to the standard subtitles for viewers who are hard of hearing. Select [Assist Subtitle] to display these subtitles on DVDs where this function is offered. Make changes to the [Subtitle Display] setting in the Setup screen Language menu in the [Expert] menu mode (page

24).

Audio1 Audio2 GeneralLanguageVideo

OSD Language – English

Audio Language – English

Subtitle Language – Spanish

DVD Language –

English

Subtitle Off

Selected Subtitle

Auto Language

– On

Subtitle Display

- On

Move

Exit

With Audio

Selected Subtitle

SETUP

Audio1 Audio2 GeneralLanguageVideo

OSD Language – English

Audio Language – English

Subtitle Language – Spanish

DVD Language -

English

Subtitle Off -

Selected Subtitle

Auto Language –

Subtitle Display

Move

Exit

Off Assist Subtitle

SETUP

Notes

• If there is no subtitle information recorded on the DVD, no subtitles are displayed even if this function is set to [On].

• This setting serves as a default as whether or not to display subtitles. Even if this option is set to [Off], subtitles can be displayed by pressing SUBTITLE. Similarly, if this option is set to [On], the subtitles can be turned off by pressing SUBTITLE and then CLEAR.

Settings: On*

Off Assist Subtitle

* Factory setting

Settings: With Audio

Selected Subtitle*

* Factory setting

Setting Auto Language to control subtitle and audio language based on program content

When the Auto Language function is used, foreign movies are shown with the original audio soundtrack and subtitles in the language selected in the [Subtitle Language] menu option. Domestic films are shown with the original audio soundtrack and no subtitles. (This setting may not be effective with all DVD discs.) Make changes to the [Auto Language] setting in the Setup screen Language menu.

Settings: On*

Off

* Factory setting

Note

The Auto Language function operates only when this function is set to [On], and the language set for the [Audio Language] and [Subtitle Language] settings is the same.

Audio1 Audio2 GeneralLanguageVideo

OSD Language – English

Audio Language – English

Subtitle Language – Spanish

Auto Language

Move

Exit

Off

SETUP

Play dialog, etc. in original language Subtitle ON with foreign

Page 37

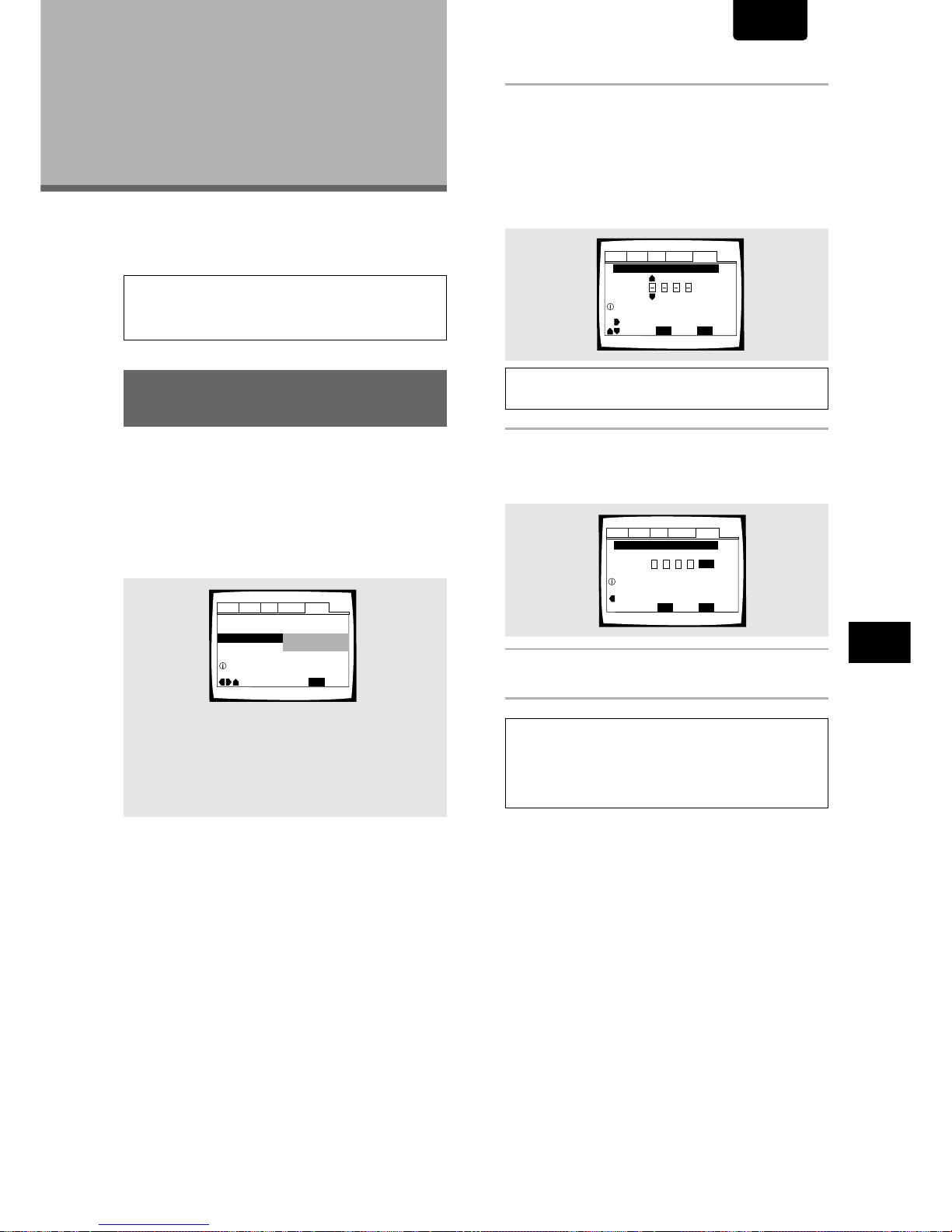

ENGLISH

SETTING THE LANGUAGE OPTIONS/

ADVANCED FUNCTIONS

1 Use the cursor buttons (

5/∞) or the number

buttons to select a number between 0 and 9.

You can also use the number buttons to enter the numbers directly. When entering your password for the first time, or changing it, you will be asked to reenter your password. When using the number buttons to confirm the password, the numbers appear as asterisks, and the cursor advances automatically to the next position.

Note

To select number 0, press +10/0 rapidly.

2 Use the cursor buttons (

3) to move the

cursor to a different position in the password.

When all four numbers of the passoword have been entered, ENTER appears on the screen.

3 Press ENTER to set the new password.

The password is entered.

Note

Be sure not to forget your password. If you should forget it, reset the system, and enter a new password. To reset the system, see

‘Resetting the Player to System Settings’

(page 50). Please note that this procedure resets the system, and clears all saved settings, not just the password.

Advanced Functions

This player is compatible with DVD, Video CD, and CD disc formats. Users already familiar with Video CD or CD will already be familiar with some of the functions the player is capable of performing. With DVD, an even greater number of possibilities and functions are available.

Note

DVDs differ in content and do not all contain the same information. Therefore some functions in this section may not work or have no effect on some DVDs.

Setting the Parental Lock Level – DVD

This player lets you set the Parental Lock if the DVD has a parental lock level recorded on it. With Parental Lock capable discs, you can block access to material you feel is inappropriate for your children. Refer to the DVD disc jacket and the accompanying documentation to see if a particular disc contains a parental lock level.

Make changes to the [Parental Lock] setting in the Setup screen General menu. Please note that changes to the Parental Lock level can only be made when the player is stopped.

Settings: Level Change

(For information, refer to

“Setting the Parental Lock

level”

on the following page.)

Password Change

(For information, refer to

“Changing the password”

on the following page.)

When a DVD with a set Parental Lock level is loaded

Playback cannot be started until the code number has been correctly input by using the cursor buttons (2/3/5/∞ ) or the number buttons, and ENTER has been pressed.

Entering the password

When you select either [Level Change] or [Password Change], it is necessary to enter the password (4-digit code

number). Use the following steps at any time you are asked to enter or confirm your password.

Audio1 Audio2 GeneralLanguageVideo

Parental Lock

Setup Menu Mode

– Basic

Setup Navigator

Move

Exit

Level Change Password Change

SETUP

Setup viewing restrictions

Audio1 Audio2 GeneralLanguageVideo

+/–

Parental Lock: Register Code Number

Move

ExitReturn

SETUP

Enter 4–Digit Code

RETURN

Audio1 Audio2 GeneralLanguageVideo

Parental Lock: Register Code Number

Move

Exit

1019

Return

+/–

SETUP

ENTER

Enter 4–Digit Code

RETURN

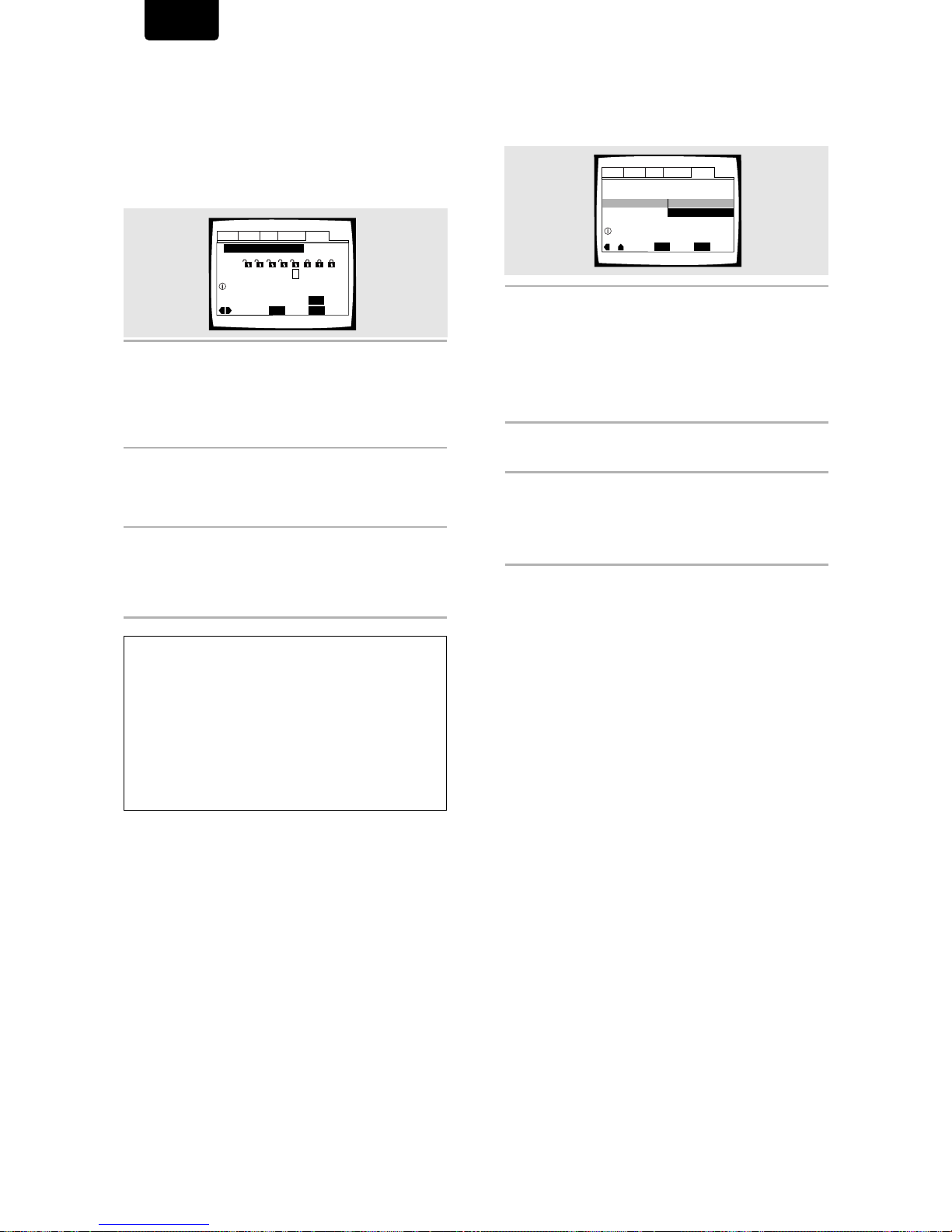

Page 38

ENGLISH

Changing the password

Change your password whenever you feel it is necessary. However, if you forget your existing password, you cannot enter this screen to change it.

1 Select [Password Change] in the [Parental

Lock] setting.

The screen changes to the password input screen. To enter the password, refer to

‘Entering the password’

the previous page. If you have not yet set a password, you cannot select

this setting. Establish a password by selecting [Level

Change] first.

2 Use the cursor buttons (

5/∞) or the

number buttons to enter the new password.

3 When the new password has been entered,

press ENTER.

The new password is set and the screen returns to the General menu screen. To go back to the General menu screen without making any changes, press RETURN.

Audio1 Audio2 GeneralLanguageVideo

Parental Lock

Setup Navigator

Move

ExitSelect

Level Change

Password Change

SETUP

ENTER

Setup Menu Mode – Basic

Setup viewing restrictions

Audio1 Audio2 GeneralLanguageVideo

Parental Lock: Level Change

Move

ExitSelect

234 6785

Return

Level

SETUP

ENTER

Set Parental Lock

RETURN

Setting the Parental Lock level

Change the Parental Lock level to a higher or lower level according to the settings printed on the DVD disc jacket or accompanying documentation. If you use the Condition Memory function to save the settings for a particular disc, the Parental Lock level is saved as well. Because it is saved in memory, Parental Lock levels can be set for individual discs according to their content rather than a set level for all DVDs.

1 Select [Level Change] in the [Parental Lock]

setting.

The screen changes to the password input screen. If you have not yet set a password, you will be asked to do so at this time. To enter the password, refer to “

Entering the

password

” on the previous page.

2 Use the cursor buttons (

3) to adjust the

Parental Lock level.

The lock icons appear [unlocked] up to the selected level to indicate that access is available.

3 Press ENTER to set the new level.

The new Parental Lock level is set and the screen returns to the General menu screen. To go back to the General menu screen without making any changes, press

RETURN.

Notes

The parental lock level is equivalent to the following USA movie ratings.

LEVEL 7: NC-17 LEVEL 3: PG LEVEL 6: R LEVEL 1: G LEVEL 4: PG 13

The parental lock levels for “CANADA” are included for future use. Check the appropriate parental lock level when you buy a DVD video disc equipped with the parental lock feature in the future.

Page 39

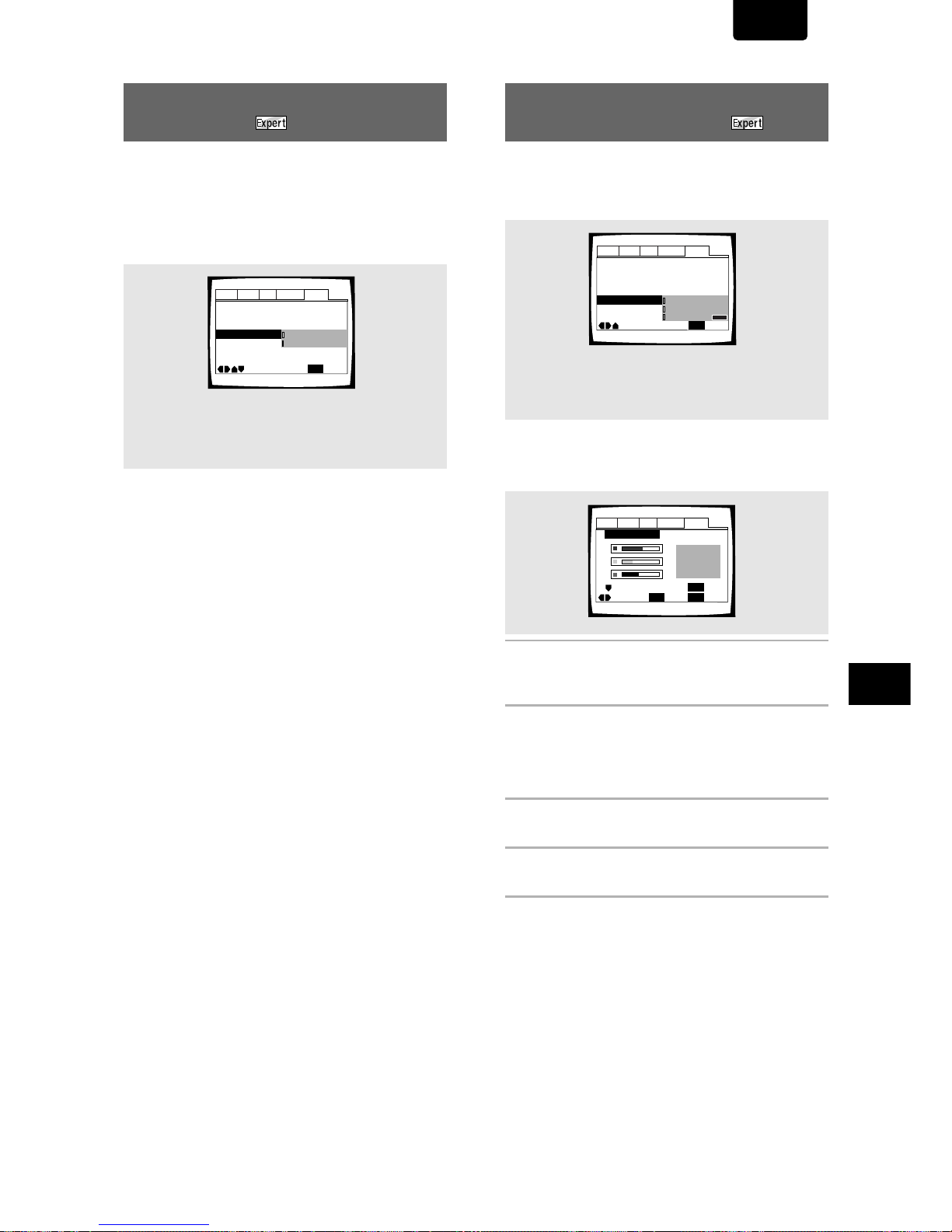

ADVANCED FUNCTIONS

ENGLISH

Turning the Screen Saver On and Off

As a protective function against residual images on the TV screen or monitor, a phenomenon referred to as “screen burn”, the screen saver appears when the same screen has been displayed for a length of time. By default, the screen saver is turned on. However, the screen saver function can be turned on and off at your discretion.

Make changes to the [Screen Saver] setting in the Setup screen General menu in the [Expert] menu mode (page 24).

Settings: On*

Off

*Factory setting

Changing the Background Color of the Screen

You can select a blue or black background to appear when the player is in the stop mode. Make changes to the [Background Color] setting in the Setup screen General menu in the [Expert] menu mode (page 24).

Settings: Black

Blue* Other

*Factory setting

When “Other” is selected

This player gives you the option of creating your own background color by adjusting the red, green and blue levels.

1 Use the cursor buttons (

5/∞) to select a color

bar.

The selected color bar becomes highlighted.

2 Use the cursor buttons (

3) to adjust the level

of the color.

As the color bar is adjusted, the square on the right side of the screen indicates how the current mix of the three colors appears.

3 Repeat steps 1 and 2 until you have achieved a

color that you like.

4 Press ENTER to set the color as the

background color.

Audio1 Audio2 GeneralLanguageVideo

Screen Saver

Parental Lock – Level 8

Setup Navigator

Background Color -

Move

Exit

Off

SETUP

Setup Menu Mode – Expert

Audio1 Audio2 GeneralLanguageVideo

Screen Saver – On

Parental Lock – Level 8

Setup Navigator

Background Color

Move

Exit

Blue Other

Black

SETUP

Setup Menu Mode – Expert

Audio1 Audio2 GeneralLanguageVideo

Background Color

–/+

SETUP

Move

Exit

ENTER

Select

Return

RETURN

Page 40

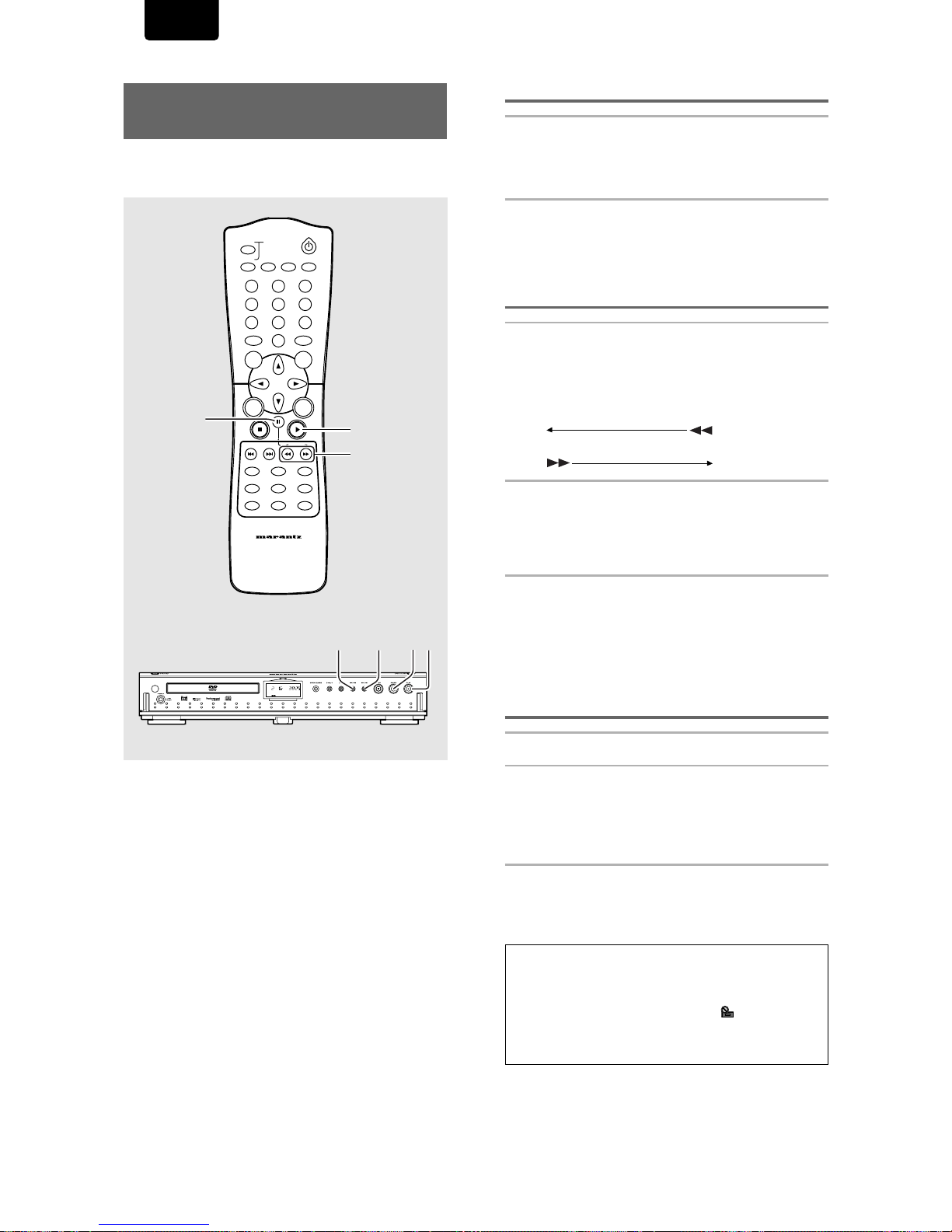

ENGLISH

Still Frame/Slow Play/Frame Advance Playback – DVD/Video CD

The video images on DVD and Video CD can be viewed as a still frame, played back at slow speeds and even advanced frame by frame.

Viewing a still frame

Press PAUSE

When viewing a DVD, if the paused picture shakes, select the [Field] setting in the Setup screen Video menu [Still Picture] setting as described in the section on page 30.

To return to normal playback

When viewing a still frame playback, pressing PLAY 3 restores normal playback operation.

Viewing slow playback

Press FWD

¡¡

¡ for longer than one second during

Pause.

• Slow playback is engaged.

• During slow playback, the speed of playback can be adjusted from 1/2 normal playback speed to 1/16 normal playback speed in four steps using REV 1 and FWD ¡.

Press REV

1 for longer than one second during

Pause.

• Slow playback in the reverse direction is engaged.

• In the reverse direction, the playback speed can be set to high or low.

To return to normal playback

When viewing still frames or slow playback, pressing PLAY 3 restores normal playback operation.

Frame by frame advance playback: Viewing one frame at a time

1 Press PAUSE

2 Press FWD

¡¡

¡ or REV

1 rapidly.

FWD ¡: The picture advances one frame each

time the button is pressed.

REV 1: The picture backs up a DVD a few frames each

time the button is pressed.

To return to normal playback

When viewing frame by frame playback, pressing

PLAY 3 restores normal playback operation.

Notes

• There is no sound when viewing still frames or slow playback, or when advancing one frame at a time.

• Still frame, slow play, or frame advance playback may not be possible with certain titles. In this case, the

mark is

displayed.

• Depending on the disc, there may be some shaking of the video image during slow reverse playback.

1/16 – 1/8 – 1/4 – 1/2

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

PLAY REV/FWD

PAUSE

SYSANAMANU OPTSYNC RANDTRKPROGSCAN REPTALL A-BDIG

REMTITL TIME TIMETRK CHPTOTL TOTLREM REM STEPTRK

DOWN MIXANGLE LAST MEMO

Dolby V

96kHz5.1CH CONDITIONOSD

DUBBING

CD-RW CD-RW

4/1 ¡/¢38

Page 41

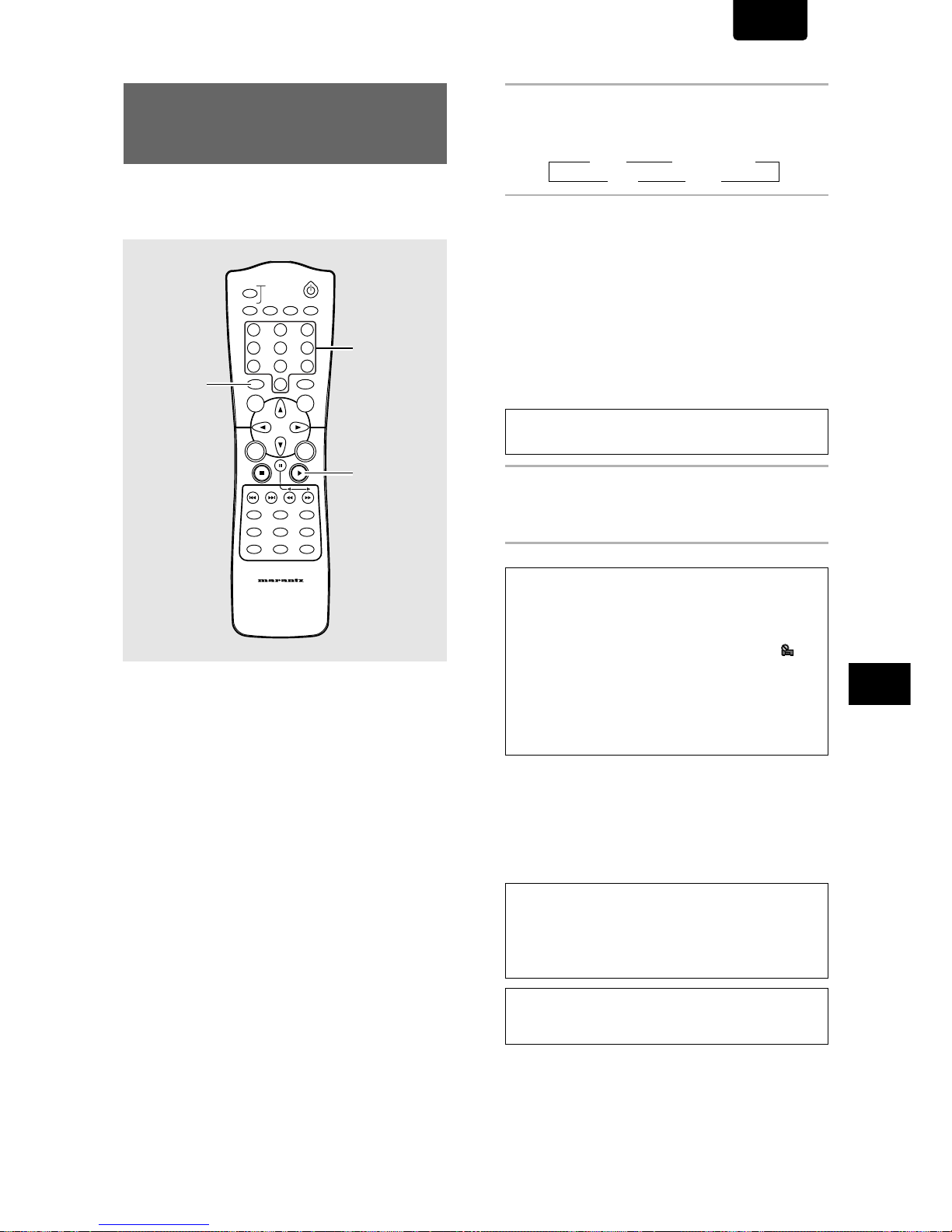

ADVANCED FUNCTIONS

ENGLISH

Searching for a Title, Chapter, Track, or Location on a Disc

– DVD/Video CD/CD

This player offers different ways of accessing the information on a DVD, Video CD, or CD. Using T-C, you can search for titles or chapters on a DVD, tracks on a Video CD or CD, and even select the point in time to start playback.

1 Press T/C repeatedly to select the type of

search.

The type of search changes which each press as follows.

2 Press the number button(s) of the desired title,

chapter or track or of the specific time where you would like to begin playback.

• To select number 3, press 3.

• To select number 10, press 1 and +10/0 rapidly.

• To select number 87, press 8 and 7.

When performing a time search:

• To select 21 minutes, 43 seconds, press

2, 1, 4, and 3.

• To select 1 hour, 14 minutes, press 7, 4, +10/0 and

+10/0.

Note

• To select number 0, press +10/0 rapidly.

3 Press PLAY

Playback of the selected title, chapter or track starts. When a time search is performed, playback begins at the appointed time.

Notes

• For some discs, selection can be made using the top menu on the DVD. In this case, press TOP MENU to display the menu screen and then make your selection.

• With some DVDs, the search operation may not be possible and may stop shortly after being performed. In this case, the mark is displayed.

• Time search is not possible with CDs.

• When performing DVD time search, playback may start from a slightly different time than that specified.

• Time search is not possible during when the disc is stopped.

• Search using time search is not possible during PBC playback of Video CDs.

To perform a direct title or chapter/track search using the number buttons

• Press the number buttons while the disc is stopped to select a title number.

• Press the number buttons while the disc is playing to select a chapter or track.

Notes (for direct search)

• To select number 3, press 3.

• To select number 10, press +10/0 for longer than 1 sec and then press +10/0 rapidly.

• To select number 13, press +10/0 for longer than 1 sec and then press 3 rapidly.

Memo

• To select number 10, press +10/0 for longer than 1 sec.

• To select number 0, press +10/0 rapidly.

3 Title

3 Chapter/Track

Off

2 Time

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

Page 42

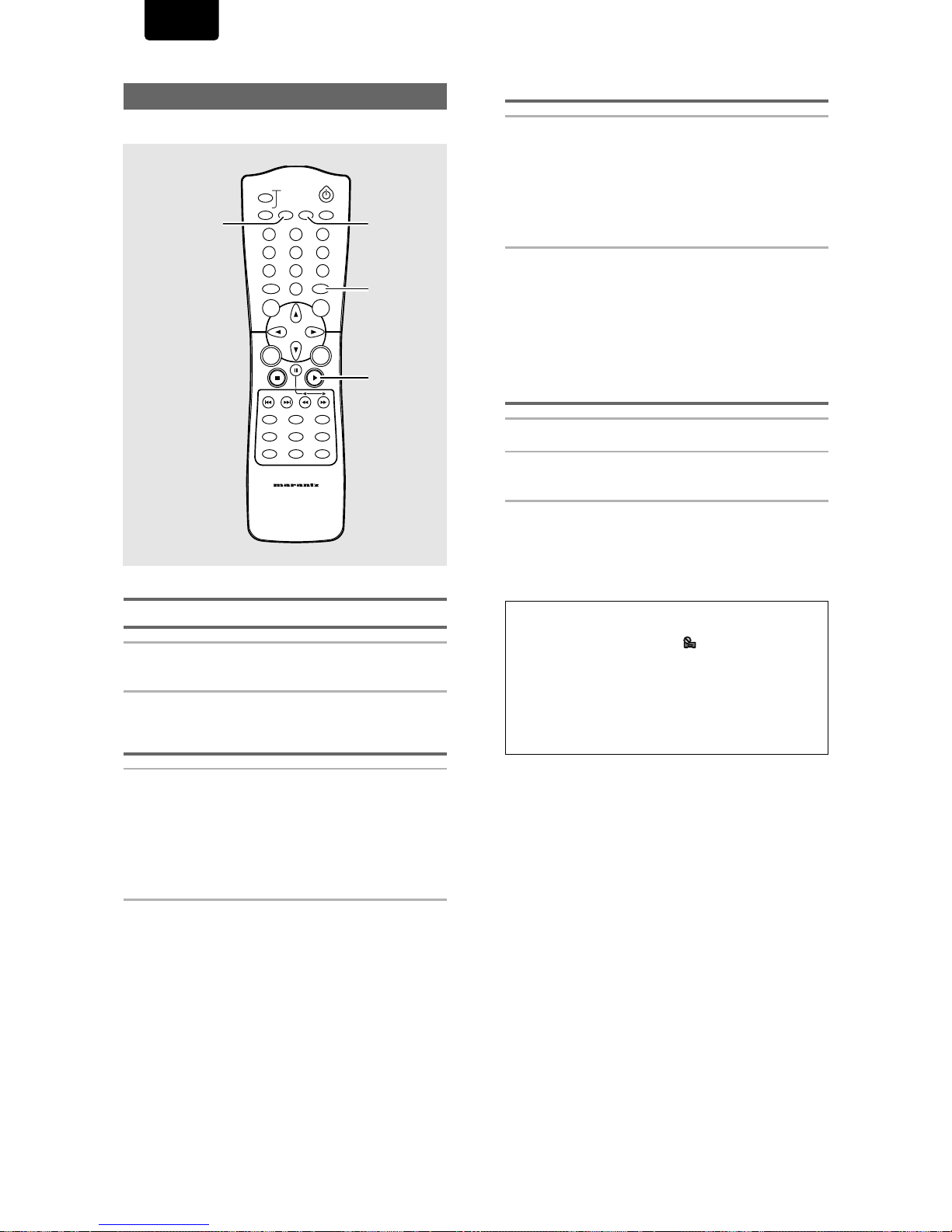

ENGLISH

Repeat play of a chapter/track

Press REPEAT once during playback of the chapter or track you want to repeat.

Repeat play of a title

Press REPEAT twice during playback of the title you want to repeat.

• With DVDs, the title continues playing until the end, and then playback starts once more from the beginning of that title.

• With CDs and Video CDs, a disc is considered a single title, so the entire disc is repeated.

To repeat a program

Press REPEAT once during program playback to repeat the program.

To cancel repeat play

Press CLEAR. Playback continues, but the repeat function is canceled.

Repeat Play – DVD/Video CD/CD

You can repeat an entire title, chapter or track, or just a part.

Repeat play of a specified section

Press (REPEAT) A–B at the beginning and end of the section you want to repeat.

• When (REPEAT) A–B is pressed a second time, the disc returns to the location where (REPEAT) A–B was pressed first and plays the selected section repeatedly.

• You can only perform A–B repeat within the same title, chapter, or track.

To cancel A–B repeat play

Press CLEAR. Playback continues, but the repeat function is canceled.

Return to a specified location on a disc

1 Press (REPEAT) A–B at the desired location. 2 When you want to return to the specified

location, press PLAY

To clear the specified location

Press CLEAR to cancel repeat play or to clear the specified location that was set using (REPEAT) A–B.

Notes

• With some DVD discs, there may be times when repeat playback is not possible. In these cases, the

mark will appear on the

screen.

• With Video CDs, repeat play is not possible when the menu is displayed (PBC playback). To perform repeat play, start playback without displaying a menu by pressing the track number to be repeated when the disc is stopped, and then press REPEAT.

• If you switch camera angle during repeat play, repeat play is cancelled.

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

PLAY

CLEAR

REPEAT

(PEPEAT) A-B

Page 43

ADVANCED FUNCTIONS

ENGLISH

Random playback of chapters within one title – DVD

Press RANDOM once, then press ENTER or PLAY

“Random Chapter” appears on the screen, and chapters within the title will be played back in random order.

Random playback of titles - DVD

Press RANDOM twice, then press ENTER or PLAY

“Random Title” appears on the screen, and titles will be played back in random order.

Random playback of tracks

–Video CD/CD

Press RANDOM.

“Random” appears on the screen, and random playback begins.

To change titles, chapters, or tracks during random play

• Press NEXT ¢ and the next randomly selected track starts playing.

• Press PREV 4 and playback of the current track starts again from the beginning.

To stop random play

Press CLEAR. This returns you to normal playback of chapters/tracks in order from the chapter/track currently playing.

Notes

• With Video CDs, random play is not possible during playback when the menu is displayed (PBC playback). To perform random play, start playback without displaying a menu by pressing a track number button while in the stop mode, and then press RANDOM.

• Random play of programmed chapters/tracks is not possible.

• In the case of DVDs, random playback may not be possible with some discs.

• Repeat playback of random playback is not possible. In these cases, the

mark will appear on the screen.

Random Play – DVD/Video CD/CD

Play titles, chapters, or tracks on a disc in random order.

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

PLAY

CLEAR

RANDOM

ENTER

PREV.

Page 44

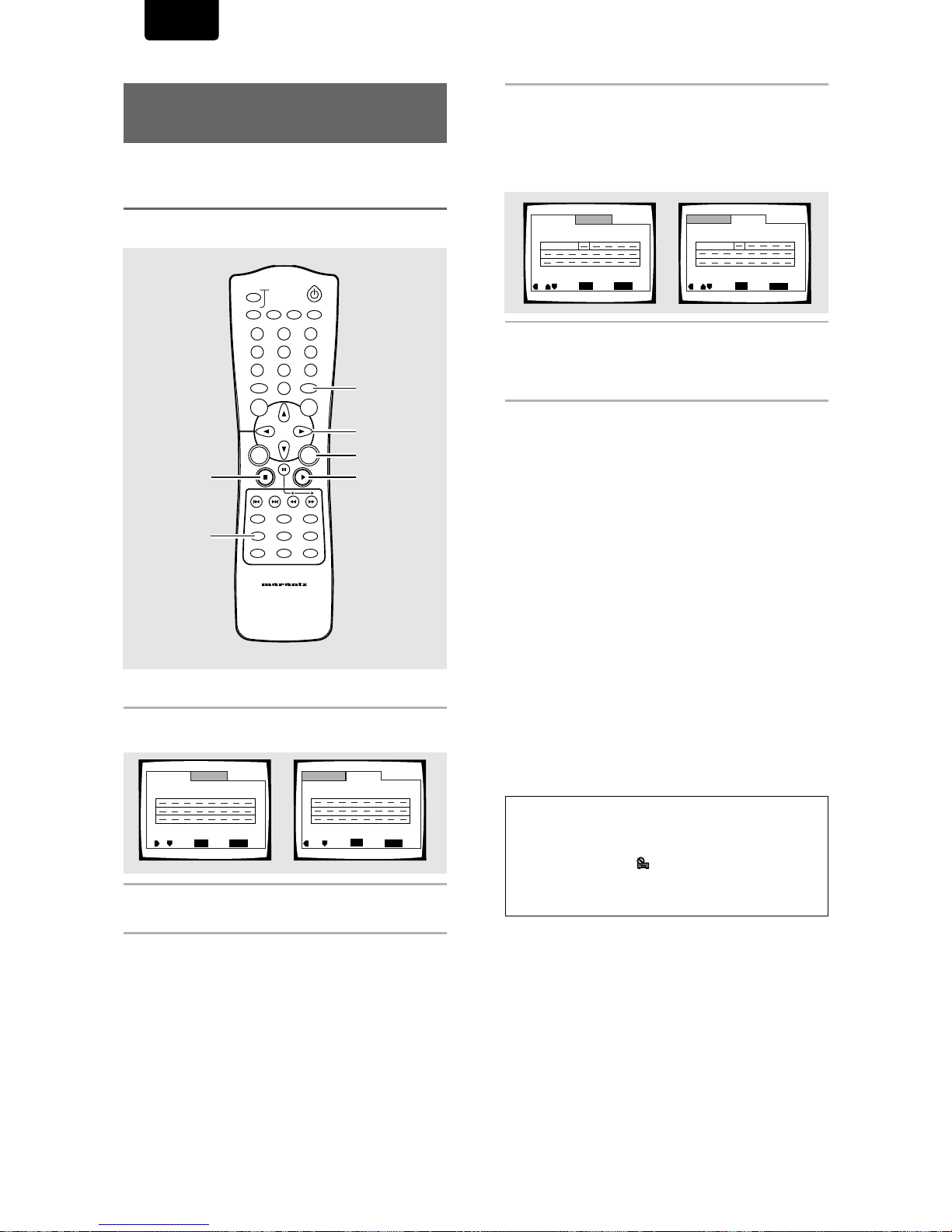

ENGLISH

1 Press PROGRAM.

The Program screen appears.

2 Use the cursor buttons (

3) to select either

Chapter or Title program.

3 Once the program type is selected. Use the

cursor button (

∞) to enter the program window.

When [Program Chapter] is selected, you must also select what title the chapters to be programmed are in. Use the cursor button (5) to highlight “Title” and then use the number buttons to enter the title number to be used.

4 In the program window, use the number

buttons to enter the numbers of the titles or chapters in the order you want to program them in.

• To program DVD titles/chapters 9, 7, and 18 in order,

press 9, 7, +10/0 for longer than 1 sec and 8.

5 Press ENTER or PLAY

• Playback starts in the set order.

• Press PROGRAM to return to the previous display. The program will not begin until PLAY

3 is pressed.

To program a pause in a program

Press PAUSE 8 instead of a number button. “8” appears on the screen and the pause can be

programmed. A pause cannot be programmed as the first or last position in

a program, and two or more pauses cannot be programmed in succession.

To delete a number:

Use the cursor buttons (5/∞ /2/3) to highlight the incorrect number and then press CLEAR.

The number is deleted. If the number was before another number, the later numbers are reordered automatically.

To insert a number:

Use the cursor buttons (5/∞ /2/3) to highlight the number to be placed after the new number and then press the number button(s) of the number to be inserted.

The new number is inserted before the previously selected number.

To stop program play

Press STOP 7.

Notes

• When programming chapters, chapters not programmed may appear on the screen. This is not a malfunction.

• Programming may not be possible with certain DVD discs. On these types of discs, the

mark will appear on the screen

when programming is attempted.

• Only chapters within the same title can be programmed during chapter programming.

Program Chapter

Program Title

Current: Title

2(/20)

Program Memory – Off

PROGRAM

Exit

ENTER

PlayMove

Program Chapter Program Title

Current: Title

Title

7 Chapter 1

(Chapter 1~ 18)

Program Memory – Off

PROGRAM

Exit

ENTER

PlayMove

Program Chapter

Program Title

Current: Title

2(/20)

Program Memory – Off

PROGRAM

Exit

ENTER

PlayMove

09 07 18

Program Chapter Program Title

Current: Title

Title

7 Chapter 1

(Chapter 1~ 18)

Program Memory – Off

PROGRAM

Exit

ENTER

PlayMove

09 07 18

Playback in a Desired Order (Program Play) – DVD/Video CD/CD

The titles and chapters within a title on a DVD and similarly the tracks on a Video CD or CD can be arranged to play in the order you want.

Programming DVDs

A program with a maximum of 24 steps can be memorized.

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

CLEAR

STOP 7

2, 3

Page 45

ADVANCED FUNCTIONS

ENGLISH

1 Press PROGRAM.

The program screen appears. When a Video CD or CD is loaded, the cursor appears in the program window.

2 Use the number buttons to enter the numbers

of the tracks in the order you want to program them in.

• To program tracks 9, 7, and 18 in order, press 9, 7,

+10/0 for longer than 1 sec and 8.

• To edit the program, refer to the procedures on the previous page.

3 Press ENTER or PLAY

• Playback starts in the specified track order.

• To stop the program play, press STOP 7.

Notes

• You cannot program when playing a Video CD using menu selections (during PBC).

Program Track

Current: Track

Total Time

0.00

1(/10)

PROGRAM

Exit

ENTER

PlayMove

Additional programming options

– DVD/Video CD/CD

After you have made a program, it is then possible to confirm, add, or clear the contents of the program.

To confirm the contents of a program:

On a CD or Video CD track program, press PROGRAM to confirm. The program screen displays the current program.

On a DVD, select the program type (title or chapter) with the cursor buttons (

3). The current DVD title or chapter

program can then be confirmed on the appropriate program screen.

To add to a program:

1 Press PROGRAM. 2 Press a number button to add a new title, chapter, or track

at the end of the program.

3 Press PROGRAM to exit the program screen.

To delete a program:

1 Press PROGRAM. 2 Select the program with the cursor buttons (2/3), then

press CLEAR.

3 Press PROGRAM to exit the program screen.

Notes

• The complete program will be deleted even if the disc tray is open.

• Pressing CLEAR when the disc is stopped will clear all programs.

Programming Video CDs, CDs

A program with a maximum of 24 steps can be memorized.

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

CLEAR

Cursor

Page 46

ENGLISH

To make a program of your favorite parts of a disc as it plays – DVD/Video CD/CD

With this player, it is possible to make a program as you watch a DVD or Video CD or while listening to a CD.

Press and hold PROGRAM for at least 2 seconds at any point during playback of a title, chapter, or track you want to program, and it will be made into or added to a program without displaying a Program screen. When a title, chapter, or track is successfully added to the program, it is shown momentarily in the display as well as its position in the program.

To confirm the contents of a program:

Press PROGRAM.

Notes

• When using this function to program DVDs, the program being created corresponds to the Program screen (chapter or title) that appears when PROGRAM is pressed. Be sure to check that the appropriate program type is selected.

• You cannot make a program containing chapters in different titles.

To save a program in memory – DVD

This player can memorize the programs on up to 24 DVDs. By turning the [Program Memory] to [On], the player will save your program and recall it the next time you use the same DVD. When the program memory exceeds 24, programs will be erased in chronological order from the oldest program in memory.

1 Use the cursor button (∞) to highlight [Program

Memory] and use the cursor button (

3) to

select [On].

2 Press ENTER.

The program is saved in memory.

Note

When a DVD with a program stored in memory is loaded, program playback may start automatically.

Program Chapter Program Title

Current:

Title

(Chapter 1 ~ 49)

Program Memory

PROGRAM

ExitMove

09 07 18

On Off

Chapter

Chapter 07 3 Program 03

To erase a program saved in memory – DVD

The player erases programs in chronological order when the maximum number of programs that can be held in memory is exceeded. To prevent the player from erasing older programs that you may still use regularly, or when you don’t want to use a program anymore, it is possible to manually erase programs stored in memory.

1 Load a DVD that has a program stored in

memory.

2 Press PROGRAM.

The program screen appears.

3 Use the cursor button (∞) to highlight [Program

Memory] and use the cursor buttons (

∞) to

select [Off].

4 Press ENTER.

The program is cleared from memory.

Page 47

ADVANCED FUNCTIONS

ENGLISH

Continuing Playback from a Specified Location (Last Memory) – DVD/Video CD

The Last Memory function is convenient when you want to continue viewing a disc from the point where you were watching before. Unlike the resume function, the Last Memory function is effective even if the DVD is removed from the player (Last Memory locations saved for Video CDs are effective only if the disc remains loaded in the player).

Memorizing a Last Memory location to return to later

1 Press LAST MEMORY during play.

The “LAST MEMO” indicator lights on the player.

2 Press the Power button to turn the power off,

or stop playback with STOP

Once memorized, the memorized point will be recalled even if the power is turned off, or if the disc is ejected. Points on up to 5 discs can be memorized, and those points are recalled the next time any of the discs are played back.

• A Last Memory point can be memorized for only one Video CD at a time as the function is only effective until the Video CD is removed from the player.

Resuming playback from where LAST MEMORY was pressed

1 Load a disc that has a Last Memory point

memorized.

Some DVDs will start playback automatically when loaded. In this case, press STOP 7 to stop playback.

2 Press LAST MEMORY while in the stop mode.

The disc begins playback at the memorized point.

• Last Memory mode may not function for some DVDs.

• If you register more than five DVDs, details of the latest disc are memorized, while details of the least recent disc (the disc you registered first) is erased.

• Even with a disc you have memorized with Last Memory, playback begins at the start of the disc if you press PLAY 3.

• This function is for playback of DVDs or Video CDs only. You cannot use it with CDs.

To clear the Last Memory location

Call up the Last Memory location by pressing LAST MEMORY. Then press CLEAR while “Last Memory” is still

being displayed on the screen. The “LAST MEMO” indicator disappears from the display.

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

CLEAR

PLAY

LAST MEMORY

STOP 7

Page 48

ENGLISH

When a disc that has memorized settings is loaded

“Condition Memory” will appear on the screen, and the previously memorized settings will be selected.

Erasing the recorded contents

Load a disc that has memorized settings, and press CLEAR while “Condition Memory” is being displayed. The disc’s recorded data will be erased.

Notes

• Settings are stored in memory for use any time.

• You can store settings for up to 15 DVDs in memory. If you memorize settings for more than 15 DVDs, previously memorized settings are erased in chronological order from the least recently memorized. Subsequently, if you load a disc with erased settings, the settings of the most recently played disc are used.

• If you make changes to any of the settings memorized in Condition Memory, press CONDITION MEMORY during playback to memorize new settings.

• Switching of the multi-language mode etc., is automatic on some discs.

Memorizing Settings for Often Viewed DVDs (Condition Memory) – DVD

You can store in memory settings for DVDs you often watch. Settings remain in memory even if you remove the disc from the player, or switch power to the player to standby. If you load a disc that has its settings memorized, “CONDITION” appears in the display. When you start playing the disc, the memorized settings are automatically recalled.

Press CONDITION MEMORY during playback.

Settings are memorized for the disc currently playing.

The following six settings are memorized:

TV Screen (page 29) On Screen Display (page 30) Multi-Angle (page 31) Multi-language (page 34) Multi-Language subtitles (page 35) Parental Lock Level (page 37)

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

CLEAR

CONDITION MEMORY

Page 49

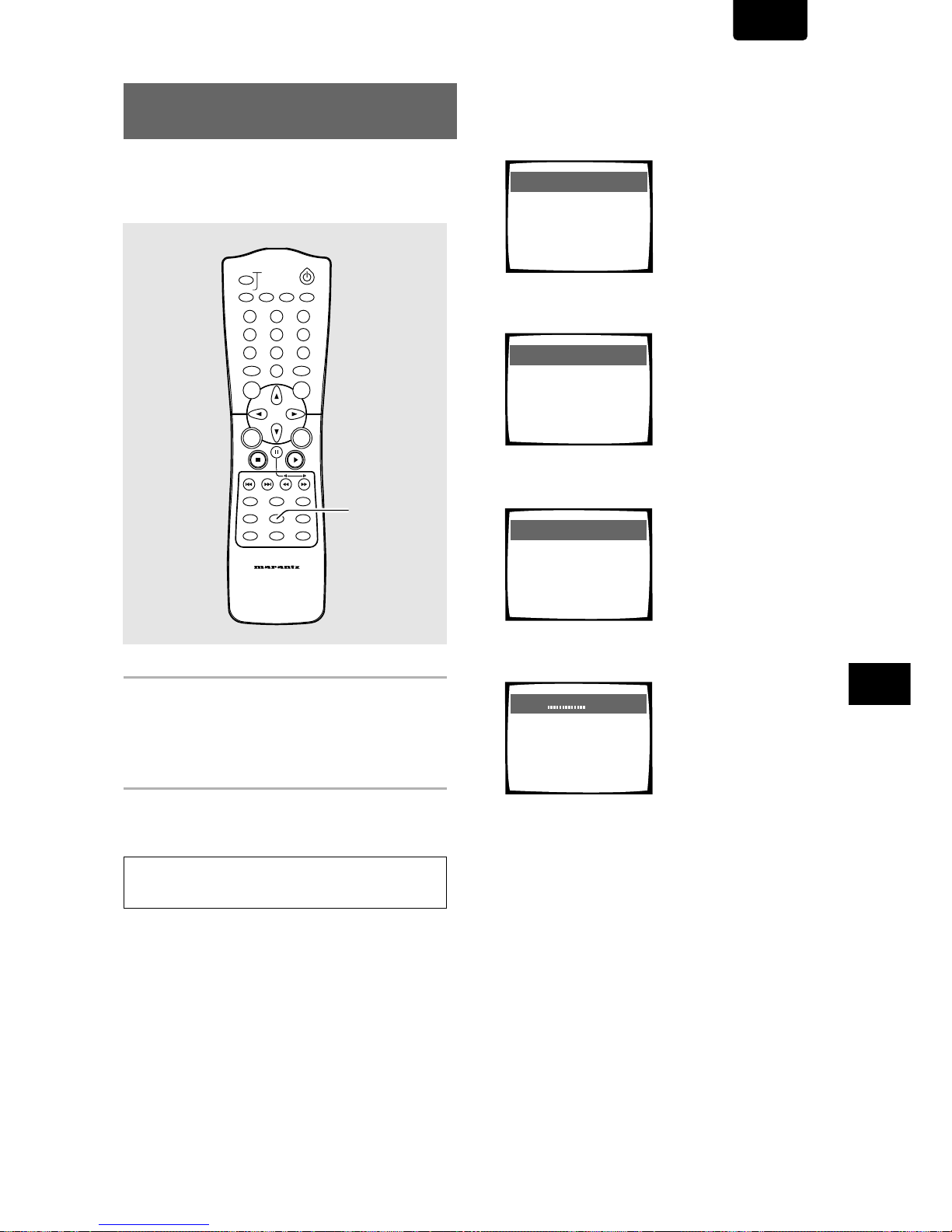

ADVANCED FUNCTIONS

ENGLISH

The display changes for each type of disc as follows each time the button is pressed.

DVD

TITLE information: Top Row: title and chapter

number, elapsed time of current title

Bottom Row: remaining time in title, total time of title

CHAPTER information: Top Row: title and

chapter number, elapsed time of current title

Bottom Row: remaining time in current chapter, total time of chapter

Data transmission rate information:

Top Row: title and

chapter number, total elapsed time of DVD

Bottom Row: bitstream transmission rate level

CHAPTER information:

Top Row: title and

chapter number, elapsed time of current title

Bottom Row: time in current chapter, total time of chapter

Display off

Play

Title

2–1 0.24

0.29–0.05/

Play

Chapter

1–1 1.19

2.181.19/

Play Tr. Rate :

1–1 1.32

8.9

««

Play

Chapter

1–1 1.19

2.18–0.59/

««

Viewing Disc Information

– DVD/Video CD/CD

Use OSD to get current information about the disc currently loaded. You can get information about the titles and chapters on a DVD or tracks on a Video CD or CD. When viewing DVDs, you can also check the digital bitstream transmission rate.

Press OSD during while a disc is playing. Press OSD repeatedly to change the information being displayed.

The disc information is displayed superimposed over the video image on the screen.

Press and hold OSD to display the time remaining on the disc.

When you release the button, the information disappears.

Note

Depending on the format and type of disc being used, not all screens may be displayed.

DIMMER

ENTER

RETURN

T-C

+10

RANDOMREPEAT

TOP

AUDIO

SUBTITLE

ANGLE

OSDPROGRAM

SETUP

LAST

MEMORY

CONDITION

MEMORY

CLEAR

987

654

321

A-B

TRAY

OPEN/CLOSE

REMOTE CONTROLLER

RC2100DV

DOOR

OSD

Page 50

ENGLISH

Press OSD during while a disc is stopped to display DVD title and chapter information or Video CD and CD track information. Press OSD again to turn the display off.

Information about the titles and chapters or tracks on a disc is displayed. When the information exceeds the space on the screen, use the cursor buttons (2/3) to move to other screens.

Information: DVD

Title Chapter Title Chapter

DISPLAY

Exit

01 02 03 04

06 07 08 09

1~ 1 1~ 1 1~ 1 1~ 1

1~ 1 1~ 1 1~ 1 1~ 4

1~ 1

1/1

Information: Compact Disc

Total Time Track Time

DISPLAY

Exit

6.30

3.32

2.58

01 02

1/1

CD and Video CD

DVD

DVD information

When a DVD is loaded, each title and the number of chapters within each title is displayed.

CD and Video CD information

When a CD or Video CD is loaded, the total time of the disc and the time of each track on the disc is displayed.

Display off

Track Information:

Top Row: current track

number, track time Bottom Row: remaining

time of current track, and total time of track

Disc information:

Top Row: current track

number, total number of tracks on CD, total elapsed time of CD

Bottom Row: remaining time of CD, total time of CD

Play

Track

1 0.03

3.32

–3.29/

Play

All

1/2 0.15

6.32–6.15/

««

Video CD (with PBC disabled)

Play

All

5/10 20.19

22.57–2.38/

Play

Track

5 20.19

4.40 2.38/

Play

Track

5 20.19

4.40 –2.02/

««

Display off

««

Disc information: Top Row: current track

number, total number of tracks, total elapsed time of Video CD

Bottom Row: remaining time of Video CD, total time of Video CD

Track information: Top Row: current track

number, total elapsed time of Video CD

Bottom Row: track time, total time of track

Track information: Top Row: current track

number, total elapsed time of Video CD

Bottom Row: remaining time of track, total time of track

Note

When playing Video CDs in PBC mode or unfinalized CD-Rs not all the above information is displayed.

Resetting the Player to System Settings

To reset the player, press and hold 7 (stop) on the front panel when pressing Power switch to turn the power on.

All program memory, saved settings from functions such as Last Memory and Condition Memory are cleared, and all Setup screen menus are returned to factory settings.

To exit the title, chapter and track information.

Press OSD to close the title, chapter and track information even “Display” icon is shown on the Screen.

Page 51

ENGLISH

Additional Information

Notes on using optical cables

• Do not route cords around sharp angles. When storing, wind the cords so that they have a diameter of at least 15 cm (6 in.).

• When connecting, push all the way into the terminal.

• Do not use cords with a length of over 3 m.

• If moisture or dust has collected on the plug, wipe it with a soft cloth before connecting.

Disc Care

How to hold discs

When loading or removing discs, try not to touch their playing surfaces.

Cleaning

Fingerprints or other dirt on the disc may affect sound and picture quality. To clean your discs, use a soft clean cloth to wipe them. If necessary, moisten a soft cloth with diluted neutral detergent to remove heavy dirt or fingerprints.

Discs must not be cleaned with record cleaning sprays, or static prevention sprays, etc. Also do not use volatile liquids such as benzine, or thinner, etc.

Lens cleaner

The player's pickup lens should not become dirty in normal use, but if for some reason it should malfunction due to soiling, contact your nearest MARANTZ service center. Lens cleaners are commercially available, but special care should be exercised in their use since some may cause damage to the lens.

Never play cracked or warped discs

The disc revolves in the player at high speed when it is played. Never play a cracked, scratched or warped disc. This may damage the player or cause it to malfunction.

Never use discs with special shapes

CD’s with special shapes (heart-shaped CDs, octagonal CDs, etc.) cannot be played on this set. Attempting to do so may damage the set. Do not use such CDs.

Gently wipe from the inside toward the outer edge.

Do not wipe in a circular direction (Concentric scratches in the disc groove tend to cause noise.)

After using discs, store them upright

After playing a disc, always remove it from the player and return it to its jacket. Then store it standing upright away from heat and humidity.

• Store discs carefully. If you store discs at an angle, or

stacked on top of each other, discs may become warped even when in their jackets.

• Do not leave discs in locations such as the seat of a car,

which may become excessively hot.

CAUTION WHEN USING THE DISC

copying is a violation of applicable laws.

15 cm (6 in.) dia. or more

ENGLISH

ADVANCED FUNCTIONS / ADDITIONAL INFORMATION

Page 52

ENGLISH

For Proper and Long Use of This Unit

Do not move the unit during playback

During playback, the disc rotates at high speed. Do NOT lift or move the unit during playback. Doing so may damage the disc.

When moving the unit

When changing places of installation or packing the unit for moving, be sure to remove the disc and return the disc table to its original position in the player. Then, press Power switch to turn off, then disconnect the power cord. Moving this unit with the disc loaded may result in damage to this unit.

Installation

• Select a stable place to the side of a TV set or stereo system to be connected to the unit.

• When using the unit with a stereo system, install the speakers a little bit away from the TV.

• Do NOT install the unit on top of a TV or color monitor. Install the unit away from equipment that may be affected by magnetism, such as a cassette deck.

• Do NOT place objects on top of the unit.

Avoid installing in a place that is:

• Exposed to direct sunlight

• Exposed to humidity or where ventilation is poor

• Extremely hot or cold

• Exposed to vibration

• Exposed to dust

• Exposed to oily smoke, steam or heat (for example, a kitchen)

Do not block vents

Do NOT use the player on top of a long-fibered carpet, bed or sofa, and do not cover it with a cloth, etc. This will prevent heat radiation and could result in damage.

Avoid heat

Do NOT place the unit on equipment which generates heat, such as an amplifier. When installing the unit in a rack, place it on the lowest shelf possible (however, not where it is exposed to dust) and separated from the amplifier to avoid the heat generated by the amplifier or other audio equipment.

CAUTION: WHEN PLACING THE UNIT IN A STEREO RACK WITH GLASS DOORS

Be sure there is ample space between the unit and the glass doors when opening the disc table using the remote control. If the disc table opens against strong resistance, such as a closed glass door, damage to the unit may result.

Condensation

Moisture may form in the operating section of the player if the player is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, the player’s performance will be impaired. To prevent this, let the player stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually. Condensation may also form during the summer if the player is exposed to the breeze from an air conditioner. In such cases, change the location of the player.

Switch POWER to turn off when not using the unit

Depending on the strength of the TV or radio broadcast signal, having the TV or radio on while power to the unit is on may result in stripes on the TV screen or noise. However, this is not a malfunction of this unit or the TV or radio. In such a case, switch the power of the unit to turn off.

Power-cord caution

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed in such a way that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest MARANTZ service center or your dealer for a replacement.

Cleaning the player

To clean the PLAYER, wipe with a soft, dry cloth. For stubborn dirt, wet a soft cloth with a mild detergent solution made by diluting one part detergent to 5 or 6 parts water, wring well, then wipe off the dirt. Also use a dry cloth to wipe the surface dry. Do not use volatile liquids such as benzene and thinner which are harmful to the unit.

Page 53

ADDITIONAL INFORMATION

ENGLISH

Language Code List

Language codes are used when setting the audio and subtitle language preferences (page 33).

Japanese (ja) English (en) French (fr) German (de) Italian (it) Spanish (es) Chinese (zh) Dutch (nl) Portuguese (pt) Swedish (sv) Russian (ru) Korean (ko) Greek (el) Afar (aa) Abkhazian (ab) Afrikaans (af) Amharic (am) Arabic (ar) Assamese (as) Aymara (ay) Azerbaijani (az) Bashkir (ba) Byelorussian (be) Bulgarian (bg) Bihari (bh) Bislama (bi) Bengali (bn) Tibetan (bo) Breton (br) Catalan (ca) Corsican (co) Czech (cs) Welsh (cy) Danish (da) Bhutani (dz) Esperanto (eo) Estonian (et) Basque (eu) Persian (fa) Finnish (fi) Fiji (fj) Faroese (fo) Frisian (fy) Irish (ga) Scots-Gaelic (gd) Galician (gl) Guarani (gn)

1001 0514 0618 0405 0920 0519 2608 1412 1620 1922 1821 1115 0512 0101 0102 0106 0113 0118 0119 0125 0126 0201 0205 0207 0208 0209 0214 0215 0218 0301 0315 0319 0325 0401 0426 0515 0520 0521 0601 0609 0610 0615 0625 0701 0704 0712 0714

Language Input-code

Gujarati (gu) Hausa (ha) Hindi (hi) Croatian (hr) Hungarian (hu) Armenian (hy) Interlingua (ia) Interlingue (ie) Inupiak (ik) Indonesian (in) Icelandic (is) Hebrew (iw) Yiddish (ji) Javanese (jw) Georgian (ka) Kazakh (kk) Greenlandic (kl) Cambodian (km) Kannada (kn) Kashmiri (ks) Kurdish (ku) Kirghiz (ky) Latin (la) Lingala (ln) Laothian (lo) Lithuanian (lt) Latvian (lv) Malagasy (mg) Maori (mi) Macedonian (mk) Malayalam (ml) Mongolian (mn) Moldavian (mo) Marathi (mr) Malay (ms) Maltese (mt) Burmese (my) Nauru (na) Nepali (ne) Norwegian (no) Occitan (oc) Oromo (om) Oriya (or) Panjabi (pa) Polish (pl) Pashto, Pushto (ps) Quechua (qu)

0721 0801 0809 0818 0821 0825 0901 0905 0911 0914 0919 0923 1009 1023 1101 1111 1112 1113 1114 1119 1121 1125 1201 1214 1215 1220 1222 1307 1309 1311 1312 1314 1315 1318 1319 1320 1325 1401 1405 1415 1503 1513 1518 1601 1612 1619 1721

Language Input-code

Rhaeto-Romance (rm) Kirundi (rn) Romanian (ro) Kinyarwanda (rw) Sanskrit (sa) Sindhi (sd) Sangho (sg) Serbo-Croatian (sh) Sinhalese (si) Slovak (sk) Slovenian (sl) Samoan (sm) Shona (sn) Somali (so) Albanian (sq) Serbian (sr) Siswati (ss) Sesotho (st) Sundanese (su) Swahili (sw) Tamil (ta) Telugu (te) Tajik (tg) Thai (th) Tigrinya (ti) Turkmen (tk) Tagalog (tl) Setswana (tn) Tonga (to) Turkish (tr) Tsonga (ts) Tatar (tt) Twi (tw) Ukrainian (uk) Urdu (ur) Uzbek (uz) Vietnamese (vi) Volapük (vo) Wolof (wo) Xhosa (xh) Yoruba (yo) Zulu (zu)

1813 1814 1815 1823 1901 1904 1907 1908 1909 1911 1912 1913 1914 1915 1917 1918 1919 1920 1921 1923 2001 2005 2007 2008 2009 2011 2012 2014 2015 2018 2019 2020 2023 2111 2118 2126 2209 2215 2315 2408 2515 2621

Language Input-code

Page 54

ENGLISH

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Inspect the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest MARANTZ service center or your dealer to carry out repair work.

The disc table comes back out automatically, shortly after the disc table is closed.

The disc is dirty or warped. \ Refer to

‘Disc Care’

(page 51).

The disc is not placed properly on the disc table. \ Use the disc table guide to align the disc (page 19).

Region number does not conform with this unit. \ If the region number on the disc does not match the

number on the player, the disc cannot be used (page

57).

There is condensation on the operating section of the player.

\ Allow time for condensation to evaporate. If player is

near an air conditioning unit, you should move the player (page 52).

Playback is not possible.

The disc has been loaded upside down. \ Check that the disc has been loaded with the label

side facing up.

mark appears on screen.

The selected function does not operate for that disc.

mark appears on screen.

The operation is prohibited by the player.

Picture playback stops and the operation buttons cannot be used.

Player malfunctions. \ Stop disc playback (press STOP 7), then start

playback again.

New settings made in the Setup screen menus while a disc is playing are ineffective.

Some settings can be changed while a disc is playing, but are not effective. This is not a malfunction.

\ Make the same setting when the player is stopped. \ Stop disc playback (press STOP 7), then start

playback again. When playback is resumed, the new settings should be in effect. Please note that making settings in the Setup screen menus may cancel the resume function.

When making changes in the Setup screen menus, is displayed.

There is a Video CD or CD loaded in the player and the setting that was changed only applies to DVD performance.

\ The setting will be effective the next time a DVD is

loaded.

No picture.

Connection is incorrect. \ Check that cord connections are correct and that plugs

are firmly connected.

Internal player settings are incorrect. \ If AV CONNECTOR connections have been made,

make sure that the Setup screen Video menu [Video Out] setting corresponds to the capabilities of the TV or monitor that connections have been made to (page

30).

Operation (settings) of TV or AV amplifier is not appropriate.

\ Be sure that your TV, receiver, or amplifier is set up to

view DVD playback.

The screen is stretched or aspect does not change.

The multi aspect setting is not appropriate. \ Change the aspect setting in the [TV Screen] setting in

the Setup screen Video menu to the screen type most appropriate to the TV or monitor you are using (page

29).

The screen is suddenly squeezed when the Setup screen is opened.

If the Setup screen is opened during playback of a DVD being viewed in the letter box format, the screen may switch to the wide screen format.

\ This is not a malfunction. The screen will return to

normal when the Setup screen is closed.

Picture disturbance during playback or dark.

This player is compatible with Macro-Vision System copy guard. Some discs include a copy prevention signal, and when this type of disc is played back, stripes etc., may appear on some sections of the picture depending on the TV.

\ This is not a malfunction. The position of the TV SYSTEM switch was changed

during player operations. \ Switching the position of the TV SYSTEM switch is not

effective if a disc is playing. Stop playback before performing this operation.

Discs respond differently to particular player functions which may result in the screen becoming black for a brief instant or shaking slightly when the function is executed.

\ These problems are largely due to differences between

discs and disc content and are not malfunctions of this player.

Audio is output from the analog output jacks but not from the digital output jacks.

Player settings are incorrect. \ In the Audio 1 menu, check that the appropriate digital

audio output formats are selected, and that the [Digital Out] setting is not set to [Off] (page 26).

\ When the “Dolby V” indicator is lit during playback,

PCM output is muted.

When recorded on a VCR or passed through an AV selector, there is disturbance in the playback picture.

This is not a malfunction. \ Due to the player’s copy protection circuits, connection

of this device through a VCR or an AV selector may prevent recording or cause picture problems.

Page 55

ADDITIONAL INFORMATION

ENGLISH

Remote control operation is not possible.

The rear panel control input jack on the player is being used.

\ Point the remote control at the component that the

player is connected to (page 14).

The remote control is too far from the player, or the angle with the remote sensor is too wide.

\ Be sure to operate the remote from a location within its

operating range (page 6).

The batteries are exhausted. \ Replace the exhausted batteries with all new batteries

(page 6).

Audio is not output or is distorted.

The Setup screen Audio 1 menu [96 kHz PCM Out] setting is set to [96 kHz]. Digital output is prohibited on some discs.

\ On DVDs that contain copy protection, it may not be

possible to play back the audio at 96 kHz.

\ When this type of disc is encountered, even if [96 kHz]

is selected, the player automatically outputs the audio at a compressed rate of 48 kHz. This is not a malfunction.

\ The [4:3 (Letter Box)] screen setting is selected. Even if

[96 kHz] is selected, the player automatically downsamples

the audio to a compressed rate of 48 kHz. This is not a malfunction.

\ Be sure to make analog audio connections as well as

digital connections (page 11, 12).

The disc is dirty. \ Refer to

‘Disc Care’

(page 51).

The connection plugs are not inserted fully into the terminals or are not connected.

\ Check that all connection plugs are firmly inserted. The connection plug or terminal is dirty.

\ Check that the plugs and terminals are wiped clean of

dirt, etc.

Audio cable connection is wrong. \ Check to make sure that the audio cables are

connected correctly (page 10-12).

Connection is made to the stereo amplifier‘s PHONO input terminal.

\ Change connection to any input terminal except

PHONO.

The pause mode is engaged. \ Press PLAY 3 to exit the pause mode.

Stereo amplifier operation is incorrect. \ Check input (CD, AUX, etc.) selector to determine if it

is selected for DVD playback.

Noticeable difference in DVD and CD volume.

DVDs and CDs use different recording methods. \ This is not a malfunction.

Audio mix does not sound right or sounds incomplete (for example, the dialog of the actors cannot be heard).

Audio output selection is incorrect. \ When [5.1 Channel] audio output is selected, the front

right (R) and left (L) audio channels are also output from the SYSTEM AUDIO OUT jacks. Similarly, when [2 Channel] audio output is selected, the stereo channels are also output from the front right (R) and left (L) audio channels of the 5.1 CH SURROUND AUDIO OUT jacks. Check that the correct output is selected (pages 17, 27, 28).

Caution

Static electricity or other external influence may cause malfunctioning of this unit. In this case, unplugging the power cord and then re-plugging it in will usually reset the unit for proper operation. If this does not correct the problem, please consult your nearest MARANTZ service center.

Page 56

ENGLISH

Terms

Aspect ratio

Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a highdefinition or wide TV is 16:9. The latter allows you to enjoy a picture with a wider perspective.

Chapter number

Chapter numbers are the numbers assigned to sections of a title on the disc, similar to chapters in a book. If the disc includes chapter numbers, you can locate the section you want very quickly using search and other functions.

Condition memory

“Condition” refers to the various mode settings, etc. On this player, various conditions, such as those set during playback, can be memorized. This function allows you to play back the same disc at any time without having to redo your preferred settings.

Digital bitstream

The bitstream does not refer to the audio signal, but rather to the digital data that, once converted, becomes the audio signal. The player outputs digital bitstreams via the digital optical or digital coaxial output. If the bitstream cannot be decoded by the connected AV amplifier etc., digital noise is produced. Digital bitstream formats compatible with different entertainment systems can be selected in the Setup screen

Audio 1 menu.

Digital output (Coaxial)

Output of the digital audio signal is transmitted electronically using a coaxial cable. Because the signal being transmitted is digital, connection must be made to the coaxial digital input of another component. Noise will be output if connected to the analog audio inputs as the digital signal cannot be decoded.

Digital output (Optical)

Normally, audio is converted to an electric signal and transmitted through an electric wire from the player to the amplifier, etc. Changing this signal to a digital signal and transmitting it through an fiber-optic cable is called optical digital output. Similarly, optical digital input receives digital signals from external units such as an AV amplifier or receiver.

Dolby Digital

The maximum 5.1 channels of audio used in the surround system (Surround Digital) for movie theaters is digital data compressed by the third generation algorithm encoder.

In order to enjoy Dolby Digital discs, this unit’s digital output jack (either coaxial or optical) must be connected to the digital input jack of an AV amplifier or Dolby Digital decoder to enjoy the sound of Dolby Digital soundtracks.

DTS

DTS stands for Digital Theater System. DTS is a surround system different from Dolby Digital that has become a popular surround sound format for movies.

Dynamic range

Dynamic range refers to the difference between the maximum and minimum levels of the audio soundtrack as measured in decibels (dB). Compressing the dynamic range raises the minimum signal level and lowers the maximum signal level. This allows you to hear voices and other low level audio signals clearly while lowering strong audio signals like the sound of explosions.

MPEG

Short for Moving Picture Experts Group. This is an international standard for compression of moving images. On some DVDs, digital audio has been compressed and recorded in this format.

Multi-angle

When you watch a TV program, you are watching the image filmed through the TV camera. Because of this, the picture is displayed on your TV from the viewpoint of the TV camera’s position. In a TV studio, the image is filmed by many cameras at the same time, and one of those images is selected by the program director and transmitted to your TV. If all the filmed images were transmitted to your TV you would be able to select the camera image you want. Some DVD discs are recorded with the angles of more than one camera used for filming, and these can be selected using this player. These types of discs are called multi-angle discs.

Parental lock level

This function was suggested by parents concerned about what type of media their children were able to watch. Parental lock restrictions are restrictions incorporated into titles which include scenes that parents may not wish their children to view.

PCM

PCM stands for Pulse Code Modulation and is digital audio. The digital audio of CDs is PCM. This player also has a function that converts Dolby Digital and MPEG digital bitstreams into PCM to enable you to listen to quality digital sound even without a special decoder.

Playback Control (PBC)

This refers to signals recorded on a Video CD (Version 2.0) enabling playback control. You can use menus recorded on discs with PBC for easy, interactive search for desired scenes, and playback. You can also enjoy viewing high-resolution/standard resolution still images.

Page 57

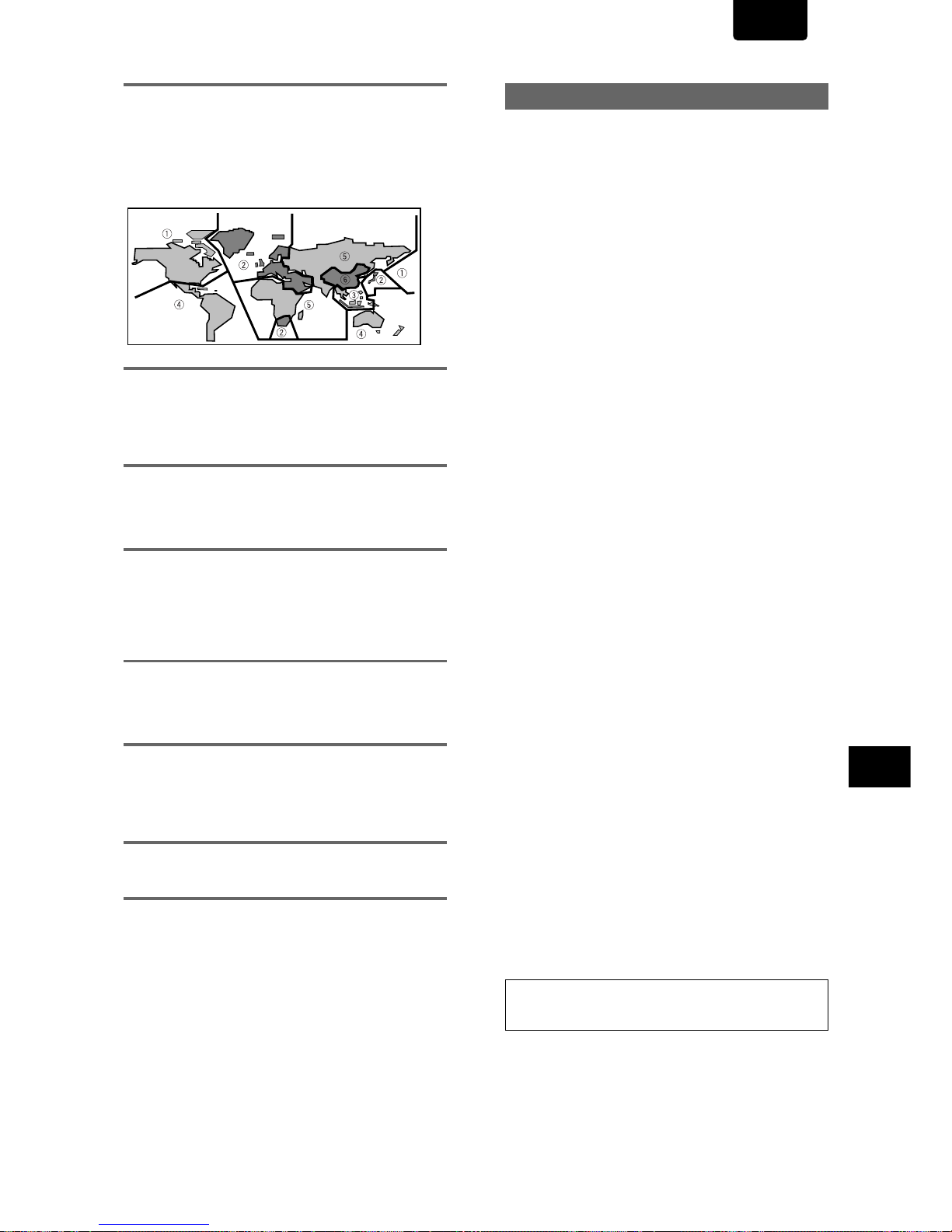

ADDITIONAL INFORMATION

ENGLISH

Regional restriction codes (region number)

Regional restriction codes are built in to DVD players and DVD discs for each sales region. If the regional code of the DVD player does not match one of the regional codes of the DVD disc, playback is not possible. The region number can be found on the rear panel of the DVD player. The illustration below shows the regions and corresponding region numbers.

Sampling Frequency

When a sound wave is converted to a digital signal, the sound is sampled and converted to data at a specific frequency rate. For example, a signal with a 96 kHz sampling rate indicates that in one second, the analog signal was sampled 96000 times to produce the digital signal.

Subtitle

Subtitles are language titles superimposed on movies, or other media. Up to 32 different subtitle languages can be recorded on a DVD disc. The subtitle function can be used to select the language of your choice.

S-video

Connecting the S-video output on the player to a TV or monitor with S-video input via an S-video cable produces clearer picture reproduction by sending separate signals for the luminance and the color. These signals are then combined by the television to produce a better quality picture.

Time number

The time number corresponds to the elapsed playback time of a disc from its beginning. When using the time search function, use the time number to locate scenes that occur at the time selected.

Title number

DVD discs are divided into units referred to as titles, and titles are divided into chapters. Menu screens do not belong to any title. A disc which contains a movie may have only one title with many or no chapter divisions. Karaoke discs may have many titles, assigning a title to each song on the disc.

TruSurround

TruSurround is a simulated surround system which produces a surround sound effect from stereo speakers.

Virtual Dolby Digital

Virtual Dolby Digital uses Dolby Digital multichannel audio sources to create a realistic surround sound effect from stereo speakers.

Specifications

General

System ............ DVD system and Compact Disc digital audio system

Power requirements .................................................. AC 230 V, 50 Hz

Power consumption .................................................................... 17 W

Weight ........................................................................................4.2 kg

Dimensions ........................................ 420 (W) x 309 (D) x 76 (H) mm

(Not including protruding cables, etc.)

Operating temperature .................... +5°C to +35°C (+36°F to +96°F)

Operating humidity .............................. 5% to 85% (no condensation)

S-Video output

Y (luminance) - Output level ......................................... 1 Vp-p (75 Ω)

C (color) - Output level .......................................... 286 mVp-p (75 Ω)

Jacks .............................................................................. S-VIDEO jack

Video output

Output level ................................................................... 1 Vp-p (75 Ω)

Jacks ..................................................................................... RCA jack

RGB output in SCART jack

Output level ................................................................ 0.7 Vp-p (75 Ω)

Jacks ............................................................................... SCART jacks

SYSTEM Audio output

Output level

During audio output ................................ 200 mVrms (1 kHz, –20 dB)

Number of channels .......................................................................... 2

Jacks ................................................................................... RCA jacks

5.1 CH SURROUND Audio output

Output level

During audio output ................................ 200 mVrms (1 kHz, –20 dB)

Number of channel ............................................................................ 6

Jacks ................................................................................... RCA jacks

Digital audio characteristics

Frequency response ........................ 4 Hz to 44 kHz (DVD fs: 96 kHz)

S/N ratio .................................................................. More than 100 dB

Dynamic range ....................................................... More than 100 dB

Total harmonic distortion ..................................................... 0.0025 %

Wow and flutter ................................................. Limit of measurement

(± 0.001% W. PEAK) or lower

Digital output

Optical digital output ............................................. Optical digital jack

Coaxial digital output ............................................................RCA jack

Accessories

Remote control unit ............................................................................1

AA (R6P) dry cell batteries ................................................................ 2

Audio/Video Cable .............................................................................1

Audio Cable .......................................................................................2

Euro SCART Cable ............................................................................ 1

Power Cable ........................................................................... 1

Remote Control Cable ....................................................................... 1

Operating Instructions ....................................................................... 1

Note

The specifications and design of this product are subject to change without notice, due to improvement.

Marantz DVD Player User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
