Marantz CD17/K1G, CD17N1G, CD17S1G, CD17N1S, CD17MK3/K1G Service Manual

CD Player

CD-17mkIII

10AK855010 MIT First Issue 2003.02

TABLE OF CONTENTS

SECTION PAG E

1. TECHNICAL SPECIFICATIONS ...................................................................................................1

2. SERVICE HINTS........................................................................................................................... 2

3. SERVICE TOOLS.......................................................................................................................... 2

4. SERVICE MODE........................................................................................................................... 3

5. MICROPROCESSOR AND IC DATA............................................................................................. 4

6. BLOCK DIAGRAM ........................................................................................................................ 7

7. FLAG NO....................................................................................................................................... 7

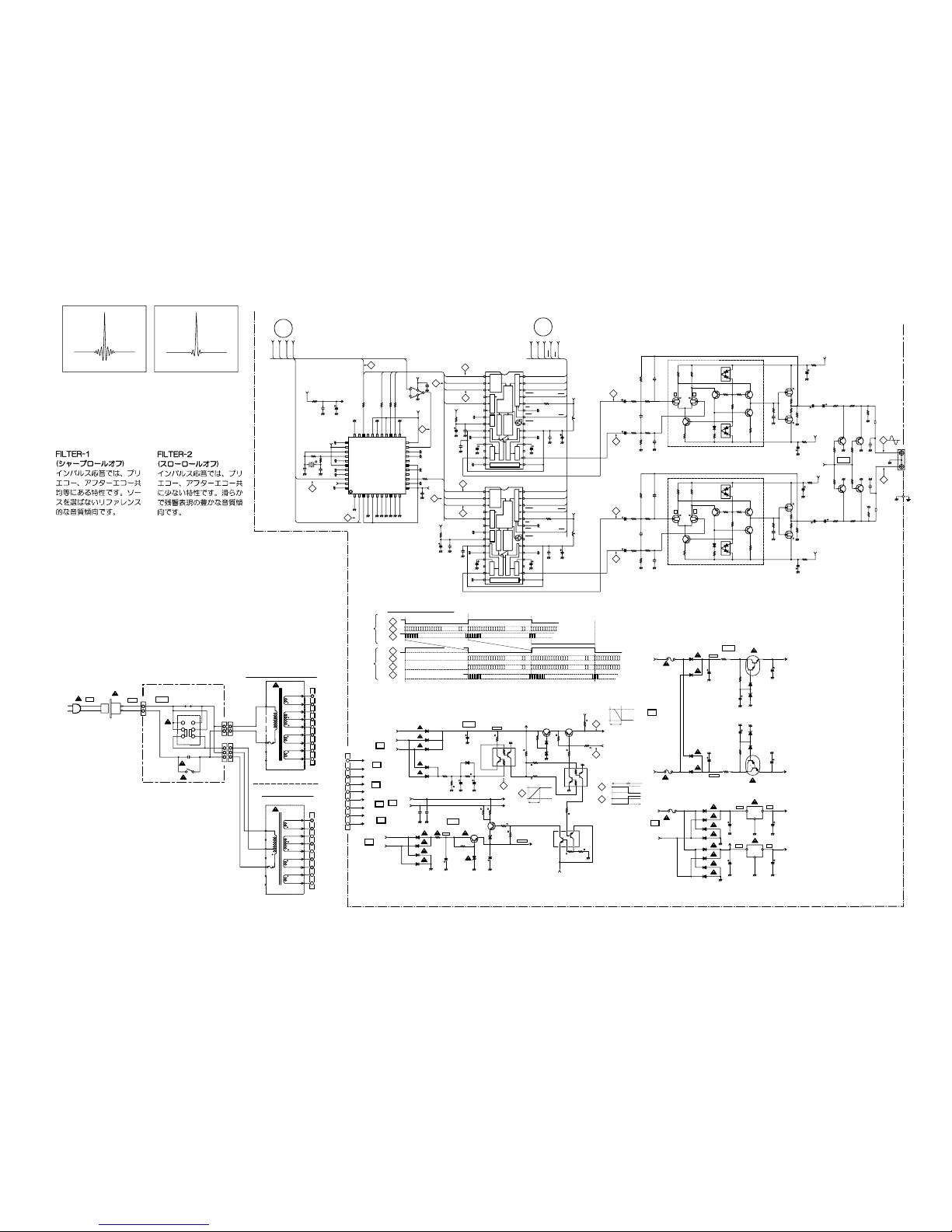

8. SCHEMATIC DIAGRAM................................................................................................................ 9

9. PARTS LOCATIONS (Chip parts Side) ....................................................................................... 15

10. EXPLODED VIEW AND PARTS LIST ......................................................................................... 19

11. ELECTRICAL PARTS LIST......................................................................................................... 22

CD17MK3 /K1G/N1G/S1G

/N1S

R

CD-17mkIII

Please use this service manual with referring to the user guide ( D.F.U. ) without fail.

Service Manual

OPEN/CLOSEPOWER ON/OFF

PLAY STOP PAUSE

FILTER

CD PLAYER CD-17mkIII

TEXT

MARANTZ DESIGN AND SERVICE

Using superior design and selected high grade components,

MARANTZ

company has created the ultimate in stereo sound.

Only original

MARANTZ

parts can insure that your

MARANTZ

product will continue to perform to the speciﬁ cations for which it is famous. Parts for your

MARANTZ

equipment are generally available to our National Marantz Subsidiary or Agent.

ORDERING PARTS :

Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be speciﬁ ed. The following information must be supplied to eliminate delays in processing your order :

1. Complete address

2. Complete part numbers and quantities required

3. Description of parts

4. Model number for which part is required

5. Way of shipment

6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.

SHOCK, FIRE HAZARD SERVICE TEST :

CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC

cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and veriﬁ ed before it is return to the user/customer. Ref. UL Standard No. 1492.

In case of difﬁ culties, do not hesitate to contact the Technical

Department at above mentioned address.

021216MIT

SUPERSCOPE TECHNOLOGIES, INC.

USA

MARANTZ AMERICA, INC

1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301

JAPAN

Technical

MARANTZ JAPAN, INC.

35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190

EUROPE / TRADING

MARANTZ EUROPE B.V.

P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860

AUSTRALIA

QualiFi Pty Ltd,

24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677

NEW ZEALAND

WILDASH AUDIO SYSTEMS NZ

14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64 - 9 - 8451958 FAX : +64 - 9 - 8463554

THAILAND

MRZ STANDARD CO., LTD

746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795

TAIWAN

PAI- YUING CO., LTD.

6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415

MALAYSIA

WO KEE HONG ELECTRONICS SDN. BHD.

2ND FLOOR BANGUNAN INFINITE CENTRE LOT 1, JALAN 13/6, 46200 PETALING JAYA SELANGOR DARUL EHSAN, MALAYSIA PHONE : +60 - 3 - 7954 8088 FAX : +60 - 3 - 7954 7088

AMERICAS

MARANTZ PROFESSIONAL PRODUCTS 2640 WHITE OAK CIRCLE, SUITE A AURORA, ILLINOIS 60504 USA PHONE : 630 - 820 - 4800 FAX : 630 - 820 - 8103

KOREA

MK ENTERPRISES LTD.

ROOM 604/605, ELECTRO-OFFICETEL, 16-58, 3GA, HANGANG-RO, YONGSAN-KU, SEOUL KOREA PHONE : +822 - 3232 - 155 FAX : +822 - 3232 - 154

SINGAPORE

WO KEE HONG DISTRIBUTION PTE LTD

130 JOO SENG ROAD #03-02 OLIVINE BUILDING SINGAPORE 368357 PHONE : +65 6858 5535 / +65 6381 8621 FAX : +65 6858 6078

HONG KONG

Jolly ProAudio Broadcast Engineering Ltd.

UNIT 2, 10F, WAH HUNG CENTRE,

41 HUNG TO ROAD, KWUN TONG, KLN., HONG KONG PHONE : 852 - 21913660 FAX : 852 - 21913990

CANADA

LENBROOK INDUSTRIES LIMITED

633 GRANITE COURT, PICKERING, ONTARIO L1W 3K1 CANADA PHONE : 905 - 831 - 6333 FAX : 905 - 831 - 6936

TECHNICAL AUDIO GROUP PTY, LTD

43-53 Bridge Rd., STANMORE NSW 2048 AUSTRALIA PHONE : +61 - (0)2 - 9519 - 0900 FAX : +61 - (0)2 - 9519 - 0600

AUSTRALIA

1

1. TECHNICAL SPECIFICATIONS

Audio Characteristics

Channels ...........................................................................2 channels

Sampling frequency..............................................................44.1 kHz

Quantization .......................................................16-bit linear/channel

Error correction............. Cross-interleave read solomon code (CIRC)

Wow & ﬂ utter ........................................................Precision of quartz

Optical Readout System

Laser ............................................................. GaAIAs semiconductor

Wavelength............................................................................. 780 nm

Frequency Characteristics

Frequency range ............................................................ 5 Hz-20 kHz

Dynamic range ..........................................................................98 dB

S/N ratio (WTD) .......................................................................103 dB

Channel separation (1 kHz).....................................................100 dB

THD (1 kHz)...........................................................................0.002 %

Analog output

Output level (cinch JACKS) ...............................................2.2 V RMS

Output impededance ..........................................................150 ohms

Digital output

output level (cinch JACK) .......................................0.5 Vp-p/75 ohms

output level (optical) ............................................................. -19 dBm

Power Supply

Input Voltage, Frequency................................ AC 230 V 50 Hz (/N/S)

.....................AC 110 / 220 V 50 /60 Hz (/K)

Power Consumption ...................................................................12 W

Cabinet, etc.

Dimensions

Width ..................................................................................... 458 mm

Height ...................................................................................... 83 mm

Depth.....................................................................................315 mm

Net weight ................................................................................ 8.0 kg

Operating temperatures...............................................+5 °C~ +35 °C

Operating humidity .................................... 5 % ~ 90 % (without dew)

Accessories

Remote control unit (RC-DA17CD) ................................................. 1

AAA (R03) Batteries .........................................................................2

Stereo audio cable with cinch pins ............................................1 pair

Remote cable with cinch pins ........................................................... 1

AC Power Cord................................................................................. 1

2

DVD t

est disc (NTSC)

ALMEDI

O

TDV-54

0

3. SERVICE TOOLS

Audio signals disc 4822 397 30184 Disc without errors (SBC444)+ Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245 Disc (65 min 1kHz) without no pause 4822 397 30155 Max. diameter disc (58.0 mm) 4822 397 60141 Torx screwdrivers

Set (straight) 4822 395 50145

Set (square) 4822 395 50132 13th order filter 4822 395 30204 DVD test disc (PAL) 4822 397 10131

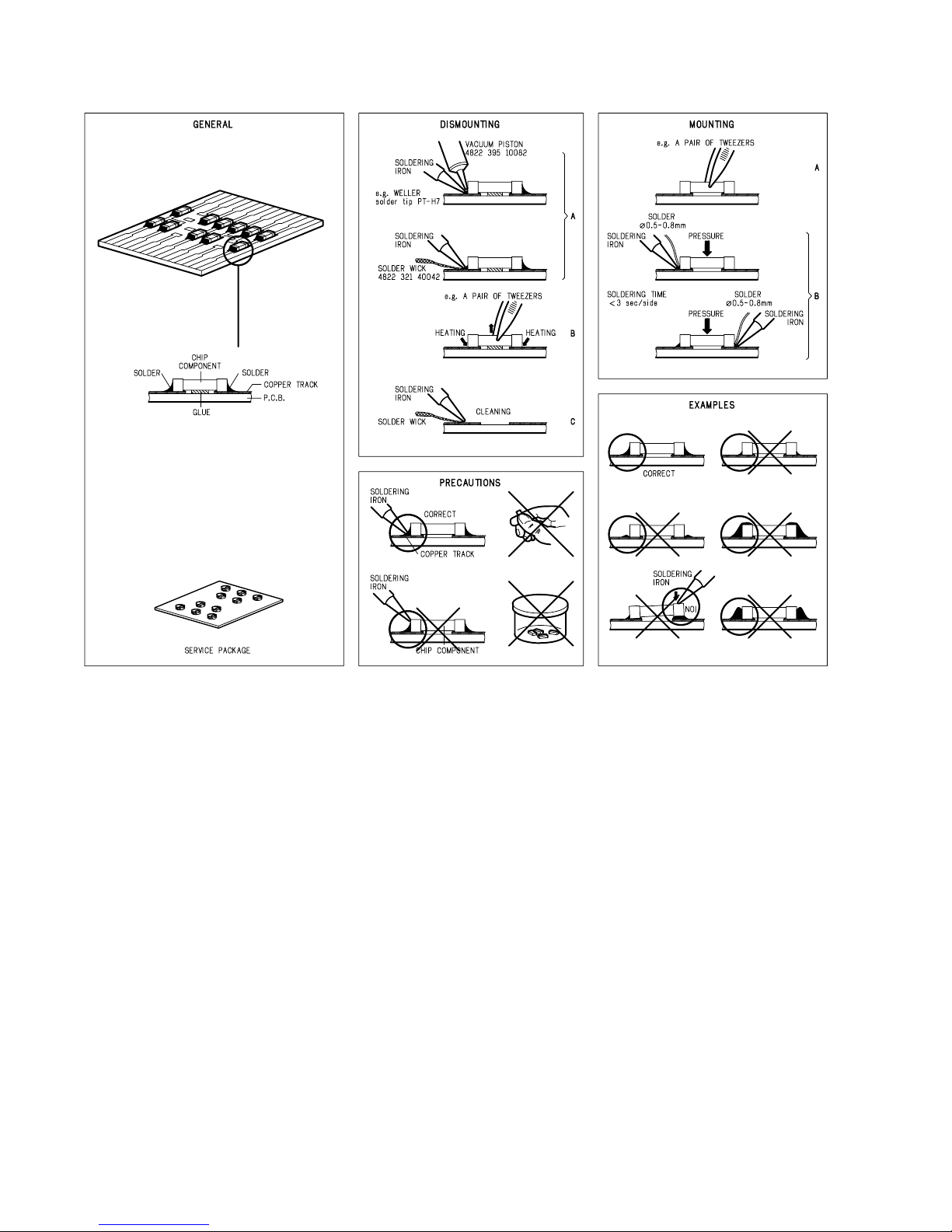

2. SERVICE HINTS

3

4. SERVICE MODE

1. How to enter into the Service Mode

Turn the power on while pressing [PLAY]+[OPEN/

CLOSE] buttons together.

The display shows “model number”, “microprocessor ver-

sion” and “mode”.

C D 1 9 : 1 0 P 0 0

Mode number

Microprocessor version

Model number (

The model number is indicated with CD19

because this set uses the microprocessor of CD19.)

2. Mode 0 (display “P 00”)

Condition: [FOCUS OFF], [SPINDLE OFF], [RADIAL

OFF], [MUTE ON]

While pressing [

](Remote Control unit only) button,

the sledge moves outside.

And, release from this button. The sledge return to

neutral position.

Press [NEXT

] button, the function will change to

“Mode 1”.

3. Mode 1 (display “P 01”)

Condition: [FOCUS ON], [SPINDLE OFF], [RADIAL OFF],

[MUTE ON]

Press [NEXT

] button, the function will change to

“Mode 2”.

Press [PREV

] button, the function will change to

“Mode 0”.

4. Mode 2 (display “P 02”)

Condition: [FOCUS ON], [SPINDLE ON], [RADIAL OFF],

[MUTE ON]

Press [NEXT

] button, the function will change to

“Mode 3”.

Press [PREV

] button, the function will change to

“Mode 1”.

5. Mode 3 (display “P 03”)

Condition: [FOCUS ON], [SPINDLE ON], [RADIAL ON],

[MUTE OFF]

Press [PREV ] button, the function will change to

“Mode 2”.

The following button operations are available at the

Service Mode.

1) While pressing [STOP] button, FL display shows all

segments.

2) Press [PAUSE] button. FL display shows each

segments one by one automatically. (Segments test

mode) And, press [PAUSE] button again, this mode will

be stopped.

3) The same as Normal operation is performed by

pressing [PLAY] button. (Except segments test mode.)

However if some default is detected, display shows an

error code. (For example: “Err 10”) Refer to the “Table 1 ERROR CODE”.

6. Canceling the Service Mode

The Service Mode is canceled by turning the power off.

Error Code Error

Err 02 FOCUS Error

Err 07 SUB CODE Error

Err 08 T. O. C. Error

Err 09 DECODER Error

Err 10 RADIAL Error

Err 11, 12 SLEDGE Error

Err 13 SPINDLE Error

Err 16 ~ 20 SEARCH Error

Err 30 DOOR Error

Err 31 TRAY Error

Err 32 ~ 47 BUTTON INPUT Error

Table 1

ERROR CODE

4

Q201 LC89170M

PIN SYMBOL I/O FUNCTION

1 EXCK I/O Subcode interface shift clock input and output 2 SBSO I Sub code interface data Input 3 SCOR I Subcode interface block synchronization Input 4 WFCK I Subcode interface frame synchronization Input 5 MCK I Clock input (16.9344 MHz) 6 XMODE I System reset and low power mode 7 GND Ground

8 TEST I

Test pin (Must be connected to ground in normal operation.)

9 SW1 I EXCK I/O setting (L: clock output, H: clock input)

10 SW2 I

EXCK clock output pulse width selection (L: double

speed support, H: normal speed) 11 SCLK I Command interface shift clock input 12 SRDT O Command interface data output 13 DOSY O Command interface readout enable output 14 VDD Power supply

1 IN1- negative input 1 2 IN1+ positive input 1 3 n.c. not connected 4 n.c. not connected 5 VP positive supply voltage 6 IN2+ positive input 2 7 IN2- negative input 2 8 n.c. not connected 9 OUT2+ positive output 2 10 GND2 ground 2 11 n.c. not connected 12 OUT2- negative output 2 13 OUT1- negative output 1 14 GND1 ground 1 15 n.c. not connected 16 OUT1+ positive output 1

PIN SYMBOL DESCRIPTION

Q106/Q107/Q108 TDA7073A

1 O4 output of diode current amplifier 4 2 O6 output of diode current amplifier 6 3 O3 output of diode current amplifier 3 4 O1 output of diode current amplifier 1 5 O5 output of diode current amplifier 5 6 O2 output of diode current amplifier 2 7 LDON control pin for switching the laser

ON and OFF 8 VDDL laser supply voltage 9 RFE equalized output voltage of sum

signal of amplifiers 1 to 4 10 RF unequalized output 11 HG control pin for gain switch 12 LS control pin for speed switch 13 CL external capacitor 14 ADJ reference input normally

connected to ground via a resistor 15 GND 0 V supply; substrate connection

(ground) 16 LO current output to the laser diode 17 MI laser monitor diode input 18 VDD amplifier supply voltage 19 I2 photo detector input 2 (central) 20 I5 photo detector input 5 (satellite) 21 I1 photo detector input 1 (central) 22 I3 photo detector input 3 (central) 23 I6 photo detector input 6 (satellite) 24 I4 photo detector input 4 (central)

PIN SYMBOL DESCRIPTION

Q101 TDA1302T

1 VSSA1 *analog ground 1 2 VDDA1 * analog supply voltage 1 3 D1 unipolar current input (central diode signal input) 4 D2 unipolar current input (central diode signal input) 5 D3 unipolar current input (central diode signal input) 6 VRL reference voltage input for ADC 7 D4 unipolar current input (central diode signal input) 8 R1 unipolar current input (satellite diode signal input) 9 R2 unipolar current input (satellite diode signal input) 10 IrefT current reference output for ADC calibration 11 VRH reference voltage output from ADC 12 VSSA2 * analog ground 2 13 SELPLL selects whether internal clock multiplier PLL is used 14 ISLICE current feedback output from data slicer 15 HFIN comparator signal input 16 VSSA3 * analog ground 3 17 HFREF comparator common mode input 18 Iref reference current output pin (nominally 0.5VDD ) 19 VDDA2 * analog supply voltage 2 20 TEST1 test control input 1; this pin should be tied LOW 21 CRIN crystal/resonator input 22 CROUT cr ystal/resonator output 23 TEST2 test control input 2; this pin should be tied LOW 24 CL16 16.9344 MHz system clock output 25 CL11 11.2896 or 5.6448 MHz clock output (3-state) 26 RA radial actuator output 27 FO focus actuator output 28 SL sledge control output 29 TEST3 test control input 3; this pin should be tied LOW 30 VDDD1(P) * digital supply voltage 1 for periphery 31 DOBM bi-phase mark output (externally buffered; 3-state) 32 VSSD1 * digital ground 1 33 MOTO1 motor output 1; versatile (3-state) 34 MOTO2 motor output 2; versatile (3-state) 35 SBSY subcode block sync output (3-state) 36 SFSY subcode frame sync output (3-state) 37 RCK subcode clock input 38 SUB P-to-W subcode output bits (3-state) 39 VSSD2 * digital ground 2 40 V5 versatile output pin 5 41 V4 versatile output pin 4 42 V3 versatile output pin 3 (open-drain) 43 KILL kill output (programmable; open-drain) 44 EF C2 error flag; output only defined in CD ROM modes and 1fs modes (3-state) 45 DATA serial data output (3-state) 46 WCLK word clock output (3-state) 47 VDDD2(P) * digital supply voltage 2 for periphery 48 SCLK serial bit clock output (3-state) 49 VSSD3 * digital ground 3 50 CL4 4.2336 MHz microcontroller clock output 51 SDA microcontroller interface data I/O line (open-drain output) 52 SCL microcontroller interface clock line input 53 RAB microcontroller interface R/W and load control line input (4-wire bus mode) 54 SILD microcontroller interface R/W and load control line input (4-wire-bus mode) 55 n.c. not connected 56 VSSD4 * digital ground 4 57 RESET power-on reset input (active LOW) 58 STATUS servo interrupt request line/decoder status register output (open-drain) 59 VDDD3(C) * digital supply voltage 3 for core 60 C2FAIL indication of correction failure output (open-drain) 61 CFLG correction flag output (open-drain) 62 V1 versatile input pin 1 63 V2 versatile input pin 2 64 LDON laser drive on output (open-drain)

PIN SYMBOL DESCRIPTION

Note : All supply pins must be connected to the same external power supply voltage.

Q102 SAA7372GP

5. MICROPROCESSOR AND IC DATA

5 6

No. Name I/O Port Active To/From Description

1 MLE O UT P120/RTP0 QD01/QD5 Latch signal for mode control of DAC QD01/QD51 2 MBCK IN/OUT P121/RTP1 H QD01/QD5 Serial clock for mode control of DAC QD01/QD51 3 MDAT OUT P122/RTP2 L QD01/QD5 Serial data for mode control of DAC QD01/QD51 4 MUTEN OUT P123/RTP3 QD01/QD5 Mute control signal for DAC QD01/QD51 5 RSTN IN P124/RTP4 L QD01/QD5 Reset signal for DAD QD01/QD51 6 OPEN IN P125/RTP5 - OPEN 7 OPEN IN P126/RTP6 - OPEN 8 OPEN IN P127/RTP7 - OPEN

9 GND IC - GND 10 5MHz XTAL X2 - XY01 Clock out 11 5MHz XTAL X1 - XY01 Clock in 12 +5VD Vdd - Q811 13 OPEN XT2 - OPEN 14 +5VD XT1/P07 Q 811 15 RESTN IN RESET L QY03 Reset 16 RC5IN IN P00/INTP0/TI00 ZY21/EXT

IR Sensor signal input

17 DQSTN IN P01/INTP1/TI01 Q201 Data request from Q201 18 CD7RN OUT P02/INTP2 L Q102 Reset signal for Q102 19 SILDN OUT P03/INTP3 L Q102 Strobe signal for servo part of Q102 20 RAB7N OUT P04/INTP4 L Q102 Strobe signal for servo part of Q102 21 OPEN IN P05/INTP5 - OPEN 22 OPEN IN P06INTP6 - OPEN 23 +5VD Avdd - Q811 24 +5VD Avref0 - Q811 25 KEY0 IN P10/ANI0 Lev Tact switch

Key Sensor

26 KEY1 IN P11/ANI1 Lev Tact switch

Key Sensor

27 KEY2 IN P12/ANI2 Lev Tact switch

Key Sensor

28 GND IN P13/ANI3 - GND 29 GND IN P14/ANI4 - GND 30 GND IN P15/ANI5 - GND 31 GND IN P16/ANI6 - GND 32 GND IN P17/ANI7 - GND 33 GND Avss - GND 34 OPEN IN P130/ANO0 - OPEN 35 RSTDN OUT P131/ANO1 L QY02 Reset signal for Display driver QY02 36 +5VD Avref1 - Q811 37 STBD OUT P70/SI2/RxD H QY02 Strobe signal for Display driver QY02 38 SIOD OUT P71/SO2/TxD H QY02 Serial data for Display driver QY02 39 CLKD OUT P72/SCK2/ASCK H QY02 Serial clock for Display driver QY02 40 GND Vss - GND 41 SIDT IN P20/SI1 H Q201 Serial data for CD-TEXT decoder Q201 42 OPEN IN P21/SO1 - OPEN 43 C LKT OUT P22/SCK1 H Q201 Serial clock for CD-TEXT decoder Q201 44 OPEN P2 3/STB - OPEN 45 OPEN OUT P24/BUSY - OPEN 46 OPEN IN P25/SI0/SB0/SDA0 - OPEN 47 SDA IN/OUT P26/SO0/SB1/SDA1 H Q202 Serial data for Q102 48 SCL OUT P27/SCK0/SCL H Q202 Serial clock for Q102 49 A0 OUT P80/A0 H Q202 Address signal for Q202 50 A1 OUT P81/A1 H Q202 Address signal for Q202 51

A2

OUT

P82/A2

H Q 202 Address signal for Q202

52

A3

OUT

P83/A3

H Q 202 Address signal for Q202

53

A4

OUT

P84/A4

H Q 202 Address signal for Q202

54

A5

OUT

P85/A5

H Q 202 Address signal for Q202

55

A6

OUT

P86/A6

H Q 202 Address signal for Q202

56

A7

OUT

P87/A7

H Q 202 Address signal for Q202

57

D0

OUT

P40/AD0

H Q 202 Data signal for Q202

58

D1

IN/OUT

P41/AD1

H Q 202 Data signal for Q202

59

D2

IN/OUT

P42/AD2

H Q 202 Data signal for Q202

60

D3

IN/OUT

P43/AD3

H Q 202 Data signal for Q202

61

D4

IN/OUT

P44/AD4

H Q 202 Data signal for Q202

62

D5

IN/OUT

P45/AD5

H Q 202 Data signal for Q202

63

D6

IN/OUT

P46/AD6

H Q 202 Data signal for Q202

64

D7

IN/OUT

P47/AD7

H Q 202 Data signal for Q202

65

A8

OUT

P50/A8

H Q 202 Address signal for Q202

66

A9

OUT

P51/A9

H Q 202 Address signal for Q202

67

A10

OUT

P52/A10

H Q 202 Address signal for Q202

68

A12

OUT

P54/A12

H Q 202 Address signal for Q202

69

A11

OUT

P53/A11

H Q 202 Address signal for Q202

70

A13

OUT

P55/A13

H Q 202 Address signal for Q202

71 OPEN

Vss

-GNDGND

72 A14 OUT

P56/A14

H Q 202 Address signal for Q202

73 OPEN IN

P57/A15

-OPEN

74 OPEN IN

P60

-OPEN

75 OPEN IN

P61

-OPEN

76 OPEN IN

P62

-OPEN

77 OPEN IN

P63

-OPEN

78

RDN

OUT

P64/RD

L Q202 Read signal for Q202

79

WRN

OUT

P65/WR

L Q202 Write signal for Q202

80 OPEN IN

P66/WAIT

-OPEN

81 OPEN IN

P67/ASTB

-OPEN

82

KILL

OUT

P100/TI5/TO5

H QF03 Cancel RC5 from IR sensor during output RC5

83

RC5O

OUT

P101/TI6/TO6

QF01 Synchronized recording signal output

84

TRM

OUT

P102

Q108 Tray motor control signal

85 OPEN IN

P103

-OPEN

86 OPEN IN

P30/TO0

-OPEN

87 OPEN IN

P31/TO1

-OPEN

88 OPEN IN

P32/TO2

-OPEN

89

CDRWO

OUT

P33/TI1

H Q 101 In case of CD-RW disc, gain up control for Q101

90

SLSWNINP34/TI2

L VAM1201 Sledge detect switch (LOW in end)

91

TROSNINP35/PCL

L TRAY Tray in/out detect switch (LOW : out end)

92

TRISNINP36/BUZ

L TRAY Tray in/out detect switch (LOW : in end)

93 OPEN IN

P37

-OPEN

94

CS

OUT

P90

H Q204 CS for EEPROM Q204

95

SK

OUT

P91

H Q204 Serial crock for EEPROM Q204

96

DI

OUT

P92

H Q204 Serial data output for EEPROM Q204

97

DO

IN

P93

H Q 204 Serial data input for EEPROM Q204

98 OPEN IN

P94

-OPEN

99

AMUTN

OUT

P95

L Q N04 Analog muting on

100

LEDN

OUT

P96

L QY04/QY08 LED control signal (HIGH : Filter1 , LOW : Filter2)

QY01 µPD78076

Serial Input

I/F

Mode

Control

I/F

8X Oversampling Digital Filter with

Function

Controller

Crystal/OSC

XTI

SCK

XTO CLKO V

CC1

AGND1 VDDDGND

Enhanced Multi-level

Delta-Sigma

Modulator

V

OUT

L

V

CC2

L

V

CC2

R

AGND2L

EXTL

Open Drain

DAC

Low-pass

Filter

Low-pass

Filter

BPZ-Cont.

V

OUT

R

EXTR

ZERO

DAC

MC/DM1

ML/IIS

LRCIN

DIN

BCKIN

CS/IWO

MD/DM0

MODE

MUTE

RST

Power Supply

PIN NAME I/O DESCRIPTION

1 LRCIN IN Left and Right Clock Input. This clock is equal to

the sampling rate - f

S

.

(1)

2 DIN IN Serial Audio Data Input

(1)

3 BCKIN IN Bit Clock Input for Serial Audio Data.

(1)

4 CLKO OUT Buffered Output of Oscillator. Equivalent to

System Clock.

5 XTI IN Oscillator Input (External Clock Input)

6 XTO OUT Oscillator Output

7 DGND - Digital Ground

8V

DD

- Digital Power +5V

9V

CC

2R - Analog Power +5V

10 AGND2R - Analog Ground

11 EXTR OUT Rch, Common Pin of Analog Output Amp

12 NC - No Connection

13 V

OUT

R OUT Rch, Analog Voltage Output of Audio Signal

14 AGND1 - Analog Ground

15 V

CC

1 - Analog Power +5V

16 V

OUT

L OUT Lch, Analog Voltage Output of Audio Signal

17 NC - No Connection

18 EXTL OUT Lch, Common Pin of Analog Output Amp

19 AGND2L - Analog Ground

20 V

CC

2L - Analog Power +5V

21 ZERO OUT Zero Data Flag

22 RST IN Reset. When this pin is low, the DF and

modulators are held in reset.

(2)

23 CS/IWO IN Chip Select/Input Format Selection. When this

pin is low, the Mode Control is effective.

(3)

24 MODE IN

Mode Control Select. (H: Software, L: Hardware)

(2)

25 MUTE IN Mute Control

26 MD/DM0 IN Mode Control, DATA/De-emphasis Selection 1

(2)

27 MC/DM1 IN Mode Control, BCK/De-emphasis Selection 2

(2)

28 ML/I2S IN Mode Control, WDCK/Input Format Selection

(2)

NOTES: (1) Pins 1, 2, 3; Schmitt Trigger input. (2) Pins 22, 24, 25, 26, 27, 28; Schmitt Trigger input with pull-up resister. (3) Pin 23; Schmitt Trigger input with pull-down resister.

PIN SYMBOL To/From Description

1 Vss GND 2 BCLK1 Q102 Serial bit clock input 3 Vdd +5V +5V Power supply 4 Vss GND 5 Vdd +5V +5V Power supply 6 Vss GND 7 24/32/SEI GND 8 IIS/SONY GND 9DINV GND 10 MODE1 GND 11 MODE2 GND 12 Vdd +5V +5V Power supply 13 Vss GND 14 DOL QD01 Data output left channel 15 BCLK01 --- Not connected 16 Vss GND 17 Vdd +5V +5V Power supply 18 WCLK01 --- Not connected 19 Vss GND 20 Vss GND 21 DIN QD12 Data input 22 Vdd +5V +5V Power supply 23 Vss GND 24 DOR QD51 Data output light channel 25 BCLK02 QD01/QD51 Bit clock output 26 Vdd +5V +5V Power supply 27 WCLK02 QD01/QD51 Word clock output 28 Vss GND 29 Vdd +5V +5V Power supply 30 CKOUT3 --- Not connected 31 CKOUT2 Q102/QD01/QD51 System clock output 32 CKOUT1 --- Not connected 33 Vss GND 34 Vss GND 35 Vdd +5V +5V Power supply 36 XIN XD01 Clock input(16.9344MHz) 37 XOUT XD01 Clock input(16.9344MHz) 38 Vss GND 39 Vdd +5V +5V Power supply 40 Vss GND 41 Vss GND 42 WCLKI Q102 Word clock input 43 Vdd +5V +5V Power supply 44 Vss GND

QD01/QD51 PCM1716 QD02 TC160G11AU-1305

87

6. BLOCK DIAGRAM

Pin No. Port Name Function To/From Descriptio Active

1 +5VD Vdd +5VD 2 OPEN P37 --- LED On/Off Low 3 OPEN P36/BUZ --- LED On/Off Low 4 OPEN P35/PCL --- LED On/Off Low 5 OPEN P34/TI2 --- LED On/Off Low 6 OPEN P33/TI1 --- LED On/Off Low 7 OPEN P32/TO2 --- LED On/Off Low 8 OPEN P31/TO1 --- LED On/Off Low

9 OPEN P30/TO0 --- LED On/Off Low 10 RESD RESET QY01 11 5MHz X'tal X2 XY02 12 5MHz X'tal X1 XY02 13 GND IC GND 14 OPEN XT2 --15 OPEN P04/XT1 --16 +5VD Vdd +5VD 17 OPEN P27/SCK0 --- 18 OPEN P26/SO0/SB1 --- 19 OPEN P25/SI0/SB0 --- 20 OPEN P24/BUSY --- 21 OPEN P23/STB --- 22 CLKD P22/SCK1 --- 23 OPEN P21/SO1 --- 24 SIOD P20/SI1 QY01 25 GND Avss GND 26 OPEN P17/ANI7 --27 OPEN P16/ANI6 --- 28 OPEN P15/ANI5 --- 29 OPEN P14/ANI4 --- 30 OPEN P13/ANI3 --- 31 OPEN P12/ANI2 --- 32 OPEN P11/ANI1 --- 33 OPEN P10/ANI0 --- 34 OPEN Avdd --35 GND Avref GND 36 OPEN P03/INTP3 --- 37 OPEN P02/INTP2 --38 OPEN P01/INTP1 --39 STBD P00/INTP0/TI0 QY01 40 GND Vss GND 41 OPEN P74 --42 OPEN P73 --43 OPEN P72 --44 GND P71 GND Scroll rule select

(

LOW : CD-17

)

45 GND P70 GND Character select (LOW : CD-17

)

46 +5VD Vdd +5VD 47 S40 P127/FIP52 FL Se

g

ment output

48 S39 P126/FIP51 FL Se

g

ment output

49 S38 P125/FIP50 FL Se

g

ment output

50 S37 P124/FIP49 FL Se

g

ment output

51 S36 P123/FIP48 FL Se

g

ment output

52 S35 P122/FIP47 FL Se

g

ment output

53 S34 P121/FIP46 FL Se

g

ment output

54 S33 P120/FIP45 FL Se

g

ment output

55 S32 P117/FIP44 FL Se

g

ment output

56 S31 P116/FIP43 FL Se

g

ment output

57 S30 P115/FIP42 FL Se

g

ment output

58 S29 P114/FIP41 FL Se

g

ment output

59 S28 P113/FIP40 FL Se

g

ment output

60 S27 P112/FIP39 FL Se

g

ment output

61 S26 P111/FIP38 FL Se

g

ment output

62 S25 P110/FIP37 FL Se

g

ment output

63 S24 P107/FIP36 FL Se

g

ment output

64 S23 P106/FIP35 FL Se

g

ment output

65 S22 P105/FIP34 FL Se

g

ment output

66 S21 P104/FIP33 FL Se

g

ment output

67 S20 P103/FIP32 FL Se

g

ment output

68 S19 P102/FIP31 FL Se

g

ment output

69 S18 P101/FIP30 FL Se

g

ment output

70 S17 P100/FIP29 FL Se

g

ment output

71 S16 P97/FIP28 FL Se

g

ment output

72 S15 P96/FIP27 FL Se

g

ment output

73 S14 P95/FIP26 FL Se

g

ment output

74 S13 P94/FIP25 FL Se

g

ment output

75 S12 P93/FIP24 FL Se

g

ment output

76 S11 P92/FIP23 FL Se

g

ment output

77 S10 P91/FIP22 FL Se

g

ment output

78 S9 P90/FIP21 FL Se

g

ment output 79 -VFT Vload -VFT 80 S8 P87/FIP20 FL Se

g

ment output 81 S7 P86/FIP19 FL Se

g

ment output 82 S6 P85/FIP18 FL Se

g

ment output 83 S5 P84/FIP17 FL Se

g

ment output 84 S4 P83/FIP16 FL Se

g

ment output 85 S3 P82/FIP15 FL Se

g

ment output 86 S2 P81/FIP14 FL Se

g

ment output 87 S1 P80/FIP13 FL Gird output or Se

g

ment output

88 G13 FIP12 FL Gird output or Se

g

ment output

89 G12 FIP11 FL Gird output or Se

g

ment output

90 G11 FIP10 FL Gird output or Se

g

ment output

91 G10 FIP9 FL Gird output or Se

g

ment output

92 G9 FIP8 FL Gird output or Se

g

ment output

93 G8 FIP7 FL Gird output or Se

g

ment output

94 G7 FIP6 FL Gird output or Se

g

ment output

95 G6 FIP5 FL Gird output or Se

g

ment output

96 G5 FIP4 FL Gird output or Se

g

ment output

97 G4 FIP3 FL Gird output or Se

g

ment output

98 G3 FIP2 FL Gird output or Se

g

ment output 99 G2 FIP1 FL Gird output 100 G1 FIP0 FL Gird output

REST RESET SIGNAL FOR QY01 AND QY02

FILTER 1/2 LED SIGNAL H:FILTER1 L: FILTER2

AMUT LED

WCLK

BCLK BIT CLOCK OUT OF L/R SEPALATING IC QD02

RCH DATA OUTPUT OF L/R SEPALATING IC QD02

LCH DATA OUTPUT OF L/R SEPALATING IC QD02

WORD CLOCK OUT OF L/R SEPALATING IC QD02

-R CH AUDIO SIGNAL AT DAC OUTPUT

+R CH AUDIO SIGNAL AT DAC OUTPUT

-L CH AUDIO SIGNAL AT DAC OUTPUT

+L CH AUDIO SIGNAL AT DAC OUTPUT

DOR-

DOR+

DOL-

DOL+

TRAY IN/OUT DETECT SWITCH L:OUTSIDE END

TRAY IN/OUT DETECT SWITCH L:INSIDE END

MUTE SIGNAL FOR DAC RESET SIGNAL FOR DAC

SERIAL DATA FOR DAC

LATCH ENABLE FOR DAC BIT CLOCK FOR DAC

RST

MUTE

MDAT

MBCK

MLE

MPU CLOCK FOR SAA7372

MPU DATA FOR SAA7372

FLAG CONTENTS

DOR

DOL

MCK

DATA

TURNTABLE CONTROL PULSE(PDM)

SLEDGE MOTOR CONTROL PULSE(PDM)

FOCUS MOTOR CONTROL PULSE(PDM)

RADIAL MOTOR CONTROL PULSE(PDM)

MUTE SIGNAL OUT FOR AUDIO SIGNAL POWER ON/OFF MUTING SET SIGNAL

AUDIO SIGNAL OUTPUTS

RC-5 INTERNAL/EXTERNAL SWITCH

PWMU

MUTO

LROUT

IRSW

SLEDGE SWITCH L:IN END

TROS

TRIS

SYSTEM CLOCK 16.9344MHz

44

RAB7

CD7R

RC-5 IR RECEIVE SIGNAL OUT

RC-5 SIGNAL MPU INPUT

RC-5 SIGNAL INPUT/OUTPUT

FL GRID AND SEGMENT DRIVE

IR

RC5I

RC I/O

FLGS

57

56

55

54

53

52

51

50

71

70

69

68

67

66

65

64

63

62

61

60

59

58

49

48

TRAY MOTOR CONTROL SIGNALT.MOT

47

46

45

43

42

AUDIO MUTE H:MUTED

SLSW

SCL

SDA

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

WCLK

SCLK

SILD

DOBM

MOTO2

MOTO1

SL

FO

RA

HF HPF

HF-OUT

MT-OUT

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

0

DATA BUS R/W AND LORD CONTROL DECODER AUDIO SERIAL DATA CLOCK

DATA BUS R/W AND LORD CONTROL SERVO

DIGITAL OUTPUT SIGNAL CD7 RESET PULSE

HF SIGNAL HPF OUT

TDA1302T HF SIGNAL OUT

MOTOR DRIVE OUTPUT

AUDIO I S DATA

AUDIO WORD CLOCK

2

ITEM FUNCTIONFUNCTIONFUNCTION ITEMNO. ITEMNO.NO.

MUTO

POWER INPUT

+5V

DIODE

DISC

LASER DIODE

MONITOR

F1/F2

IR

IR-OUT

-5V

CURRENTMONITOR

CONTROL

M

TRAY MOTOR

(SLEDGE)

Q102 SAA7372

Q107

Q106

Q101 TDA1302T

17

16

D1,D2,D3,D4,D5

SLSW

+5V -5V

DIGITAL SERVO

AND

DEMODULATOR

AND

POWER ON RESET

KEY MATRIX

TRAY MOTOR

FOC DRIVE

1/2

RAD DRIVE

2/2

1/2

CLV DRIVE

2/2

TURNTABLE

MOTOR

CD MECHANISM

VOLTAGE FALLING

CONTROL

POWER SUPPLY

VOLTAGE REGULATOR

Q108

TDA7073A

LT01

JT01

SEC PRI

DECORD & SERVO

MOTOR DRIVE

& HF AMP

T.MOT

46 45 48 24

31

52 SCL

51 SDA

CD7R

SILD5754

21

CRIN

8 9

6 3 4

2R1R2

5

02 03 01

3 4 5

LDON

64

15

7

V1

27

26

28

33 34

FO

RA

SL

MOTO1 MOTO2

SLSW

53 RAB/C7

DIG OUTPUT

COAXIAL

OPTICAL

PLAY, STOP

PAUSE,OPEN/CLOSE

SRAM

(SANYO)

LC89170M

µ

PD78076

(NEC)

VAM1201

MUTING

+12 -12V

-12V

+12V

CD7

HF X2

11

PHOTO DIODE

GAIN CONTROL

FOR CD-RW

-24V

84

15

99

2526KEY0

KEY1

MASTER U-COM SERVO AND OTHER CONTROL

QY01

89

CDRWO

83 RC5O

D0-D7

A0-A14

QY03

-23.4VV

SLEDGE MOTOR

TDA7073AT

Q201

10

ZY21

VY01

F1 F2

????????? ???? ?? ?? ?? ?? ?? ?? ?? ?? ??

????

(NEC)

DISC

MEMO PSET

TTL

RNDM PROG

TRK

EDIT A-B

INDX

RPT

AUTO1TUNESTMONO

FADE PEAK TTL TIME TUNED

kHz MHz

DISPLAY CPU

SUBCODE BUS

DOBM

XY01

CONTROL BUS

CD7R

DATD

WCLD

SCLD

R.CH

L.CH

MISC

DAC

AND

INTERFACE

BCKI

X8 DIF

TC160G11AU-1305

5.0MHz

16.9344MHz

31

J601

L.CH

R.CH

J601

PCM1716

DATA

+L

-L

HDAM

-L

+L

XTI

PCM1716

DAC

AND

BCKI

X8 DIF

DATA

XTI

(TOSHIBA)

HDAM

+R

-R

+R

-R

EEPROM

FOR LAST MEMORY

LPFLPF

L/R DATA

SEPALATER

DIF/DAC

L.P.F&HDAM

DRIVE

Q202 Q204

QD02

QD01

QD51

XD01

QY02

XY02

5.0MHz

11

12

CLKD SIOD STBD

10 RSTD 22 24 39

27KEY2

µ

PD780204

18

20 RAB7

47 SDA 48 SCL

19 SILD

10 11

43 CLKT

01

RST

02 03 04 05

MDAT MUTE

MLE MBCK

AMUT

S806D-Z

REST

FILTER

JT11

DOBM

RST

MDAT MUTE

MLE MBCK

RST

MDAT MUTE

MLE MBCK

WCLK

MCK

LASER CURRENT

PROCESSOR

AMPLIFIER

HF EQ

DRIVE

SLEDGE

RADIAL MOTOR

FOCUS MOTOR

CD TEXT DECODER

PREVIOUS, NEXT

FOR CD-TEXT INFORMATION

ERROR CORRECTION

PROCESSOR

LOGIC

CIRCUIT

INTER FACE

DETECT

L001 TRANSFORMER

MUTING CIRCUIT

19 - 23

AM1 - AM35

AA1 - AA7 G1 - G12

RNDM PROG EDIT A – B RPT 1

DISC

TEXT 1 2

TTL TRK INDX PEAK TTL TIME

34 56 78 9101112

1

2

13 14 1516 17 18 1920

FILTER

7. FLAG NO.

QY02 µPD780204

9 10

8. SCHEMATIC DIAGRAM

48

49

1

6417

16

32

33

R197

R111

R110

C107

C115

C114

R153

Q109

J101

J104

J105

C113

R196

C161

C177C178

C180

C163C179

R502

R503

R501

C147

R147

R148

R174

R172

R195

R126

R128

R127

R125

R124

R130

R121

R149

R150

C182

C151

C181

C174

C171

C173

C162

R201

C201

C106

C121

C122

C123

C124

C141

C100

C101

C103

C102

C105

C104

C142

C109

C143

C144

C145

C108

C176

C175

Q192

Q193

C125

C130

C120

C129

R205

R204

R203

R202

Q106

Q107

Q108

R144

R143

R141

R142

Q201

R151

R181

R173

R171

R182

C172

C152

R163

R152

R161

R162

L201

R120

R101

R100

R102

R103

R104 R105

R106

R107

R108

R109

R145

C112

C148

L143

L142

C126

L141

Q102

0

22k

1000p

+-10%

1500p

+-10%

560p

22k

2SC2712

+-10%

0.1

0

+-10%

0.1

+-10%

0.1

+-10%

0.1

+-10%

0.1

+-10%

0.1

+-10%

0.1

100

47/25V

1/4W

2.2

1/4W

2.2

10k

100

3.3k

3.9k

2.2k

15k

680

27k

680

22k

22n

0.1

4700p

0.1

22k

0.1

0.022

0.1

22n

1n

0.1

220p

220p 220p

220p

0.1

22n

0.1

47p

470p

SP/ETC

2SC536

SP/ETC

2SC536

150p

100p

5600p

0.1

10k

TDA7073AT,118

22k

LC89170M

1k

470

1k

1.2k

12k

47/25V

1k

10k

100k

10k

270k

22k

1k 100k

12k

100

22k

0.1

100/10V

G

SLSW

TT+

TT-

SL-

SL+

RA-

RA+

FO-

FO+

RW

LS

HF

O2D1

O5R1

O1R

O3D2

O6R2

LDON

G

RW

LS

HF

+5A

O2D1

O5R1

O1R

O3D2

O6R2

LDON

10/16V

SAA7372GP

+5B

+5VD

DOBM

(PP16-2/3)

VD9(3/3)

+5VS

384FS

REF

REF REF

384FS

MI

LO

I1

I3

I6

I5

I2

LO

+5B

+5A

HF

+5B

O1

O6

O5

O2

O3

+5A

LO

+5B

+5VS

DQST

MCK

DATA

WCLK

SLCK

MCK

DATA

WCLK

SCLK

CD7R

SILD

RAB7

SIDT

CLKT

SDA

SCL

SLSW

CDRWO

TRIS

TROS

TRM

CD7R

SCOR

WFCK

EXCK

SBSO

XMODE

SBSO

SCOR

WFCK

CDRWO

TRM

SLSW

TRY+

TRY-

TRY+

SL

MOTO1

MOTO2

RA

FO

TTM+

TTM-

SL-

SL+

FO+

FO-

RA-

RA+

DQST

SIDT

CLKT

TRIS

TROS

SILD

TT+

SLSW

FO+

FO-

RA+

RA-

SL+

SL-

TT-

TT+

SLSW

RA-

FO+

FO-

RA+

MI

LO

I6

I3

I1

I5

I2

LO

MI

I6

I5

I3

I2

I1

SL-

SL+

TT+

TT-

SL-

SL+

RA+

RA-

FO-

FO+

RAFOSL

RAB7

SCL

SDA

MAIN PCB (PP16-1/3)

16

14

15

SCLK

DATA

WCLK

(Q102 SAA7372)

2

(64FS)

I S FORMAT

MSB

LSB

MSB

LSB

MSB

R.CHL CH

LM302

45

17

DATA

WCLK

SCLK

HFREF

IREF

CL16

16

15

14

5

6

7

VAM1201(TDA1302)

C

0

25 24131211

B

A

150/160/170/180

120/190

SERVO PCB(PV16)

LSE

100/140/200

IN2-

IN2+

IN1+

IN1-OUT1+

OUT2-

OUT1-

OUT2+

16

15

14

13

12

11

10

98

7

6

5

4

3

2

1

G1

G2

N.C

VP

NC

-++-

IN2-

IN2+

IN1+

IN1-OUT1+

OUT2-

OUT1-

OUT2+

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

G1

G2

N.C

VP

NC

-++-

LRA

LSE

VAM1201

LSE

8147

1

CHECK

CRC

PROTECT

SIGNAL

SYNC.

&

CKT

TIMING

RAM

CPU I/F

VDD

DQSY

SRDT

SCLK

SW2

TEST

SW1

GND

XMODE

MCK

WFCK

SCOR

SBSO

EXCK

2.5V

TTM+

TTM-

IN2-

IN2+

IN1+

IN1-OUT1+

OUT2-

OUT1-

OUT2+

SL-

SL+

FOC+

FOC-

RAD-

RAD+

45

0

47

46

9

8

OPEN

16

15

14

13

12

11

10

98

7

6

5

4

3

2

1

G1

G2

N.C

VP

NC

-++-

PHOTO DIODE DETECTOR

D1(R2)

D4(D3)

D5(R1)

D3(D2)

D2(D1)

6

5

SLSW

TT+

SL-

SL+

TT-

GND

TROU

3

7 OR 8 BIT CLK

25

24

5V

V3

VDD2P

MISC

KILL

47 46

TRM-

TRM+

STAGE

OUTPUT

INTERFACE

EBU

AUDIO

PROCESSOR

INTERFACE

PROCESSOR

MICRO

INTERFACE

SERAL DATA

FRONTEND

O4I4

I6

I3

I1

I5

I2 O2

O5

O1

O3

O6

ON/OFF

VGOP

MI

LO

LDON

LS

CRIN

RESET

SILD

RAB

SCL

SDA

LDON

D4

R2

R1

D3

D2

D1

HFIN

CROUT

DOBM

SLFORA

MOTO1

MOTO2

H=TRAY IN M=STOP

L=TRAY OUT

5V

0V

2.5V

0V

5V

0

5V

1.5V

1.2

0

1

9

87

EYEPATTERN

10

3

1

TDA1302T

J102 J103

21P PALLA WIRE

W102

Q101

Iadj

Iref

-

+

I/V

X

24

23

22

21

20

19

18

17

16

15

14

13 12

11

10

9

8

7

6

5

4

3

2

1

6

5

4

3

2

1

VDD

GND

ADJ

C

HG

RF

REF

VDD1

GND

TRIN

TRAY OUT

TRAY IN

BLK

ORG

GRN

YEL

BLU

WHT

MI

LO

BC858

BC808

BC858

220K

4.7K

330

0.22

6.8

0.1

MONITOR

LASER

TRAY MOTOR

CFLG C2

C2 CFLG

SELPLL

STATUS

M2 M1

M2M1

CL4

DIGITAL PLL

TIMIN

CONTROL PART

V4

V5

VSS2

SUB

RCK

SFSY

SBSY

V2

V1

CFLG

C2FAIL

VDD3C

STATUS

VSS4

NC

CL4

VSS3

VRL

VSSA3

ISLIGE

SELPLL

VSSA2

VRH

IREFT

VDDA1

VSSA1

VSS1

VDD1P

TEST3

CL11

TEST2

TEST1

VDDA2

DEMODULATOR

MICRO PROCESSOR

DECODER

A D C

INTERFACE

KILL

PEAK

DETECTOR

PROCESSING

VERSATILE PINS

INTERFACE

CORRECTOR

FLAGS

ERROR

MOTOR

PRE

CONTROL

GENERATOR

VREF

FUNCTION

CONTROL

PROCESSOR

SUBCODE

ADDRESSER

RAM

SRAM

EFM

RAD(-)

FOC(+)

FO(-)

RAD(+)

R2

D1

D2

R1

D3,D4

SLEDGE SW

RADIAL

FOCUS

12

1

SLED M.

DISK M.

GND

C111 100p

1

1211

30

31

50

5180

81

100

1

30

31

50

5180

81

100

1

SY01SY02SY03

SY04 SY05SY06

LY01

LY02

LY03

ZY21

CY21

RY01

RY02

JY01

RY07

RY05

RY03

RY08 RY06

RY04

CY14

CY12

CY13

QY02

CF01

DF03

RF03

RF01

L202

DF01

RF51

SF01

CF52

DF02

DF04

CY03

CY02

LF01

RF08

RF02

QF01

CF51

RF07

RF05

RF04

RF06

QF02

RY45

RY46

DY02

LT11

LT01

CT03

CT01

CT02

CT08

JF51

SY07

RY20 RY19 RY18

RY17

CY01

QY03

RY09

QY01

CF02

QF03

CT04

CT11

RT02

CY22

RY10

RY11

QY05

QY07

RY21

C202

C203

Q202

RT04

RY42

RY43

RY44

XY01

XY02

RY41

DY08 RY29

RY30

CY23

DY06

QY06

RY24

RY25

RY26

RY22

QY04

CY09

CY08

CY04

C204

Q204

RY27

RY28

RT11

QY08

DY05

DY04

RY31 RY23

JF01

100/10V

4.7K

6.8K

2.2K

6.8K 2.2K

2.2K

0.1

µ

PD780204

10/16V

1SS254

100

47K

1SS254

22

470P

1SS254

0.1

47/16V

10K

4.7K

2SA1162

O, Y

0.1

10K

22K

2SC2712

10K

2200p

50V

0.1 25V

4700p

50V

100/25V

ARS

6.8K 2.2K 2.2K

4.7K

2.2/50V

S806D-Z

220K

µ

PC78076

0.1

TCW125FU

0.1

33

1/16W

0.1

1M

2SA1162

O, Y

2SA1162

100

0.1

N341256SJ-15

75

10K

5MHz

10K

1SS254 100K

10K

33/10V

1SS302

2SA1162

100

2.2K

10K

4.7K

2SA1162

O, Y

0.1

47/25V

AT93C46R

EEPROM

4.7K

1K

0

2SA1162

O, Y

FILTER1

LED

FILTER2

LED

F2

F1

-VFT

F2

F1

+5VD

F1

F2

IR(INT)

IR

F1

F2

-VFT

+5VD

RCI/O

+5VD

LED

LED(2/3)

AMUT

+5VS

IR

+5VD

IR

+5VD

+5VS

+5VD

STBD

SIOD

CLKD

G1

G2

G3

G4

G5

G6

G7

G8

G9

G10

G11

G12

G13

S1

S2

S3

S4

S5

S6

S7

S8S9S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S22

S23

S24

S25

S26

S27

S28

S29

S30

S31

S32

S33

S34

S35

S36

S37

S38

S39

S40

P1P2P3P4P5P6P7P8P9

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

P20

P21

P22

P23

P24

P25

P26

P27

P28

P29

P30

P31

P32

P33

P34

P35

P36

P37

P38

P39

P40

SIOD

CLKD

A0

A1

A2A3A4A5A6A7D0D1D2D3D4D5D6D7A8A9A10

A11

A12

TRIS

TROS

SLSW

KEY0

KEY1

CLKD

STBD

SIOD

STBD

SIOD

CLKD

A12

A14

A0

A1

A2

A3

A4

A5

A6

A7

D0

D1

D2

TRM

D4

D5

D3

D6

D7

A10

A11

A8

A9

A13

G1G2G3G4G5G6G7G8G9

G10

G11

G12

G13

KEY2

KEY0

KEY1

KEY2

CS

SK

DO

DI

TRIS

TROS

SLSW

CDRWO

CLKT

SIDT

DQST

CD7R

SILD

RAB7

SCL

SDA

SCL

SDA

CLKT

SIDT

RAB7

SILD

CD7R

DQST

TRM

MBCK

CS

SK

DI

DO

MLE

MBCK

MDAT

MLE

A13

STBD

RDN

WRN

A14

RDN

WRN

CDRWO

VF1,VF2:

VOLTAGE OF FTD FILAMENT

-VFT

1

GND

15

5V

-25V

0V

58

FRONT PCB (PY16)

5 7 8910 11 12 13 14 15 16 17 18 19 20 21 22

1

2

24 25 26 27 28 29 30 3123 32 33 34 35 36 37 38 39 40 41 42 43 44 45 48 499

WY01

KEY0 KEY1

LLM

BUTTONS

PLAY

STOPPAUSE

NEXT PREV. OP/CLOSE

STBD SIOD CLKD

IC

NC

5455585960616263646566676869707172737475767778798081828384858687888990919293949798

NCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNCNC

NC

RSTD

7053 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

234567891011121314151617181920212223242526272829

99

98

97

96

95

94

93

92

91

90

89

88

87

86

85

84

83

82

79787776757473727152

2

3

4

5

6

7

8

9

10

11

12

13

14

RC-5

IN/OUT

EXT

INT

REMOTE CONTROL SWITCH

61

62

5V

0

5V

0

H=INTERNAL L=EXTERNAL

OPEN

KILL

LLM

LRA

A14

A12

A7

A6

A5

A4

A3

A2

A1

A0

D0

D1

D2

VSS

VCC

WE

A13

A8

A9

A11

OE

A10

C5

D7

D6

D5

D4

D3

REST

RC5

I

RC5O

7053 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

234567891011121314151617181920212223242526272829

99

98

97

96

95

94

93

92

91

90

89

88

87

86

85

84

83

82

797877767574737271

2

1

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

1234

5678

52

INT/EXT

OUT

10

SW

JT11

JT01

COAX

OPT

50515657

IC

KEY2

IR

RSTD

FILTER

27

2

1

3

4

5

6

7

8

DC

VCC

CS

SK

ORG

GND

DO

DI

H:16BIT L: 8BIT

A

D

5V

0

POWER ON

MUTE

B

RSTD

RST

RSTDRSTD

RSTD

63

58

64

OPEN

CLKD

STBD

SIOD

LGND

LED

MAIN PCB (PP16-2/3)

F1

F2

DOBM (PP16-1/3)

(3/3)

RSTD

5V

0V

5V

0V

32

33

32

33

27

34

35

36

39

40

41

+5VD

RNDM PROG EDIT A – B RPT 1

DISC

TEXT 1 2

TTL TRK INDX PEAK TTL TIME

34 56 78 910 1112

1

2

13 14 15 16 17 18 19 20

FILTER

G1 G2 G3 G4 G5

G6 G7 G8 G9 G10 G11 G12 G13

VY01

LAST MEMORY FUNCTION

The defaults (factory settings) of the above items are as listed below. Text display priority : When a CD - TEXT disc is

played, the text display

mode is activated in priority. Time display mode : Elapsed play time display. Analog/headphone output levels : Maximum value (0 dB). Filter position : Filter 1 * When the STOP button is held depressed for more than 5 seconds in stop mode, all stored items are cleared and return to the defaults.

O, Y

DY04, DY05

/N1G/S1G/K1G:RED /N1S:BLUE

RY23, RY31

/N1G/S1G/K1G:220 /N1S:33

13 14

1 11

12

22

23

33

34

44

SERIAL

INPUT

I/F

I/FMODE CONTROL

POWER

LPF

OSCPOWER

DAC

R.CH

L.CH

BPZ-CONT.

DELTA-SIGMA

MODULATOR

8FS DF

WITH

FUNCTION

CONTROLLER

SCK

SERIAL

INPUT

I/F

I/FMODE CONTROL

POWER

LPF

OSCPOWER

DAC

R.CH

L.CH

BPZ-CONT.

DELTA-SIGMA

MODULATOR

8FS DF

WITH

FUNCTION

CONTROLLER

SCK

C617

C667

R623

R673

QN55

QN05

RN65

RN15

QN06

QN56

RN16

RN66

R622

R672

R621

R671

C614

C613

R619

R618

C665

C615

C616

C666

C664

C663

R669

R668

L651

L601

QH52

QH51

DH53

RH52 RH51

RH54 RH55

RH58

RH56

RH57

QH54

QH55

QH56

QH53

RH53

R652

R651

C653

R655

C654

CD91

CD92

R666

R665

QH02

QH01

DH03

RH02

RH01

RH04 RH05

RH08

RH06

RH07

QH04

QH05

QH06

QH03

RH03

CD55

R605

R616

R615

RD41

RD15

RD12

RD13

RD14

RD11

RD91

CD11

CD54

CD53

RD02

CD05

CD04

CD03

CD06

R602

R601

C603

C604

D811

D812

C812

C814

CY81

DY85

D801

D802

D806

D804

C804

C803

C807

C808

F851

Q811

CY82

D813

D814

DY83

DY84

DY81

DY82

D815

D816

C813

C815

Q812

D817

D818

CN01

DN07

QN03

DY86

QN04

QY82

DN01

DN02

DN04

DN03

DN05

CN03CN02

RN10

RN06

RN02

RY86

RY85

RY84

RY83

RN05

RN04

F811

F821

CY83CY84

QY81

RY88

DN08

RN07

RN03

R804

R653

R603

RD92

RD52

RY80

R664

R614

C602

C651

C652

RD01

CD56

RD51

CD14

C601

R670

Q657

Q658

C668

R620

Q608

Q607

C618

CD51

L652

L602

CD01

R656

CD52

CD02

R606

CD12

CD07

CD57

CD13

DH51

DH52

R654

C655

C605

XD0

1

DH01

DH02

R604

QN01

RY82 RY81

RN13

QD02

QD51

QD01

R803

RN08

DN06

RN12

RN11

QN02

RY87

RN09

QD12 TC7SHU04F

100p

100k

2SC2878

A/B

2SC2878

A/B

2.2K

2SC2878

A/B

2SC2878

A/B

2.2K

686868

68

220/16V

ARS

220/16V

ARS

JUMPER

220/16V

ARS

220/16V

ARS

JUMPER

2SK369

BL

2SK369

BL

120 120

68 68

33K

560

2SA1312

(B)

2SA1312

(B)

2SC3324

(B)

2SC2873

(Y)

68

1.62k

3.01k

2200p

562

1000p

18P

33

2SK369

BL

2SK369

BL

120

68 68

33K

560

2SA1312

(B)

2SA1312

(B)

2SC3324

(B)

2SC2873

(Y)

68

0.1

562

33

2.2

1/4W

47

220

1M

0.1

47 16V ARS

10K

0.1

47 16V ARS

220 10V

1.62k

3.01k

2200p

1000p

4700/16

470/16V ARE2

100/50

24V

1000/35

220/16V

7805

100/35

3300/16

220/16

7805

470/25V

5.6V

2SC2712

O, Y

4.7V

2SA1162

O, Y

2SC2458

Y,GR

*

1SS254

2.2 50V150V

47K

10K

47K

10K

3.9M

15K

0.0220.022

2SB798

4.7K 1/6W

*

1K

1/6W

1K

1/6W

JUMPER

3.01k

220

10K

10

1/10W

47k

22 25V ARS

22

25V ARS

22 25V ARS

2.2

1/4W

220 10V

2.2 1/4W

0.1

22 25V ARS

100

2SK170

V

2SJ74

V

150p

100

2SJ74

V

2SK170

V

150p

0.1

2.2µ

0.1

562

1000

10V

1000

10V

562

220 10V

0.1

1SS302

1.62k

1200p

16.9344MHz

1SS302

1.62k

UMH4N

47 47

4.7K

TC160G11AU-1305

PCM1716

JUMPER

12K

1SS254

100K

10K

UMH4N

22K

12K

J601

67

LRCK

DATA

BCK

CLKO

XTI

XTO

DGND

VDD

VCC2R

AGND2R

EXTR

NC

VOUTR

AGND1

MODE

MUTE

CS/IWO

RST

ZERO

VCC2L

VCC1

VOUTL

NC

EXTL

AGND2L

LRCK

DATA

BCK

CLKO

XTI

XTO

DGND

VDD

VCC2R

AGND2R

EXTR

NC

VOUTR

AGND1

MODE

MUTE

CS/IWO

RST

ZERO

VCC2L

VCC1

VOUTL

NC

EXTL

AGND2L

WCLK01

BCLK01

DOL

VDD

BCLKI

WCLKI

DIN

VSS

24/32/SEI

I2S/SONY

DINV

MODE1

MODE2

XOUT

CKOUT3

CKOUT2

CKOUT1

VSS

WCLK02

BCLK02

DOR

D811-D818

68

69

68

40

+5V

COM

D801-D804

DY81-DY84

QY83

J851 J852

J803

J811

J812

J821 J822

HN1A01F

Y,GR

9.5V

17V

-17V

-27V

-23.4V

MAIN PCB (PP16-3/3)

DN01-DN04

DN08

(IIEQS10)

(ID3-E)

-

- +

+

14

15

16

DELAY

ML

M

L

LM

M

LLM

M

I S FORMAT 48CLK 16BIT

2

C

VSS

VDD

VSS

VSS VDD

VSS

VDD

VDD VSS

VSS

XIN

VSS

VDD

VSS

VDD

RST

MUTE

RST

MUTE

RST

69

D

FOR Q102

18

19

20

21

67

18

20

21

18

19

21

49

48

50

51

MLE

MBCK

MDAT

MLE

MBCK

MDAT

14

15

16

17

FOR MPU

LLM

LMU

LPS

LMU

HDAM SHILD (031G)

5V

0

5V 0

-11.2V

POWER ON

1.2V

0

1.4 SEC

POWER ON

0V

5V

1.4 SEC

16.5V

AC13P

AC13N

VD9(3/3)

AC3.4P

AC3.4N

AC8.5P

AC8.5N

AC13P

0V

AC13N

AC22P

AC22N

AC3.4N

AC3.4P

AC22P

AC22N

V16(3/3)

F1(2/3)

F2(2/3)

VFT(2/3)

V16(3/3)

AMUT(2/3)

MUTO(3/3)

AC13P

AC13N

AC8.5N

AC8.5P

+12V

-12V

+5VS

+5VD

VD9(3/3)

-12V

+12V

-12V

+12V

MUTO(3/3)

SCLK

WCLK

DATA

MCK

SCLK

WCLK

DATA

MCK

+5VC

+5VD

MCK

WCLK

BCLK

DOR

DOL

BCLK

WCLK

DOR

BCLK

MCK

+5VD

MLE

MBCK

MDAT

MLE

MBCK

MDAT

MLE

MBCK

MDAT

MUTE OFF MUTE ON

S2

S1

S3

S4

S3

S2

S1

S2

WCLK

DATA

SCLK

WCLK01

DOL

DOR

BCLK01

WCLK02

BCLK02

+L CH

+R CH

(+L CH)

+L

+R

-L

-R

-11.2V

40

ANALOG OUTPUT

R

L

Filter-1(Sharp roll-off)

The pre-echo and afterecho characteristics in the impulse response are even. This tone can be treated as a reference tone regardless of the source.

Filter-2(Slow roll-off)

Both the pre-echo and afterecho characteristics in the impulse response are small. The tone sounds and features rich expression of reverberations.

ARS

T800mA L 250V

T1A L 250V

D803

D805

ARS

(PH16)

2SD1415A

Q802

R802

1k

C806

47/16V

D807 13V

D808 13V

R801

1k

C805

47/16V

2SB1020A

Q801

JH04

WHT

SH01

GH01

0.01 250V

AC 3.4P

AC 3.4N

AC 22P

AC 22N

AC 13P

0V

AC 13N

AC 8 .5N

AC 8.5P

AC3.4P

AC3.4N

AC22P

AC22N

AC13P

0V

AC13N

AC8.5N

AC8.5P

0V

SH02

VOLTAGE SELECTOR PCB

FUSE

110V

220V

THERMAL

J802

J001

L001

230V

BRN

BLU

0V

FUSE

110V

THERMAL

J802

L001

220V

/K1G VERSION

/N1G/N1S/S1G VERSION

LPT

W001

JH04

JH01

UH01

JUMPER

BRN

BLU

For N, S

For K

For N, S

BLU BRN

W002

031L

1615

SH01

JH01

JH04

GH01

JH02

JH03

UH01

UH03

UH02

BRN

BLACK

WHT

SH02

PH16

RED

WHT BLU

GRY

FH01

ONLY F/S

110V 220V

ONLY K

WG382K164-0

K

F/S

WHT/BLU

RED/BRN

BRN

BLU

PH16

J104

J102

C126

Q101

J101

C191

C192

Q191

Q192

Q193

C193

R191

R192

R197

R128R129

R193

R121

C124

C120

R130

R125

C125

R124

C130

R126

R195

R194

R127

C129

C121

C123

R120 C128 R122 R123

C127

C122

RADFOC+ FOCRAD+

GND

MI R2 D1 D2 R1

D3,D4

G

SLSW

SL+

SL-

TTM+

TTM-

FO+

SLSW

HF

FO-

RA+

G

LDON

5V

TTM+

TTM-

SL-

SL+

RA-

LO

+

O6R2

03D2

01R

O5R1

02D1

1

12

13 24

TDA1302T

PV16

LS/G

RW

+

WG382K163-0

Q191

Q192

Q193

Q101

PV16

JY01

SY01

SY02

SY03

SY04

SY05

SY06

LY0 2

LY01

LY03

CY21

QY02

XY02

QY06

DY04

DY05

SY07

QY08

QY05

QY04

DY06

QY07

DY08

CY23

CY12

RY11

CY14

CY13

CY09

CY08

RY08

RY06

RY07

RY30

RY29

RY26RY22

RY27

RY28

RY25

RY24

RY31RY23

RY05

RY03

RY01

RY02RY04

RY17

RY21

CY22

RY19

RY18

RY20

PY16

1

VY01

GND

1

11

31

41

G1

G2

G3

G4G5G6

G7

G9

G10

G11

G12

G13

G8

21

NC

F2

IC

49

NC

F2

NC

ICP1P2P3P4P5P6P7P8

P9

P10

P11

P12

P13

P14

P16

P18

P19

P20

P21

P22

P23

P24

P25

P26

P27

P28

P29

P30

P31

P32

P33

P34

P35

P36

P37

P38

P39

P40

F1

NP

F1

NP

71

91

STBD

SIOD

CLKD

KEY0

KEY1

+5V

VF1

VF2

-VFT

1

30

31

50

51

80

81

100

PLAY

STOP

PAUS E

NEXTPREVIOUS

61

OPEN/CLOSE

RSTD

UPD780204

KEY2

LED

LGND

IR

50

51

54

P15

81

98

FILTER

+

WG382K162-0

QY02

QY05 QY08 QY04 QY06 QY07

PY16

9. PARTS LOCATION (Chip parts Side)

17 18

PP16

QN55 QN56 QN06 QN05

Q658 Q657 Q608 Q607

Q801

QH56 ~ QH51 QH06 ~ QH01

Q802

QD01

Q811

Q812

QD51

QY03 QY01

Q204

QD12 QD02

QN92 QN91

Q901

QY82

QY81 QN01 QY83 QN02

QN03 QN04 Q108

Q106 Q107

Q109

Q102

Q201

QF02

Q202 QF01

RH53

DH52

QY82

QH55

QH53

QY81

C812

C813

C805

C806

Q801 Q802

D807

D808

R801

R802

C814

C815

Q811Q812

CY84

CY83

DN05

DY85

CN03

RN03

CN02

DN06

DN07

J601

RN07

JF51

J612

J611

RY88

J803

C804

SF01

JT01

LT01

C808C807

CY81

CY91

QN05

QN06

QN56

QN55

DY86

D805 D806

RY81

RY82

U005 U006

U007

U008

U010

R668

R669

R618

R619

CY82

C666C665C616

C615

C663

C664

C613

C614

Q901

L601

LT11

QH54

QH56

QH05

QH04

QH06

QN04

QN03

QY83

QN91

QN92

C904

DH51

DH02

DH01

CN01

D817

RY89

D818

D815

D816

D813

D814

D811

D812

DN03

DN04

DN01

DN02

DN08

DY83

DY82

DY81

DY84

DY91

DY92

D802

D801

D804

D803

R803

R804

C172

Q102

J105

L143

L141

Q108

Q106

Q107

Q201

L201

L202

QY01

Q202

Q109

XD01

QF02

QF01

LF01

QF03

J901

DH53

QH51

QH52

DH03

QH01

QH02

CD53

CD54

RD41

Q607

Q608

Q657

Q658

R615

R616

R665

R666

QY03

XY01

DF02

DF04

DF01

DF03

C147

CF01

L142

R148

R147

DY02

J103

C148

CT08

QN02

QN01

L651

C653

C654

RD51

C618

C668

CY02

CY01

CD14

QD12

L602

CD02

RD01

CD06

CD03

CD04

C601

C602

R601

R602

R603

R604

R605

R606

C603

C604

C605

CD52

CD56

C651

C652

C655

R651

R652

R653

R654

R655

R656

CD12

C204

C152

QD51

QD01

Q204

J811 J812

J821 J822

J851 J852

L652

QD02

RD11 RD12

RD13 RD14 RD15

CD13

CD11

CD91 RD91

RD92CD92

RY42

C203

RY43

RY41

RY10

C202

RF05

CF02

RF08

RF01

RF02

RF03

RF06

RF07

RF04

RY44

RY46

RY45

R196

C115

C114

R103

C113

C108

C109

R102

R204

C103 C101 C105 R101R100

C104

C102

C100

R203

R202

C141

C106

C145

R145

C112

C144

R142

R144

R143

R149

R141

R503

R502

R501

C201

R201

C111

R150

R153

CY04

RY09

CY03

R182

R181

C182

C181

R163

C179

C163

R162

R108

C178

R110

C177

C162

R111

C180

R161

C161

R911

RN93

R909

C905

R903

R905

C901

R907

RN91

RN92

RN94

R912

R904

C902

R906

R908

C906

CD01

CD07

CD05 RD02

R902

R901

RD52

CD55

CD51

CD57

R664

RN65RN66

C667

RN16

RN15

RN12

RT11

RT02

RT04

CT03

CT02

CF52

RF51

CF51

RN05

RN04

RN02

RN06

RY85 RY83

RY84

R173

R174

R106

C175

C151

R151

C173

C174

R152

C171 R171 R172 C176 R107

RN13

RN11

RY86

RY87

RN09

RN08

C143

R109

R105

C142

R910

C617

RH57

RH58

RH52

RH51

RH54

RH56

R670

RH55

RH07

RH03

RH08

RH06

RH04

RH01

RH02

RH05

R620

R672

R671

R673R623

R621

R622

CT01

CT04

CT11

C107

R104

R205

R614

RN10

POWER

+

EXTINT

020L

+

020L

+

++

020L

+

MUTING:H

++

+

-L

+L

HDAM L CH

HDAM R CH

020L

HDAM

+

1A 250V

F851

C803

2SB798

3V3V8V8VG

PHONE

DIG OUT

030L

F811

F821

JT11

QH03

NJM4556

+

13V

22V

-R

+R

SE

1.25A 125V

FOR SE VER.

RY80

FO+

FO-

RA-

RA+

TTM+

TTM-

SL-

SL+

SLSW

RA

FO

HF

G

O1R

O3D2

O2D1

O5R1

+

SERVO

1

16

17

32

33

49

64

TDA7073

G

SAA7372

+

48

LDON

O6R2

LS/G

+

1

2030

31

40

50

51 60

70

80

81

100

DECORDER

U-COM

UPD78076

GND

STBD SIOD

VF1

VF2

-VFT

+

+5A

CDRWO

IR

LGND

LED

+5VS

CLKD RSTD KEY0 KEY1 KEY2

PP16

GND

TROS

TRIS

TRY+

TRY-

+

LPF

030G

+

+R

-R

+

JF01

Q102

Q201

Q106

Q108

Q107

QD02

7805 7805

WG382K161-0

+

1

QY01

2019

030G

045B

017B

027B

025B

FRONT PANEL ASSY.

( 5128)

3X6(M)

x8

( 004B)

5127 3X8(M)

x2

001B

( 002B)

( 003B)

( 5128)

3X4(U)

x2

( 005B)

( 5150)

3X8(M)

x2

( 5128)

3X6(M)

x2

012B

5128 3X8(M)

x7

019B

020B

026B

5128 3X8(M)

022B

PY16

060B

5128 3X10(M)

024B

023Bx2

5128 3X8(M)

x6

050B

061Bx2

VY01

5159 3X6(A)

x2

015B

016B

L001

5129 3X8(M)

x4

5150 3X8(M)

x4

060Gx4

035G

001G

5159 3X6(A)

x2

016G

510M

PV16

010D

5127 3X8(M)

x6

5126 3X8(M)

023Gx 2

5128 3X8(M)

x3

PH16

5128 3X8(M)

x3

5128 3X8(M)

x2

5128 3X8(M)

x12

071G

002Dx2

003Dx6

007Dx 4

005Dx8

006Dx4

001D

5128 3X8(M)

x7

020Lx4

W0 0 1

5128 3X8(M)

X3

5128 3X8(M)

x2

901G

5127 3X8(M)

x4

SH02

SH01

W001

033Gx 2

5110 3X8(M)

x4

PP16

5150 3X8(U) x2

031Gx 2

032Gx 2

PH16

K VERSI ON

030L

J002

5127 3X8(M)

x2

5127 3X8(M)

091G

T

8

0

m

A

2

5

0

V

5126 3X8(M)

5128 3X8(M)

x2

002G

090G

(N)(K)ONLY

5128 3X8(M)

015M

MECHA ASSY.

001M

010D

010G

x4

5126 3X12(M)

x4

T100

SYMBOL STYLE

PARTS NAME

+B.H.M.S CREW

5110

5126

+B.H.TAP TITE SCRE WW /WASHE R

5127

+P.H.TAP TI TE S CREW( B TYP E)

5128

+B.H.TAP TI TE SCREW( B TYP E)

5150

5159

+F.H.TAP TI TE SCRE W(B TYP E)

+B.H.TAP TI TE SCREW( S TYP E)

MARK MATE RIAL /FINISH

(M )

(U )

STEEL /COPPER

STEEL /BLACK

5129

+B.H.TAP TI TE SCREW( S T YPE )

( 035M)

( 050M)

( 043M)

CASE ASSY.

( 036M) x 4

( 060M)

(051M)

(031M)

( 030M)

( 021M)

( 016M)

(025M)

( 010M)

(020M)

( 016M)

( 040M)

( 558M)

( 045M)

( 005M)

555M

( 556M)

( 557M)

( 053N)x2

501M

( 052N)x2

( 046M)

( 026M)

( 027M)

( 011M)

( 012M)

(006M)

(007M)

10. EXPLODED VIEW AND PARTS LIST

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

21

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

001B GOLD 10AK248510 FRONT PANEL ASSY GLD 10A K248 510

001B SILVER 10AK248540 FRONT PANEL ASSY SIL 10AK2 485 40

002B GOLD 356K248140 FRONT PANEL AL GLD 356K248140

002B SILVER 356K248240 FRONT PANEL AL SIL 356K248240

003B GOLD 318K063110 ESCUTCHEON

CORNER COLUMN AL GOLD

318K063110

003B SILVER 318K063210 ESCUTCHEON

CORNER COLUMN AL SILVER

318K063210

012B GOLD 382K259110 BUSHING FOR FILTER SW GOLD 382K259110

012B SILVER 382K259140 BUSHING FOR FILTER SW

SILVER

382K259140

015B GOLD 318K158130 WINDOW PINK SMOKE

FOR

GOLD 318K158130

015B SILVER 318K158310 WINDOW HARF MIRROR FOR SIL 318K158310

016B GOLD 342K259110 BUSHING FOR TRAY OPENING

W18 GLD

342K259110

016B SILVER 342K259210 BUSHING FOR TRAY OPENING

W18 SIL

342K259210

017B GOLD 318K104110 RETAINER GOLD 318K104110

017B SILVER 318K104210 RETAINER SILVE 318K104210

019B GOLD 313J251110 BADGE NEW MARANTZ GOLD 313J251110

019B SILVER 313J251040 BADGE NEW MARANTZ SILVER 313J251040

020B GOLD 382K270110 BUTTON FILTER 1/2 GOLD 382K270110

020B SILVER 382K270140 BUTTON FILTER 1/2 SILVER 382K270140

023B 382K355010 LENS FOR FILTER 1/2 382K355010

025B GOLD 318K270120 BUTTON PLAY/STOP/PAUSE

GOLD

318K270120

025B SILVER 318K270220 BUTTON PLAY/STOP/PAUSE

SILVER

318K270220

026B GOLD 318K270130 BUTTON OPEN/CLOSE GOLD 318K270130

026B SILVER 318K270230 BUTTON OPEN/CLOSE SILVER 318K270230

027B GOLD 318K270140 BUTTON TRACK GOLD 318K270140

027B SILVER 318K270240 BUTTON TRACK SILVER 318K270240

045B GOLD 318K270110 BUTTON POWER GOLD 318K270110

045B SILVER 318K270210 BUTTON POWER SILVER 318K270210

050B GOLD 342K063150 ESCUTCHEON TRAY LID AL

W14/R25/4-R2 GLD

342K063150

050B SILVER 342K063210 ESCUTCHEON TRAY LID AL

W14/R25/4-R2 SIL

342K063210

001D GOLD 318K257110 LID TOP COVER AL GOLD 318K257110

001D SILVER 318K257210 LID TOP COVER AL SILVER 318K257210

002D GOLD 323S010020 SCREW THINHEAD 3X8NI

TOP+CHASSIS

323S010020

002D SILVER 323S010060 SCREW THINHEAD 3X8HGNI

TOP+CHASS

323S010060

003D GOLD 318K010020 SCREW.THINHEAD 3X5NI

TOP+CHASSIS

318K010020

003D SILVER 318K010040 SCREW.THINHEAD 3X5HGNI

TOP+CHASS

318K010040

005D 318K118010 SPACER TOP COVER D10/D5.5 318K118010

010D GOLD 318K249110 SIDE PANEL GOLD 318K249110

010D SILVER 318K249210 SIDE PANEL SILVER 318K249210

010G GOLD 291K057010 LEG D60/H18 GOLD 291K057010

010G SILVER 291K057120 LEG D60/H18 SILVER 291K057120

030G 318K121010 LINK POWER SW 318K121010

001M GOLD 305K304650 MECHANISM LOADER

LM302 NEW TRAY BROWN

305K304650

001M SILVER 305K304640 MECHANISM LOADER

LM302 NEW TRAY BLACK

305K304640

005M 305K401500 FRAME K 305K401500

010M MM00300020 D.C MOTOR K MM00300020

016M SM01020620 MINI SWITCH SM01020620

020M 305K058030 GEAR 305K058030

021M 305K262010 PULLEY 305K262010

025M 305K058500 GEAR K 305K058500

030M 305K264010 BELT 305K264010

035M 305K064110 CASE 305K064110

036M 305K056010 BUFFER SUSPENSION 305K056010

040M 305K002050 ARM FOR VAM1201 305K002050

043M GOLD 329K064610 CASE K NEW STYLING BROWN 329K064610

043M SILVER 329K064600 CASE K NEW STYLING BLACK 329K064600

046M 305K115010 SPRING 305K115010

050M 305K054010 CAM 305K054010

051M 305K058050 GEAR FOR VAM1201 305K058050

060M 305K115020 SPRING 305K115020

501M 356K304500 MECHANISM TRAVERSE

VAM 1201 9305 022 20100

356K304500

555M 305K005600 CLAMPER ASSY 3104 147 12080 305K005600

J001 YJ04002550 JACK MAINS INLET HF-301 YJ04002550

L001 /N/S TS15742040 MAINS TRANSF.

EI57-35 OFC CASE 230V

TS15742040

L001 /K MAINS TRANSF.

EI57-35 OFC CASE 110/220V

TS15742050

PACKING

001T /N 10AK851310 USER GUIDE 9 LANG 1 0AK8513 10

001T /K/S USER GUIDE 2 LANG 10A K851350

T100 GOLD ZK356K0010 REMOTE CONTROLLER

RC-DA17CD GOLD

ZK356K0010

T100 SILVER ZK356K0020 REMOTE CONTROLLER

RC-DA17CD SILVER

ZK356K0020

W001 /N ZC01803080 MAINS CORD 10A 250V CLASS2 ZC01803080

W001 /K MAINS CORD CCEE 2.5A 250V ZC01803090

W001 /S MAINS CORD 250V 10A FOR UK ZC01804100

NOT STANDARD SPARE PARTS

001S PACKING CASE 10AK8 01010

002S CUSHION 4 PIECE 318K809010

22

11. ELECTRICAL PARTS LIST

The suppliers and their type numbers of fusible resistors are as follows;

1. KOA Corporation Part No. (MJI) Type No. (KOA) Description NH05 × × × 140 RF25S × × × × ΩJ(±5% 1/4W) NH05 × × × 120 RF50S × × × × ΩJ(±5% 1/2W) NH85 × × × 110 RF73B2A × × × × ΩJ(±5% 1/10W) NH95 × × × 140 RF73B2E × × × × ΩJ(±5% 1/4W)

2. Matsushita Electronic Components Co., Ltd Part No. (MJI) Type No. (MEC) Description NF05 × × × 140 ERD-2FCJ × × × (±5% 1/4W) RF05 × × × 140 NF02 × × × 140

ERD-2FCG

× × × (±2% 1/4W)

RF02 × × × 140

Examples ;

Resistance value

0.1 Ω.... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104

0.5 Ω.... 005 18 Ω .... 180 2.7 kΩ ....272 680 kΩ .... 684

1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105

6.8 Ω.... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ.... 475

ASSIGNMENT OF COMMON PARTS CODES.

RESISTORS

R : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W R : 2) GD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W

Examples ;

Resistance value

0.1 Ω.... 001 10 Ω .... 100 1 kΩ .... 102 100 kΩ .... 104

0.5 Ω.... 005 18 Ω .... 180 2.7 kΩ ....272 680 kΩ .... 684

1 Ω .... 010 100 Ω .... 101 10 kΩ .... 103 1 MΩ .... 105

6.8 Ω.... 068 390 Ω .... 391 22 kΩ .... 223 4.7 MΩ.... 475

Note : Please distinguish 1/4W from 1/6W by the shape of par ts

used actually.

CAPACITORS

C : CERAMIC CAP.

3) DD1 × × × × 370, Ceramic capacitor

Disc type Temp.coeff.P350 N1000, 50V

Examples ;

Tolerance (Capacity deviation)

±0.25 pF .... 0

±0.5 pF .... 1

±5% .... 5

Tolerance of COMMON PARTS handled here are as follows :

0.5 pF 5 pF .... ±0.25 pF

6 pF 10 pF .... ±0.5 pF

12 pF 560 pF .... ±5%

Capacity value

0.5 pF .... 005 3 pF .... 030 100 pF .... 101

1 pF .... 010 10 pF .... 100 220 pF .... 221

1.5 pF .... 015 47 pF .... 470 560 pF .... 561

C : CERAMIC CAP.

4) DK16 × × × 300, High dielectric constant ceramic

capacitor Disc type Temp.chara. 2B4, 50V

Examples ;

Capacity value

100 pF .... 101 1000 pF .... 102 10000 pF .... 103

470 pF .... 471 2200 pF .... 222

C : 5) ELECTROLY CAP. ( ), 6) FILM CAP. ( )

5) EA × × × × × × 10, Electrolytic capacitor

One-way lead type, Tolerance ±20%

Examples ;

Capacity value

0.1 µF .... 104 4.7 µF .... 475 100 µF .... 107

0.33 µF .... 334 10 µF .... 106 330 µF ....337

1 µF.... 105 22 µF .... 226 1100 µF ....118

2200 µF ....228

Working voltage

6.3V .... 006 25V .... 025

10V .... 010 35V .... 035

16V .... 016 50V .... 050

6) DF15 × × × 350 Plastic film capacitor DF15 × × × 310 One-way type, Mylar ±5% 50V DF16 × × × 310 Plastic film capacitor

One-way type, Mylar ±10% 50V

Examples ;

Capacity value

0.001 µF (1000 pF) ....... 102 0.1 µF .... 104

0.0018 µF ........................ 182 0.56 µF ....564

0.01 µF ........................ 103 1 µF .... 105

0.015 µF ........................ 153

: 1) The above CODES ( R , R , C , C and C ) are omitted on the schematic diagram in some

case.

2) On the occasion, be confirmed the common parts on the parts list.

3) Refer to “Common Parts List” for the other common parts (RI05, DD4, DK4).

➀

➁

Capacity value Tolerance

➃

Capacity value

Resistance value

➄

Working voltage Capacity value

➆

Capacity value

NOTE

NOTE ON SAFETY FOR FUSIBLE RESISTOR :

Resistance value

Resistance value (0.1 Ω − 10 kΩ)

Resistance value

ANT. : ANTENNA BATT. : BATTERY

CAP. : CAPACITOR CER. : CERAMIC

CONN. : CONNECTING DIG. : DIGITAL

HP : HEADPHONE MIC. : MICROPHONE

µ-PRO : MICROPROCESSOR REC. : RECORDING

RES. : RESISTOR SPK : SPEAKER

SW : SWITCH TRANSF. : TRANSFORMER

TRIM. : TRIMMING TRS. : TRANSISTOR

VAR. : VARIABLE X’TAL : CRYSTAL

ABBREVIATION AND MARKS

{

➂

➀

➁

➂

➃

➄

➅

➆

➅

NOTE ON SAFETY :

Symbol Fire or electrical shock hazard. Only original

parts should be used to replaced any part marked with

symbol . Any other component substitution (other

than original type), may increase risk of fire or electrical

shock hazard.

NOTE ON FUSE :

Regarding to all parts of parts code FS20xxx2xx, replace only with Wickmann-Werke GmbH, Type 372 non glass type fuse.

010728MIT

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

23

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

PH16-POWER SW/VOLTAGE

SEL.SW. CIRCUIT BOARD

GH01 DF77103500 FILM. 0.01µF M 250V AC DF77103500

JH01 YP04000760 PLUG 2P BASE POST YP04000760

JH04 /N/S YP04000760 PLUG 2P BASE POST B3P-VH YP04000760

JH04 /K PLUG 3P BASE POST B3P5-VH Y P04000920

SH01 SP01011990 PUSH SWITCH SDDLD1 POWER

SWITCH TV-3

SP01011990

SH02 /K SLIDE SWITCH SDKGA4 SS02021510

PP16-AUDIO/POWER

CIRCUIT BOARD PP16-CAPACITORS

C100

nsp CER. CHIP 220pF DK96221300

C105 nsp CER. CHIP 220pF DK96221300

C106 nsp CER. CHIP 0.022µF ±10% XTR 16V DK96223200

C107 nsp CER. CHIP 1000pF ±10% B 50V DK96102300

C108 nsp CER. CHIP 47pF ±5% CG 50V DD95470300

C109 nsp CER. CHIP 0.022µF ±10% XTR 16V DK96223200

C111 nsp CER. CHIP 100pF ±5% CG 50V DD95101300

C112 nsp CER. CHIP 0.1µF GRM39F104Z16 DK9810420 0

C113 nsp CER. CHIP 0.1µF ±10% B 10V DK96104200

C114 nsp CER. CHIP 560pF DK96561300

C115 nsp CER. CHIP 1500pF DK96152300

C141

nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

C145

C147 nsp ELECT. 47µF M 25V RA-2 OA47602520

C148 nsp ELECT. 100µF M 10V RA-2 OA10701020

C151 nsp CER. CHIP 0.1µF GRM39F104Z16 DK9810420 0

C152 nsp ELECT. 47µF M 25V RA-2 OA47602520

C161 nsp CER. CHIP 0.1µF ±10% B 10V DK96104200

C162 nsp CER. CHIP 0.1µF GRM39F104Z16 DK9810420 0

C163 nsp CER. CHIP 0.1µF ±10% B 10V DK96104200

C171 nsp CER. CHIP 4700pF ±10% B 50V DK96472300

C172 nsp ELECT. 47µF M 25V RA-2 OA47602520

C173 nsp CER. CHIP 0.1µF GRM39F104Z16 DK9810420 0

C174 nsp CER. CHIP 4700pF ±10% B 50V DK96472300

C175 nsp CER. CHIP 470pF DK96471300

C176 nsp CER. CHIP 470pF DK96471300

C177

nsp CER. CHIP 0.1µF ±10% B 10V DK96104200

C180

C181 nsp CER. CHIP 0.1µF GRM39F104Z16 DK9810420 0

C182 nsp CER. CHIP 0.022µF ±10% XTR 16V DK96223200

C201 nsp CER. CHIP 0.1µF GRM39F104Z16 DK9810420 0

C202 nsp CER. CHIP 0.1µF GRM39F104Z16 DK9810420 0

C203 nsp CER. CHIP 0.1µF GRM39F104Z16 DK9810420 0

C204 nsp ELECT. 47µF M 25V RA-2 OA47602520

C601 nsp ELECT. 22µF M 25V ARS OA22602540

C602 nsp ELECT. 22µF M 25V ARS OA22602540

C603 OF55222570 FILM 2200pF 100V DTG OF55222570

C604 OF55102570 FILM 1000pF 100V DTG OF55102570

C605 OF55122570 FILM 1200pF 100V DTG OF55122570

C613 nsp ELECT. 220µF 16V ARS OA22701640

C614 nsp ELECT. 220µF 16V ARS OA22701640

C615 nsp ELECT. 220µF ±20 16V SILMIC OA22701640

C616 nsp ELECT. 220µF ±20 16V SILMIC OA22701640

C617 nsp CER. CHIP 100pF ±5% CG 50V DD95101300

C651 nsp ELECT. 22µF M 25V ARS OA22602540

C652 nsp ELECT. 22µF M 25V ARS OA22602540

C653 OF55222570 FILM 2200pF 100V DTG OF55222570

C654 OF55102570 FILM 1000pF 100V DTG OF55102570

C655 OF55122570 FILM 1200pF 100V DTG OF55122570

C663 nsp ELECT. 220µF 16V ARS OA22701640

C664 nsp ELECT. 220µF 16V ARS OA22701640

C665 nsp ELECT. 220µF ±20 16V SILMIC OA22701640

C666 nsp ELECT. 220µF ±20 16V SILMIC OA22701640

C667 nsp CER. CHIP 100pF ±5% CG 50V DD95101300

C803 OB10803520 ELECT. 35V 1000µF BLOCK O B10803520

C804 OB10803520 ELECT. 35V 1000µF BLOCK O B10803520

C805 nsp ELECT. 47µF ±20 16V SILMIC OA47601640

C806 nsp ELECT. 47µF ±20 16V SILMIC OA47601640

C807 nsp ELECT. 220µF 16V ARS OA22701640

C808 nsp ELECT. 220µF 16V ARS OA22701640

C812 nsp ELECT. 4700µF 16V RA-2 OA47801620

C813 nsp ELECT. 3300µF 16V RA2 OA33801620

C814 OC47701620 ELECT. 470µF 16V 10X12.5 ARE2 OC47701620

C815 nsp ELECT. 220µF M 16V RA-2 OA22701620

CD01 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD02 nsp ELECT. 1000µF 10V M RA-2 OA10801020

CD03 nsp ELECT. 47µF M 16V ARS OA47601640

CD04 nsp ELECT. 47µF M 16V ARS OA47601640

CD05 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD06 nsp ELECT. 220µF M 10V RA-2 OA22701020

CD07 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD11 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD12 nsp ELECT. 220µF M 10V RA-2 OA22701020

CD13 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD14 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD51 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD52 nsp ELECT. 1000µF 10V M RA-2 OA10801020

CD53 nsp ELECT. 47µF M 16V ARS OA47601640

CD54 nsp ELECT. 47µF M 16V ARS OA47601640

CD55 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD56 nsp ELECT. 220µF M 10V RA-2 OA22701020

CD57 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CD91 nsp CER. CHIP 18pF DD95180300

CD92 nsp CER. CHIP 18pF DD95180300

CF01 nsp ELECT. 10µF M 16V RA-2 OA10601620

CF02 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CF51 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CF52 nsp CER. CHIP 470pF DK96471300

CN01 nsp ELECT. 470µF 25V RA-2 OA47702520

CN02 nsp ELECT. 1µF 50V RA-2 OA10505020

CN03 nsp ELECT. 2.2µF 50V RA-2 OA22505020

CT02 nsp CER. CHIP 4700pF ±10% B 50V DK96472300

CT03 nsp CER. CHIP 2200pF DK96222300

CT08 nsp ELECT. 100µF 25V ARS OA10702540

CY01 nsp ELECT. 2.2µF M 50V RA-2 OA22505020

CY02 nsp ELECT. 47µF M 25V RA-2 OA47602520

CY03 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CY04 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CY81 nsp ELECT. 100µF M 50V RA-2 OA10705020

CY82 nsp ELECT. 100µF M 35V RA-2 OA10703520

PP16-RESISTORS

R100 nsp CHIP . 10kΩ ±5% 1/16W NN05103610 R101 nsp CHIP . 10kΩ ±5% 1/16W NN05103610 R102 nsp CHIP . 270kΩ ±5% 1/16W NN05274610 R103 nsp CHIP . 22kΩ ±5% 1/16W NN05223610 R104 nsp CHIP . 1kΩ ±5% 1/16W NN05102610 R105 nsp CHIP . 100kΩ ±5% 1/16W NN05104610 R106 nsp CHIP . 12kΩ ±5% 1/16W NN05123610 R107 nsp CHIP . 12kΩ ±5% 1/16W NN05123610 R108 nsp CHIP . 12kΩ ±5% 1/16W NN05123610 R109 nsp CHIP . 100Ω ±5% 1/16W NN05101610 R110 nsp CHIP . 22kΩ ±5% 1/16W NN05223610 R111 nsp CHIP . 22kΩ ±5% 1/16W NN05223610

R141

nsp CHIP . 22kΩ ±5% 1/16W NN05223610

R145

R147 NH05022140 FUSIBLE . 2.2Ω J 1/4W NH05022140 R148 NH05022140 FUSIBLE . 2.2Ω J 1/4W NH05022140

R149 nsp CHIP . 22kΩ ±5% 1/16W NN05223610 R150 nsp CHIP . 22kΩ ±5% 1/16W NN05223610

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

24

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

R151 nsp CHIP . 1kΩ ±5% 1/16W NN05102610 R152 nsp CHIP . 1kΩ ±5% 1/16W NN05102610 R153 nsp CHIP . 22kΩ ±5% 1/16W NN05223610 R161 nsp CHIP . 1kΩ ±5% 1/16W NN05102610 R162 nsp CHIP . 10kΩ ±5% 1/16W NN05103610 R163 nsp CHIP . 1kΩ ±5% 1/16W NN05102610 R171 nsp CHIP . 1.2kΩ ±5% 1/16W NN05122610 R172 nsp CHIP . 10kΩ ±5% 1/16W NN05103610 R173 nsp CHIP . 1kΩ ±5% 1/16W NN05102610 R174 nsp CHIP . 10kΩ ±5% 1/16W NN05103610 R181 nsp CHIP . 470Ω ±5% 1/16W NN05471610 R182 nsp CHIP . 12kΩ ±5% 1/16W NN05123610

R201 nsp CHIP . 22 kΩ ±5% 1/16W NN05223610

R202

nsp CHIP . 10kΩ ±5% 1/16W NN05103610

R205 R501 nsp CHIP . 100Ω ±5% 1/16W NN05101610 R502 nsp CHIP . 100Ω ±5% 1/16W NN05101610 R503 nsp CHIP . 100Ω ±5% 1/16W NN05101610 R614 nsp CHIP . 47kΩ ±5% 1/16W NN05473610 R620 NI05101110 CHIP . 100Ω ±5% 1/10W NI05101110 R621 NI05680110 CHIP . 68Ω ±5% 1/10W N I0568011 0 R622 NI05680110 CHIP . 68Ω ±5% 1/10W N I0568011 0 R623 NI05104110 CHIP . 100kΩ ±5% 1/10W N I05104110 R664 nsp CHIP . 47kΩ ±5% 1/16W NN05473610 R670 NI05101110 CHIP . 100Ω ±5% 1/10W NI05101110 R671 NI05680110 CHIP . 68Ω ±5% 1/10W NI 05680110 R672 NI05680110 CHIP . 68Ω ±5% 1/10W NI 05680110

R673 NI05104110 CHIP . 100kΩ ±5% 1/10W N I05104110

R801 nsp RES. 1kΩ ±5% 1/6W GD05102160 R802 nsp RES. 1kΩ ±5% 1/6W GD05102160

RD01 NH05022140 FUSIBLE . 2.2Ω J 1/4W NH05022140

RD02 nsp CHIP . 10kΩ ±5% 1/16W NN05103610

RD11

nsp CHIP . 220Ω ±5% 1/16W NN05221610

RD14

RD15 nsp CHIP . 47Ω ±5% 1/16W NN05470610

RD41 NH05022140 FUSIBLE . 2.2Ω J 1/4W NH05022140

RD51 NH05022140 FUSIBLE . 2.2Ω J 1/4W NH05022140

RD52 nsp CHIP . 10kΩ ±5% 1/16W NN05103610

RD91 nsp CHIP . 1MΩ ±5% 1/16W NN05105610

RD92 nsp CHIP . 220Ω ±5% 1/16W NN05221610

RF01 nsp CHIP . 47kΩ ±5% 1/16W NN05473610

RF02 nsp CHIP . 4.7kΩ ±5% 1/16W NN05472610

RF03 nsp CHIP . 100Ω ±5% 1/16W NN05101610

RF04 nsp CHIP . 10kΩ ±5% 1/16W NN05103610

RF05 nsp CHIP . 10kΩ ±5% 1/16W NN05103610

RF06 nsp CHIP . 2.2kΩ ±5% 1/16W NN05222610

RF07 nsp CHIP . 10kΩ ±5% 1/16W NN05103610

RF08 nsp CHIP . 10kΩ ±5% 1/6W NN05103610

RF51 nsp CHIP . 22Ω ±5% 1/16W NN05220610

RH01 NI05121110 CHIP . 120Ω ±5% 1/10W N I0512111 0

RH02 NI05121110 CHIP . 120Ω ±5% 1/10W N I0512111 0

RH03 NI05680110 CHIP . 68Ω ±5% 1/10W NI 05680110

RH04 NI05680110 CHIP . 68Ω ±5% 1/10W NI 05680110

RH05 NI05680110 CHIP . 68Ω ±5% 1/10W NI 05680110

RH06 NI05561110 CHIP . 560Ω ±5% 1/10W N I05561110

RH07 NI05561110 CHIP . 560Ω ±5% 1/10W N I05561110

RH08 NI01333110 CHIP . 33kΩ ±1% 1/10W NI 01333110

RH51 NI05121110 CHIP . 120Ω ±5% 1/10W N I0512111 0

RH52 NI05121110 CHIP . 120Ω ±5% 1/10W N I0512111 0

RH53 NI05680110 CHIP . 68Ω ±5% 1/10W NI 05680110

RH54 NI05680110 CHIP . 68Ω ±5% 1/10W NI 05680110

RH55 NI05680110 CHIP . 68Ω ±5% 1/10W NI 05680110

RH56 NI05561110 CHIP . 560Ω ±5% 1/10W N I05561110

RH57 NI05561110 CHIP . 560Ω ±5% 1/10W N I05561110

RH58 NI01333110 CHIP . 33kΩ ±1% 1/10W NI 01333110

RN02 nsp CHIP . 47kΩ ±5% 1/16W NN05473610

RN03 nsp RES. 1kΩ ±5% 1/6W GD05102160

RN04 nsp CHIP . 15kΩ ±5% 1/16W NN05153610 RN05 nsp CHIP . 3.9MΩ ±5% 1/16W NN05395610 RN06 nsp CHIP . 10kΩ ±5% 1/16W NN05103610

RN07 nsp RES. 1kΩ ±5% 1/6W GD05102160

RN08 nsp CHIP . 12kΩ ±5% 1/16W NN05123610 RN09 nsp CHIP . 12kΩ ±5% 1/16W NN05123610 RN10 nsp CHIP . 47kΩ ±5% 1/16W NN05473610 RN11 nsp CHIP . 10kΩ ±5% 1/16W NN05103610 RN12 nsp CHIP . 100kΩ ±5% 1/16W NN05104610 RN13 nsp CHIP . 4.7kΩ ±5% 1/16W NN05472610 RN15 nsp CHIP . 2.2kΩ ±5% 1/16W NN05222610 RN16 nsp CHIP . 2.2kΩ ±5% 1/16W NN05222610 RN65 nsp CHIP . 2.2kΩ ±5% 1/16W NN05222610 RN66 nsp CHIP . 2.2kΩ ±5% 1/16W NN05222610

RT02 nsp CHIP . 33Ω ±5% 1/16W NN05330610 RT04 nsp CHIP . 75Ω ±5% 1/16W NN05750610 RT11 nsp CHIP . 0Ω ±5% 1/16W NN05000610 RY09 nsp CHIP . 220kΩ ±5% 1/16W NN05224610 RY10 nsp CHIP . 1MΩ ±5% 1/16W NN05105610 RY26 nsp CHIP . 10kΩ ±5% 1/16W NN05103610 RY41 nsp CHIP . 10kΩ ±5% 1/16W NN05103610

RY42

nsp CHIP . 10kΩ ±5% 1/16W NN05103610

RY46

RY80 NH85100110 FUSIBLE . 10Ω NH85100110

RY81 nsp RES. 47Ω ±5% 1/6W GD05470160 RY82 nsp RES. 47Ω ±5% 1/6W GD05470160

RY83 nsp CHIP . 10kΩ ±5% 1/16W NN05103610

RY84 nsp CHIP . 47kΩ ±5% 1/16W NN05473610

RY85 nsp CHIP . 47kΩ ±5% 1/16W NN05473610

RY86 nsp CHIP . 47kΩ ±5% 1/16W NN05473610

RY87 nsp CHIP . 22kΩ ±5% 1/16W NN05223610

RY88 nsp RES. 4.7kΩ ±5% 1/6W GD05472160

PP16-SEMICONDUCTORS

D801

HD20055100 DIODE SHOTTKY HD20055100

D804 11EQS10 1A 100V

D805 nsp DIODE

1SS176 MA165 1SS254 30V 0.1A

HD20002000

D806 nsp DIODE

1SS176 MA165 1SS254 30V 0.1A

HD20002000

D807 HD31301000 ZENER DIODE 13V HD31301000

D808 HD31301000 ZENER DIODE 13V HD31301000

D811

HD20055100 DIODE SHOTTKY HD20055100

D818 11EQS10 1A 100V

DF01

nsp DIODE HD20002000

DF04 1SS176 MA165 1SS254 30V 0.1A

DH01 HZ20018050 CHIP DIODE 1SS302 HZ20018050

DH02 HZ20018050 CHIP DIODE 1SS302 HZ20018050

DH03 nsp DIODE

1SS176 MA165 1SS254 30V 0.1A

HD20002000

DH51 HZ20018050 CHIP DIODE 1SS302 HZ20018050

DH52 HZ20018050 CHIP DIODE 1SS302 HZ20018050

DH53 nsp DIODE

1SS176 MA165 1SS254 30V 0.1A

HD20002000

DN01 HD20002710 DIODE 1D3 1A/200V HD20002710

DN02 HD20002710 DIODE 1D3 1A/200V HD20002710

DN03 HD20002710 DIODE 1D3 1A/200V HD20002710

DN04 HD20002710 DIODE 1D3 1A/200V HD20002710

DN05 nsp DIODE ISS176 MA165 ISS254 30V

0.1A

HD20002000

DN06 nsp DIODE

1SS176 MA165 1SS254 30V 0.1A

HD20002000

DN07 HD30561000 ZENER DIODE 5.6V HD30561000

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

25

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

DN08 HD20002710 DIODE 1D3 1A/200V HD20002710

DY02 nsp DIODE

1SS176 MA165 1SS254 30V 0.1A

HD20002000

DY08 nsp DIODE

1SS176 MA165 1SS254 30V 0.1A

HD20002000

DY81

HD20002710 DIODE 1D3 1A/200V HD20002710

DY84

DY85 HD32401000 ZENER DIODE 24V HD32401000

DY86 HD30471000 ZENER DIODE 4.7V HD30471000

Q102 HC10132490 IC SAA7372GP CD7 CD

DECORDER

HC10132490

Q106

HC10165490 IC TDA7073AT SOP HC10165490

Q108 DUAL BTL DRIVER

Q109 HX327122A0 CHIP TRS. 2SC2712 0 Y HX327122A0

Q201 HC10390030 IC CD TEXT DECODER LC89170M HC10390030

Q202 HC10076000 IC 8X32K SRAM <35NS SOJ HC10076000

Q204 HC10004990 IC AT93C46R-10SI-2.7 EEPROM HC10004990

Q607 HF201701H0 F.E.T. 2SK170 V HF201701H0

Q608 HF100741H0 F.E.T. 2SJ74 V HF100741H0

Q657 HF201701H0 F.E.T. 2SK170 V HF201701H0

Q658 HF100741H0 F.E.T. 2SJ74 V HF100741H0

Q801 HT21020100 TRS. 2SB1020A HT21020100

Q802 HT41415100 TRS. 2SD41415A HT41415100

Q811 HC3890509F AVR NJM7805FA +5V 1A HC3890509F

Q812 HC3890509F AVR NJM7805FA +5V 1A HC3890509F

QD01 HC10011610 IC PCM1716

24BIT D/A CONVERTER

HC10011610

QD02 HC10438050 IC IC TC160G11AU-1305 HC10438050

QD12 HC10427050 IC TC7SHU04F 1PACKINV HC10427050

QD51 HC10011610 IC PCM1716

24BIT D/A CONVERTER

HC10011610

QF01 HX111622A0 CHIP TRS. 2SA1162 0 OR Y HX111622A0

QF02 HX327122A0 CHIP TRS. 2SC2712 0 Y HX327122A0

QF03 HC10409050 IC TCW125FU HC10409050

QH01 HF203691B0 F.E.T.

2SK369 BL VGDS-40V PD0.4W

HF203691B0

QH02 HF203691B0 F.E.T.

2SK369 BL VGDS-40V PD0.4W

HF203691B0

QH03 HX328731B0 CHIP TRS. 2SC2873 Y HX328731B0

QH04 HX113121B0 CHIP TRS. 2SA1312 B HX113121B0

QH05 HX113121B0 CHIP TRS. 2SA1312 B HX113121B0

QH06 HX333241B0 CHIP TRS. 2SC3324 B HX333241B0

QH51 HF203691B0 F.E.T.

2SK369 BL VGDS-40V PD0.4W

HF203691B0

QH52 HF203691B0 F.E.T.

2SK369 BL VGDS-40V PD0.4W

HF203691B0

QH53 HX328731B0 CHIP TRS. 2SC2873 Y HX328731B0

QH54 HX113121B0 CHIP TRS. 2SA1312 B HX113121B0

QH55 HX113121B0 CHIP TRS. 2SA1312 B HX113121B0

QH56 HX333241B0 CHIP TRS. 2SC3324 B HX333241B0

QN01 BA20070210 DIG.TRS. UMH4N (NPN X2 R=10K) BA 20070210

QN02 BA20070210 DIG.TRS. UMH4N (NPN X2 R=10K) BA 20070210

QN03 HX327122A0 CHIP TRS. 2SC2712 0 Y FLAT HX327122A0

QN04 HX111622A0 CHIP TRS. 2SA1162 0 Y FLAT HX111622A0

QN05 HT328782A0 TRS. 2SC2878 A OR B HT328782A0

QN06 HT328782A0 TRS. 2SC2878 A OR B HT328782A0

QN55 HT328782A0 TRS. 2SC2878 A OR B HT328782A0

QN56 HT328782A0 TRS. 2SC2878 A OR B HT328782A0

QY01 HU382KN00F MICROPROCESSOR MAIN

100P QFP NEC UPD78076

HU382KN00F

QY03 HC10098550 IC PST600D-2 ET HC10098550

QY81 HX207982A0 CHIP TRS. 2SB798 DL DK HX207982A0

QY82 HT324582B0 TRS. 2SC2458 Y OR GR HT324582B0

QY83 BA10011050 DIG.TRS. HN1A01F Y GR B A10011050

PP16-MISCELLANEOUS

F811 FS10080850 FUSE T800 MA 250V BS LISTED FS10080850

F821 FS10080850 FUSE T800 MA 250V BS LISTED FS10080850

F851 FS10100850 FUSE T1A 250V BS LISTED FS10100850

J601 YT02021080 TERMINAL YKC21-3337

CINCH P-JACK W/R GOLD

YT02021080

JF51 YT02020890 TERMINAL 2P

CINCH PIN JACK FOR RC-5

YT02020890

JT01 YT02010790 TERMINAL 14X14 RA 1L1P BLK

AU FLM-GND

YT02010790

JT11 YJ15000190 OPT. CONNECTOR GP1FA550TZ

OPT OUTPUT

YJ15000190

L141

FC90030070 FERRITE CORE BLM31A02 FC90030070

L143 CHIP INDUCTOR

L201 FC90030070 FERRITE CORE BLM31A02

CHIP INDUCTOR

FC90030070

L202 FC90030070 FERRITE CORE

BLM31A02 CHIP INDUCTOR

FC90030070

L601 FC90030070 FERRITE CORE BLM31A02

CHIP INDUCTOR

FC90030070

L602 LU12222010 CHIP INDUCTANCE

NL322522-2R2M

LU12222010

L651 FC90030070 FERRITE CORE BLM31A02

CHIP INDUCTOR

FC90030070

L652 LU12222010 CHIP INDUCTANCE

NL322522-2R2M

LU12222010

LF01 FC90030070 FERRITE CORE BLM31A02

CHIP INDUCTOR

FC90030070

LT01 TP41042030 PULSE TRANSF.

TPS247MN-0386AN

TP41042030

LT11 FC90030070 FERRITE CORE BLM31A02

CHIP INDUCTOR

FC90030070

SF01 SS02021150 SLIDE SWITCH INT/EXT SS02021150

W102 nsp JUMPER LEAD SUMI CARD

210MM 21P

YU21100520

XD01 JX16002360 CRYSTAL 16.9344 MHz CM3O9S J X16002360

XY01 FQ05004040 CER. VIB. CSTCC5.00MG-TC

5MHz RESONATOR

FQ05004040

PV16-SERVO

CIRCUIT BOARD PV16-CAPACITORS

C120 nsp CER. CHIP 5600pF ±10% B50V DK96562300

C121 nsp CER. CHIP 0.1µF GRM39F104Z16 DK9810420 0

C122 nsp CER. CHIP 0.022µF 16V DK9822330 0

C123 nsp CER. CHIP 1000pF ±10% B 50V DK96102300

C124 nsp CER. CHIP 0.1µF GRM39F104Z16 DK9810420 0

C125 nsp CER. CHIP 150pF ±5% CG 50V DD95151300

C126 EY10601620 TANTL.CAP CHIP 10µF/16V EY 10601620

C129 nsp CER. CHIP 0.1µF GRM39F104Z16 DK9810420 0

C130 nsp CER. CHIP 100pF ±5% CG 50V DD95101300

PY16-RESISTORS

R120 nsp CHIP . 100kΩ ±5% 1/16W NN05104610 R121 nsp CHIP . 680Ω ±5% 1/16W NN05681610 R124 nsp CHIP . 680Ω ±5% 1/16W NN05681610 R125 nsp CHIP . 15kΩ ±5% 1/16W NN05153610 R126 nsp CHIP . 3.3kΩ ±5% 1/16W NN05332610 R127 nsp CHIP . 2.2kΩ ±5% 1/16W NN05222610 R128 nsp CHIP . 3.9kΩ ±5% 1/16W NN05392610 R130 nsp CHIP . 27kΩ ±5% 1/16W NN05273610 R195 nsp CHIP . 100Ω ±5% 1/16W NN05101610 R196 nsp CHIP . 0Ω ±5% 1/16W NN05000610 R197 nsp CHIP . 0Ω ±5% 1/16W NN05000610

PV16-SEMICONDUCTORS

Q101 HC10136490 IC TDA1302T SERVO PRIAMP H C10136490

Q192 HT30001000 TRS.

2SC2458 2SC1740S 2SC3199 ETC

HT30001000

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

26

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

POS.

NO

VERS.

COLOR

PART NO.

(FOR EUR)

DESCRIPTION

PART NO.

(MJI)

Q193 HT30001000 TRS.

2SC2458 2SC1740S 2SC3199 ETC

HT30001000

PV16-MISCELLANEOU

J101 YJ07018790 JACK SLD 12 R-1 FFC

CONNECTOR ANGLE

YJ07018790

PY16-FRONT

CIRCUIT BOARD PY16-CAPACITORS

CY12 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CY13 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CY14 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CY21 EY10701020 TANTL. CHIP 100µF 10V

PSND1A107M

EY10701020

CY22 nsp CER. CHIP 0.1µF GRM39F104Z16 DK98104200

CY23 EY33601020 TANTL. CHIP 33µF 10V EY33601020

PY16-RESISTORS

RY01 nsp CHIP . 4.7kΩ ±5% 1/16W NN05472610 RY02 nsp CHIP . 4.7kΩ ±5% 1/16W NN05472610

RY03

nsp CHIP . 2.2kΩ ±5% 1/16W NN05222610

RY06 RY07 nsp CHIP . 6.8kΩ ±5% 1/16W NN05682610 RY08 nsp CHIP . 6.8kΩ ±5% 1/16W NN05682610 RY11 nsp CHIP . 1MΩ ±5% 1/16W NN05105610 RY17 nsp CHIP . 4.7kΩ ±5% 1/16W NN05472610 RY18 nsp CHIP . 2.2kΩ ±5% 1/16W NN05222610 RY19 nsp CHIP . 2.2kΩ ±5% 1/16W NN05222610 RY20 nsp CHIP . 6.8kΩ ±5% 1/16W NN05682610 RY21 nsp CHIP . 100Ω ±5% 1/16W NN05101610 RY22 nsp CHIP . 4.7kΩ ±5% 1/16W NN05472610 RY23 /K1G nsp CHIP . 220Ω ±5% 1/16W NN05221610 RY23 /N1G nsp CHIP . 220Ω ±5% 1/16W NN05221610 RY23 /S1G nsp CHIP . 220Ω ±5% 1/16W NN05221610 RY23 /N1S nsp CHIP . 33Ω ±5% 1/16W NN05330610 RY24 nsp CHIP . 100Ω ±5% 1/16W NN05101610 RY25 nsp CHIP . 2.2kΩ ±5% 1/16W NN05222610 RY27 nsp CHIP . 4.7kΩ ±5% 1/16W NN05472610 RY28 nsp CHIP . 1kΩ ±5% 1/16W NN05102610 RY29 nsp CHIP . 100kΩ ±5% 1/16W NN05104610 RY30 nsp CHIP . 10kΩ ±5% 1/16W NN05103610 RY31 /K1G nsp CHIP . 220Ω ±5% 1/16W NN05221610 RY31 /N1G nsp CHIP . 220Ω ±5% 1/16W NN05221610 RY31 /S1G nsp CHIP . 220Ω ±5% 1/16W NN05221610 RY31 /N1S nsp CHIP . 33Ω ±5% 1/16W NN05330610

PY16-SEMICONDUCTORS

DY04 HI10062320 L.E.D. LT3D8B RED 3O H I1 00 62320

DY05 HI10162320 L.E.D. GL3BC802B0SC HI1 01 62320

DY06 HZ20018050 CHIP DIODE 1SS302 HZ20018050

QY02 HU356KN10F MICROPROCESSOR DISPLAY

µPC 100P QFP µPD780204

HU356KN10F

QY04

HX111622A0 CHIP TRS. 2SA1162 0 OR Y HX111622A0

QY08

PY16-MISCELLANEOUS

LY01 FC90030070 FERRITE CORE BLM31A02

CHIP INDUCTOR

FC90030070

LY02 FC90030070 FERRITE CORE BLM31A02

CHIP INDUCTOR

FC90030070

LY03 FC90030070 FERRITE CORE BLM31A02

CHIP INDUCTOR

FC90030070

SY01

SP01013370 PUSH SWITCH SP01013370

SY07 EVQ11L05R H/5MM 160GF

VY01 HQ31302410 DISPLAY UNIT FTD 13-ST-35G HQ31302410

WY01 nsp JUMPER LEAD

SMCD-15X120-BDX10-P1.25-S6.0

YU15120500

XY02 FQ05004040 CER. VIB. CSTCC5.00MG-TC

5MHZ RESONATOR

FQ05004040

ZY21 HW10004210 PHOTO UNIT RPM6936-V4

IR SENSOR

HW10004210

Marantz CD17/K1G, CD17N1G, CD17S1G, CD17N1S, CD17MK3/K1G Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
