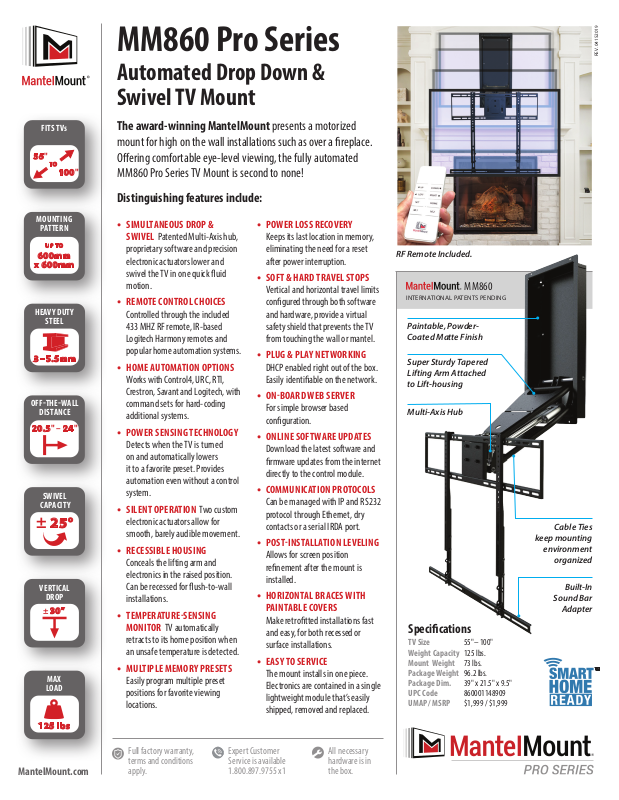

MantelMount MM860 Specification Sheet

MM860 Pro Series

Automated Drop Down &
Swivel TV Mount

REV. 04152019

FITS TVs

55"

TO

100"

MOUNTING

PATTERN

UP TO

600mm

x 600mm

HEAVY DUTY

STEEL

3  5.5mm

OFFTHEWALL

20.5" – 24"

DISTANCE

SWIVEL

CAPACITY

± 25°

VERTICAL

DROP

± 30"

MAX

LOAD

125 lbs

The award-winning MantelMount presents a motorized
mount for high on the wall installations such as over a replace.
Oering comfortable eye-level viewing, the fully automated
MM860 Pro Series TV Mount is second to none!

Distinguishing features include:

• SIMULTANEOUS DROP &

SWIVEL Patented Multi-Axis hub,

proprietary software and precision
electronic actuators lower and
swivel the TV in one quick uid
motion.

• REMOTE CONTROL CHOICES

Controlled through the included
433 MHZ RF remote, IR-based
Logitech Harmony remotes and
popular home automation systems.

• HOME AUTOMATION OPTIONS

Works with Control4, URC, RTI,
Crestron, Savant and Logitech, with
command sets for hard-coding
additional systems.

• POWER SENSING TECHNOLOGY

Detects when the TV is turned
on and automatically lowers
it to a favorite preset. Provides
automation even without a control
system.

• SILENT OPERATION Two custom

electronic actuators allow for
smooth, barely audible movement.

• RECESSIBLE HOUSING

Conceals the lifting arm and
electronics in the raised position.
Can be recessed for ush-to-wall
installations.

• TEMPERATURESENSING

MONITOR TV automatically

retracts to its home position when
an unsafe temperature is detected.

• MULTIPLE MEMORY PRESETS

Easily program multiple preset
positions for favorite viewing
locations.

• POWER LOSS RECOVERY

Keeps its last location in memory,
eliminating the need for a reset
after power interruption.

• SOFT & HARD TRAVEL STOPS

Vertical and horizontal travel limits
congured through both software
and hardware, provide a virtual
safety shield that prevents the TV
from touching the wall or mantel.

• PLUG & PLAY NETWORKING

DHCP enabled right out of the box.
Easily identiable on the network.

• ONBOARD WEB SERVER

For simple browser based
conguration.

• ONLINE SOFTWARE UPDATES

Download the latest software and
rmware updates from the internet
directly to the control module.

• COMMUNICATION PROTOCOLS

Can be managed with IP and RS232
protocol through Ethernet, dry
contacts or a serial IRDA port.

• POSTINSTALLATION LEVELING

Allows for screen position
renement after the mount is
installed.

• HORIZONTAL BRACES WITH

PAINTABLE COVERS

Make retrotted installations fast
and easy, for both recessed or
surface installations.

• EASY TO SERVICE

The mount installs in one piece.
Electronics are contained in a single
lightweight module that’s easily
shipped, removed and replaced.

RF Remote Included.

MM860

INTERNATIONAL PATENTS PENDING

Paintable, Powder­Coated Matte Finish

Super Sturdy Tapered
Lifting Arm Attached
to Lift-housing

Multi-Axis Hub

Cable Ties

keep mounting

environment

organized

Built-In

Sound Bar

Adapter

Specications

TV Size 55"– 100"
Weight Capacity 125 lbs.
Mount Weight 73 lbs.
Package Weight 96.2 lbs.
Package Dim. 39" x 21.5" x 9.5"
UPC Code 860001148909
UMAP / MSRP $1,999 / $1,999

MantelMount.com

Full factory warranty,
terms and conditions
apply.

Expert Customer
Service is available

1.800.897.9755 x1

All necessary
hardware is in
the box.
