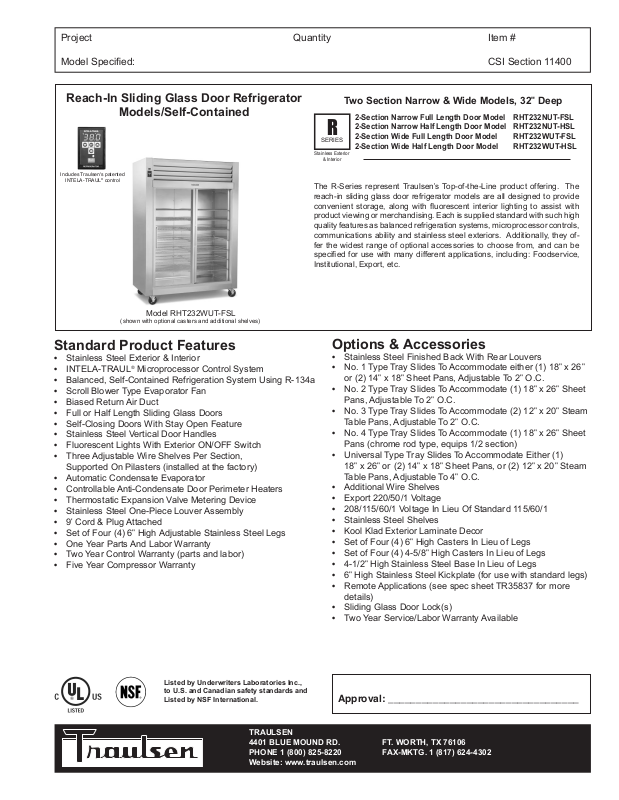

Mannhart RHT232NUT-FSL Specifications

Project Quantity Item #

Model Specied: CSI Section 11400

Reach-In Sliding Glass Door Refrigerator

Models/Self-Contained

Includes Traulsen's patented

INTELA-TRAUL® control

Model RHT232WUT-FSL

(shown with optional casters and additional shelves)

Standard Product Features

• Stainless Steel Exterior & Interior

• INTELA-TRAUL® Microprocessor Control System

• Balanced, Self-Contained Refrigeration System Using R-134a

• Scroll Blower Type Evaporator Fan

• Biased Return Air Duct

• Full or Half Length Sliding Glass Doors

• Self-Closing Doors With Stay Open Feature

• Stainless Steel Vertical Door Handles

• Fluorescent Lights With Exterior ON/OFF Switch

• Three Adjustable Wire Shelves Per Section,

Supported On Pilasters (installed at the factory)

• Automatic Condensate Evaporator

• Controllable Anti-Condensate Door Perimeter Heaters

• Thermostatic Expansion Valve Metering Device

• Stainless Steel One-Piece Louver Assembly

• 9' Cord & Plug Attached

• Set of Four (4) 6" High Adjustable Stainless Steel Legs

• One Year Parts And Labor Warranty

• Two Year Control Warranty (parts and labor)

• Five Year Compressor Warranty

Two Section Narrow & Wide Models, 32" Deep

2-Section Narrow Full Length Door Model RHT232NUT-FSL
2-Section Narrow Half Length Door Model RHT232NUT-HSL

R

SERIES

Stainless Exterior

& Interior

The R-Series represent Traulsen's Top-of-the-Line product offering. The
reach-in sliding glass door refrigerator models are all designed to provide
convenient storage, along with uorescent interior lighting to assist with
product viewing or merchandising. Each is supplied standard with such high
quality features as balanced refrigeration systems, microprocessor controls,
communications ability and stainless steel exteriors. Additionally, they of­fer the widest range of optional accessories to choose from, and can be
specied for use with many different applications, including: Foodservice,

Institutional, Export, etc.

2-Section Wide Full Length Door Model RHT232WUT-FSL
2-Section Wide Half Length Door Model RHT232WUT-HSL

Options & Accessories

• Stainless Steel Finished Back With Rear Louvers

• No. 1 Type Tray Slides To Accommodate either (1) 18" x 26"

or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.

• No. 2 Type Tray Slides To Accommodate (1) 18" x 26" Sheet
Pans, Adjustable To 2" O.C.

• No. 3 Type Tray Slides To Accommodate (2) 12" x 20" Steam
Table Pans, Adjustable To 2" O.C.

• No. 4 Type Tray Slides To Accommodate (1) 18" x 26" Sheet

Pans (chrome rod type, equips 1/2 section)

• Universal Type Tray Slides To Accommodate Either (1)
18" x 26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam

Table Pans, Adjustable To 4" O.C.

• Additional Wire Shelves

• Export 220/50/1 Voltage

• 208/115/60/1 Voltage In Lieu Of Standard 115/60/1

• Stainless Steel Shelves

• Kool Klad Exterior Laminate Decor

• Set of Four (4) 6" High Casters In Lieu of Legs

• Set of Four (4) 4-5/8" High Casters In Lieu of Legs

• 4-1/2" High Stainless Steel Base In Lieu of Legs

• 6" High Stainless Steel Kickplate (for use with standard legs)

• Remote Applications (see spec sheet TR35837 for more

details)

• Sliding Glass Door Lock(s)

• Two Year Service/Labor Warranty Available

Listed by Underwriters Laboratories Inc.,
to U.S. and Canadian safety standards and
Listed by NSF International.

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Approval: __________________________________

Project Quantity Item #

Model Specied: CSI Section 11400

Specications

Construction, Hardware and Insulation

Cabinet exterior front, one piece sides and louver assembly are constructed of
20 gauge stainless steel with #4 nish. Cabinet interior is constructed of stainless
steel. The exterior cabinet top, back and bottom are constructed of heavy gauge
aluminized steel. A set of four (4) adjustable 6" high stainless steel legs are included.

Tempered sliding glass doors are self-closing, with a stay open feature in the fully
opened position, and are easily removable for cleaning. An exterior ON/OFF switch
is provided to activate the interior uorescent lighting. Anti condensate heaters are
located behind each door opening.

Cabinet is insulated with an average of 2" thick high density, non-CFC, foamed in
place polyurethane.

DIMENSIONAL DATA RHT232NUTSL RHT232WUTSL

Net capacity cu. ft. 46.0 (1303 cu l) 51.6 (1462 cu l)

Length - overall in. 521⁄8 (132.4 cm) 58 (147.3 cm)

Depth - overall in. 33 (83.8 cm) 33 (83.8 cm)

Depth - over body in. 32 (81.3 cm) 32 (81.3 cm)

Clear door width in. 19 (48.3 cm) 22 (55.9 cm)

Clear half-door height in. 251⁄2 (64.9 cm) 251⁄2 (64.9 cm)

Clear full-door height in. 573⁄4 (146.7 cm) 573⁄4 (146.7 cm)
Height - overall on 6" legs 831⁄4 (211.5 cm) 831⁄4 (211.5 cm)

No. Standard Shelves 6 6

Shelf area sq. ft.1 34.6 (3.2 sq m) 37.6 (3.49 sq m)

Net Wt. lbs. 560 (254 kg) 630 (286 kg)

Gross Wt. lbs. 700 (318 kg) 770 (349 kg)

ELECTRICAL DATA

Voltage 115/60/1 115/60/1

Feed wires with Ground 3 3

Full load amperes 15.9 15.9

REFRIGERATION DATA

Refrigerant R-134a R-134a

BTU/HR H.P.2 5120 (3⁄4 HP) 5120 (3⁄4 HP)

NOTE: Figures in parentheses reect metric equivalents.
1= Area of standard shelf compliment only, does not include storage area of additional shelves or available
on cabinet bottom.
2= Based on a 90 degree F ambient and 20 degree F evaporator.
3= For approximate remote weights deduct 40 lbs. from respective net or gross weight. For other
information on remote models, please refer to spec sheet TR35837.

NOTES

Refrigeration System

A top mounted, self-contained, balanced refrigeration system using R-134a
refrigerant is conveniently located behind the one piece louver assembly. It features
an easy to clean front facing condenser, thermostatic expansion valve, air-cooled
hermetic compressor, plenum effect blower coil, large, high humidity evaporator coil
located outside the food zone and a top mounted condensate evaporator. Biased
return air duct protects against introduction of warm kitchen air, promoting even
temperature maintenance and efcient operation. A 9' cord and plug is provided.
Standard operating temperature is 34 to 38°F.

Controller

The easy to use water resistant INTELA-TRAUL® microprocessor control system
is supplied standard. Unit is NAFEM Data Protocol communication (NDP) ready.
Optional hardware required to be NDP compliant. Third party software required
for network connection. It includes a 3-Digit LED Display, Fahrenheit or Celsius
Temperature Scale Display Capability, and an RS485 data port. In addition it
includes audio/visua l alar ms for : Hi/Lo Cabinet Temperature, Clea n Con­denser, Evaporator Coil and Discharge Line Sensor Failures, and Power Supply

Interruption.

Interior

Standard interior arrangements include three (3) wire shelves per section, mounted
on pilasters. Shelves are full-width, and do not have any large gaps between them
requiring the use of "bridge" or "junior shelves." Recommended load limit per shelf
should not exceed 225 lbs. Optional tray slides may be purchased in combination
with, or in lieu of these. Both standard and optional interior arrangements are
completely installed at the factory.

Warranties

Both a one year parts and labor warranty and a ve year compressor warranty
(self-contained models only) are provided standard. An optional 2nd year extended
parts and labor warranty is also available. In addition the INTELA-TRAUL® control is
warranted by a two year parts and labor warranty.

Elevation - RHT232NUTSL

Elevation - RHT232WUTSL

Equipped With One NEMA 5-20P Plug

NOTE: Full load amps and plug style may vary depending on
electrical options chosen and condensing unit employed.

In order to assure optimum performance, the condensing unit MUST have an adequate supply
of air for cooling purposes. Therefore, the operating location must either have a minimum of 12”
clearance overhead of the condensing unit or allow for unrestricted air ow at the back of the unit.
Clearance of at least 12” above is required in order to perform certain maintenance tasks.

NOTE: When ordering please specify: Voltage, Hinging, Door Size, Options and any ad­ditional warranties.

Continued product development may necessitate specication changes without notice.

Part No. TR35825 (revised 4/10)

REQUIRED CLEARANCES

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Plan - RHT232NUTSL

Plan - RHT232WUTSL

Section - All Models
