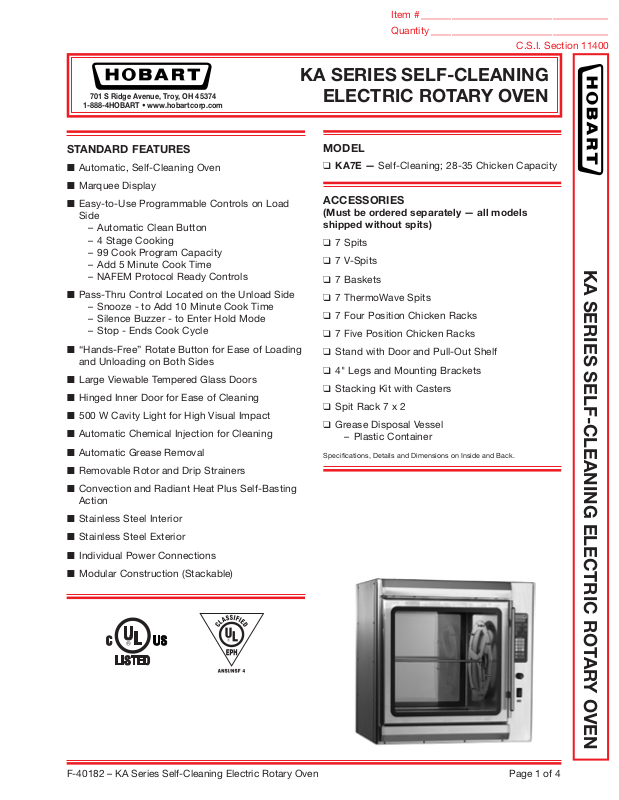

Page 1
Item # _____________________________________
Quantity ___________________________________
C.S.I. Section 11400
KA SERIES SELF-CLEANING
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STANDARD FEATURES
■ Automatic, Self-Cleaning Oven
■ Marquee Display
■ Easy-to-Use Programmable Controls on Load
Side
– Automatic Clean Button
– 4 Stage Cooking
– 99 Cook Program Capacity
– Add 5 Minute Cook Time
– NAFEM Protocol Ready Controls
■ Pass-Thru Control Located on the Unload Side
– Snooze - to Add 10 Minute Cook Time
– Silence Buzzer - to Enter Hold Mode
– Stop - Ends Cook Cycle
■ “Hands-Free” Rotate Button for Ease of Loading
and Unloading on Both Sides
■ Large Viewable Tempered Glass Doors
■ Hinged Inner Door for Ease of Cleaning
■ 500 W Cavity Light for High Visual Impact
■ Automatic Chemical Injection for Cleaning
■ Automatic Grease Removal
■ Removable Rotor and Drip Strainers
ELECTRIC ROTARY OVEN
MODEL
❑ KA7E — Self-Cleaning; 28-35 Chicken Capacity
ACCESSORIES
(Must be ordered separately — all models
shipped without spits)
❑ 7 Spits
❑ 7 V-Spits
❑ 7 Baskets
❑ 7 ThermoWave Spits
❑ 7 Four Position Chicken Racks
❑ 7 Five Position Chicken Racks
❑ Stand with Door and Pull-Out Shelf
❑ 4" Legs and Mounting Brackets
❑ Stacking Kit with Casters
❑ Spit Rack 7 x 2
❑ Grease Disposal Vessel
– Plastic Container
Specications, Details and Dimensions on Inside and Back.
KA SERIES SELF-CLEANING ELECTRIC ROTARY OVEN
■ Convection and Radiant Heat Plus Self-Basting
Action
■ Stainless Steel Interior
■ Stainless Steel Exterior
■ Individual Power Connections
■ Modular Construction (Stackable)
F-40182 – KA Series Self-Cleaning Electric Rotary Oven Page 1 of 4
Page 2
KA SERIES SELF-CLEANING
ELECTRIC ROTARY OVEN
STAND-KA7E
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
KA7E ROTISSERIE WITH
STAND ACCESSORY
FRONT VIEW
KA7E ROTISSERIE
TOP VIEW
KA7E ROTISSERIE
DIMENSIONS, WITHOUT LEGS OR CASTERS AND WEIGHTS:
MODEL DEPTH WIDTH HEIGHT NET WT. SHIPPING WT.
STAND-KA7E 331⁄2" 383⁄4" 321⁄4" w/casters — 153 lbs.
KA7E 335⁄8" 387⁄8" 385⁄8" w/o legs or casters 480 lbs. 525 lbs.
STACKED MODELS DIMENSIONS WITH CASTERS:
MODEL DEPTH WIDTH HEIGHT TYPE
KA7E + STAND-KA7E 335⁄8" 387⁄8" 71" ROTISSERIE ON STAND
KA7E + KA7E 335⁄8" 387⁄8" 815⁄8" STANDARD STACKING KIT
CASTER CONFIGURATION
Standard Stacking Kit: 2 locking swivel casters, 2 locking rigid casters
Page 2 of 4 F-40182 – KA Series Self-Cleaning Electric Rotary Oven
Page 3
KA SERIES SELF-CLEANING
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
ELECTRIC ROTARY OVEN

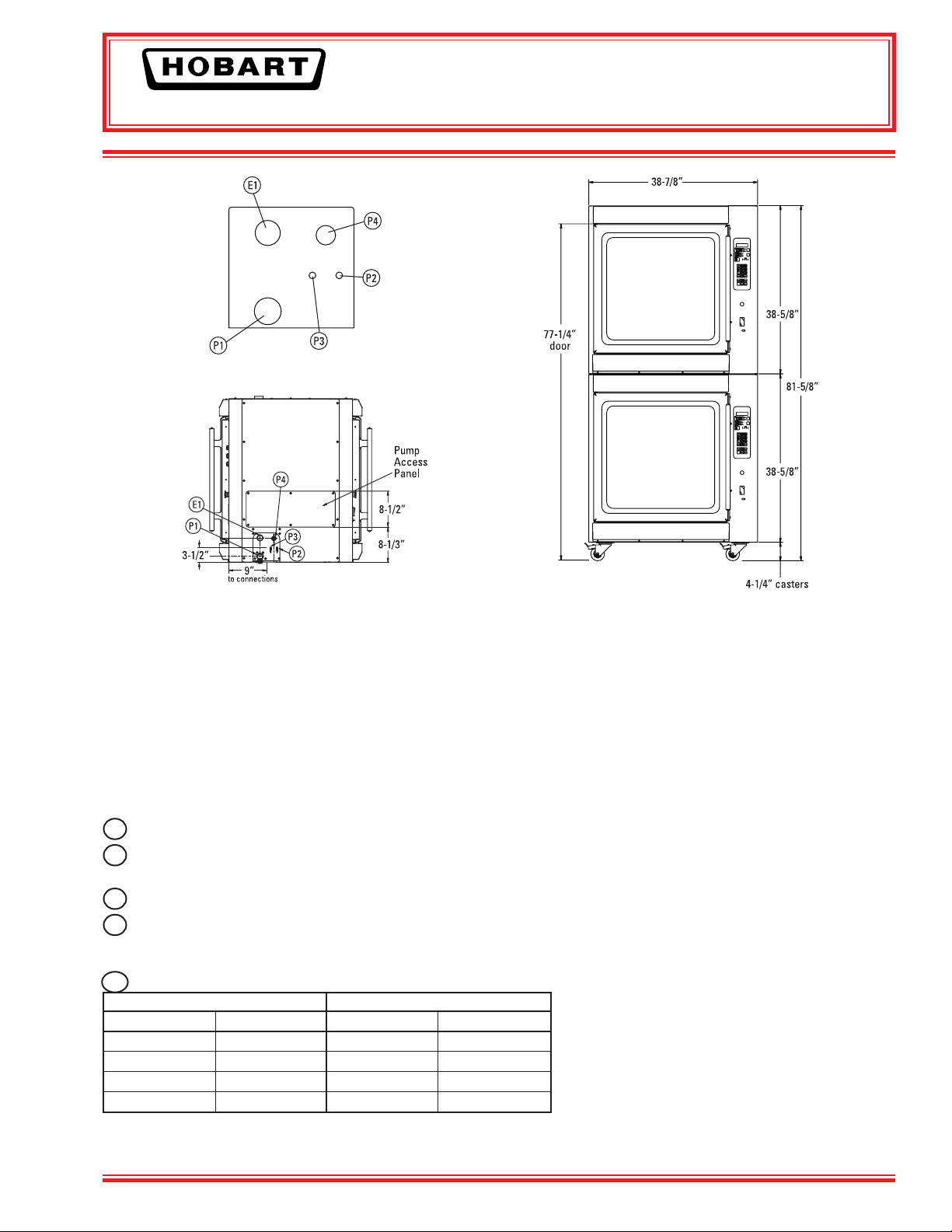

RIGHT SIDE VIEW
KA7E ROTISSERIE
CONNECTION INFORMATION: Allow 3" minimum right side clearance for plumbing connections for stacked and countertop congurations. (Note: Clearances up to 12" may be necessary when optional grease disposal vessel or chemicals are
stored on the right side of rotisserie oven.) 0" clearance to back and sides for optional* out-of-sight drop-through utility
connections into stand accessory.
*Drop-through utilities relocation kit is included with stand accessory. Refer to local codes for hood requirements.
LEGEND
P1 Water Drain: 1" female NPT piped to open drain. No solid connections. Output 140°F max. at 5 GPM.
P2 Chemical Supply: Hose barb to accept 1⁄4" ID chemically resistant tubing, supplied with machine. Use only Kay
Chemical CIP cleaner, or approved cleaner, to ensure proper operation.
P3 Grease Drain: Hose barb to accept 1⁄4" ID high temperature tubing, supplied with machine, 212°F rated.
P4 HOT Water Supply: 3⁄4" male hose bib tting. 0.5 GPM @ 25-50 psi. 120°F-140°F. Recommended hardness,
4-6 grains. Minimum conductivity required, 30 MICROMHOS/CM.
E1 ELECTRICAL:
60 HZ KA7E
VOLTAGE PHASE WATTAGE AMPERAGE
208 1 9,300 42.8
240 1 9,300 37.7
208 3 9,300 24.7
240 3 9,300 21.8
KA7E ROTISSERIE with
KA7E ROTISSERIE
USING STACKING KIT ACCESSORY
Field wire electrical connection 11⁄4" and/or 11⁄2" K.O.
Stacked units must be wired independently.
F-40182 – KA Series Self-Cleaning Electric Rotary Oven Page 3 of 4
Page 4
KA SERIES SELF-CLEANING
ELECTRIC ROTARY OVEN
SPECIFICATIONS:
CAPACITY: KA7E: 28-35 chickens.
Automatic self-cleaning feature. Automatic grease removal.
Automatic chemical injection. Automatic water ll and drain.
Rugged wash pump runs spray arm and nozzles in cavity.
Stacked units are mounted on nylon casters. Countertop
units mounted on adjustable legs – 4" to 6".
Top-mounted fans draw air from bottom of oven cavity over
the top mounted heating elements browning product evenly
on all sides.
Cavity illuminuated with 500W long-life lamp.
Spit motor rotates at 2 RPM.
Stacked units must be wired independently.
CONSTRUCTION: Outer shell is stainless steel. 1" Rockwool insulation is applied to top and sides. Doors mounted
on both front and back feature large, full sized tempered
glass for high visual impact. Each door swings open 180°.
Spits are easy to remove without the use of tools for
product removal and to facilitate cleaning. Oven interior is
stainless steel. Perforated drip strainers prevent skin and
bones from dropping into wash sump. Perforations allow
for automatic grease disposal.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
CONTROLS: Standard pass-through conguration has
500 W lamp and operator controls located on the right
side panel on the load side of the oven. The select control
capability (snooze, silence buzzer, stop and rotate) is
located on the left side panel on the unload side of the oven
for pass-through operation.
IMPORTANT: Grease disposal container and chemical
container should be placed no farther than 6 feet away
from oven.
Use only Kay Chemical CIP, or other approved cleaner to
insure proper operation of machine.
Steam generated from normal operation may escape
from the door. Wood laminate, veneers, etc. are unsuitable
materials for use in areas exposed to self-cleaning oven
steam and detergents. Stainless steel or other moistureresistant shields are recommended for surfaces adjacent to
KA7E sides and top.
Approx.
WEIGHT: Net. Wt. Ship Wt.
Stand-KA7E – 153
KA7E - Glass Back 480 525
(accessories shipped separately)
shown with pass-thru option
KA7E
As continued product improvement is a policy of Hobart, specications are subject to change without notice.
KA7E
shown with
stand accessory
KA7E/KA7E
shown with
stacking kit accessory
Page 4 of 4 F-40182 – KA Series Self-Cleaning Electric Rotary Oven
F-40182 (REV. 06/08) LITHO IN U.S.A. (H-01)
