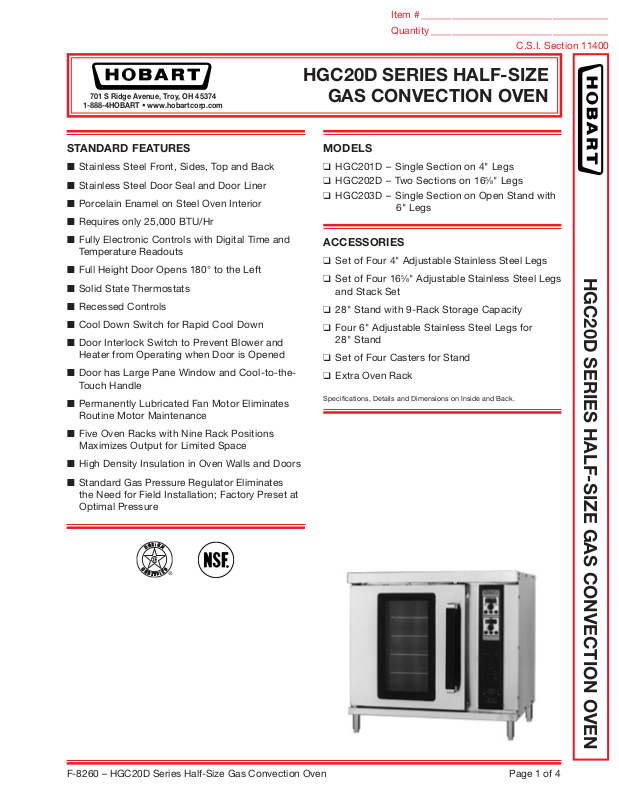

Page 1
Item # _____________________________________
Quantity ___________________________________
C.S.I. Section 11400
HGC20D SERIES HALF-SIZE
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STANDARD FEATURES
■ Stainless Steel Front, Sides, Top and Back
■ Stainless Steel Door Seal and Door Liner
■ Porcelain Enamel on Steel Oven Interior
■ Requires only 25,000 BTU/Hr
■ Fully Electronic Controls with Digital Time and
Temperature Readouts
■ Full Height Door Opens 180° to the Left
■ Solid State Thermostats
■ Recessed Controls
■ Cool Down Switch for Rapid Cool Down
■ Door Interlock Switch to Prevent Blower and
Heater from Operating when Door is Opened
■ Door has Large Pane Window and Cool-to-theTouch Handle
■ Permanently Lubricated Fan Motor Eliminates
Routine Motor Maintenance
GAS CONVECTION OVEN
MODELS
❑ HGC201D – Single Section on 4" Legs
❑ HGC202D – Two Sections on 165⁄8" Legs
❑ HGC203D – Single Section on Open Stand with
6" Legs
ACCESSORIES
❑ Set of Four 4" Adjustable Stainless Steel Legs
❑ Set of Four 165⁄8" Adjustable Stainless Steel Legs
and Stack Set
❑ 28" Stand with 9-Rack Storage Capacity
❑ Four 6" Adjustable Stainless Steel Legs for
28" Stand
❑ Set of Four Casters for Stand
❑ Extra Oven Rack
Specifications, Details and Dimensions on Inside and Back.
HGC20D SERIES HALF-SIZE GAS CONVECTION OVEN
■ Five Oven Racks with Nine Rack Positions
Maximizes Output for Limited Space
■ High Density Insulation in Oven Walls and Doors
■ Standard Gas Pressure Regulator Eliminates
the Need for Field Installation; Factory Preset at
Optimal Pressure
F-8260 – HGC20D Series Half-Size Gas Convection Oven Page 1 of 4
Page 2
HGC20D SERIES HALF-SIZE
GAS CONVECTION OVEN
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Front View
HGC201
Front View
Oven with Stand
HGC203
Page 2 of 4 F-8260 – HGC20D Series Half-Size Gas Convection Oven
Front View
HGC202 Ovens with
165⁄8" Legs
Page 3
HGC20D SERIES HALF-SIZE
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
GAS CONVECTION OVEN
Top View
Door Opening to Left
CORD FOR 120 VOLT DEVICE ONLY
62 IN. LONG
Side View
GAS INLET
& LINE CORD
Top View
Door Opening to Right
F-8260 – HGC20D Series Half-Size Gas Convection Oven Page 3 of 4
Page 4
Printed On Recycled Paper
HGC20D SERIES HALF-SIZE
GAS CONVECTION OVEN
SPECIFICATIONS
CONSTRUCTION: Outer shell is reinforced sheet steel
furnished with stainless steel front and back. Insulation
is provided on top, rear, both sides, bottom and door.
Standard oven cavity is porcelain enamel on steel. Stan
dard stainless steel sides, top and back. Full-height door
opens 180° to the left. Door has large-pane window and
cool-to-the-touch handle. Durable mechanical door latch.
Permanent sanitary door seal. Racks have positive stop.
CONTROLS: Electronic controls with easy to read time
and temperature screens are located on oven’s right front
panel. Temperatures are controlled accurately to ±7°F. Cook
temperatures are adjustable from “Off” to 150°F - 500°F.
(The hold temperature of the “Cook and Hold” feature is
adjustable from 150° to 200°F.) Timer sets cook time from
one minute to eight hours. Time is displayed in hours and
minutes and counts down during the cook cycle. The Pulse
Fan Delay feature is adjustable from “Off” or zero minutes
to fifteen minutes. At the end of the Pulse cycle, the oven
reverts to standard operation for the remainder of the cook
cycle. A power switch energizes the gas burner and the
blower. A separate switch controls the two cavity lights.
-
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Automatic interlock switch shuts off blower motor and
burner when the doors are opened. Cool down switch al
lows blower motor to operate with doors open and without
energizing the heating system.
GAS: 25,000 BTU per hour (per section). Tubular heat
exchanger is located on the right side of the oven cavity,
behind the baffle and encircles a blower wheel.
ELECTRICAL:
lubricated ball bearing blower motor. Rated power input
1⁄3 H.P., 1725 RPM sealed, permanently
(for blower motor and controls) is .95 KW per section. Each
section furnished with 62 inch, 120 volt power cord.
IMPORTANT
WHEN ORDERING: The following must be specified:
1) The type of gas.
2) The altitude of the location where the equipment will be
installed.
The standard design of this equipment is for natural gas
having the following characteristics:
1000 BTU per cubic foot
.64 specific gravity
WEIGHTS: (Approximate)
MODEL NET SHIPPING
HGC201D 258 lbs. 236 lbs.
HGC202D 532 lbs. 472 lbs.
HGC203D 382 lbs. 352 lbs.
OVERALL
EXTERNAL DIMENSIONS
MODEL
HGC201D
HGC203D 65 5 4
W D H W D H
IN. IN. IN. IN. IN. IN. IN. IN.
29
30 25
MODEL
HGC201D 25,000 Nat. Propane 950 8
HGC202D 50,000
HGC203D 25,000 950 8
COMPARTMENTS
INTERNAL DIMENSIONS
151⁄4 21 20
GAS DATA ELECTRICAL DATA
INPUT BTU/HR
MANIFOLD PRESSURE
31⁄2
W.C.
RACK DATA (pan capacities shown for single rack)
STD. RACK
NO.
STD.
RACKS
5
10"
W.C.
SPACING
19⁄16
LOAD
(WATTS)
1,900 16
NO.
OPTIONAL
RACKS
4
AMP/LINE
120V
RACK
SIZE
143⁄8
x
207⁄8
8" OD
PIE
TINS
3 1 1HGC202D 665⁄8 10 8
#200
PANS
12 X 20
PANS
INSTALLATION NOTES: Installation, initial startup and adjustments should be
performed by personnel authorized, qualified or licensed to install gas equipment.
When installed, sides, bottom and back must be at least 3" from combustible
construction. Installation must provide an unobstructed flow of primary and
secondary air to the oven. Minimum leg height is to be 4 inches.
As continued product improvement is a policy of Hobart, specifications are subject to change without notice.
Cooking equipment for the commercial kitchen must be adequately ventilated.
Reference should be made to National Fire Protection Association Standard
No. 96 (NFPA No. 96 - latest edition). This standard can be obtained by
contacting the National Fire Protection Association, 470 Atlantic Ave., Boston,
MA 02210.
Page 4 of 4 F-8260 – HGC20D Series Half-Size Gas Convection Oven
F-8260 (REV. 05/07) LITHO IN U.S.A. (H-01)
