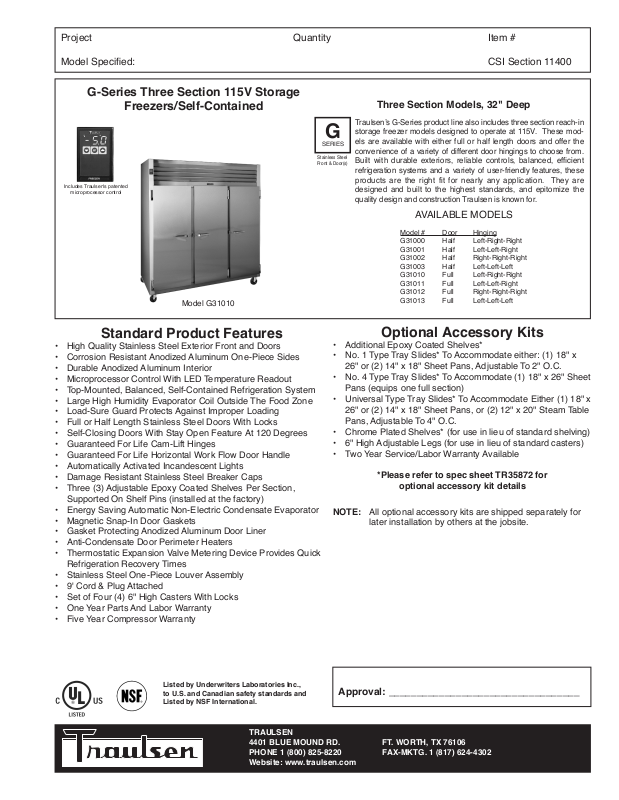

Model Specied: CSI Section 11400

G-Series Three Section 115V Storage

Three Section Models, 32" Deep

Traulsen’s G-Series product line also includes three section reach-in
storage freezer models designed to operate at 115V. These mod­els are available with either full or half length doors and offer the
convenience of a variety of different door hingings to choose from.
Built with durable exteriors, reliable controls, balanced, efcient
refrigeration systems and a variety of user-friendly features, these
products are the right fit for nearly any application. They are
designed and built to the highest standards, and epitomize the
quality design and construction Traulsen is known for.

AVAILABLE MODELS

Model # Door Hinging

G31000 Half Left-Right-Right
G31001 Half Left-Left-Right
G31002 Half Right-Right-Right
G31003 Half Left-Left-Left
G31010 Full Left-Right-Right
G31011 Full Left-Left-Right
G31012 Full Right-Right-Right
G31013 Full Left-Left-Left

Includes Traulsen's patented

microprocessor control

Freezers/Self-Contained

Model G31010

G

SERIES

Stainless Steel
Front & Door(s)

Standard Product Features

• High Quality Stainless Steel Exterior Front and Doors

• Corrosion Resistant Anodized Aluminum One-Piece Sides

• Durable Anodized Aluminum Interior

• Microprocessor Control With LED Temperature Readout

• Top-Mounted, Balanced, Self-Contained Refrigeration System

• Large High Humidity Evaporator Coil Outside The Food Zone

• Load-Sure Guard Protects Against Improper Loading

• Full or Half Length Stainless Steel Doors With Locks

• Self-Closing Doors With Stay Open Feature At 120 Degrees

• Guaranteed For Life Cam-Lift Hinges

• Guaranteed For Life Horizontal Work Flow Door Handle

• Automatically Activated Incandescent Lights

• Damage Resistant Stainless Steel Breaker Caps

• Three (3) Adjustable Epoxy Coated Shelves Per Section,
Supported On Shelf Pins (installed at the factory)

• Energy Saving Automatic Non-Electric Condensate Evaporator

• Magnetic Snap-In Door Gaskets

• Gasket Protecting Anodized Aluminum Door Liner

• Anti-Condensate Door Perimeter Heaters

• Thermostatic Expansion Valve Metering Device Provides Quick
Refrigeration Recovery Times

• Stainless Steel One-Piece Louver Assembly

• 9' Cord & Plug Attached

• Set of Four (4) 6" High Casters With Locks

• One Year Parts And Labor Warranty

• Five Year Compressor Warranty

Optional Accessory Kits

• Additional Epoxy Coated Shelves*

• No. 1 Type Tray Slides* To Accommodate either: (1) 18" x
26" or (2) 14" x 18" Sheet Pans, Adjustable To 2" O.C.

• No. 4 Type Tray Slides* To Accommodate (1) 18" x 26" Sheet
Pans (equips one full section)

• Universal Type Tray Slides* To Accommodate Either (1) 18" x
26" or (2) 14" x 18" Sheet Pans, or (2) 12" x 20" Steam Table
Pans, Adjustable To 4" O.C.

• Chrome Plated Shelves* (for use in lieu of standard shelving)

• 6" High Adjustable Legs (for use in lieu of standard casters)

• Two Year Service/Labor Warranty Available

*Please refer to spec sheet TR35872 for

optional accessory kit details

NOTE: All optional accessory kits are shipped separately for

later installation by others at the jobsite.

Listed by Underwriters Laboratories Inc.,
to U.S. and Canadian safety standards and
Listed by NSF International.

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Approval: __________________________________

Project Quantity Item #

Model Specied: CSI Section 11400

Specications

Construction, Hardware and Insulation

Cabinet exterior front, louver assembly and doors are constructed of 20 gauge
stainless steel. Cabinet sides (including returns), interior and door liners are
constructed of anodized aluminum. The exterior cabinet top, back and bottom are
constructed of heavy gauge aluminized steel. A set of four (4) 6" high casters are
included.

Doors are equipped with a gasket protecting metal door pan, removable plug
cylinder locks and guaranteed for life cam-lift, gravity action, self-closing metal,
glide hinges with stay open feature at 120 degrees. Hinges include a concealed
switch to automatically activate the interior incandescent lighting. Guaranteed for
life, work ow door handles are mounted horizontally over recess in door which limits
protrusion from door face into aisleways.

Easily removable for cleaning, vinyl magnetic door gasket assures tight door seal.
Anti condensate heaters are located behind each door opening.

Both the cabinet and door(s) are insulated with an average of 2" thick high density,
non-CFC, foamed in place polyurethane.

DIMENSIONAL DATA

G31010, G31011, etc.

Net Capacity cu. ft. 69.1 (1958 cu l)

Length Overall in. 765⁄

(193.8 cm)

16

Depth - Over Body in. 32 (81.3 cm)

Depth - W/Door Open 90° in. 567⁄

(144.5 cm)

8

Depth - Overall in. 35 (88.8 cm)

Clear Door Width in. 211⁄8 (53.6 cm)

Clear Half Door Height in. 271⁄2 (69.9 cm)

Clear Full Door Height in. 575⁄8 (146.3 cm)

Number of shelves 9

Shelf area sq. ft.1 51.9 (4.82 sq m)

Height - Overall in. 831⁄4 (211.5 cm)

ELECTRICAL DATA

Voltage 115/60/1

Feed Wires with Ground 3

Full Load Amperes 16.0

REFRIGERATION DATA

Refrigerant R-404A

BTU/HR - HP2 4100 (3⁄4 HP)

Elevation View

CARTON DIMENSIONS Domestic Crated Only

Length - Crated in. 91 (231 cm)

Depth - Crated in. 43 (109.2 cm)

Height - Crated in. 831⁄2 (212.1 cm)

Volume - Crated cu. ft. 189 (5354 cu l)

WEIGHT DATA

Net Weight - Uncrated lbs. 690 (313 kg)

Gross Weight - Crated lbs. 870 (395 kg)

NOTE: Figures in parentheses reect metric equivalents.
1= Figure shown reects the area of standard shelf compliment
plus the additional storage area available on the cabinet
bottom.
2= Based on a 90 degree F ambient and -20 degree F evaporator.

NOTES

Refrigeration System

A top mounted, self -contained, balanced refrigeration syste m using R-404A
refrigerant is conveniently located behind the one piece louver assembly. It features
an easy to clean front facing condenser, thermostatic expansion valve, air-cooled,
semi-hermetic compressor, large, high humidity evaporator coil located outside the
food zone and a top mounted non-electric condensate evaporator. A 9' cord and
plug is provided. Standard operating temperature is 0 to -5°F.

Controller

The easy to use water resistant microprocessor control system is supplied standard.
It includes a 3-Digit LED Display, and a Fahrenheit or Celsius Temperature Scale
Display Capability.

Interior

Standard interior arrangements include three (3) epoxy coated wire shelves per
section, mounted on shelf pins, installed at the factory. Shelves are full-width, and
do not have any large gaps between them requiring the use of "bridge" or "junior
shelves." Recommended load limit per shelf should not exceed 225 lbs.

Warranties

Both a one year parts and labor warranty and a ve year compressor warranty (self­contained models only) are provided standard. An optional 2nd year extended parts
and labor warranty is also available.

Plan View

Equipped with one NEMA 5-20P Plug

In order to assure optimum performance, the condensing unit MUST have an adequate supply
of air for cooling purposes. Therefore, the operating location must either have a minimum of 12”
clearance overhead of the condensing unit or allow for unrestricted air ow at the back of the unit.
Clearance of at least 12” above is required in order to perform certain maintenance tasks.

Continued product development may necessitate specication changes without notice.

Part No. TR35849 (revised 4/10)

REQUIRED CLEARANCES

TRAULSEN
4401 BLUE MOUND RD. FT. WORTH, TX 76106
PHONE [phone] FAX-MKTG. 1 [phone]
Website: www.traulsen.com

Section View - All Models

NOTE: Freight charges are FOB destination for dock to dock delivery
within the continental USA. Liftgate delivery charges are additional.
