QF0400 - CONTROL BOX COMPONENTS
QF0400_2.PDF
1
QF0400
QF0400 - CONTROL BOX COMPONENTS
# PART # DESCRIPTION QTY Note
1 000005624 Control Board
2 2511493 10 Amp Fuse
3 2301513 Toggle Switch
3a 2001113 Wiring Harness - Toggle Switch
4 Contactor
4a 2006589 Contactor - 115V/60 Hz/1 Ph
4b 2006599 Contactor - 230V/50-60 Hz/1 Ph
5 000000945 Gearmotor - Run Capacitor - 115-230V/50-60 Hz/1 Ph
6 2001283 Wiring Harness Neutral
7 000000492 Wiring Harness Main
8 6046601 Control Box
9 6046611 Control Box Cover
10 6024951 Capacitor Bracket
11 4302253 Control Board Mounting Supports
12 5202169 Screw - #10-24 x 0.50" Ground
QF0400_2.PDF
2
QF0400
QF0400 - EVAPORATOR ASSEMBLY
QF0400_3.PDF
3
QF0400
QF0400 - EVAPORATOR ASSEMBLY
# PART # DESCRIPTION QTY Note
1 Evaporator Assembly
1a 3000583 Evaporator - Before Serial Number 110638713
1b 000000493 Evaporator - After Serial Number 110638713
2 7601063 Bin Level Sensor
3 4003733 Ice Diverter
3a 5000543 O-Ring
4 4004133 Drain Tubing
5 4004203 Reservoir Overflow Tubing
5a 6043081 Outlet Screen
6 4003053 Water Reservoir
7 5000243 Quick Disconnect Fitting
8 2000443 Water Float Valve Body
8a 2000453 Water Valve - 115V/60 Hz/1 Ph Coil Only
8b 2000463 Water Valve - 208-230V/50-60 Hz/1 Ph Coil Only
8c 5000233 Water Inlet Fitting
9 7600693 Water Level Probe
10 4003093 Water Reservoir Cover
11 5305123 Thumbscrew SS - #8-32 x 0.44"
12 5650649 Hose Clamp - 0.759"/0.848" ID
13 5650709 Snap Clamp - 0.799"/0.899" ID
14 5000493 Hose Clamp
15 6058621 Support, Water Reservoir
15a 6058631 Straps, Water Reservoir
QF0400_3.PDF
4
QF0400
QF0400 - REFRIGERATION COMPARTMENT - COMMON COMPONENTS
QF0400_4.PDF
5
QF0400
QF0400 - REFRIGERATION COMPARTMENT - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
1 Compressor
Before Serial Number 110638713
1a 7601343 Compressor - Danfoss - 115V/60 Hz/1 Ph [1]
1b 8251033 Start Relay - 115V/60 Hz/1 Ph [1]
1c 8251023 Start Capacitor - 115V/60 Hz/1 Ph [1]
1d 7601353 Compressor - Danfoss - 208-230V/50-60 Hz/1 Ph [1]
1e 8251083 Start Relay/Overload Assembly [1]
1f 8504433 Start Capacitor - 208-230V/50-60 Hz/1 Ph [1]
After Serial Number 110638713
1a 7601323 Compressor - Danfoss - 115V/60 Hz/1 Ph [2]
1b 2002043 Current Relay with Overload - 115V/60 Hz/1 Ph [2]
1c 2002033 Start Capacitor - 115V/60 Hz/1 Ph [2]
1d 7601333 Compressor - Danfoss - 230V/50 Hz/1 Ph [2]
1e 2004873 Current Relay with Overload - 230V/50 Hz/1 Ph [2]
1f 2004863 Start Capacitor - 230V/50 Hz/1 Ph [2]
2 Water Dump Valve
2a 000001767 Water Dump Valve - 115V/60 Hz
2b 000001768 Water Dump Valve - 208-230V/50-60 Hz
3 7601093 Expansion Valve
4 4000403 Valve Insulation Boot - Body
5 2001293 Thermistor
5a 5650773 Worm Drive Clamp
6 2001243 High Pressure Cut-out Control
7 8310163 Manifold Strainer
8 8930259 Drier
9 4000923 Valve Insulation Boot - Bulb
9a 3000833 Strap - Expansion Valve Bulb - 0.375"
9b 5650529 Clamp - Expansion Valve Bulb
10 000008892 Receiver
11 8373253 Access Valve
12 Compressor Mounting
12a 5004203 Mounting - Grommet
12b 5000649 Mounting - Screw
12c 5000629 Mounting - Sleeve
12d 5000659 Mounting - Washer
13 5202069 Screw - #10-24 x 0.50" HEX
14 8706083 Female Wing Adapter - 0.50"
15 5650709 Snap Clamp - 0.799"/0.899" ID
16 8706093 Female Wing Adapter - 0.375"
17 1360961 Male Connector
18 5000233 Water Inlet Fitting
19 5000243 Quick Disconnect Fitting
QF0400_4.PDF
6
QF0400
QF0400 - REFRIGERATION COMPARTMENT - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
20 4004213 Tubing Drain Line
20a 8390053 Union Connector
20b 5650709 Snap Clamp - 0.799"/0.899" ID
21 4420291 Vinyl Tube - 0.25" OD
22 6039091 Water Inlet Tubing Insulation
23 2502283 Strain Relief
23a 2033013 Power Cord - 115V
23b 2033023 Power Cord - 230V/50-60 Hz
24 7601743 Strap for Reservoir Bracket
PART NOTES:
[1] - Before Serial Number 110638713
[2] - After Serial Number 110638713
QF0400_4.PDF
7
QF0400

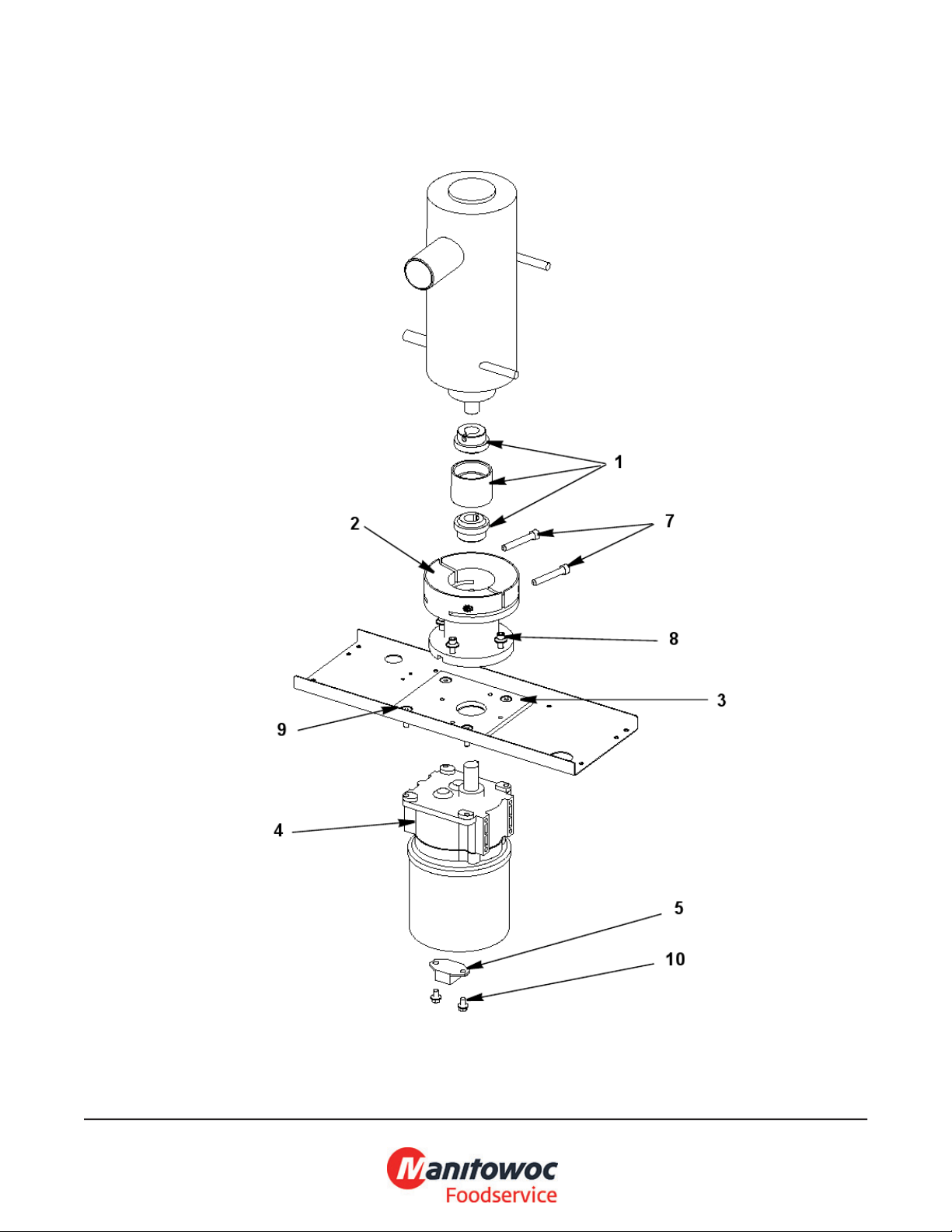

QF0400 - GEARBOX / GEARMOTOR ASSEMBLY
QF0400_6.PDF
8
QF0400
QF0400 - GEARBOX / GEARMOTOR ASSEMBLY
# PART # DESCRIPTION QTY Note
1 000003060 Coupler
2 000001742 Evaporator Foundation
3 3001293 Mounting Plate
4 Gearmotor Assembly
4a 2000783 Gearmotor - 115V/60 Hz/1 Ph
4b 2001173 Gearmotor - 230V/50 Hz/1 Ph
5 2000433 Gearmotor Speed Sensor
6 Gearmotor Wiring Harness
6a 000000490 Wiring Harness - Gearmotor - 115V
6b 000000489 Wiring Harness - Gearmotor - 230V
7 5000273 Bolt
8 5000269 Allen Head - Screw
8a 5573049 Flatwasher
8b 5545119 Mounting - Lockwasher
9 5000639 Mounting Plate - Screw
10 5000293 Screw
QF0400_6.PDF
9
QF0400
QF0400 - REFRIGERATION COMPARTMENT - AIR-COOLED COMPONENTS
QF0400_7.PDF
10
QF0400
QF0400 - REFRIGERATION COMPARTMENT - AIR-COOLED COMPONENTS
# PART # DESCRIPTION QTY Note
1 Compressor [1]
2 8851323 Air Condenser
3 2416253 Fan Blade
4 Fan Motor
4a 000000518 Fan Motor - 115V/60 Hz /1 Ph
4b 000000519 Fan Motor - 208-230V/50-60 Hz
5 7629143 Air Filter
6 4004233 Fan Shroud
7 3001263 Condenser Shroud
8 5202329 Screw - #10-24 x 0.25" PH
9 5025599 Screw - #8-36 x 0.375"
10 5475079 Speed Nut - 0.25" x 20
11 6047461 Fan Motor Bracket
PART NOTES:
[1] - Refer to COMMON PARTS PAGE
QF0400_7.PDF
11
QF0400
QF0400 - PANELS
QF0400_8.PDF
12
QF0400
QF0400 - PANELS
# PART # DESCRIPTION QTY Note
1 7629153 Front Panel Assembly
2 7629143 Air Filter
3 040001716 Bin Door & Door Frame Assembly
4 3302603 Ice Scoop
5 6047841 Back Panel - Upper
6 6047181 Back Panel - Lower
7 7601103 Evaporator Access Panel
8 7601113 Cabinet Assembly
9 5202239 Front Cover Screw
10 5202069 Screw - #10-24 x 0.50" HEX
QF0400_8.PDF
13
