Manitowoc Ice QC0708A PARTS LIST

For more Parts Information:

https://manitowocfsg.sysonline.com/Default.aspx

TABLE OF CONTENTS

Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
Q Series
Q Model - Flake/Nugget
QF0800, QC0700
QF800/QC700 - Control Box Components 1
QF800/QC700 - Evaporator Assembly 3
QF800/QC700 - Refrigeration Compartment - Common Components 5
QF800/QC700 - Gearmotor Assembly 8
QF800/QC700 - Refrigeration Compartment - Air-cooled Components 10
QF800/QC700 - Refrigeration Compartment - Water-cooled Components 12
QF800/QC700 - Panels 14

i

QF0800, QC0700

QF800/QC700 - CONTROL BOX COMPONENTS

QF0800_QC0700_2.PDF

1

QF0800, QC0700

QF800/QC700 - CONTROL BOX COMPONENTS

# PART # DESCRIPTION QTY Note
1 000005624 Control Board [1]

2 2511493 10 Amp Fuse
3 2301513 Toggle Switch
3a 2000663 Wiring Harness - Toggle Switch
4 Contactor
4a 2006569 Contactor - 115V/60 Hz/1 Ph
4b 2006579 Contactor - 230V/50-60 Hz/1 Ph
5 Run Capacitor
5a 2010143 Run Capacitor - 115V/60 Hz/1 Ph
5b 000000026 Run Capacitor - 230V/50-60 Hz/1 Ph
6 Start Capacitor
6a 8503143 Start Capacitor - 115V/60 Hz/1 Ph
6b 2001043 Start Capacitor - 230V/50 Hz/1 Ph
6c 000006455 Start Capacitor 60 Hz/1 Ph
7 Compressor Relay
7a 2007623 Start Potential Relay - 115V/60 Hz/1 Ph
7b 2007633 Start Potential Relay - 230V/50-60 Hz/1 Ph
7c 2007643 Start Potential Relay - 230V/60 Hz/1 Ph
8 Gear Motor Contactor
8a 2006589 Contactor - 115V/60 Hz/1 Ph
8b 2006599 Contactor - 230V/50-60 Hz/1 Ph
9 Gear Motor Capacitor
9a 2009223 Capacitor - 115V/60 Hz/1 Ph
9b 2009383 Capacitor - 230V/50 Hz/1 Ph
10 2000373 Compressor Wiring Harness
11 6043781 Control Box
12 6043791 Control Box Cover
13 6021601 Capacitor Mounting Strap
14 4302253 Control Board Mounting Supports
15 5202169 Screw - #10-24 x 0.50" Ground
16 2006143 Terminal Block - 50 Hz - 3 Pole

PART NOTES:

[1] - for use with all voltages

QF0800_QC0700_2.PDF

2

QF0800, QC0700

QF800/QC700 - EVAPORATOR ASSEMBLY

QF0800_QC0700_3.PDF

3

QF0800, QC0700

QF800/QC700 - EVAPORATOR ASSEMBLY

# PART # DESCRIPTION QTY Note
1 Evaporator Assembly

1a 3000023 Evaporator - Flake Ice
1b 3000033 Evaporator - Chiplet Ice
2 3000533 Insulation [1]
3 4000393 Vinyl Adapter [1]
4 7600683 Bin Level Sensor
5 4000183 Ice Chute
6 3000853 Insulation [2]
7 7600693 Water Level Probe
8 3712031 Hairpin Clip
9 5000313 Clevis Pin
10 5000303 Plug
11 7600703 Water Reservoir
12 2000443 Water Float Valve Body
12a 2000453 Water Valve - 115V/60 Hz/1 Ph Coil Only
12b 2000463 Water Valve - 208-230V/50-60 Hz/1 Ph Coil Only
12c 4003173 Water Valve Foam Seal
13 5650863 Wing Nut
13a 5650853 Receptacle
14 4000353 Water Reservoir Cover

PART NOTES:

[1] - Discharge Spout
[2] - Ice Chute requires 2 pieces

QF0800_QC0700_3.PDF

4

QF0800, QC0700

QF800/QC700 - REFRIGERATION COMPARTMENT - COMMON COMPONENTS

QF0800_QC0700_4.PDF

5

QF0800, QC0700

QF800/QC700 - REFRIGERATION COMPARTMENT - COMMON COMPONENTS

# PART # DESCRIPTION QTY Note
1 Compressor

1a 7600713 Compressor - Copeland - 115V/60 Hz/1 Ph
1b 7600733 Overload for Compressor
1c 7600723 Compressor - Copeland - 230V/50 Hz/1 Ph
1d 7600743 Overload for Compressor
1e 7601143 Compressor - Copeland - 230V/60 Hz/1 Ph
1f 8200003 Overload for Compressor
2 Water Dump Valve
2a 000001767 Water Dump Valve - 115V/60 Hz
2b 000001768 Water Dump Valve - 208-230V/50-60 Hz
3 7600753 Expansion Valve
4 4000573 Expansion Valve Body Insulation Boot
5 2001243 High Pressure Cut-out Control
6 2001293 Thermistor
7 8310153 Manifold Strainer - 3 Hole [1]
8 8250963 Manifold Strainer - 4 Hole [2]
9 8930259 Drier
10 4007203 Valve Insulation Boot - Bulb [3]
10a 3000503 Strap - Expansion Valve Bulb - 0.5"
10b 5650529 Clamp - Expansion Valve Bulb
11 4040233 Air Filter [4]
12 8373263 Refrigeration Service Valve Assembly
13 4000883 Suction Line Insulation
14 Compressor Mounting
14a 8503069 Mounting - Rubber Grommet
14b 5035729 Mounting - Bolt
14c 8503949 Mounting - Sleeve
15 5000293 Screw
16 4000383 Vinyl Drain Tubing
17 4000373 Vinyl Drain Tubing
18 8706083 Female Wing Adapter - 0.50"
19 5650649 Hose Clamp - 0.759"/0.848" ID
20 8706093 Female Wing Adapter - 0.375"
21 1360961 Male Connector
22 5000233 Water Inlet Fitting
22a 5000243 Quick Disconnect Fitting
23 5650699 Air Filter Clip
24 4420291 Vinyl Tube - 0.25" OD
25 6043601 Water Inlet Tubing Insulation
26 5000533 Elbow

PART NOTES:

[1] - water

QF0800_QC0700_4.PDF

6

QF0800, QC0700

QF800/QC700 - REFRIGERATION COMPARTMENT - COMMON COMPONENTS

# PART # DESCRIPTION QTY Note

PART NOTES:

[2] - air
[3] - \pages from 400720_08.jpg" width=923 height=583>
[4] - Air-Cooled Condenser Only

QF0800_QC0700_4.PDF

7

QF0800, QC0700

QF800/QC700 - GEARMOTOR ASSEMBLY

QF0800_QC0700_6.PDF

8

QF0800, QC0700

QF800/QC700 - GEARMOTOR ASSEMBLY

# PART # DESCRIPTION QTY Note
1 000003060 Coupler

2 2000433 Gearmotor Speed Sensor
3 Gear Box Motor Assembly
3a 000000342 Gearbox - 115V/60 Hz/1 Ph
3b 000000343 Gearbox - 230V/50 Hz/1 Ph
3c 000000344 Gearmotor - 230V/60 Hz/1 Ph
4 000001742 Evaporator Foundation
5 4000583 Evaporator Suction Line Outlet Insulation Boot
6 6040821 Gearbox Assembly Mounting Bracket
7 5000293 Screw
8 5000269 Screw [1]
8a 5573049 Flatwasher
8b 5545119 Mounting - Lockwasher
9 5000273 Bolt

PART NOTES:

[1] - Allen Head

QF0800_QC0700_6.PDF

9

QF0800, QC0700

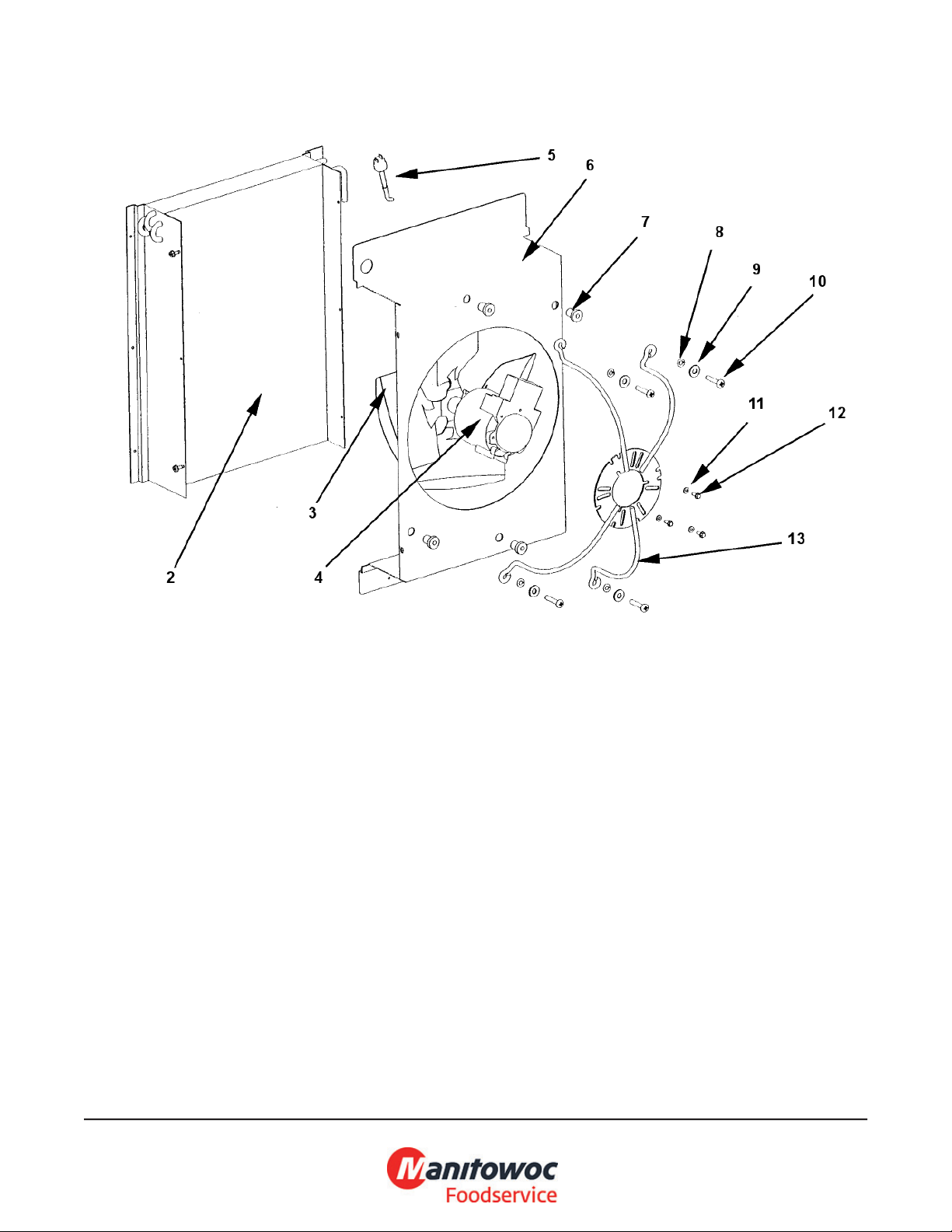

QF800/QC700 - REFRIGERATION COMPARTMENT - AIR-COOLED COMPONENTS

QF0800_QC0700_7.PDF

10

QF0800, QC0700

QF800/QC700 - REFRIGERATION COMPARTMENT - AIR-COOLED COMPONENTS

# PART # DESCRIPTION QTY Note
1 Compressor [1]

2 8851243 Air Condenser
3 2416203 Fan Blade
4 Fan Motor
4a 2412929 Fan Motor 115V/60 Hz/1 Ph
4b 2412939 Fan Motor 208-230V/50-60 Hz
4c Air Filter
5 2001263 Fan Cycling Control - 200-250 psig [2]
6 6041741 Fan Shroud
7 5429559 Mounting - Rubber Wellnut
8 5545109 Lockwasher
9 5573059 Mounting - Flatwasher
10 5033589 Mounting - Screw
11 5504269 Flatwasher #8
12 5025599 Screw - #8-36 x 0.375"
13 3406623 Fan Motor Bracket

PART NOTES:

[1] - See Common Components
[2] - \pages from 200126_09.jpg" width=150 height=306>

QF0800_QC0700_7.PDF

11

QF0800, QC0700

QF800/QC700 - REFRIGERATION COMPARTMENT - WATER-COOLED COMPONENTS

QF0800_QC0700_8.PDF

12

QF0800, QC0700

QF800/QC700 - REFRIGERATION COMPARTMENT - WATER-COOLED COMPONENTS

# PART # DESCRIPTION QTY Note
1 Compressor [1]

2 8865323 Water-Cooled Condenser
3 8372069 Water Regulating Valve
4 8706083 Female Wing Adapter - 0.50"
5 8332023 Water Coupling Connection - 0.375" NPT

PART NOTES:

[1] - Refer to COMMON PARTS Page

QF0800_QC0700_8.PDF

13

QF0800, QC0700

QF800/QC700 - PANELS

QF0800_QC0700_9.PDF

14

QF0800, QC0700

QF800/QC700 - PANELS

# PART # DESCRIPTION QTY Note
1 7628323 Front Panel Assembly

2 7628333 Left Side Panel
3 4302993 Top Cover
4 6023751 Air Baffle
5 4040233 Air Filter
6 6041771 Back Panel, Air
6 6043231 Back Panel, Water
7 7628343 Right Side Panel
8 6039841 Top Rail
9 6038581 Interior Support Panel
10 5119019 Screw - #8 x 1.75"
11 5573389 Washer - Nylon 0.171" x 0.38"
12 5648279 Screw Retainer - Nylon #8
13 5473049 Speed Nut - U Type 0.50" x 0.576"
14 5202099 Screw - #10-24 x 0.50" PHIL
15 9202509 Extruded Tape
16 6041391 Support Angle

QF0800_QC0700_9.PDF

15
