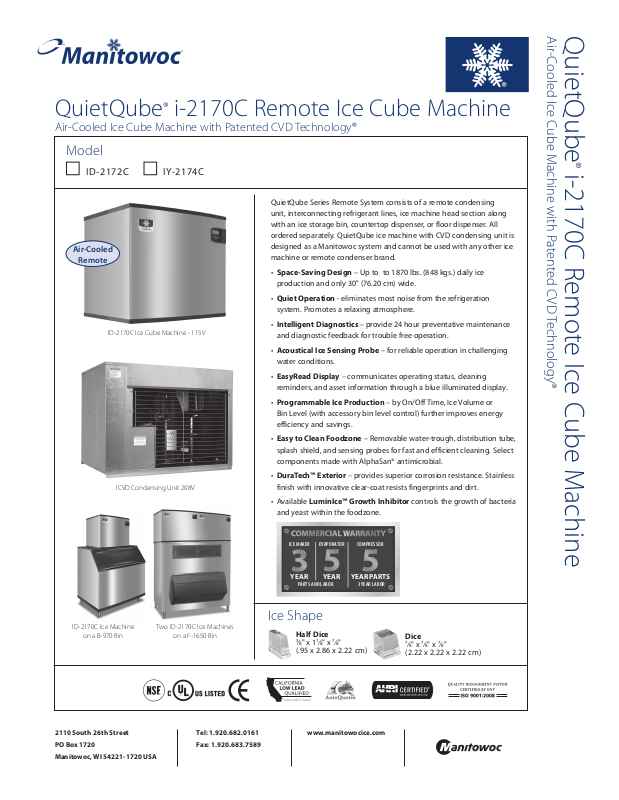

Manitowoc Ice ID-2172C User Manual
QuietQube® i-2170C Remote Ice Cube Machine
Air-Cooled Ice Cube Machine with Patented CVD Technology®
Model
ID-2172C IY-2174C
QuietQube Series Remote System consists of a remote condensing
unit, interconnecting refrigerant lines, ice machine head section along
with an ice storage bin, countertop dispenser, or floor dispenser. All
ordered separately. QuietQube ice machine with CVD condensing unit is
Air-Cooled
Remote
ID-2170C Ice Cube Machine - 115V
ICVD Condensing Unit 208V
designed as a Manitowoc system and cannot be used with any other ice
machine or remote condenser brand.
• Space-Saving Design – Up to to 1870 lbs. (848 kgs.) daily ice
production and only 30" (76.20 cm) wide.
• Quiet Operation - eliminates most noise from the refrigeration
system. Promotes a relaxing atmosphere.
• Intelligent Diagnostics – provide 24 hour preventative maintenance
and diagnostic feedback for trouble free operation.
• Acoustical Ice Sensing Probe – for reliable operation in challenging
water conditions.
• EasyRead Display – communicates operating status, cleaning
reminders, and asset information through a blue illuminated display.
• Programmable Ice Production – by On/Off Time, Ice Volume or
Bin Level (with accessory bin level control) further improves energy
efficiency and savings.
• Easy to Clean Foodzone – Removable water-trough, distribution tube,
splash shield, and sensing probes for fast and efficient cleaning. Select
components made with AlphaSan® antimicrobial.
• DuraTech™ Exterior – provides superior corrosion resistance. Stainless
finish with innovative clear-coat resists fingerprints and dirt.
• AvailableLuminIce™ Growth Inhibitor controls the growth of bacteria
and yeast within the foodzone.
QuietQube
Air-Cooled Ice Cube Machine with Patented CVD Technology®
®
i-2170C Remote Ice Cube Machine
ID-2170C Ice Machine
on a B-970 Bin
2110 South 26th Street
PO Box 1720
Manitowoc, WI 54221-1720 USA
Two ID-2170C Ice Machines
on a F-1650 Bin
Tel: 1.920.682.0161
Fax: 1.920.683.7589
ICE MAKER EVAPORATOR
YEAR YEAR
PARTS AND LABOR
Ice Shape
Half Dice
3
⁄8" x 11⁄8" x 7⁄8"
(.95 x 2.86 x 2.22 cm)
www.manitowocice.com
COMPRESSOR
YEAR PARTS
3 YEAR LABOR
Dice
7
⁄8" x 7⁄8" x 7⁄8"
(2.22 x 2.22 x 2.22 cm)
QuietQube
Air-Cooled Ice Cube Machine with Patented CVD Technology®
i-2170C Ice Machine
Electrical Entrance
3/8" (0,95 cm) F.P. T.
Ice Making Water Inlet
Suction & Liquid
Line Connections
AuCS® Accessory
®
i-2170C Remote Ice Cube Machine
Knockout
1/2" (1,27 cm) F.P. T.
Ice Making Water
Drain
F
Communicator
Cable Entrance
30.00"
(76.2 cm)
iCVD-2095 Remote Condensing Unit
A
24.50"
(62.23 cm)
29.50"
(74.9 cm)
A
B
D
E
C
F
Shipping Weight:
223 lbs. / 101 kgs.
Electrical Entrance (2) Options
Optional Suction & Liquid Line
B
Connections
C
Suction & Liquid
Line Connections
D
Communicator
Cable Entrance
D
52.50"
(133.35 cm)
A
B
B
26.00"
(66.04 cm)
26"
(66.04 cm)
C
Shipping Weight:
266 lbs (121 kgs.)
Specifications
Operating Limits:
• Ambient Temperature Range:
35˚ to 110˚F (1.7˚ to 43.3˚C)
• Water Temperature Range:
35˚ to 90˚F (1.7˚ to 32.2˚C)
• Water Pressure Ice Maker Water In:
Min. 20 psi (137.9 kPA)
Ice Machine Electric
115/60/1 standard. (230/50/1
also available, consult factory.)
Total Amps: 1.1
Max. fuse size: 15 amps
HACR-type circuit breakers can
be used in place of fuses.
Max. 80 psi (551.1 kPA)
Remote Air-cooled Ice Machine
Ice Production
24 Hours
Model
Shape
ID-2172C dice
Ice
IY-2174C
halfdice
70°Air/
50°F Water
90°Air/
70°F Water*
1,835 lbs. 1,555 lbs.
832 kgs. 705 kgs.
1,870 lbs. 1,653 lbs.
848 kgs. 750 kgs.
Water usage/100 lbs./45.4 kgs. of Ice
Potable Water*: 17.6 gallons, 67 liters
*Ratings Certified in Accordance with AHRI Standard 810.
Ice machine for use with ice storage bin or ice dispenser and CVD condensing
unit all ordered separately.
kWh per 100 lbs. is total power of ice machine and condensing unit.
Ice machine is 1 ph only. Condensing unit is 1 ph or 3 ph.
Power kWh/
100 lbs @
90°/70°F*
5.24
5.21
Accessories
LuminIce™
Growth Inhibitor
reduces yeast and
bacteria growth for a
cleaner ice machine.
AuCS®
Automatic Cleaning
System purchased
as an option and
installed in the field.
Condensing Unit Electric
208-230/60/1 standard. 208-230/60/3 also available.
HACR-type circuit breakers can be used in
place of fuses.
Note: QuietQube ice machine power supply is wired
independent of CVD condensing unit.
Min. circuit ampacity 40 1ph / 30 3ph
Max. fuse size: 50 amps 1ph / 30 amps 3ph
HACR-type circuit breakers can be used in place of fuses.
Operating Limits:
• Ambient Temperature Range:
-20˚ to 130˚F (-29˚ to 54˚C)
BTU Per Hour: 31,500 (average) 35,500 (peak)
Compressor: Nominal rating: 3.5 HP
Installation Information and Dimensions:
Maximum Line Length
—100' (30.5 m).*
Maximum Vertical Rise*
—35' (10.7 m) above ice machine.
Maximum Vertical Drop
—15' (4.5 m) below ice machine.
* A rise over 20' (6 m) requires S-Trap Kit K-00166 - ordered separately.
Standard Interconnecting Tubing
with Required Communication Wire*
Communication wire comes with each of the following line sets
Line Length Weight
Model
RC-28 20 6.2 17 8
RC-38 30 9.2 25 11
RC-58 50 15.2 39 18
*When using a non-Manitowoc line-set, a 186A 5-conductor communication
cable must be installed between the head and condenser sections.
ft. m. lbs. kgs.
4853 ©2011 Manitowoc 7/11 Continuing product improvement may necessitate change of specifications without notice.
