TABLE OF CONTENTS
Manitowoc Foodservice [Updated: Sep. 30, 2013]
Manitowoc - Ice & Related
Parts Catalog
Ice Machine
Indigo Series
Indigo Model - Prison
i0522P Indigo
i0522P Control Box 1
i0522P Evaporator Compartment - Common Components 3
i0522P Refrigeration Components - Common Components 5
i0522P Refrigeration Compartment – Air-cooled 8
i0522P Refrigeration Compartment – Water-cooled 10
i0522P Panels 12
i
i0522P Indigo
I0522P CONTROL BOX
I0522P_2.PDF
1
i0522P Indigo
I0522P CONTROL BOX
# PART # DESCRIPTION QTY Note
1 000008309 Control Board
1a 000009181 8 amp Ceramic Fuse - Mounted on Control Board
2 8373263 Refrigeration Service Valve Assembly
3 K00424 LuminIce
4 Contactor
4a 2006589 Contactor - 115V/60 Hz/1 Ph
4b 2006599 Contactor - 230V/50-60 Hz/1 Ph
5 Start Relay
5a 2002053 Start Potential Relay - 115V/60 Hz/1 Ph
5b 2007929 Start Potential Relay - 208-230V/50-60 Hz/1 Ph
6 Run Capacitor
6a 2010143 Run Capacitor - 115V/60 Hz/1 Ph
6b 000007675 Run Capacitor - 208-230V/50-60 Hz/1 Ph
6c 8504003 Run Capacitor - 208-230V/50-60 Hz/1 Ph
7 Start Capacitor
7a 8505773 Start Capacitor - 115V/60 Hz/1 Ph
7b 8503833 Start Capacitor - 208-230V/50-60 Hz/1 Ph
8 000007927 Control Board Box
9 000007928 Control Board Box Cover
10 000008623 Start Components Box
11 6069681 Start Components Box Top Cover
12 000008620 Start Components Box Side Cover
13 4302253 Control Board Mounting Supports
14 5005303 Capacitor Mounting Brackets
15 5202169 Screw - #10-24 x 0.50" Ground
15a 5573209 Star Washer
16 5202069 Screw - #10-24 x 0.50" HEX
17 5573209 Star Washer
18 Control Box Bushings
18a 2502189 Bushing - 0.625"
18b 2500019 Bushing - 1.187"
18c 2500139 Bushing - 1.5"
19 Control Box Wiring Harness
19a 000007839 Control Box Wiring Harness - 115V/60 Hz/1 Ph
19b 000007840 Control Box Wiring Harness - 230V/60 Hz/1 Ph
19c 000007841 Control Box Wiring Harness - 230V/50 Hz/1 Ph
20 2008523 Compressor Compartment Wiring Harness
I0522P_2.PDF
2
i0522P Indigo
I0522P EVAPORATOR COMPARTMENT - COMMON COMPONENTS
I0522P_3.PDF
3
i0522P Indigo
I0522P EVAPORATOR COMPARTMENT - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
1 Evaporator Assembly
1a 000011339 Evaporator - Dice Cube
1b 000011340 Evaporator - Half Dice Cube
1c 000011341 Evaporator - Regular Cube
2 Water Pump
2a 2008929 Water Pump - 115V/60 Hz
2b 2008939 Water Pump - 230V/60 Hz
2c 2008949 Water Pump - 230V/50 Hz
3 000007052 Water Level Probe
3a 000007099 Wire - Control Box to Probe
3b 000007053 Water Level Probe - Holder
3c 5202099 Screw - #10-24 x 0.50" PHIL [1]
4 000008660 Ice Thickness Control Probe
5 4011189 Water Curtain
6 7602789 Water Distribution Tube - 22" Models
6a 5004649 O-Rings [2]
7 Water Trough - See Note for Serial Break
7a 4009149 Water Trough - without Tabs [3]
7b 000010336 Water Trough - with Tabs [4]
8 000009188 Foodzone Seal Panel
9 6065389 Evaporator Top Filler Panel
9a 6063339 Bracket - Top Filler Panel
9b 5202099 Screw - #10-24 x 0.50" PHIL
10 7602799 Evaporator Top Frame Assembly
11 7602213 Water Diverter - 30" Models
11a 5305123 Thumbscrew SS - #8-32 x 0.44"
12 000006728 LCD Display
13 000007974 Touch Pad with Housing
14 000007828 LCD Wiring Harness - 20" Long
15 000007746 Touch Pad/Housing Mounting Bracket
16 5004799 Thumbscrew SS - #8-32 x 0.375" [5]
16a 5004629 O-Ring - 0.125" ID
17 5004619 Screw - #12-16 x 0.687"
18 5004659 Water Pump Base O-Ring - 4.00" ID
19 5004679 Water Pump Outlet O-Ring - 0.875" ID
PART NOTES:
[1] - Mount Water Level Probe Holder
[2] - Back of Distribution Assembly
[3] - \water trough.jpg" width=311 height=143>
[4] - \water trough with tabs.jpg" width=355 height=194>
[5] - Water Distribution Tube Mounting
I0522P_3.PDF
4
i0522P Indigo
I0522P REFRIGERATION COMPONENTS - COMMON COMPONENTS
I0522P_4.PDF
5
i0522P Indigo
I0522P REFRIGERATION COMPONENTS - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
1 Compressor
1a 000003919 Compressor - Danfoss SC15MLX.2 - 115V/60 Hz/1 Ph
1b 000003920 Compressor - Danfoss SC15MLX.2 - 208-230V/50-60 Hz/1
2 Water Dump Valve [1]
2a 2008709 Dump Valve 115V/60 Hz
2b 2008719 Dump Valve 208-230V/50-60 Hz
2c 6058459 Water Dump Valve Mounting Bracket
2d 4420383 Clear Tubing - 0.625" ID
3 Harvest Valve
3a 000007029 Harvest Valve Including 115V/60 Hz Electrical Coil
3b 000005156 Danfoss Solenoid Valve Coil Only - 115V/60 Hz [2]
3c 000007028 Harvest Valve Including 208-230V / 50-60 Hz Electrical Coil
3d 000005157 Danfoss Solenoid Valve Coil Only - 230V/50-60 Hz [3]
4 Water Inlet Valve
4a 000000375 Water Inlet Valve - 115V/60 Hz/1 Ph
4b 000000376 Water Inlet Valve - 208-230V/50-60 Hz
4c 000007594 Water Inlet Valve Bracket
5 7602903 Expansion Valve
5a 4000363 Valve Insulation Boot - Body
5b 4007203 Valve Insulation Boot - Bulb [4]
6 000008310 Thermistor with Spring Clips
7 8930259 Drier
8 000007888 Magnetic Bin Switch
8a 000007410 Bin Switch Wiring Harness
9 Air Assist
9a 000007222 Air Assist - 115V/60 Hz
9b 000007223 Air Assist - 230V/50-60 Hz
9c 4011739 Air Manifold [5]
9d 000006489 Air Assist Bracket
9e 3001453 Air Assist Nozzle
10 K00424 LuminIce
10a K00425 LuminIce Bulb
10b 000007409 LuminIce Wiring Harness
10c 000007990 Bulkhead Fitting 2.25"
10d 000008269 Bulkhead Fitting 2.75"
11 000010896 Insulated Tube [6]
11a 5650603 Snap Clamp - 1.0" ID
11b 5650703 Snap Clamp - 0.799"/0.899" ID
12 000001382 Vinyl Tubing 0.625" ID [7]
12a 6038831 Insulation 0.88 ID X 0.25W X 13.50L
12b 5650709 Snap Clamp - 0.799"/0.899" ID
13 000008364 Manifold Strainer
Ph
I0522P_4.PDF
6
i0522P Indigo
I0522P REFRIGERATION COMPONENTS - COMMON COMPONENTS
# PART # DESCRIPTION QTY Note
13a 6058571 Bracket
14 2001243 High Pressure Cut-out Control
15 2001263 Fan Cycling Control - 200-250 psig [8]
16 8706093 Female Wing Adapter - 0.375"
16a 1360961 Male Connector
17 4010439 Tubing - Water Inlet Valve [9]
17a 000000288 Clip-on Tubing Elbow [10]
18 1360989 Connector - Water Inlet Valve
19 8706133 Female Wing Adapter - 0.50"
20 Compressor Mounting
20a 6060269 Compressor Mounting Base
20b 8503069 Mounting - Rubber Grommet
20c 8503949 Mounting - Sleeve
20d 5004819 Compressor Mounting - Bolt
20e 5004829 Compressor Mounting - Nut
21 5650529 Clamp - Expansion Valve Bulb
22 3000503 Strap - Expansion Valve Bulb - 0.5"
23 5202069 Screw - #10-24 x 0.50" HEX
PART NOTES:
[1] - with bracket
[2] - \pages from 000005156_02.jpg" width=280 height=256>
[3] - \pages from 000005156_02.jpg" width=266 height=183>
[4] - \pages from 400720_08.jpg" width=923 height=583>
[5] - Air Pump Tubing Outlet
[6] - vinyl tubing from distribution tube to water pump & dump valve
[7] - dump valve to drain adapter
[8] - \pages from 200126_09.jpg" width=150 height=306>
[9] - \pages from 401043_05.jpg" width=1797 height=2238>
[10] - \pages from 000000288_01.jpg" width=228 height=183>
I0522P_4.PDF
7
i0522P Indigo

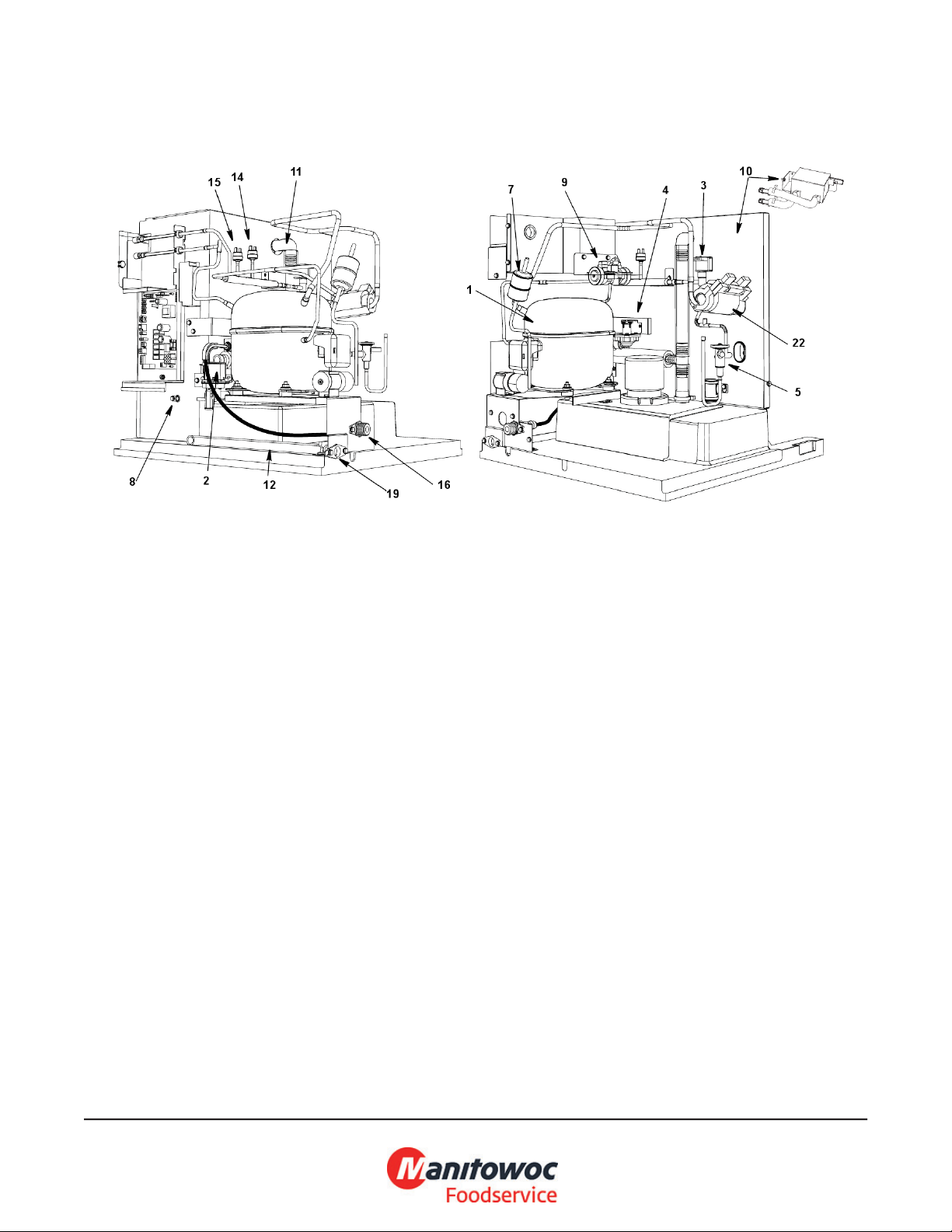

I0522P REFRIGERATION COMPARTMENT – AIR-COOLED
I0522P_5.PDF
8
i0522P Indigo
I0522P REFRIGERATION COMPARTMENT – AIR-COOLED
# PART # DESCRIPTION QTY Note
1 8252129 Air Condenser
2 Fan Motor
2a 2412929 Fan Motor 115V/60 Hz/1 Ph
2b 2412939 Fan Motor 208-230V/50-60 Hz
3 2416203 Fan Blade
4 6061689 Fan Shroud
5 6061869 Fan Motor Bracket
6 5033589 Mounting - Screw
6a 5545109 Lockwasher
6b 5429529 Mounting - Hexnut
7 Fan Bracket Mounting
7a 5032389 Fan Bracket Mounting Screw
7b 5545109 Lockwasher
7c 5573059 Mounting - Flatwasher
7d 5429559 Mounting - Rubber Wellnut
8 5202069 Screw - #10-24 x 0.50" HEX
I0522P_5.PDF
9
i0522P Indigo
I0522P REFRIGERATION COMPARTMENT – WATER-COOLED
I0522P_6.PDF
10
i0522P Indigo
I0522P REFRIGERATION COMPARTMENT – WATER-COOLED
# PART # DESCRIPTION QTY Note
1 000008892 Receiver
2 000000046 Water-cooled Condenser
3 000007546 Water Regulating Valve
3a 000007695 Bracket - Water Regulating Valve
4 000007553 High Pressure Water Regulating Valve
4a 000008482 Panel - High Pressure Regulating Valve
5 8706083 Female Wing Adapter - 0.50"
6 6000541 Receiver Strap
7 5002159 Elbow 3/8 MF x 3/8 MPT
8 5202063 Screw - #10-24 x 0.50" HEX
9 5573419 Washer
10 6058659 Base, Water Condenser/Receiver
I0522P_6.PDF
11
i0522P Indigo
I0522P PANELS
I0522P_7.PDF
12
i0522P Indigo
I0522P PANELS
# PART # DESCRIPTION QTY Note
1 Left Side Panel
1a 6070151 Left Side Panel - Louvered
1b 6070171 Left Side Panel - Non-Louvered
2 Right Side Panel
2a 6070161 Right Side Panel - Louvered
2b 6070181 Right Side Panel - Non-Louvered
3 6070071 Top Cover
4 000008119 Front Panel Assembly
5 6070091 Front Top Support
5a 5005379 Mounting Screw - #8-32 x 1" PHIL
5b 5005099 Mounting Screw - #10-16 x 0.625" PHIL
6 6061709 Compressor Mounting Base
Air-cooled Back Panels
7 000008621 Back Panel with Electrical Connection Box, Air-cooled
8 3005939 Air Filter
9 000007314 Air Baffle Assembly
10 000008622 Back Panel with Electrical Connection Box,
11 000008022 Back Coupling Panel, Water-cooled Connections
12 8706083 Female Wing Adapter - 0.50"
13 7602263 Bottom Door Frame
13a 5005379 Mounting Screw - #8-32 x 1" PHIL
13b 5202099 Screw - #10-24 x 0.50" PHIL
14 6068649 Left Top Channel
15 6071459 Right Top Channel
16 6069379 Left Corner Post
17 Electrical Box on Rear of Ice Machine
17a 6067289 Rear Connection Box
17b 6067299 Rear Connection Box Cover
17c 2006143 Terminal Block - 50 Hz - 3 Pole
17d 5202169 Screw - #10-24 x 0.50" Ground
18 5005353 Front Panel Screw
19 5005343 Screws - #12-16 x 0.50" TORX
20 5800053 Screwdriver Bit Front Panel - #4-40 TX-15-H
21 5800043 Screwdriver Bit Side Panels - #4-40 TX-25-H
22 7112319 Cartoning
Models
Water-cooled Back Panels
I0522P_7.PDF
13
