Manitowoc
Ice Machine Parts List for
Series G0800 Cuber Models
GR0800A
GD0802A
GD0892N
GY0805W
GR0801W
Manufactured October 1984 through August 1992
GD0803W
GY0804A
GY0894N
R502 System
G0800 – 1
Updated: 7/12
Page 2
G0800 CONTROL BOX
1231
4
7
1
Transformer
Board
Sensor
Module
High
Pressure
Control
Water
Pump
Delay
Timer
Toggle
Switch
Water Pump
Delay Timer
5
2
6
8
2
High
Pressure
Control
Sensor
Module
6
Transformer
Board
5
7
1
4
Low
Pressure
Control
3
8
CONTROL BOX - AIR & WATER CONTROL BOX - REMOTE UNITS
UNITIZED SENSOR BOARD
#7623753
CONTROL BOX PART NO.
1 Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 2510379
2 High Pressure Control Up to SN 870860000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2355213
2a High Pressure Control After SN 870860000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
3 Low Pressure Control Up to SN 870860000. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
3a Low Pressure Control After SN 870860000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2355273
4 Main Toggle Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 2300849
5 Mounting Track for Transformer Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4408013
6 Sensor Module Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 7623753
7 Transformer Board 230V Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 7623753
8 Timer - Pump Delay Up to SN 870960837 (Using siphon). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 2406423
8a Interval Timer After SN 870960837 (Using dump valve) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 2406433
9 Water Shield Used When Stacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Unitized sensor board is used to replace both the transformer board and sensor module . . . . . . . † 7623753
† Refer to Cross Reference Guide
Updated: 6/12
G0800 – 2
Page 3
G0800 WATER DISTRIBUTION
1232
5
27
13
16
17, 18
20
32, 33
26
22
15
23
21
11
12
4
24
10
34
35
36
28
2
3
EVAPORATOR AND WATER
DISTRIBUTION PART NO.
1 Activating Pin Assembly. . . . . . . . . . . 7620253
2 Control Box Front Cover . . . . . . . . .
No Longer Available
3 Control Box Top Cover. . . . . . . . . . . No Longer Available
4 Distribution Tube Assembly . . . . . . . No Longer Available
5 Distribution Tube Spring Clip . . . . . . No Longer Available
6 Evaporator, Regular Cube . . . . . . . . No Longer Available
7 Evaporator, Dice Cube. . . . . . . . . . No Longer Available
8 Evaporator, Half Dice Cube . . . . . . . No Longer Available
9 Float Valve. . . . . . . . . . . . . . . . . . . . . † 8369059
10 Float Valve Bracket . . . . . . . . . . . . . . † 7621403
11 Ice Thickness Control. . . . . . . . . . . . . † 7619963
12 Ice Thickness Control - Bracket . . . . . 6185814
Ice Thickness Control Screw . . . . . . . † 5022379
13 Label (For high and low side
service valve). . . . . . . . . . . . . . . . . . † 8131473
14 Nylon Nut (For mounting 4302013) . . † 5429459
15 Screw 10-24 Phillips Head
(Pkg. of 12) . . . . . . . . . . . . . . . . . . . † 5202059
16 Service Valve, High and Low Side. . . † 8373109
17 Sump Trough (Units using siphon).
No Longer Available
18 Sump Trough (Units using
dump valve). . . . . . . . . . . . . . . . . . . † 6877919
Overflow Tube in Sump Trough. . . .
No Longer Available
19 Sump Trough Support Pin . . . . . . . . . † 4302019
20 Support Angle, Front . . . . . . . . . . . .
No Longer Available
PART NO.
21 Thumb Screw for Ice
Thickness Control . . . . . . . . . . . .
No Longer Available
22 Thumb Screw (Mounting
sump trough) . . . . . . . . . . . . . . . . . . † 5305049
23 Tubing, Polyflow
(Fresh water inlet to float valve) . . . 4420291
24 Water Curtain. . . . . . . . . . . . . . . . .
25 Water Curtain Hanger
(White plastic) . . . . . . . . . . . . . . . . . † 5650459
26 Water Curtain Side Bracket
No Longer Available
(Set of left and right hand). . . . . . . . † 7621773
27 Water Flow Clamp Assembly. . . . . . . 7620543
28 Water Pump 50-60 Hz 220V . . . . . . . † 7626013
29 Water Inlet Strainer . . . . . . . . . . . . . . † 1260033
30 Water Pump Lead w/ Female Plug
31 Water Siphon Tube Assembly
32 Pump Discharge Tube Assembly
(See Page 4) . . . . . . . . . . . . . . . . . . 7620913
(Siphon). . . . . . . . . . . . . . . . . . . . .
No Longer Available
No Longer Available
33 Pump Discharge Tube Assembly
(Dump valve). . . . . . . . . . . . . . . . . . † 4420333
34 Pump Discharge Tube Clamp . . . . . . † 5650539
35 Reducer Assembly. . . . . . . . . . . . . . . 7623773
36 Barbed Tee. . . . . . . . . . . . . . . . . . . .
† Refer to Cross Reference Guide
No Longer Available
G0800 – 3
Updated: 7/12
Page 4
G0800 AIR-COOLED
1233
5
27
4
26
START COMPONENT BOX
36
17
29
36, 37
39
40
1
15
11
25
23
7
30
20
19
21
12
22, 34
31, 35
24, 32
14
Used only on units
without dump solenoid.
2
Air-cooled PART NO.
1 Compressor Assembly 1 Phase,
60 Hz 220V . . . . . . . . . . . . . . . . . . . † 7628153
1a Compressor Assembly 3 Phase . . . . . † 7628163
2 Contactor - 1 Phase . . . . . . . No Longer Available
2a Contactor - 3 Phase . . . . . . . . No Longer Available
3 Delay Timer (Air and water) . . . . . . . . † 2406353
4 Run Capacitor. . . . . . . . . . . . . . . . . . . . See Page 9
5 Start Capacitor . . . . . . . . . . . . . . . . . . .See Page 9
6 Start Relay . . . . . . . . . . . . . . . . . . . . . . See Page 9
7 Accumulator . . . . . . . . . . . . No Longer Available
8 Adapter (Fresh water inlet). . . . . . . . . 6002421
9 Adapter, Inlet Union . . . . . . . . . . . . . . 1360961
10 Adapter, Sump Drain . . . . . . . . . . . . . 1706021
11 Activating Pin Assembly . . . . . . . . . . . 7620253
12 Air Condenser with Shroud. . . No Longer Available
13 Air Condenser Only . . . . . . . . No Longer Available
14 Bin Switch. . . . . . . . . . . . . . . . . . . . . . † 2301119
15 Bin Switch Bracket . . . . . . . . . . . . . .
16 Bin Switch Mylar Insulation. . . No Longer Available
17 Cable Clamp, Nylon . . . . . . . . No Longer Available
18 Drain Overflow Tube. . . . . . . . No Longer Available
No Longer Available
19 Drier . . . . . . . . . . . . . . . . . . . . . . . . . . † 8930279
20 Expansion Valve. . . . . . . . . . . . . . . . . † 7627073
21 Expansion Valve Stainless Steel
Bulb Clamp. . . . . . . . . . . . . . . . . . . . † 5650529
22 Fan Blade Prior to SN 870260500
For Motors ESPOL5OEM2 and
ESPOL5OEM28. . . . . . . . . . . . . . . . 2416083
NOTE: FOR 50 CYCLE PARTS, SEE PAGE 8
22a Fan Blade Prior to SN 870260500 For
Fan Motor K33HXCEJ948 . . . . . . . . 2416173
23 Fan Cycle Control. . . . . . . . . . . . . . . . 2301153
24 Fan Motor Prior to SN 870260500 . . . † 7626383
25 Hot Gas Solenoid Valve Assembly. . . 2404333
26 Run Capacitor Bracket . . . . . . No Longer Available
27 Start Capacitor Bracket. . . . . . No Longer Available
28 Tubing, 5/8” ID . . . . . . . . . . . . . . . . . . † 4420383
29 Water Pump Female Lead . . No Longer Available
30 Water Siphon Assembly . . . . . . . . . . . 7620913
31 Motor Mounting Bracket Up to
SN 870260500. . . . . . . . . . . No Longer Available
32 Fan Motor After SN 870260500 . . . . . 2412433
33 Fan Capacitor After SN 870260500 . .
No Longer Available
34 Fan Blade After SN 870260500 . . . . . 2416123
35 Motor Mounting Bracket After
SN 870260500. . . . . . . . . . . . . . . . . 3006843
To Retrofit New Fan Motor To Ice Machines
Prior to SN 870260500 Use. . . . . .
36 Water Dump Solenoid
Coil Only (Dole) . . . . . . . . . . . . . . .
No Longer Available
No Longer Available
37 Water Dump Solenoid
(Alco) . . . . . . . . . . . . . . . . . . . . . . . . 000001768
38 Air Baffle (Not shown). . . . . . . . . . . .
No Longer Available
39 Vinyl Tubing . . . . . . . . . . . . . . . . . . . . † 4420333
40 Hose Clamp . . . . . . . . . . . . . . . . . . . . † 5650609
PART NO.
Updated: 7/12
G0800 – 4
† Refer to Cross Reference Guide
Page 5
G0800 WATER-COOLED
1234
28
24
5
23
4
21
START COMPONENT BOX
3
6
2
14
22
10
15
12
11
19
20
26
27
17
1
25
7
16
18
Water-cooled PART NO.
1 Compressor Assembly, 60 Hz 220V . † 7628153
2 Contactor . . . . . . . . . . . . . . . . . . . . .
3 Delay Timer (Air and water). . . . . . . . † 2406353
No Longer Available
4 Run Capacitor . . . . . . . . . . . . . . . . . . . See Page 9
5 Start Capacitor. . . . . . . . . . . . . . . . . . . See Page 9
6 Start Relay . . . . . . . . . . . . . . . . . . . . . . See Page 9
7 Accumulator
. . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
8 Activating Pin Assembly. . . . . . . . . . . 7620253
9 Adapter, Fresh Water Inlet . . . . . . . . . 6002421
10 Adapter, Sump Drain . . . . . . . . . . . . . 1706021
11 Bin Switch . . . . . . . . . . . . . . . . . . . . . † 2301119
12 Bin Switch Bracket . . . . . . . . . . . . .
No Longer Available
13 Bin Switch Mylar Insulation . . . . . . . . 6199613
14 Cable Clamp, Nylon . . . . . . . . . . . . .
No Longer Available
15 Drain Overflow Tube . . . . . . . . . . . . No Longer Available
NOTE: FOR 50 CYCLE PARTS, SEE PAGE 8
PART NO.
16 Drier . . . . . . . . . . . . . . . . . . . . . . . . . . † 8930279
17 Expansion Valve. . . . . . . . . . . . . . . . . † 7627073
18 Expansion Valve Stainless Steel
Bulb Clamp . . . . . . . . . . . . . . . . . . . † 5650529
19 Hot Gas Solenoid Valve Assembly. . . 2404333
20 Receiver. . . . . . . . . . . . . . . . . . . . . . . 000008892
21 Run Capacitor Bracket. . . . . . . . . . .
22 Screw 10-24 Slot Head . . . . . . . . . . . † 5202059
23 Start Capacitor Bracket . . . . . . . . . .
No Longer Available
No Longer Available
24 Tubing, 5/8” ID . . . . . . . . . . . . . . . . . . † 4420383
25 Water Condenser . . . . . . . . . . . . .
26 Water Condenser Outlet Adapter. . . . 8706103
27 Water Regulator. . . . . . . . . . . . . . . . . † 8372069
28 Water Pump Female Lead . . . . . . .
No Longer Available
No Longer Available
G0800 – 5
† Refer to Cross Reference Guide
Updated: 7/12
Page 6
G0800 REMOTE UP TO SN 880960000
1235
22
8
26
28
14
7
25
29
6
16
20
10
11
17
26
19
18
30
1
15
4
27
24
3
START COMPONENT BOX
5
9
2
23
REMOTE SYSTEM
COMPRESSOR COMP ARTMENT PART NO.
1 Compressor Assembly 1 Phase,
60 Hz 220V . . . . . . . . . . . . . . . . . . . † 7628153
2 Contactor . . . . . . . . . . . . . . . . No Longer Available
3 Run Capacitor. . . . . . . . . . . . . . . . . . . . See Page 9
4 Start Capacitor . . . . . . . . . . . . . . . . . . .See Page 9
5 Start Relay . . . . . . . . . . . . . . . . . . . . . . See Page 9
6 Accumulator . . . . . . . . . . . . . No Longer Available
7 Adapter, Sump Drain . . . . . . . . . . . . . 1706021
8 Bin Switch. . . . . . . . . . . . . . . . . . . . . . † 2301119
9 Cable Clamp, Nylon . . . . . . . . No Longer Available
10 Coupling . . . . . . . . . . . . . . . . . No Longer Available
11 Coupling . . . . . . . . . . . . . . . . . No Longer Available
12 Coupling O-Ring . . . . . . . . . . . . . . . . . † 8360229
13
Coupling O-Ring for Male Coupling, 1-1/8” x 3/8 OD . † 8360239
14 Drain Overflow Tube. . . . . . . . No Longer Available
15 Drier . . . . . . . . . . . . . . . . . . . . . . . . . . † 8930279
16 Expansion Valve. . . . . . . . . . . . . . . . . † 7627073
17 Expansion Valve Stainless Steel
Bulb Clamp. . . . . . . . . . . . . . . . . . . . † 5650529
18 Heater (On discharge line) . . . No Longer Available
19 Hot Gas Solenoid Valve Assembly. . . 2404333
20 Liquid Line Pump Down Valve
Assembly 208-230V/50-60 Hz
(Danfoss) . . . . . . . . . . . . . . . . . . . . . † 7630081
21 Liquid Line Pump Down Valve
Coil Only Alco . . . . . . . . . . . . . . . . . † 2404483
22 Pressure Limiter Switch . . . . . No Longer Available
23 Receiver . . . . . . . . . . . . . . . . . . . . . . . † 7629583
24 Run Capacitor Bracket . . . . . . . . . . .
25 Screw 10-24 x 5/8” . . . . . . . . . . . . . . . † 5202059
26 Service Valve For Receiver . . . . . . . . † 8373169
No Longer Available
27 Start Capacitor Bracket. . . . . . No Longer Available
28 Tubing, 5/8” ID . . . . . . . . . . . . . . . . . . † 4420383
29 Water Siphon Assembly . . . . . . . . . . . 7620913
30 3 Phase Compressor . . . . . . . . . . . . . 7621803
PARTS LOCATED IN REMOTE CONDENSER
Fan Motor. . . . . . . . . . . . . . . . . . . . . . . . . . † 7619843
Head Pressure Control. . . . . . . . . . . . . . . . † 8368069
Female Coupling Kit. . . . . . . . . . . . . . . . . . 0700663
NOTE: FOR 50 CYCLE PARTS, SEE PAGE 8
PART NO.
Updated: 7/11
† Refer to Cross Reference Guide
G0800 – 6
Page 7
G0800 REMOTE AFTER SN 880960000
1236
25
1
11
19
10
16
3
17
18
6
26
17
15
14
8
21
22
23
24
12
9
4
5
20
13
2
7
PA RT NO.
1 Bin Switch . . . . . . . . . . . . . . . . . . . . . † 2301119
2 Bin Switch Bracket. . . . . . . . . . . . .
No Longer Available
3 Check Valve. . . . . . . . . . . . . . . . . . . . † 8373149
4 Compressor Assembly, 1 PH 60 Hz
220V . . . . . . . . . . . . . . . . . . . . . . . . † 7628153
5 Compressor Assembly, 3 Phase . . . . † 7628163
6 Coupling Assembly, 1/2” . . . . No Longer Available
7 Coupling Assembly, 3/8” . . . . . . . .
8 Drain Fitting . . . . . . . . . . . . . . . . . . . . 1706021
9 Expansion Valve. . . . . . . . . . . . . . . . . † 7627073
10 Harvest Pressure Expansion Valve . . 8367313
No Longer Available
11 Low Pressure Control - Pump Down . 2355273
12 Process Valve . . . . . . . . . . . . . . . . . . † 8373109
13 Receiver. . . . . . . . . . . . . . . . . . . . . . . † 7629583
13a Receiver Mounting Bracket . . . . . . . . 6000561
14 Receiver Safety Plug . . . . . . . . . . . .
No Longer Available
15 Receiver Service Valve . . . . . . . . . . . † 8373169
16 Solenoid Valve, Hot Gas . . . . . . . . . . 2404333
17 Solenoid Valve, Liquid Line or Harvest
Assist 208-230V/50-60 Hz
(Danfoss). . . . . . . . . . . . . . . . . . . . . † 7630081
18 Stainless Steel Worm Drive Clamp . . † 5650529
19 Suction, Pressure Cut-out Switch . .
No Longer Available
20 Tee, Barbed . . . . . . . . . . . . . . . . . . . No Longer Available
21 Tube, 5/8” OD x 2" Long . . . . . . . . . . 6234514
22 Tubing, 1/2” 1D x 3/4” OD . . . . . . . . . † 4420333
23 Water Dump Solenoid Valve . . . . . . . † 2404629
24 Dump Valve Bracket. . . . . . . . . . . . . . 6260314
25 Water Pump Lead . . . . . . . . . . . . .
No Longer Available
26 Drier . . . . . . . . . . . . . . . . . . . . . . . . . . † 8930279
NOTE: FOR 50 CYCLE PARTS, SEE PAGE 8
PART NO.
† Refer to Cross Reference Guide
G0800 – 7
Updated: 7/12
Page 8

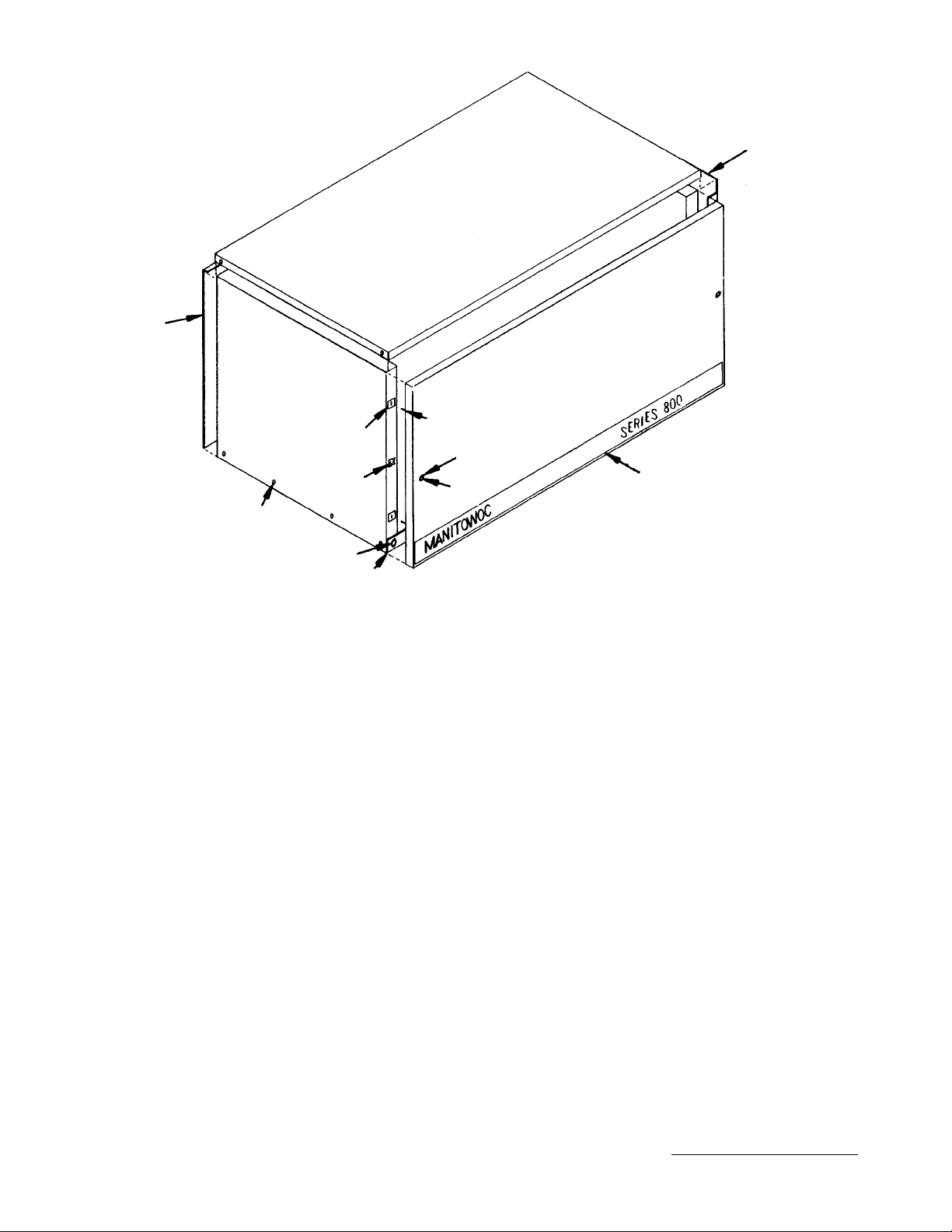

G0800 OUTER PANELS
1237
7, 8, 9
11
4
23
12
1
22
24
5
15, 20
16, 21
13, 18
14, 19
2
COMMON PARTS PART NO.
1 Front Support Angle . . . . . . . . No Longer Available
2 Front Panel Trim. . . . . . . . . . . No Longer Available
3 Front Panel Seal. . . . . . . . . . . . . . . . . † 9202509
4 Front Panel Catches Only
(Pkg. of 12). . . . . . . . . . . . . . No Longer Available
5 Front Panel Strike Only
(Pkg. of 25). . . . . . . . . . . . . . No Longer Available
6 Front Panel Strike-Catch
(Pkg. of 4 each) . . . . . . . . . . No Longer Available
7 Rear Panel (Air-cooled) . . . . . No Longer Available
8 Rear Panel (Water-cooled). . . No Longer Available
9 Rear Panel (Remote) . . . . . . . No Longer Available
10 #10-24 Phillips Head Screw (Mounting
control box cover) (Pkg. of 12). . . . . † 5202059
11 #10-24 Slot Head Screw (Mounting
outer panels) (Pkg. of 12). . . . . . . . . † 5202069
12 #10-24 Phillips Head Screw (Mounting
OUTER PANELS - FAWN PART NO.
13 Front Panel - Textured Fawn . No Longer Available
14 Left Hand End Panel. . . . . . . No Longer Available
15 Right Hand End Panel . . . . . . No Longer Available
16 Top Cover - Fawn . . . . . . . . . . No Longer Available
17 Fawn Touch Up Paint . . . . . . . . . . . . . 9400931
OUTER PANELS - STAINLESS STEEL
18 Front Panel. . . . . . . . . . . . . . . No Longer Available
18 Front Panel - McDonald’s. . . No Longer Available
19 Left Hand End Panel. . . . . . . . No Longer Available
20 Right Hand End Panel . . . . . . No Longer Available
21 Top Cover - Stainless . . . . . . . No Longer Available
LATE PRODUCTION FRONT PANEL
22 Front Panel Screw . . . . . . . . . . . . . . . † 5026689
23 Cage Nut . . . . . . . . . . . . . . . . . . . . . . † 5429109
24 Hole Plug (Black) . . . . . . . . . . No Longer Available
25 Spacer for Front Panel Screw. . . . . . . † 3718199
front angle support) (Pkg. of 12) . . . † 5202099
MODEL G0800 50 HZ MODELS ONLY PART NO.
Use same parts as previously listed for standard G0800 except for the following:
Compressor Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 7628173
Compressor Start Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Page 9
Remote Fan Motor - (Located in remote condenser unit). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Updated: 7/12
† Refer to Cross Reference Guide
G0800 – 8
Page 9
COMPRESSOR COMPONENTS FOR G0800
230V/60 HZ/1 PH
Start Start Run
Compressor Model Number Relay Capacitor Capacitor
Tecumseh AB5524G . . . . . . . . . . . . . . . . . . . . . . . . † 2007993 † 8503143
Bristol M52B143BBCB. . . . . . . . . . . . . . . . . . . . . . . † 7626113 8503643 2010143
Bristol M53B143BBCB. . . . . . . . . . . . . . . . . . . . . . . 8504253 8503143
Tecumseh AWA7512ZXD . . . . . . . . . . . . . . . . . . . . 2007579 8505513 † 2010133
230V/50 HZ/1 PH
Start Start Run
Compressor Model Number Relay Capacitor Capacitor
Tecumseh AB5530G . . . . . . . . . . . . . . . . . . . . . . . .
No Longer Available † 8503143 No Longer Available
Bristol H25B32QABHB . . . . . . . . . . . . . . . . . . . . . . 2007559 No Longer Available † 000000028
Bristol M52B183BBCB. . . . . . . . . . . . . . . . . . . . . . .
No Longer Available 8503643 8503933
Tecumseh AWA7512ZXC . . . . . . . . . . . . . . . . . . . . 8505613 8503833 † 2010133
No Longer Available
No Longer Available
G0800 – 9
† Refer to Cross Reference Guide
Updated: 7/11
Page 10
REMOTE CONDENSER AC0895
1238
25
30
29
26
27
28
9
8
15, 16, 25
17, 18, 25
7
5
11
23
24
13
12
31
23
2, 4
1
19, 20,
21, 22
10
6
11
24
23
15
PA RT NO.
1 Air Condenser. . . . . . . . . . . . . . . . . . . † 8850629
2 Fan Motor, 60 Hz 230V*. . . . . . . . . . . † 7629413
3 Run Capacitor (Emerson)* . . . . . . . . . 8503353
3a Run Capacitor (Magnatec) . . . . . . .
No Longer Available
4 Fan Blade* . . . . . . . . . . . . . . . . . . . . . 2416113
5 Fan Motor 50 Hz 230V* . . . . . . . . . . . † 7629413
6 Rain Shield* . . . . . . . . . . . . . . . . . . . . 2415053
7 Head Pressure Control. . . . . . . . . . . . † 8368069
8 Fan Grill . . . . . . . . . . . . . . . . . . . . . . . 3400643
9 Top Cover . . . . . . . . . . . . . . . . . . . . . . † 6017751
10 Rear Panel . . . . . . . . . . . . . . . . . . . .
11 Panel, Right and Left End. . . . . . . . . No Longer Available
12 Front Panel . . . . . . . . . . . . . . . . . . . . . † 6017721
13 Bracket, Fan Motor and Base. . . . . . . † 6017681
14 Legs (Condenser mounting). . . . . . . . † 6017691
No Longer Available
15 Coupling Mounting Flange . . . . . . . . . 8360183
16 Coupling Assembly 3/8 OD. . . . . . . .
*Early models used a single bracket to mount the fan motor. Those units use the following parts:
No Longer Available
17 Coupling Mounting Flange . . . . . . . . . 8360173
18 Coupling Assembly 1/2 OD . . . . . . .
19 Lockwasher 5/16 Split. . . . . . . . . . . . . † 5573139
20 Flatwasher . . . . . . . . . . . . . . . . . . . . . † 5573099
21 Hex Nut 5/16 - 18 . . . . . . . . . . . . . . . . † 5429759
22 Screw 5/16-18 Hex Head . . . . . . . . . . † 5035659
23 Lockwasher #8 . . . . . . . . . . . . . . . . . . † 5544599
24 Screw 8-1/2 . . . . . . . . . . . . . . . . . . . . † 5121539
25 Screw 10-24 x 5/8. . . . . . . . . . . . . . . . † 5202059
26 Hex Nut 1/4-20 . . . . . . . . . . . . . . . . . . † 5429529
27 Flatwasher 1/4”. . . . . . . . . . . . . . . . . . † 5573049
28 Lockwasher 1/4” Split . . . . . . . . . . . . . † 5545119
29 Screw 1/2-20 x 5/8 . . . . . . . . . . . . . . . † 5033459
30 Lockwasher #10 . . . . . . . . . . . . . . . . . † 5544649
31 Screw, 8-32 x 1/2 . . . . . . . . . . . . . . . . † 5026249
32 Female Coupling Kit . . . . . . . . . . . . . . 0700663
PART NO.
No Longer Available
Fan Motor, 60 Hz 230V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 7619843
Fan Motor, 50 Hz 230V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Rain Shield. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Fan Blade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Run Capacitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Updated: 7/11
G0800 – 10
† Refer to Cross Reference Guide
Page 11
1239
16
10, 11
7
14
25, 26
25, 26
24
8, 9
13
16
18
12
25, 26
8, 9
24
10, 11
17
19
20
21
15
1, 2
32, 33, 34, 35
25
5
6
15
4
7
3
27, 28, 29, 30
24
31
1
2
5
25
15

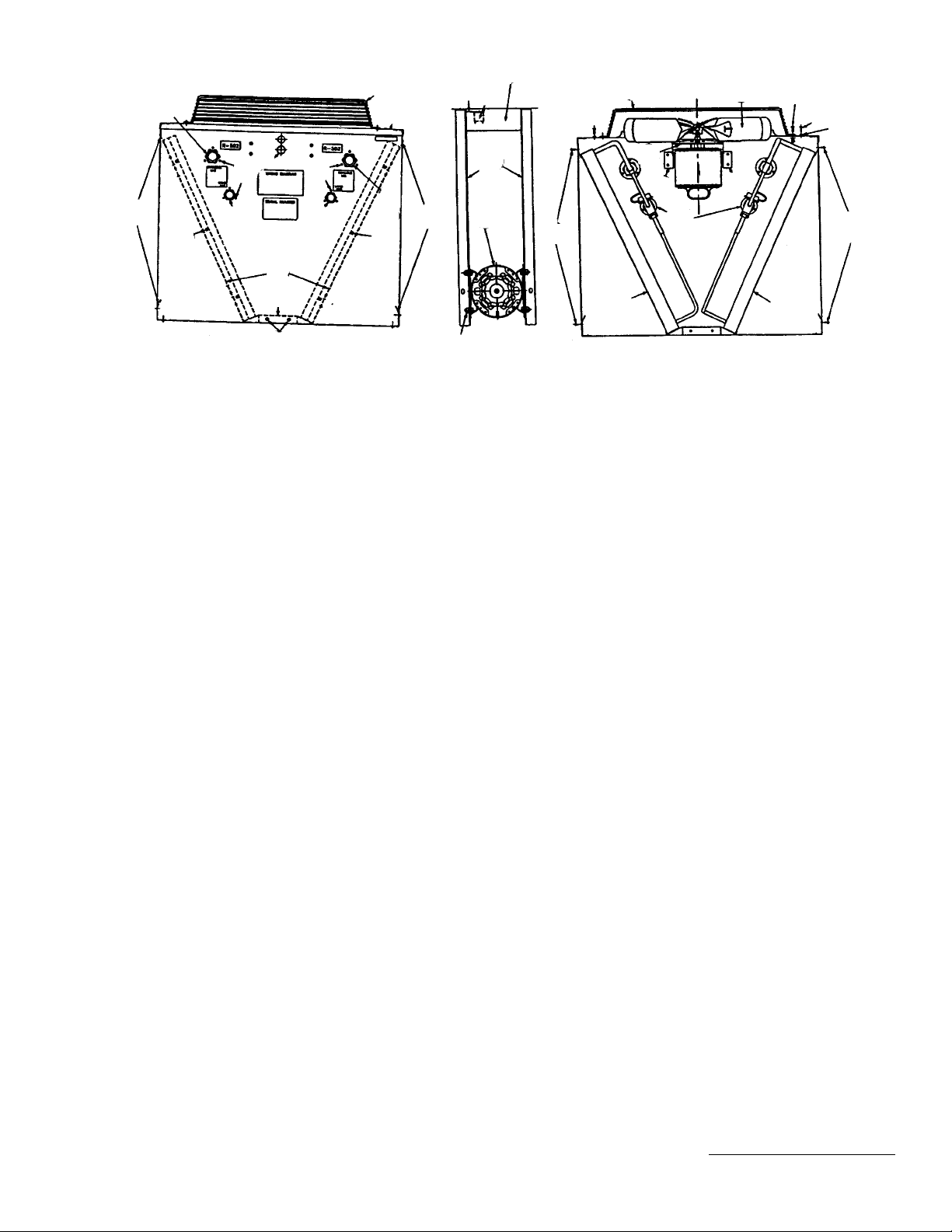

REMOTE CONDENSER DC0896
1 Fan Motor, 115V/60 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 7629423
2 Fan Motor, 230V/50-60 Hz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 7629413
3 Fan Blade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2416113
4 Rain Slinger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2415053
5 Air Condenser DC0896A (Uses 2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 8850629
6 Headmaster Control - R502. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 8368069
7 Fan Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3400643
8 Male Coupling, 1-1/8 x 3/8 OD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
9 Coupling Flange for Male Coupling, 1-1/8” x 3/8 OD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8360183
10 Male Coupling, 1-7/16 - 16 x 1/2 OD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
11 Coupling Flange. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8360173
12 Hole Plug for 7/8” Hole. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4301463
13 Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6017791
14 Condenser Mounting Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6017771
15 Base Bracket for Fan Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 6017681
16 Support Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 6017781
17 Top Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6017891
18 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
19 Electrical Box Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 6017761
20 Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
21 Relay Mounting Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
22 Transformer (Not shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
23 Electrical Junction Box (Not shown). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2515013
24 Screw, #10-24 x 0.62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 5202059
25 Screw, #8 x 0.50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 5121539
26 Lockwasher, #8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 5544599
27 Screw, 0.25 x 0.62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 5033459
28 Lockwasher 0.25 Split SS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 5545119
29 Washer - Flat 0.25 SS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 5573049
30 Nut 0.25-20 Steel Hex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 5429529
31 Lockwasher #10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 5544649
32 Screw, 3118 x 0.62 Hex Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 5035659
33 Nut 0.31-18 Steel Hex Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 5429759
34 Washer, Flat 0.31 ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 5573099
35 Lockwasher 0.31 Split Zinc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 5573139
36 Back Panel (Not shown). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 6017881
NOTE: Items 20, 21, 22 and 23 are used only when the optional K00095 relay/transformer kit has been installed.
G0800 – 11
† Refer to Cross Reference Guide
Updated: 7/11
PART NO.
Page 12
INTENTIONALLY LEFT BLANK
G0800 – 12
Loading...
