Manitowoc
Ice Machine Parts List
For Models
ER1100A
ED1102A
EY1104A
EY1114A
ER1190N
ED1192N
Manufactured October 1984 through June 1986
ER1101W
ED1103W
EY1105W
EY1115W
Remote Cuber
EY1194N
EY1184N
E1100 – 1
Updated: 6/12
E1100
1171
Front
Rear
41
21
22
41
11
41
41
40
19
7
2
8
17
26
35
29
34
19
16
WATER CIRCUIT GROUP
& EXPANSION VALVES PART NO.
1 Control Box Cover (Air). . . . . . . . . . .
1 Control Box Cover
(Water and remote) . . . . . . . . . . . . . .
No Longer Available
No Longer Available
2 Curtain Limiter Bracket . . . . . . . . . . . No Longer Available
3 Distributor Tube, Front . . . . . . . . . . No Longer Available
4 Distributor Tube, Rear. . . . . . . . . . . . No Longer Available
5 Distributor Tube Mounting Clip. . . . . No Longer Available
6 Distributor Tube Centering Pin . . . . . . † 5013139
7 Drain Fitting Mounting Plate
. . . . . . . . . . No Longer Available
8 Drain Tube Assembly . . . . . . . . . . . No Longer Available
9 Expansion Valve . . . . . . . . . . . . . . . . . † 8367289
10 Expansion Valve
Stainless Steel Clamp . . . . . . . . . . . † 5650529
11 Expansion Valve
Enclosure Assembly
. . . . . . . . . . . . . . . . . No Longer Available
12 Float V alve . . . . . . . . . . . . . . . . . . . . . † 8369049
13 Float Valve Bracket. . . . . . . . . . . . . .
14 Ice Thickness Control. . . . . . . . . . . . . † 7620613
No Longer Available
15 Ice Thickness Control Bracket . . . . . . 6185814
16 Junction Box Cover
. . . . . . . . . . . . . . . . . . . No Longer Available
17 Junction Box Weldment. . . . . . . . . . . . . . . No Longer Available
18 Nylon Nut for Centering Pin . . . . . . . . † 5429459
19 Screw, Self Tap Hex . . . . . . . . . . . . . . † 5202109
20 Splash Shield . . . . . . . . . . . . . . . . . .
21 Suction Tube Cover . . . . . . . . . . . . . . . . . . . No Longer Available
No Longer Available
22 Suction Tube Enclosure Assembly. . No Longer Available
23 Sump Trough (For units
with siphon assembly) . . . . . . . . . .
No Longer Available
24 Sump Trough (For units
with dump valve) . . . . . . . . . . . . . . . † 6877219
25 Sump Trough Support Left Hand
26 Sump Trough Support Right Hand . . No Longer Available
. . . . . No Longer Available
27 Sump Trough Support Weldment . . . No Longer Available
28 Thumbscrews (Pkg. of 6) . . . . . . . . . . † 5305049
29 Tubing, Polyflow, 1/4” OD . . . . . . . . . . 4420291
Updated: 7/11
30 Union with Sleeve and Nut
Water Curtain Assembly
31 Water Curtain Hanger
32 Water Curtain Hooks,
33 Water Flow Clamp Assembly . . . . . . . 7620543
34 Water Inlet Adapter. . . . . . . . . . . . . . . 6002421
35 Water Inlet Adapter Elbow . . . . . . . .
36 Water Inlet Strainer. . . . . . . . . . . . . . . † 1260033
37 Water Pump . . . . . . . . . . . . . . . . . . . . † 1480279
38 Water Pump Bracket. . . . . . . . . . . . . . † 6080414
39 Water Pump “Y” Tube Assembly . . .
40 Water Syphon Assembly . . . . . . . . . No Longer Available
41 Wing Nuts. . . . . . . . . . . . . . . . . . . . . . † 5489139
42 Pump Discharge Tube Clamp. . . . . . . † 5650539
*When ordering water curtain hooks for a machine with
SN prior to 850760600 also order a new water curtain.
EVAPORATOR ASSEMBLY GROUP
Regular Evaporator Assembly
Front. . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Rear . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Dice Evaporator Assembly
Front. . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Rear . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Half Dice Evaporator Assembly
Front . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Rear . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Top Evaporator Extrusion Assembly
Front. . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Rear . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
E1100 – 2
(At strainer) . . . . . . . . . . . . . . . . . .
(Front or rear) . . . . . . . . . . . . . . . . . . . .
No Longer Available
No Longer Available
(On water curtain) . . . . . . . . . . . . . . † 5650459
Set of Right and Left Hand* . . . . . . . † 7621773
No Longer Available
No Longer Available
† Refer to Cross Reference Guide
PART NO.
1172
17
19
15
14
28
20
25
28
9
32
31
23, 24
10
37
12
1
27
13
19
38
37
30
19
19
4
3
33
39
42
9
41
E1100, CONTINUED
E1100 – 3
Updated: 7/02

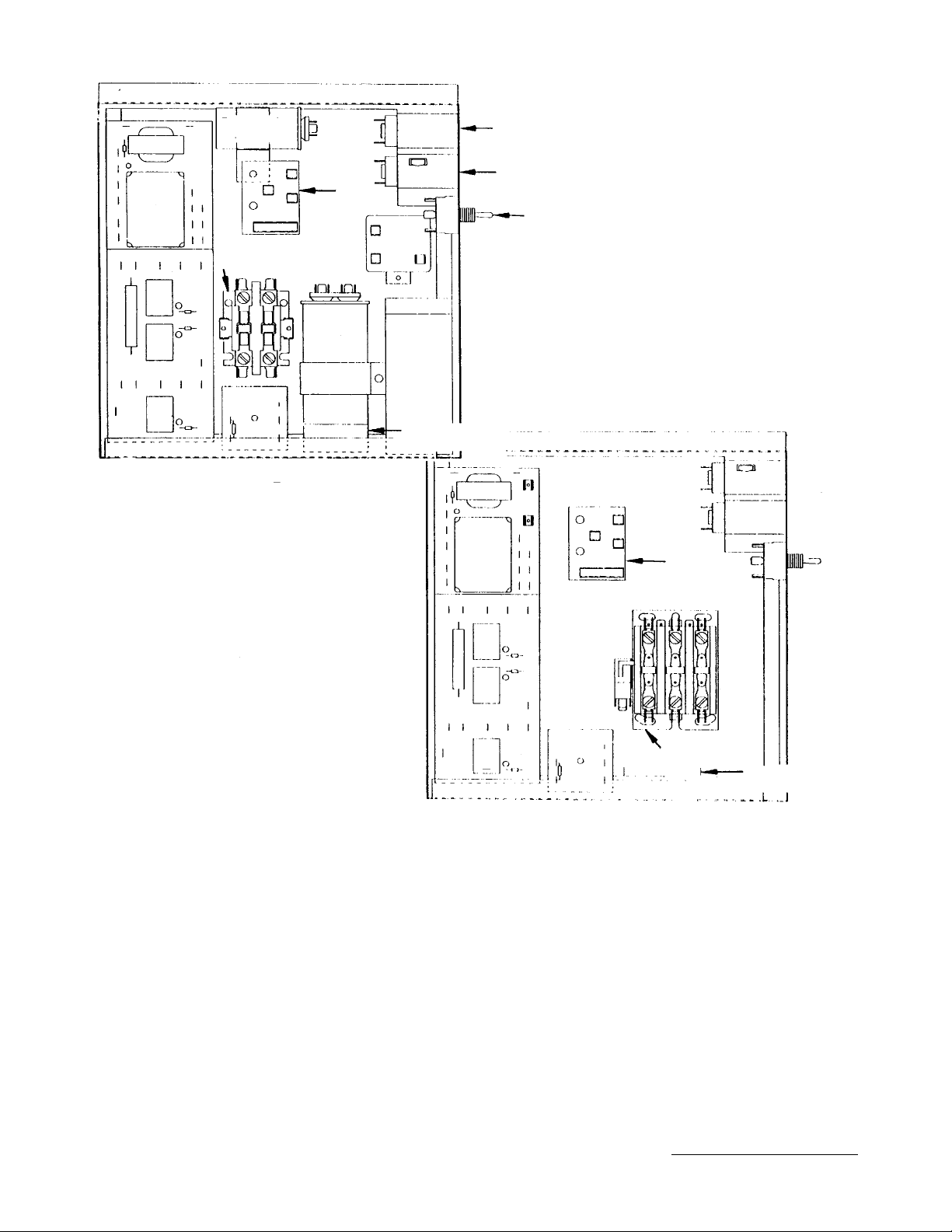

E1100, CONTINUED
1173
Low Pressure Cut Out — Remote
Fan Cycle Switch — Air
High Pressure Cut Out
Toggle Switch
1 Phase Control Box Assembly
3 Phase Control Box Assembly
Fan Capacitor
(Air Only)
Unitized
Sensor
Module
Terminal
Board
Start
Relay
Run
Capacitor
Start
Capacitor
Water Pump Delay Timer
Delay
Timer
Contactor — 1
Phase
Relay
Unitized
Sensor
Module
Terminal
Board
Delay
Timer
Contactor 3 Phase
Water Pump
Delay Timer
Relay
Relay
Relay
Relay
Relay
CONTROL BOX COMPONENTS PART NO.
Contactor - 1 Phase . . . . . . . . . . . No Longer Available
Contactor - 3 Phase
(Includes microswitch) . . . . . . . No Longer Available
Control Box Cover (Air) . . . . . . . . . . . . . . . 7621073
Control Box Cover
(Water and remote) . . . . . . . . . . . No Longer Available
Fan Capacitor. . . . . . . . . . . . . . . . No Longer Available
Fan Cycle Switch . . . . . . . . . . . . . No Longer Available
Fuse (Pkg. of 6) 5 amp. . . . . . . . . . . . . . . . † 2510379
High Pressure Cut-out . . . . . . . . . . . . . . . . 2355113
High Pressure Cut-out McDonald’s
after SN 85106000. . . . . . . . . . . . No Longer Available
Low Pressure Cut-out (Remote). . . No Longer Available
Relay . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
NOTE: For 50 cycle parts see Page 8.
Updated: 6/12
E1100 – 4
Relay Mounting Board . . . . . . . . . . No Longer Available
Unitized Sensor Module . . . . . . . . . . . . . . . † 7623753
Terminal Board . . . . . . . . . . . . . . . . No Longer Available
Toggle Switch . . . . . . . . . . . . . . . . . . . . . . . † 2300849
Delay Timer - 7 seconds. . . . . . . . . . . . . . . † 2406353
Water Pump Delay Timer. . . . . . . . . . . . . . † 2406423
Bristol - Run Capacitor . . . . . . . . . . . . . . . 2010143
Start Capacitor . . . . . . . . . . . . . . . . . . . . . . 8503643
Start Relay . . . . . . . . . . . . . . . . . . . No Longer Available
Tecumseh - Run Capacitor . . . . No Longer Available
Start Cap acitor . . . . . . . . . . . . . . . . . . . . . . † 8503143
Start Relay . . . . . . . . . . . . . . . . . . . No Longer Available
† Refer to Cross Reference Guide
PART NO.
E1100, CONTINUED
1174
13
4
5
15
3
12
8
14
9
9a
10
1
6, 7
2
11
AIR COOLED CUBER PART NO.
1 Accumulator Assembly*. . . . . . . . . . . 7620943
2 Air Condenser . . . . . . . . . . . . No Longer Available
2 Air Condenser/Fan/Shroud
Assembly. . . . . . . . . . . . . . . No Longer Available
3 Bin Switch . . . . . . . . . . . . . . . No Longer Available
4 Bin Switch Bracket (Front) . . . No Longer Available
5 Bin Switch Bracket (Rear) . . . No Longer Available
6 Compressor - 1 Phase** . . . . No Longer Available
7 Compressor - 3 Phase** . . . . No Longer Available
8 Drier . . . . . . . . . . . . . . . . . . . . . . . . . . 8930279
*Not used after SN 850965601
**For 50 cycle units see Page 8.
AIR COOLED CUBER PART NO.
9 Fan Blade. . . . . . . . . . . . . . . . No Longer Available
9a Fan Motor. . . . . . . . . . . . . . . . No Longer Available
10 Fan Mounting Bracket . . . . . . . . . . . . 3006843
10 Fan Mounting Grommets. . . . . . . . . . † 5429559
11 Fan Shroud . . . . . . . . . . . . . . No Longer Available
12 Process Valve . . . . . . . . . . . . . . . . . . † 8373109
13 Solenoid Valve . . . . . . . . . . . . No Longer Available
14 Switch Insulator . . . . . . . . . . . No Longer Available
15 Thumbscrew . . . . . . . . . . . . . . . . . . . † 5305049
E1100 – 5
† Refer to Cross Reference Guide
Updated: 11/11
1175
1
6, 7
4
15
17
16
2
14
9
8
5
3
11
13
10
12
W
a
t
e
r
-
c
ool
e
d
E1100 WATER-COOLED
WATER COOLED CUBER PART NO.
1 Accumulator Assembly* . . . . . . . . . . . 7620943
2 Bin Switch. . . . . . . . . . . . . . . . No Longer Available
3 Bin Switch Bracket (Front) . . . No Longer Available
4 Bin Switch Bracket (Rear). . . . No Longer Available
5 Bushing 5/8” to 1/2” . . . . . . . . . . . . . . † 1300059
6 Compressor - 1 Phase**. . . . . No Longer Available
7 Compressor - 3 Phase**. . . . . No Longer Available
8 Drain Adapter . . . . . . . . . . . . . . . . . . . 1706021
*Not used after SN 850965601
**For 50 cycle units see Page 8.
WATER COOLED CUBER PART NO.
9 Drier . . . . . . . . . . . . . . . . . . . . . . . . . . † 8930279
10 Half Union Coupling . . . . . . . . . . . . . . 8332033
11 Process Valve. . . . . . . . . . . . . . . . . . . † 8373109
12 Receiver . . . . . . . . . . . . . . . . No Longer Available
13 Solenoid Valve . . . . . . . . . . . . No Longer Available
14 Switch Insulator . . . . . . . . . . . No Longer Available
15 Thumbscrew. . . . . . . . . . . . . . . . . . . . † 5305049
16 Water Condenser . . . . . . . . . . No Longer Available
17 Water Regulating Valve . . . . . . . . . . . 8372063
Updated: 5/11
E1100 – 6
† Refer to Cross Reference Guide

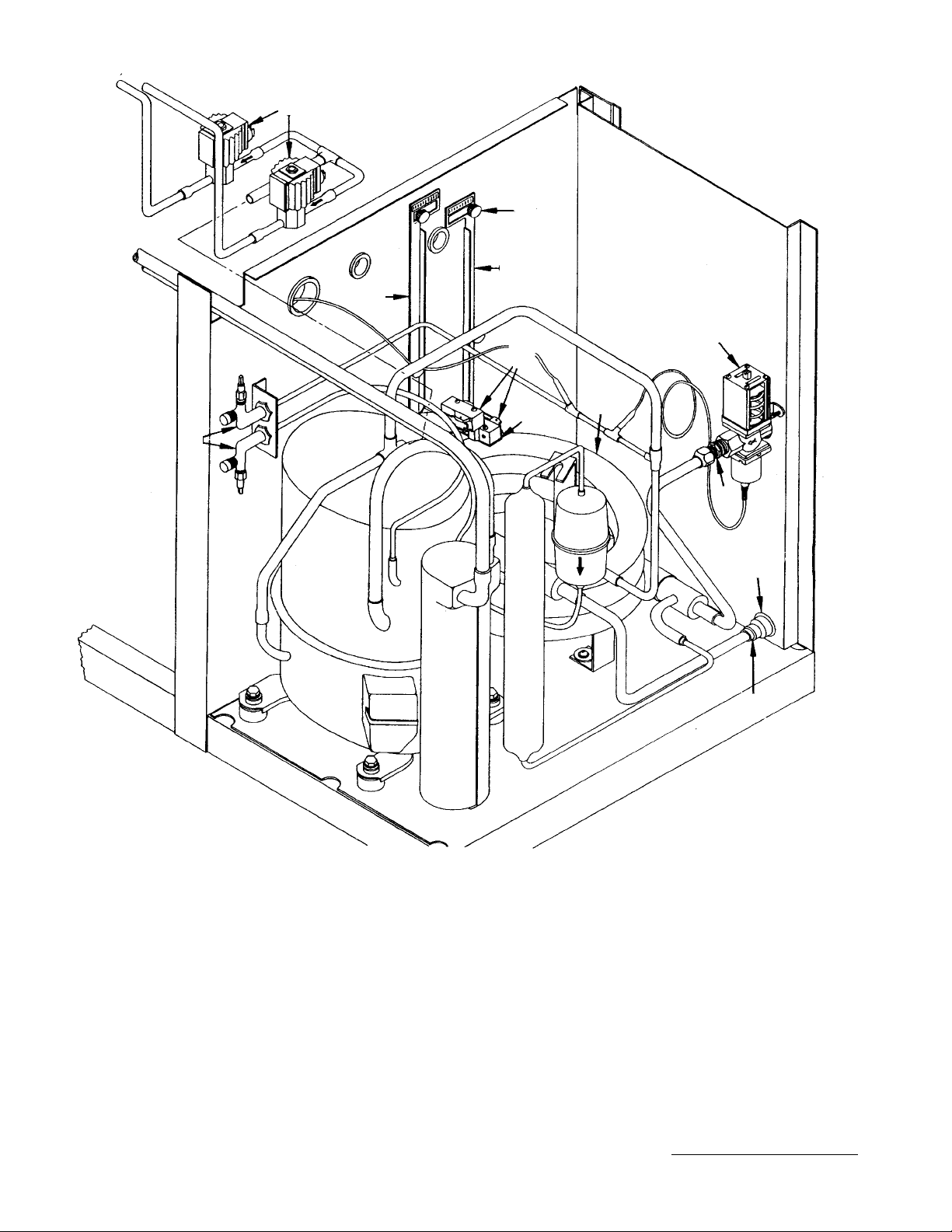

E1100 REMOTE
1176
12
6, 7
8
19
11
10
18
30
14
15
17
5
23
21
23
4
3
20
25
16
24
23
2
28
REMOTE CUBER PART NO.
1 Accumulator Assembly. . . . . . No Longer Available
2 Bin Switch . . . . . . . . . . . . . . . No Longer Available
3 Bin Switch Bracket (Front) . . . No Longer Available
4 Bin Switch Bracket (Rear) . . . No Longer Available
5 Check Valve. . . . . . . . . . . . . . . . . . . . † 8373159
6 Compressor - 1 Phase* . . . . . No Longer Available
7 Compressor - 3 Phase* . . . . . No Longer Available
8 Drier . . . . . . . . . . . . . . . . . . . . . . . . . . † 8930279
9 Head Pressure Control - in Remote Condenser
10 Heater . . . . . . . . . . . . . . . . . . No Longer Available
11 Heater Well . . . . . . . . . . . . . . No Longer Available
12 Liquid Solenoid Valve Assembly . . . . 2404333
13 Liquid Solenoid Coil Only Alco. . . . . . † 2404483
14 Mounting Flange 3/8”. . . . . . . . . . . . . 8360053
15 Mounting Flange 1/2”. . . . . . . . . . . . . 8360063
16 Process Valve . . . . . . . . . . . . . . . . . . † 8373109
17 Receiver. . . . . . . . . . . . . . . . No Longer Available
18 Receiver Mounting Bracket . . No Longer Available
*For 50 cycle units see Page 8.
REMOTE CUBER PART NO.
19 Receiver Service Valve . . . . . . . . . . . † 8373169
20 Solenoid Valve . . . . . . . . . . . . No Longer Available
21 Suction Pressure Limiter . . . . No Longer Available
22 Switch Insulator . . . . . . . . . . . No Longer Available
23 Thumbscrew . . . . . . . . . . . . . . . . . . . † 5305049
24 Toggle Switch Lever. . . . . . . . No Longer Available
25 Toggle Switch Cap. . . . . . . . . No Longer Available
26 Headmas ter (if in ice machine) . . . . . † 8368049
27 HPR Valve . . . . . . . . . . . . . . . No Longer Available
28 HPR Solenoid Valve Only
208-230V/50-60 Hz (Danfoss). . . . . † 7630081
29 HPR Timer Kit . . . . . . . . . . . . No Longer Available
30 HPR Timer Only (7second) . . . . . . . . † 2406353
Not shown:
Aero-quip Male Coupling 1/2” . . . . . . . . . . † 8360353
Aero-quip Male Coupling 3/8” . . . . . . . . . . † 8360343
“0” Ring 1/2”. . . . . . . . . . . . . . . . . . No Longer Available
“0” Ring 3/8”. . . . . . . . . . . . . . . . . . . . . . . . † 8360139
† Refer to Cross Reference Guide
E1100 – 7
Updated: 7/11

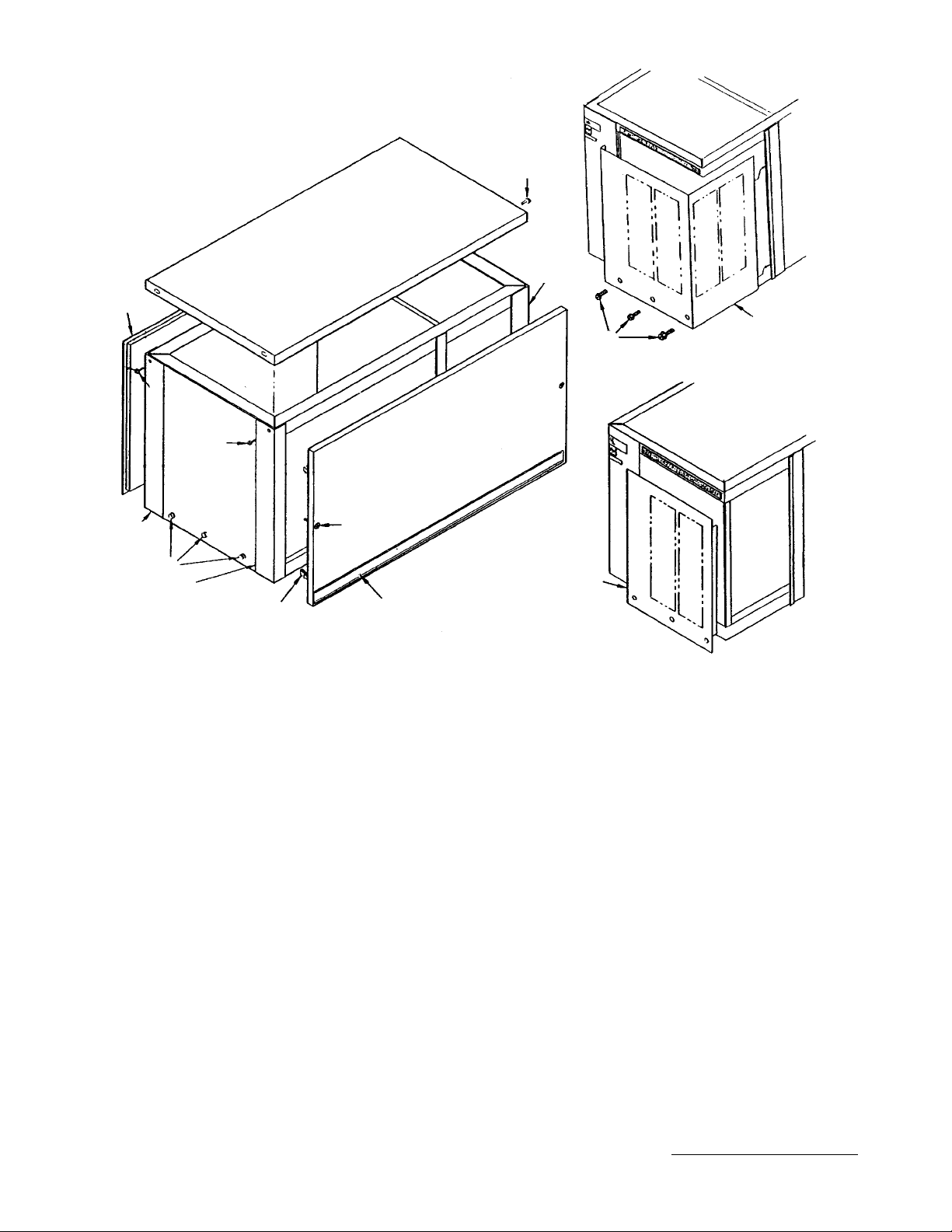

E1100
1177
15, 25
Right Hand End
Panel
3, 4
Trim
Remote and Water
Machines
14, 24
Right Hand End
Panel
10
Air Machine
10
19, 29
Right Hand
Front
Corner Post
16, 26
Top Cover
12, 21, 22
Front Panel
8
1, 2
Rear Panel
10
10
13, 23
Left Hand
End Panel
17, 27
Left Rear
Corner Post
11
18, 28
Left Hand
Front Corner
Post
7
Front Panel Strike
2
REMOTE CUBER PART NO.
COMMON PARTS
1 Rear Panel Prior to
SN 840563262
. . . . . . . . . . . . . . . . . . . . . . . No Longer Available
2 Rear Panel After SN 840563262 . . . No Longer Available
2 Water Panel . . . . . . . . . . . . . . No Longer Available
2 Remote Panel. . . . . . . . . . . . . No Longer Available
3 Trim - Front Panel. . . . . . . . . . No Longer Available
4 Trim - Front Panel McDonald’s No Longer Available
5 Front Strike & Catch (4 sets). . . . . .
No Longer Available
6 Front Panel Fastener
Catches Only (Pkg. of 12) . . . . . .
7 Front Panel Fastener
Strikes Only (Pkg. of 25) . . . . . . .
No Longer Available
No Longer Available
8 Front Panel Fastener Screw
(Pkg. of 12). . . . . . . . . . . . . . . . . . . . †5026689
9 Front Panel Fastener Cage Nut
(Pkg. of 12). . . . . . . . . . . . . . . . . . . . † 5429109
10 Screw, 10-24 x 3/4 Hexhead. . . . . . . . † 5202109
11 Thumbscrew. . . . . . . . . . . . . . . . . . .
FAWN
No Longer Available
12 Front Panel (Textured fawn) . . . . . . . . 7620883
13 Left Hand End Panel. . . . . . . No Longer Available
14 Right Hand End Panel (Air) . . No Longer Available
15 Right Hand End Panel
16 Top Cover . . . . . . . . . . . . . . . . No Longer Available
17 Corner Post Assembly,
Updated: 7/11
(Water and remote) . . . . . . . . . . . . . 6598714
Left Hand Rear. . . . . . . . . . . No Longer Available
REMOTE CUBER PART NO.
18 Corner Post Assembly,
19 Corner Post Assembly,
20 Fawn Touch Up Paint . . . . . . . . . . . . . 9400931
STAINLESS STEEL
21 Front Panel. . . . . . . . . . . . . . . No Longer Available
22 Front Panel (McDonald’s). . . . No Longer Available
23 Left Hand End Panel. . . . . . . . No Longer Available
24 Right Hand End Panel (Air) . . No Longer Available
25 Right Hand End Panel
26 Top Cover. . . . . . . . . . . . . . . . No Longer Available
27 Corner Post Assembly,
28 Corner Post Assembly,
29 Corner Post Assembly,
50 CYCLE CUBER PART NO.
(All parts same except)
1 Compressor 50 Hz 1 Phase . . No Longer Available
2 Relay . . . . . . . . . . . . . . . . . . . No Longer Available
3 Start Capacitor . . . . . . . . . . . . . . . . . . † 8503143
4 Run Capacitor. . . . . . . . . . . . . No Longer Available
5 Water Pump . . . . . . . . . . . . . . . . . . . . † 1480279
6 Compressor 50 Hz 3 Phase . . No Longer Available
7 Unitized Sensor Board . . . . . . No Longer Available
E1100 – 8
Left Hand Front . . . . . . . . . . No Longer Available
Right Hand Front . . . . . . . . . No Longer Available
(Water and remote) . . . . . . . No Longer Available
Left Hand Rear. . . . . . . . . . . No Longer Available
Left Hand Front . . . . . . . . . . No Longer Available
Right Hand Front . . . . . . . . . No Longer Available
† Refer to Cross Reference Guide
AC1195 REMOTE CONDENSER
1178
1
15
14
12, 13
10,
11
7
5
16
2
6
16
PART NO.
1 Air Condenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 8850629
2 Fan Motor, 60 Hz* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 7629413
3 Fan Motor, 50 Hz* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 7629413
4 Fan Capacitor*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8503353
5 Fan Blade* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2416113
6 Rain Slinger* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2415053
7 Headmaster Control (See item 19 below) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 8368049
8 Toggle Switch up to SN 82020001. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
9 Toggle Switch after SN 82020001 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
10 Coupling Assembly, Male 1/2” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 8360353
11 Mounting Flange 1/2”. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8360063
12 Coupling Assembly, Male 3/8” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 8360343
13 Mounting Flange 3/8”. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8360053
14 Fan Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3400643
15 Top Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 6017751
16 Base Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 6017681
17 V alve Access Fitting Core . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
18 Female Coupling Kit (Not shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0700623
19 Headmaster Relocation Kit (Used for units originally built with headmaster in
ice machine to relocate to condenser). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
*Early models used a single bracket to mount to fan motor. Those units use the following parts:
Fan Motor 60 Hz 230V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . † 7619843
Fan Motor 50 Hz 230V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Rain Shield. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Fan Blade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
Run Capacitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . No Longer Available
E1100 – 9
† Refer to Cross Reference Guide
Updated: 5/11
INTENTIONALLY LEFT BLANK
E1100 – 10
Loading...
