8189 Century Boulevard • Minneapolis, MN 55317-8002 • USA
800-843-5116 • 952-556-4900 • Fax 952-556-4997
[email protected] • www.mamacsys.com
For Additional Information See PR-243 Data Sheet

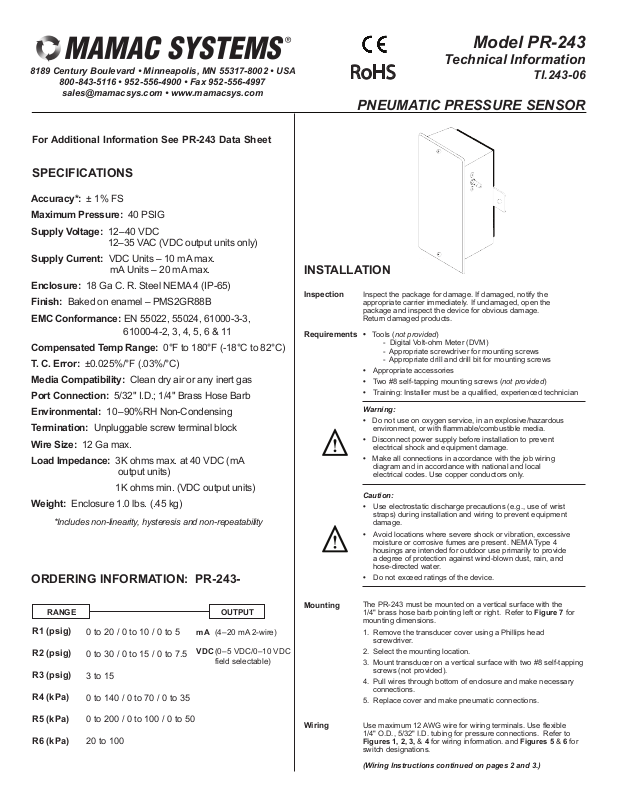

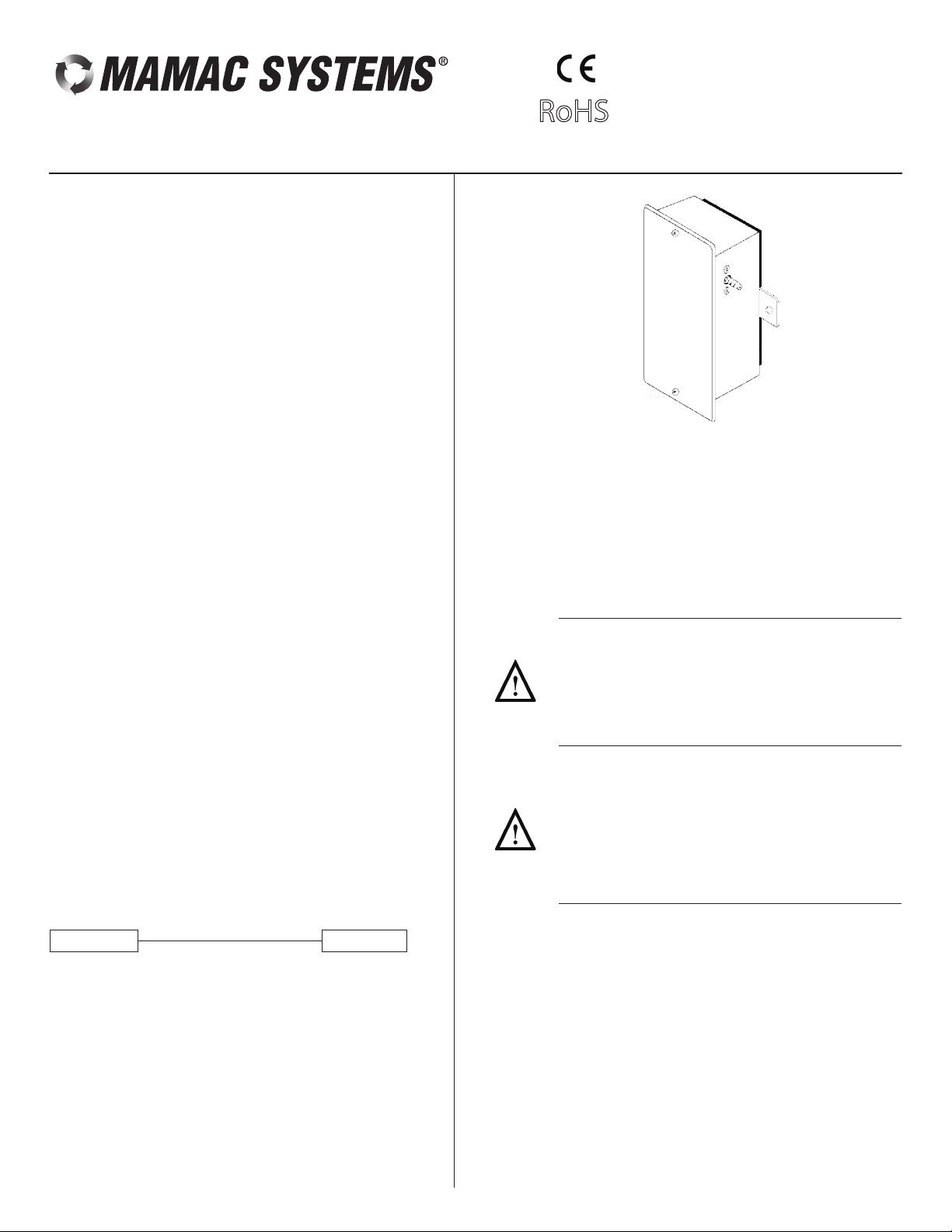

SPECIFICATIONS
Accuracy*: ± 1% FS
Maximum Pressure: 40 PSIG
Supply Voltage: 12–40 VDC
12–35 VAC (VDC output units only)
Supply Current: VDC Units – 10 mA max.
mA Units – 20 mA max.
Enclosure: 18 Ga C. R. Steel NEMA 4 (IP-65)
Finish: Baked on enamel – PMS2GR88B
EMC Conformance: EN 55022, 55024, 61000-3-3,
61000-4-2, 3, 4, 5, 6 & 11
Compensated Temp Range: 0°F to 180°F (-18°C to 82°C)
T. C. Error: ±0.025%/°F (.03%/°C)
Media Compatibility: Clean dry air or any inert gas
Port Connection: 5/32" I.D.; 1/4" Brass Hose Barb
Environmental: 10–90%RH Non-Condensing
Termination: Unpluggable screw terminal block
Wire Size: 12 Ga max.
Load Impedance: 3K ohms max. at 40 VDC (mA
output units)
1K ohms min. (VDC output units)
Weight: Enclosure 1.0 lbs. (.45 kg)
*Includes non-linearity, hysteresis and non-repeatability
ORDERING INFORMATION: PR-243-
RoHS
PNEUMATIC PRESSURE SENSOR
INSTALLATION
Inspection
Requirements
Inspect the package for damage. If damaged, notify the
appropriate carrier immediately. If undamaged, open the
package and inspect the device for obvious damage.
Return damaged products.
• Tools (not provided)
• Appropriate accessories
• Two #8 self-tapping mounting screws (not provided)
• Training: Installer must be a qualified, experienced technician
Warning:
• Do not use on oxygen service, in an explosive/hazardous
environment, or with flammable/combustible media.
• Disconnect power supply before installation to prevent
electrical shock and equipment damage.
• Make all connections in accordance with the job wiring
diagram and in accordance with national and local
electrical codes. Use copper conductors only.
Caution:
• Use electrostatic discharge precautions (e.g., use of wrist
straps) during installation and wiring to prevent equipment
damage.
• Avoid locations where severe shock or vibration, excessive
moisture or corrosive fumes are present. NEMA Type 4
housings are intended for outdoor use primarily to provide
a degree of protection against wind-blown dust, rain, and
hose-directed water.
• Do not exceed ratings of the device.
Model PR-243
Technical Information
TI.243-06
- Digital Volt-ohm Meter (DVM)
- Appropriate screwdriver for mounting screws
- Appropriate drill and drill bit for mounting screws
RANGE OUTPUT
R1 (psig)
R2 (psig)
R3 (psig)
R4 (kPa)
R5 (kPa)
R6 (kPa)
0 to 20 / 0 to 10 / 0 to 5
0 to 30 / 0 to 15 / 0 to 7.5
3 to 15
0 to 140 / 0 to 70 / 0 to 35
0 to 200 / 0 to 100 / 0 to 50
20 to 100
mA
(4–20 mA 2-wire)
VDC
(0–5 VDC/0–10 VDC
field selectable)
Mounting
Wiring
The PR-243 must be mounted on a vertical surface with the
1/4" brass hose barb pointing left or right. Refer to Figure 7 for
mounting dimensions.
1. Remove the transducer cover using a Phillips head
screwdriver.
2. Select the mounting location.
3. Mount transducer on a vertical surface with two #8 self-tapping
screws (not provided).
4. Pull wires through bottom of enclosure and make necessary
connections.
5. Replace cover and make pneumatic connections.
Use maximum 12 AWG wire for wiring terminals. Use flexible
1/4" O.D., 5/32" I.D. tubing for pressure connections. Refer to
Figures 1, 2, 3, & 4 for wiring information. and Figures 5 & 6 for
switch designations.
(Wiring Instructions continued on pages 2 and 3.)
Page 2
Page 2 of 4
Model PR-243
Technical Information
TI.243-06
RoHS

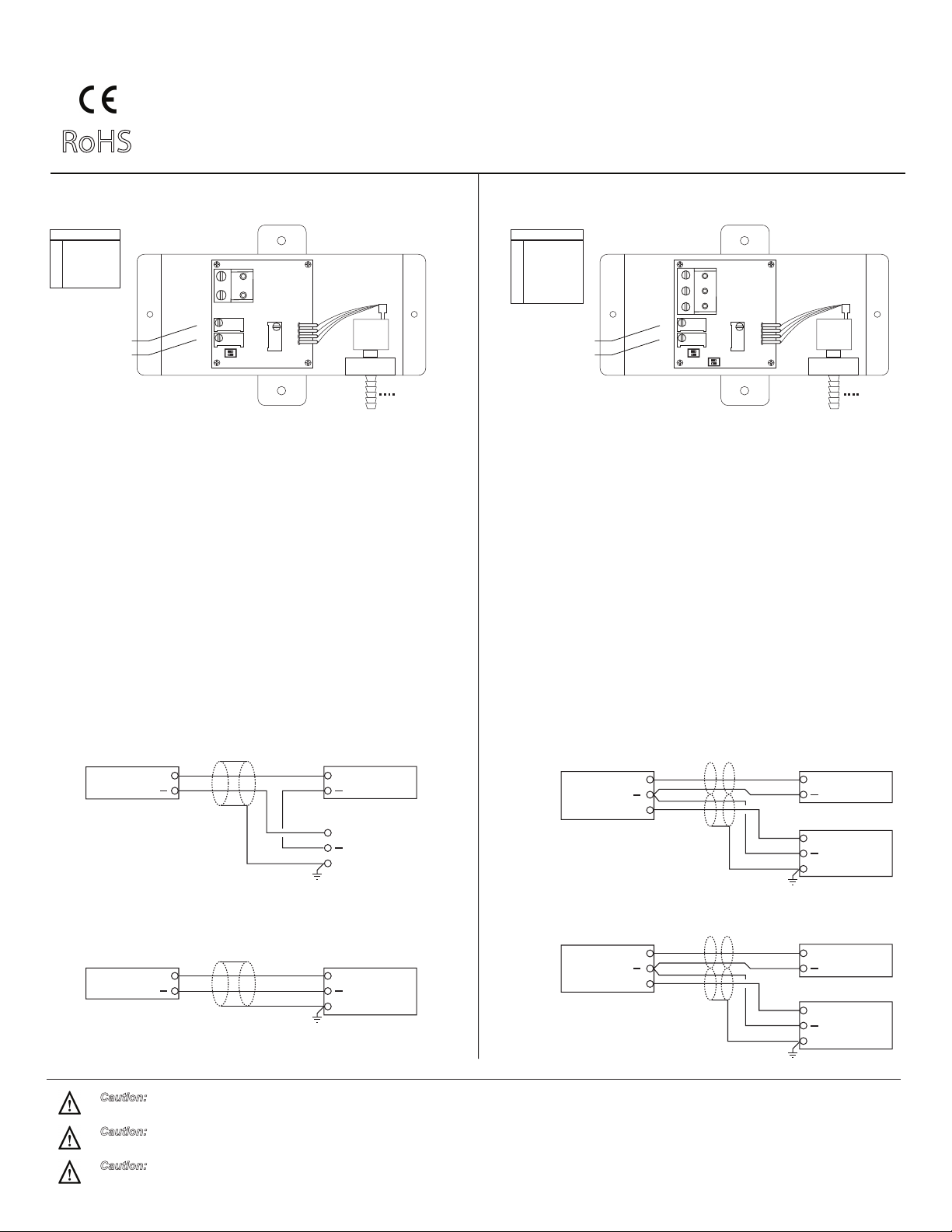

PR-243 Pressure Transducer with mA Output
LEGEND
+
Supply Voltage
-
Output
S
Span Adjust
Z
Zero Adjust
ZERO
SPAN
The PR-243 mA output pressure transducers are 4–20 mA output units
powered with a 12–40 VDC supply.
The following describes the proper wiring of these pressure transducers with
mA output:
1. Remove the terminal block by carefully pulling it off the circuit board.
2. Locate the [+] and [-] terminal markings on the board.
3. Attach the supply voltage to the [+] lead.
4. Connect the 4–20 mA output ([-] terminal) to the controller’s input terminal.
5. Ensure that the power supply common is attached to the common bus of
the controller.
6. Re-insert the terminal block to the circuit board and apply power to the unit.
7. Check for the appropriate output signal using an ampmeter set on DC
milliamps connected in series with the [-] terminal.
+ -
Z S
S1
ON
1/4" Brass
Hose Barb
(5/32" I.D. Tubing)
PNEUMATIC PRESSURE SENSOR
Wiring PR-243 Units with VDC OutputWiring PR-243 Units with mA Output
PR-243 Pressure Transducer with VDC Output
LEGEND
+
Supply Voltage
-
Common
O
Output
S
Span Adjust
Z
Zero Adjust
ZERO
SPAN
The PR-243 pressure transducers with VDC output are field selectable 0–5 VDC
or 0–10 VDC output and can be powered with either a 12– 40 VDC or 12–35 VAC.
The following describes the proper wiring of these pressure transducers with
VDC output:
1. Remove the terminal block by carefully pulling it off the circuit board.
2. Locate the [+], [-] and [0] terminal markings on the board.
3. Attach the power wires to the [+] and [-] terminals. The [-] terminal is also the
negative terminal.
4. Connect the [O] terminal, which is the positive VDC output terminal, to the
controller’s input terminal.
5. Re-insert the terminal block to the circuit board and apply power to the unit.
6. Check the appropriate VDC output using a voltmeter set on DC volts
connected to the [O] and [-] terminals.
+
-
O
Z S
S1
ON
S2
ON
1/4" Brass
Hose Barb
(5/32" I.D. Tubing)
TYPICAL APPLICATIONS (wiring diagrams)
Figure 1 and Figure 2 illustrate typical wiring diagrams for the PR-243,
4–20 mA, two-wire output pressure transducers.
Figure 1 – Wiring for mA Output Transducers with an External DC Power Supply
mA Output Transducer Only 12–40 VDC Power Supply
+
Figure 2 – Wiring for mA Output Transducers where the Controller or Meter has
an Internal DC Power Supply
mA Output Transducer Only
+
Caution: If you are using grounded AC, the hot wire must be on the [+] terminal. Also, if you are using a controller without built-in isolation, use an
isolation transformer to supply the PR-243 transducer.
Caution: This product contains a half-wave rectifier power supply and must not be powered off transformers used to power other devices utilizing
non-insolated full-wave rectifier power supplies.
Caution: When multiple PR-243 units are powered from the same transformer, damage will result unless all 24G power leads are connected to the same
power lead on all devices. It is mandatory that correct phasing be maintained when powering more than one device from a single transducer.
+
Controller / Meter / Recorder
Input Signal
+
Common
Shield/Ground
Controller / Meter / Recorder
Input Signal
+
Common
Shield/Ground
TYPICAL APPLICATIONS (wiring diagrams)
Figure 3 and Figure 4 illustrate typical wiring diagrams for the PR-243,
0–5/0 –10 VDC output pressure transducers.
Figure 3 – Wiring for VDC Pressure Transducers when applied with External AC
Supply
VDC Output Transducer Only 12–35 VAC Transformer
Supply
Signal
+
O
Controller / Meter / Recorder
Common
Figure 4 – Wiring for VDC Pressure Transducers when applied with External DC
Power Supply
VDC Output Transducer Only 12–40 VDC Power Supply
Supply
Signal
+
O
Controller / Meter / Recorder
Common
Hot
+
Neutral
Input Signal
+
Common
Shield/Ground
+
Input Signal
+
Common
Shield/Ground
Page 3
Page 3 of 4
RoHS
Model PR-243
Technical Information
TI.243-06
PNEUMATIC PRESSURE SENSOR

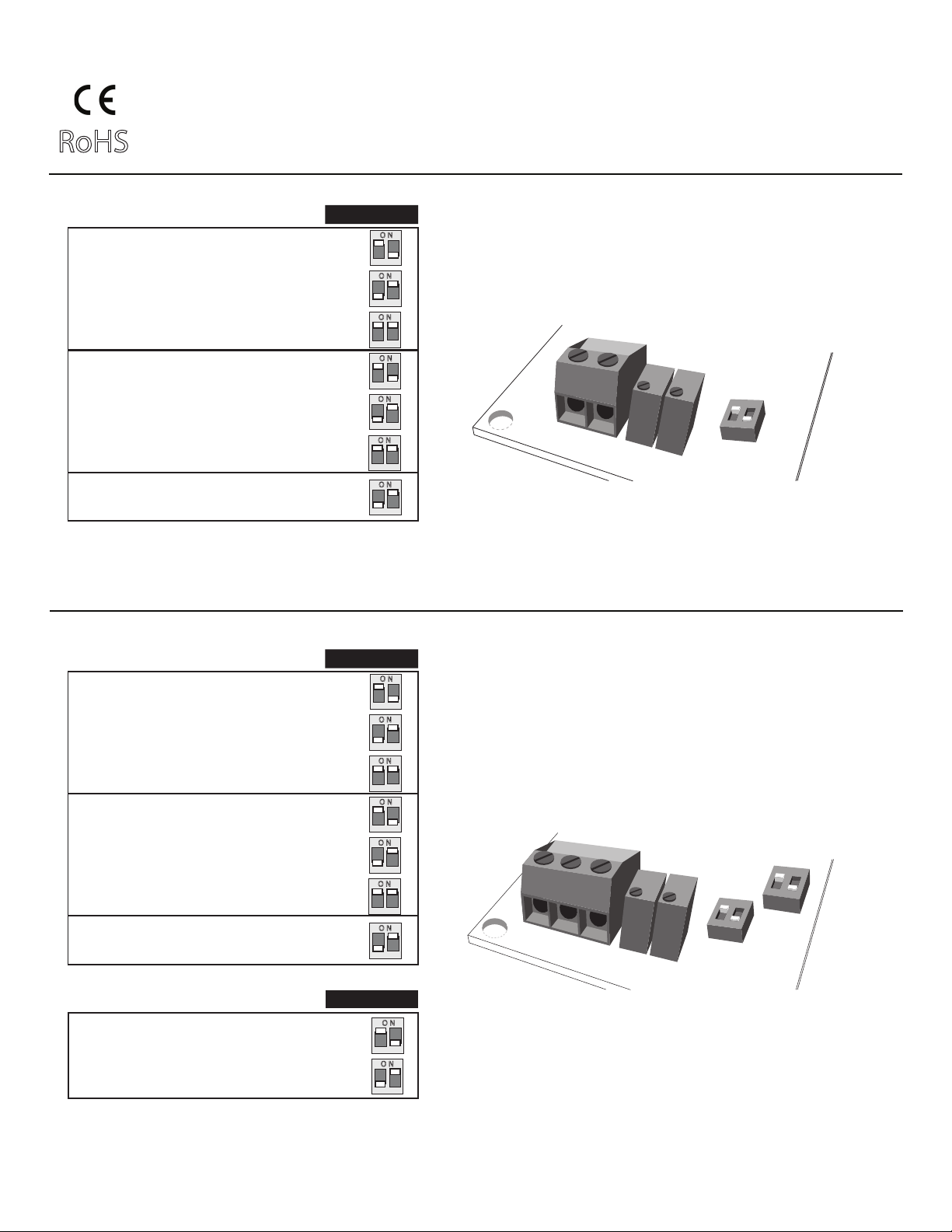

Range Configuration:
R1 / R4
0–20 psig / 0–140 kPa (default)
Switch 1 (S1)
O N
1
2
O N
0–10 psig / 0–70 kPa
1
2
O N
1
2
O N
1
2
O N
R2 / R5
0–5 psig / 0–35 kPa
0–30 psig / 0–200 kPa (default)
0–15 psig / 0–100 kPa
1
2
O N
1
2
O N
1
2
R3 / R6
0–7.5 psig / 0–50 kPa
3–15 psig / 20–100 kPa (default)
Figure 5 – Range Configurations for Pressure Transducers with mA Outputs
Range Configuration:
R1 / R4
0–20 psig / 0–140 kPa (default)
Switch 1 (S1)
O N
1
2
O N
0–10 psig / 0–70 kPa
1
2
O N
1
2
O N
1
2
O N
R2 / R5
0–5 psig / 0–35 kPa
0–30 psig / 0–200 kPa (default)
0–15 psig / 0–100 kPa
1
2
O N
1
2
O N
1
2
R3 / R6
0–7.5 psig / 0–50 kPa
3–15 psig / 20–100 kPa (default)
+ -
+ -
mA Output
Z
S
VDC Output
O
Z S
S1
1
S1
1
ON
ON
2
ON
1
2
2
S2
Output Configuration:
0–10 VDC (default)
0–5 VDC
Switch 2 (S2)
O N
1
2
O N
1
2
Figure 6 – Range Configurations for Pressure Transducers with VDC Outputs
Page 4
Page 4 of 4
RoHS
Model PR-243
Technical Information
TI.243-06
PNEUMATIC PRESSURE SENSOR
CHECKOUT DIMENSIONAL DATA
Transducer
Operation
CALIBRATION
1. Verify that the unit is mounted in the correct position.
2. Verify appropriate input signal and supply voltage.
CAUTION: Never connect 120 VAC to these transducers.
Never connect AC voltage to a unit intended for DC supply.
3. Verify appropriate configuration range.
This is a rough functional check only.
1. Adjust the pressure to obtain maximum output signal for
appropriate range.
2. Output should be 20 mA or 5 or 10 VDC.
3. Adjust the pressure to obtain minimum output signal.
4. Output should be 4 mA or 0 VDC.
NOTE: The PR-243 is a highly accurate device. For
applications requiring a high degree of accuracy, the use of
laboratory quality meters and gauges are recommended.
All units are factory calibrated to meet or exceed published
specifications. If field adjustment is necessary, follow the
instructions below.
Calibration of PR-243 mA Units
1. Connect terminals [+] and [-] to the appropriate power
source.
2. Connect the DVM in series on the [-] terminal.
3. Apply low pressure to the unit and carefully adjust the zero
trimmer [Z] to obtain desired low output.
4. Apply high pressure to the unit and adjust span trimmer [S]
to obtain the desired high output pressure.
5. Repeat steps 3 and 4 until desired calibration is achieved.

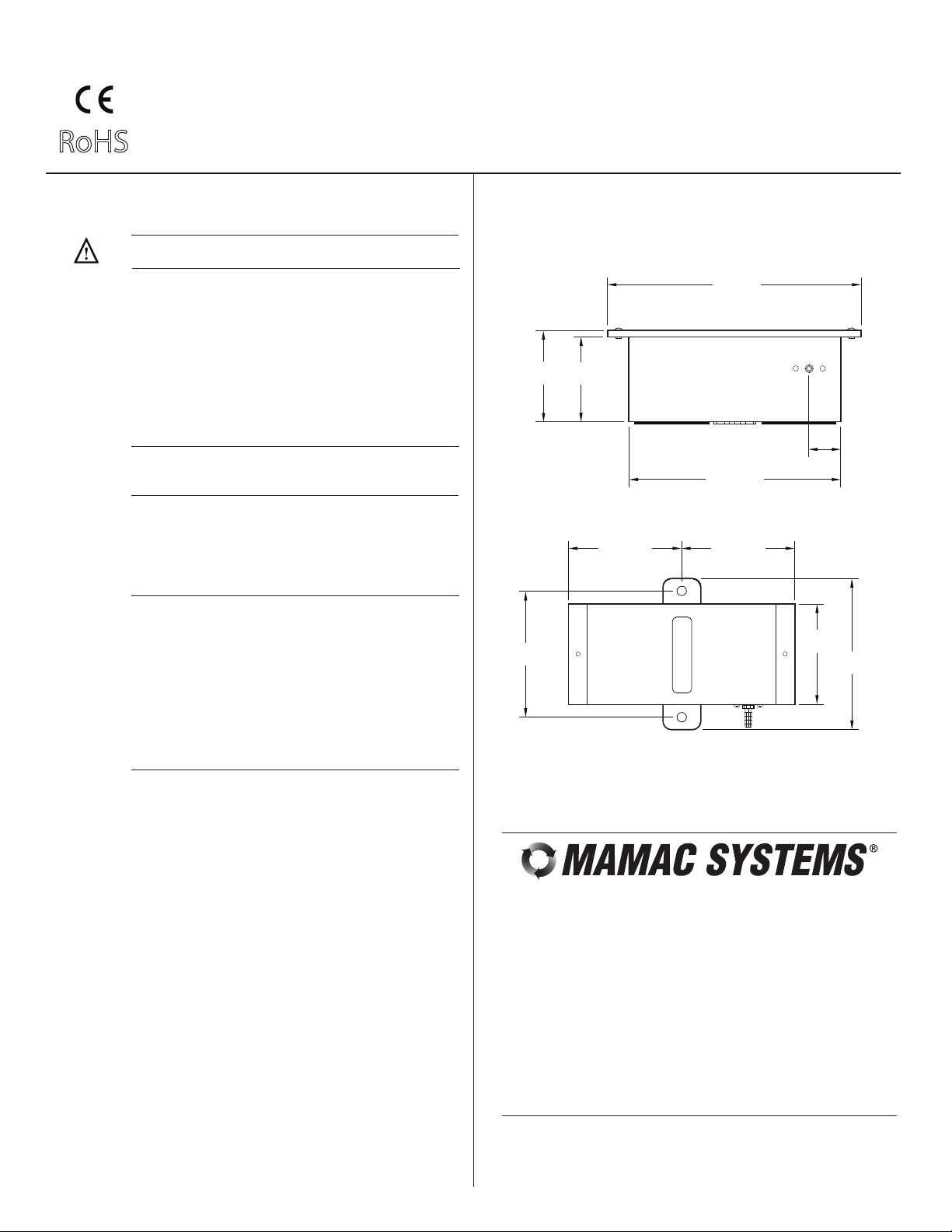

Figure 7 – PR-243 Pneumatic Pressure Transducer Dimensions shown in
inches and millimeters (mm).
2.15"
2.00"
(55 mm)
(51 mm)
3.25"
(83 mm)
6" (152 mm)
5.00" (127 mm)
3.00" (76 mm) 3.00" (76 mm)
MAMAC SYSTEMS
0.75" (19 mm)
2.66"
(68 mm)
4.00"
(102 mm)
MAINTENANCE
FIELD REPAIR
WARRANTY
Calibration of PR-243 VDC Units
1. Connect terminals [+] and [-] to the appropriate power
source. The [-] terminal is also the negative output terminal.
2. Connect the DVM on DC volts across [0] and [-] terminal.
3. Apply low pressure to the unit and carefully adjust the zero
trimmer [Z] to obtain desired low output.
4. Apply high pressure to the unit and adjust span trimmer [S]
to obtain the desired high output pressure.
5. Repeat steps 3 and 4 until desired calibration is achieved.
Regular maintenance of the total system is recommended to
assure sustained optimum performance.
None. Replace with a functional unit.
See Data Sheet for additional information.
For Technical / Application Assistance call your nearest office
8189 Century Boulevard • Minneapolis, MN 55317-8002 • USA
800-843-5116 • 952-556-4900 • Fax 952-556-4997
[email protected] • www.mamacsys.com
EUROPE
4200 Waterside Centre
Solihull Parkway
Birmingham • West Midlands
B37 7YN • United Kingdom
01384-271113 • Fax 01384-271114
905-474-9215 • Fax 905-474-0876
ASIA
1 Fullerton Road #02-01
One Fullerton
Singapore • 049213
65-31581826 • Fax 65-31581826
MAMAC Systems, Inc., reserves the right to change any specifications
without notice to improve performance, reliability, or function of our products.
08-8395-4333 • Fax 08-8395-4433
CANADA
675 Cochrane Drive
East Tower • 6th Floor
Toronto • Ontario
L3R 0B8 • Canada
AUSTRALIA
4 Armiger Court, Unit 2
Adelaide • S.A.
5088 • Australia
TI.243-06
Loading...
