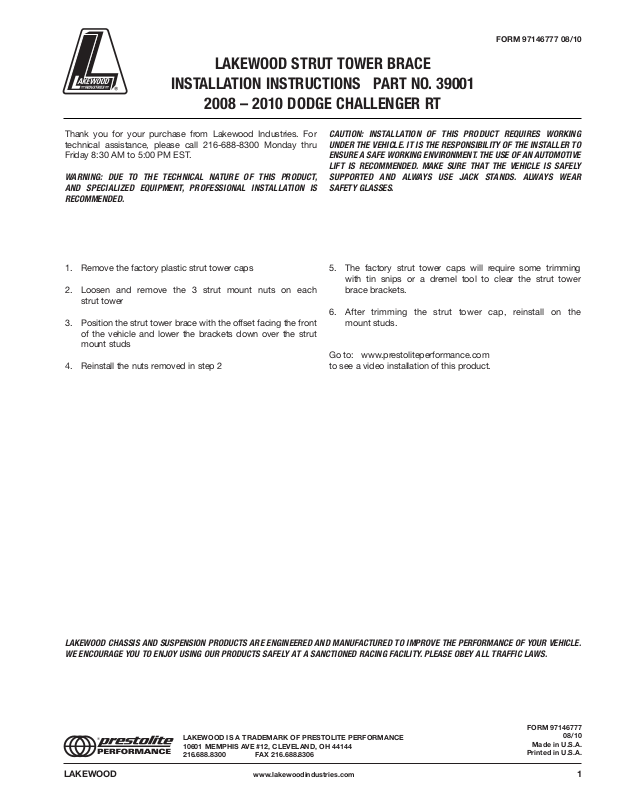

LAKEWOOD STRUT TOWER BRACE
INSTALLATION INSTRUCTIONS PART NO. 39001
2008 – 2010 DODGE CHALLENGER RT
FORM 97146777 08/10
Thank you for your purchase from Lakewood Industries. For
technical assistance, please call 216-688-8300 Monday thru
riday 8:30 AM to 5:00 PM EST.
F
WARNING: DUE TO THE TECHNICAL NATURE OF THIS PRODUCT,
AND SPECIALIZED EQUIPMENT, PROFESSIONAL INSTALLATION IS
ECOMMENDED.
R
1. Remove the factory plastic strut tower caps
2. Loosen and remove the 3 strut mount nuts on each
strut tower
3. Position the strut tower brace with the offset facing the front
of the vehicle and lower the brackets down over the strut
mount studs
4. Reinstall the nuts removed in step 2
CAUTION: INSTALLATION OF THIS PRODUCT REQUIRES WORKING
UNDER THE VEHICLE. IT IS THE RESPONSIBILITY OF THE INSTALLER TO
NSURE A SAFE WORKING ENVIRONMENT. THE USE OF AN AUTOMOTIVE
E
LIFT IS RECOMMENDED. MAKE SURE THAT THE VEHICLE IS SAFELY
SUPPORTED AND ALWAYS USE JACK STANDS. ALWAYS WEAR
SAFETY GLASSES.
5. The factory strut tower caps will require some trimming
with tin snips or a dremel tool to clear the strut tower
brace brackets.
6. After trimming the strut tower cap, reinstall on the
mount studs.
Go to: www.prestoliteperformance.com
to see a video installation of this product.
LAKEWOOD CHASSIS AND SUSPENSION PRODUCTS ARE ENGINEERED AND MANUFACTURED TO IMPROVE THE PERFORMANCE OF YOUR VEHICLE.
WE ENCOURAGE YOU TO ENJOY USING OUR PRODUCTS SAFELY AT A SANCTIONED RACING FACILITY. PLEASE OBEY ALL TRAFFIC LAWS.
LAKEWOOD IS A TRADEMARK OF PRESTOLITE PERFORMANCE
10601 MEMPHIS AVE #12, CLEVELAND, OH 44144
216.688.8300
LAKEWOOD www.lakewoodindustries.com
AX 216.688.8306
F
FORM 97146777
Made in U.S.A.
Printed in U.S.A.
08/10
