Lever for fine adjustment between 45º - 48

Release lever for bevel angle (-1º)

6-1/2"

Lever for fine adjustment between 45º - 48

Positive Stopper

22.5

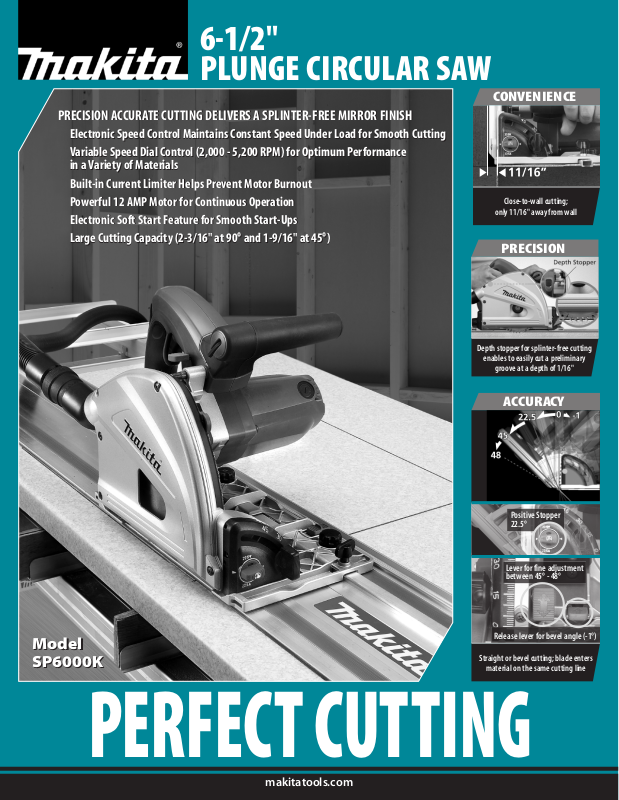

PLUNGE CIRCULAR SAW

PRECISION ACCURATE CUTTING DELIVERS A SPLINTER-FREE MIRROR FINISH

Electronic Speed Control Maintains Constant Speed Under Load for Smooth Cutting

Variable Speed Dial Control (2,000 - 5,200 RPM) for Optimum Performance

in a Variety of Materials

Built-in Current Limiter Helps Prevent Motor Burnout

Powerful 12 AMP Motor for Continuous Operation

Electronic Soft Start Feature for Smooth Start-Ups

Large Cutting Capacity (2-3/16" at 90ºand 1-9/16" at 45º)

CONVENIENCE

Close-to-wall cutting;

only 11/16" away from wall

PRECISION

Depth stopper for splinter-free cutting

enables to easily cut a preliminary

groove at a depth of 1/16"

ACCURACY

Model

SP6000K

PERFECT CUTTING

makitatools.com

aight or bevel cutting; blade enters

material on the same cutting line

6-1/2" PLUNGE CIRCULAR SAW

Model SP6000K

ADDITIONAL FEATURES & BENEFITS

■ Easy to set depth adjustment with large scale

mooth and convenient plunge release lever for operator comfort

■ S

■ Bevel capability (-1

agnesium components deliver a well balanced and

■ M

tweight saw at only 9.1 lbs.

ligh

■ Dual front and rear bevel supports provide additional rigidity

for precise and accurate bevel cuts

■ Precise bevel cutting as the position of the blade enters the

material on the same cutting line whether cutting straight or bevel

■ Close to the wall cutting (11/16") for expanded cutting

applications

■ Locking lever holds the blade in position so that the wrench

can be inserted through the hole in the blade case for easier blade installation

■ Blade wrench attaches to the saw for fast and convenient blade

changes

■ Electric brake for improved productivity

■ Built-in depth stop allows a preliminary cut of 1/16" to be

performed before the entire material is cut through for clean and splinter-free cutting

■ Rubberized handles for added comfort

■ Large 1-7/16" rear dust port directs material away from the

operator and easily connects to a vacuum system

■ Includes a premium 48 tooth carbide-tipped blade

FEATURES WITH OPTIONAL GUIDE RAIL

■ Optional guide rail system interacts with the saw base to

provide smooth perfect dead-on straight or bevel cutting

■ Tool-less cam adjustments on the saw base enable fine tuning

to the guide rail minimizing play for more precise cutting

■ Slide lever built into the saw base locks the saw to the guide

rail to help support the saw while making bevel cuts

■ Saw base is attachable to other guide rail systems in the market

STANDARD EQUIPMENT

to 48º) with positive stops at 22.5ºand 45

EASY BLADE CHANGES

Locking lever

holds the blade in

position to be

replaced

Wrench is inserted

through a hole

in the blade case

Model SP6000K

Blade wrench

attaches to the saw

for convenience

■ Carbide-Tipped Blade - 48T (B-07353)

■ Hex Blade Wrench (783203-8)

ase

ol C

lastic

■ P

OPTIONAL ACCESSORIES

SPECIFICATIONS

■ Guide Rail: (117") (194367-7)

Blade diameter 6-1/2" Arbor 13/16" Max cutting capacities: 90

º º 1-9/16"

2-3/16"

■ Clamp Set (194385-5)

No load speed 2,000 - 5,200 RPM Watts out 1,300 AMPS (120V) 12 Overall length 13-3/8"

■ Guide Rule (165447-6)

Net weight 9.1 lbs. Shipping weight 16.2 lbs. UPC 088381-078443

AR SAW accessories. For a complete listing, please refer to the Makita

CUL

y of CIR

iet

ers a wide v

ita off

M General Catalog, or visit our website at makitatools.com, or call 1-800-4MAKITA.

All specifications subject to change without prior notice. All models and accessories subject to stock on hand. NTF-0808-400 MA-0803-08 For more information,call

1-800-4MAKITA or visit makitatools.com

(54") (194368-5)

Cam

Adjustments

Cam adjustments minimize

play for precise cutting

Makita U.S.A., 14930 Northam St.,La Mirada, CA 90638
