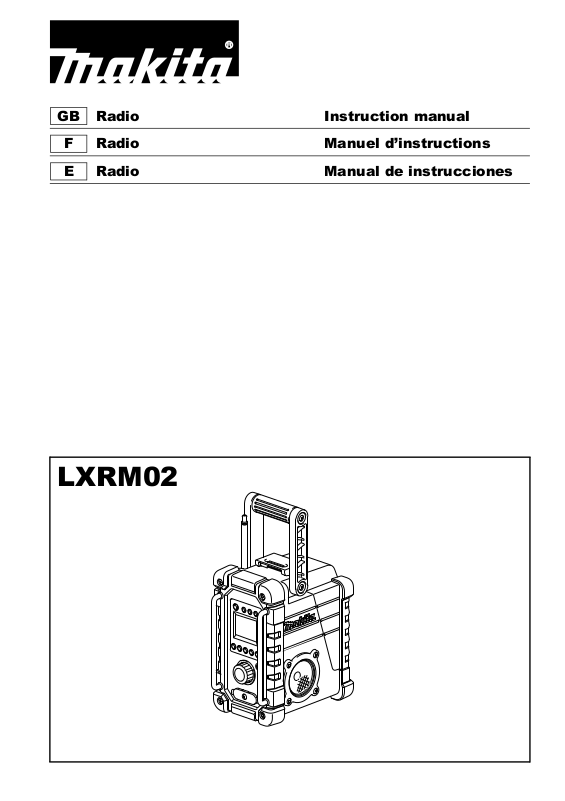

Makita LXRM02 User Manual

GB Radio Instruction manual
F Radio Manuel d’instructions
E Radio Manual de instrucciones
LXRM02
PM
1
5
9
4
6
7
8
10
12
14
13
20
11
LK J
A B C
D
E
I
H G
F
1
2
23
11
14
15
15 15
16
17
18
19
21
19
19
45
67
3
89
19
19
10
10
8
9
10 11
12
4
ENGLISH (Original instructions)
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:
1. Read this instruction manual and the charger instruction manual carefully before use.
2. Clean only with dry cloth.
3. Do not block any ventilation opening. Install in accordance with the manufacturer’s instruction.
4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
5. Only use attachments/accessories specified by the manufacturer.
6. Unplug this apparatus during lighting storms or when unused for long periods of time.
7. A battery operated radio with integral batteries or a separate battery pack must be recharged only with the specified charger for the battery. A charger that may be suitable for one type of battery may create a risk of fire when used with another battery.
8. Use battery operated radio only with specifically designated battery packs. Use of any other batteries may create a risk of fire.
9. When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns, or a fire.
10. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.
11. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
SPECIFIC SAFETY RULES
SAVE THESE INSTRUCTIONS.
FOR BATTERY CARTRIDGE
1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge: (1) Do not touch the terminals with any conductive
material.
(2) Avoid storing battery cartridge in a container with
other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain. A
battery short can cause a large current flow, overheating, possible burns and even a breakdown.
6. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F)
7. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
8. Be careful not to drop or strike battery.
9. Do not use dropped or struck battery. (Do not use a damaged battery.)
Features:
• AM/FM-stereo PLL Synthesized
• Large LCD display with illumination
• Manual/Preset/Scan tuning
• Rotary tuning and volume control
• 5 preset stations each band
• Time and 2 alarm timers (radio and HWS buzzer) with
Snooze
• Adjustable sleep (auto shut off) timer
• Stereo speaker for rich sound performance
• Ultra rugged design
• Water resistant to IPX 4
• Powered by both Makita battery pack and supplied
power adaptor
Explanation of general view (Fig. 1)
Controls:
1. Power and Sleep timer
2. Band and Mono button
3. Radio alarm set
4. Buzzer alarm set
5. Preset stations
6. Scan tuning and Time set
7. Tuning/Volume control knob
8. DC IN socket
9. Input terminal (AUX IN1)
10. Soft bended rod antenna
11. Battery compartment (covering main battery pack and back up batteries)
12. Handle
13. Speaker
14. Battery compartment locker
15. Main battery compartment
16. Back up battery compartment
17. Red indicator
18. Button
19. Battery cartridge
20. Input terminal (AUX IN2)
21. Supporting bar
5
LCD Display:
A. Radio alarm B. HWS buzzer alarm C. Scan tuning D. Band Indicator E. Low battery indicator F. Preset stations G. Sleep and Snooze status H. Frequency I. Stereo symbol and Volume J. Clock K. Time set L. PM for clock
The following tables indicate the operating time on a single charge.
Battery Cartridge Voltage
7.2 V 9.6 V 10.8 V 12 V 14.4 V 18 V
BL7010 Approx. 7.0
PA09 PA12 PA14 PA18
9050 1250 1450 1850 9100 1200 1420 9120 BL1013 1220
9100A 1200A
9102 1202 1422 1822 9122 1222
9102A 1202A
BH9020 BH1220
BH9020A BH1200C
9134 1234 1434 1834 Approx. 16.5
9135 1235 1435 1835
1235F
BH9033 BH1233 BH1433
BH9033A BH1233C
: Cluster Battery : Slide Battery
Battery Installation
Note:
Keeping back up batteries inside the compartment prevent stored data in preset memories from being lost.
1. Pull out the battery compartment locker to release battery compartment. There are main battery pack compartment and back up battery compartment.
(Fig. 2 & 3)
2. Remove back up battery compartment cover and
insert 2 fresh UM-3 (AA sizes). Make sure the batteries are with correct polarity as shown inside the compartment. Replace the battery cover.
3. After back up batteries are inserted, insert the main battery pack to power radio. The suitable battery packs for this radio listed as the following table.
AT SPEAKER OUTPUT=
50 mW + 50 mW
unit: Hour
BL1815
BL1415
BH1420
BH1427 Approx. 17.0
BL1830
BL1430
Approx. 8.0
Approx. 12.5
Approx. 19.01435F
Approx. 21.0
WARNING:
Do not use two main batteries at the same time.
3-1. Installing or removing Slide battery cartridge (Fig. 4)
• To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click.
• If you can see the red indicator on the upper side of the button, it is not locked completely. Install it fully until the red indicator cannot be seen. If not, it may accidentally
6
fall out of the tool, causing injury to you or someone around you.
• Do not use force when installing the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.
• To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge or pressing the buttons on both sides of the cartridge.
