Makita LXNJ01Z, LXNJ01 Owner's Manual

INSTRUCTION MANUAL MANUEL D'INSTRUCTION MANUAL DE INSTRUCCIONES

Cordless Nibbler Grignoteuse sans fil Roedora inalámbrica

LXNJ01

IMPORTANT: Read Before Using. IMPORTANT: Lire avant usage. IMPORTANTE: Leer antes de usar.

013283

ENGLISH (Original instructions)

SPECIFICATIONS

Model LXNJ01

Max. cutting capacities

Min. cutting radius

Strokes per minute 1,900

Overall length 313 mm (12-3/8")

Net weight 2.2 kg (4.8 lbs)

Rated voltage D.C. 18V

Standard battery cartridge BL1830

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.

• Specifications and battery cartridge may differ from country to country.

• Weight, with battery cartridge, according to EPTA-Procedure 01/2003

General Power Tool Safety Warnings

WARNING Read all safety warnings and all

instructions. Failure to follow the warnings and

instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

1. Keep work area clean and well lit. Cluttered or

dark areas invite accidents.

2. Do not operate power tools in explosive

atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools

create sparks which may ignite the dust or fumes.

3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

4. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will

reduce risk of electric shock.

5. Avoid body contact with earthed or grounded

surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of

electric shock if your body is earthed or grounded.

Mild steel 1.6 mm / 16 ga Stainless 1.2 mm / 18 ga Aluminum 2.5 mm / 12 ga

Outside edge 50 mm (2")

Inside edge 45 mm (1-3/4")

GEA006-2

6. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

7. Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords

increase the risk of electric shock.

8. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

9. If operating a power tool in a damp location is

unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an

GFCI reduces the risk of electric shock.

Personal Safety

10. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while

operating power tools may result in serious personal injury.

11. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

12. Prevent unintentional starting. Ensure the

switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools

with your finger on the switch or energising power tools that have the switch on invites accidents.

13. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

14. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

15. Dress properly. Do not wear loose clothing or

jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes,

jewellery or long hair can be caught in moving parts.

16. If devices are provided for the connection of

dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-

related hazards.

Power tool use and care

17. Do not force the power tool. Use the correct power tool for your application. The correct

power tool will do the job better and safer at the rate for which it was designed.

18. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

19. Disconnect the plug from the power source

and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such

preventive safety measures reduce the risk of starting the power tool accidentally.

20. Store idle power tools out of the reach of

children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are

dangerous in the hands of untrained users.

21. Maintain power tools. Check for misalignment

or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many

accidents are caused by poorly maintained power tools.

22. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

23. Use the power tool, accessories and tool bits

etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the

power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

24. Recharge only with the charger specified by the manufacturer. A charger that is suitable for

one type of battery pack may create a risk of fire when used with another battery pack.

25. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

26. When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery

terminals together may cause burns or a fire.

27. Under abusive conditions, liquid may be

ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery

may cause irritation or burns.

Service

28. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the

safety of the power tool is maintained.

29. Follow instruction for lubricating and

changing accessories.

30. Keep handles dry, clean and free from oil and grease.

GEB028-2

NIBBLER SAFETY WARNINGS

1. Hold the tool firmly.

2. Secure the workpiece firmly.

3. Keep hands away from moving parts.

4. Edges and chips of the workpiece are sharp.

Wear gloves. It is also recommended that you put on thickly bottomed shoes to prevent injury.

5. Do not put the tool on the chips of the workpiece. Otherwise it can cause damage and trouble on the tool.

6. Do not leave the tool running. Operate the tool only when hand-held.

7. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.

8. Do not touch the punch, die or the workpiece immediately after operation; they may be extremely hot and could burn your skin.

9. Avoid cutting electrical wires. It can cause serious accident by electric shock.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

USD301-1

Symbols

The followings show the symbols used for tool.

･ volts

･ direct current

･ no load speed

･ revolutions or reciprocation per minute

ENC007-7

IMPORTANT SAFETY INSTRUCTIONS

FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble battery cartridge.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any

conductive material.

(2) Avoid storing battery cartridge in a

container with other metal objects such as nails, coins, etc.

(3) Do not expose battery cartridge to water

or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

6. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50 ﾟ C (122 ﾟ F).

7. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.

8. Be careful not to drop or strike battery.

9. Do not use a damaged battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room temperature at 10 ﾟ C - 40 ﾟ C (50 ﾟ F - 104 ﾟ F). Let a hot battery cartridge cool down before charging it.

4. Charge the battery cartridge once in every six months if you do not use it for a long period of time.

FUNCTIONAL DESCRIPTION

CAUTION:

• Always be sure that the tool is switched off and the

battery cartridge is removed before adjusting or checking function on the tool.

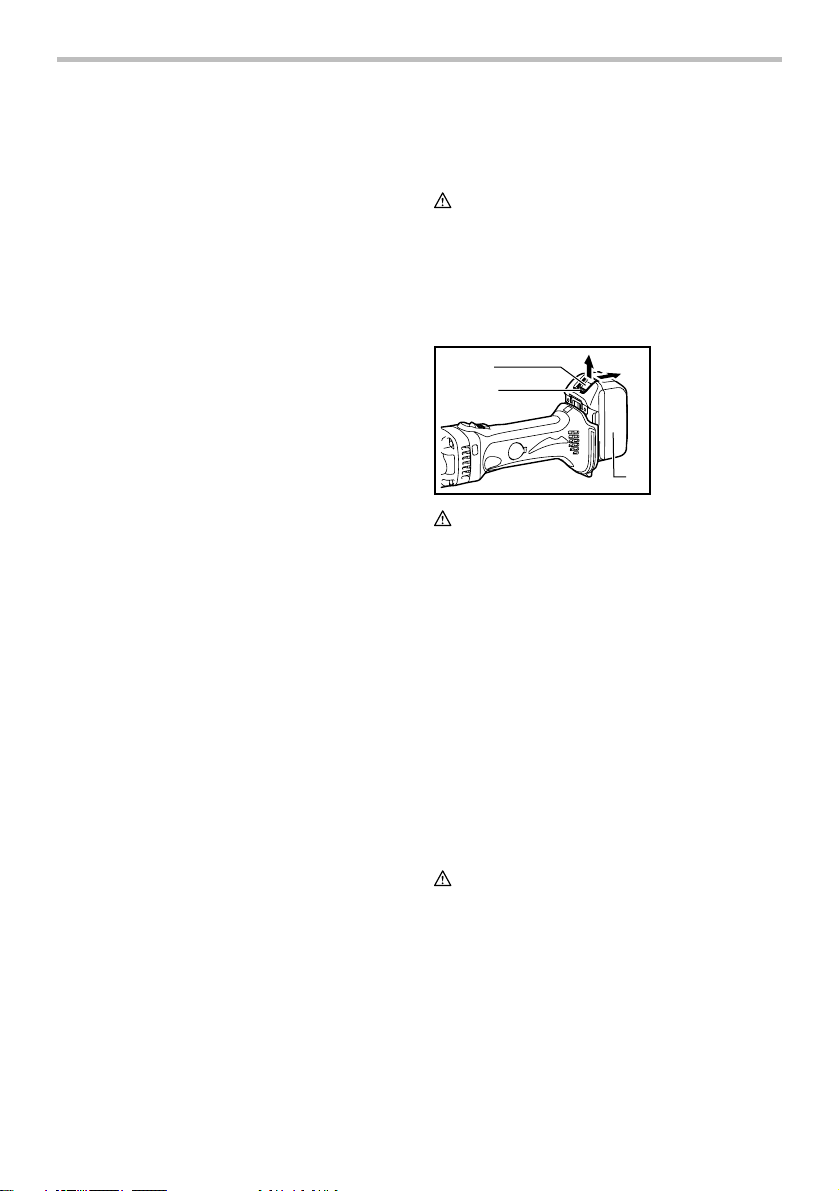

Installing or removing battery cartridge

013284

CAUTION:

• Always switch off the tool before installing or

removing of the battery cartridge.

• Hold the tool and the battery cartridge firmly

when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge

and a personal injury. To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge. To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely.

CAUTION:

• Always install the battery cartridge fully until the

red indicator cannot be seen. If not, it may

accidentally fall out of the tool, causing injury to

you or someone around you.

• Do not install the battery cartridge forcibly. If the

cartridge does not slide in easily, it is not being

inserted correctly.

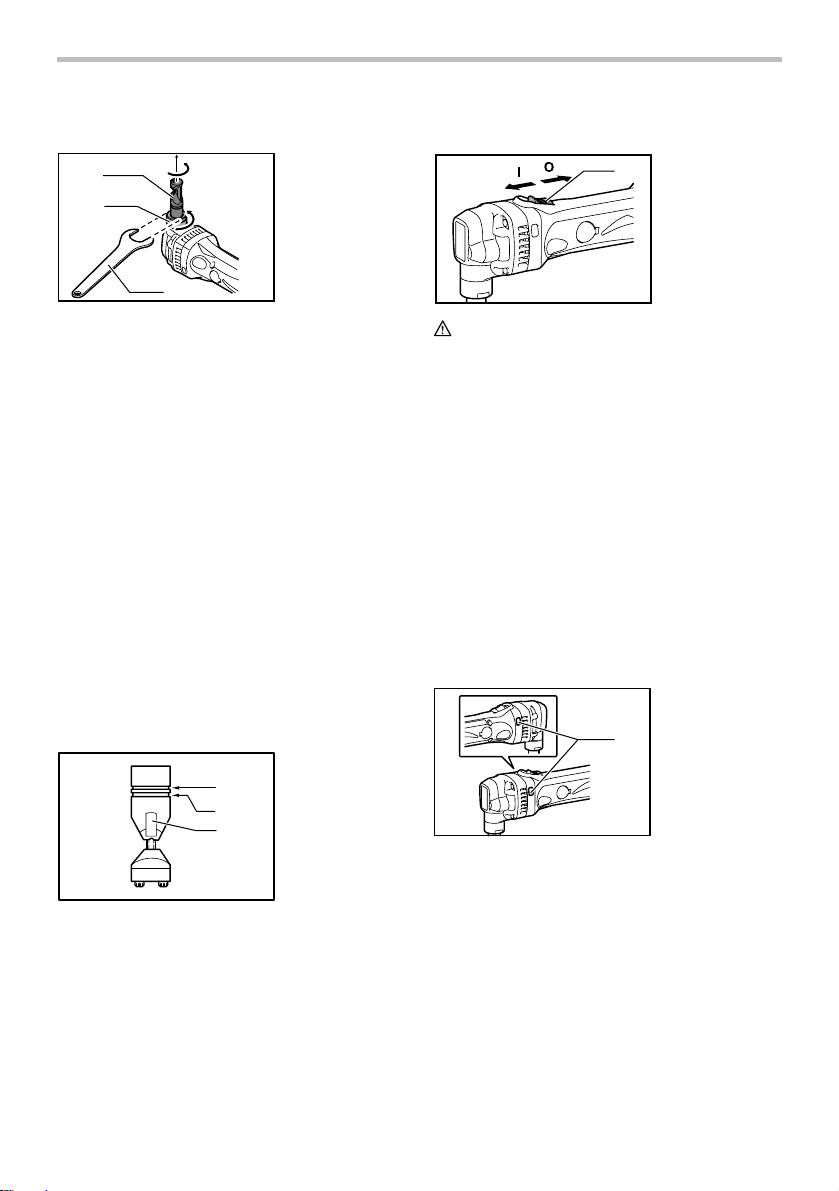

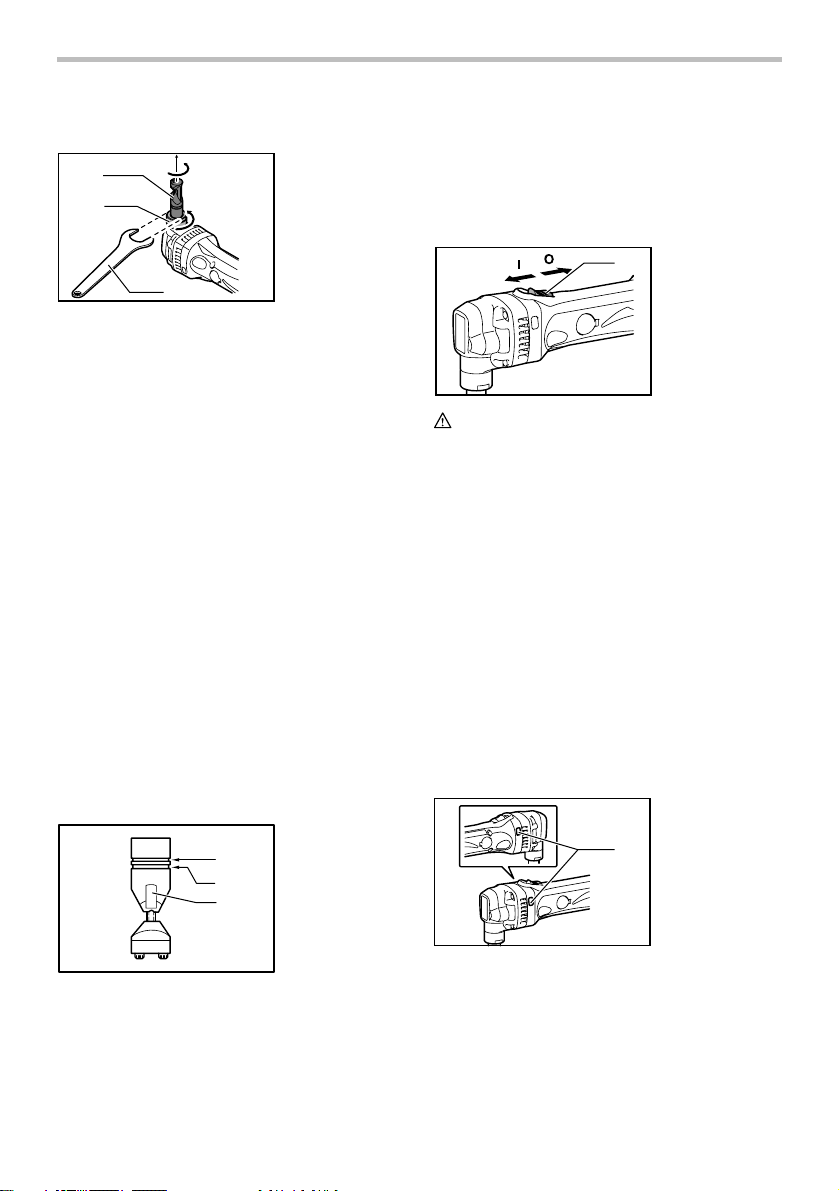

Changing the die position

1. Button

2. Red indicator

3. Battery cartridge

The die holder position can be changed 360°. To change it, proceed as follows.

1. Loosen the lock nut with the wrench provided.

2. Pull the die holder slightly and turn it to the desired position for operation.

3. Tighten the lock nut to secure the die holder in the desired position.

There are four positive stops at 90° each: 0°, 90° left and right and 180°. To position the die to any of these positive stops:

1. Loosen the lock nut with the wrench provided.

2. Pull the die holder slightly and depress lightly while turning it to the desired position. The die holder will lock into one of the positive stop positions as desired.

3. Turn the die holder slightly to make sure that it is positively locked into position.

4. Tighten the lock nut to secure the die holder.

Permissible cutting thickness

Gauge for

1 2

004775

cutting stainless:

1.2 mm (3/64")

2. Gauge for cutting mild steel: 1.6 mm (1/16")

3. Notch

The thickness of material to be cut depends upon the tensile strength of the material itself. The groove on the die holder acts as a thickness gauge for allowable cutting thickness. Do not attempt to cut any material which will not fit into this groove.

Cutting line

The notch in the die holder indicates your cutting line. Its width is equal to the cutting width. Align the notch to the cutting line on the workpiece when cutting.

Switch action

1. Slide switch

013275

1. Die holder

2. Lock nut

3. Loosen

4. Wrench

013276

CAUTION:

• Before inserting the battery cartridge into the tool,

always check to see that the slide switch actuates properly and returns to the "OFF" position when

the rear of the slide switch is depressed.

• Switch can be locked in "ON" position for ease of

operator comfort during extended use. Apply caution when locking tool in "ON" position and

maintain firm grasp on tool. To start the tool, slide the slide switch toward the "I (ON)" position. For continuous operation, press the front of the slide switch to lock it. To stop the tool, press the rear of the slide switch, then slide it toward the "O (OFF)" position.

Indication lamp with multi function

1. Indicating lamp

013277

Indication lamps are located in two positions.

− Battery cartridge replacing signal

− When the battery power is almost used up

during operation, the red lamp lights up and the tool stops immediately. Replace the battery with fully charged one when the red lamp lights up.

− Accidental re-start preventive function

− Even if the battery cartridge is inserted on

the tool with the slide switch in the "I (ON)" position, the tool does not start. At this time, the lamp flickers slowly and this shows that the accidental re-start preventive function is at work.

− To start the tool, first slide the slide switch toward the "O (OFF)" position and then slide it toward the "I (ON)" position.

ASSEMBLY

CAUTION:

• Always be sure that the tool is switched off and the

battery cartridge is removed before carrying out any work on the tool.

Removing or installing the punch and die

004779

Always replace the punch and die as a set. To remove the punch and die, loosen the lock nut with the wrench. Remove the die holder from the tool. Use the hex wrench to loosen the bolts which secure the die. Remove the die from the die holder. Use the hex wrench to loosen the screw which secures the punch. Pull the punch out of the punch holder.

013274

To install the punch and die, insert the punch into the punch holder so that the notch in the punch faces toward the screw. Tighten the screw to secure the punch. Install the die on the die holder. Tighten the bolts to secure the die.

004781

Then install the die holder on the tool so that the punch is inserted through the hole in the die holder. Tighten the lock nut to secure the die holder. After replacing the punch and die, lubricate them with machine oil and run the tool for a while.

1. Die holder

2. Die

3. Bolts

4. Hex wrench

1. Punch

2. Punch holder

3. Screw

4. Hex wrench

5. Loosen

6. Tighten

1. Punch

2. Notch

1. Bolts

2. Die

1 2

3. Punch

4. Die holder

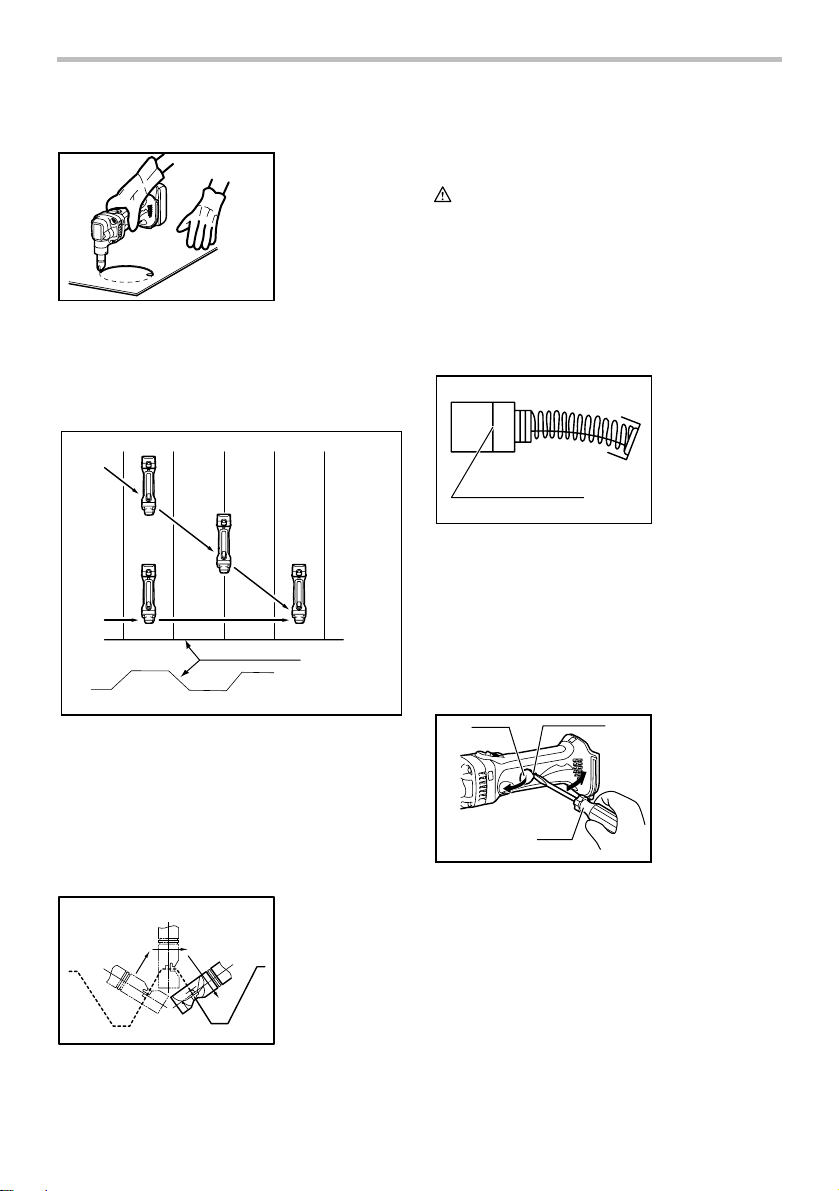

Cutting the corrugated or trapezoidal sheet metals

004782

OPERATION

Pre-lubrication

Coat the cutting line with machine oil to increase the punch and die service life. This is particularly important when cutting aluminum.

Cutting method

013285

Hold the tool so that the cutting head is at a right angle (90°) to the workpiece being cut. Move the tool gently in the cutting direction.

Cutouts

013286

Cutouts can be done by first opening a round hole over 21 mm (13/16") in diameter which the cutting head can be inserted into.

1. From the top view

2. Cutting at an angle to grooves

3. Cutting perpendicular to grooves

4. From the side view

5. Corrugated or trapezoidal sheet metal

013280

Set the die position so that the die faces the cutting direction either when cutting at an angle or perpendicular go grooves in corrugated or trapezoidal sheet metals.

004791

Always hold the tool body parallel to the grooves with the cutting head at a right angle (90°) to the cutting surface as shown in the figure.

1. From the side view

2. Cutting head should be at a right angle (90 ﾟ) to cutting surface.

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and the

battery cartridge is removed before attempting to perform inspection or maintenance.

• Never use gasoline, benzine, thinner, alcohol or

the like. Discoloration, deformation or cracks may result.

Replacing carbon brushes

1. Limit mark

001145

Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes. Insert the top end of slotted bit screwdriver into the notch in the tool and remove the holder cap cover by lifting it up.

1. Holder cap

cover

2. Notch

3. Screwdriver

013281

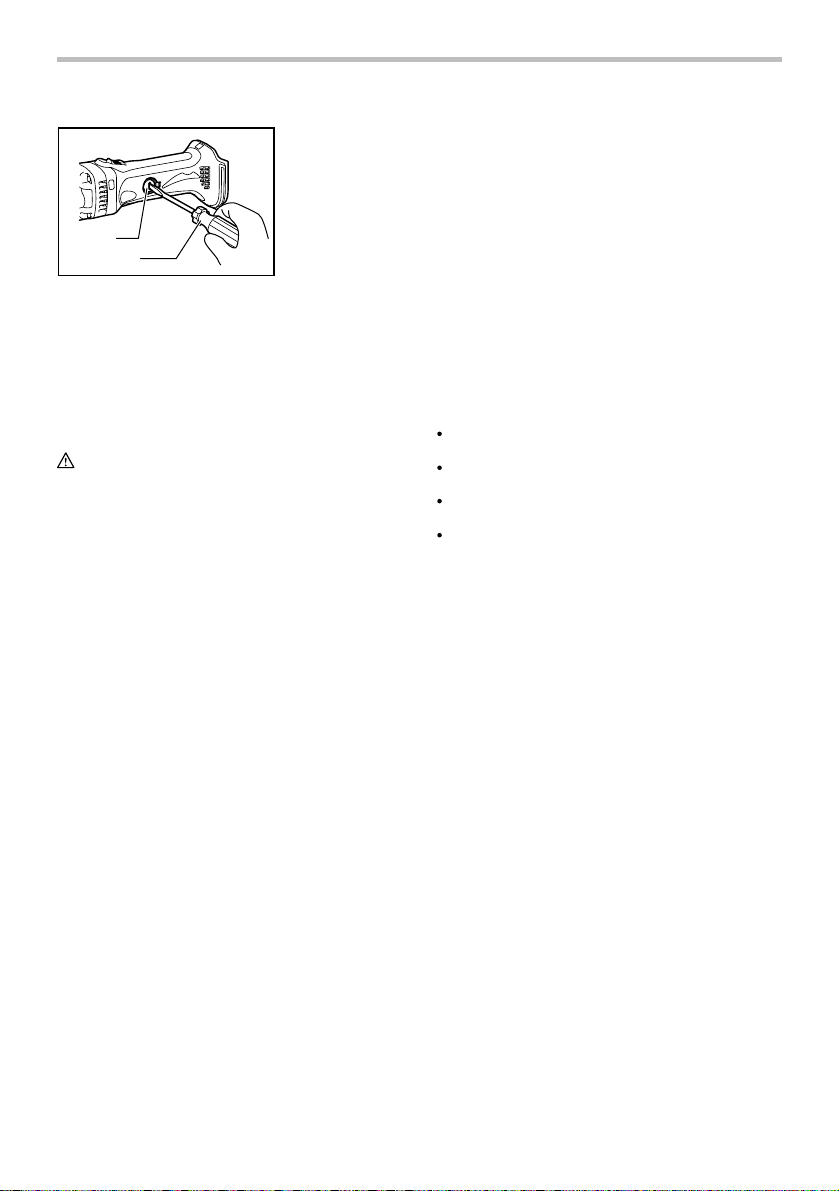

Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps.

1. Brush holder cap

2. Screwdriver

013282

Reinstall the holder cap cover on the tool. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:

• These accessories or attachments are

recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of

injury to persons. Only use accessory or

attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Die

• Punch

• Hex wrench

• Wrench 32

• Makita genuine battery and charger

NOTE:

• Some items in the list may be included in the tool

package as standard accessories. They may differ

from country to country.

MAKITA LIMITED ONE YEAR WARRANTY

Warranty Policy

Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one year period, return the COMPLETE tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers. If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge.

This Warranty does not apply where:

repairs have been made or attempted by others: repairs are required because of normal wear and tear: the tool has been abused, misused or improperly maintained: alterations have been made to the tool.

IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT. THIS DISCLAIMER APPLIES BOTH DURING AND AFTER THE TERM OF THIS WARRANTY. MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE," AFTER THE ONE YEAR TERM OF THIS WARRANTY. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

EN0006-1

FRANÇAIS (Mode d’emploi original)

SPÉCIFICATIONS

Modèle LXNJ01

Capacités de coupe max.

Rayon de coupe min.

Nombre d'impacts par minute 1 900

Longueur totale 313 mm (12-3/8")

Poids net 2,2 kg (4,8 lbs) Tension nominale C.C. 18 V Batterie standard BL1830

• Étant donné l'évolution constante de notre programme de recherche et de développement, les spécifications contenues dans ce manuel sont sujettes à modification sans préavis.

• Les caractéristiques techniques et la batterie peuvent varier suivant les pays.

• Poids, batterie comprise, conforme à la procédure EPTA de 01/2003

Consignes de sécurité générales pour outils électriques

MISE EN GARDE Veuillez lire toutes les mises

en garde de sécurité et toutes les instructions.

L'ignorance des mises en garde et des instructions comporte un risque de choc électrique, d'incendie et/ou de blessure grave.

Conservez toutes les mises en garde et instructions pour référence future.

Le terme ≪ outil électrique ≫ qui figure dans les avertissements fait référence à un outil électrique branché sur une prise de courant (par un cordon d'alimentation) ou alimenté par batterie (sans fil).

Sécurité de la zone de travail

1. Maintenez la zone de travail propre et bien éclairée. Les zones de travail encombrées ou

sombres ouvrent grande la porte aux accidents.

2. N'utilisez pas les outils électriques dans les

atmosphères explosives, par exemple en présence de liquides, gaz ou poussières inflammables. Les outils électriques produisent

des étincelles au contact desquelles la poussière ou les vapeurs peuvent s'enflammer.

3. Assurez-vous qu'aucun enfant ou curieux ne

s'approche pendant que vous utilisez un outil électrique. Vous risquez de perdre la maîtrise de

l'outil si votre attention est détournée.

Acier doux 1,6 mm / 16 ga

Acier inoxydable 1,2 mm / 18 ga

Aluminium 2,5 mm / 12 ga

Bord extérieur 50 mm (2")

Bord intérieur 45 mm (1-3/4")

GEA006-2

Sécurité en matière d'électricité

4. Les fiches d'outil électrique sont conçues pour s'adapter parfaitement aux prises de courant. Ne modifiez jamais la fiche de quelque façon que ce soit. N'utilisez aucun adaptateur de fiche sur les outils électriques avec mise à la terre. En ne modifiant pas les

fiches et en les insérant dans des prises de courant pour lesquelles elles ont été conçues vous réduirez les risques de choc électrique.

5. Évitez tout contact corporel avec les surfaces

mises à la terre, telles que les tuyaux, radiateurs, cuisinières et réfrigérateurs. Le

risque de choc électrique est plus élevé si votre corps se trouve mis à la terre.

6. N'exposez pas les outils électriques à la pluie ou à l'eau. La présence d'eau dans un outil électrique augmente le risque de choc électrique.

7. Ne maltraitez pas le cordon. N'utilisez jamais

le cordon pour transporter, tirer ou débrancher l'outil électrique. Maintenez le cordon à l'écart des sources de chaleur, de l'huile, des objets à bords tranchants et des pièces en mouvement. Le risque de choc

électrique est plus élevé lorsque les cordons sont endommagés ou enchevêtrés.

8. Lorsque vous utilisez un outil électrique à

l'extérieur, utilisez un cordon prolongateur prévu à cette fin. Les risques de choc électrique

sont moindres lorsqu'un cordon conçu pour l'extérieur est utilisé.

9. Si vous devez utiliser un outil électrique dans

un endroit humide, utilisez une source d'alimentation protégée par un disjoncteur de

+ 19 hidden pages
